Snowmobile Arctic Cat 2-Stroke (2007 year). Instruction - part 114

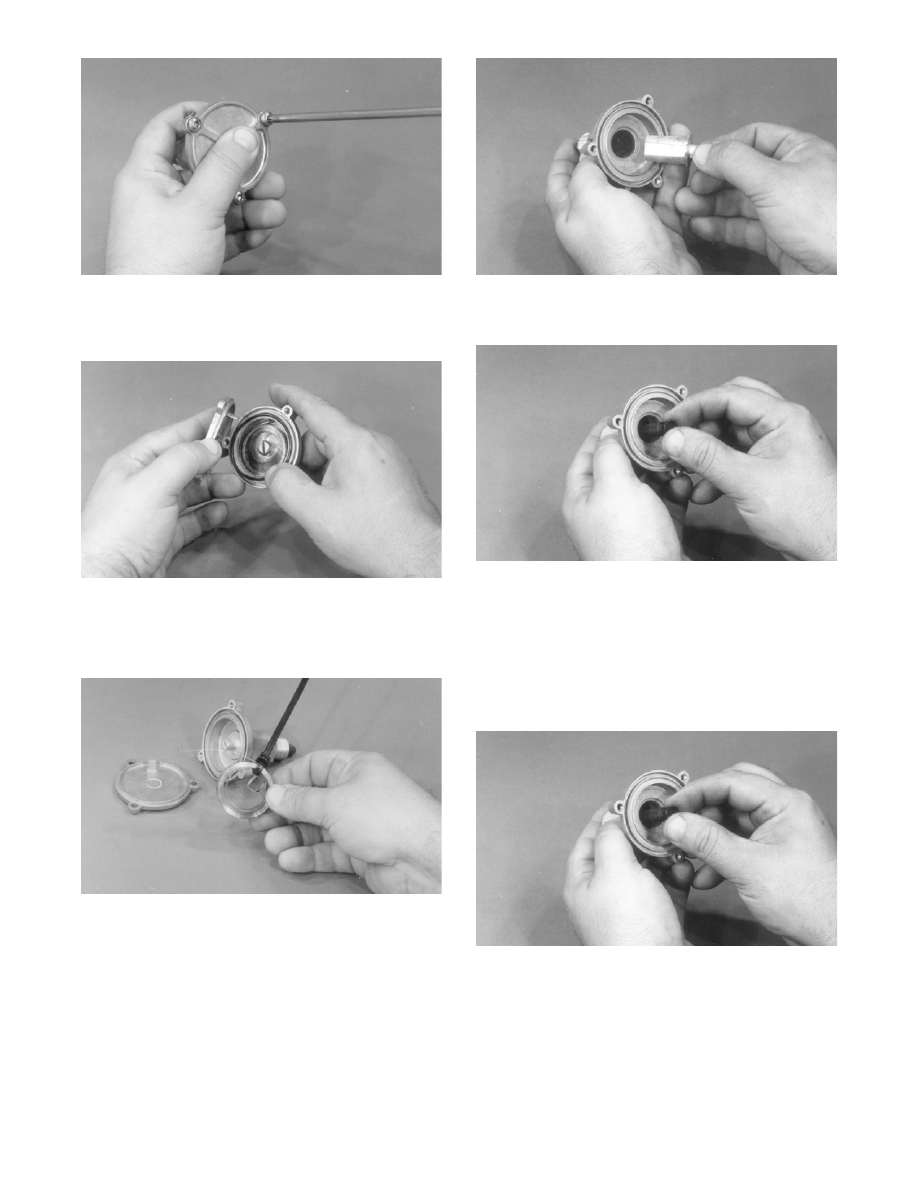

8-76

AF419

6. Slowly and carefully lift the end cap from the

adjuster housing until it is free of the hooked end

of the spring.

AF420

7. Remove the O-ring seal from the adjuster housing.

8. Carefully lift the spring from the housing and

secure the spring using a cable tie.

AF421

9. Remove the set screw from the adjuster housing;

then remove the adjuster socket from the housing

by pulling it free of the adjuster bolt.

AF422

10. Rotate the adjuster bolt counterclockwise until it is

free of the housing; then remove the adjuster bolt.

AF423

11. Wash all components in parts-cleaning solvent and

inspect all components for any signs of wear.

ASSEMBLING AND INSTALLING

1. Apply a light coat of oil to the threads of the

adjuster bolt; then turn the adjuster bolt clockwise

into the housing a few turns.

AF423

2. Slide the adjuster socket over the end of the

adjuster bolt and push the socket down firmly into

position. Rotate the adjuster socket clockwise until

its flange seats against the housing inner surface.

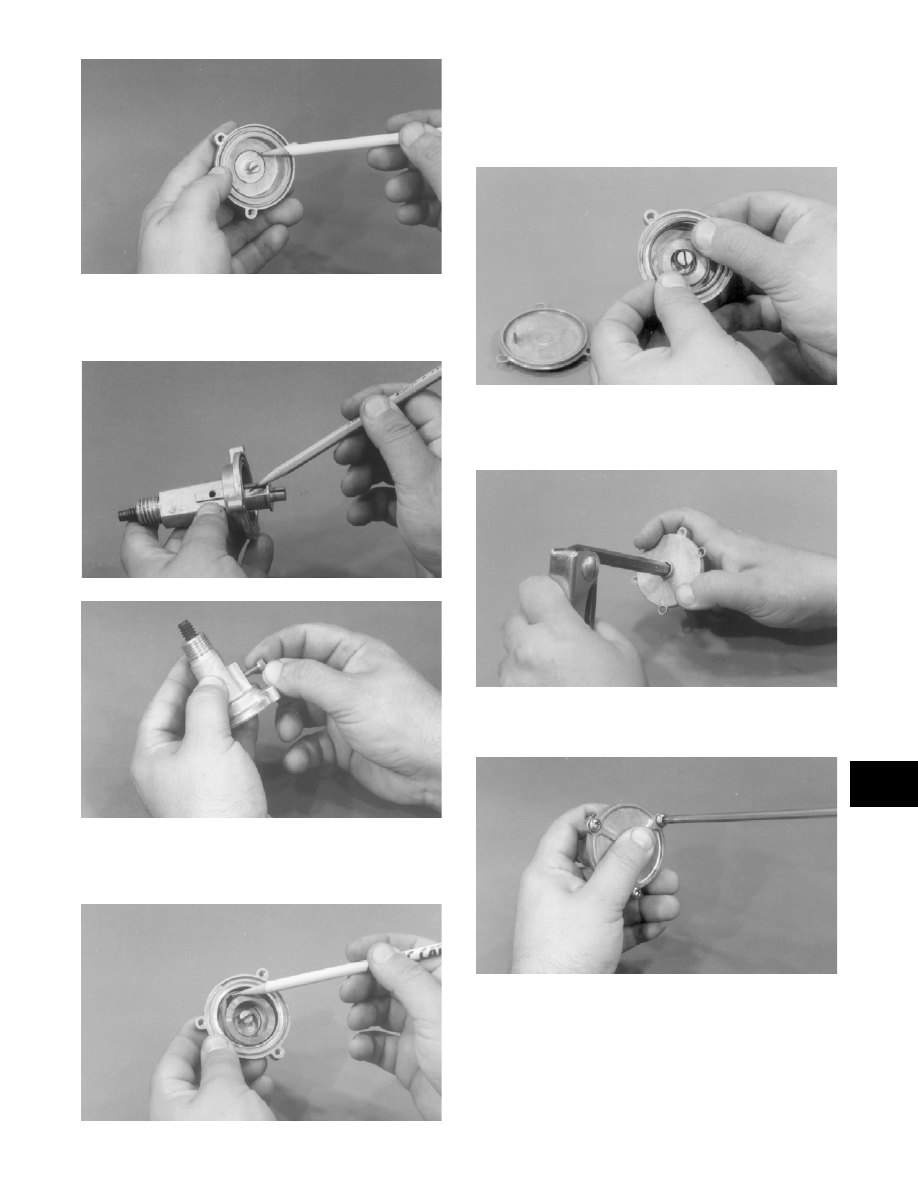

8-77

8

AF424

3. With the flat surface of the adjuster socket located

under the threaded hole in the housing, install an

8-32 set screw.

AF403

AF425

4. Install the bent tab of the spring into the slot of the

adjuster socket with the outer hooked end of the

spring positioned in the clockwise direction.

AF406

5. With the spring in position, remove the cable tie

used to prevent it from unwrapping.

6. Place the O-ring seal into position; then set the end

cap into position. Make sure its tab is hooked into

the end of the spring.

AF405

7. While holding the end cap down into position,

rotate the end cap 20 turns clockwise to tension the

spring.

AF400

8. Install the three cap screws (coated with blue Loc-

tite #243) and tighten to 1 kg-m (7 ft-lb).

AF419

9. Apply a thin coat of grease to the spring and place

the spring into position in the end of the adjuster

bolt.

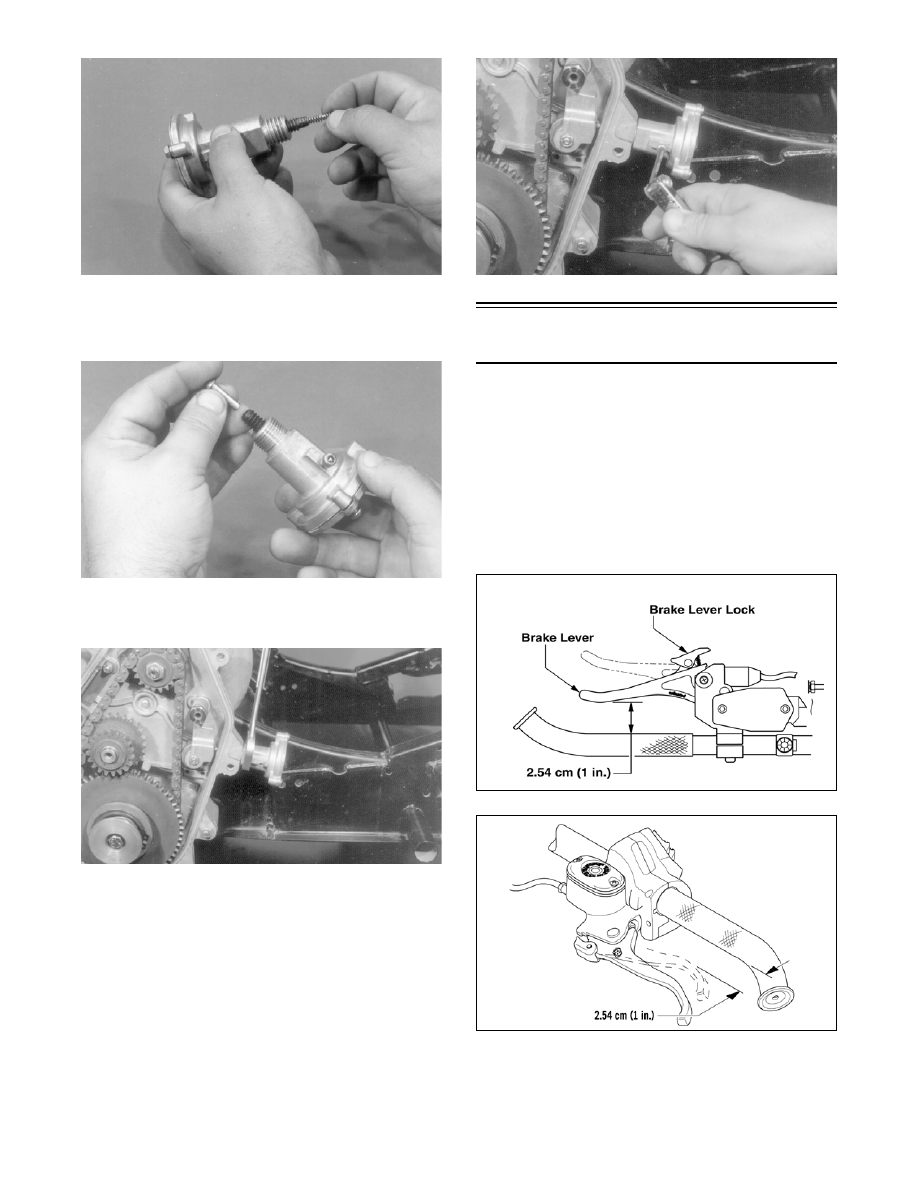

8-78

AF401

10. Use a thin coat of grease on the stem shaft to hold

it in position; then place the stem into the end of

the adjuster bolt.

AF418

11. Securely tighten the adjuster assembly to the chain

case.

AF417

12. Remove the set screw from the adjuster housing

and install the cap screw.

AF416

Brake System

(Hydraulic)

CHECKING BRAKE LEVER TRAVEL

1. Compress the brake lever fully.

„NOTE: Do not pump the brake lever as it will pro-
duce an inaccurate reading.

2. Measure the distance between the brake lever and

the handlebar. The distance must be greater than

2.54 cm (1 in.).

740-159B

741-328C

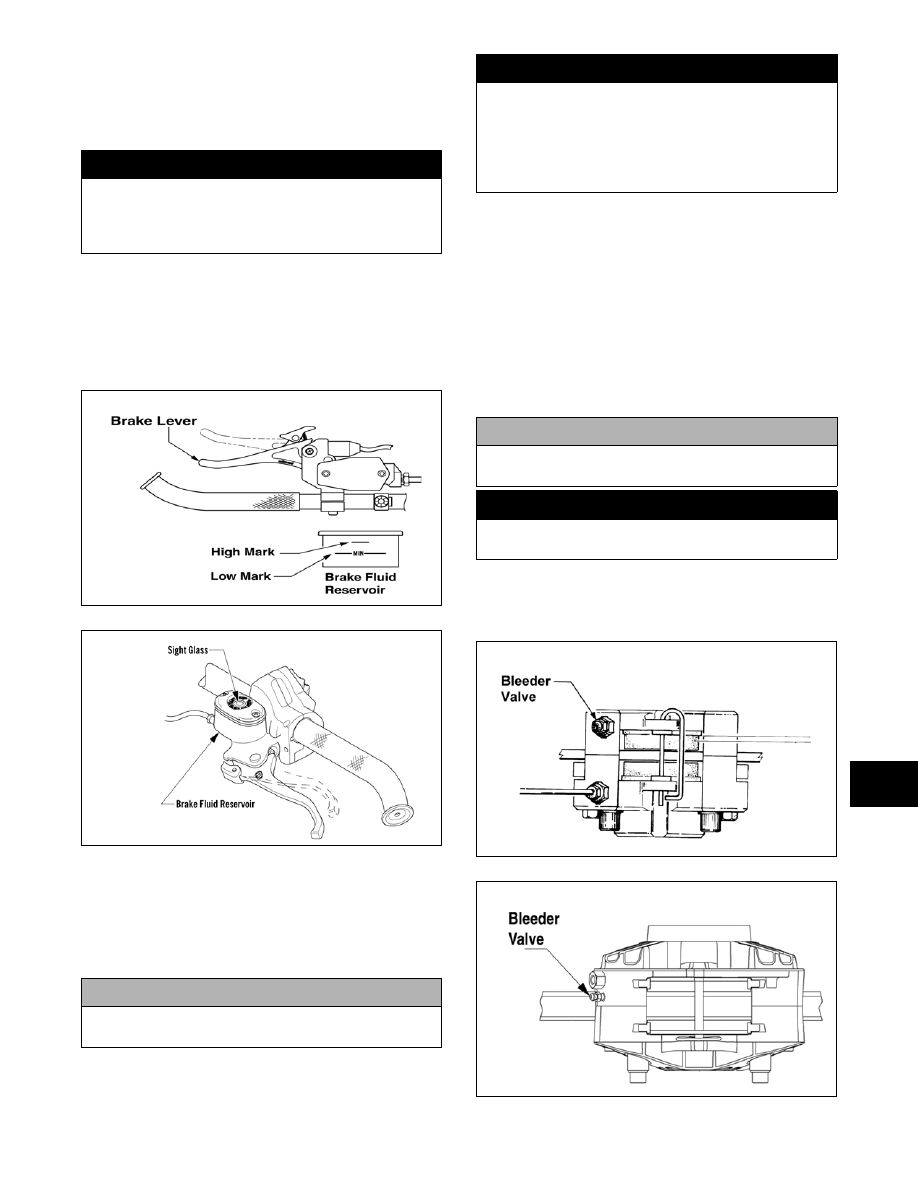

8-79

8

3. If the distance is less than specified, check the

brake fluid level (see Checking and Adding Brake

Fluid in this sub-section), inspect for leakage, and

check the brake pads (see Checking and Replacing

Brake Pads in this sub-section).

CHECKING AND ADDING BRAKE
FLUID

1. With the master cylinder in a level position, check

fluid level in the reservoir. The brake fluid level

must be just below the high mark.

740-159A

741-328D

2. If the brake fluid level is below the low mark,

remove the reservoir cover and add approved

brake fluid until the fluid level is just below the

high mark. Install and secure the reservoir cover.

DO NOT allow moisture to contaminate the brake

system.

CHANGING BRAKE FLUID

The brake fluid must be changed on a regular basis

and/or whenever the brake fluid has been overheated

or contaminated. The brake fluid should be changed

every 1000 miles or at the end of the snowmobiling

season, whichever occurs first.

Arctic Cat recommends the removal and disassembly

of the brake caliper assembly when changing the brake

fluid (see Removing/Installing Caliper in this sub-sec-

tion).

1. Slide a piece of flexible tubing over the ball of the

bleeder valve and direct the other end into a con-

tainer.

730-434H

739-269B

! WARNING

Do not operate the snowmobile if the distance
between the compressed brake lever and handlebar
is less than 2.54 cm (1 in.). Brake loss may occur.
Brake loss can result in severe personal injury.

! CAUTION

Brake fluid is highly corrosive. Do not spill brake
fluid on any surface of the snowmobile.

! WARNING

Do not overfill the master cylinder reservoir. Overfill-
ing the reservoir may cause the brake system to
hydraulically lock. Use only approved brake fluid.
Never substitute or mix different types or grades of
brake fluid. Brake loss may occur. Brake loss can
result in severe injury or even death.

! CAUTION

Brake fluid is highly corrosive. Do not spill brake
fluid on any surface of the snowmobile.

! WARNING

Use only Arctic Cat approved brake fluid. Any sub-
stitute may result in a loss of brakes.

STD

ACT
