8-72

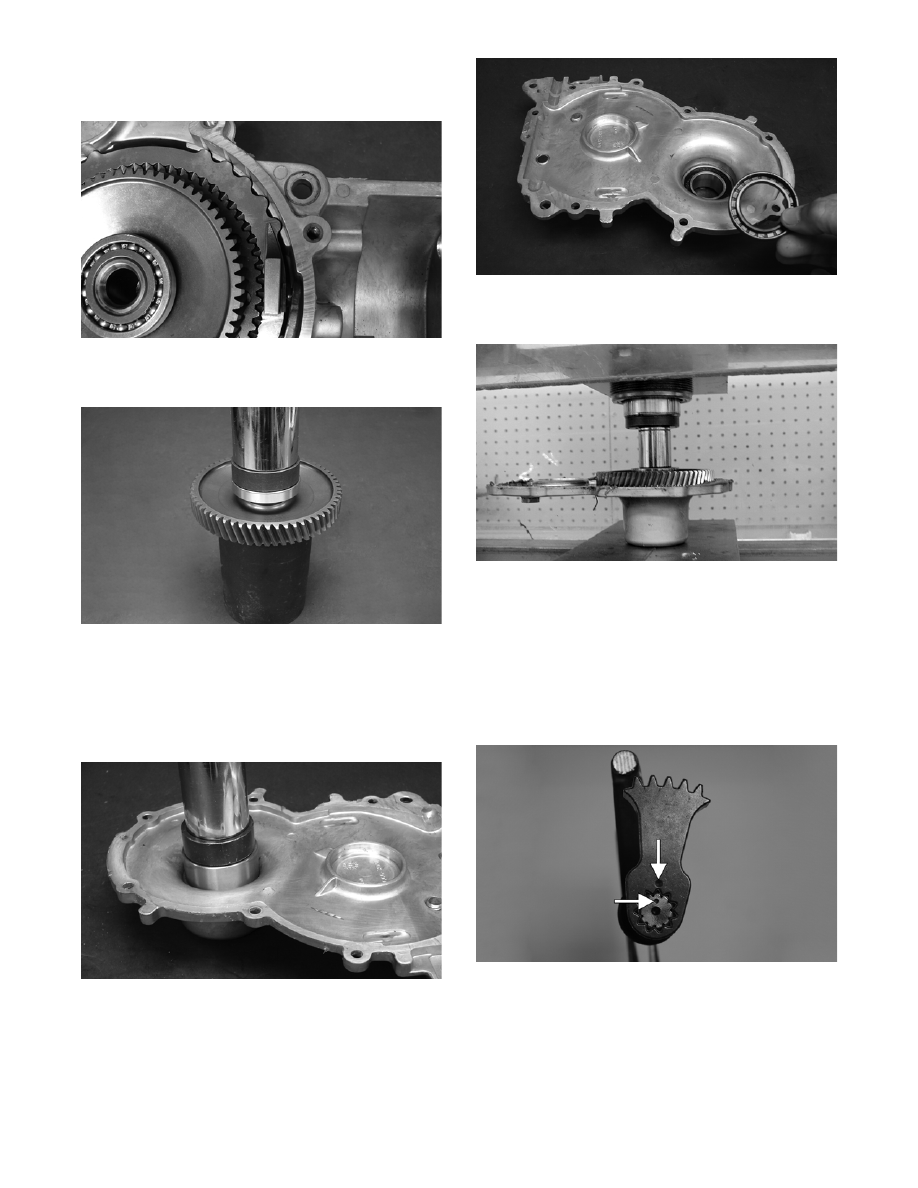

7. With the alignment notches of the slider and gear

case properly positioned, install the slider/output

gear assembly into the gear case.

ZJ201

8. Using a suitable bearing press, install the outer

bearing onto the transfer gear shaft.

ZJ199

9. Using a suitable bearing press and fixture, install

the input shaft bearing to the gear case; then install

the oil seal.

„NOTE: Grease must be applied to the seal prior
to installing.

ZJ202

ZJ204

10. Using a suitable press, install the input shaft to the

gear case cover.

MS349

11. Install the first retaining ring onto the shift fork

shaft; then install a new oil seal.

„NOTE: It is advisable to apply a film of grease to
the oil seal prior to installing.

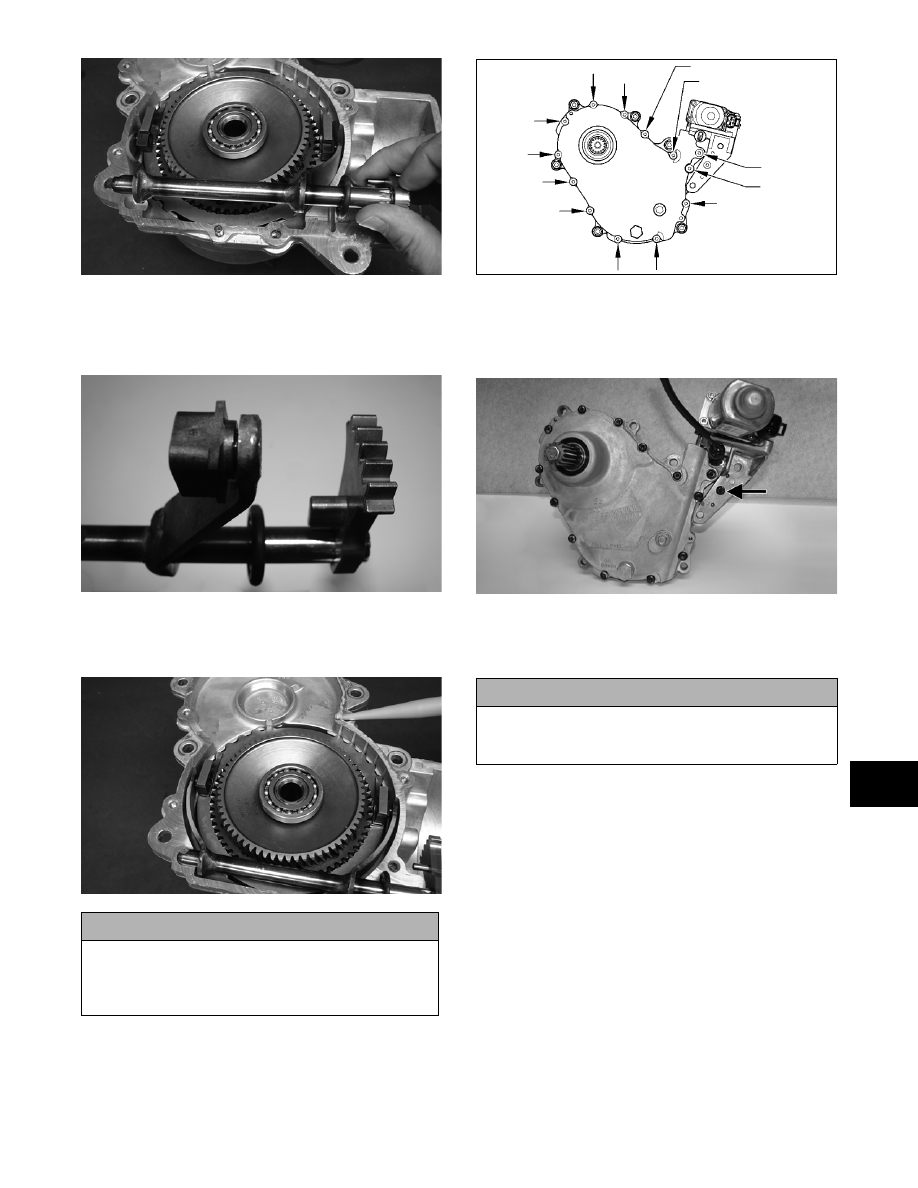

12. With the alignment marks properly positioned,

install the shift fork arm to the shaft. Secure the

arm with the remaining retaining ring.

ZJ301A

13. Install the slider blocks to the shift fork assembly;

then install the fork assembly into the slider and

gear case.

8-73

8

ZJ205

„NOTE: Make sure to install the slider blocks with
the rounded end up and the raised edges facing to
the outside of each other.

ZJ302

14. Apply a 1/8-in. bead of Loctite Sealant (p/n

1048-059) to the sealing surfaces of the gear

case.

ZJ207

15. With the dowel pins in place, install the cover to

the gear case and secure with 13 torx-head cap

screws; then in a crisscross pattern, tighten to

specifications.

0742-196

16. Install the shift actuator and secure with the torx-

head cap screw. Tighten to specifications. Install

the gear indicator switch; then tighten to specifica-

tions.

FS269A

17. Pour 354 ml (12 fl oz) of Arctic Cat ACT Drive

Fluid (p/n 4639-025) into the drain/fill hole; then

install the plug. Tighten securely.

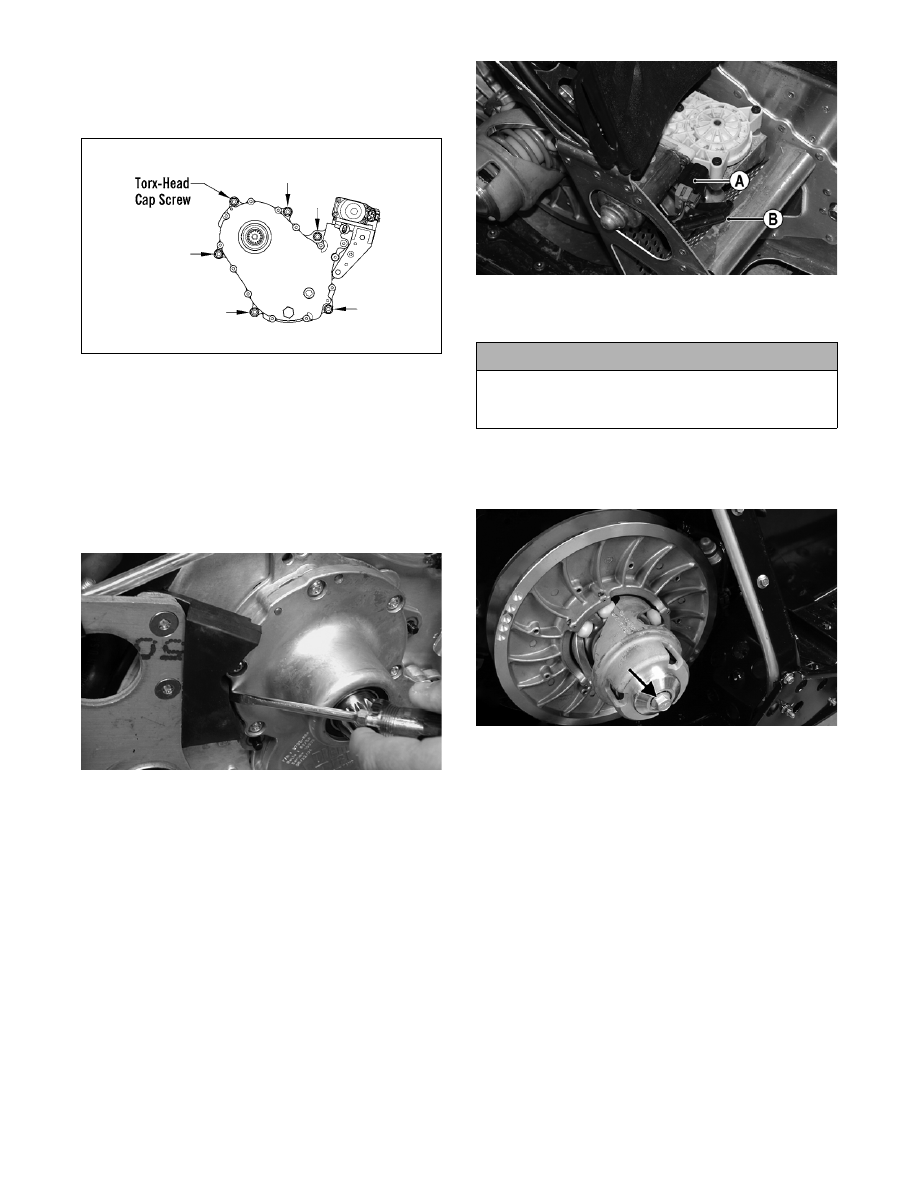

INSTALLING GEAR CASE

1. Using a Scotch Brite pad, clean the gear case/drive

unit seal-mating surface on the track driveshaft;

then thoroughly wipe clean.

„NOTE: Prior to placing the gear case onto the
driveshaft, apply a light coat of Arctic Cat Low-
Temp Snowmobile Grease (p/n 0636-593) to the
internal splines of the track driveshaft.

2. Align the gear case output shaft with the splines of

the track driveshaft and position the gear case onto

the mounting studs. Making sure the sensor wire

does not become pinched under the gear case,

push inward on the gear case until it is seated.

3. Using a rubber mallet, lightly tap inward on the

gear case to ensure that is fully seated to the chas-

sis.

! CAUTION

Care must be taken not to allow silicone sealant into
the cap screw holes and dowel pin holes or damage
to the gear case may occur when tightening the cap
screws.

! CAUTION

Do not add more or less than the recommended
amount of drive fluid to the gear case or damage to
the gear case will occur.

8-74

4. Loosely secure the gear case by first installing the

six lock nuts and finger tighten; then install a torx-

head cap screw and the two remaining lock nuts.

Tighten all the nuts to specifications.

0742-017

„NOTE: When tightening the nuts to the proper
torque factor, it is advisable to begin tightening the
nuts located on the bottom of the gear case and
working upward until all nuts are tightened to the
proper torque factor.

5. Install the torque bumper behind the engine

mounting bracket; then carefully work it into place

with the aid of a flat-blade screwdriver.

MS299

„NOTE: Use of a quality silicone spray will aid in
installing the torque bumper.

6. Connect shift actuator harness (A) and gear indica-

tor swich harness (B); then install the left-side

footrest cover and secure with the screws.

FS268A

7. Slide the driven pulley onto the driven shaft mak-

ing sure alignment washers are in place.

8. Secure the driven pulley with components and

hardware as noted in removing. Tighten to specifi-

cations.

ZJ250A

9. Install the drive belt.

„NOTE: For installing drive belt, see Removing/
Installing Drive Belt (ACT Roller Driven Pulley) in
this section.

10. Install the 16 mm cap screw (coated with blue

Loctite #243) securing the driveshaft to the gear

case output shaft; then tighten to specifications.

! CAUTION

It is critical that no less than two 1.5 mm (0.060 in.)
washers are in place on the input shaft when install-
ing the drain pulley.

8-75

8

742-020A

11. Install the drive belt guard and side panels.

„NOTE: If the track was loosened to aid in remov-
ing the gear case, tighten track to proper tension
and alignment.

Chain Adjuster

„NOTE: Some photographs used in this sub-sec-
tion are used for clarity purposes only and are not
designed to depict actual conditions.

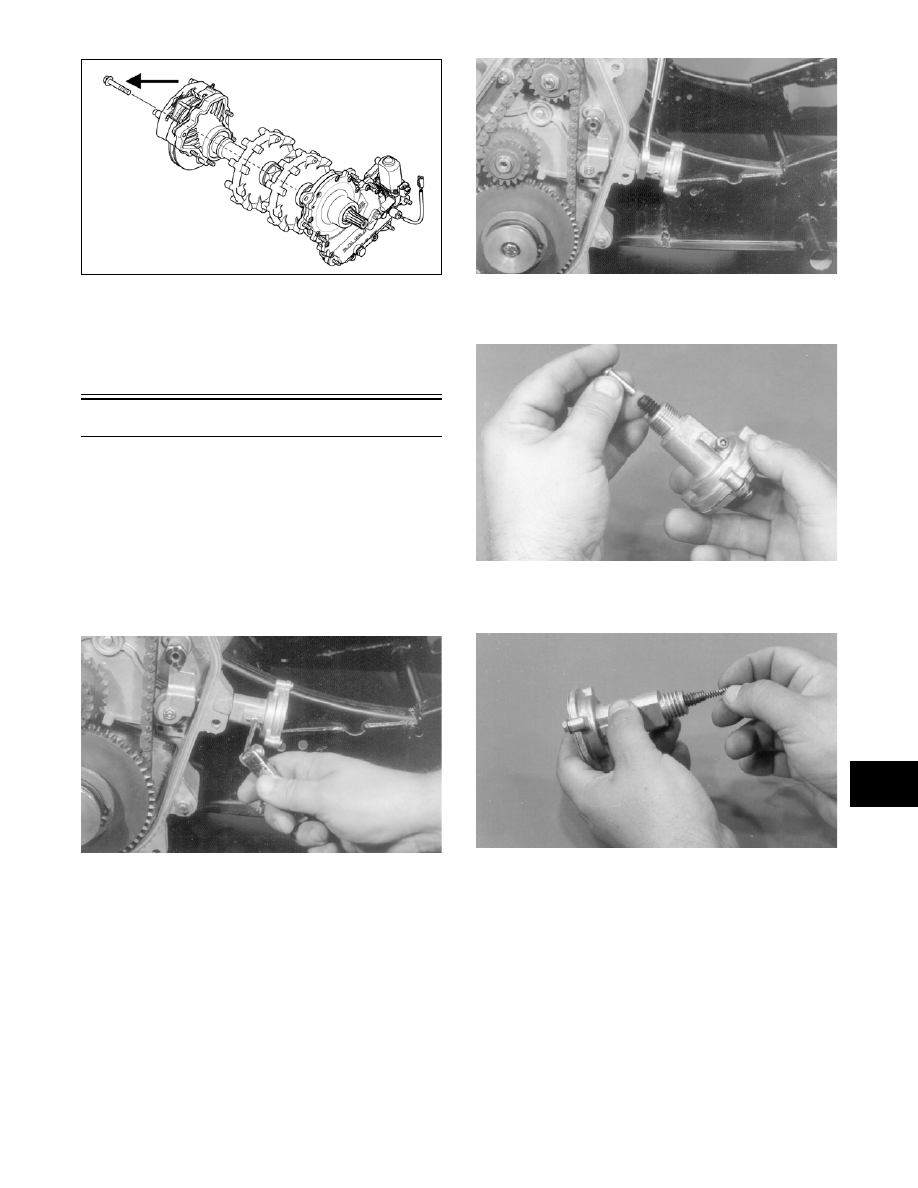

REMOVING AND DISASSEMBLING

1. Remove the small plug from the adjuster housing

and install an 8-32 set screw into the threaded hole

of the adjuster housing.

AF416

2. Using a 3/4-in. wrench, remove the chain adjuster

from the chain case.

AF417

3. Remove the adjuster stem from the end of the

adjuster screw.

AF418

4. Using a small piece of wire, remove the small

spring from the end of the adjuster screw.

AF401

5. While holding the end cap in position, remove the

three cap screws securing the end cap to the

adjuster housing.
