2007 Crossfire 800 EFI

47

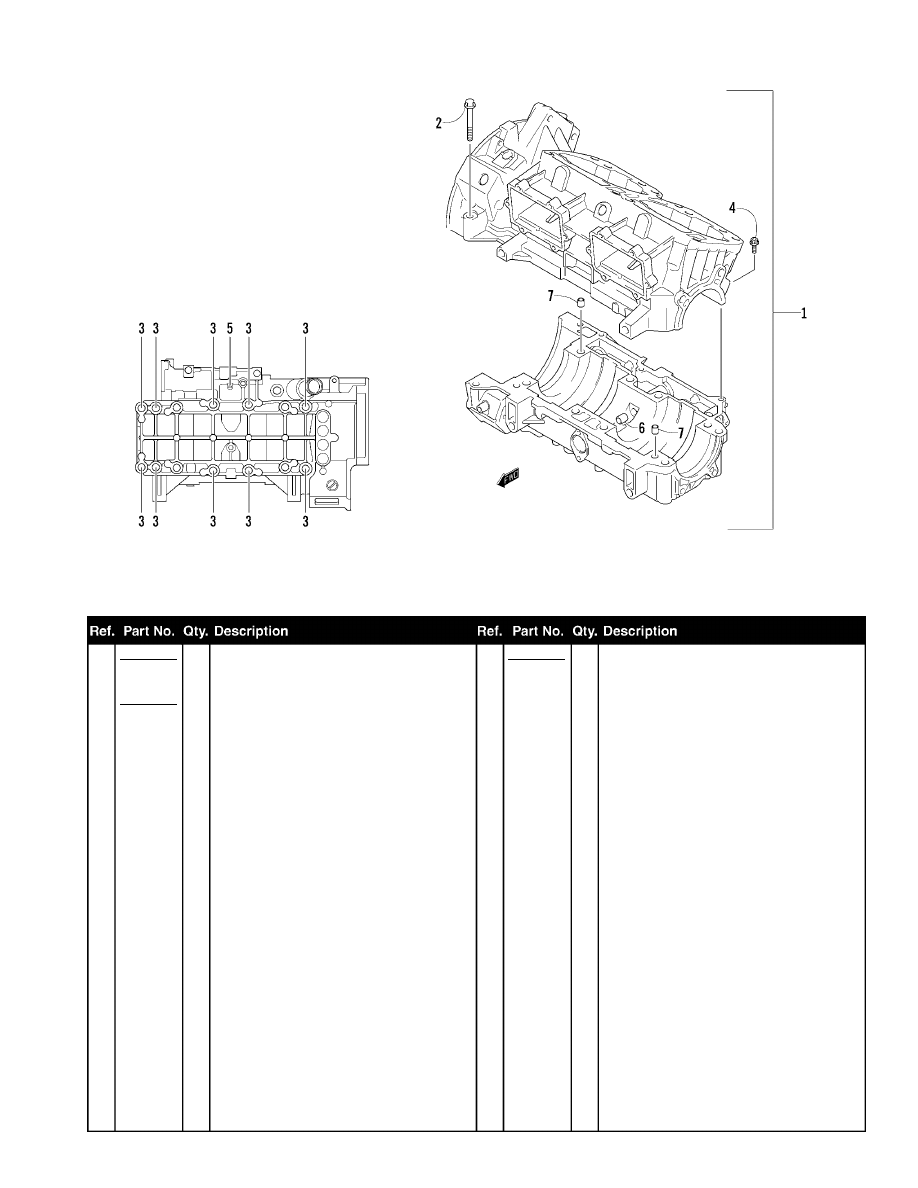

CRANKCASE ASSEMBLY

0742-053

1 3007-526

1

Crankcase (inc. 2-7)

2 3006-538

2

‹ Bolt

3 3006-488 10 ‹ Bolt
4 3007-445

2

‹ Bolt

5 3007-527

1

‹ Bolt

6 3003-647

1

‹ Bushing

7 3005-206

2

‹ Pin, Dowel

2007 Crossfire 800 EFI

48

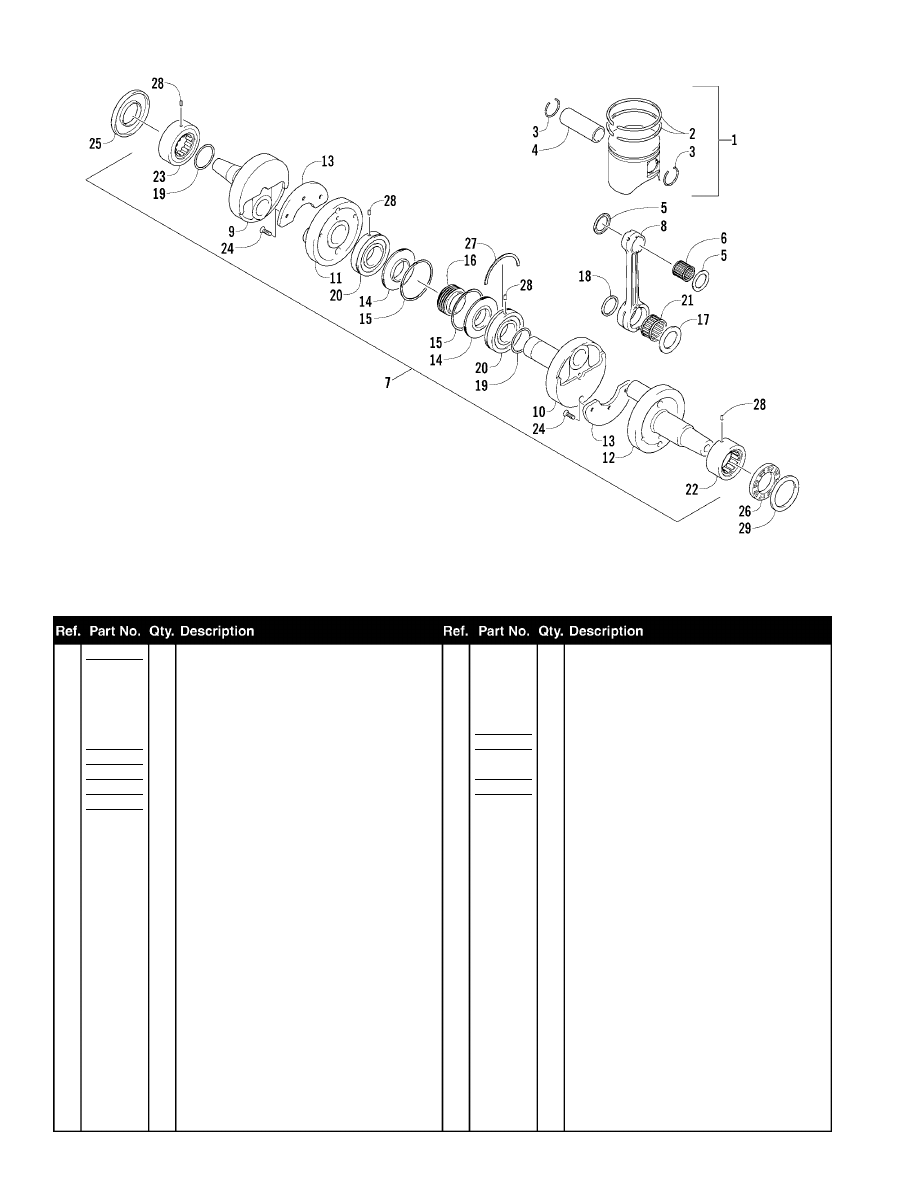

PISTON AND CRANKSHAFT

0742-055

1 3007-528

2

Piston Set (inc. 2-3)

2 3006-394

2

‹ Ring Set, Piston

3 3005-304

4

‹ Circlip, Piston

4 3006-501

2

Pin, Piston

5 3008-500

4

Washer

6 3008-503

2

Bearing

7 3007-529

1

Crankshaft Assembly (inc. 8-26)

8 3007-530

2

‹ Connecting Rod

9 3007-531

1

‹ Crankshaft - Right

10 3007-437

1

‹ Crankshaft - Middle

11 3007-438

1

‹ Wheel, Crankshaft

12 3006-506

1

‹ Crankshaft - Left

13 3006-719

2

‹ Balancer, Crankshaft

14 3006-508

2

‹ Race, Middle Crank Seal

15 3005-508

2

‹ Ring, Middle Crank Seal

16 3006-519

1

‹ Gear, Oil Pump Drive

17 3004-147

2

‹ Washer

18 3006-489

2

‹ Washer

19 3008-495

2

‹ Washer

20 3008-421

2

‹ Bearing

21 3007-532

2

‹ Bearing, Crankshaft Pin

22 3007-439

1

‹ Bearing - Left

23 3006-551

1

‹ Bearing - Right

24 3007-440

6

‹ Screw

25 3007-533

1

‹ Seal, Oil - Right

26 3003-759

1

‹ Seal, Oil - Left

27 3003-359

1

C-Ring

28 3003-658

4

Pin, Alignment

29 3006-552

1

Spacer, Oil Seal

2007 Crossfire 800 EFI

49

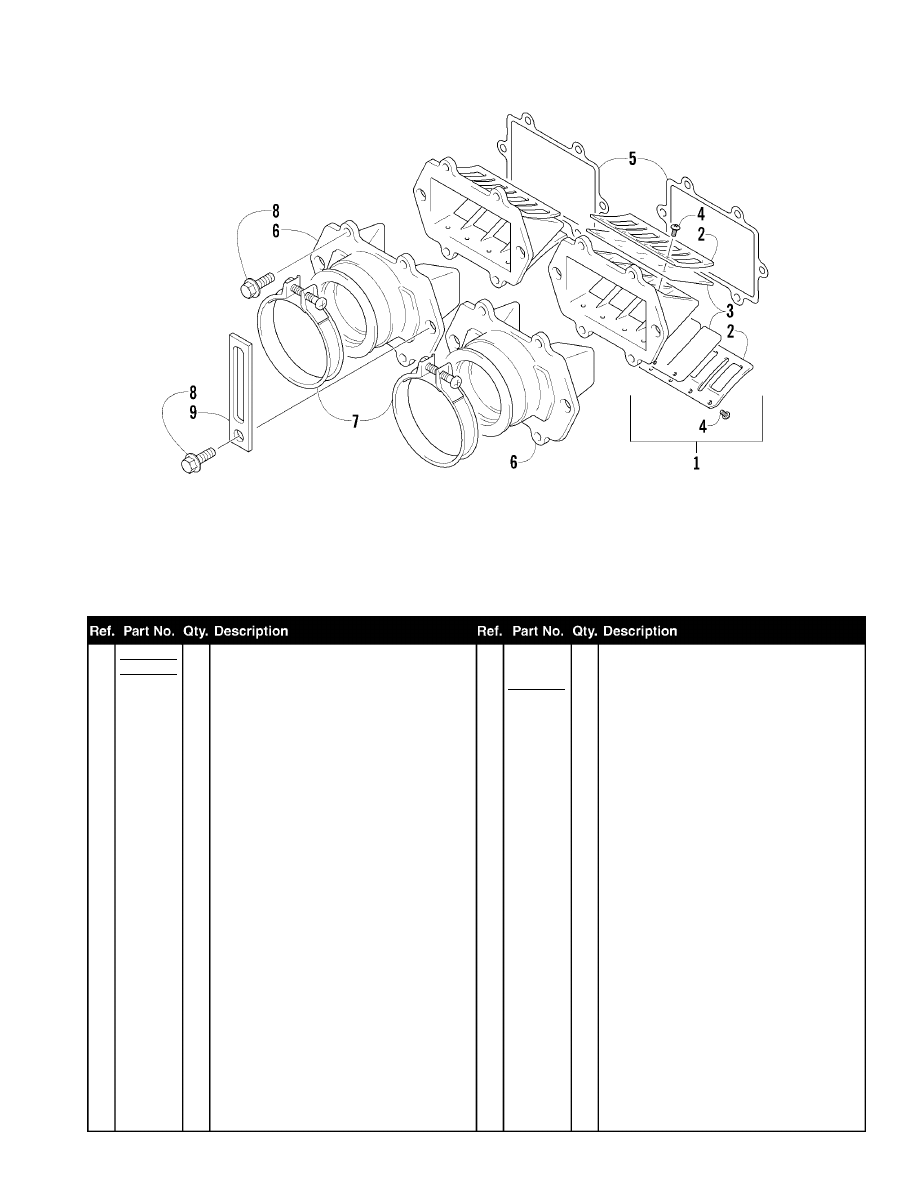

REED VALVE ASSEMBLY

0742-060

1 3007-534

2

Valve, Reed - Assembly (inc. 2-4)

2 3007-535

4

‹ Stopper

3 3005-878

4

‹ Valve, Reed

4 3004-506 16 ‹ Screw
5 3005-879

2

Gasket, Reed Valve

6 3006-527

2

Pipe, Intake

7 3402-455

2

Clamp

8 3007-480 12 Bolt
9 3002-964

1

Clamp, Wire

2007 Crossfire 800 EFI

50

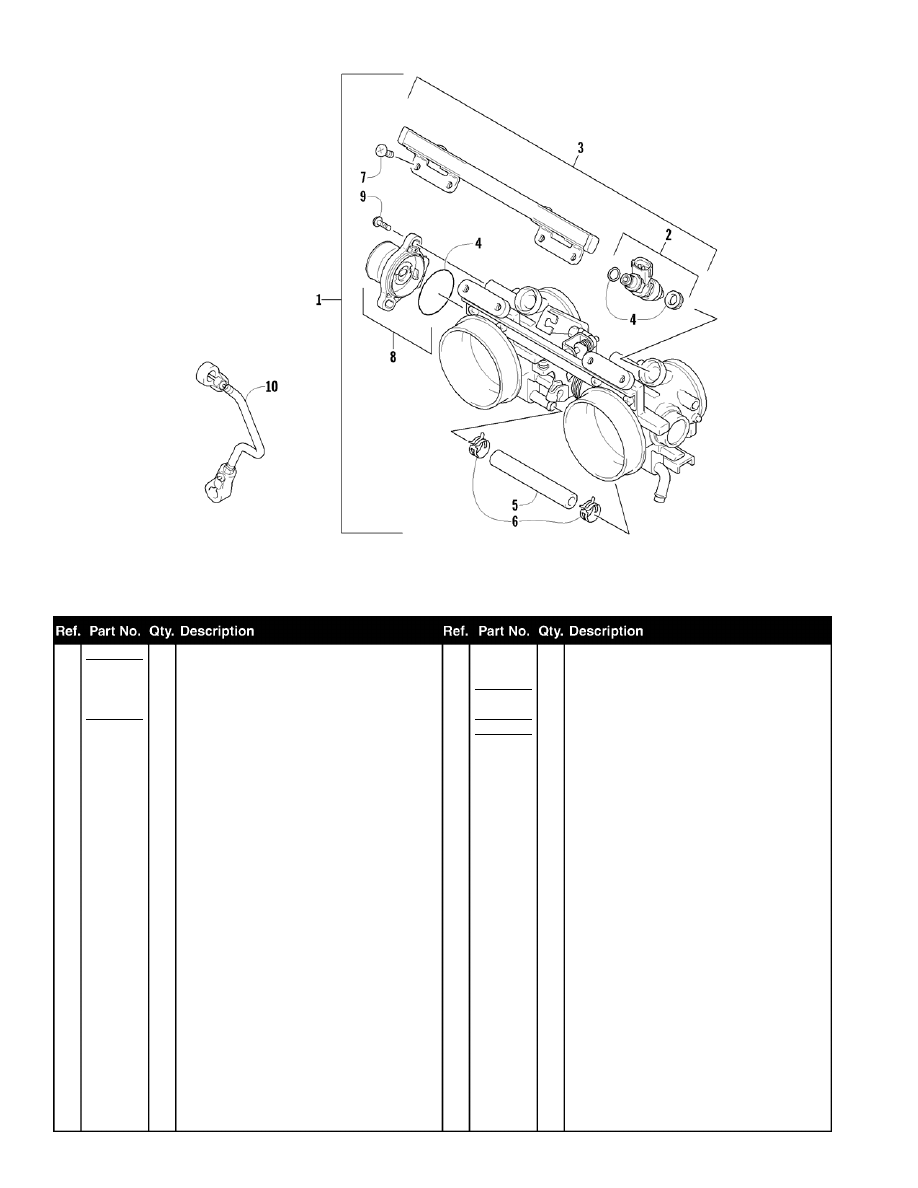

THROTTLE BODY ASSEMBLY

0742-062

1 3007-537

1

Body, Throttle - Assembly (inc. 2-9)

2 3006-059

2

‹ Injector, Fuel - Assembly O

3006-060

2

‹ Injector, Fuel - Assembly Q

3006-061

2

‹ Injector, Fuel - Assembly V

3 3007-442

1

‹ Pipe, Delivery

4 3005-692

1

‹ O-Ring - Set

5 3006-723

1

‹ Hose

6 3004-193

2

‹ Clip

7 3007-443

4

‹ Screw

8 3006-939

1

‹ Sensor, Throttle - Assembly

9 3007-026

2

‹ Screw

10 3007-538

1

Rod, Oil Pump Control
