Snowmobile Arctic Cat Crossfire 800 EFI (2007 year). Instruction - part 14





2007 Crossfire 800 EFI

51

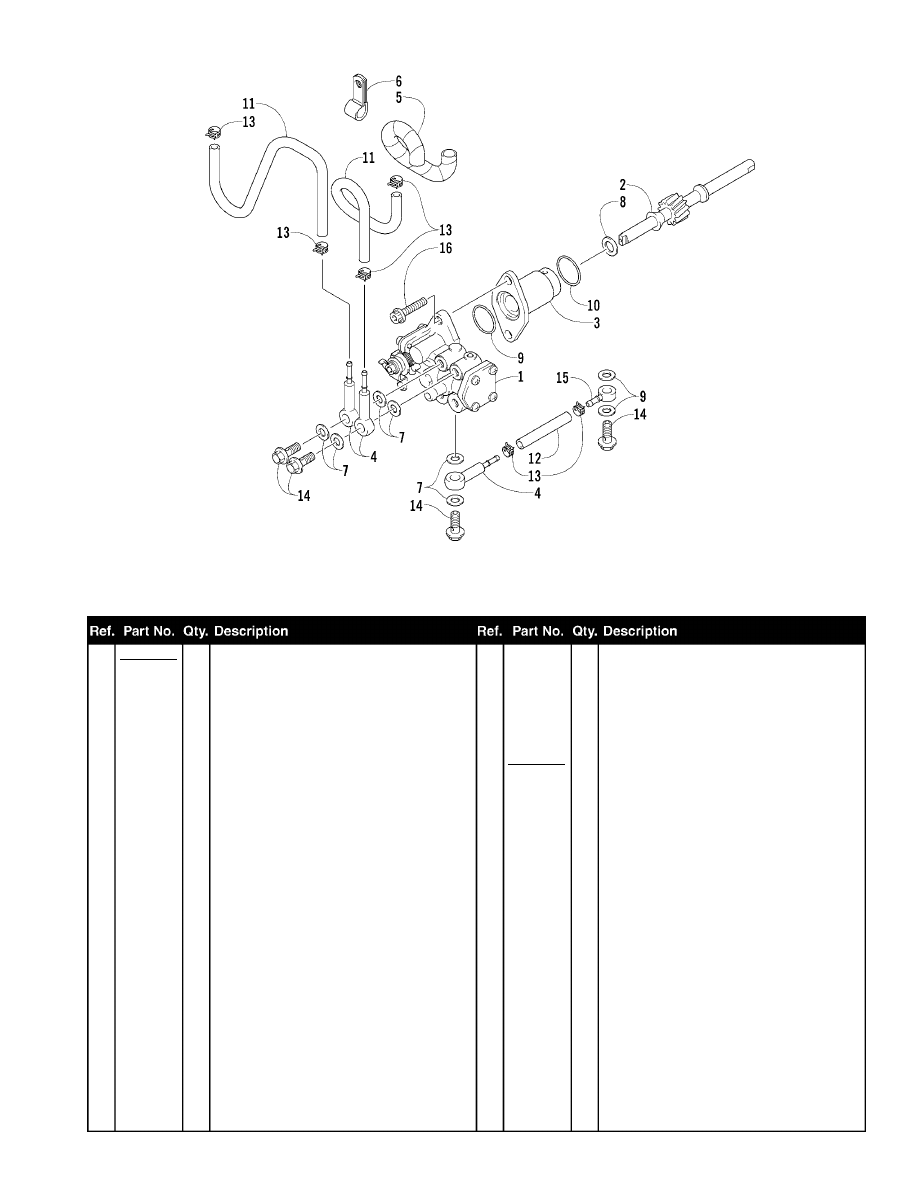

OIL PUMP

0742-077

1 3007-539

1

Pump,  Oil

2 3006-520

1

Gear, Driven - Oil Pump

3 3004-884

1

Retainer, Oil Pump Input Shaft

4 3003-217

3

Valve, Check

5 3005-032

2

Protector

6 3005-696

2

Clamp

7 3402-009

8

Gasket

8 3423-300

1

Shim, Oil Pump Shaft

9 3008-030

1

O-Ring

10 3005-126

1

O-Ring

11 3008-035

2

Hose, Oil

12 3005-357

1

Hose

13 3008-037

6

Clamp, Hose

14 3004-436

4

Bolt

15 3003-661

1

Union

16 3007-445

2

Bolt

2007 Crossfire 800 EFI

52

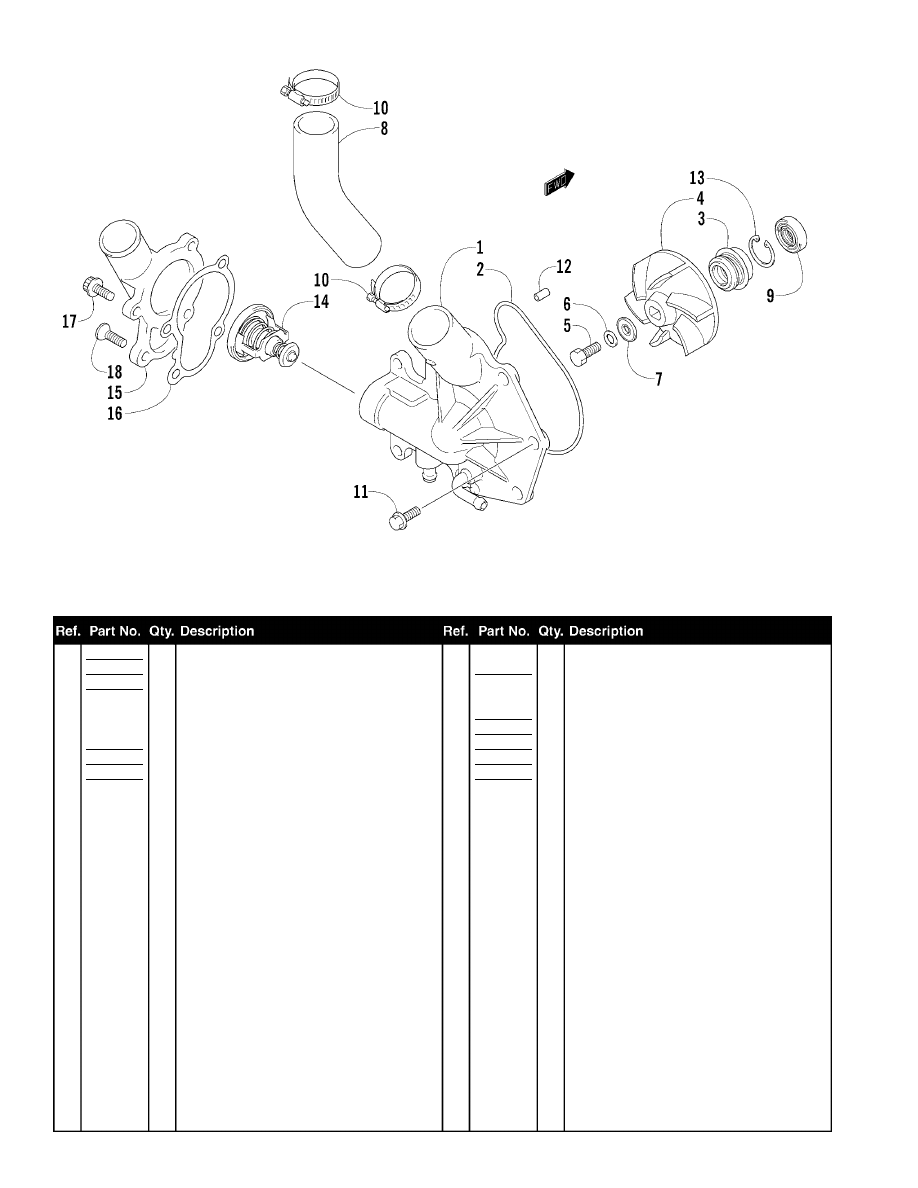

WATER PUMP/WATER MANIFOLD

0742-079

1 3007-540

1

Case, Water Pump

2 3007-541

1

O-Ring, Water Pump Case

3 3007-180

1

Seal, Water Pump

4 3005-697

1

Impeller, Water Pump

5 3003-426

1

Bolt

6 3003-431

1

Washer

7 3007-432

1

Gasket

8 3007-542

1

Hose, Water Inlet

9 3007-431

1

Seal, Oil

10 3004-786

2

Clamp

11 3007-409

7

Bolt

12 3005-899

2

Pin, Dowel

13 3004-009

1

Circlip

14 3007-041

1

Thermostat

15 3007-304

1

Cap, Thermostat

16 3007-543

1

Gasket, Thermostat Cap

17 3007-446

3

Bolt

18 3007-306

1

Bolt

2007 Crossfire 800 EFI

53

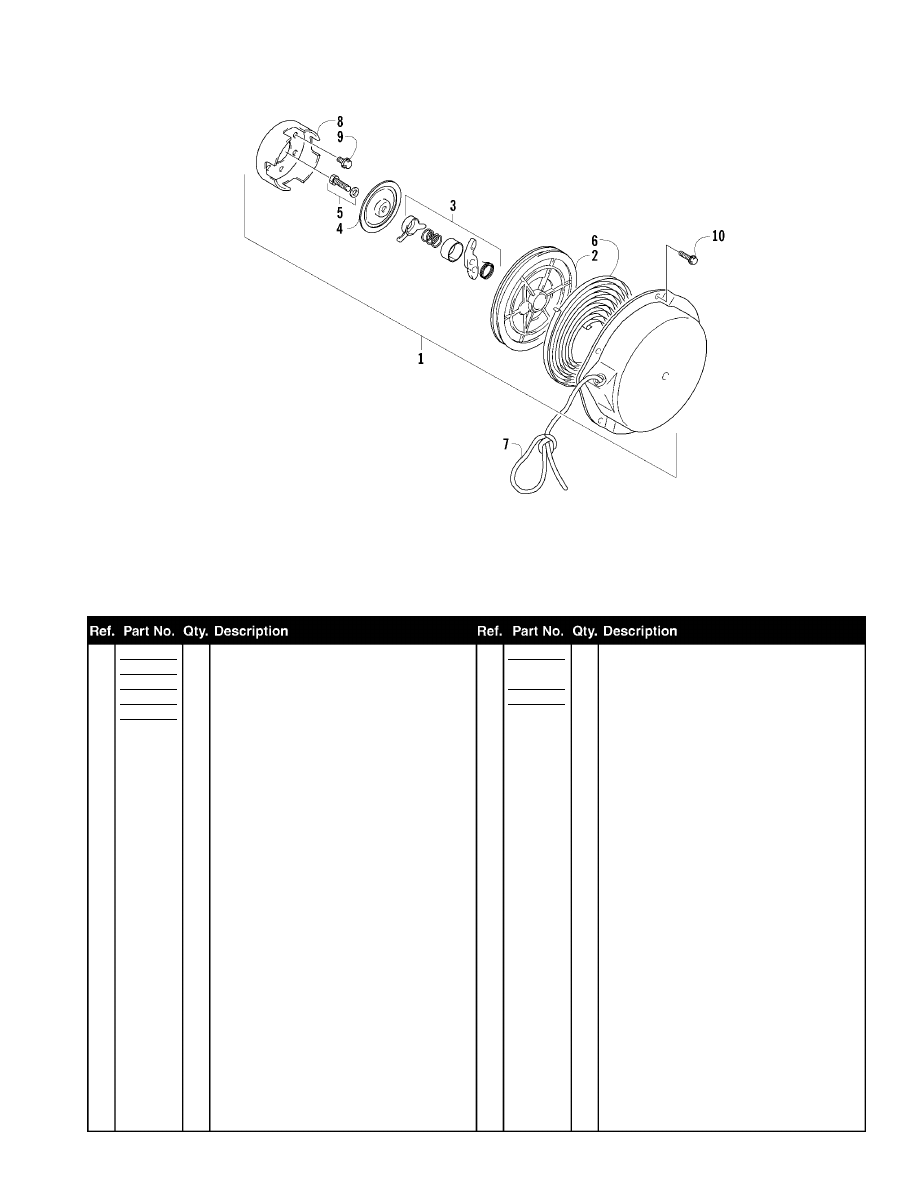

RECOIL STARTER

0741-373

1 3007-307

1

Starter Assembly (inc. 2-6)

2 3007-308

1

‹ Roller, Starter

3 3007-309

1

‹ Ratchet Set

4 3007-310

1

‹ Plate, Friction

5 3007-311

1

‹ Bolt w/Washer

6 3007-312

1

‹ Spring

7 3006-889

1

Rope, Starter

8 3007-544

1

Pulley, Starter

9 3007-407

3

Screw, Cap

10 3423-346

5

Screw, Cap

2007 Crossfire 800 EFI

54

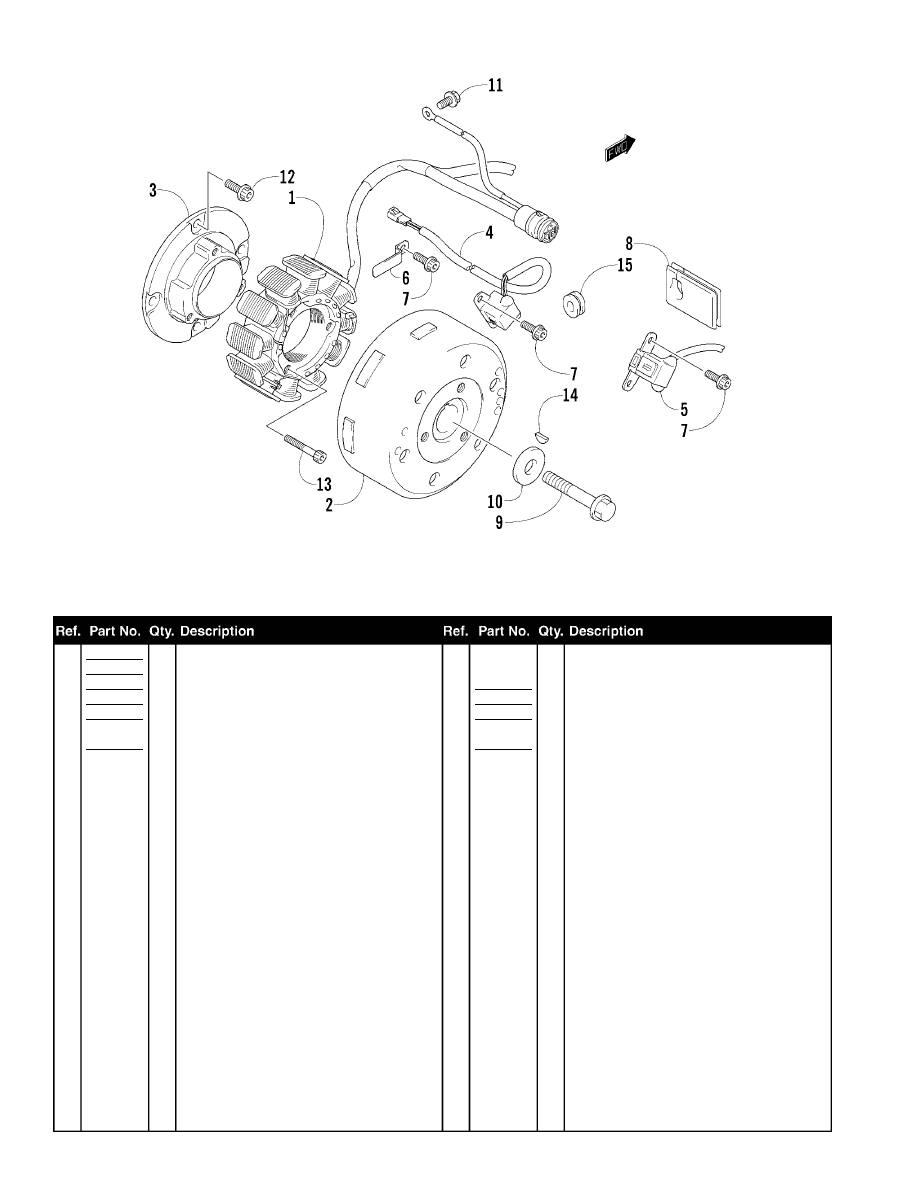

MAGNETO

0742-081

1 3007-545

1

Stator

2 3007-315

1

Rotor/Flywheel

3 3007-546

1

Base, Stator - Plate

4 3007-317

1

Sensor, Ignition Timing

5 3007-318

1

Sensor, Ignition Timing

6 3005-960

1

Plate, Stator Lead Wire

7 3007-433

5

Bolt

8 3005-775

1

Grommet, Stator Lead Wire

9 3006-476

1

Bolt

10 3005-987

1

Washer

11 3007-371

1

Bolt

12 3007-449

4

Bolt

13 3007-450

3

Bolt

14 3004-540

1

Key

15 3007-547

1

Grommet
