Snowmobile Arctic Cat Crossfire 800 EFI (2007 year). Instruction - part 9





2007 Crossfire 800 EFI

31

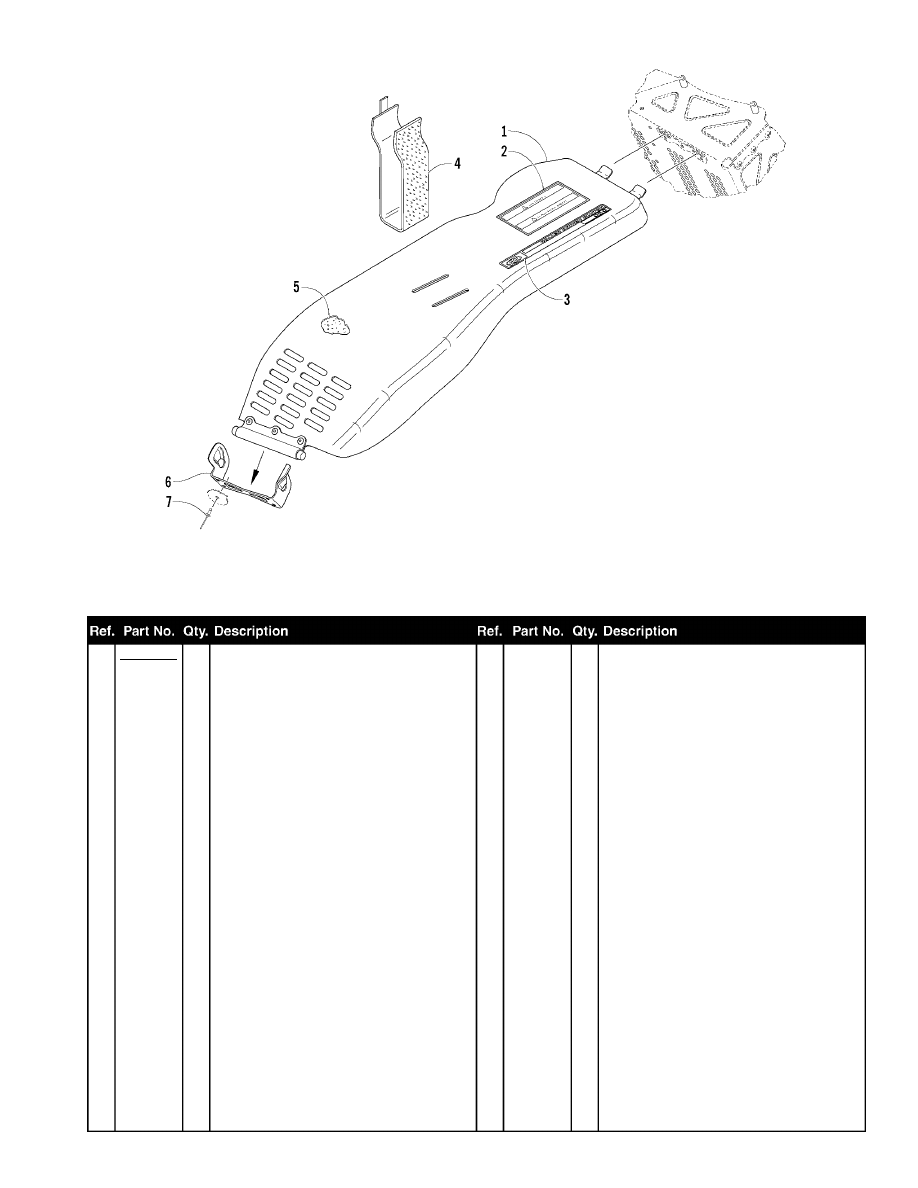

BELT GUARD ASSEMBLY

0741-638

1 1707-094

1

Guard,  Belt

2 1611-565

1

Decal, Warning - Belt Guard

3 3611-969

1

Decal, “ACT - Roller Driven Clutch”

4 0707-582

1

Retainer, Drive Belt

5 0617-497

1

Foam, Belt Guard

6 0607-836

1

Bracket, Mounting

7 8061-506

4

Rivet

2007 Crossfire 800 EFI

32

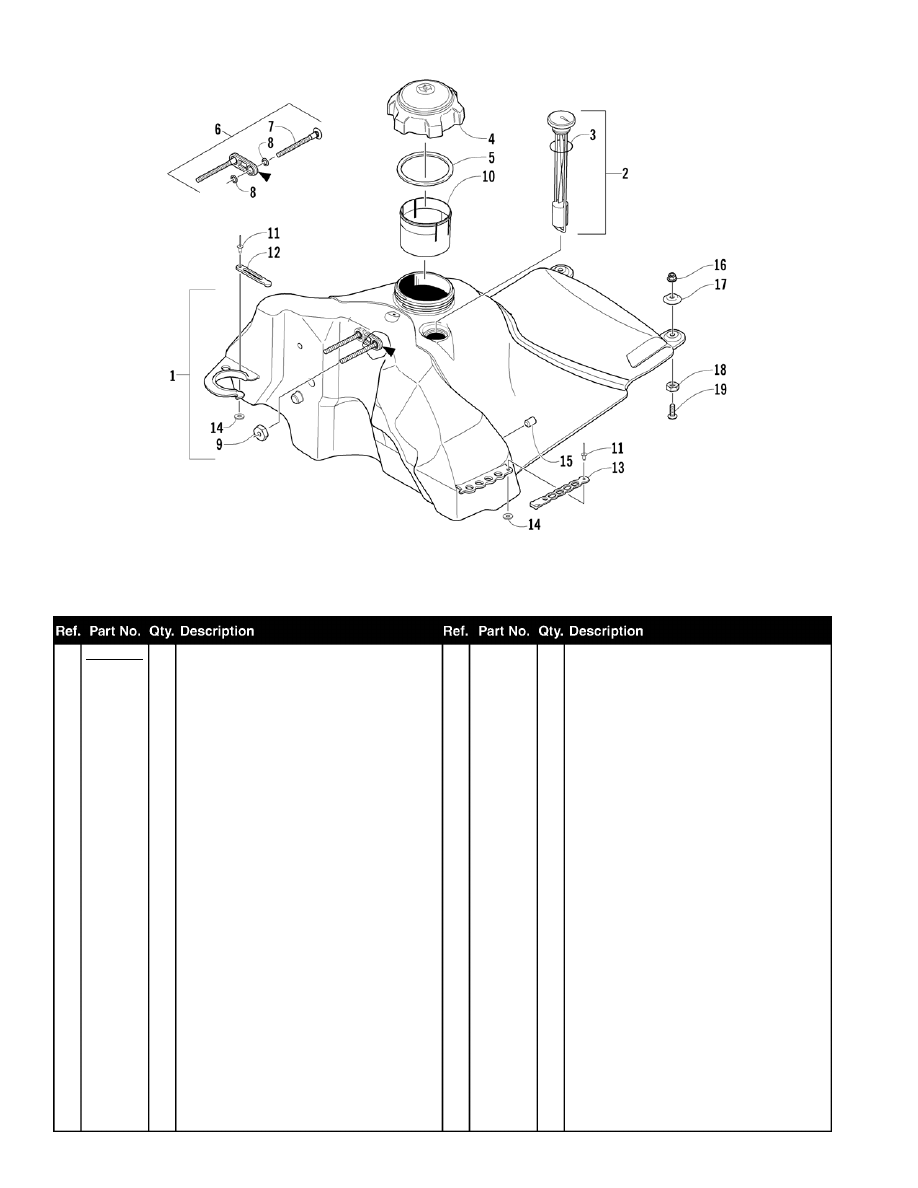

GAS TANK ASSEMBLY

0740-735

1 0770-766

1

Tank, Gas (inc. 2-15)

2 1670-824

1

‹ Gauge, Fuel w/Seal (inc. 3)

3 0470-400

1

‹ ‹ Seal, Fuel Gauge

4 1670-447

1

‹ Cap, Gas Tank (inc. 5)

5 1670-511

1

‹ ‹ Seal, Gas Tank Cap

6 1705-116

1

‹ Plate, Mounting - Steering Post

(inc. 7 and two No. 8)

7 1623-447

2

‹ ‹ Bolt, Carriage

8 1623-448

4

‹ ‹ O-Ring

9 1623-483

2

‹ Nut, Aluminum

10 1670-801

1

‹ Neck, Gas Tank Extension

11 8061-630

2

‹ Rivet

12 3606-173

1

‹ Strap, Hold-Down - Coolant Tank

13 4606-160

1

‹ Strap, Hold-Down - Spark Plug

14 8050-157

2

‹ Washer

15 1623-636

7

‹ Insert

16 8047-366

2

Nut, Lock

17 0123-765

2

Washer, Cup

18 1623-077

2

Nut

19 8017-582

2

Screw, Machine

2007 Crossfire 800 EFI

33

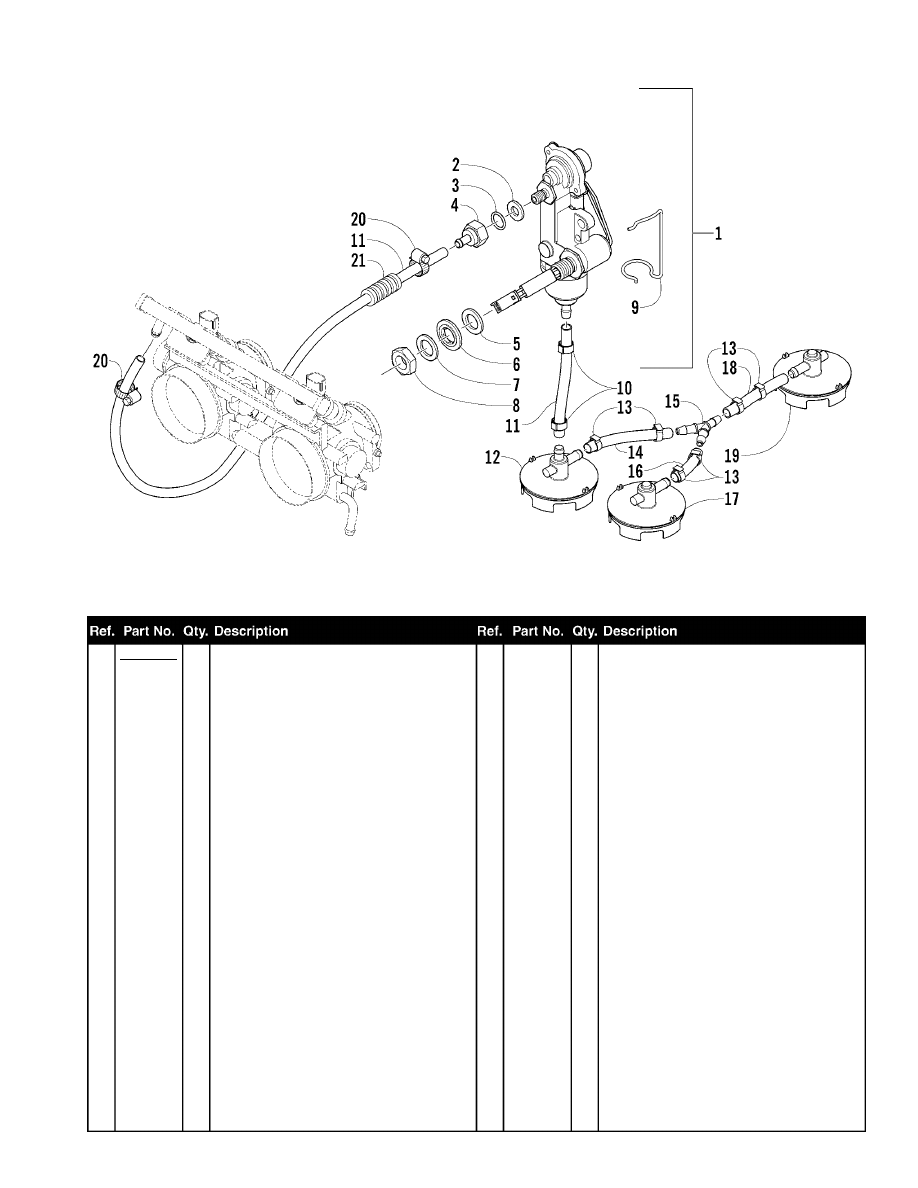

FUEL PUMP ASSEMBLY

0742-122

1 1670-851

1

Pump, Fuel - Assembly (inc. 2-9)

2 1670-535

1

‹ Grommet

3 1670-476

1

‹ O-Ring

4 1670-475

1

‹ Nut, Fuel Pump Fitting

5 1670-534

1

‹ Grommet

6 1670-479

1

‹ Washer, Sealing - Threaded

7 1670-478

1

‹ Washer

8 1670-477

1

‹ Nut, Mounting

9 1670-579

1

‹ Retainer, Wire

10 0610-563

2

Clamp, Hose

11 0610-691 AR Hose, Gasline - 10 ft

12 1670-701

1

Pickup, Fuel

13 1670-706

6

Clamp, Hose

14 1670-703

1

Hose, Gasline

15 1670-705

1

Y-Fitting

16 1670-702

1

Hose, Gasline

17 1670-619

1

Pickup, Fuel

18 1670-704

1

Hose, Gasline

19 1670-618

1

Pickup, Fuel

20 0623-373

2

Clamp, Hose

21 0716-507 AR Conduit, Flexible

2007 Crossfire 800 EFI

34

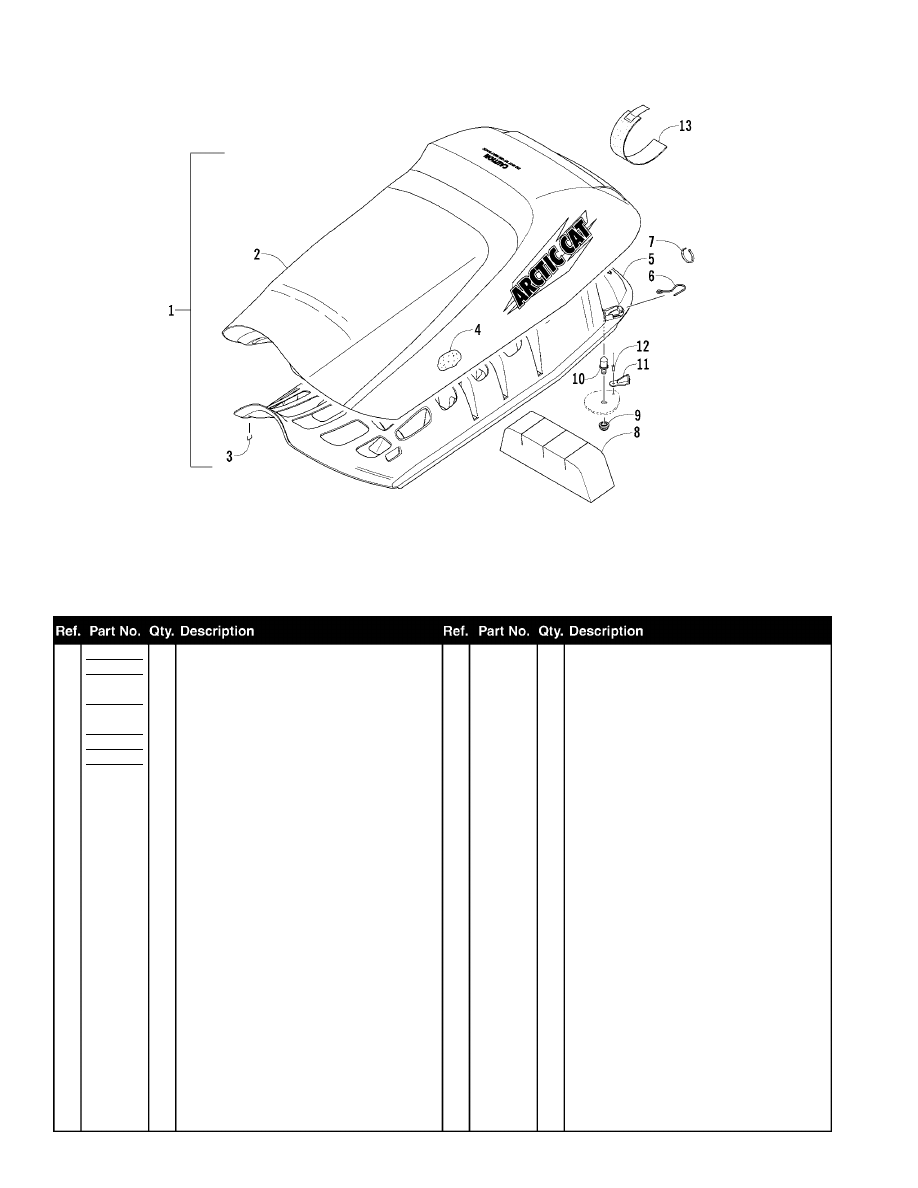

SEAT ASSEMBLY

0741-640

1 7999-231

1

Complete Seat Assembly - Green (inc. 2-8)

7999-230

1

Complete Seat Assembly - Red (inc. 2-8)

(Black)

7999-232

1

Complete Seat Assembly - Orange

(inc. 2-8) (Orange)

2 3706-452

1

‹ Cover, Seat - Green

3706-451

1

‹ Cover, Seat - Red (Black)

3706-453

1

‹ Cover, Seat - Orange (Orange)

3 0624-528 AR ‹ Staple, Seat Cover
4 3706-118

1

‹ Foam, Seat Cushion

5 4606-128

1

‹ Seat-Base

6 1623-393

2

‹ Clip, Retaining - Seat-Base

7 0123-788

2

‹ Cable Tie - 8 in.

8 0617-512

1

‹ Foam, Compartment - Seat

9 8047-426

2

Nut, Lock

10 1623-458

2

Stud, Latch - Seat-Base

11 4606-322

1

Cover, Latch - Seat - Right

12 8061-628

1

Rivet

13 3706-033

1

Retainer, Tool Kit
