5. Remove the pressure valve assembly. Account

for the O-ring.

FS060

6. Using Floating Piston Tool (p/n 0644-402),

remove the floating piston.

FS061

7. Items to inspect:

A. Shock shaft for straightness, nicks, or burrs.

B. Shaft bearing end cap — clean, inspect, or

replace.

C. Inside of shock body for scratches, burrs, or

excessive wear.

D. Piston strap for cuts, chipped or nicked

edges, or excessive wear.

E. O-rings for nicks, cuts, or cracks.

F. Valves for kinks or waves.

G. Rubber damper (ski shocks only) for chip-

ping, cracking, or being missing.

8. Items to replace:

A. Bleed screw O-ring and floating piston O-

ring.

B. Shock shaft bearing cap if any signs of oil

leaks or damage.

C. Any part worn or damaged.

ASSEMBLING

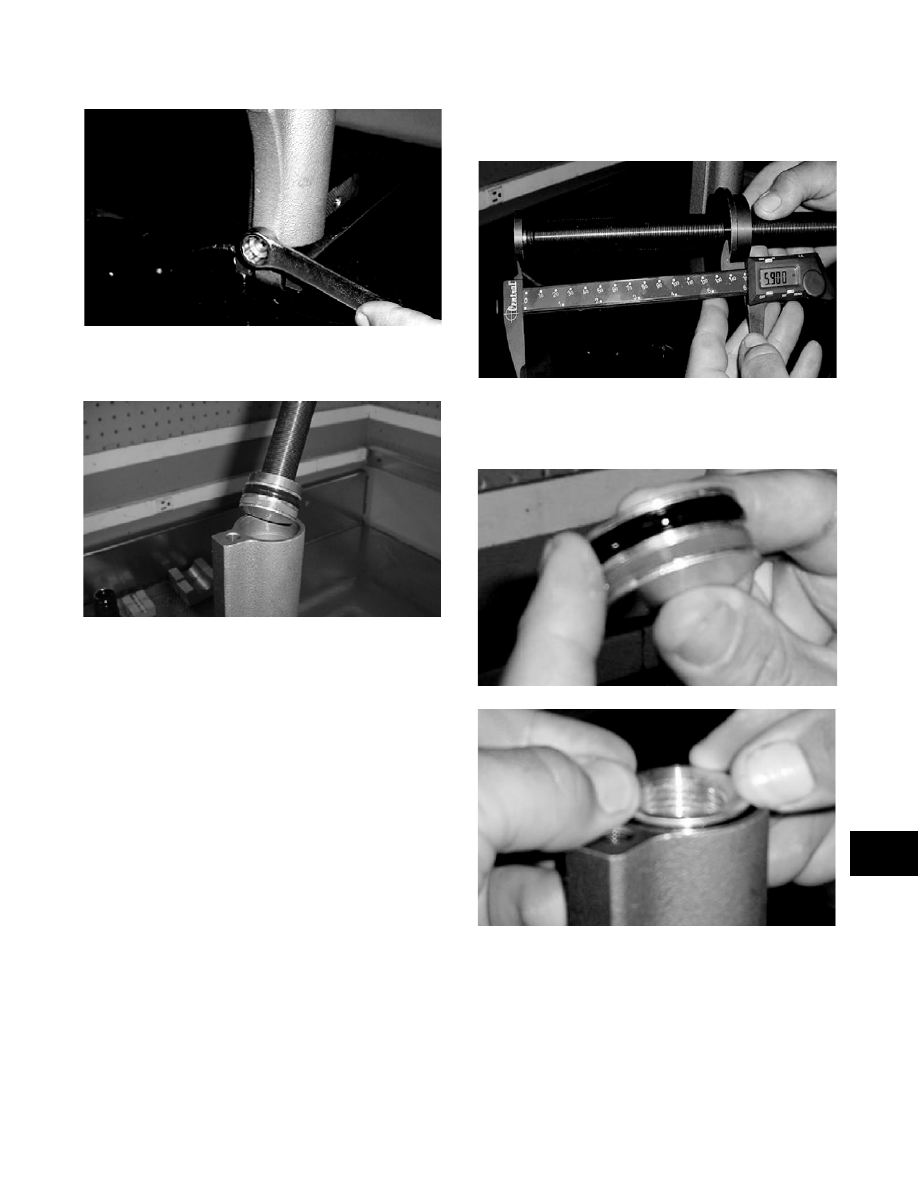

1. Set the Floating Piston Tool (p/n 0644-402) to

the recommended depth (see Rebuildable Shock

Specifications in this section).

FS062

2. Lubricate the O-ring and Teflon strap on float-

ing piston; then press the floating piston into

shock until flush with the top of the body.

FS063

FS064

3. Install the floating piston tool onto floating pis-

ton; then press floating piston into shock body to

the recommended depth.

9-148

FS065

FS066

4. Install bladder assembly and tighten to 2.1-2.5

kg-m (15-18 ft-lb).

FS067

5. Fill shock body with lightweight synthetic

Shock Oil (p/n 2639-151) to bottom of threads.

FS068

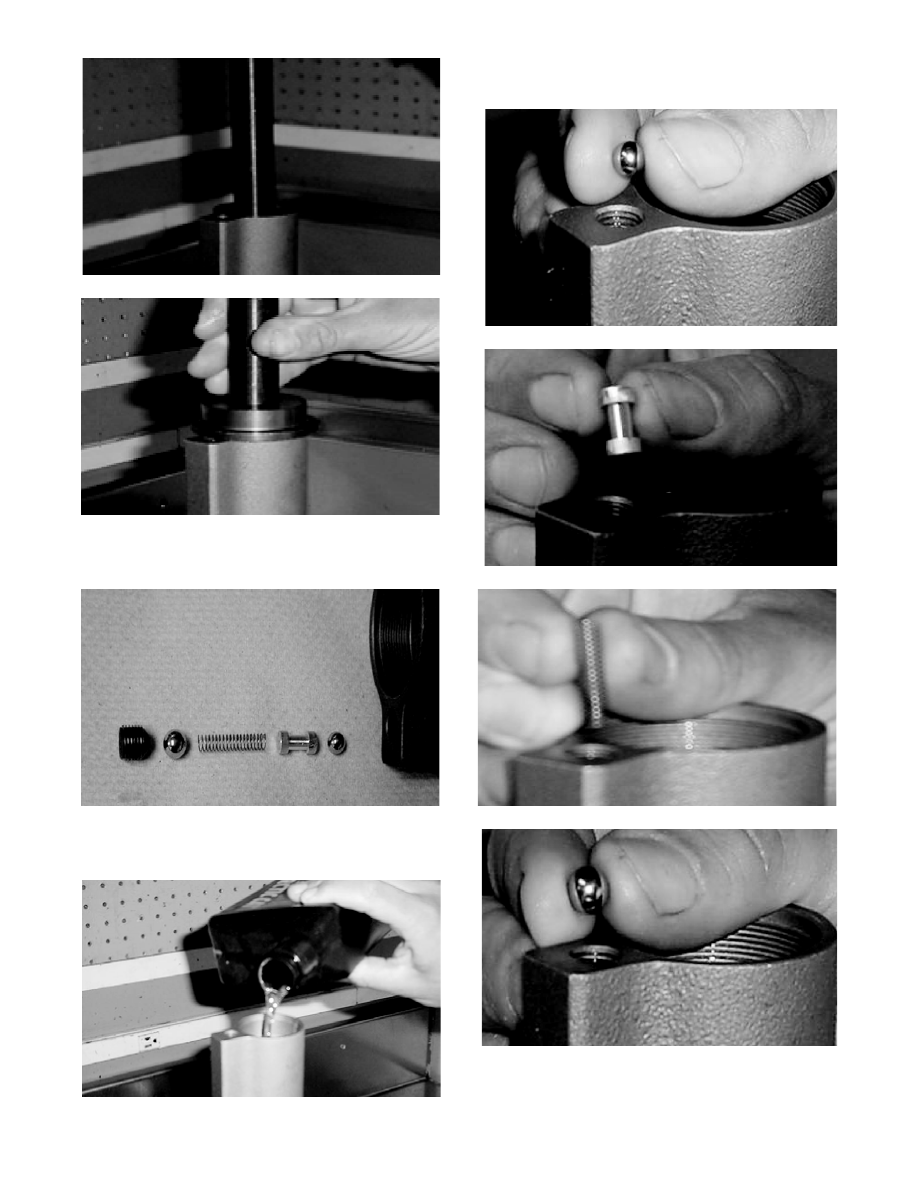

6. Install by-pass components: 1/4-in. ball, spring

rod, spring, and 5/16-in. ball.

FS069

FS070

FS071

FS072

7. Install the set screw and tighten to 1.0 kg-m (7

ft-lb).

9-149

9

FS073

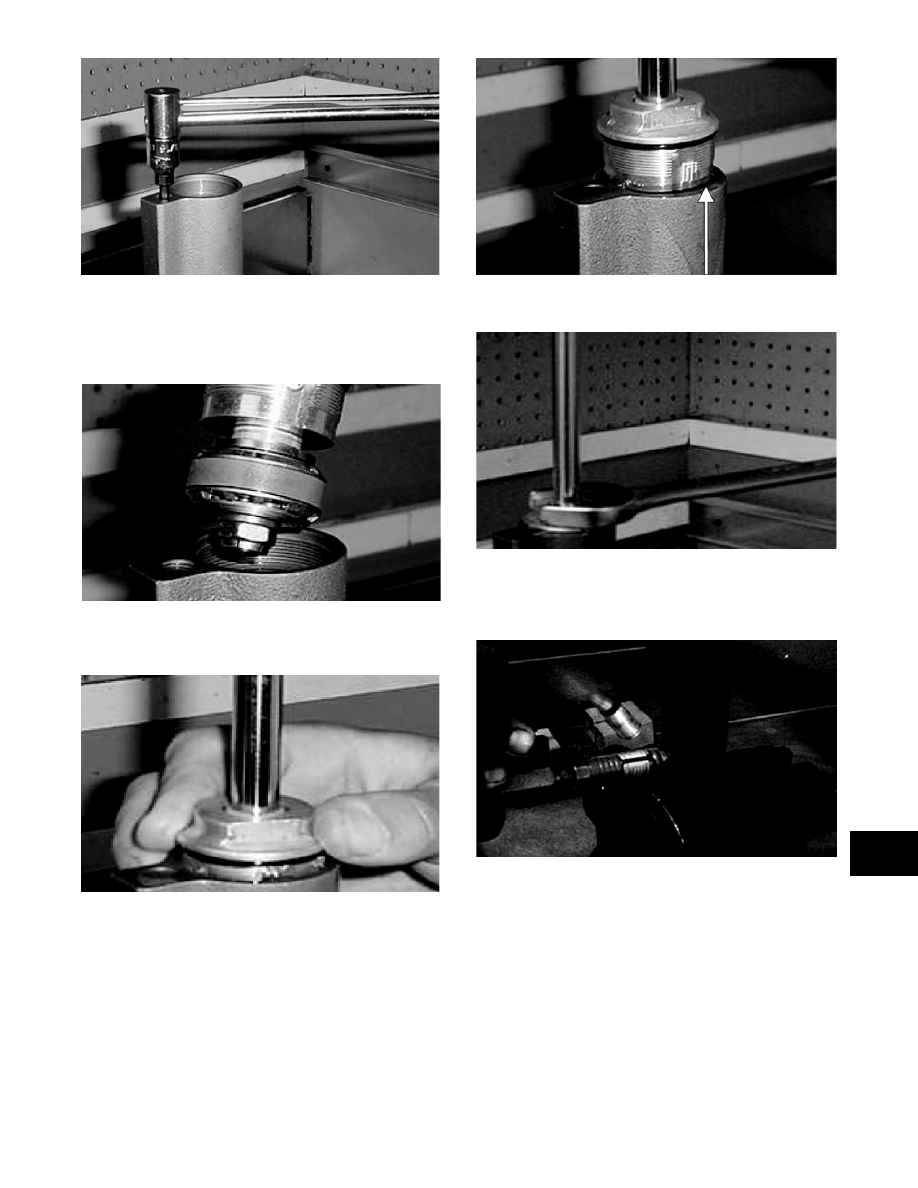

8. Install shock rod/piston assembly into body.

„ NOTE: End cap should be down to piston assem-
bly (rod fully extended).

FS074

9. While holding up on the eyelet, screw end cap

into the body.

FS076

„ NOTE: Air will bleed out of flat area on end cap.

FS075A

10. Using a 1-in. wrench, tighten end cap.

FS077

11. Pressurize the shock with nitrogen to 200 psi

(see Pressurizing Rebuildable Shocks sub-sec-

tion).

FS078

12. Install the set screw (with O-ring) into the blad-

der housing.

9-150

FS079

13. Test operation of the shock.

„ NOTE: Shock should feel soft on compression;
constant on rebound.

FS080

INSTALLING

1. Place the shock into position on the snowmo-

bile.

2. Secure with existing hardware. Tighten to 3.2

kg-m (23 ft-lb).

Ski Shocks Bottom-Out

Bumper

Bottom-out bumper can be replaced by removing

shock eyelet or by removing piston valving assem-

bly and bearing cap.

Pressurizing

Rebuildable Shocks

To pressurize the gas shock absorber, a regulator

system and a nitrogen tank will be needed.

AG271

„ NOTE: Before inserting the needle into the blad-
der, lubricate the needle with light oil to make
installation easier.

1. Insert the Inflation Needle (p/n 0744-020) into

the shock bladder; then open the valve on the

filler handle.

FS079

2. Turn the nitrogen tank valve open and slowly

rotate the regulator T-handle inward until the

gauge reads 200 lb of pressure; then close filler

valve and remove inflation needle.

3. Install the screw into the bladder housing and

tighten securely.

! WARNING

Never have a nitrogen bottle in the area without hav-
ing it chained or secured. If the bottle should tip over
and the regulator break off, the gas inside it is under
1800 lb of pressure and personal injury may result.

! WARNING

Always rotate the regulator T-handle to its loose
position each time when finished using the system.
Each time before the nitrogen tank valve is opened,
check to make sure the regulator T-handle is turned
out. When opening the nitrogen tank valve, never
stand in front of the regulator in case there should
be a problem.
