Snowmobile Arctic Cat (2007 year). Instruction - part 101

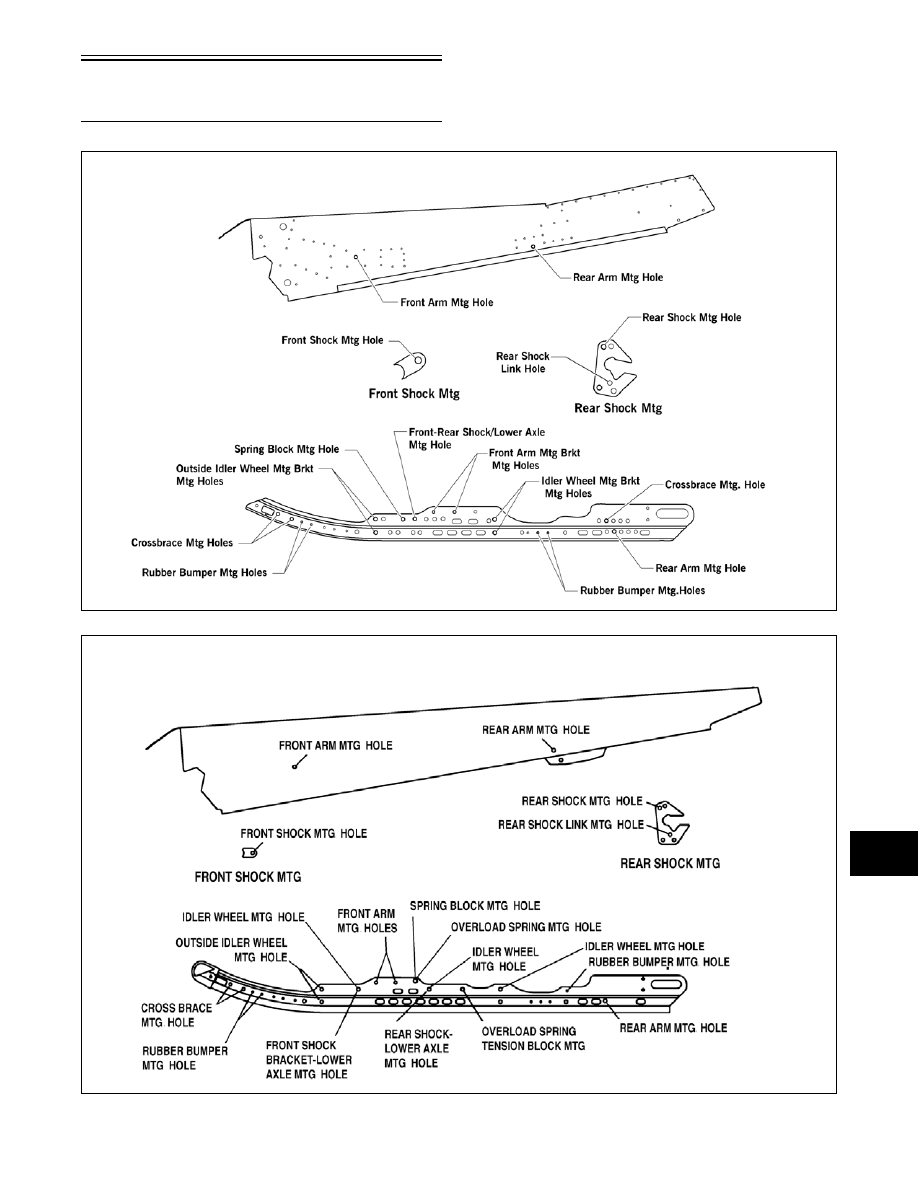

9-19

9

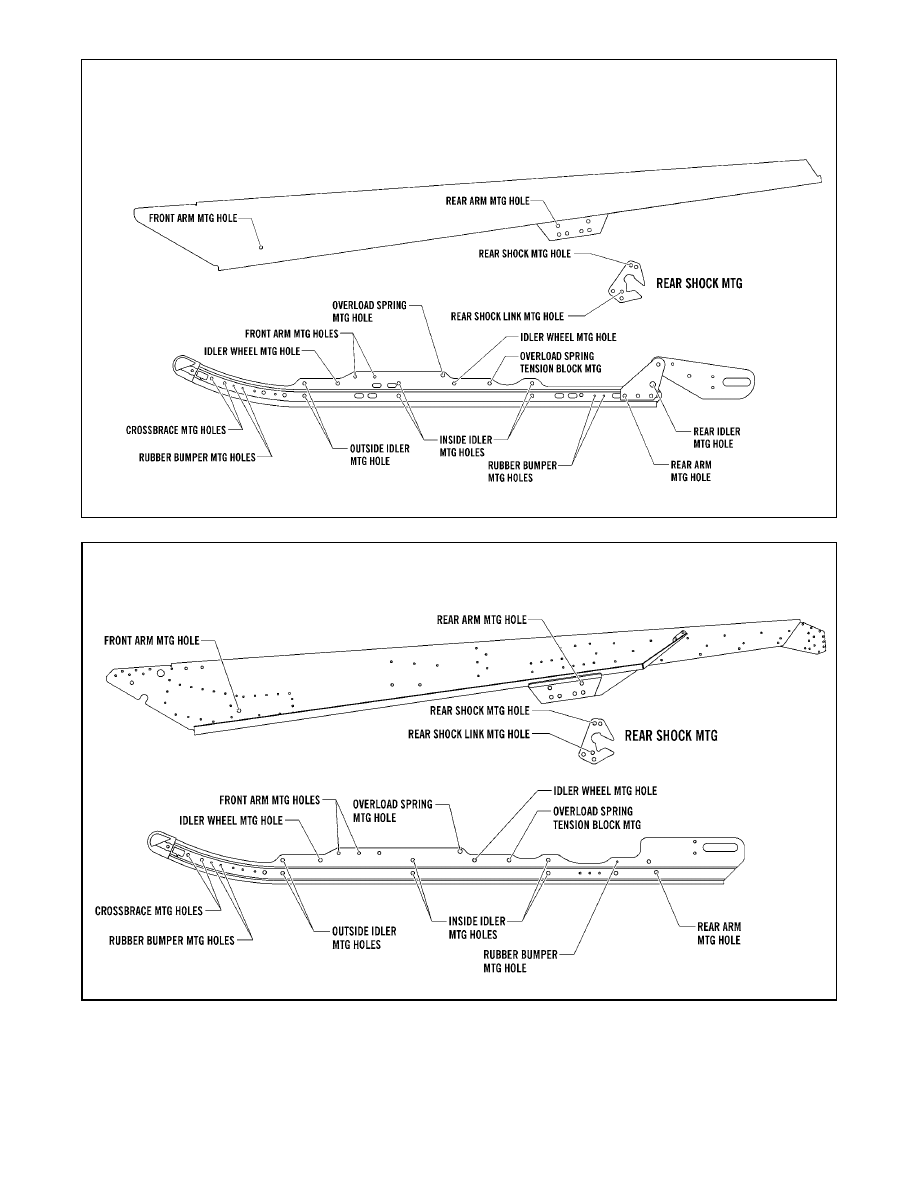

Skid Frame Mounting

Schematics

739-214A

735-315A

Style A

Style B

9-20

0739-320

0741-282

Style C

Style D

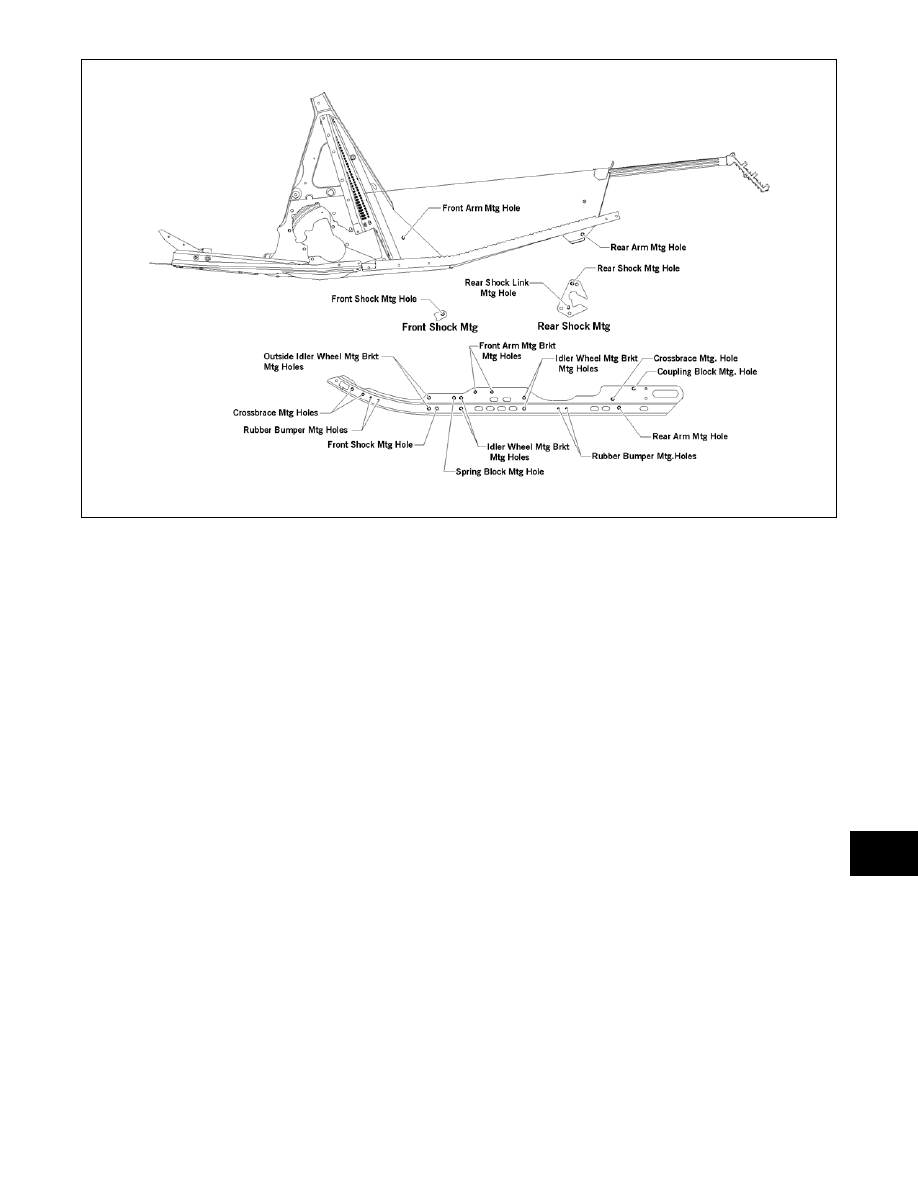

9-21

9

0742-137

Style E

9-22

Repair Procedure 1 -

Track/Rear Suspension

This Track/Rear Suspension sub-section (Repair

Procedure 1) has been organized so each procedure

can be completed individually and efficiently. Each

sub-section has (as necessary) Removing, Disas-

sembling, Cleaning and Inspecting, Assembling,

and Installing procedures. Some components may

vary from model to model. The technician should

use discretion and sound judgment when removing

and installing components.

„ NOTE: Some illustrations and photographs used
in this sub-section are used for clarity purposes
only and are not designed to depict actual condi-
tions.

„ NOTE: Critical torque specifications are located
on page 141 of this section.

Removing

Skid Frame

„ NOTE: Many service procedures can be per-
formed without removing the skid frame. Closely
observe the note introducing each subsequent
sub-section for this important information.

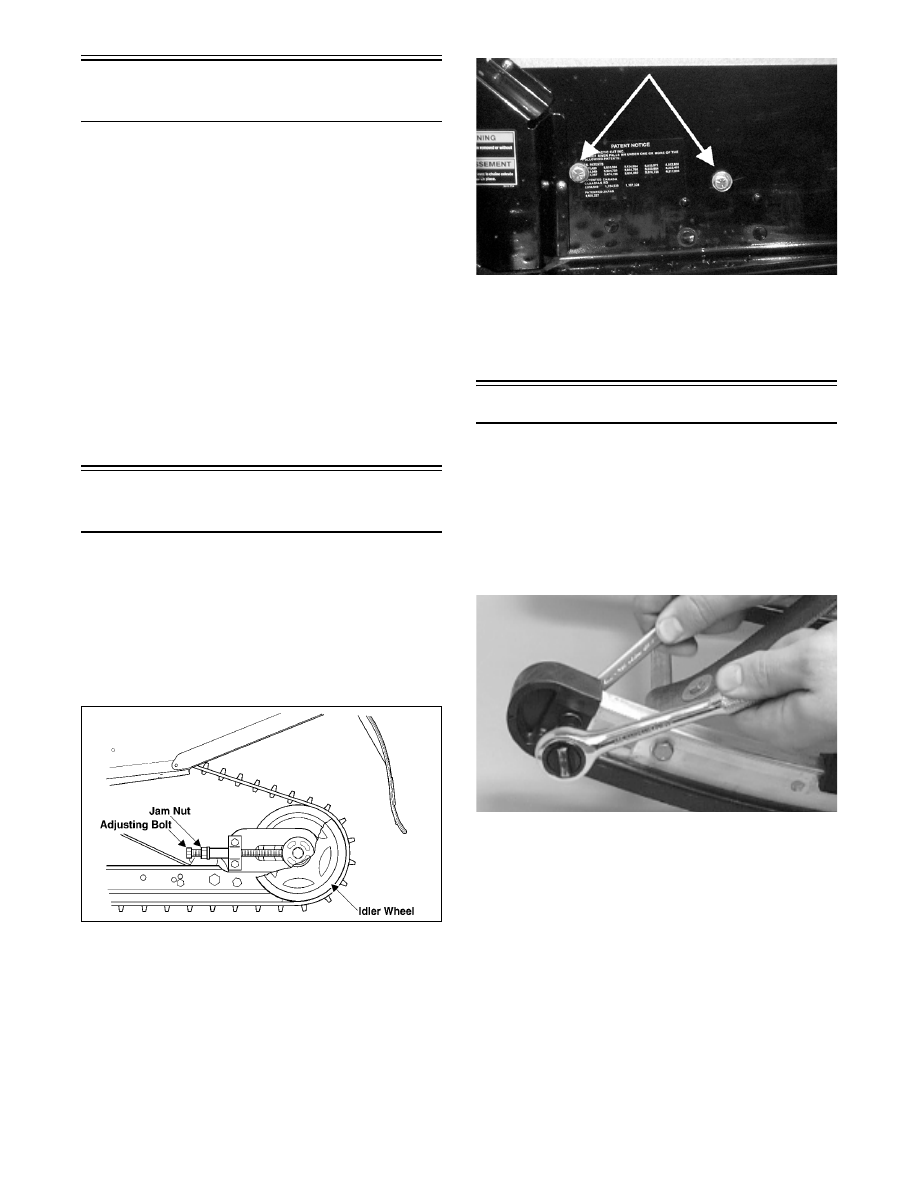

1. Loosen the jam nuts and the two track tension

adjusting bolts.

0735-454

2. Place a support stand under the rear bumper;

then remove the two cap screws securing the

upper idler wheel assembly to the tunnel.

Remove the idler wheel assembly.

„ NOTE: The support stand should hold the snow-
mobile level and not raised off the floor.

3. Remove the four cap screws securing the skid

frame and axle to the tunnel.

AO163A

4. Remove the support stand; then tip the snowmo-

bile onto one side using a piece of cardboard to

protect against scratching. Remove the axle and

skid frame.

End Cap

„ NOTE: The skid frame does not have to be
removed for this procedure.

REMOVING

1. Remove the lock nut, washer, and cap screw

securing the end cap.

AG297D

2. Using a hammer, tap the end cap off the rail.

CLEANING AND INSPECTING

„ NOTE: Whenever a part is worn excessively,
cracked, or damaged in any way, replacement is
necessary.

1. Inspect the end cap area of the slide rail for

cracks and wear.

2. Inspect the end cap for any signs of cracking or

wear.
