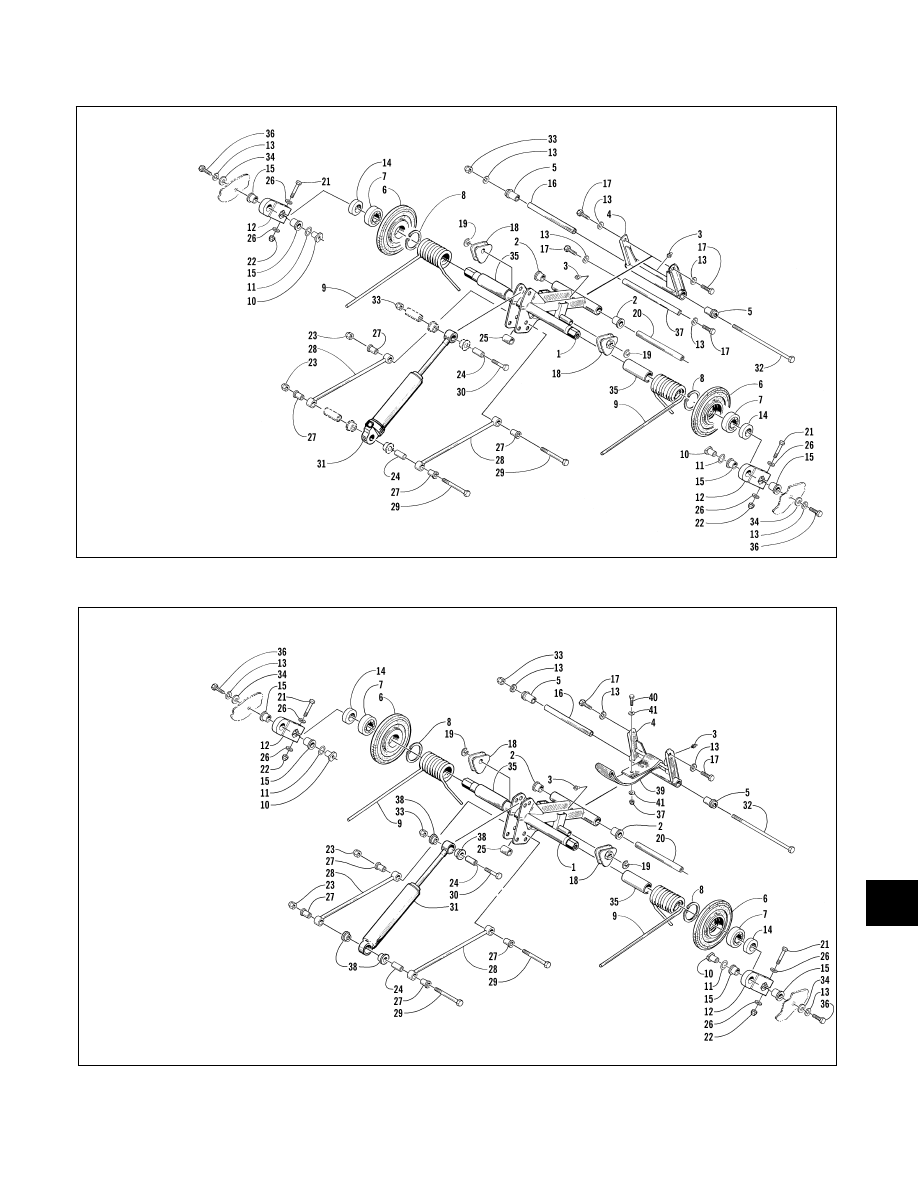

Fig. 9-42

0735-038

Fig. 9-43

0735-317

KEY

1. Idler Arm
2. Bushing
3. Grease Fitting
4. Rear Arm
5. Axle
6. Idler Wheel
7. Bearing
8. Retaining Ring
9. Suspension Spring

10. Axle
11. Washer
12. Offset Pivot Idler
13. Lock Washer
14. Spacer
15. Bushing
16. Axle Tube
17. Cap Screw
18. Spring Block
19. Retainer Ring
20. Axle
21. Cap Screw
22. Lock Nut
23. Lock Nut
24. Sleeve
25. Spacer
26. Washer
27. Link Axle
28. Link
29. Cap Screw
30. Cap Screw
31. Shock Absorber
32. Cap Screw
33. Lock Nut

Style F

34. Washer
35. Sleeve
36. Cap Screw
37. Axle

KEY

1. Idler Arm
2. Bushing
3. Grease Fitting
4. Rear Arm
5. Axle
6. Idler Wheel
7. Bearing
8. Retaining Ring
9. Suspension Spring

Style G

35. Sleeve
36. Cap Screw
37. Lock Nut
38. Bushing
39. Limiter Strap
40. Cap Screw
41. Washer

9-27

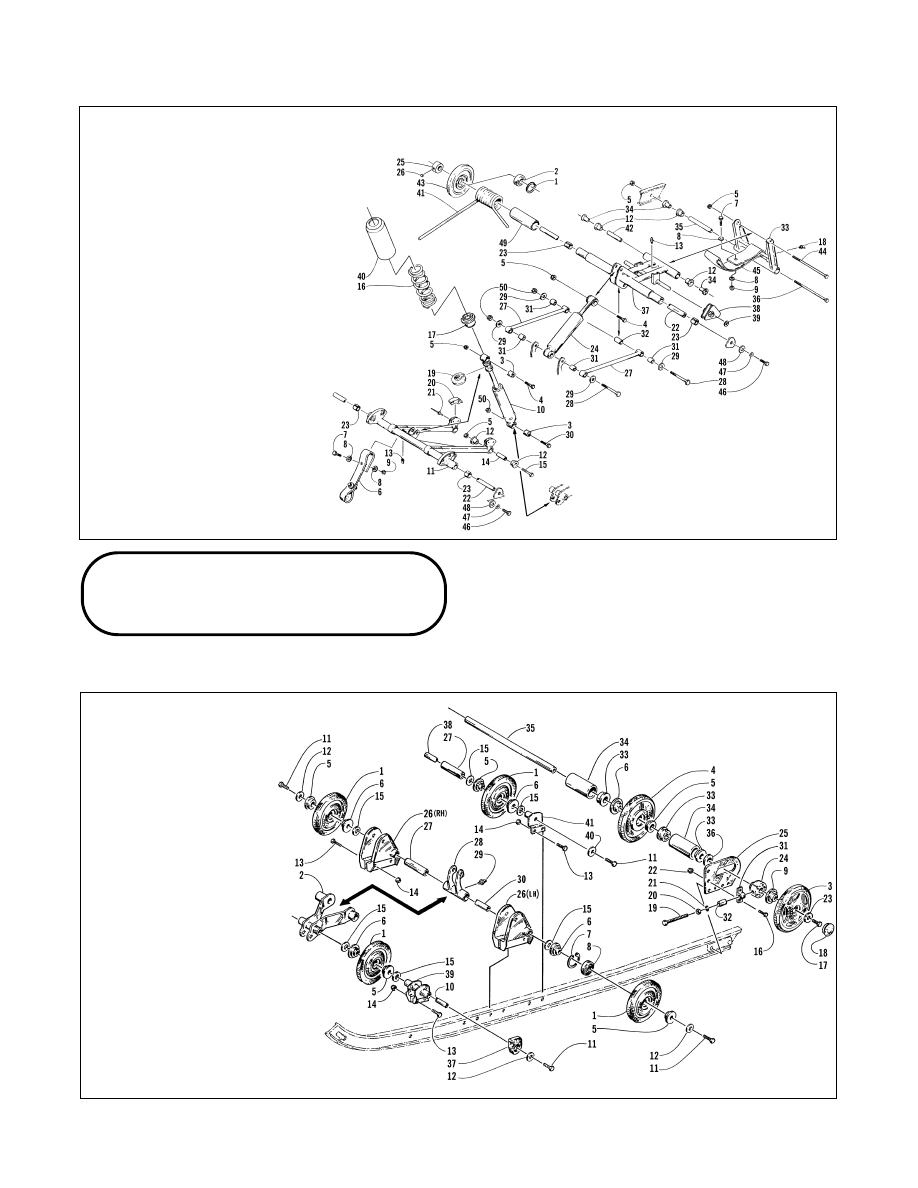

Fig. 9-44

0734-571

Idler Wheels

Schematics

Fig. 9-45

0734-130

KEY

1. Retaining Ring
2. Bearing
3. Serrated Axle
4. Cap Screw
5. Lock Nut
6. Limiter Strap
7. Cap Screw
8. Washer
9. Lock Nut

10. Shock Absorber
11. Front Suspension Arm
12. Bushing
13. Grease Fitting
14. Front Arm Spacer
15. Cap Screw
16. Compression Spring
17. Retainer Spring
18. Grease Fitting
19. Spring Retainer
20. Track Guide Bumper
21. Rivet
22. Inner Carriage Axle
23. Bearing
24. Shock Absorber
25. Lock Collar
26. Set Screw
27. Rear Shock Link
28. Cap Screw
29. Washer
30. Cap Screw
31. Link Axle
32. Shock Link Spacer
33. Rear Arm

34. Serrated Axle
35. Axle Tube
36. Cap Screw
37. Idler Arm
38. Spring Adjuster Block (Cam)
39. Retaining Ring
40. Compression Spring Cover
41. Suspension Spring
42. Idler Axle
43. Idler Wheel
44. Cap Screw
45. Limiter Strap
46. Cap Screw
47. Lock Washer
48. Washer
49. Spring Sleeve
50. Lock Nut

Style H

Style A

KEY

1. Idler Wheel
2. Bracket
3. Idler Wheel
4. Idler Wheel
5. Wheel Insert
6. Wheel Insert
7. Retaining Ring
8. Bearing
9. Wheel Insert

10. Idler Wheel Axle
11. Cap Screw
12. Washer
13. Cap Screw
14. Lock Nut
15. Washer
16. Cap Screw
17. Cap Screw
18. Cap
19. Cap Screw
20. Nut
21. Lock Washer
22. Lock Nut
23. Washer
24. Adjuster Bushing
25. Rear Axle Housing
26. Mounting Bracket
27. Idler Wheel Spacer
28. Shock Pivot
29. Grease Fitting
30. Idler Wheel Axle
31. Track Adjuster

32. Track Adjuster

Spacer

33. Spacer Bushing
34. Spacer
35. Rear Axle
36. Washer
37. Spring Slide
38. Inner Axle
39. Bracket
40. Washer
41. Bracket

9-28

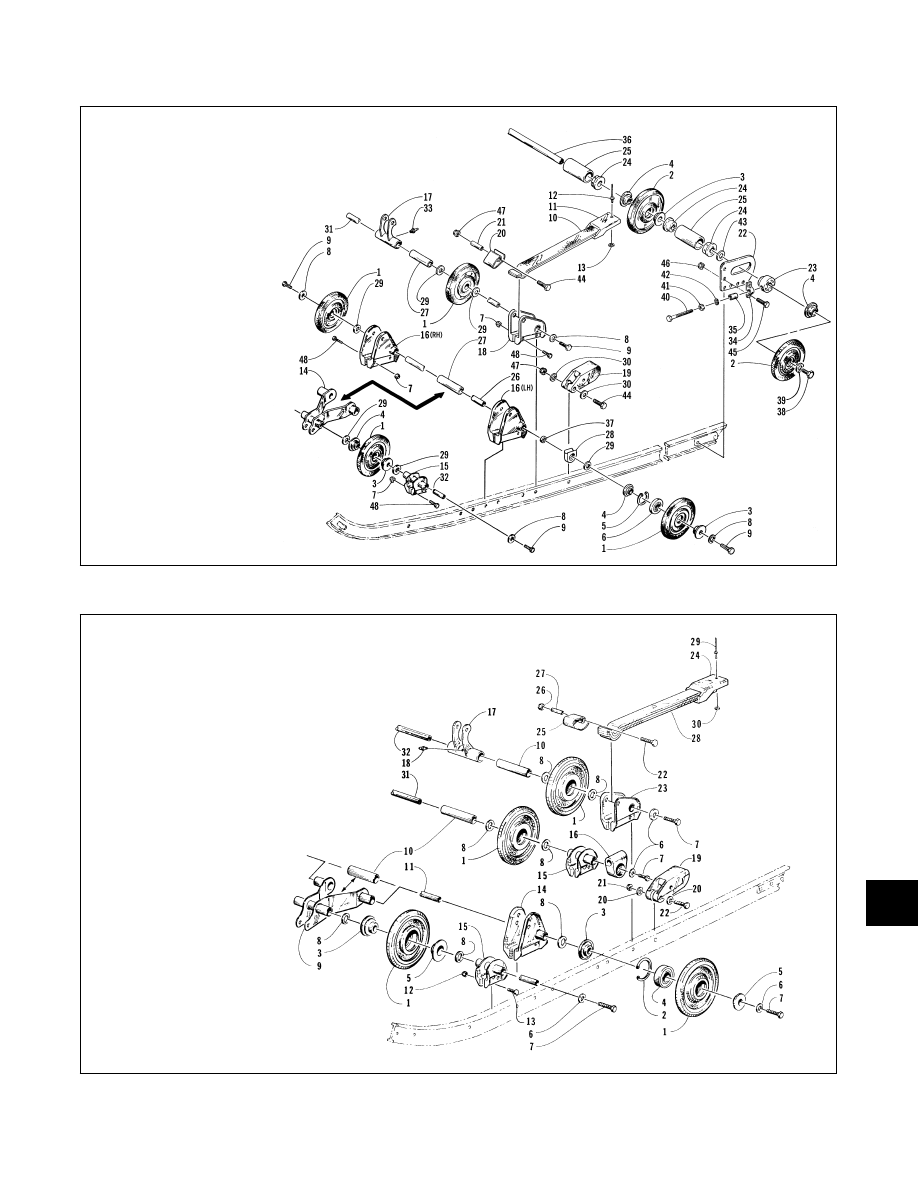

Fig. 9-46

0734-560

Fig. 9-47

0732-758

KEY

1. Idler Wheel
2. Idler Wheel
3. Wheel Insert
4. Wheel Insert
5. Retaining Plug
6. Bearing
7. Lock Nut
8. Washer
9. Cap Screw

10. Overload Spring
11. Wear Block
12. Rivet
13. Washer
14. Front Shock Bracket
15. Bracket
16. Mounting Bracket
17. Shock Pivot
18. Mounting Bracket
19. Spring Tension Block
20. Retainer Clip
21. Bushing
22. Rear Axle Housing
23. Adjuster Bushing
24. Spacer Bushing
25. Center Spacer
26. Inner Wheel Axle
27. Idler Wheel Spacer
28. Roller Slide
29. Washer
30. Washer
31. Inner Axle
32. Idler Wheel Axle
33. Grease Fitting
34. Track Adjuster
35. Track Adjuster Spacer

Style B

36. Axle
37. Spacer
38. Cap Screw
39. Washer
40. Cap Screw
41. Nut
42. Lock Washer
43. Washer
44. Cap Screw
45. Cap Screw
46. Lock Nut
47. Nut
48. Cap Screw

KEY

1. Idler Wheel
2. Retaining Ring
3. Wheel Insert
4. Bearing
5. Wheel Insert
6. Washer
7. Cap Screw
8. Washer
9. Front Shock Bracket

10. Idler Wheel Spacer
11. Idler Wheel Axle
12. Lock Nut
13. Cap Screw
14. Mounting Bracket
15. Auxiliary Wheel Bracket
16. Spring Slide
17. Shock Pivot
18. Grease Fitting
19. Spring Tension Block
20. Washer
21. Lock Nut
22. Cap Screw
23. Mounting Bracket
24. Wear Block
25. Retaining Clip
26. Lock Nut
27. Overload Bushing
28. Overload Spring
29. Rivet
30. Washer
31. Idler Wheel Axle
32. Inner Axle

Style C

9-29

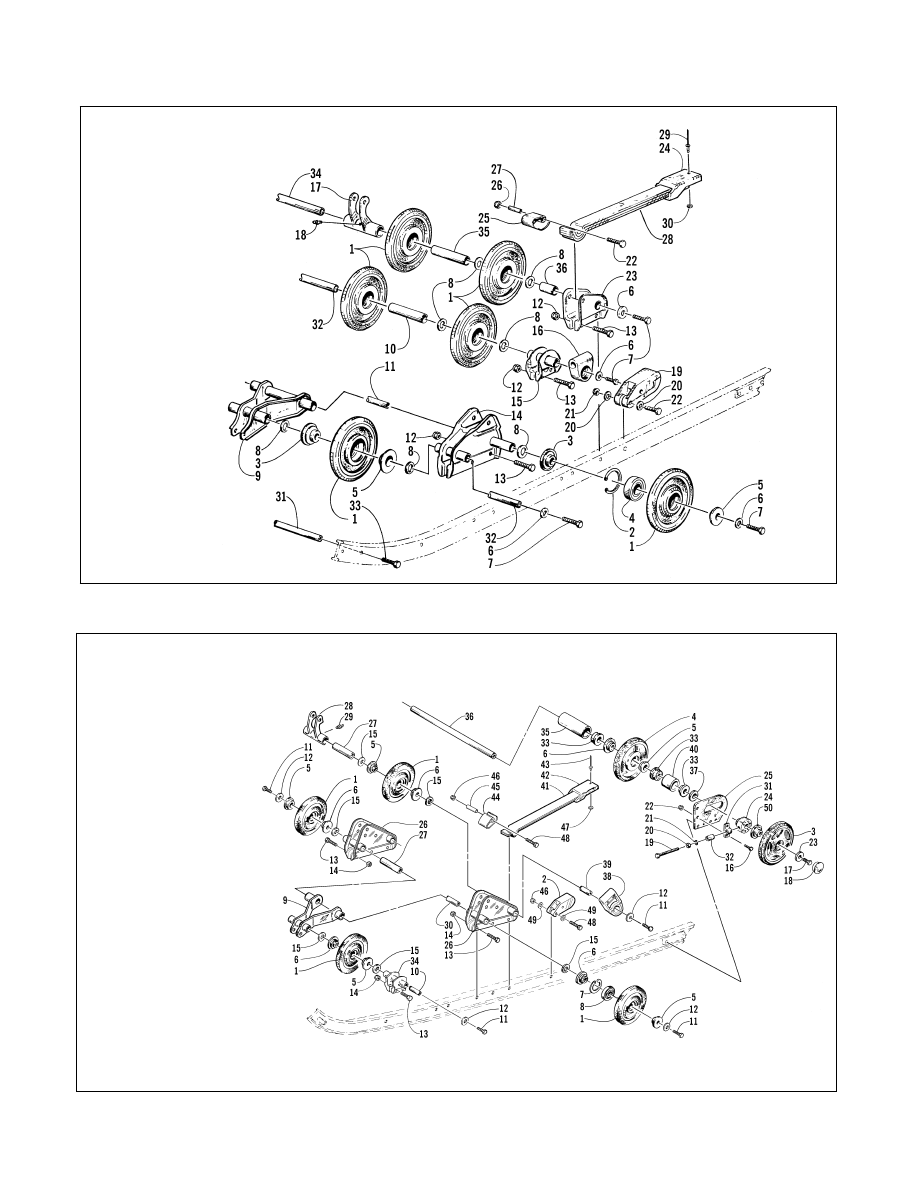

Fig. 9-48

0734-684

Fig. 9-49

0735-080

KEY

1. Idler Wheel
2. Retaining Ring
3. Wheel Insert
4. Bearing
5. Wheel Insert
6. Washer
7. Cap Screw
8. Washer
9. Front Shock Bracket

Style D

Style E

KEY

1. Idler Wheel
2. Tension Block
3. Idler Wheel
4. Idler Wheel
5. Insert
6. Insert
7. Retaining Ring
8. Bearing
9. Mounting Bracket

10. Axle
11. Cap Screw
12. Washer
13. Cap Screw
14. Lock Nut
15. Washer
16. Cap Screw
17. Cap Screw
18. Cap
19. Cap Screw
20. Nut
21. Lock Washer
22. Lock Nut
23. Washer
24. Bushing
25. Housing
26. Bracket
27. Spacer
28. Pivot
29. Grease Fitting
30. Axle
31. Track Adjuster
32. Spacer
33. Bushing
34. Bracket
35. Spacer

36. Axle
37. Washer
38. Spring Slide
39. Axle
40. Spacer
41. Overload Spring
42. Wear Block
43. Rivet
44. Clip
45. Bushing
46. Lock Nut
47. Washer
48. Cap Screw
49. Washer
50. Insert

9-30
