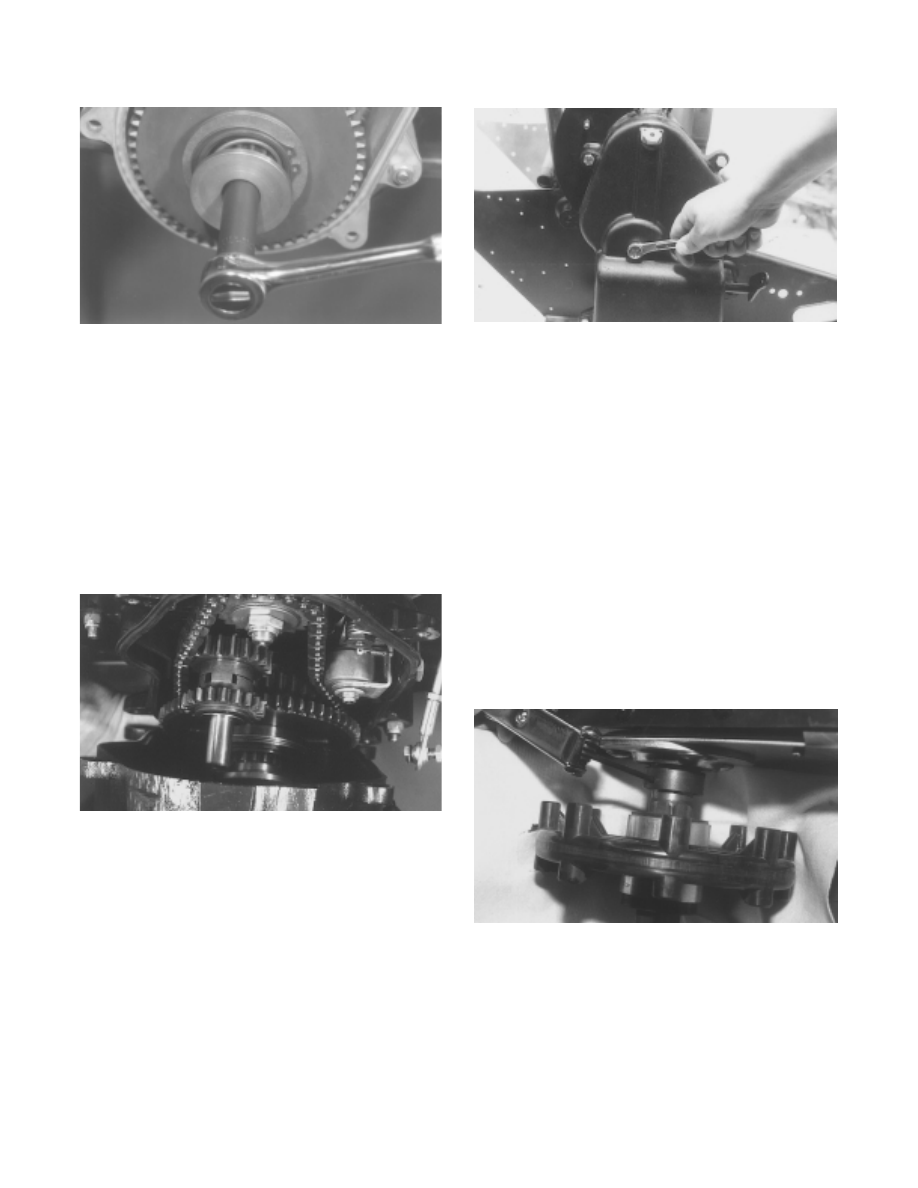

Fig. 8-100 AF055 4. Position the front of the track up into the tunnel. Install the driveshaft with the splined end through 5. Place the PTO-side of the driveshaft into position by sliding the bolts of the flange bearing assembly 6. Place the cable adapter into position on the flange bearing assembly bolts. Secure with three lock nuts. Fig. 8-101 AF053 7. Slide the MAG-side bearing onto the driveshaft (inner race flange must be positioned toward drive 8. Install the brake hub key into the driven shaft keyway; then slide the brake disc into position on 9. Install the PTO-side bearing with collar and flange plates on the driven shaft; do not tighten the collar 10. On the MAG-side driven shaft, apply Scotchbond Adhesive 4174 to the bearing seating area adjacent Tighten the flange plate nuts evenly or the O-ring NOTE: If washers were removed from behind the upper sprocket, install them at this time. 11. Install the spacer washer on the driveshaft. Fig. 8-102 AF090 12. Install the bottom sprocket and driveshaft extension. Fig. 8-103 AF427 13. Position one shim washer on the idler gear shaft. ! CAUTION 8-30 |
