10.8

Battery and Electrical Systems

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

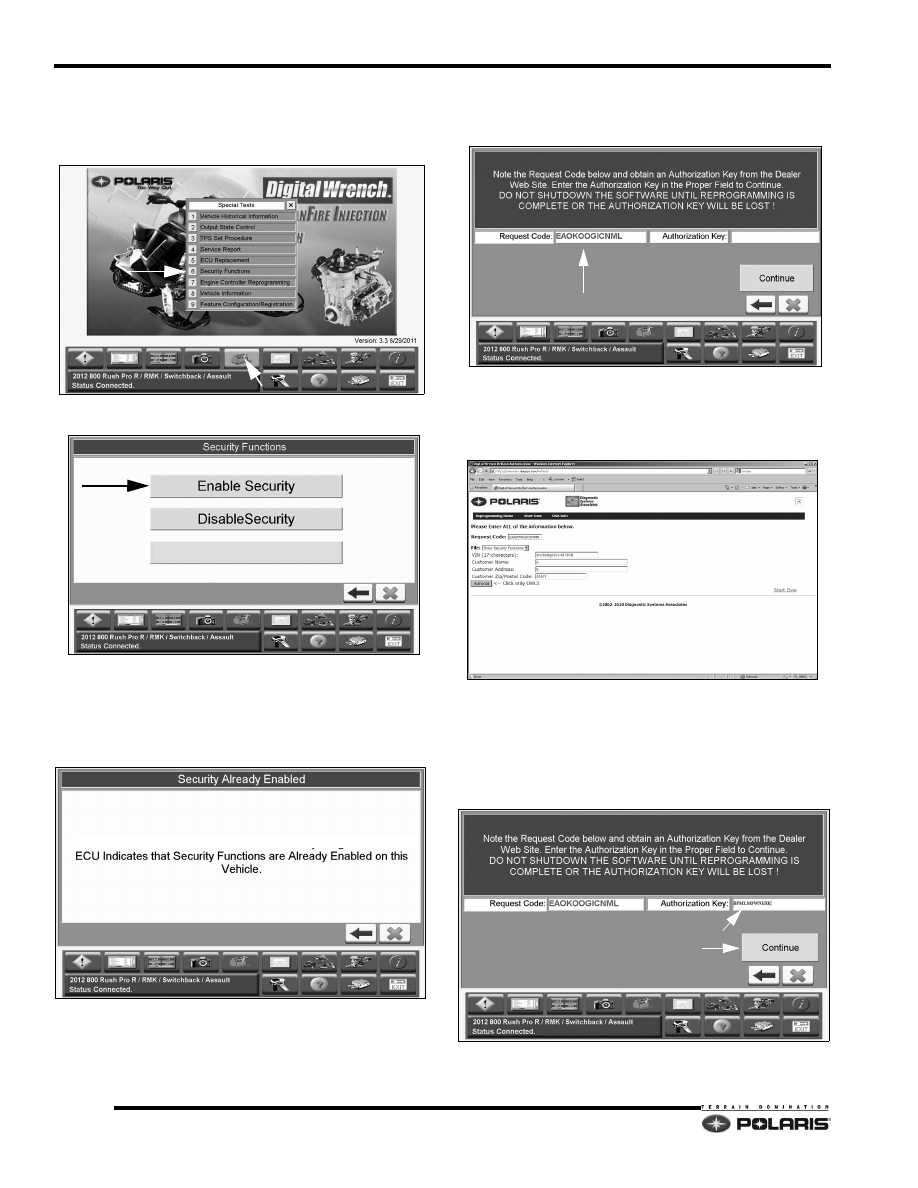

3. Start Digital Wrench™ on the PC/laptop. Navigate to

the appropriate vehicle home page. Select OPTION
6 - SECURITY FUNCTIONS from the Special Tests
(Red Toolbox) Menu.

4. Select ENABLE SECURITY on the following screen.

5. After selecting ENABLE SECURITY, Digital

Wrench™ will scan the ECU to verify the process can
be completed. If the security function is already
enabled, Digital Wrench™ will display the following
screen.

6. If the security function is not enabled, the following

screen will appear. Highlight the entire REQUEST
code and then copy it by pressing (CTRL+C).

7. Log on the reflash authorization site at

www.polarisdealers.com. Paste the request code into
the field using (CTRL+V). Enter the VIN and customer
information to generate an authorization code.

8. Copy the authorization key provided on the

authorization site by highlighting the entire code and
then pressing (CTRL+C). Go back to Digital
Wrench™ and paste the Authorization key into the
AUTHORIZATION KEY field by pressing (CTRL+V).
Click CONTINUE.

Reset Passcode

10.9

Battery and Electrical Systems

10

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

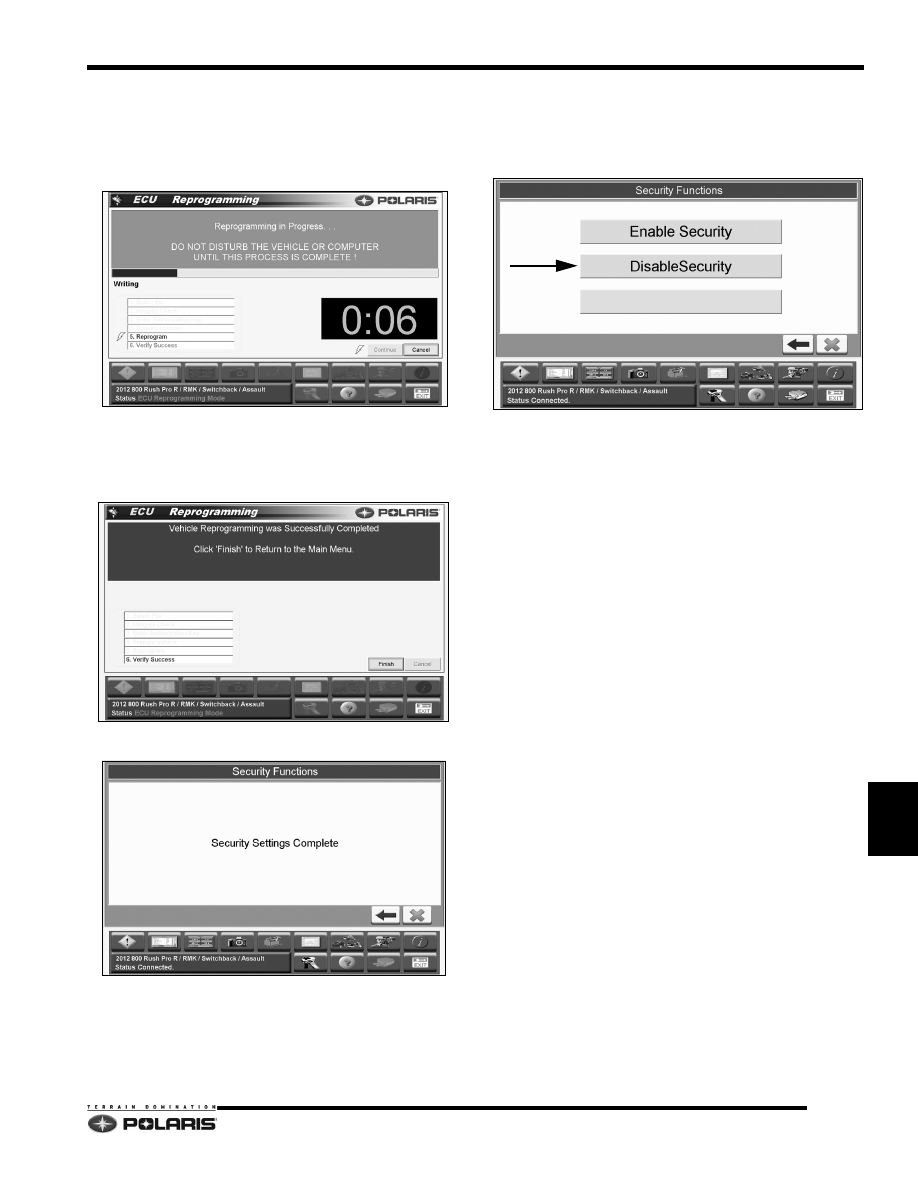

9. Digital Wrench™ will begin to reflash the ECU. A timer

and status indicator bar on the screen will indicate the
process is working.

NOTE:  Do not disturb the vehicle or computer until
this process is complete!

10. After the reflash process is complete, cycle the power

to the ECU by disconnecting and then re-connecting
the ECU PWR 12 VDC power-up cable. Click the
FINISH button.

11. The following screen will appear. Click on the red X.

12. Determine if the Instrument Cluster Initialization

procedure has to be completed by starting the engine,
setting the parking brake, and then pressing and
holding the MODE and SEL buttons on the instrument
cluster.

Security System: Digital Wrench™ Disable

The security system can be disabled by turning off the
function in the ECU. Select DISABLE SECURITY from
the SECURITY FUNCTIONS screen.

After selecting Disable Security from the Security
Functions Menu, follow the step-by-step procedure as
outlined by Digital Wrench™. The process is the same as
the Enable Procedure.

Reset Passcode

10.10

Battery and Electrical Systems

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

Security System: Digital Wrench™ Passcode

Reset

If the three digit passcode is either lost or unknown, it can
be reset to 000 using Digital Wrench™.

The ECU and instrument cluster must be powered at the
same time. This can be done by either starting and
running the engine in a well-ventilated area, or with the
chassis power-up harness and dual power-up adapter.

Steps 1 and 2 can be eliminated by performing the
procedure with the engine running.

When using the chassis power-up harness and dual
power-up adapter to reset the password, follow these
steps:

1. Open the left side engine compartment door and

locate the Digital Wrench™ diagnostic plug, ECU
power plug, and DC power plug.

2. Connect the dual power-up adapter to the chassis

power-up harness. Attach one of the dual power-up
connectors to the ECM PWR plug and the other
connector to the DC PWR TEST plug. Connect the
alligator clamps to a fully charged 12 VDC battery.

NOTE: The ECU and DC chassis power circuits
(instrument cluster, LED brake, etc) are now powered.
Confirm the instrument cluster is powered-up.

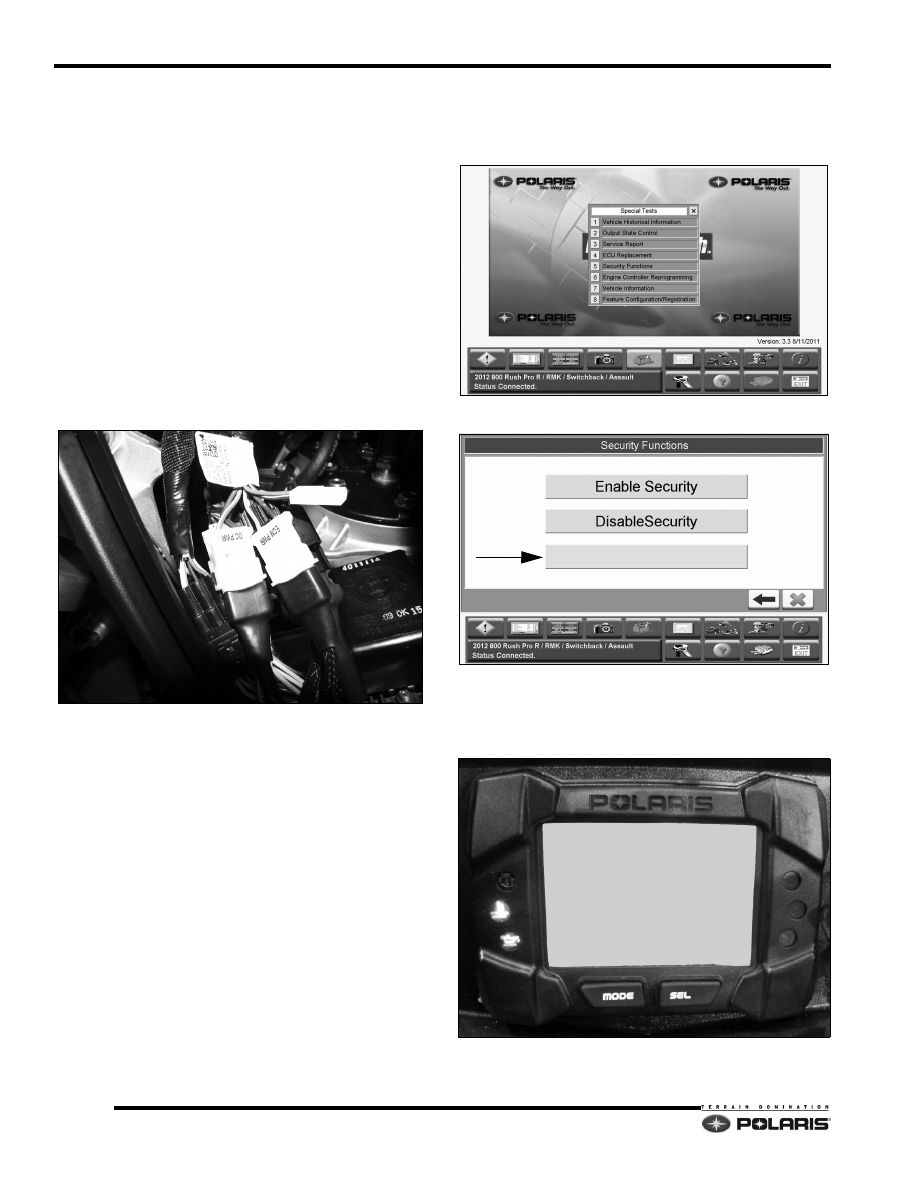

3. Start Digital Wrench™ on the PC/laptop. navigate to

the appropriate vehicle home page. Select OPTION
5 - SECURITY FUNCTIONS from the Special Tests
(Red Toolbox) Menu.

4. Select RESET PASSCODE on the following screen.

5. Digital Wrench™ will reset the instrument cluster

passcode to 000. During the process the instrument
cluster display, oil level, and engine temp. MIL LEDs
will flash.

Reset Passcode

10.11

Battery and Electrical Systems

10

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

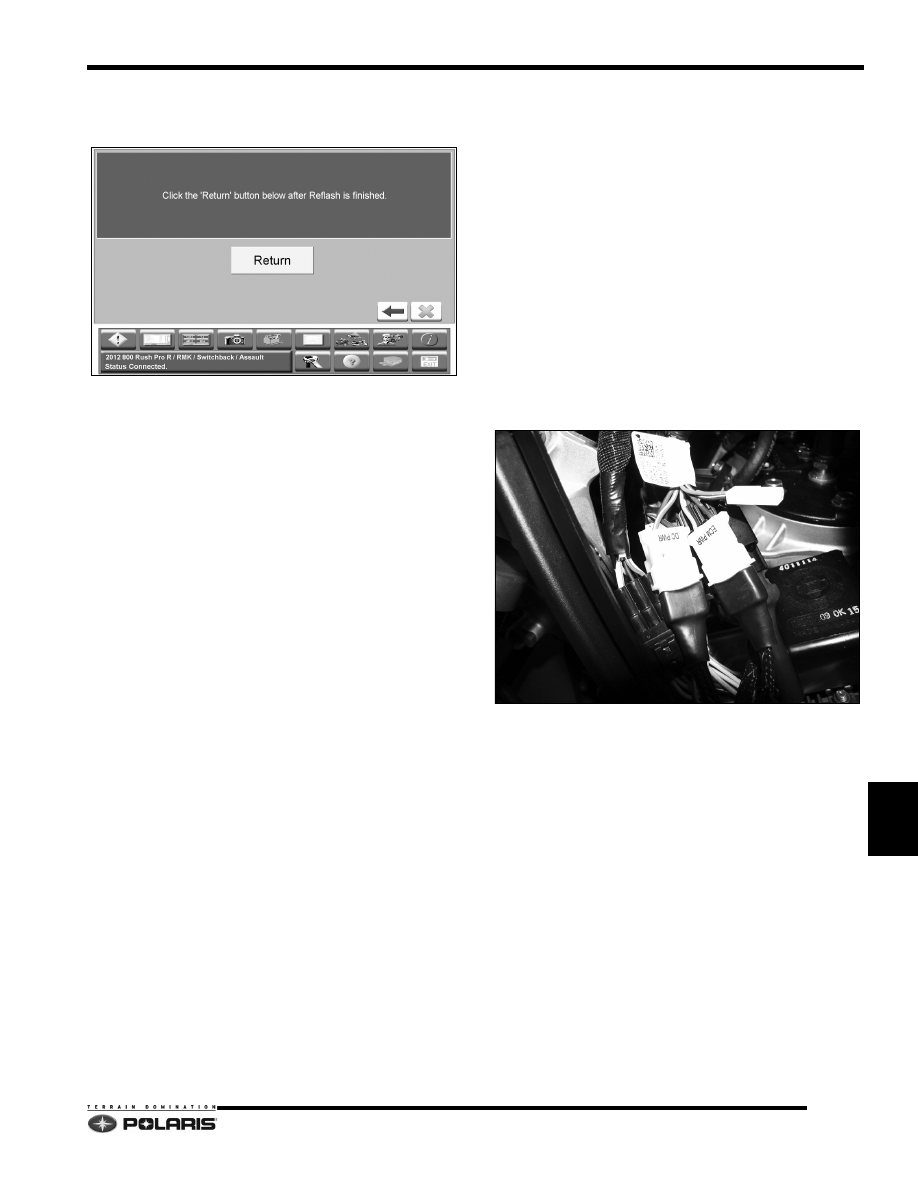

6. After the reset passcode process is complete, the

following screen will be displayed. Click on the
RETURN button to return to the main screen.

7. Cycle the power to the ECU and DC PWR test

connectors to finish the procedure.

Security System: Instrument Cluster

Initialization

Instrument cluster initialization is a one-time procedure
that must be performed when the instrument cluster is
linked for the first time to a security-enabled ECU.

The ECU and instrument cluster must be powered at the
same time. This can be done by either starting and
running the engine in a well-ventilated area, or with the
chassis power-up harness and dual power-up adapter.

Skip steps 1 and 2 when performing the procedure with
the engine running.

When using the chassis power-up harness and dual
power-up adapter, follow these steps:

1. Open the left side engine compartment door and

locate the Digital Wrench™ diagnostic plug, ECU
power plug, and DC PWR test plug.

2. Connect the dual power-up adapter to the chassis

power-up harness. Attach one of the dual power-up
connectors to the ECM PWR plug and the other
connector to the DC PWR TEST plug. Connect the
alligator clamps to a fully charged 12 VDC battery.

NOTE: The ECU and DC chassis power circuits
(instrument cluster, LED brake, etc) are now powered.
Confirm the instrument cluster is powered-up.
