Snowmobile Polaris 600 RUSH (2010 year). Instruction - part 60





8.6

Steering and Suspensions

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

Initial Shock Settings

Use the Initial Shock Settings Table below to set the
vehicle suspension to the original factory configuration.

NOTE: A collumn for the RTS spring setting is not
included as all vehicles require rider weight to set
the spring length/SAG setting.  This information is
located within this chapter.

Initial Shock Settings

MODEL

IFS



SPRING



PRELOAD

(

INCHES

/

CM

)

IFS



SPRING



INSTALLED



LENGTH

(

INCHES

/

CM

)

IFS



CLICKER



SETTING

(

REBOUND

)

FTS



SPRING



PRELOAD

(

INCHES

/

CM

)

FTS



SPRING



INSTALLED



LENGTH

(

INCHES

/

CM

)

FTS



CLICKER



SETTING

RTS



CLICKER



SETTING

2010 Rush

3.75/9.5

N/A

6

.75/1.9

N/A

2

4

2011 Rush

4.5/11.4

1.0/2.54

2011 800 SB
Assault

N/A

10/25.4

N/A

7.25/18.4

8

8

2011 800 RMK

10.5/26.7

N/A

N/A

N/A

Screw

2011 800 RMK
Assault

10.75/27.3

6

8.5/21.6

6

2011 800 PRO
RMK

10.25/26

N/A

N/A

2012 Rush Base

3.25/8.25

N/A

1.0/2.54

N/A

2012 Rush

PRO-R

2.875/7.3

6

2

4

2012 Rush

PRO-R LE

3.25/8.25

6

(8)

2012 SB Base

3.25/8.25

N/A

N/A

N/A

2012 SB ADV.

600

800

3.25/8.25
2.875/7.3

N/A

6

N/A

2

4
4

2012 SB

PRO-R

2.875/7.3

6

2

4

2012 800 SB
Assault

N/A

10/25.4

6

N/A

7.25/18.4

8

8

2012 600/800
RMK

144

155

10.5/26.7

N/A

N/A

N/A

Screw

2012 600/800
PRO RMK

10.25/26

8.5/21.6

N/A

2012 800 RMK
Assault

10.75/27.3

6

6

6

8.7

Steering and Suspensions

8

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

Independent Front Suspension (IFS) Shock

Settings

To change the IFS shock preload/installed spring height,
raise the front of the snowmobile up and off the ground to
remove the weight from the front suspension. Grasp the
spring and rotate it. Increasing IFS shock spring preload
too much may adversely affect the handling of the
snowmobile and the performance of both the front and
rear suspensions. Never exceed one inch (2.54 cm) of
adjustment beyond the factory setting.

When decreasing IFS shock spring preload, make sure at
least two turns of preload are holding the spring retainer
against the spring. Failure to do so may cause the retainer
to fall out when the shock is fully extended.

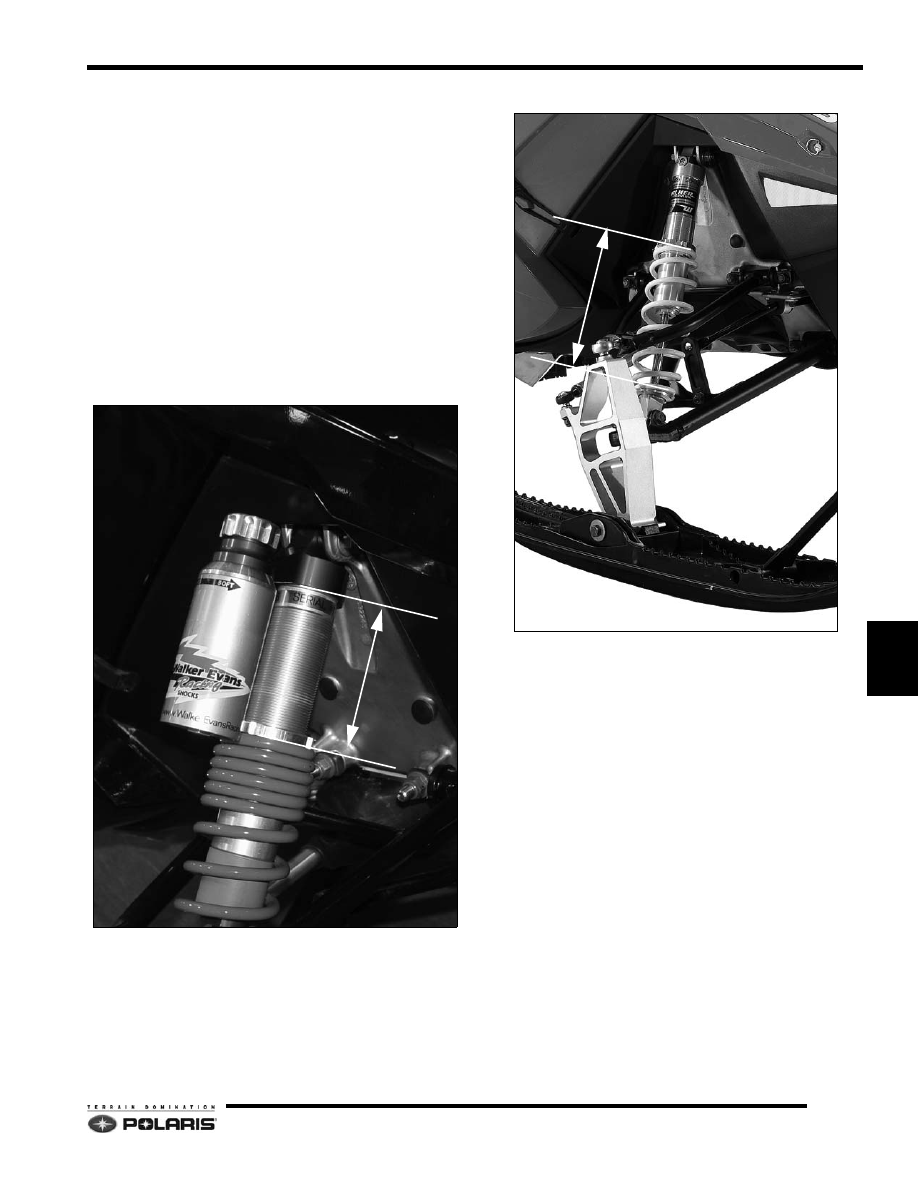

A

MEASURING PRELOAD

A

B

MEASURING PRELOAD

MEASURING INSTALLED LENGTH

8.8

Steering and Suspensions

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

Adjusting the IFS shock spring preload raises or lowers
the front vehicle ride height and either increases or
decreases ski pressure when not accelerating. Increasing
spring preload will also shift the vehicle balance towards
the rear. Decreasing the spring preload will lower the front
vehicle ride height and shift the vehicle balance towards
the front.

The compression dampeners control ride comfort/quality.
Turning the adjusters towards the SOFT setting (counter-
clockwise) will make the ride quality less harsh, but may
cause the shocks to bottom out. Turning the adjuster
towards the STIFF setting (clockwise) will make the ride
quality stiffer.

Make equal adjustments to both shocks and only one to
two clicks at a time. Heavier riders may want to set the
compression clickers two to four clicks higher than lighter
riders.

Rebound Adjustment

Rush 800 LE models feature IFS shocks with rebound
adjusters.

The rebound adjustment clicker is located at the bottom of
the shock rod. There are 16 possible settings. The initial
factory setting is 8 clicks.

Make equal adjustments to both shocks and only one to
two clicks at a time.

• Turning the clicker clockwise (inwards) increases

rebound control and the shock will extend slower
after being compressed.

• Turning the clicker counter-clockwise (outwards)

decreased rebound control and the shock will
extend faster after being compressed.

8.9

Steering and Suspensions

8

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

Front Track Shock (FTS) Factory Settings

To change the FTS spring preload, carefully tip the
snowmobile onto its left side to remove weight from the
front track shock. Grasp the spring and rotate it.

When decreasing FTS spring preload, make sure at least
two turns of preload are holding the spring retainer against
the spring. Failure to do so may cause the retainer to fall
out when the shock is fully extended.

When the snowmobile is not accelerating, Increasing FTS
spring preload will decrease ski pressure. Decreasing
FTS spring preload will increase ski pressure.

The compression dampener controls ride comfort/quality.
Turning the adjuster towards the SOFT setting (counter-
clockwise) will make the ride quality less harsh, but may
cause the FTS to bottom out. Turning the adjuster towards
the STIFF setting (clockwise) will make the FTS stiffer.

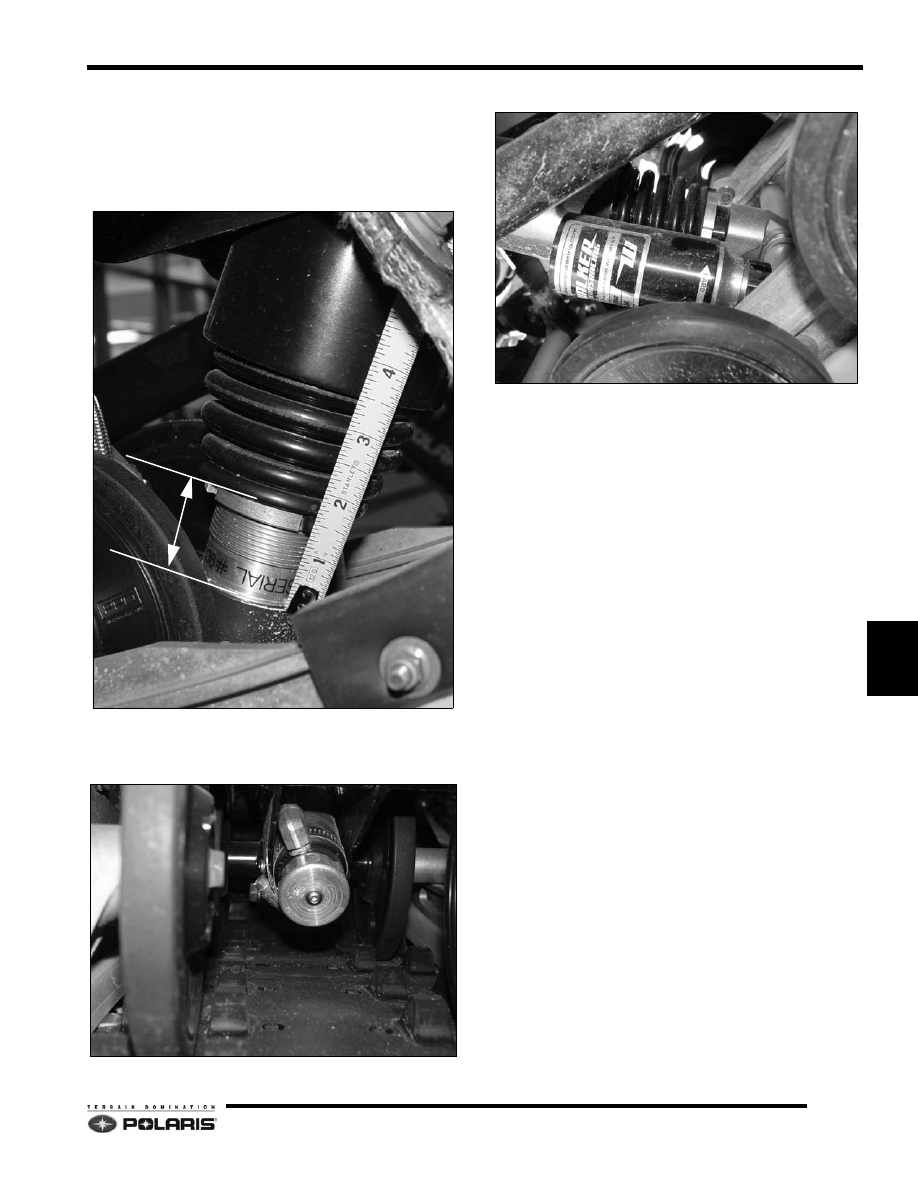

MEASURING PRELOAD

E

2010 RUSH

B

2010 RUSH

2011-2012 RUSH/SWITCHBACK/RMK ASSAULT
