7.22

Shocks

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

12. Mount the body cap end of the shock in bench vise.

Slowly fill 3/4 of the body tube with new shock oil.

13. Allow the oil to sit for several minutes to allow air

bubbles to escape. Gently tap on the shock body to
assist in removing any trapped air.

14. Install the shock rod/bearing cap assembly into the

shock body. Submerge the piston assembly in the
shock oil.

15. Slowly and carefully pump the piston up and down to

force the oil through the valves stacks and piston
orifices. Gently tap on the shock body to dislodge
trapped air. Continue until air bubbles no longer rise
to the surface of the oil.

NOTE:  Pump the valve assembly slowly. Harsh and
abrupt movements may move the IFP.

16. After removing all of the air from the shock oil, fill the

shock body with oil.  Again, remove any air bubbles
that may have formed.

17. Wrap a clean shop towel around the shock body to

catch oil that overflows.  Carefully install the bearing
cap.  Tighten the cap securely.

18. Charge the shock with nitrogen to the specified

pressure using the gas fill tool, PN PS-45259. The
shock rod should be pushed outwards as the IFP
compresses the shock oil.

19. Remove the fill tool from the fill port and reinstall the

bleed screw.

20. Test shock by pushing down on the shock rod. The rod

should extend slowly after pushing it into the tube with
no sound of trapped air inside the oil. If the sound of
air is present or the rate of shock rod compression or
extension dramatically changes, the shock should be
disassembled and the oil replaced.

Fox 5W Shock Oil

2870995(Quart)

7.23

Shocks

7

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

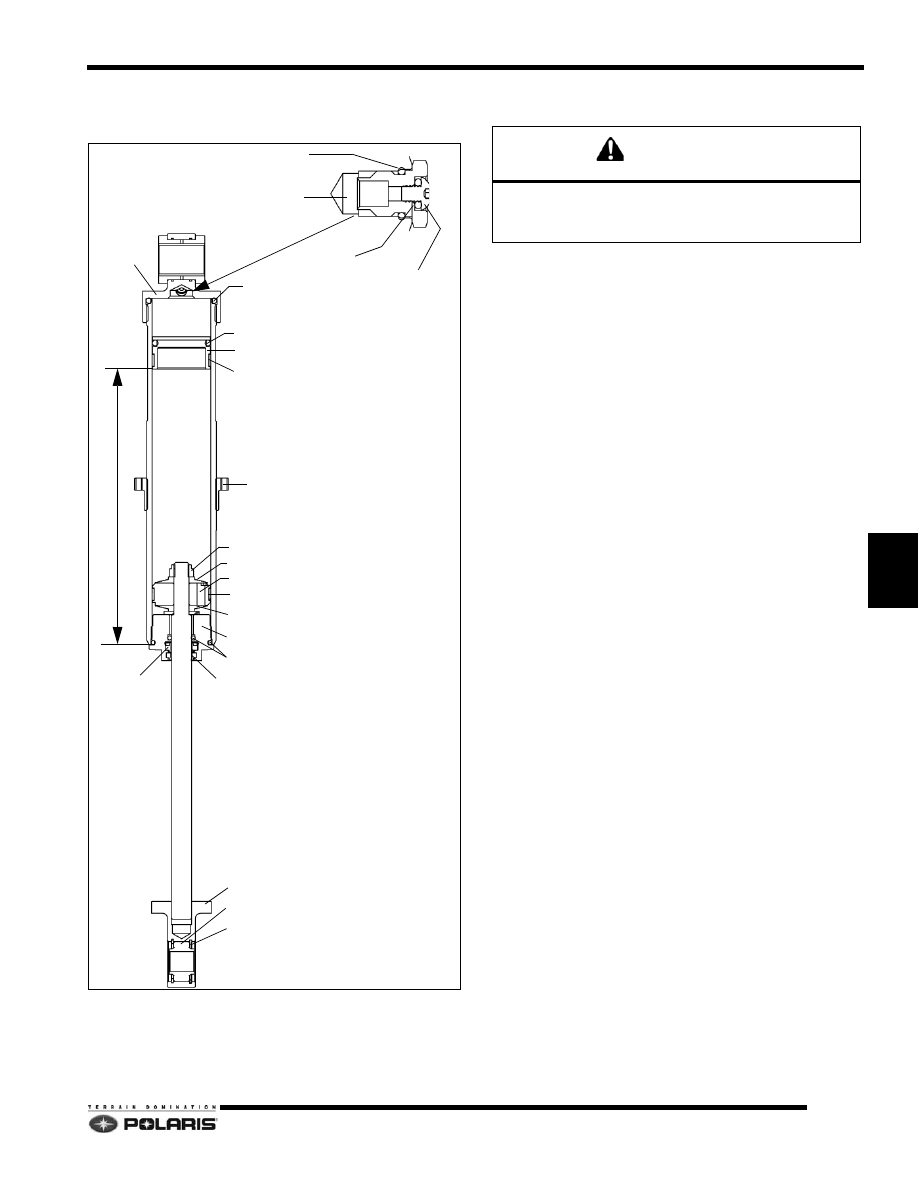

Walker Evans IFP Monotube Shock

Shock Disassembly

1.

Remove the shock from the vehicle. Clean the shock
assembly to remove all dirt and foreign material.
Inspect the assembly for any noticeable signs of
damage.

2.

Clamp the body cap end of the shock in a soft-jawed
bench vise.

3.

Remove the bleed screw from the fill port. Insert the
needle of the gas fill tool, PN PS-45259, into the fill
port to depressurize the shock. Push the shock rod
down to ensure all nitrogen is expelled. Remove the
fill port from the body cap.

4.

Remove the bearing assembly from the shock body.
Remove the bearing assembly/shock rod from the
shock body.

5.

Release the bench vise and drain all of the oil out of
the shock body into a suitable container. Discard the
oil in accordances with local rules and regulations.

6.

Position the bearing cap end of the shock over a clean
shop towel on the bench. Use compressed air applied
to the fill port bore to push the IFP out of the shock
body.

NOTE: Body cap removal is only required if the
sealing o-ring is believed to be damaged. Final
assembly IFP depth is measured from the bearing end
of shock.

7.

Remove the lock nut from the shock rod. Remove the
backup plate, rebound stack, piston, compression
stack, and top-out plates as one assembly. Orientate
these components on a clean shop towel as they are
assembled on the shock rod.

8.

Remove the shock rod from the bearing.

9.

With the shock disassembled, inspect all o-rings, the
U-cup seal, wearbands, and the wiper seal. It is
recommended that all be replaced with new parts.

10. Inspect the shock rod and shock body tube for

damage and/or pitting.

11. Inspect the rebound and compression stack valve

shims. Shims that are damaged, bent, chipped, or
wavy in appearance must be replaced.

12. Thoroughly clean all parts and dry with compressed

air.

SHOCK ROD

IF

P D

E

PTH

EYELET

O-RING

O-RING

BLEED SCREW

FILL PORT

IFP

O-RING

WEARBAND

BODY CAP

O-RING

SPRING RETAINER

LOCK NUT

REBOUND STACK

WEARBAND

PISTON VALVE

REBOUND STACK

BEARING

O-RINGS

U-CUP SEAL

WIPER

BEARING

RETAINER

CAUTION

SHOCK CONTENTS UNDER HIGH PRESSURE.

ALWAYS WEAR SAFETY GLASSES WHEN

WORKING WITH SHOCKS.

7.24

Shocks

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

Walker Evans IFP Monotube Shock

Assembly

Shock Assembly

1.

Place the shock rod eyelet in the bench vise. Apply a
liberal amount of shock oil to the surface of the shock
rod and internal bore of the bearing.

2.

Place the seal protector, PN 2201639, over the
threaded end of the shock rod. Carefully install the
bearing onto the shock rod.

3.

Install the topout plate, and compression valve stack.
Use a Vernier Caliper and reference the valve stack
specifications in this chapter if unsure of the shim
order of assembly.

4.

Install a new wearband on the piston valve. Lubricate
the piston with shock oil. Install the piston with the
greater number of relief ports facing away from the
compression stack.

5.

Install the rebound valve stack. Again, if unsure of
order of shims, use a Vernier Caliper and reference
the valve stack specifications for the shock in this
chapter.

6.

Install the backup plate. Remove the seal protector
and install a new lock nut. Torque lock nut to 15-20 ft-
lb (20-27 Nm).

7.

Remove the shock rod from the bench vise. Secure
the body cap with the open end of the tube facing up
into the bench vise.

8.

Install a new o-ring and wearband onto the IFP.
Lubricate the assembly with new shock oil.

9.

Install the IFP into the shock with the flat side facing
the body cap.

10. Set the depth of the IFP using a Vernier Caliper.

Reference the IFP depth specification for the shock in
this chapter.

11. With the IFP set, verify the fill port bleed screw is

installed. Doing so will prevent the IFP from moving
when stroking the shock rod in later steps.

12. Slowly fill 3/4 of the shock body with new shock oil.

13. Allow the oil to sit for several minutes to allow air

bubbles to escape. Gently tap on the shock body to
assist with removing any trapped air.

14. Carefully install the shock rod/bearing into the shock

body. Have a clean shop towel in hand to wipe up any
oil that spills out of the shock. Submerge the piston
valve assembly in the shock oil.

NOTE:  From this point on, do not remove the piston
valve assembly from the shock oil.

15. Slowly and carefully stroke the shock rod up and down

to force the oil through the valve stacks and piston
orifices. Continue until air bubbles no longer rise to the
surface of the oil. Tap on the shock body/rod to assist
with the removal of any trapped air.

16. Completely fill the shock body with shock oil. Wrap the

bearing and open end of shock with a clean shop
towel.

17. Slide the bearing down the rod shaft. Install the

bearing into the shock body and securely tighten. Oil
must spill out during installation to ensure air does not
remain in the oil.

18. Remove the fill port bleed screw. Charge the shock

with nitrogen to 200 PSI using the gas fill tool, PN PS-
45259. The shock rod should be pushed outwards as
the IFP is compresses the shock oil.

19. Remove the fill tool from the fill port and reinstall the

bleed screw.

20. Test shock by pushing down on the shock rod. The rod

should extend slowly after pushing it into the tube with
no sound of trapped air inside the oil. If the sound of
air is present or the rate of shock rod compression or
extension dramatically changes, the shock should be
disassembled and the oil replaced.

CAUTION

SHOCK CONTENTS UNDER HIGH PRESSURE.

ALWAYS WEAR SAFETY GLASSES WHEN

WORKING WITH SHOCKS.

Walker Evans 5W Shock Oil

2874522(Quart)

Steering and Suspensions

8.1

CHAPTER 8

Steering and Suspensions

8

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

OVERVIEW / SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3

INSPECTION  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.3
ROD END INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.3
ROD END ENGAGEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.3
FRONT SUSPENSION TYPE BY MODEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.4
REAR SUSPENSION TYPE BY MODEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.4
CAMBER / TOE SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.4
SUSPENSION MOUNTING FASTENER TORQUE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.5
SPECIAL TOOLS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.5
INITIAL SHOCK SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.6
INDEPENDENT FRONT SUSPENSION (IFS) SHOCK SETTINGS. . . . . . . . . . . . . . . . .8.7
REBOUND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.8
FRONT TRACK SHOCK (FTS) FACTORY SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . .8.9
REAR TRACK SHOCK (RTS) FACTORY SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . .8.10
LIMITER STRAPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.11
TORSION SPRINGS/SAG SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.11

FRONT SUSPENSION ASSEMBLY ILLUSTRATIONS  . . . . . . . . . . . . . . . . . . . . . . . . . 8.13

2010 PRO-RIDE FRONT CONTROL ARMS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.13
2011 PRO-RIDE FRONT CONTROL ARMS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.14
2012 PRO-RIDE (FIXED CAMBER) FRONT CONTROL ARMS  . . . . . . . . . . . . . . . . . .8.15
PRO-RIDE RMK/WIDE ADJUSTABLE FRONT CONTROL ARMS . . . . . . . . . . . . . . . .8.16
2010-2011 RUSH UPPER STEERING ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . .8.17
2012 RUSH/SWITCHBACK UPPER STEERING ASSEMBLY . . . . . . . . . . . . . . . . . . . .8.18
SWITCHBACK ASSAULT UPPER STEERING ASSEMBLY . . . . . . . . . . . . . . . . . . . . .8.19
600/800 RMK UPPER STEERING ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.20
600/800 PRO RMK/RMK ASSAULT UPPER STEERING ASSEMBLY  . . . . . . . . . . . . .8.21
2010 RUSH LOWER STEERING ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.22
2011-2012 RUSH/SWITCHBACK ASSAULT LOWER STEERING ASSEMBLY . . . . . .8.23
2011-2012 RMK STEERING ASSEMBLY  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.24
2010-2012 SWAY BAR ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.25

FRONT SUSPENSION SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.26

OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.26
ALIGNMENT BAR SPECIFICATIONS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.26
MAXIMUM SETUP WIDTH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.26
HANDLEBAR CENTERING  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.26
CAMBER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.27
CAMBER ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.27
TOE ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.28

DISASSEMBLY AND ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.29

SPINDLE REMOVAL  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.29
SPINDLE ASSEMBLY  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.29
SPHERICAL BEARING REPLACEMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.29
UPPER/LOWER CONTROL ARM REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.29
UPPER/LOWER CONTROL ARM INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.29
