Snowmobile Polaris 600 RUSH (2010 year). Instruction - part 59





8.2

Steering and Suspensions

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

REAR SUSPENSION ASSEMBLY ILLUSTRATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . .  8.30

2010 PROGRESSIVE 120 RAIL ASSEMBLY  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.30
2010 PROGRESSIVE 120 RAIL FASTENER LOCATIONS. . . . . . . . . . . . . . . . . . . . . . 8.31
2010 PROGRESSIVE 120 FRONT TORQUE ARM ASSEMBLY  . . . . . . . . . . . . . . . . . 8.32
2010 PROGRESSIVE 120 IDLER SHAFT ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . 8.33
2010 PROGRESSIVE 120 REAR CRANK/REAR SCISSOR ASSEMBLY  . . . . . . . . . . 8.34
2010 PROGRESSIVE 120 REAR BUMPER/CLOSEOFF ASSEMBLY . . . . . . . . . . . . . 8.35
PROGRESSIVE 121 RAIL ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.36
PROGRESSIVE 121 RAIL FASTENER LOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . 8.37
PROGRESSIVE 121 FRONT TORQUE ARM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.38
PROGRESSIVE 121 IDLER SHAFTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.39
PROGRESSIVE 121 REAR CRANK/REAR SCISSOR ASSEMBLY . . . . . . . . . . . . . . . 8.40
2011 PROGRESSIVE 121 BUMPER/CLOSEOFF ASSEMBLY  . . . . . . . . . . . . . . . . . . 8.41
2011 PROGRESSIVE 121 REAR MID FLAP COVERS. . . . . . . . . . . . . . . . . . . . . . . . . 8.42
PROGRESSIVE 136 RAIL ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.43
PROGRESSIVE 136 RAIL FASTENER LOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . 8.44
PROGRESSIVE 136 FRONT TORQUE ARM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.45
PROGRESSIVE 136 IDLER SHAFTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.46
PROGRESSIVE 136 REAR CRANK/REAR SCISSOR ASSEMBLY . . . . . . . . . . . . . . . 8.47
2012 PROGRESSIVE 121/136 BUMPER/CLOSEOFF ASSEMBLY . . . . . . . . . . . . . . . 8.48
2012 PROGRESSIVE 121/136 REAR MID FLAP COVERS . . . . . . . . . . . . . . . . . . . . . 8.49
RMK 144/SWITCHBACK ASSAULT PIVOTS/REAR IDLER . . . . . . . . . . . . . . . . . . . . . 8.50
RMK144/SWITCHBACK ASSAULT RAIL ASSEMBLY  . . . . . . . . . . . . . . . . . . . . . . . . . 8.51
RMK 144/SWITCHBACK ASSAULT RAIL FASTENER LOCATIONS . . . . . . . . . . . . . . 8.52
RMK 144/SWITCHBACK ASSAULT FRONT/REAR TORQUE ARM. . . . . . . . . . . . . . . 8.53
PRO RMK 155/163 PIVOTS/REAR IDLER  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.54
PRO RMK 155/163 RAIL ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.55
PRO RIDE RMK 155/163 RAIL FASTENER LOCATIONS  . . . . . . . . . . . . . . . . . . . . . . 8.56
PRO RMK 155/163 FRONT TORQUE ARM  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.57
PRO RMK 155/163 REAR TORQUE ARM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.58

PRO-RIDE PROGRESSIVE SUSPENSION OPERATION . . . . . . . . . . . . . . . . . . . . . . .  8.59

OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.59
ADJUSTMENT PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.59
REAR TRACK SHOCK THRUST BEARING  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.63

PROGRESSIVE REAR SUSPENSION REMOVAL AND INSTALLATION . . . . . . . . . . .  8.64

REMOVAL  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.64
INSTALLATION  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.65
REAR CRANK SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.65
REAR TRACK SHOCK SERVICE  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.66

RMK COIL-OVER REAR SUSPENSION  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  8.67

SUSPENSION ADJUSTMENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.67
RMK COIL-OVER STANDARD SPRINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.67
HEAVY DUTY REAR TRACK SHOCK SPRING-RMK COIL-OVER  . . . . . . . . . . . . . . . 8.68
MEASURING REAR TRACK SHOCK SPRING INSTALLED LENGTH . . . . . . . . . . . . . 8.68
SPRING RETAINER SPANNER WRENCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.68
FINE TUNING ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.69
SHOCK DAMPENING  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.69

RAIL SLIDERS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  8.70

WEAR LIMIT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.70
REMOVAL/INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.70
BREAK-IN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.70

8.3

Steering and Suspensions

8

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

OVERVIEW / SPECIFICATIONS

Inspection

When inspecting steering and suspension components for
wear or damage, always replace parts as necessary.
Refer to the assembly exploded views in this chapter for
identification of components and torque values of
fasteners. Make notes of the direction a bolt goes through
a part, what type of nut is used in an application, etc.

Always use genuine Polaris parts and hardware when
replacing front end components. Review steering
adjustment guidelines before making adjustments.

The following components must be inspected at this time.

• Tie rods and tie rod ends

• Sway bar and bushings/linkage (where applicable)

• Handlebars and steering post assembly

• Spindles and bushings

• Skis and skags

• Pitman arms / Idler arms

• A-arms and bushings

• Shock absorbers, shock mounts, springs

• All related fasteners - check torque.

• Pivot shafts and bushings

Always follow rod end engagement guidelines. Maximum
setup width must be checked whenever front suspension
components are adjusted or replaced.

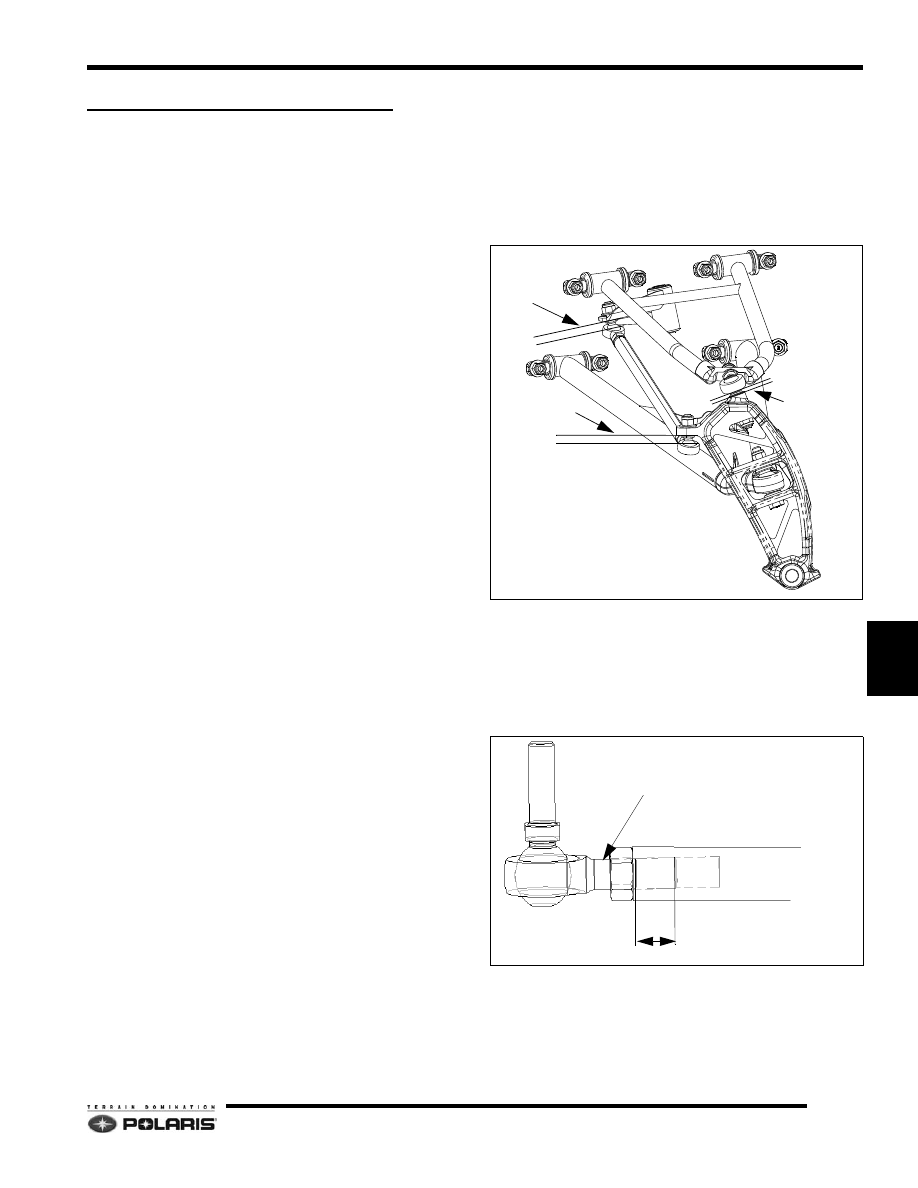

Rod End Installation

All rod ends in the front suspension and steering
assemblies (including steering drag links) must be parallel
with the corresponding mating surface after they are
installed and torqued to specification.

If the rod ends are not parallel, the rider may experience
an increase in ski darting and/or bump steer.

Rod End Engagement

Rod ends must engage the rod a minimum of 2x the thread
diameter when adjustment is complete.

Example: .4375” (11mm) rod end (A) X 2 = minimum
thread engagement (B) .875” (22mm).

PARALLEL

PARALLEL

PARALLEL

A

B

8.4

Steering and Suspensions

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

Front Suspension Type by Model

Rear Suspension Type by Model

Camber / Toe Specifications

Maximum width and camber measurements are achieved
with the front end elevated and shocks at full extension.

Toe alignment is measured at ride height. This means that
the machine is on the ground and resting at normal ride
height, not full rebound. Measure at a point 10” (2.54cm)
forward of the ski mount bolt and 10” (2.54cm) behind the
ski mount bolt, preferably on the center line of the carbide
skags.

Maximum width is measured from the center of the
spindles.

Camber measurement is taken from the top of the
alignment bar to the top of the ski mount hole in the spindle
with the bushing removed.

NOTE:  Only models featuring upper control arms
with rod ends allow for adjusting camber.

FRONT



SUSPENSION

MODELS

Pro-Ride

2010-2011Rush/

Switchback Assault

Pro-Ride (Fixed Camber)

2012 Rush/Switchback/
Switchback Assault

Pro-Ride RMK Adjustable

RMK/Pro RMK

Pro-Ride Wide Adjustable

RMK Assault

REAR



SUSPENSION

MODEL

Pro-Ride Progressive 120 2010 Rush

Pro-Ride Progressive 121 Rush

Pro-Ride Progressive 136 Switchback

Switchback 144

Switchback Assault

RMK Coil Over 155/163

RMK/Pro RMK/RMK
Assault

Camber & Toe Specifications

SUSPENSION

MAXIMUM

SET UP

WIDTH in/cm

(± .25in/.6cm)

CAMBER

in/cm

TOE OUT

(At ride

height)

in/cm

Pro-Ride

41.52/105

1.68 ± .31

(4.2 ± 0.8)

0 -.12

(0 -0.305)

Pro-Ride
(Fixed
Camber)

N/A

Pro-Ride RMK
Adjustable

36.26/92

1.95

 0.31

(4.3

 0.8)

Pro-Ride Wide
Adjustable

38.58/98

2.25

 0.31

(5.7

 0.8)

8.5

Steering and Suspensions

8

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

Suspension Mounting Fastener Torque

NOTE: Reference assembly illustrations for torque
specifications not listed in table.

Special Tools

NOTE: Polaris dealers can order the tools listed in
this chapter through the SPX Service Tools catalog
or by calling SPX @ 1-800-328-6657.

Component

Torque

Specification

Upper/Lower Control Arm Bulkhead Nuts

30 ft-lb (41 Nm)

Upper/Lower Spindle-to-Control Arm Fasteners

40 ft-lb (54 Nm)

Steering Rack Link Fastener Torque

37 ft-lb (50 Nm)

Tie Rod-to-Spindle Fastener Torque

37 ft-lb (50 Nm)

IFS Shock Upper/Lower Fastener Torque

37 ft-lb (50 Nm)

Ski Fastener Torque

37 ft-lb (50 Nm)

Sway Bar Linkage Fasteners

20 ft-lb (27 Nm)

Sway Bar Bushing Block Fasteners

7 ft-lb (10 Nm)

Lower Steering Shaft Bushing Block Fasteners

2010

2011-Current


14.7 ft-lb (20 Nm)

22 ft-lb (30 Nm)

Lower Steering Shaft-to-Bulkhead Fastener Nut

22 ft-lb (30 Nm)

Drag Link Rod End Fasteners

37 ft-lb (50 Nm)

Upper Steering Shaft Bushing Block Fasteners

2010

2011-Current


15 ft-lb (20 Nm)

20 ft-lb (27 Nm)

Handlebar Riser/Clamp Fasteners

14.7 ft-lb (20 Nm)

120/121/136 Front Torque Arm Tunnel Fasteners

Apply Loctite® 262™ to Threads

60 ft-lb (80 Nm)

120/121/136 Rear Crank Tunnel Fasteners

60 ft-lb (80 Nm)

120/121/136 Rear Track Shock Fasteners

33 ft-lb (45 Nm)

120/121/136 Rear Track Shock Reservoir Clamp
Fasteners

17 ft-lb (23 Nm)

120/121/136 Rear Scissor-to-Rear Crank Fasteners

33 ft-lb (45 Nm)

120/121/136 Rear Scissor-to-Rail Fasteners

60 ft-lb (80 Nm)

120/121/136 Upper Carrier Wheel Shaft Fasteners

33 ft-lb (45 Nm)

120/121/136 Front Track Shock Fasteners

33 ft-lb (45 Nm)

Rear Idler Wheel Shaft Fasteners

33 ft-lb (45 Nm)

Switchback 144 FTA-to-Tunnel Fasteners

45 ft-lb (61 Nm)

Switchback 144 RTA-to-Tunnel Fasteners

45 ft-lb (61 Nm)

Switchback 144 Limiter Strap Mount Fasteners

12 ft-lb (16 Nm)

Switchback 144 Rear Idler Shaft Screws

35 ft-lb (47.4 Nm)

RMK Coil-Over FTA-to-Tunnel Fasteners

46 ft-lb (63 Nm)

RMK Coil-Over RTA-to-Tunnel Fasteners

46 ft-lb (63 Nm)

RMK Coil-Over Rear Idler Screws

Apply Loctite® 262™ to Threads

33 ft-lb (44.7 Nm)
