Snowmobile Polaris 600 RUSH (2010 year). Instruction - part 56





7.14

Shocks

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

2012 Rear Track Shocks (RTS)

SHOCK



PN

MODEL

EXTENDED



LENGTH

IN

COLLAPSED



LENGTH

IN

STROKE



IN

SHOCK



ROD



IN

IFP



DEPTH



IN

OIL



VOLUME

PSI

7043721

Fox

17.29

12.06

5.23

.498

2.26

Full

200

7043723

Walker Evans

17.25

12.0

5.25

.625

2.0

7043635

16.71

10.96

5.75

.50

2.25

7043629

16.80

11.35

5.45

.625

2.0

7043603

.50

6.25

2012 Rear Track Shocks

SHOCK

7043721

7043723

7043635

7043629

7043603

R

E

BO

UN

D

.620x.093
.700x.012
.800x.012
.900x.012

1.0x.012

1.10x.015
1.25x.015
1.25x.015

.625x.065
.700x.012
.800x.012
.900x.012

1.0x.012

1.10x.012
1.20x.012
1.25x.015
1.25x.015

.625x.065
.700x.010
.800x.010
.900x.010
1.00x.012
1.10x.012
1.25x.015
1.25x.015
1.25x.015

.625x.065
.700x.015
.800x.015
.900x.015
1.00x.015
1.10x.015
1.20x.012
1.25x.015
1.25x.015

.875x.090
.700x.008
.800x.015
.900x.012
1.00x.010
1.10x.010
1.20x.010
1.25x.008

Piston Orifice

.093

.055

.086

N/A

.069

Shaft Bleed

N/A

.086

N/A

.082

N/A

COMPRESS

ION

1.30x.006
.700x.012
1.25x.008
1.10x.008

1.0x.006

.900x.006
.800x.006
.700x.006
.620x.020

1.125x.093

1.30x.006
1.25x.006
.900x.010
1.30x.008
1.20x.008
1.10x.008
.800x.008
1.20x.008

1.0x.006

.900x.006
.800x.006
.700x.006

.875.090

1.30x.008
1.25x.006
.800x.012
1.25x.010
1.10x.010
1.00x.010
.900x.010
.800x.010
.700x.010
.625x.065

1.30x.010
1.20x.008
1.00x.010
1.25x.012
1.20x.008
1.10x.008
1.00x.008
.900x.008
.800x.008
.700x.008
.875x.065

1.30x.008
1.10x.010
.900x.008
1.30x.010
1.20x.010
1.10x.010
1.00x.010
.900x.010
.800x.010
.700x.008
.875x.090

AD

JUS

T

ER

N/A

Rebound

.800x.012

Compression

1.0x.025
1.0x.025

.900x.015
.625x.065

1.10x.025
1.10x.025
1.00x.025
.875x.090

Rebound

1.00x.025
1.00x.025
.625x.065

N/A

7.15

Shocks

7

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

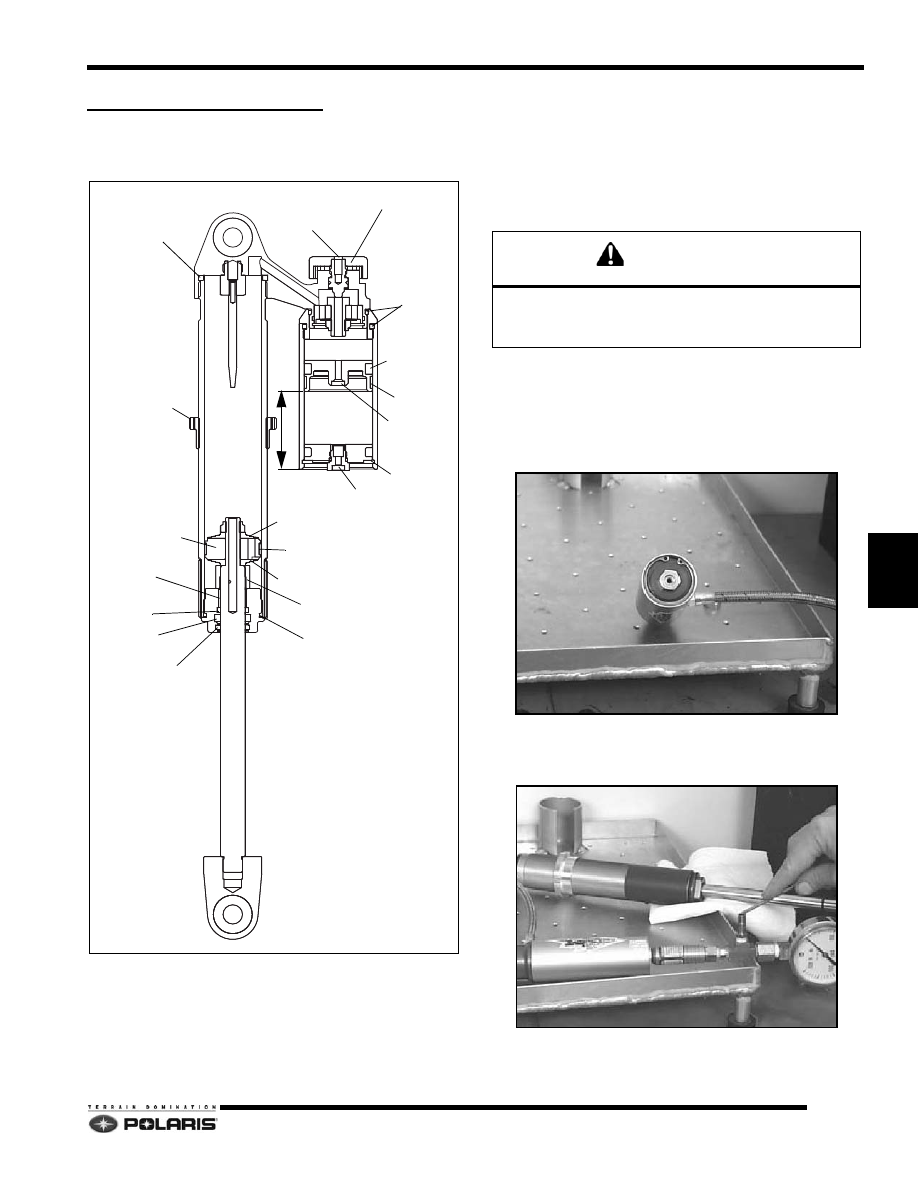

SHOCK MAINTENANCE

Walker Evans Coil-Over Piggyback Shock

Walker Evans Remote Reservoir / Piggyback

Shock Disassembly

NOTE:  Remote reservoir shock shown.

IMPORTANT: To prevent damage or marks to the
shock, the use of soft jaws on a vise is recommended.

1.

Clean and carefully remove shock from the
suspension.

2.

Remove button head screw from reservoir cap (if
applicable).

3.

Insert safety needle carefully and depressurize the
shock.

SPRING RETAINER

SHOCK ROD

NEEDLE

WEARBAND

REBOUND STACK

COMPRESSION STACK

CONVEX PISTON

D WIPER

U CUP SEAL

O-RING

BUSHING

O-RING

O-RING

SHAFT SPACER

BUTTON SCREW

SNAP RING

IFP

O-RING

WEARBAND

O-RING

BLEED SCREW

COMPRESSION KNOB

SCREW

IF

P DEP

T

H

CAUTION

SHOCK CONTENTS UNDER HIGH PRESSURE.

ALWAYS WEAR SAFETY GLASSES WHEN

WORKING WITH SHOCKS.

7.16

Shocks

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

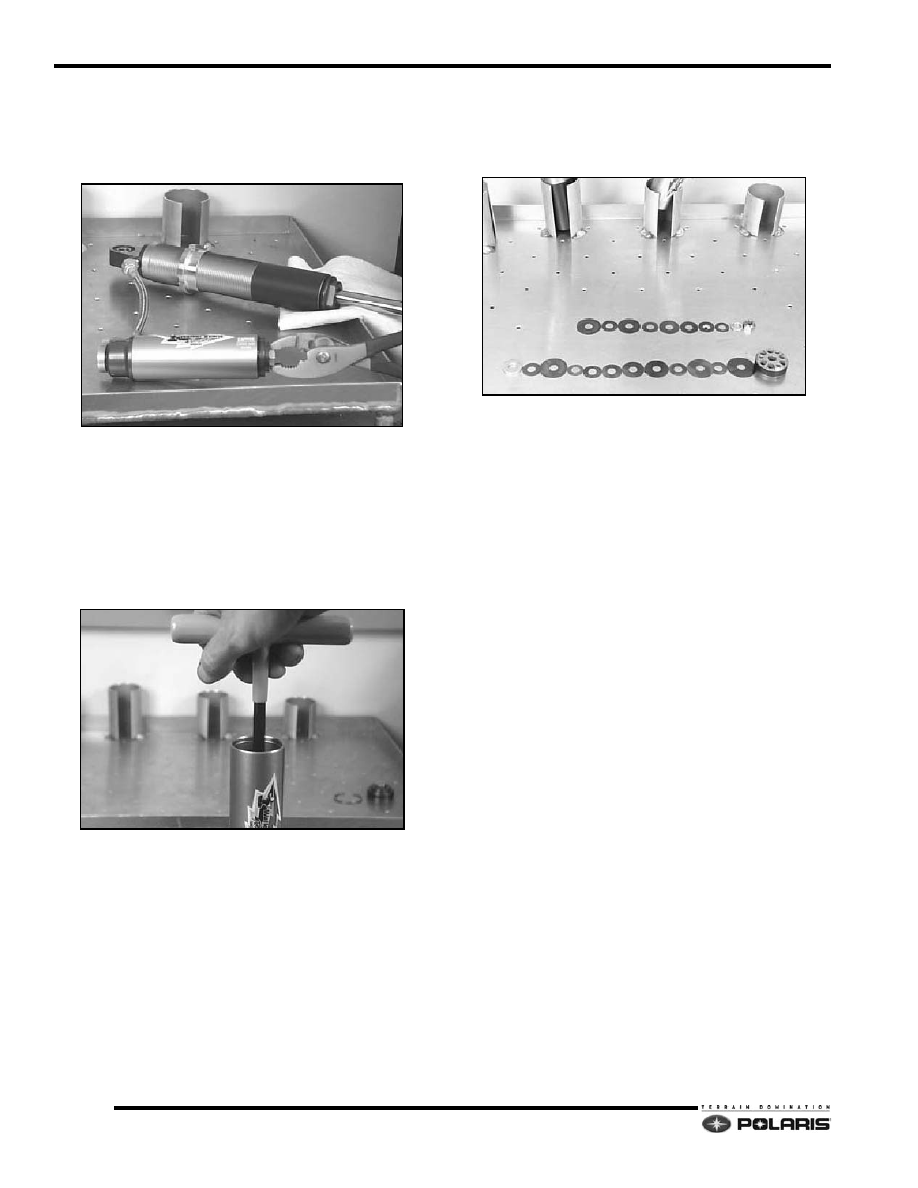

4.

Press the end cap into the reservoir to access the
snap ring.

5.

Remove the snap ring, then remove the cap from the
body.

6.

Place the shock lower eyelet in a vise.

7.

Loosen and remove the bearing cap from the shock.

8.

Remove the used oil from the shock body.

NOTE:  Insert the IFP tool (PN PS-45908) and cycle the
internal floating piston (IFP) a few times to purge the
shock oil from the reservoir.

9.

Remove the IFP from the reservoir with the IFP tool
(PN PS-45908).

10. Clean and inspect ALL parts and replace worn out

parts if needed.

IMPORTANT: Seal kits are available and should be
installed at this time if seals or o-rings are damaged or
worn.

11. Place the shock rod in a vise so that the threaded part

is facing upward.

12. Place the valve stack on a clean shop towel in order

of removal.

NOTE:  Place the valve stack on a clean shop towel in
case you have to move them. This will also help when
assembling them back onto the shock rod.

13. Inspect the valves for kinks, waves, pits or foreign

material.

14. Inspect the piston wear band and replace if damaged

or worn.

7.17

Shocks

7

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

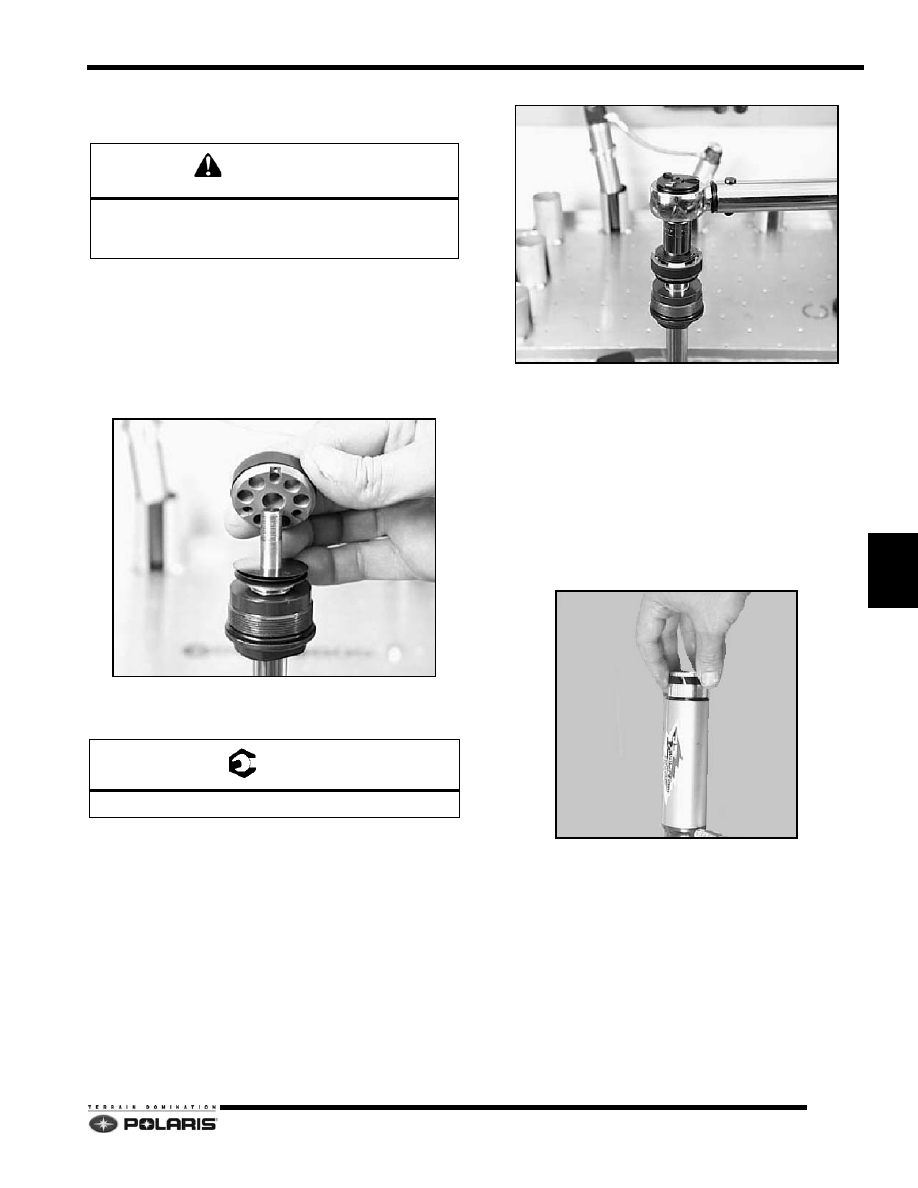

Walker Evans Remote Reservoir / Piggyback

Shock Assembly

1.

Secure the shock rod in a vise with the threads of the
rod facing up.

2.

Place the compression valve stack on the rod in the
reverse order of disassembly.

3.

Place the valve piston on top of the compression
stack.

4.

Place a new lock nut onto the shock rod. Torque the
new lock nut to specification.

IMPORTANT: Do not over torque or damage to the
valve stack can occur.

5.

Secure the shock body by its lower mount.

6.

Set the compression damping adjustment selector to
position “1”.

7.

Fill the shock body and remote reservoir 1/2 full of
Walker Evans 5w shock oil (PN 2874522).

8.

Apply a thin film of oil to the IFP o-ring and floating
wear band located on the shock rod piston.

9.

Compress the wear band and insert the IFP into the
reservoir. Allow as much air as possible to escape as
you install the piston.

10. Screw the IFP tool, PN PS-45908, into the IFP.

11. Hold or place the reservoir as low as possible on

remote reservoir shocks so the air will travel upward
as you slowly cycle the IFP up and down.

• Be sure to bottom out the piston in the reservoir

body.

• Allow time for the bubbles to dissipate.

• Repeat the process until all the air has been

removed.

CAUTION

SHOCK CONTENTS UNDER HIGH PRESSURE.

ALWAYS WEAR SAFETY GLASSES WHEN

WORKING WITH SHOCKS.

T

Lock Nut Torque: 14 ft-lb (19 Nm)
