Snowmobile Polaris SUPERSPORT EDGE S01NB5BS, S01NB5BSA (2001 year). Instruction - part 9





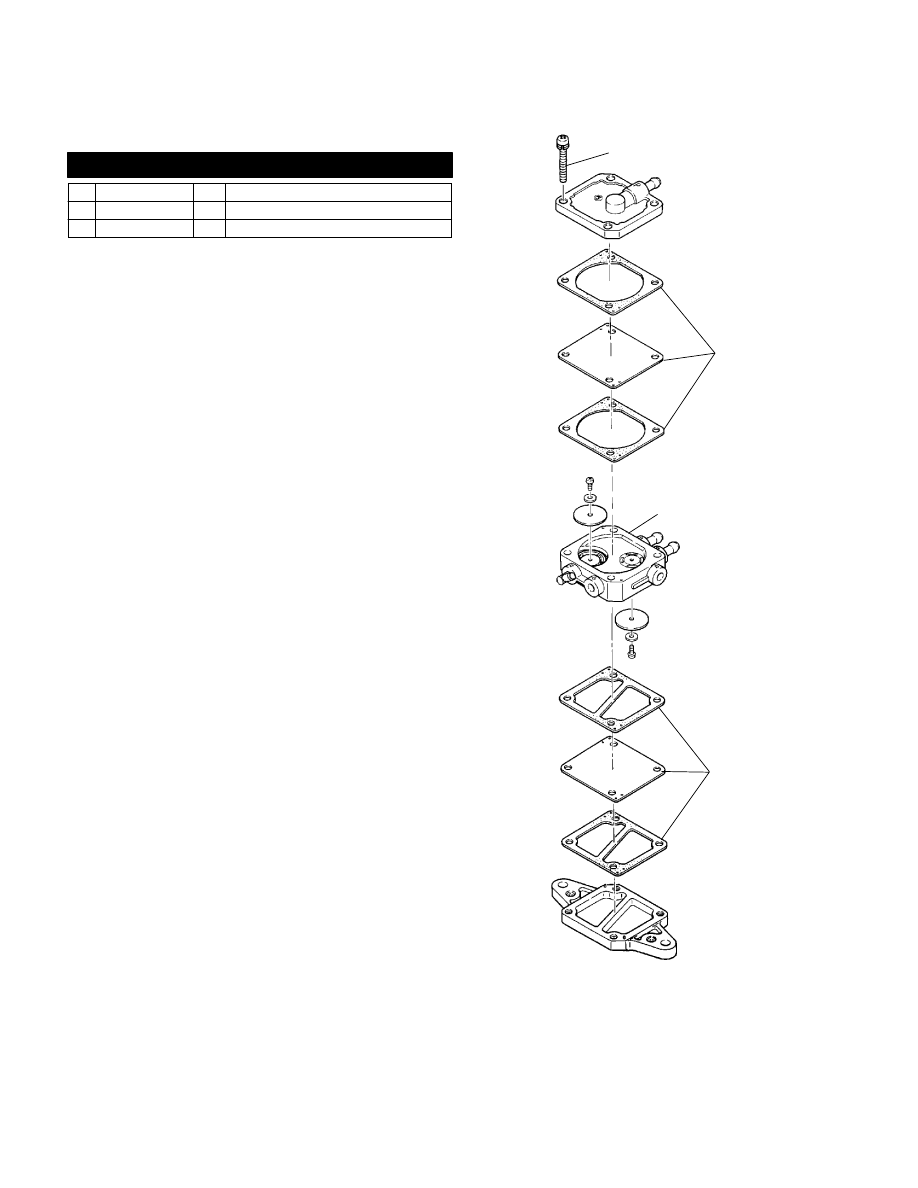

C6

FUEL PUMP

SUPERSPORT S01NB5BS and SUPERSPORT S01NB5BSA

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

1 3084591

4 Screw

2 3085490

1 Asm., Fuel Pump (Incl. 1-3)

3 3084590

1 Diaphragm, Gasket Set

4/99

1

2

3

3

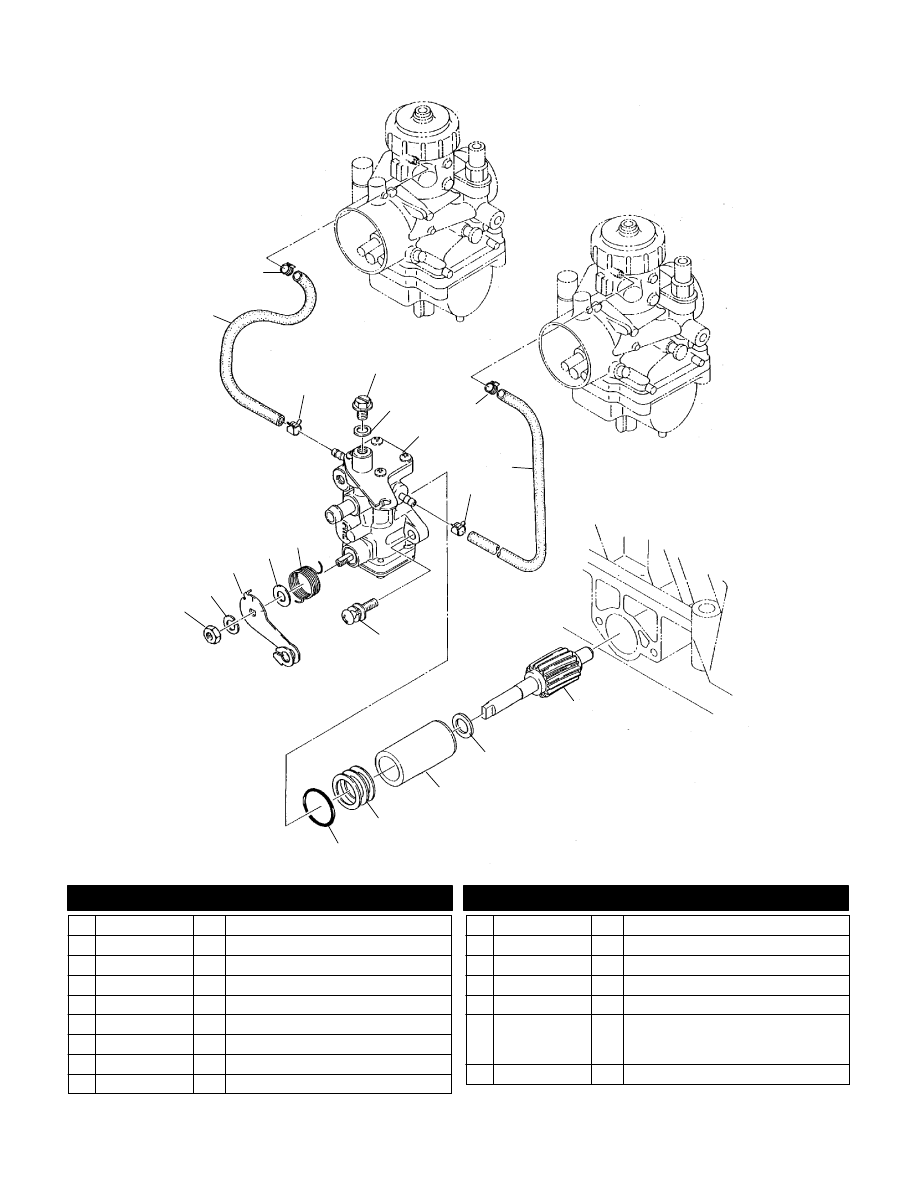

C7

OIL PUMP

SUPERSPORT S01NB5BS and SUPERSPORT S01NB5BSA

1

1

2

2

2

2

3

4

5

6

7

8

9

10

11

12

14

15

16

13

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 3085157

2 Vinyl Pipe 2

2 3083141

4 Clamp, Hose

3 3083125

1 Screw, Air Vent

4 3083126

1 Packing

5 3085915

1 Asm., Oil Pump (Incl. 3-10,16)

6 3083123

1 Spring, Return

7 3083445

1 Collar, Cam Shaft

8 3085923

1 Lever, Control

9 3083121

1 Washer, Spring

10 3083120

1 Nut

11 3083783

2 Screw and Washer

12 3083131

1 Gear, Small

13 3083130

1 Spacer

14 3083353

1 Bushing, Oil Pump

15 3083671

3083672

3083673

AR

AR

AR

Spacer 1 (.15mm)

Spacer 2 (.3mm)

Spacer 3 (.6mm)

16 3083127

1 O-Ring

4/99

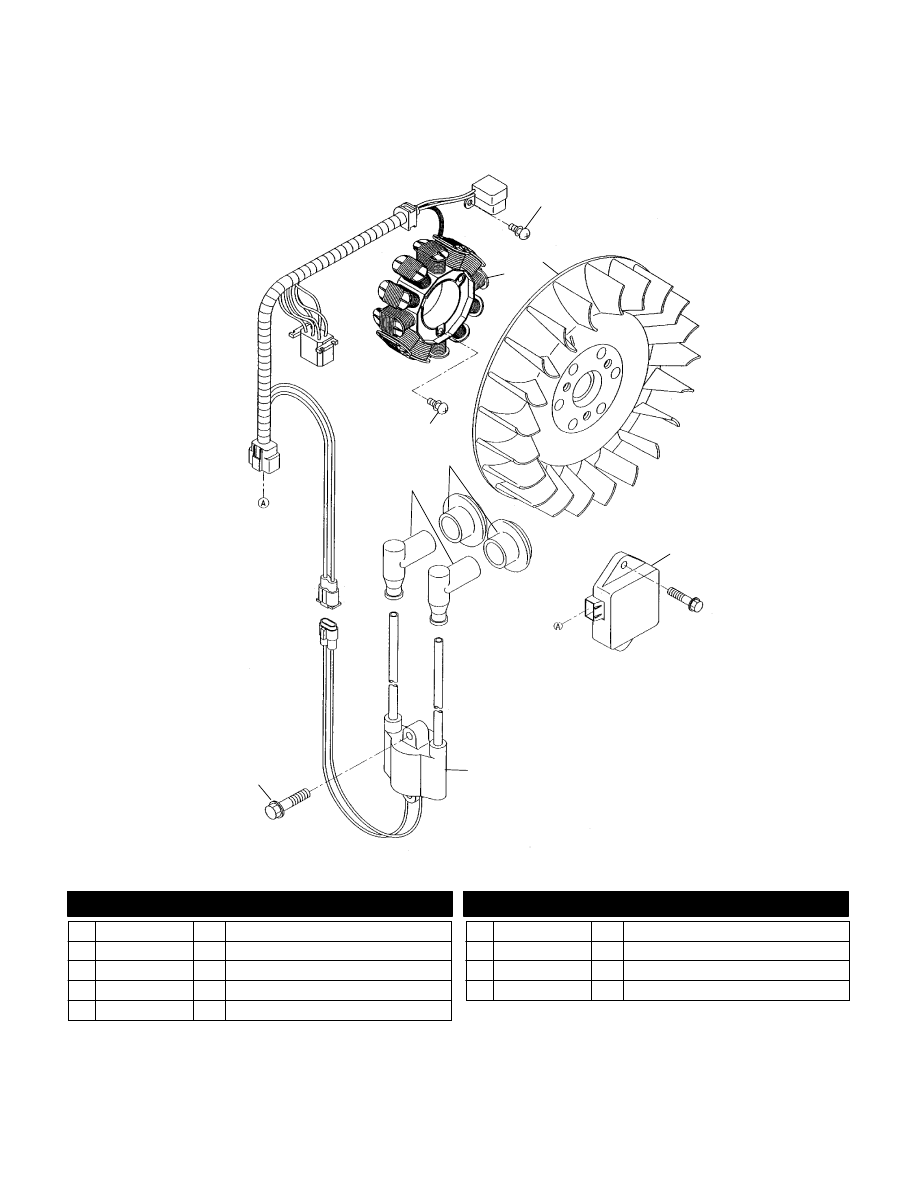

C8

MAGNETO

SUPERSPORT S01NB5BS and SUPERSPORT S01NB5BSA

4

6

9

7

5

8

3

2

1

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 3085698

2 Screw and Washer

2 3085727

1 Asm., Flywheel

3 3085934

1 Stator

4 3085697

3 Screw and Washer

5 3086976

2 Cap, Spark Plug

6 3085935

2 Cap, Spark Plug

7 3085700

1 CDI System

8 3085905

1 Coil, Ignition

9 3084177

2 Bolt, Flange

6/00

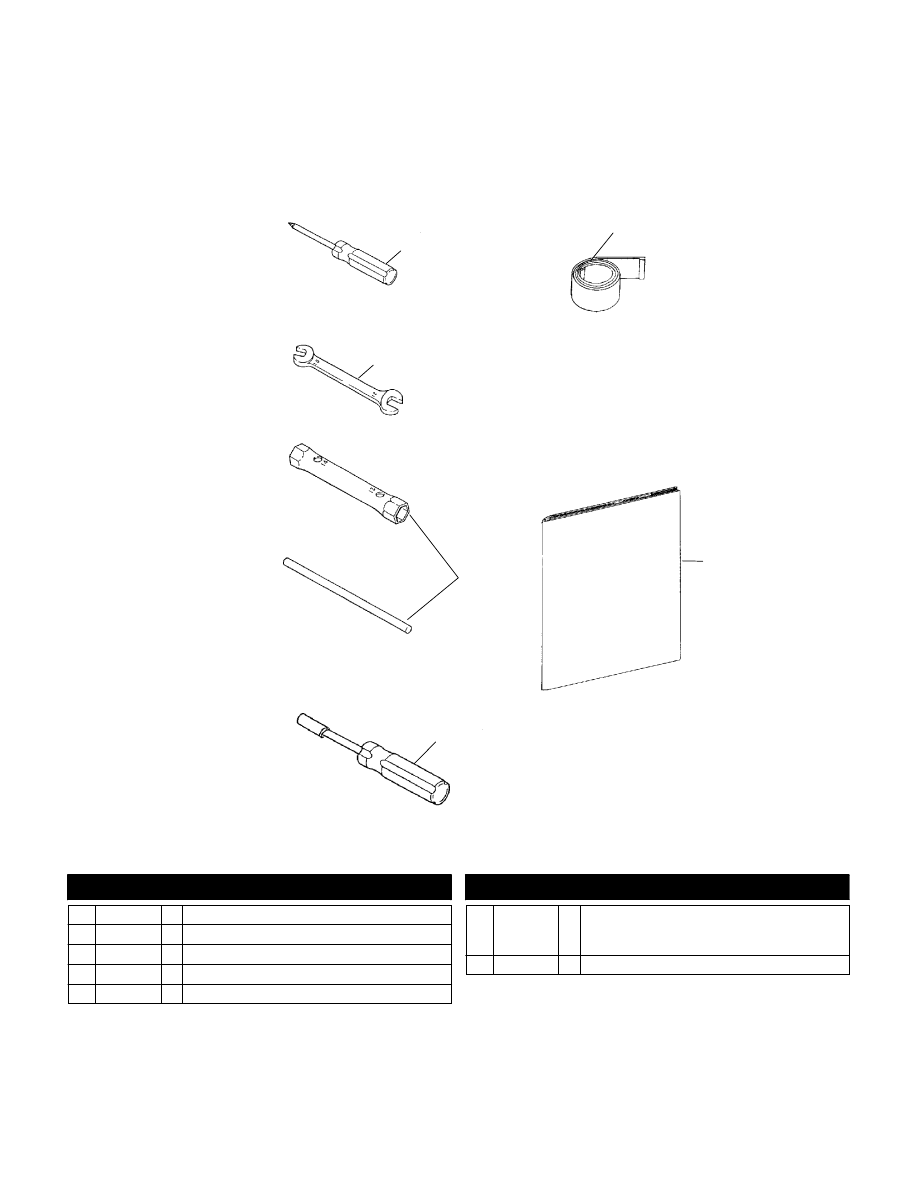

C9

TOOL KIT

SUPERSPORT S01NB5BS and SUPERSPORT S01NB5BSA

1

2

3

6

5

4

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

3083409

1 Kit - Tool (Incl. 1-3)

1 --------------

1 Screwdriver

2 --------------

1 Wrench, 10-12 Spanner

3 --------------

1 Box Wrench, Special

4 2871845

1 Screwdriver, Flat, Shielded

5 9915622

9916119

1

1

Manual, Owner’s, ’01 Snowmobile

Supplement, Owner’s Manual ’01 Supersport

Edge

6 7080287

1 Strap, Emergency Starter

6/00
