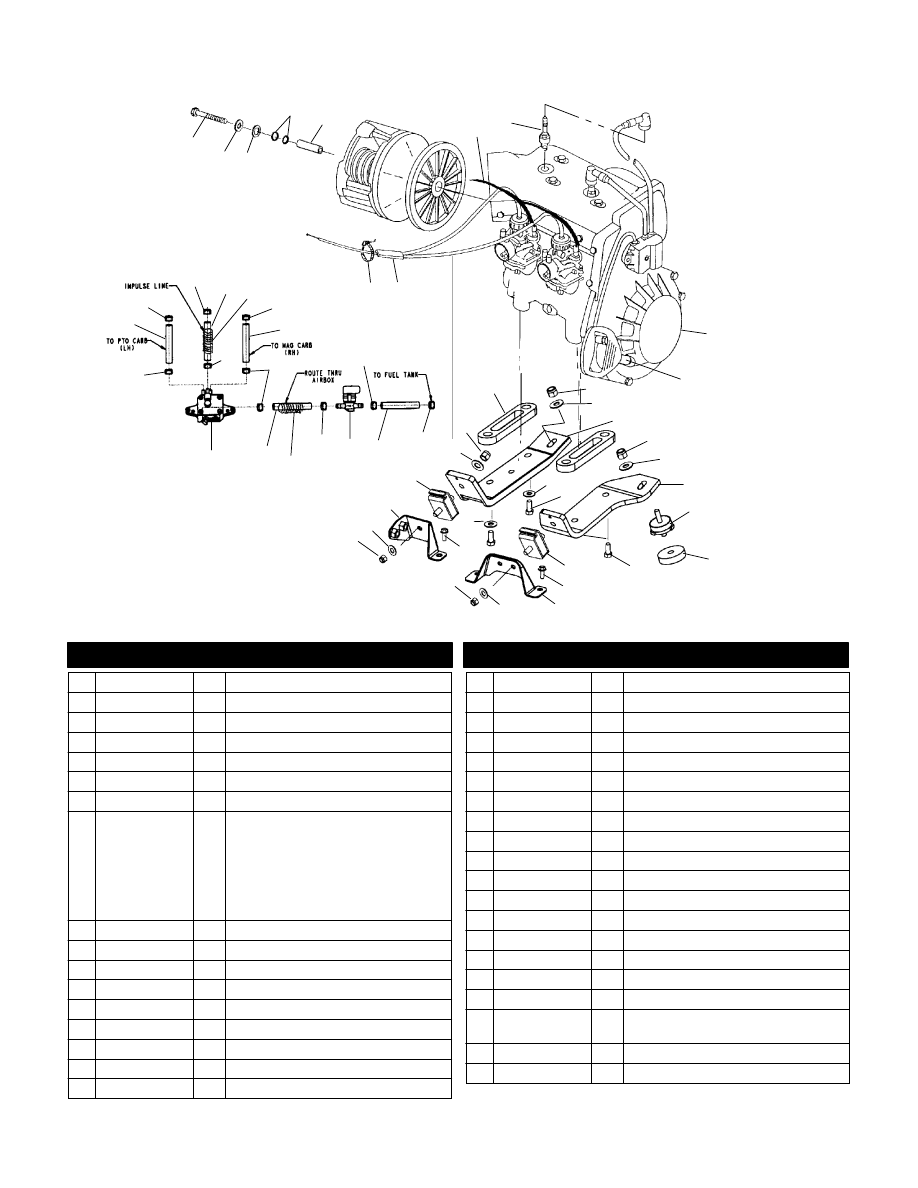

B12 ENGINE MOUNTING SUPERSPORT S01NB5BS and SUPERSPORT S01NB5BSA 1 2 3 7 8 9 18 15 19 16 35 29 28 37 31 4 5 32 32 17 11 12 10 33 33 33 33 33 33 34 34 34 34 36 33 30 27 25 25 24 24 24 25 26 23 21 21 6 20 19 13 14 22 22 Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly. Ref. Part No. Qty. Description Ref. Part No. Qty. Description 1 7517776 1 Screw 2 7575202 1 Washer 3 5010287 1 Washer, Clutch Retainer, Short 4 5410507 2 O-Ring, Clutch Bolt 5 5020513 1 Spacer, Clutch Bolt 6 7080290 1 Cable, Choke Control 7 3070163 2 Spark Plug, NGK BR9ES 8 3085618 1 Engine, Short Block ( EC55PM030) NOTE: The Short Block assembly contains a crankcase assembly, cylin- der and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for warranty consideration. 9 5431499 1 Handle, Recoil 10 7542451 4 Nut, Nylok 11 7555893 2 Washer, Flat 12 5245015 1 Strap, Engine Mount, LH 13 7542404 1 Nut 14 7556180 1 Washer, Interlock 15 5245016 1 Strap, Engine Mount, RH 16 3021220 2 Mount, Engine 17 5245117 2 Spacer, Engine Mount 18 7517399 2 Screw 19 7553101 2 Washer, Spring Lock 20 7512515 2 Screw 21 3021206 2 Mount, Engine 22 7517854 3 Screw 23 5245044 1 Bracket, Engine Mounting, RH 24 7555806 4 Washer, Flat 25 7547008 4 Nut, FLEXLOC, Thin 26 1013397 1 Bracket, Engine Mounting, LH 27 5245020 2 Spacer, Engine 28 7080888 1 Cable, Throttle 29 7080138 1 Cable Tie 30 8360052-305 1 Tubing, Convoluted 31 8450040-600 AR Line, Fuel 32 7080003 2 Clamp, Hose 33 7080307 8 Clamp, Hose 34 8350018-600 AR Line, Fuel 35 -------------- 1 Asm., Fuel Pump (See Fuel Pump Pg. C6, Ref. 2) 36 4010051-06 1 Conduit, Convoluted 37 7052248 1 Valve, Fuel Shut-Off 10/00 |
