Snowmobile Polaris SUPERSPORT EDGE S01NB5BS, S01NB5BSA (2001 year). Instruction - part 6





B8

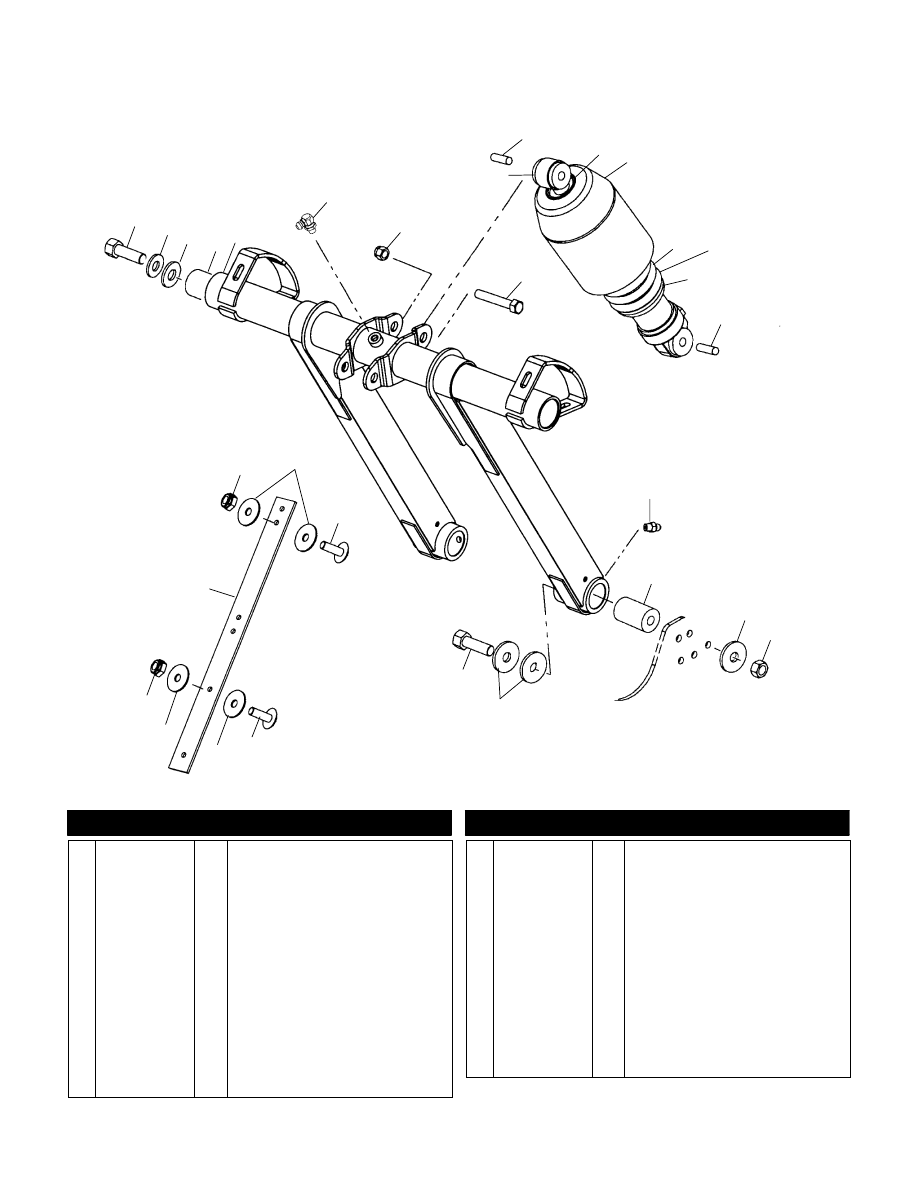

FRONT TORQUE ARM

SUPERSPORT S01NB5BS and SUPERSPORT S01NB5BSA

1

2

3 4 5

7

16

8

10

11

12

20

18

22

25

24

19

23

17

19

13

21

9

14

23

22

24

6

15

23

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7517435

2 Screw

2 7552603

2 Washer, Spring Lock

3 7555893

2 Washer, Flat

4 5132067

1 Shaft

5 1541532-067

1 Arm, Torque, Front

6 7080510

1 Fitting, 90 Degree

7 7542439

2 Nut, Nylok

8 7041919

1 Shock, Front Track

9 5333905

1 Sleeve

10 5630580

1 Retainer, Slotted Spring

11 5430671

1 Shield, Spring

12 7041253-067

1 Spring, Compression

13 5245067

1 Retainer, Spring

14 5210953

1 Retainer, Spring

15 5333906

1 Sleeve

16 7515415

1 Screw

17 7080424

2 Fitting, Lubrication

18 5132387

2 Shaft

19 7556156

6 Washer

20 7547066

2 Nut, Nylok

21 7512597

2 Screw

22 7517313

4 Screw

23 7555959

8 Washer, Flat

24 7542344

4 Nut, Nylok

25 5411971

2 Strap, Limiter

6/00

B9

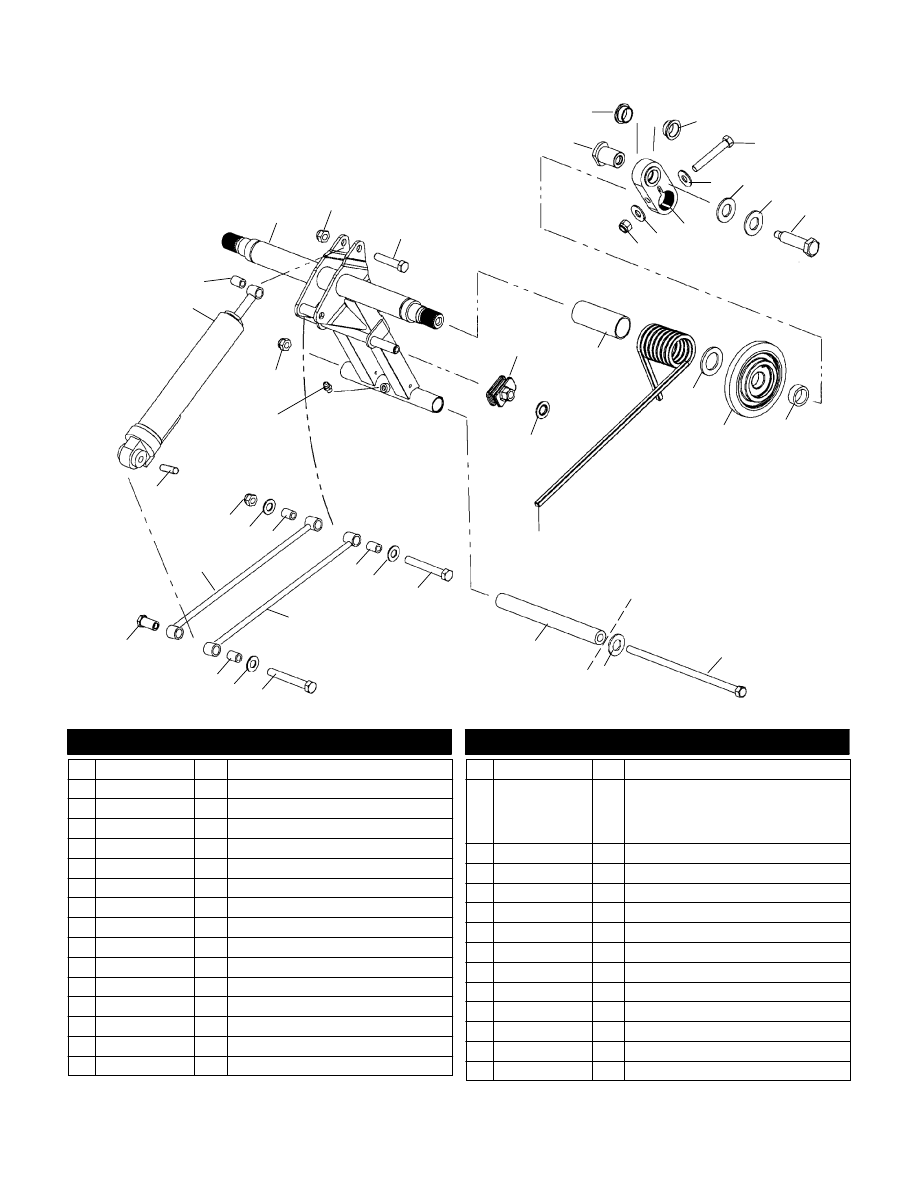

REAR TORQUE ARM

SUPERSPORT S01NB5BS and SUPERSPORT S01NB5BSA

1

5

11

6

19

30

24

29

20

16

3

26

14

28

25

23

12

21

22

7

7

22

2

4

13

10

9

8

18

15

17

23

2

23 22

2

24

5

27

7

2

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 1541561-067

1 Arm, Torque, Rear

2 7542439

5 Nut, Nylok

3 7512410

1 Screw

4 5333758

2 Shaft, Arm

5 3514331

4 Bushing

6 7515415

2 Screw

7 7555806

5 Washer, Flat

8 7555893

2 Washer, Flat

9 7552603

2 Washer, Spring Lock

10 7517435

2 Screw

11 1541461

2 Asm., Rear Torque Arm (Incl. 5)

12 5132388

2 Spacer

13 1590278

2 Asm., Wheel

14 7555787

2 Washer, Thrust

15 5431923

2 Sleeve, Torsion Spring

16 5432983

1 Roller, Spring, Adjustable

17 7080394

2 Clip, Push On

18 7041629-067

7041630-067

7041942-067

7041943-067

1

1

1

1

Spring, Torsion, .359/77, LH (Std)

Spring, Torsion, .359/77, RH (Std)

Spring, Torsion, .375/77, LH (Opt)

Spring, Torsion, .375/77, RH (Opt)

19 7517232

1 Screw

20 5333873

1 Shaft

21 7515514

1 Bolt

22 7555795

3 Washer, Wave

23 5132391

3 Bushing

24 1541479-067

2 Rod, Shock

25 7517851

1 Screw

26 5132390

1 Bushing, Nut

27 5333907

1 Sleeve

28 7080424

1 Fitting, Lubrication

29 7041920

1 Shock

30 5010422

1 Bushing

6/00

B10

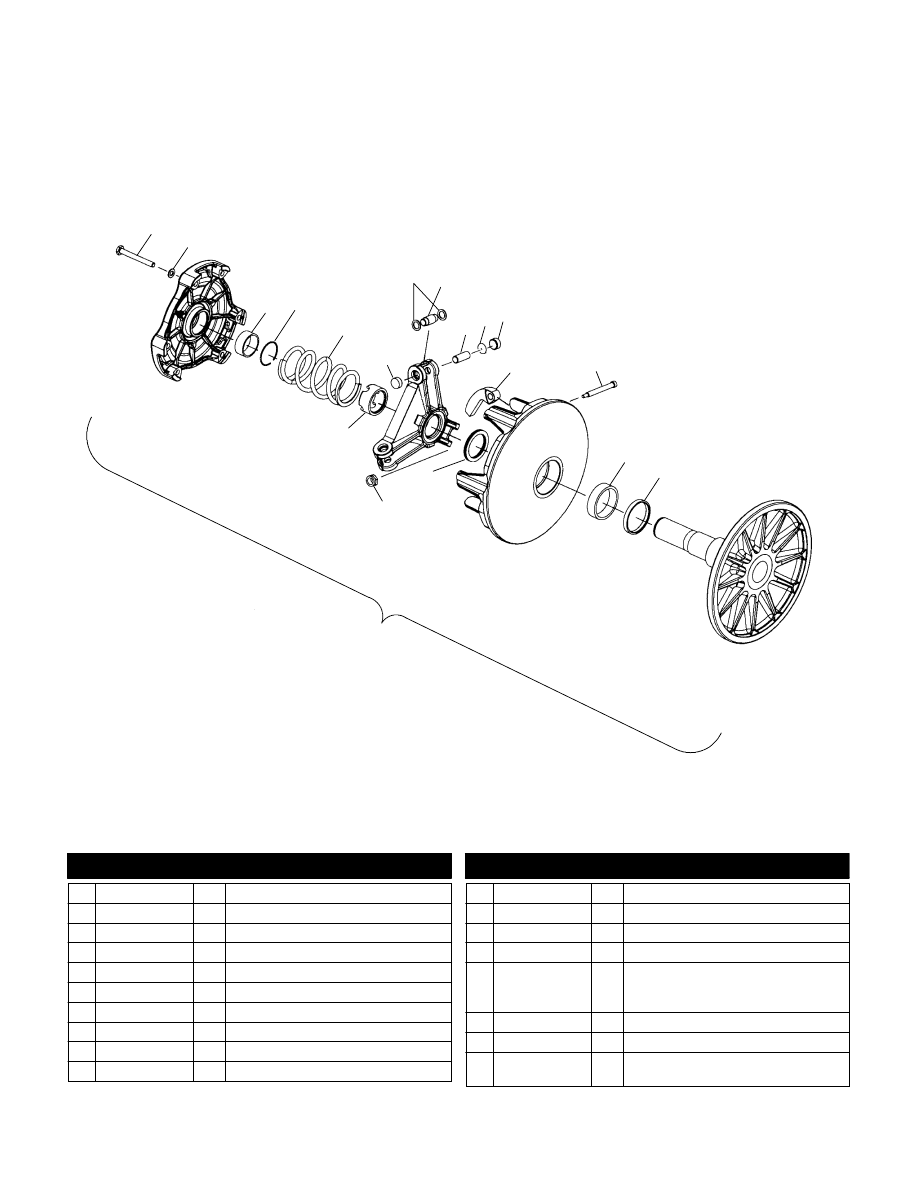

DRIVE CLUTCH

SUPERSPORT S01NB5BS and SUPERSPORT S01NB5BSA

1

2

3

4

5

9 10

6

7

8

17

6

15

11

12

16

13

14

18

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7512265

6 Bolt

2 7552801

6 Washer, Spring Lock

3 3576516

1 Bearing, Cover

4 7710417

1 Ring, Retaining, Cover

5 7041781

1 Spring, Clutch, Dark Blue/White

6 5430445

6 Button, Guide

7 5430945

6 Washer, Multilube

8 1321622

3 Asm., Roller and Bushing

9 5020422

3 Pin, Roller

10 2200387

1 Kit - Drive Clutch Shim

11 1321587

3 Weight/Bushing, 10-60

12 7515105

3 Pin, Hardened Weight

13 3576502

1 Bearing, Sleeve

14 5010188

1 Insert, Moveable

15 5210754

5210753

5210752

AR

AR

AR

Spacer (.050mm)

Spacer (.032mm)

Spacer (.020mm)

16 7541906

3 Nut, FLEXLOC

17 5020425

1 Nut, Jam

18 1321699

1 Asm., Drive Clutch, Basic 69

(Incl. All Less 5,11)

6/00

B11

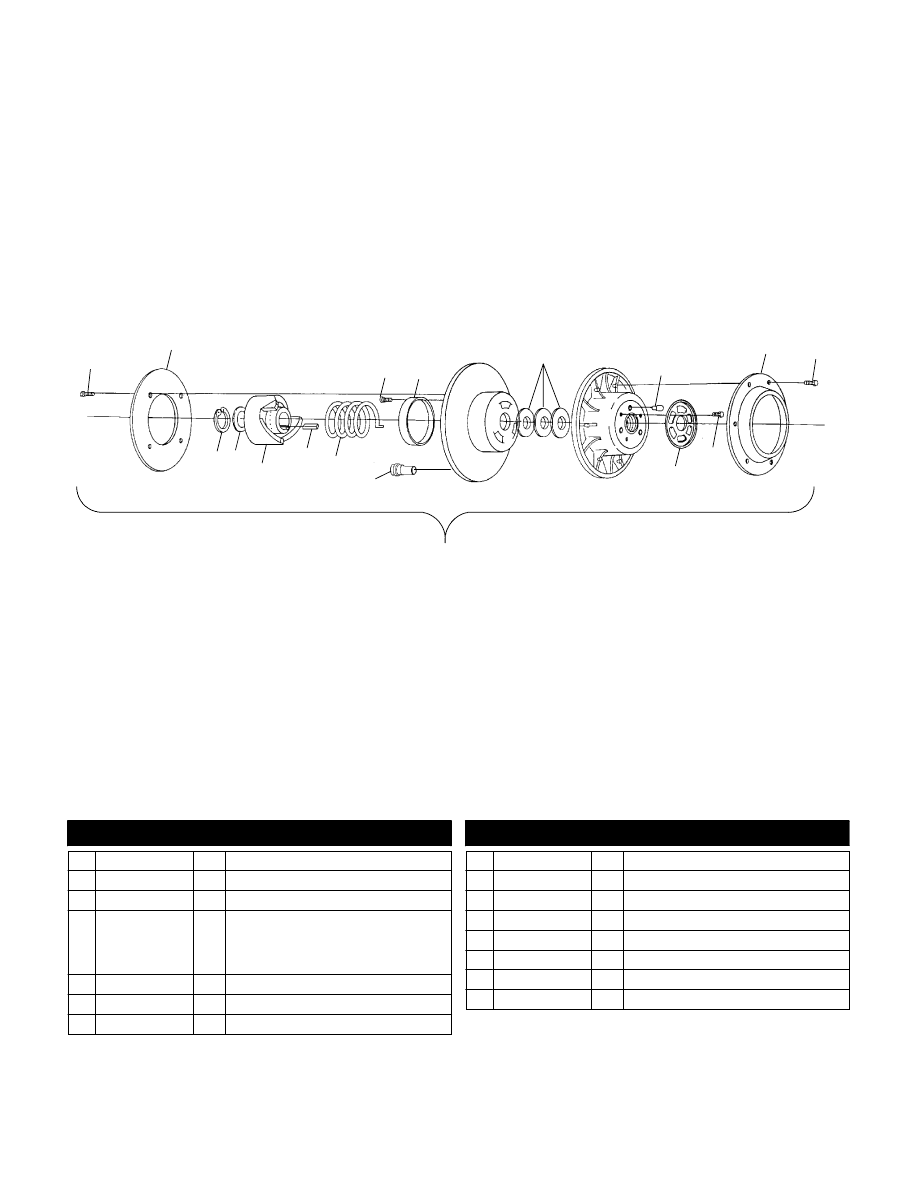

DRIVEN CLUTCH

SUPERSPORT S01NB5BS and SUPERSPORT S01NB5BSA

1

2

15 14

13

12 11

3

1

5

8

7

6

1

10

9

4

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7512048

8 Screw

2 5243158

1 Plate, Vented Driven

3 3569803

1 Bushing, Driven, Large DU

4 7556804

7555898

7556076

7555865

AR

AR

AR

AR

Washer (.03)

Washer (.02)

Washer (.025)

Washer (.075)

5 5020653

3 Pin, Driven, Adjustable

6 5243157

1 Cap, Vented Driven

7 7515133

3 Bolt

8 5222878

1 Cam, Driven, Adjustable

9 1321968

1 Asm., Driven Clutch, Basic 206 W/B

10 5430466

3 Button, Ramp

11 7041646

1 Spring, Driven Clutch, Silver/Blue

12 7721103

1 Key

13 5130895

1 Ramp, Driven, 36D

14 7556804

5 Washer

15 7714804

1 Ring, Retaining

6/00
