Snowmobile Polaris 600 RMK F/O, 700 RMK F/O, 800 RMK F/O (2004 year). Instruction - part 14





D11

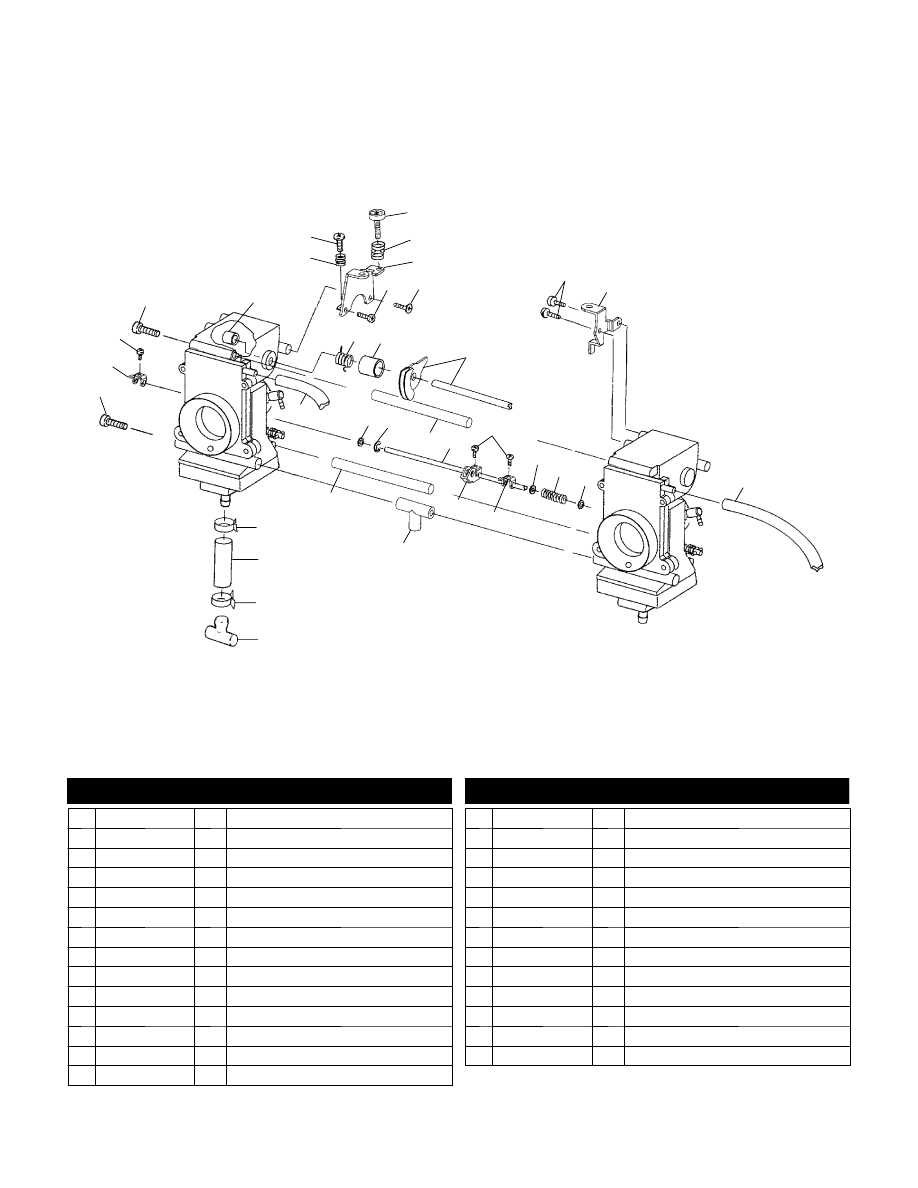

CARBURETOR (700/800)

700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A

S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700 RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800

RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS

and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159 STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

19

20

22

3

2

14

17

24

15

16

23

5

6

9

12

7

8

10

11

21

4

13

18

21

18

18

17

3

2

1

1

25

25

26

27

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 3130834

2 Bolt, Rack Style

2 3130832

2 Lever, Starter

3 3130833

3 Screw, Starter

4 3140032

1 Ring

5 3130817

1 Spring

6 3130816

1 Screw

7 3131285

1 Adjuster

8 3131284

1 Spring

9 3130815

1 Bracket

10 3130810

1 Screw

11 3130809

1 Screw

12 3130950

1 Spring

13 3130853

1 Ring

14 3131369

1 Asm.,Shaft (Incl. Lever)

15 3130821

2 Screw

16 3130820

1 Bracket

17 3131137

2 Hose, Vent

18 3130842

3 Packing, Starter Shaft

19 3130841

1 Spring, Starter Shaft

20 3131233

1 Shaft

21 3131232

2 Ring, Rack Style

22 3130839

1 E-Ring

23 3130819

1 Lever, Starter

24 3131350

1 Asm., Nipple

25 7080003

4 Clamp, Hose

26 8350017-600

AR Line, Fuel

27 5431893

2 Plug, Trap

7/01

D12

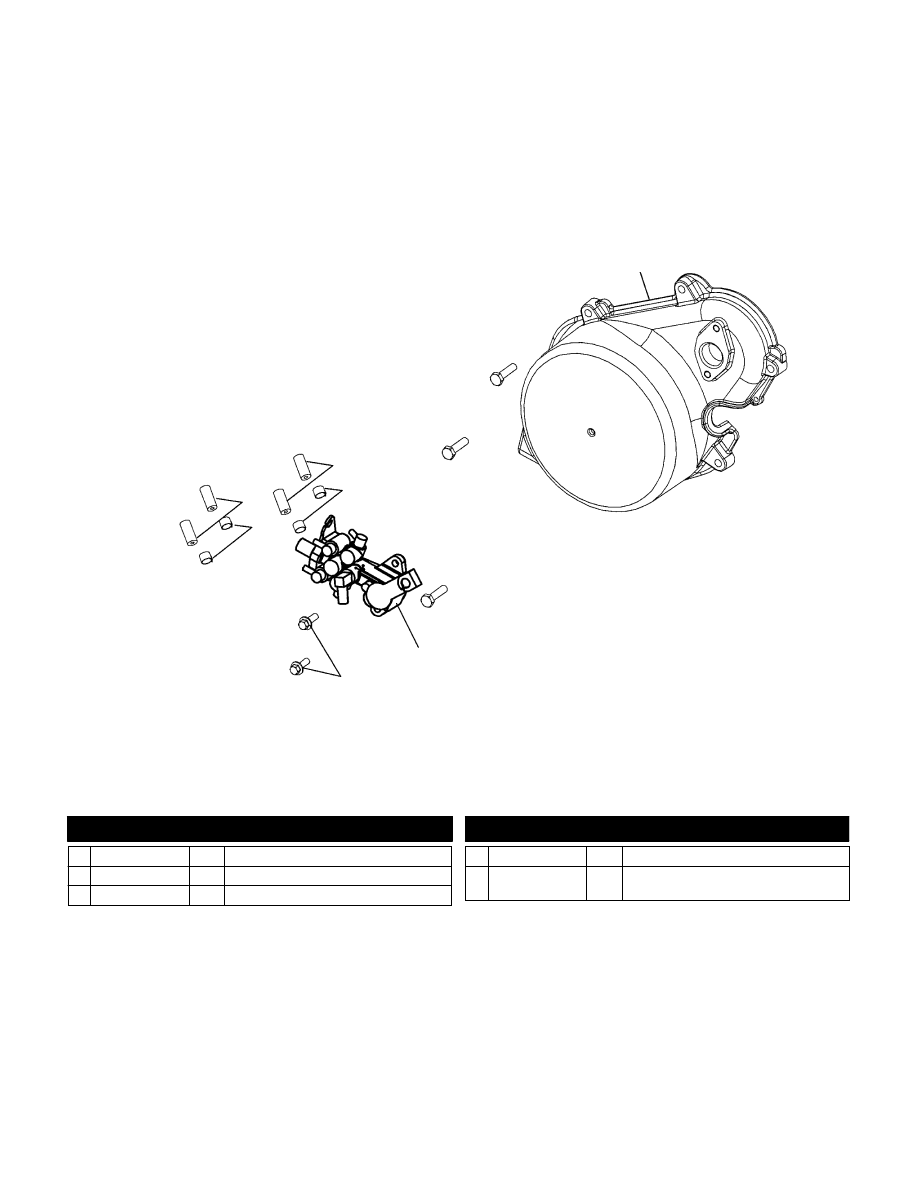

OIL PUMP (700/800)

700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A

S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700 RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800

RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS

and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159 STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

4

3

1

2

1

5

2

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 8450061-82

AR Line, Fuel

2 7080603

4 Clamp

3 7516607

2 Screw

4 2540102

1 Asm., Pump, Oil

5 --------------

1 Housing, Ignition (See Magneto

(700)(800) Pg. D13, Ref. 13)

4/02

D13

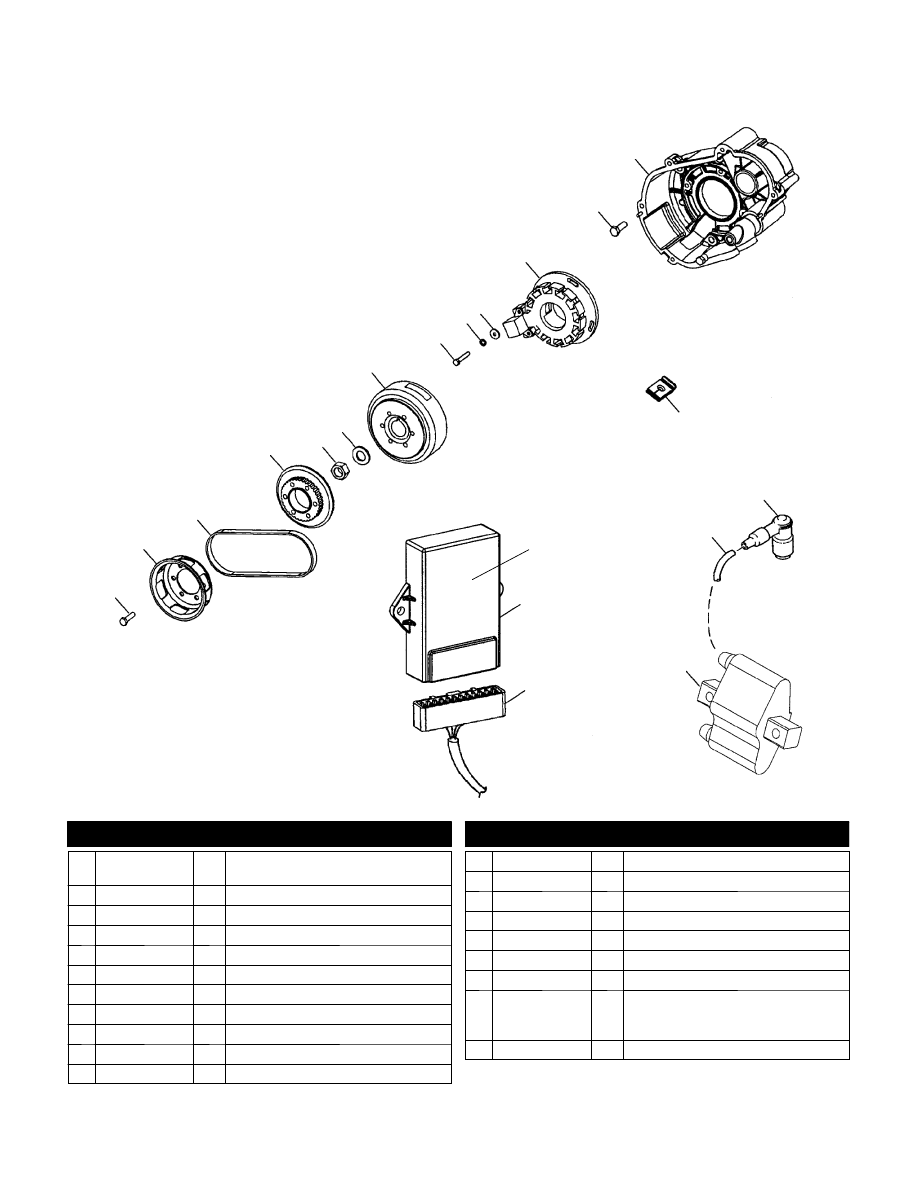

MAGNETO (700/800)

700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A

S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700 RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800

RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS

and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159 STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

1

2

3

4

5

7

8

9

6

11

12

14

19

10

13

15

16

17

18

20

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7516823

7517998

6

6

Screw (700)

Screw (800)

2 3021144

1 Pulley, Starting, Recoil

3 2201821

1 Kit, Waterpump Belt

4 5630824

1 Pulley, Water Pump Drive

5 7546909

1 Nut

6 7555907

1 Washer

7 4010677

1 Flywheel, Ignition

8 7517246

3 Screw

9 7555969

3 Washer, Lock

10 7555970

3 Washer, Flat

11 4010297

1 Stator, Ignition

12 7516734

4 Screw

13 1202161

1 Asm., Housing, Ignition

14 5411178

1 Grommet, Stator Wire

15 4020155

2 Cap, Spark Plug

16 4010124

2 Wire, Ignition

17 4060229

1 Coil, Ignition

18 4010872

1 Harness, Ignition, TPS

19 2202525

2202522

7077026

1

1

1

Kit, CDI (Incl. 19, Nyogel & Decal) (700)

Kit, CDI (Incl. 19, Nyogel & Decal) (800)

Decal, Spark Plug

20 7170413

1 Decal, D.E.T. (700)(800)

6/03

D14

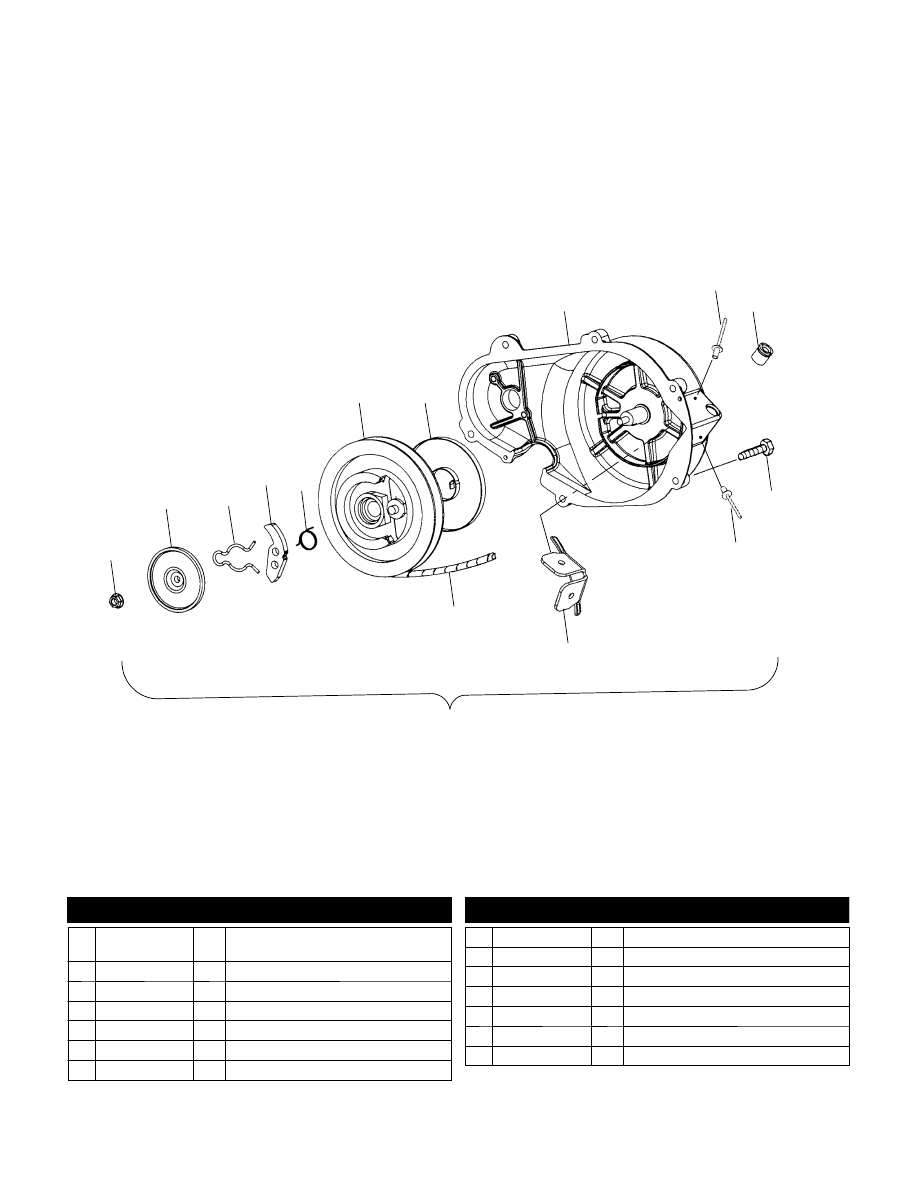

RECOIL STARTER (700/800)

700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A

S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700 RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800

RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS

and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159 STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

2

3

4

5

11

12

9

8

14

7

6

13

10

10

1

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 1202408

1 Asm., Recoil E/R, Shield

(Incl. 2-11,14 & Starting Pulley)

2 3040163

1 Nut, Fastening

3 3040164

1 Plate, Friction

4 3040167

1 Spring, Friction

5 5246108

1 Ratchet, Pawl, Electric Reverse

6 3040166

1 Spring, Return

7 3040168

1 Reel

8 3040170

1 Spring, Spiral

9 3040160

1 Housing, Recoil

10 7661148

2 Rivet

11 3040171

1 Bushing, Rope Slide, Recoil

12 7516823

6 Screw

13 5246218

1 Shield, Recoil Rope

14 3040169

1 Rope, Starter

3/03
