Snowmobile Polaris 600 RMK F/O, 700 RMK F/O, 800 RMK F/O (2004 year). Instruction - part 13





D7

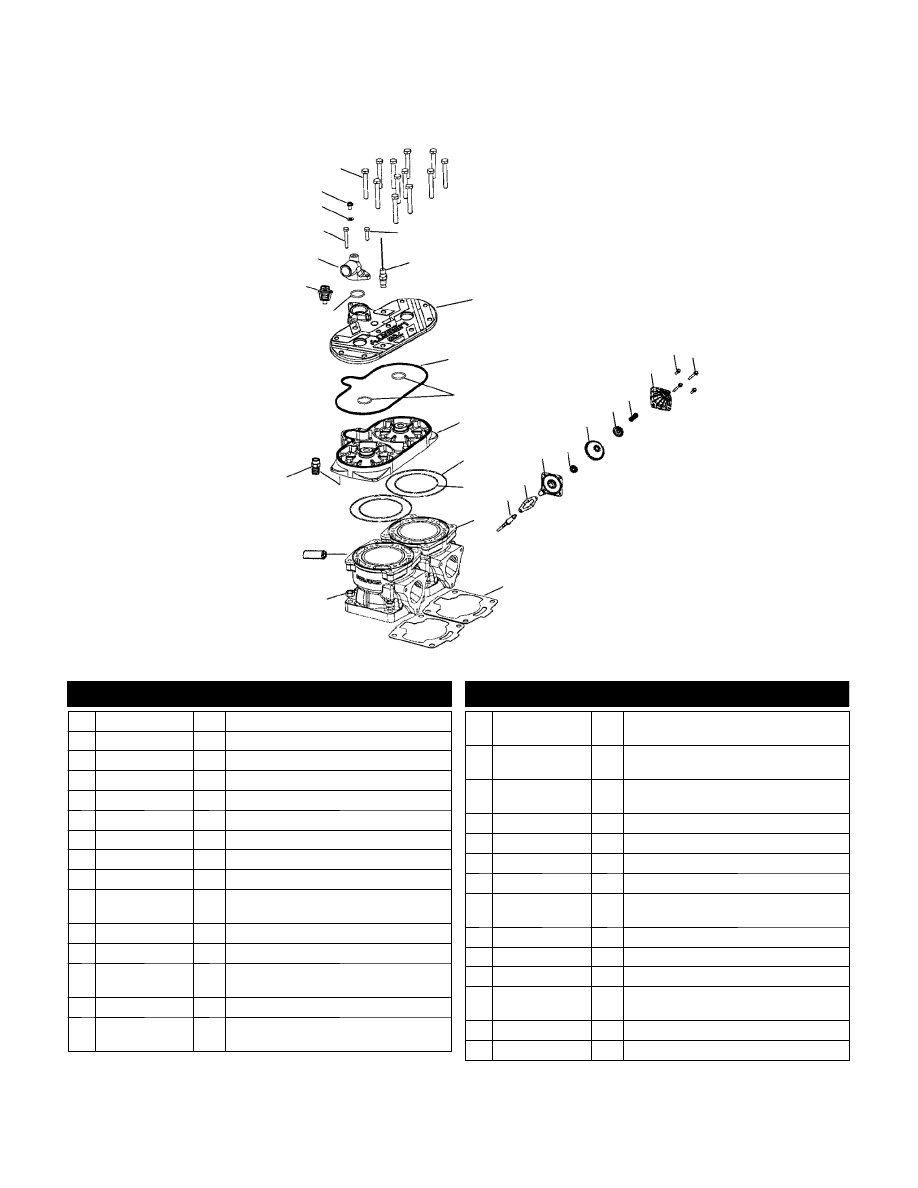

CYLINDER (700/800)

700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A

S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700 RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800

RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS

and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159 STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

6

7

4

10

13

9

3

15

5

16

28

14

27

12

11

8

2

29

17

18

19 20

21

22

23

24

25 26

1

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 5411521

1 O-Ring

2 7052258

1 Thermostat

3 5631391

1 Cover, Thermostat

4 7517950

1 Screw

5 7555998

1 Washer, Flat

6 7517679

1 Screw, Bleed

7 7517534

12 Screw

8 7516822

1 Screw

9 4010398

1 Sensor, Temperature

10 5631426--366

5631427-329

1

1

Cover, Head (700)

Cover, Head (800)

11 5411294

1 Seal, Rubber

12 5410917

2 O-Ring

13 3021424

3021426

1

1

Head, Cylinder (700)

Head, Cylinder (800)

14 5412232

2 O-Ring

15 5410932

5411675

2

2

O-Ring (700)

O-Ring (800)

16 3021367

3021339

2

2

Cylinder (700)

Cylinder (800)

17 5133743

5133775

2

2

Valve, Guillotine (700)

Valve, Guillotine (800)

18 5812350

2 Gasket, Base to Cylinder Exhaust

Valve

19 1202216

2 Asm., Base Exhaust Valve Dom.

20 5132950

2 Washer, Bellows, Exh. Valve, Dom.

21 5412399

2 Bellows, Exhaust Valve

22 5631381

2 Cap/Nut, Bellows, Exh. Valve Dom.

23 7041704--02

7041704-03

2

2

Spring (700)

Spring (800)

24 1202640

2 Asm., Housing, w/Bushing

25 7516820

4 Screw

26 7517932

4 Screw

27 5812362

5812363

2

2

Gasket, Cylinder Base (700)

Gasket, Cylinder Base (800)

28 7547013

8 Nut

29 7052234

1 Fitting

3/03

D8

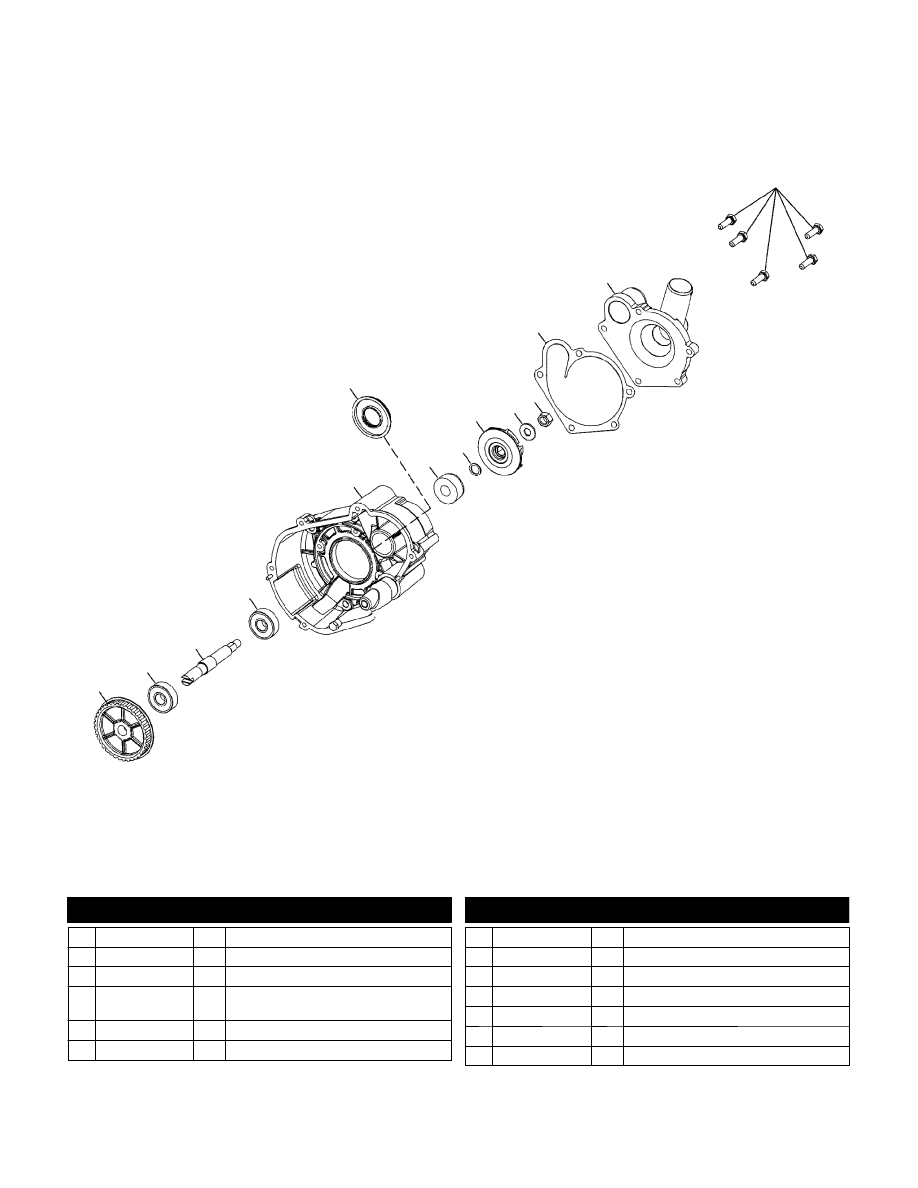

WATER PUMP (700/800)

700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A

S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700 RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800

RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS

and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159 STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

1

10

2

3

6

7

8

9

11

12

13

2

4

5

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 3021044

1 Pulley, Waterpump Driven

2 3514311

2 Bearing, Ball

3 5132273

1 Shaft, Water Pump

4 --------------

1 Housing, Ignition

(See Magneto Pg. D13, Ref. 13)

5 3610044

1 Seal

6 3610067

1 Seal, Water Pump

7 7556006

1 Washer, Flat

8 5432330

1 Impeller, Water Pump

9 7555874

1 Washer, Flat

10 7546804

1 Nut, Hex, Nylok

11 5811627

1 Gasket, Water Pump, Cover Bead

12 5631280

1 Cover, Water Pump

13 7516822

5 Screw

3/03

D9

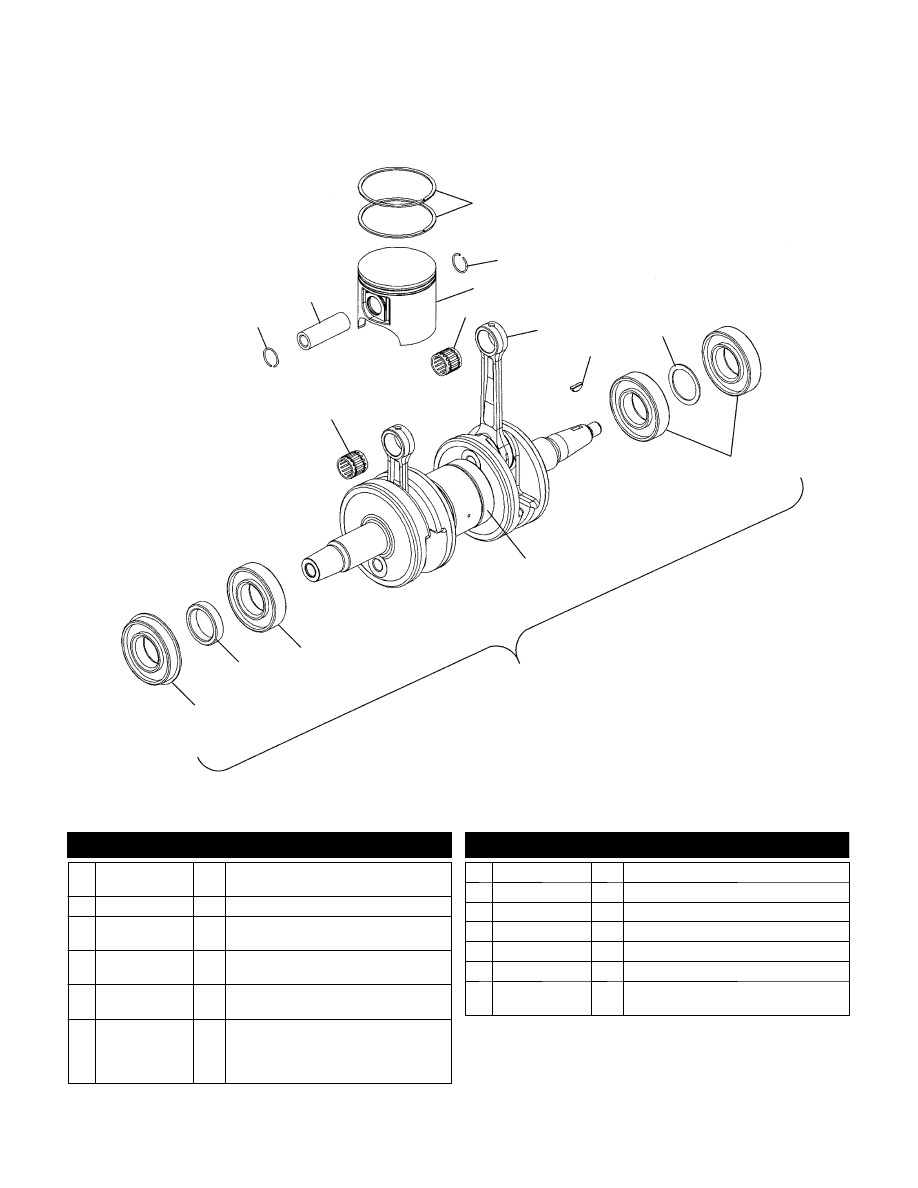

PISTON and CRANKSHAFT (700/800)

700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A

S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700 RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800

RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS

and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159 STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

1

2

3

4

5

9

7

8

11

12

1

9

5

6

13

10

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 3022950

3021179

4

4

Circlip, Piston (700)

Circlip, Piston (800)

2 --------------

2 Pin, Piston

3 2200895

2201631

2

2

Kit, Piston Rings (700)

Kit, Piston Rings (800)

4 2202237

2202337

2

2

Kit, Asm., Piston (Incl. 1,2,3) (700)

Kit, Asm., Piston (Incl. 1,2,3) (800)

5 3584001

3514357

2

2

Bearing (700)

Bearing (800)

6 2201953

2201557

2

2

Kit, Connecting Rod (700)

(Incl. Rod, Pin, Bearing, Washers)

Kit, Connecting Rod (800)

(Incl. Rod, Pin, Bearing, Washers)

7 7721117

1 Key, Woodruff

8 7555905

1 Bushing

9 3585503

3 Bearing, Ball

10 3514318

1 Bearing, Ball

11 5131899

1 Spacer, Crankshaft

12 3514310

1 Bearing, Ball

13 2201848

2201842

1

1

Kit, Crankshaft (Incl. 8-12) (700)

Kit, Crankshaft (Incl. 8-12) (800)

4/02

D10

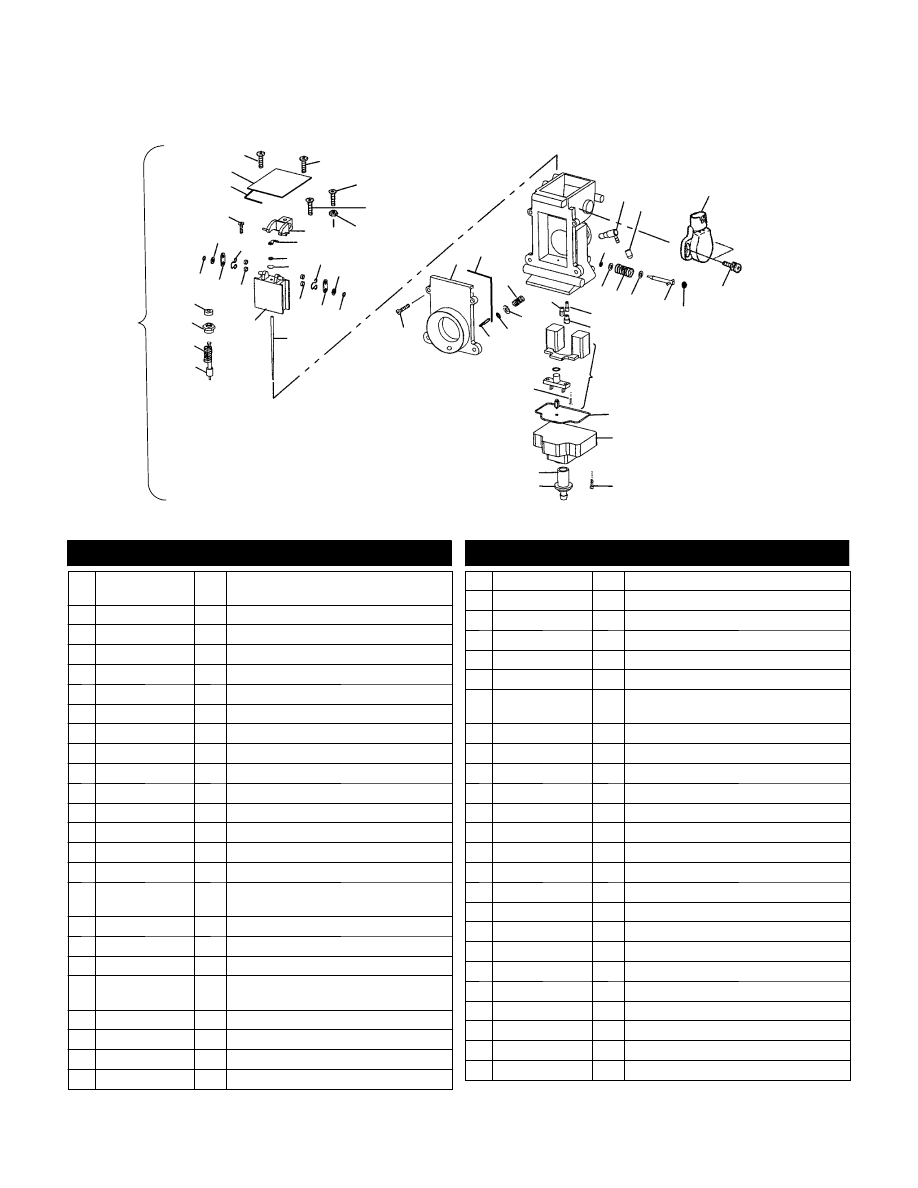

CARBURETOR (700/800)

700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A

S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700 RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800

RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS

and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159 STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

10

21

23

2

3

4

25

26

17

18

16

15

39

40

31

34

33

22

37

38

36

9

7

20

6

8

5

19

47

10

6

9

8

7

11
12

13

43

41

42

48

14

27

35

28

41

49

2

45

46

32

44

29

30

24

1

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 1253463

1253464

1

1

Asm., Carburetor (700)

Asm., Carburetor (800)

2 3130951

4 Screw

3 3130872

2 Cap, Top

4 3130871

2 Gasket

5 3130844

2 Screw

6 3130846

4 Washer, Packing

7 3130856

4 Clip

8 3130845

8 Ring

9 3130857

4 Plate

10 3130847

4 E-Ring

11 3130831

2 Cap, Rubber, Starter

12 3130830

2 Holder, Guide, Starter

13 3130829

2 Spring, Starter

14 3130828

2 Asm., Plunger

15 3131252

2 Valve, Piston (2.0)

16 3131415

3131438

2

2

Needle, Jet (J8-9DGN05-57)(700)

Needle, Jet (J8-9DGN05-57)(800)

17 3130867

2 Packing

18 3130868

2 E-Ring

19 3130843

2 Plate

20 3130855

3130849

1

1

Asm., Lever, LH

Asm., Lever, RH

21 3130848

1 Ring

22 3130854

1 Screw, LH

23 3130850

1 Screw, RH

24 3131371

1 Spring

25 3131356

2 O-Ring, Air Funnel, Long

26 3131439

2 Asm., Funnel

27 3130825

8 Screw, Air Funnel

28 3131336

2 Screw, Air

29 3130522

1 O-Ring

30 3131372

1 Washer

31 3130137

3130138

1

1

Jet, Main (340)(700)

Jet, Main (350)(800)

32 3130860

2 Screw, Valve Seat

33 3131248

2 Bolt, Drain

34 3130863

2 O-Ring, Drain Screw

35 3130824

2 Screw, Float Bowl

36 3130858

2 Body, Float

37 3130861

2 O-Ring, Float Bowl

38 3131231

2 Asm., Float

39 3130068

2 Jet, Pilot (45)

40 3130769

2 Jet, Starter (145)

41 3130837

4 Washer

42 3130836

2 Spring

43 3130987

2 Adjuster

44 3130986

1 Cap

45 3131010

2 Screw (MAG Side)

46 3131009

1 Asm., Sensor (MAG Side)

47 3130479

2 Cap

48 3130835

2 Packing

49 7051020

2 Valve, Check, 90 Degree

4/02
