31

FEATURES

Shifter

For normal operation, place the
transmission in high gear.
Whenever towing or operating with
a heavy load, place the transmission
in low gear. See page 73. When
operating in low gear, vehicle speed
will be limited to protect the drive
train.

Glove Box

The glove box is a heated dry
storage area intended for drying
wet gloves. Do not use the glove
box for items that could be
damaged by heat.

Turn the knob to release the glove box cover latch and open the cover.

Seat Latch

Release the seat latch and raise the seat to
access the battery and under-seat storage
area.

Check the seat latch before each use of
the snowmobile. Push downward on the
seat near the seat latch, then attempt to
raise the seat by pulling upward on the
right-hand passenger grab handle. Make
sure the latch is secure before riding.

Under-Seat Storage

When using the under-seat storage area
to transport supplies and other items,
pack the items securely to prevent them
from moving around in the storage area.



Smaller items should be placed in bags or
containers to keep them secure.

Glove Box Latch

Shifter

Seat Latch

Storage Area

32

FEATURES

12-Volt DC Outlet

Use the 12-volt DC outlet to power a global positioning sensor (GPS),
heated helmet shield, utility light, cell phone or other accessories. The
outlet is located on the console near the ignition switch.

Cargo Carrier

Whenever towing or operating with a heavy load, place the transmission
in low gear. See page 73.

WARNING! Overloading or towing
improperly can alter vehicle
handling and can cause loss of
control.

• Do not exceed the cargo carrier

capacity.

• Always reduce speed and allow

greater distance for braking and
turning when carrying cargo or a
passenger, or when towing.

• Always secure cargo before

operating vehicle.

• Overloading or carrying tall, off-

center, or unsecured loads will
increase your risk of losing con-
trol. Loads should be centered,
carried as low as possible, and firmly secured to the carrier.

• Be careful if load extends over the side of the carrier.

The maximum weight capacity for the cargo carrier is 75 lbs. (34.1 kg).
Do not allow a passenger to sit on the seat back or in the cargo carrier.

NOTICE: Do not drive aggressively or jump your vehicle when operating with

heavy loads in the cargo carrier. This may cause vehicle damage.

Cargo Carrier

33

FEATURES

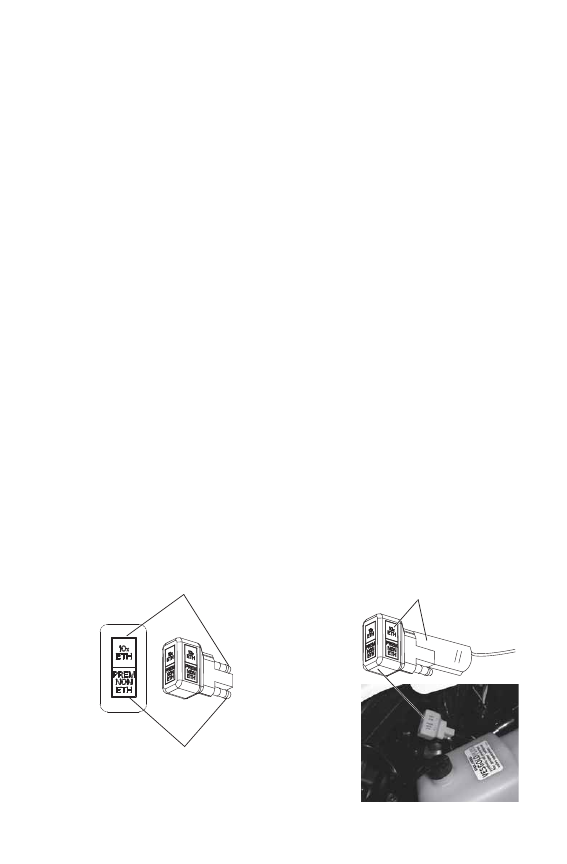

Fuel Resistor

This snowmobile is equipped with a feature that allows the engine
controller to select the proper operating software based on the type of
fuel being used. See pages 62-63 for fuel information and
recommendations.

Make sure the correct resistor is installed for your fuel choice as
instructed below.

PREMIUM NON-ETHANOL Resistor

To achieve maximum performance, install this resistor to the ECU fuel
designation connector when using:

•

Non-ethanol gasoline with a 91+ octane rating

10% ETHANOL Resistor

This resistor must be installed when using:

Whenever in doubt of your fuel purchase, use the “10% ETHANOL”
resistor as a safeguard.

The resistor is installed into the wiring harness on the left side of the
snowmobile just above the top of the oil bottle. To change resistors,
unplug the resistor and rotate it to align and install the appropriate plug
to the connection.

NOTICE: Engine damage may occur if ethanol fuel is used while the non-etha-

nol fuel resistor is installed. The check engine light may also display in
this condition as this could cause detonation.

•

Ethanol gasoline

•

Other forms of oxygenated gasoline

•

MTBE gasoline

•

Any fuel less than 91 octane

NON-ETHANOL GASOLINE

91+ OCTANE

(Maximum Performance)

ETHANOL, MTBE, OR OTHER

OXYGENATED GASOLINE (Factory Delivery)

ANY FUEL WITH ETHANOL or LESS THAN

91 OCTANE (87 Octane Minimum)

10% ETHANOL

Resistor Installed

34

FEATURES

Detonation Elimination Technology (DET)

The DET system prevents damage to the engine from detonation by
going into an engine protection mode whenever the DET system is
active. When excessive detonation is detected, the check engine light
will illuminate, flicker or flash momentarily.

You may notice decreased engine RPM and performance when DET is
activated, but in most cases DET activation is temporary, and the timing
will return to normal automatically.

If severe detonation occurs, the check engine light will begin to flash.
The engine will enter a limp home mode (and RPM will be limited to
6500 RPM) and stay in this mode until the engine is shut down and
restarted.

The most likely causes of severe detonation are shown in the table
below. Refer to the table for troubleshooting information.

DET Troubleshooting

Check Engine Light Status

Indicates

Solid or Flickering

Detonation detected

Flashing

Severe detonation detected, RPM will

be limited

Cause of DET Activation

Solution

Poor quality fuel

Replace with higher quality fuel

Incorrect ethanol/non-ethanol fuel

resistor installed

Verify correct fuel resistor for fuel type

in tank

Low fuel/no fuel in tank

Refuel with recommended fuel

Water in fuel

Replace with recommended fuel

Plugged fuel filter or tank pick-up sock See your POLARIS dealer for service

Alcohol-based fuel additive used with

Ethanol fuel

Do not add de-icers or additives that

contain any form of alcohol while

using up to 10% ethanol fuel

Improper engine modifications

Do not modify the engine
