Snowmobile Polaris 600 IQ Touring (2010 year). Instruction - part 27





109

MAINTENANCE

Track Lubrication

WARNING! Operating with insufficient lubrication between the rail slide and

track guide clips can cause track failure, loss of vehicle control and loss of

braking ability, which can result in serious injury or death. Avoid operating for

extended periods on ice and other surfaces that have little or no snow for

lubrication.

The slide rail requires adequate snow cover for sufficient lubrication.

Excessive wear indicates insufficient lubrication. A new rail slide can

cause faster heat build-up in limited lubrication, resulting in excessive

wear.
Track damage or failure caused by operation on ice or under other poor

lubrication conditions will void the track warranty.

NOTICE: High speed use on hard-packed surfaces is not recommended for

models equipped with a deep lug track. Track lug damage may occur.

Keep high speed use to a minimum, including frequent slow-speed

intervals for track cooling.

110

MAINTENANCE

Track Tension

WARNING! Moving parts can cut and crush body parts. When performing the

checks and adjustments recommended on the following pages, stay clear of all

moving parts. Never perform track measurement or adjustments with the engine

running.

Track adjustment is critical for proper handling. Always maintain cor-

rect tension and alignment.

Tip: Tension adjustments should be made only after the track is warmed up and

limber.

1. Turn the engine off.
2. Lift the rear of the snowmobile and safely support it off the ground.
3. Place the recommended weight or downward pressure on the track

at the specified distance (see chart) ahead of the center of the rear

idler wheel.

Tip: Measure at the point where the weight is hanging.

TRACK TENSION DATA CHART

Suspension

Slack Measurement

Weight

Measurement

Location

IQ Comfort

7/8"-1 1/8" (2.2-2.9 cm)

10 lbs.

(4.54 kg)

16" (40 cm)

ahead of rear

idler shaft

111

MAINTENANCE

Track Tension

4. Check for specified slack between the wear surface of the track clip

and the plastic rail slide.

If the track needs adjustment:
5. Loosen the rear idler shaft bolt.
6. Loosen the lock nuts.

7. Tighten or loosen the track adjusting screws as necessary to provide

equal adjustment on both sides of the track.

8. Repeat the measurement on the other side of the track.

Tip: Check more frequently when the snowmobile is new.

9. Start the engine and slowly rotate the track at least five revolutions.

Let the track come to a stop (do not apply brakes).

10. Check track alignment (see page 112) and adjust as necessary.
11. Tighten the lock nuts.
12. Tighten the idler shaft bolts. Torque to 35 ft. lbs. (47.5 Nm).

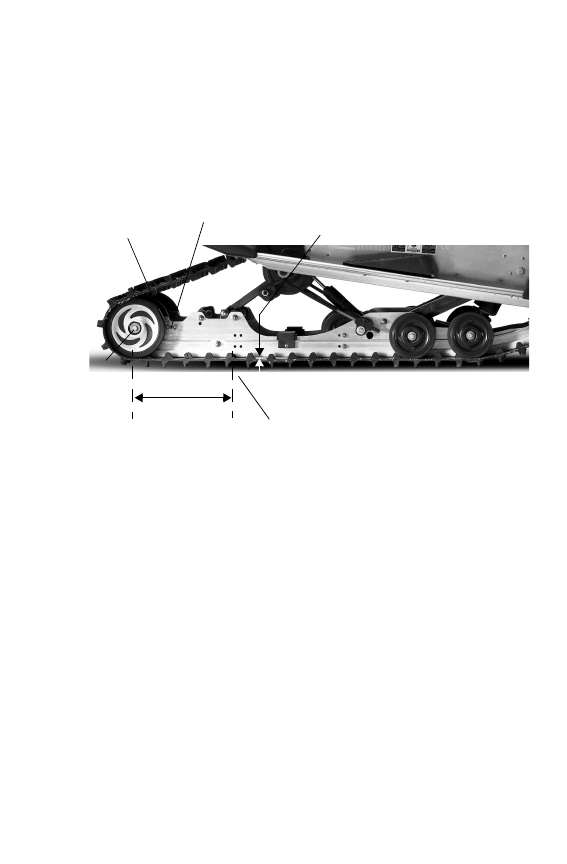

S

Slack Measurement

Lock Nut

Adjusting Screw

10 lbs. (4.54 kg)

Shaft

Bolt

16

I

(40 cm)

112

MAINTENANCE

n

Track Alignment

Periodically check that the track is

centered and running evenly on the

slide rails. Misalignment will cause

excessive wear to the track and slide

rail.
1. Safely support the rear of the

snowmobile with the track off the

ground.

2. Start the engine and apply a small

amount of throttle until the track

turns slowly at least five com-

plete revolutions. Stop the engine

and let the track come to a stop

(do not apply brakes).

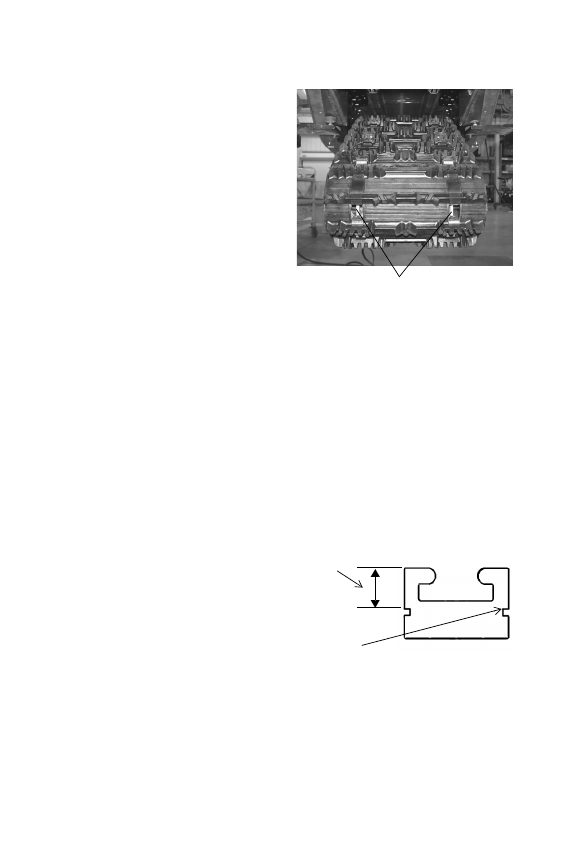

3. Inspect track alignment by looking through the track window to

make sure the rails are evenly spaced on each side. If the track runs

to the left, loosen left locknut and tighten the left adjusting bolt. If

the track runs to the right, loosen right locknut and tighten the right

adjusting bolt.

4. After adjustments are complete, tighten locknuts and torque idler

shaft bolts to 35 ft. lbs. (47.5 Nm).

5. Repeat steps 2 and 3 to verify proper alignment.

n

Rail Slide Wear

For ease of inspection, all

Polaris rail slides have a

wear limit indicator groove

to indicate the minimum per-

missible slide thickness.

Replace the rail slides if they

are worn to the top of the

groove at any point along

their length. Failure to do so

may result in permanent

damage to the track or rails.

Rails

Replace when

worn to top of

groove

Minimum

Thickness
