36

THE PERFECT FIT

EDGE Rear Suspension Adjustments

Rear Shocks

Indy Select Rear Shock
Your snowmobile is equipped with the Indy Select rear shock, which

allows for adjustments to the compression valving.
1. Locate the adjustment screw near the base of the shock.
2. Adjust the screw 1/2 turn clockwise to increase compression valv-

ing and stiffen the ride. Test ride the snowmobile before making

further adjustments.

NOTE: An excessive adjustment can result in damage to the shock.

When adjusting these shocks, we recommend that you turn the

screw only 1/2 turn at a time, then test ride.

3. Adjust the screw 1/2 turn counterclockwise to reduce compression

and soften the ride.

There are approximately three full turns of adjustment available. If bot-

toming continues after the screw has been turned fully clockwise, the

torsion spring should be adjusted (see page 35). Return the screw to its

original starting position after the torsion spring has been tightened.

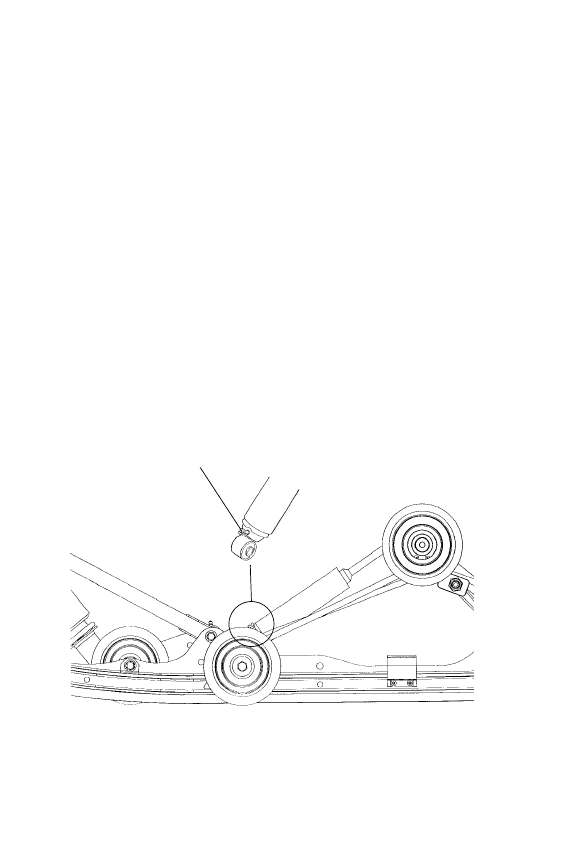

Adjustment Screw

37

THE PERFECT FIT

EDGE Rear Suspension Adjustments

Suspension Coupling

On all Polaris snowmobile rear suspensions, there are two torque arms

that control the movement of the rail beam. Prior to the advent of sus-

pension coupling, these torque arms could move independently of each

other. Rear suspension coupling links the movement of the front and

rear torque arms to each other. There are two types of rear suspension

coupling.

Front To Rear Coupling and the Front Rear Scissor Stop

(FRSS)

The front rear scissor stop (FRSS) couples the movement of the front

torque arm with the rear torque arm and limits the amount of indepen-

dence between the movement of the front torque arm and the rear torque

arm.

When hitting a bump, the front torque arm starts to compress. The FRSS

links that movement to the rear torque arm, causing it to compress and

raise the rear suspension up as one, allowing the suspension to hit the

bump only once and reducing kickback.

The factory setting is usually adequate for all riders and conditions.

38

THE PERFECT FIT

EDGE Rear Suspension Adjustments

Rear To Front Coupling and the Rear Rear Scissor Stop

(RRSS)

The rear rear scissor stop (RRSS) couples the movement of the rear

torque arm with the front torque arm and limits the amount of indepen-

dent movement between the rear torque and the front torque arm.

Adjusting the RRSS either allows more weight to transfer to the rear for

more traction, or allows less weight to transfer to the rear, resulting in

improved cornering performance. An adjustment dot is located on the

RRSS. This dot is on the longest end of the scissor stop.

Rear Rear Scissor Stop (RRSS) - Attributes

Moving the RRSS to a higher position will have the following effects on

the suspension:
• Reduced weight transfer.
• Improved chatter bump ride.
• Improved cornering performance.

39

THE PERFECT FIT

EDGE Rear Suspension Adjustments

Weight Transfer During Acceleration

The preferred method for controlling

weight transfer during acceleration is

by adjusting the rear rear scissor stop

(RRSS). The factory setting is the best

for most trail riding conditions.

To decrease weight transfer under

acceleration (for improved cornering),

rotate the RRSS to a higher position

with the scissor stop tool located in

your tool kit.

To increase weight transfer or ski lift

during acceleration, move the RRSS

to the rearward hole on high position.

The RRSS may also be rotated to a

lower position for even more weight

transfer if desired.

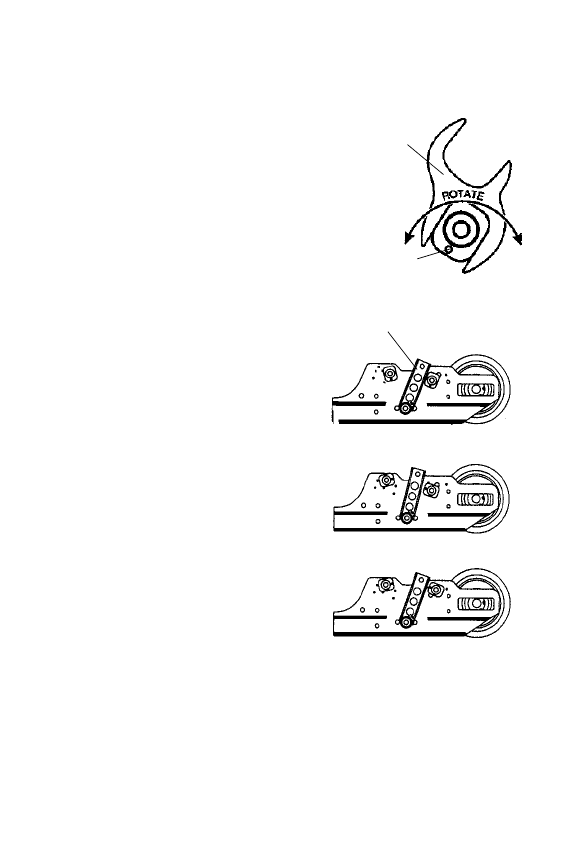

Stock Position - This setting is most

desirable for trail riding. The scissor

stop is oriented with the mark posi-

tioned downward.

Medium or High Position (standard

hole location) - This setting will

decrease weight transfer. The mark is

positioned toward the torque arm.

Rearward Upper Position (optional

hole location) - This setting will

increase weight transfer.

NOTE: Your dealer can help you with

initial setup and additional

setup instructions to help you

achieve your optimum ride.

Medium/High

Stock

Rearward Upper

Position Mark

Torque Arm

Scissor

Stop Tool
