Snowmobile Polaris 340 Edge / 550 LX (2008 year). Instruction - part 10





40

THE PERFECT FIT

Handlebar Adjustments

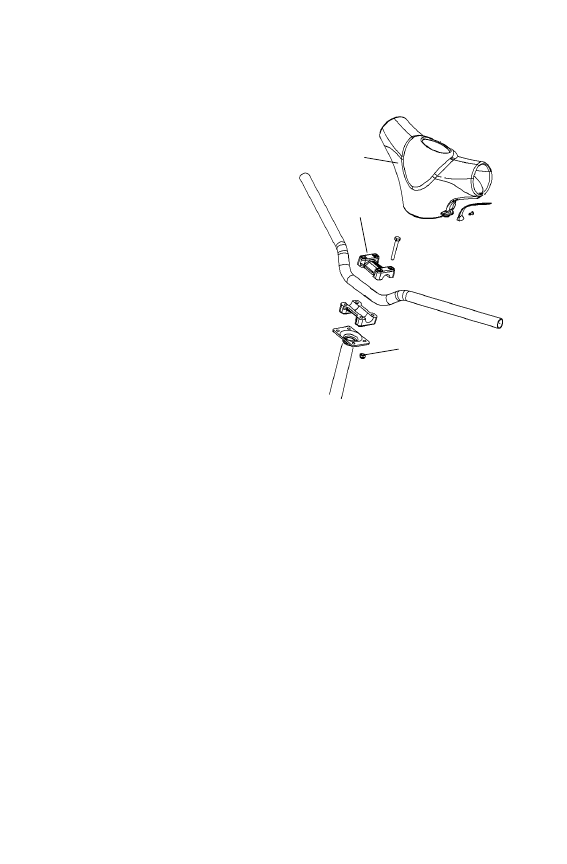

Handlebar Angle

Follow these steps to adjust handle-

bar angle at the handlebar block.
1. Remove the handlebar cover (1)

to expose the handlebar and the

four adjuster block bolts (2).

2. Using a 7/16I (11 mm) wrench,

loosen the four nuts (3) on the

bottom of the adjuster block

(turn handlebar to left or right

for access to back nuts).

NOTE: If necessary, pry the blocks

apart with a screwdriver.

3. Adjust the handlebar to the

desired height. Be sure handle-

bars, brake lever and throttle

lever operate smoothly and do

not hit the fuel tank, windshield

or any other part of the machine

when turned fully to the left or right.

4. Torque the front adjuster block bolts first, then torque the rear bolts.

Torque the bolts to 11-13 ft. lbs. (15-18 Nm).

5. Reinstall the handlebar cover.

1

3

2

41

THE PERFECT FIT

Accessories

Polaris offers a wide range of accessories for your snowmobile to help

make each ride more enjoyable.

Use only Polaris parts and accessories on your Polaris snowmobile. Use

of unapproved parts and accessories may result in:
• Non-compliance with government/industry requirements
• Voiding of warranty
• Injury to self or others

This applies, but is not limited to the following areas: brakes, clutches,

fuel systems, and exhaust systems.

NOTE: Exhaust systems are critical safety areas that must use

approved Polaris parts. Please see your Polaris dealer for ser-

vice.

42

THE PERFECT FIT

Traction Products

Studs

Before equipping your machine with traction products, be aware of the

laws in your area pertaining to the use of traction products. See your

dealer about installing studs and/or carbides. Many tracks with deep lug

designs cannot be studded, but your dealer will be able to offer advice

and assistance.

Use only Polaris traction products on your snowmobile. Track warran-

ties are void if track damage or failure results from improper or exces-

sive stud installation or the use of non-Polaris traction products.

See your dealer about installing studs and/or carbides.

Track studding will enhance braking control on hard-packed snow or

ice, but extreme caution is still required on such surfaces. Steering abil-

ity may be reduced on hard-packed snow or ice.

When studded tracks are used, increased wear to the brake pads will

result from increased braking. Extended-wear brake pad kits are avail-

able. See your dealer.

CAUTION

Always install wear strips before installing studs. Failure to install wear strips

may result in cooler or tunnel damage. See page 44.
Never add shims to the wear strip. Track damage will result because of lack

of clearance between upper carrier wheels and track.
Use of studs longer than the recommended length on machines equipped

with center coolers will result in center cooler damage or damage to the tun-

nel.

CAUTION

Aggressive studding patterns may require grinding protruding stud bolts flush

to prevent idler wheel damage. Maintain track tension on studded tracks on

the tight side of the spec to prevent heat exchanger damage. The center of

the stud must be at least 1 1/8

I

 (2.86 cm) from the outside edge of the track.

43

THE PERFECT FIT

Traction Products

n

Carbide Skags

A skag is a replaceable bar attached to the underside of the ski to assist

in turning the snowmobile and to prevent ski wear caused by contact

with roads and other bare terrain. Use carbide skags with studded tracks

to help maintain proper vehicle steering and control. See page 43.

If your machine has carbide skags, it may be necessary to add track

studs to maintain proper vehicle control. Maintain a proper balance

between the number of studs and the length of carbide on the skags (the

more studs you use, the longer the carbide on the skags should be). See

your dealer's track studding chart.

Inspect skags and studs frequently. Worn studs or skags may reduce

steering and braking control on hard-packed snow and ice. Replace

worn studs and skags to maintain proper balance and vehicle control.

WARNING

Loss of control can result in serious personal injury or death. Proper balance

of traction products on the skis and track must be maintained to obtain proper

vehicle control on hard-packed snow or ice. See your dealer for assistance.
