Snowmobile Polaris 340 Edge / 550 LX (2008 year). Instruction - part 7





28

THE PERFECT FIT

Front Suspension Adjustments

Independent Front Suspension (IFS)

Break in the suspension for about 150 miles (240 km) before making

any fine-tuning adjustments.

Settings will vary from rider to rider, depending on rider weight, vehicle

speed, riding style, and trail conditions. We recommend starting with

factory settings and then customizing each adjustment individually to

suit rider preference. After each adjustment, the machine should be

methodically tested, one change at a time, under the same conditions

(trail and snow conditions, vehicle speed, riding position, etc.), until the

best ride is achieved.

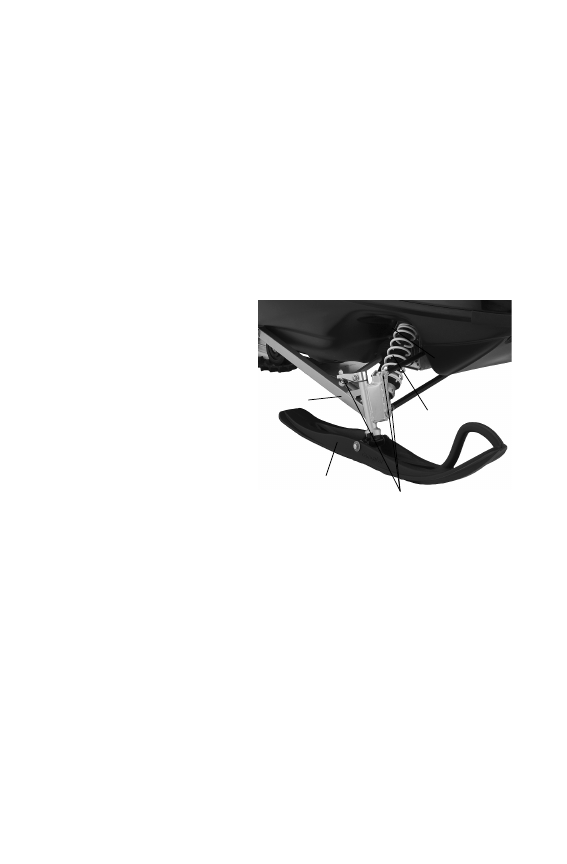

IFS Components
1. Skis
2. Front shocks and springs
3. Rod ends
4. Trailing arms
IFS Adjustment Options
• Shock damping (if equipped

with Indy Select shocks)

• Front shock spring preload
• Optional springs
• Toe (ski alignment) (see

page 102)

• Camber (see your dealer)

2

3

4

1

29

THE PERFECT FIT

Front Suspension Adjustments

Independent Front Suspension (IFS)

For the best ride, the suspension should be adjusted to use the full travel

of the shocks with occasional light bottoming. To determine if your

machine is using full travel, push the jounce bumper down on the shock

rod until it contacts the body and test ride the machine. The bumper will

move up on the rod in relation to the amount of travel that was used dur-

ing the ride. If the travel is full, the bumper will be seated at the top of

the rod.

Shock Components

The front springs can be changed if spring

preload alone isn't sufficient and further

adjustment is desired to control suspension

stiffness. See your Polaris dealer for more

information.
1. Retainer
2. Shock Rod
3. Jounce Bumper
4. Body
5. Threaded Spring Preload Adjuster Nut

WARNING

Always verify ski alignment before making adjustments to the IFS. See page

102 to check alignment. If the skis are misaligned, see your dealer, as the

camber adjustment may also be affected.

2

3

4

5

1

30

THE PERFECT FIT

Front Suspension Adjustments

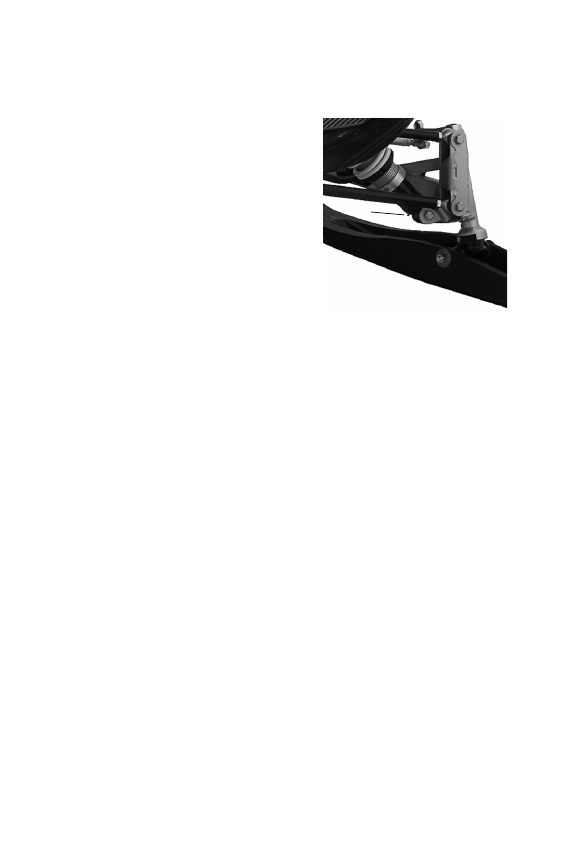

Shock Damping (Indy Select Shock)

Adjustments to the compression stiff-

ness of Indy Select shocks can be

made by turning the adjustment screw

located near the base of the shock (+).

This adjustment is the easiest to per-

form and it should be considered first.

The factory setting for this shock is the

softest position, with the adjusting

screw all the way out (counterclock-

wise). If bottoming occurs, the Indy

Select feature should be used to

achieve the desired ride.

NOTE: An excessive adjustment can result in damage to the shock.

When adjusting these shocks, we recommend that you turn the

screw only 1/4 turn at a time, then test ride.

• Turn the screw clockwise to increase compression and stiffen the ride.
• Turn the screw counterclockwise to decrease compression and soften

the ride.

• Always adjust both shocks equally.

Front Springs

For models without externally adjustable or revalvable shocks, the front

springs can be changed if spring preload alone isn't sufficient and fur-

ther adjustment is desired to control suspension stiffness. See your

Polaris dealer for more information.

+

31

THE PERFECT FIT

Front Suspension Adjustments

Spring Preload

Increasing spring preload will increase

ski-to-ground pressure. Decreasing

spring preload will decrease ski-to-

ground pressure. When adjusting, be

sure the springs on both the left and right

sides of the machine are at the same

adjustment.

To increase front shock spring preload,

grasp the spring and turn it to the right.

Turn it to the left to decrease preload.

Increasing the spring preload too much

may adversely affect the handling of the

snowmobile and the performance of the

suspension. Never exceed one inch of

preload beyond the factory settings, and

ensure that both sides are adjusted the

same. When decreasing preload, make sure at least two turns of preload

are holding the spring between the retainer on top of the shock and the

threaded spring preload adjuster nut on the shock body.

NOTE: Not all models have shocks with thread adjustable spring pre-

load. See your dealer for more information.

CAUTION

Always leave one thread showing above the adjuster nut. On models

equipped with a plastic adjuster nut, if the nut is unscrewed from the

threaded body, the nut will break.

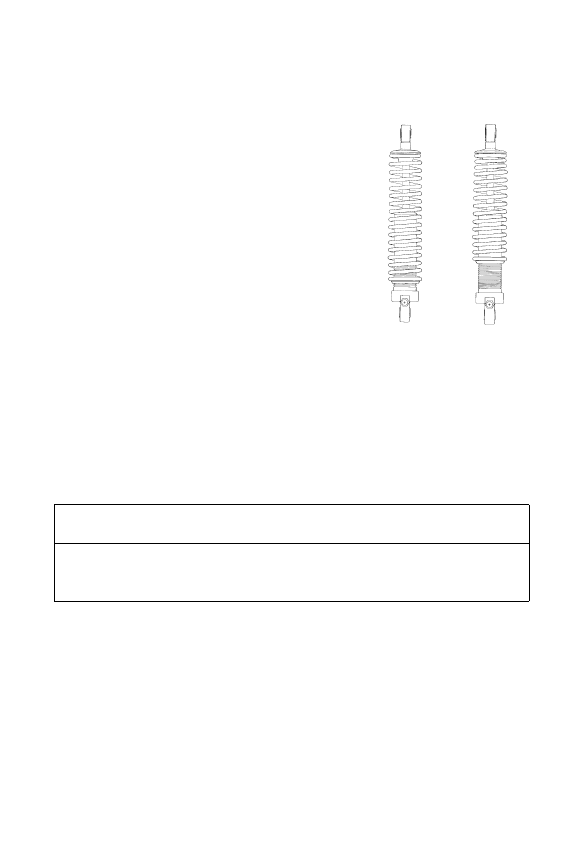

Low

Preload

High

Preload
