Instruments and controls

Seat belt reminder

Seat belt reminder on all seats

illuminates or flashes red in the

instrument cluster together with the

indication in the overhead console for

each seat belt.

● When the ignition is switched on,

in the instrument cluster and

the symbol for the respective

seat in the overhead console

comes on, if the seat belt of any

occupied seat has not been

fastened.

● After driving off,

in the

instrument cluster and the

symbol for the respective seat in

the overhead console flashes for

a certain time together with a

chime. After a certain time of

driving

illuminates constantly

until the seat belt of the

respective seat has been

fastened or if any passenger has

unfastened the seat belt.

Seat belts

32.

Airbag and belt tensioners

illuminates red.

When the ignition is switched on, the

control indicator illuminates for

approx. four seconds. If it does not

illuminate, does not go out after four

seconds or illuminates whilst driving,

there is a fault in the airbag system.

Seek the assistance of a workshop.

The airbags and belt pretensioners

may fail to trigger in the event of an

accident.

Deployment of the belt pretensioners

or airbags is indicated by continuous

illumination of

Warning

Have the cause of the fault

remedied immediately by a

workshop.

Belt pretensioners

32.

Airbag system

35.

Airbag deactivation

ON illuminates yellow.

Instruments and controls

The front passenger airbag is

activated.

OFF illuminates yellow.

The front passenger airbag is

deactivated.
Airbag deactivation

40.

Charging system

illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Stop, switch off engine. Vehicle

battery is not charging. Engine

cooling may be interrupted. The

brake servo unit may cease to be

effective. Seek the assistance of a

workshop.

Malfunction indicator light

illuminates or flashes yellow.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Fault in the emission control system.

The permitted emission limits may be

exceeded.
Seek the assistance of a workshop

immediately.

Flashes when the engine is

running

The engine management system has

a fault that could lead to catalytic

converter damage. Ease up on the

accelerator until the flashing stops.

Seek the assistance of a workshop

immediately.

Service vehicle soon

illuminates yellow.

Illuminates briefly when the ignition is

switched on.

May illuminate together with other

control indicators and a

corresponding message in the Driver

Information Centre.
Seek the assistance of a workshop

immediately.

Stop engine

STOP illuminates red.
Illuminates briefly when the ignition is

switched on.
Illuminates together with other control

indicators, accompanied by a warning

chime and a corresponding message

in the Driver Information Centre.
Stop engine immediately and seek

the assistance of a workshop.

System check

illuminates yellow or red.

Illuminates yellow

A minor engine fault has been

detected.

Instruments and controls

Illuminates red

A major engine fault has been

detected.
Stop engine as soon as possible and

seek the assistance of a workshop.

Brake and clutch system

illuminates red.

The brake and clutch fluid level is too

low, when parking brake is not

applied

236.

Warning

Stop. Do not continue your

journey. Consult a workshop.

Illuminates when the manual parking

brake is applied and ignition is

switched on

187.

Brake fluid

236.

Parking brake

illuminates red.

Illuminates when the parking brake is

applied and ignition is switched on

187.

Antilock brake system

(ABS)

illuminates yellow.

Illuminates for a few seconds after the

ignition is switched on. The system is

ready for operation when the control

indicator extinguishes.
If the control indicator does not

extinguish after a few seconds, or if it

illuminates while driving, there is a

fault in the ABS. The brake system

remains operational but without ABS

regulation.
Antilock brake system

187.

Gear shifting

Manual transmission

with the number of a higher gear is

indicated, when upshifting into this

gear is recommended for fuel saving

reasons.

Automatic transmission manual

mode

is indicated, when upshifting is

recommended for fuel saving

reasons.

Instruments and controls

Descent control system

illuminates or flashes green.

Iluminates green

The system is switched on and ready

to operate.

Flashes green

The system is in operation.
Descent control system

190.

Lane departure warning

)

flashes yellow when the system

recognises an unintended lane

change.
Lane departure warning

218.

Electronic Stability Control

and Traction Control system

illuminates or flashes yellow.

Illuminates

A fault in the system is present.

Continued driving is possible. Driving

stability, however, may deteriorate

depending on road surface

conditions.
Have the cause of the fault remedied

by a workshop.

Flashes

The system is actively engaged.

Engine output may be reduced and

the vehicle may be braked

automatically to a small degree.
Electronic Stability Control and

Traction Control system

188.

Electronic Stability Control

and Traction Control system

off

illuminates yellow.

The systems are deactivated.

Engine coolant temperature

illuminates red.

Illuminates when the engine is

running

Stop, switch off engine.

Caution

Coolant temperature too high.

Check coolant level immediately

235.

If there is sufficient coolant, consult a

workshop.

Preheating

illuminates yellow.

Preheating of diesel engine is

activated. Only activates when

outside temperature is low. Start the

engine when control indicator

extinguishes.
Starting the engine

174.

Exhaust filter

illuminates yellow.

The exhaust filter requires cleaning.

Instruments and controls

Continue driving until the control

indicator extinguishes.

Illuminates temporarily

Start of saturation of the exhaust filter.

Start cleaning process as soon as

possible by driving at a vehicle speed

of at least 40 mph.

Illuminates constantly

Indication of a low additive level. Seek

the assistance of a workshop.
Exhaust filter

179.

AdBlue

flashes or illuminates yellow.

Illuminates yellow

The remaining driving range is

between 370 miles and 1500 miles.

Flashes yellow

The remaining driving range is

between 0 and 370 miles.
AdBlue level is low. Refill AdBlue

soon to avoid prevention of the

engine start.

AdBlue

180.

Deflation detection system

illuminates or flashes yellow.

Illuminates

Tyre pressure loss in one or more

wheels. Stop immediately and check

tyre pressure.

Flashes

Fault in system. Consult a workshop.
Deflation detection system

251.

Engine oil pressure

illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Caution

Engine lubrication may be

interrupted. This may result in

damage to the engine and / or

locking of the drive wheels.

1. Select neutral gear.
2. Move out of the flow of traffic as

quickly as possible without

impeding other vehicles.

3. Switch off ignition.

Warning

When the engine is off,

considerably more force is needed

to brake and steer.
During an Autostop, the brake

servo unit will still be operational.

Instruments and controls

Do not remove key until vehicle is

stationary, otherwise the steering

wheel lock could engage

unexpectedly.

Keep engine turned off and let the

vehicle be towed to a workshop

234.

Low fuel

illuminates yellow.

Level in fuel tank is too low.
Refuelling

223.

Bleeding the diesel fuel system

239.

Autostop

illuminates or flashes green.

Illuminates green

Engine is in an Autostop.

Flashes green

Autostop is temporarily unavailable,

or Autostop mode is invoked

automatically.

Stop-start system

175.

Exterior light

illuminates green.

The exterior lights are on

87.

Low beam

illuminates green.

Illuminated when low beam is on.

High beam

illuminates blue.

Illuminated when high beam is on or

during headlight flash

88.

High beam assist

illuminates green.

The high beam assist is activated

88.

Front fog lights

illuminates green.

The front fog lights are on

91.

Rear fog light

illuminates yellow.

The rear fog light is on

92.

Rain sensor

illuminates green.

Illuminated when automatic wiping

with rain sensor is activated.
Windscreen wiper and washer

59.

Cruise control

illuminates in the Driver

Information Centre.
Cruise control

192.

Side blind spot alert

illuminates green.

The system is active

211.

Active emergency braking

illuminates or flashes yellow.

Instruments and controls

Illuminates

The system has been deactivated or

a fault has been detected.
Additionally, a warning message is

displayed in the Driver Information

Centre.
Check the reason of the deactivation

199 and in case of a system fault,

seek the assistance of a workshop.

Notice

also illuminates if the seat belts

of the front passengers are not

fastened. In this case, active

emergency braking is deactivated.

Flashes

The system is actively engaged.
Depending on the situation, the

vehicle may automatically brake

moderately or hard.
Forward collision alert

197.

Front pedestrian protection

202.

Speed limiter

illuminates in the Driver

Information Centre.

Speed limiter

195.

Door open

illuminates red.

A door or the tailgate is open.

Displays

Driver Information Centre

The Driver Information Centre is

located in the instrument cluster.
Depending on the version, the Driver

Information Centre is available as

monochrome or colour display.
Driver Information Centre indicates:

● overall and trip odometer
● digital speed indication
● trip / fuel information menu
● gear shift indication
● service information
● vehicle and warning messages
● driver assistance messages

Instruments and controls

● pop-up messages
● AdBlue information

Selecting menus and functions

The menus and functions can be

selected via the buttons on the

indicator lever.
Turn the adjuster wheel to select a

page in the trip / fuel information

menu.
Press SET/CLR to confirm or reset a

function.
Vehicle and service messages are

popped up in the Driver Information

Centre if required. Scroll messages

by turning the adjuster wheel.

Confirm messages by pressing

SET/CLR.
Additionally, some menus can be

selected via the left button:

Press

to switch between the

respective menus.
Or

Press CHECK to switch between the

respective menus.
Vehicle messages

82.

Instruments and controls

Trip / fuel information menu,

monochrome display

Turn the adjuster wheel to select a

page:

Trip odometer

65.

Average fuel consumption

Display of average consumption. The

measurement can be reset at any

time and starts with a default value.

To reset, press SET/CLR for a few

seconds.

Average speed

Display of average speed. The

measurement can be reset at any

time.
To reset, press SET/CLR for a few

seconds.

Fuel range

Range is calculated from current fuel

level and current consumption. The

display shows average values.
After refuelling, the range is updated

automatically after a brief delay.
When the fuel level is low, a message

appears on the display and the

control indicator

in the fuel gauge

illuminates

75.

Instantaneous Fuel Consumption

Display of the instantaneous

consumption.

Digital speed

Digital display of the instantaneous

speed and recognised speed limit.

Trip / fuel information menu,

colour display

Differerent pages with combined

information can be selected.
Turn the adjuster wheel to select a

page.

Information page:

Fuel range
Range is calculated from current fuel

level and current consumption. The

display shows average values.
After refuelling, the range is updated

automatically after a brief delay.

Instruments and controls

When the fuel level is low, a message

appears on the display and the

control indicator

in the fuel gauge

illuminates

75.

Instantaneous Fuel Consumption
Display of the instantaneous

consumption.

Trip 1 page:

Average speed
Display of average speed. The

measurement can be reset at any

time.
Average fuel consumption
Display of average consumption. The

measurement can be reset at any

time and starts with a default value.
Distance travelled
Displays the current distance for trip

1 since the reset.
Trip odometer counts up to

9,999.9 miles without automatic

reset.
The values of trip 1 page can be reset

by pressing SET/CLR for a few

seconds.

Trip 2 page:

Average speed
Display of average speed. The

measurement can be reset at any

time.
Average fuel consumption
Display of average consumption. The

measurement can be reset at any

time and starts with a default value.
Distance travelled
Displays the current distance for trip

2 since a certain reset.
The values of trip 2 page can be reset

by pressing SET/CLR for a few

seconds.

Digital speed page

Digital display of the instantaneous

speed.

Stop and Start time counter

A time counter calculates the time

spent in STOP mode during a

journey. It resets to zero every time

the ignition is switched on.

Compass page

Displays the geographic direction of

driving.

Blank page

No trip/fuel information is displayed.

AdBlue

Press

or CHECK repeatedly until

the AdBlue menu is shown.

AdBlue range

Indicates an estimate of the AdBlue

level. A message indicates whether

the level is sufficient or low.

180.

Info Display

The Info Display is located in the

instrument panel near the instrument

cluster.
Depending on the vehicle

configuration the vehicle has a

● Multimedia with touchscreen

functionality
or

● Multimedia Navi Pro with

touchscreen functionality

Instruments and controls

The Info Display can indicate:

● time

● outside temperature

● date

● Infotainment system, see

description in the Infotainment

system section

● indication of rear view camera

216

● indication of panoramic view

system

213

● indication of parking assist

instructions

203

● navigation, see description in the

Infotainment system section

● vehicle and system messages

● settings for vehicle

personalisation

Multimedia

Selecting menus and settings

Menus and settings are accessed via

the touchscreen.

Press

to switch on the display.

Press

;

to display the homepage.

Touch required menu display icon.
Touch a respective icon to confirm a

selection.
Touch

to return to the next higher

menu level.
Press

;

to return to the homepage.

For further information, see

Infotainment system section.
Vehicle personalisation

83.

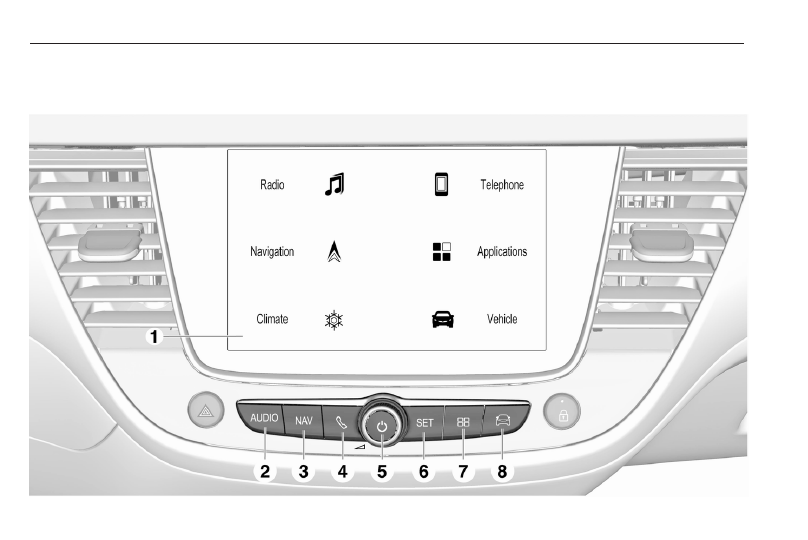

Multimedia Navi Pro

Selecting menus and settings

There are three options to operate the

display:

● via buttons below the display
● by touching the touchscreen
● via speech recognition

Button and touch operation

Press

to switch on the display.

Press SET to select system settings

(units, language, time and date).
Press

to select vehicle settings or

driving functions.

Instruments and controls

Touch required menu display icon or

a function.
Confirm a required function or

selection by touching.
Touch

on the display to exit a

menu without changing a setting.
For further information, see

Infotainment system section.
Speech recognition

Description see Infotainment system

section.
Vehicle personalisation

83.

Head-up display

The head-up display displays driver

information onto a foldable projection

plane on the driver's side.
The information appears as an image

projected from a lense in the

instrument panel onto the projection

plane directly ahead in driver's view.

The image appears focused out

toward the front of the vehicle.

Head-up display views:

● vehicle speed
● speed limits by the traffic sign

recognition

● set speed of speed limiter
● set speed of cruise control
● navigation information.

Adjust position of head-up display


1. Adjust the driver's seat.
2. Start the engine.
3. Press

to centre the image.

It can only be adjusted up and

down, not side to side.

Warning

If the head-up display image is too

bright or too high in your field of

view, it may obstruct your view

when it is dark outside. Be sure to

Instruments and controls

keep the head-up display image

dim and placed low in your field of

view.

Adjust brightness

The head-up display image will

automatically dim and brighten to

compensate for outside lighting.

Brightness can also be adjusted

manually as needed:
Press

to brighten the display. Press

to dim the display.

The image can temporarily illuminate

depending on angel and position of

sunlight.

Switching off

Press

and hold to turn the head-up

display off.

Language

Preferred language can be set in

vehicle personalisation menu

83.

Units

Units can be changed in vehicle

personalisation menu

83.

Care of head-up display

Clean the projection plane of the

head-up display with a soft cloth

sprayed with glass cleaner. Wipe the

lens gently, then dry it.

System limitations

Head-up display may not operate

properly when:

● The lens in the instrument panel

is covered by objects or is not

clean.

● Display brightness is too dim or

bright.

● Image is not adjusted to the

proper height.

● The driver wears polarised

sunglasses.

If the head-up image is not correct for

other reasons, contact a workshop.

Vehicle messages

Messages are indicated in the Driver

Information Centre, in some cases

together with a warning chime.

Press SET / CLR to confirm a

message.

Vehicle and service messages

The vehicle messages are displayed

as text. Follow the instructions given

in the messages.

Instruments and controls

Messages in the Info Display

Some important messages may

appear additionally in the

Info Display. Some messages only

pop-up for a few seconds.

Warning chimes

The warning chime regarding not

fastened seat belts has priority over

any other warning chime.
Whenever a warning chime sounds,

pay attention to the messages

displayed and the warning lights in

the Driver Information Centre.

When starting the engine or whilst

driving

A warning chime will sound in

situations such as

● a seat belt is not fastened
● a door or the tailgate is not fully

closed when starting off

● a certain speed is exceeded with

parking brake applied

● cruise control deactivates

automatically

● a programmed speed or speed

limit is exceeded

● a warning message appears in

the Driver Information Centre

● If the electronic key is not in the

passenger compartment.

● If the parking assist detects an

object.

● If an unintended lane change

occurs.

● If the exhaust filter has reached

the maximum filling level.

When the vehicle is parked and /

or the driver's door is opened

● With exterior lights on.

During an Autostop

● If the driver's door is opened.
● If any condition for an autostart is

not fulfilled.

Vehicle personalisation

The vehicle's behaviour can be

personalised by changing the settings

in the Info Display.
Some functions are only displayed or

active when the engine is running.

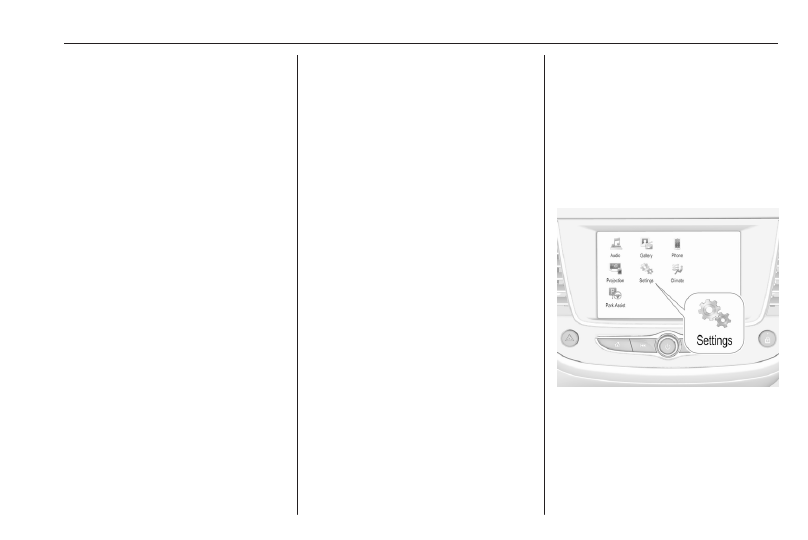

Multimedia

Press

;

to open homepage.

Touch Settings.
Safety, comfort, lighting and vehicle

access settings are adjustable.

Instruments and controls

Multimedia Navi Pro

Press

Vehicle and driving function settings

are adjustable.

Telematics services

Emergency call

Notice

In order to be available and

operational, the system requires

functioning vehicle electrics, mobile

service and GPS or GLONASS

satellite link. Depending on

equipment, a backup battery is

used.
Notice

The service is only available for

markets where it is legally required.

Furthermore, it depends on the

availability of the emergency centres

and the infrastructure in the country.

Status LED in the overhead

console

Illuminates green and red and

extinguishes after a short time, when

the ignition is switched on: the system

works properly.
Illuminates red: fault in the system.

Contact a workshop.
Flashes red: backup battery needs

replacement. Contact a workshop.

Emergency call

The emergency call function will

establish a connection to the nearest

public safety answering point (PSAP).

A minimum set of data including

vehicle and location information will

be sent to the PSAP.
In case of an emergency, press the

red SOS button in the overhead

console for more than two seconds.

The LED flashes green to confirm that

a connection to the nearest PSAP is

being established. The LED

illuminates steadily as long as the call

is active.
Pressing the SOS button immediately

a second time will terminate the call.

The LED switches off.

Automatic crash notification

In case of an accident with airbag

deployment and without damage of

needed hardware, an automatic

emergency call is established and an

automatic crash notification will be

transmitted to the next PSAP.

Instruments and controls

Vauxhall Connect

Vauxhall Connect comprises multiple

connected services accessible via

app, online or within the vehicle.

Notice

Full functionality of

Vauxhall Connect is subject to

registration and proper activation.

Connected services may include live

navigation such as online traffic

information and vehicle status and

information such as maintenance

alerts.
Services accessible within the vehicle

also include emergency call and

breakdown call. These functions are

automatically activated. Terms and

conditions apply.
Emergency call

85.

Breakdown call

Pressing the

button in the

overhead console for more than two

seconds connects to a roadside

assistance service provider.

For information about coverage and

scope of services of the roadside

assistance, please refer to the

information provided by the Vauxhall

Retailer with the order form.

Privacy settings

Privacy settings of Vauxhall Connect

can be configured in your vehicle.

This will impact the set of data being

sent, e.g., in case a breakdown call is

triggered.The emergency call

function will not be impacted.
Change the privacy settings in the

vehicle by simultaneously pressing

the

button and the SOS button.

Versions with navigation system:

privacy settings can also be changed

in the system settings menu.

ERA GLONASS

ERA GLONASS is a manually or

automatically actuated emergency

service. Emergency centres provide

assistance and information during an

emergency.

In case of an accident with an impact

of appropriate severity, an

emergency call is placed

automatically, regardless of airbag

activation. An immediate connection

with an advisor will be established

who will check whether help is

needed.

Danger

The service is only available for

markets where it is legally required

and activated. Furthermore, the

manual and the automatic

emergency call function depend

on the availability of the

emergency centres and the

infrastructure in the country.

Notice

In order to be available and

operational, the system requires

functioning vehicle electrics, mobile

service and GLONASS satellite link.

Depending on equipment, a backup

battery is used.

Instruments and controls

Control buttons

SOS button

In an emergency situation press and

hold SOS button for more than 2

seconds.The green LED and the

voice message will confirm that the

call has been sent to the emergency

centre.
The green LED illuminates when the

service connection is established. It

will go out when the connection is

complete.
A minimum set of data is transferred

to the emergency centre, including

such data as car location, car model,

vehicle identification number. The

operator will contact you and, if

necessary, send rescue workers from

the relevant support services.

To cancel the call, press the SOS

button again. The green LED goes

out. The voice message confirms the

cancellation.

Status LED

The system provides feedback via

voice messages and an LED.
Green

: The system is activated. A

connection to an operator

is on duty.

Red

: The system is booting up

after switching on ignition,

the LED goes out after 3

seconds. If the LED stays

red, a malfunction has

been detected in the

system. An emergency

call may not work. Contact

a workshop immediately.

Red

flashing

: The internal backup

battery is defective.

Contact a workshop

immediately.

Seek the assistance of a workshop if

the LED does not illuminate after

switching on the ignition.

Lighting

Exterior lighting ............................ 87

Light switch ................................ 87

Automatic light control ............... 88

High beam ................................. 88

High beam assist ....................... 88

Headlight flash ........................... 89

Headlight range adjustment ...... 89

Headlights when driving

abroad ...................................... 90

Daytime running lights ............... 90

LED headlights .......................... 90

Hazard warning flashers ............ 90

Turn lights .................................. 91

Front fog lights ........................... 91

Rear fog light ............................. 92

Parking lights ............................. 92

Reversing lights ......................... 92

Misted light covers ..................... 92

Interior lighting ............................. 93

Instrument panel illumination

control ....................................... 93

Interior lights .............................. 93

Reading lights ............................ 93

Sun visor lights .......................... 93

Lighting features .......................... 94

Centre console lighting .............. 94

Entry lighting .............................. 94

Exit lighting ................................ 94

Battery discharge protection ...... 94

Exterior lighting

Light switch

Turn light switch:
AUTO : automatic light control

switches automatically

between daytime running

light and headlight

: sidelights

: headlights

Control indicator

75.

Tail lights

Tail lights are illuminated together

with low / high beam and sidelights.

Lighting

Automatic light control

When the automatic light control

function is switched on and the

engine is running, the system

switches between daytime running

lights and headlights automatically

depending on the external lighting

conditions and information given by

the wiper system.
Make sure the sensor is not blocked

21.

Daytime running light

90.

Automatic headlight activation

During poor lighting conditions

headlights are switched on.

Additionally, headlights are switched

on if the windscreen wipers have

been activated for several wipes.
LED headlights

90.

Tunnel detection

When a tunnel is entered headlights

are switched on immediately.

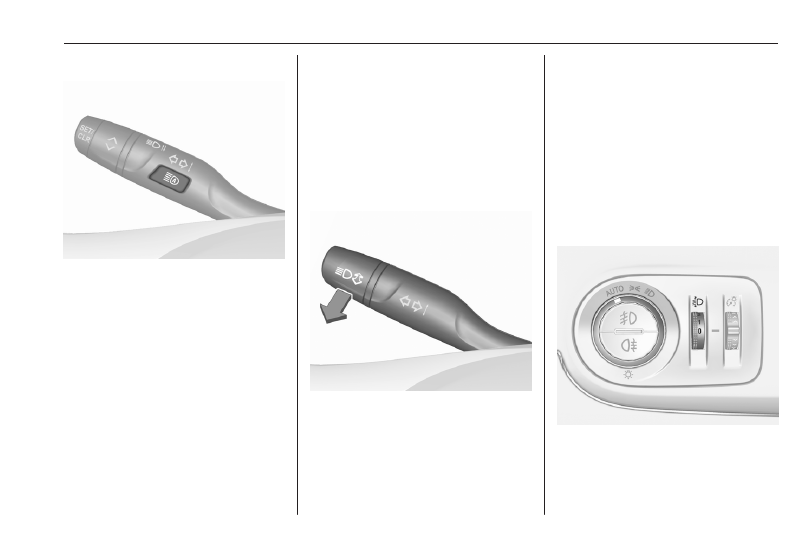

High beam

Push to switch from low to high beam.
Pull to deactivate high beam.
High beam assist

88.

High beam assist

The camera in the windscreen

detects the lights of oncoming or

preceding vehicles. Once activated,

high beam assist remains active and

switches high beam on and off

depending on surrounding

conditions. The latest setting of the

high beam assist will remain after the

ignition is switched on again.
This feature automatically activates

the high beam in the dark when

vehicle speed is faster than 15 mph.
It switches automatically back to low

beam when:

● The camera in the windscreen

detects the lights of oncoming or

preceding vehicles.

● The vehicle speed drops below

9 mph.

● It is foggy or snowy.
● Front or rear fog lights are

switched on.

● Driving in urban areas.

If there are no restrictions detected,

the system switches back to high

beam.

Lighting

Activation

Activate high beam assist by pressing

. The LED of the button

illuminates.
The green control indicator

illuminates continuously when the

high beam assist is activated, the blue

one

illuminates when high beam is

on.
Control indicator

75,

75.

Deactivation

Deactivate high beam assist by

pressing

. The LED of the button

extinguishes.

If a headlight flash is activated when

the high beam assist is activated and

low beam is on, the high beam assist

will be deactivated. The system

changes to high beam.
To reactivate the high beam assist,

flash the headlights again.

Headlight flash

Pull to activate the headlight flash.
Pull to deactivate the high beam.

Headlight range adjustment

Manual headlight range

adjustment

Headlight range can be adjusted

manually if vehicle is equipped with

halogen or Eco-LED headlights.

Uplevel-LED headlights are adjusted

automatically.
Dynamic automatic headlight

levelling

90.

To adapt headlight range to the

vehicle load to prevent dazzling: turn

thumb wheel

to required position.

Lighting

0 : front seats occupied

1 : all seats occupied

2 : all seats occupied and load

compartment laden

3 : driver's seat occupied and load

compartment laden

Headlights when driving

abroad

Versions with uplevel-LED: when

driving in countries where traffic

drives on the opposite side of the

road, the headlights do not have to be

adjusted.
All other versions: consult a

workshop.

Daytime running lights

Daytime running lights increases

visibility of the vehicle during daylight.
They are switched on automatically

during daytime when engine is

running.
The system switches between

daytime running lights and low beam

automatically, depending on the

lighting conditions.

LED headlights

Eco-LED and uplevel-LED headlights

for low and high beam ensure better

visibility under all conditions. Uplevel

LED headlights include the following

functions:

● cornering lights
● high beam assist

● automatic headlight levelling

Cornering light

Light switch must be in position

AUTO.

When turning off, depending on the

steering angle and the turn light,

particular LEDs are triggered which

illuminate the direction of travel. It is

activated up to a speed of 25 mph.

Reverse parking function

To assist driver's orientation when

parking, both cornering lights and

reversing light illuminate when

headlights are activated and reverse

gear is engaged. They remain

illuminated for a short time after

disengaging reverse gear or until

driving faster than 4 mph in a forward

gear.

Automatic headlight levelling

To prevent oncoming traffic from

being dazzled, headlight levelling is

automatically adjusted.

Fault in LED headlight system

When the system detects a failure in

the LED headlight system, a warning

is displayed in the Driver Information

Centre.

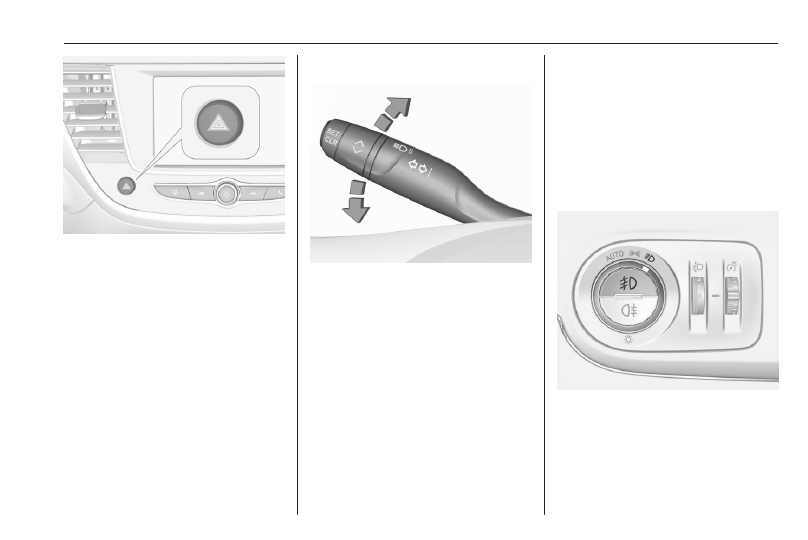

Hazard warning flashers

Operated by pressing

Lighting

Hazard warning flashers are switched

on automatically in the following

situations:

● braking in an emergency

(depending on the force of

deceleration)

● in the event of an accident.

They are switched off by pressing

or accelerating.

Turn lights

: right turn light

down : left turn light
A resistance point can be felt when

moving the lever.
Constant flashing is activated when

the lever is being moved beyond the

resistance point. It is deactivated

when the steering wheel is moved in

the opposite direction or indicator

lever is manually moved back to its

neutral position.
After 20 seconds the volume of the

audible signal will increase if the

speed is above 40 mph.

Activate temporary flashing by

holding the lever just before the

resistance point. Turn lights will flash

until indicator lever is being released.
To activate three flashes, tap the

lever briefly without passing the

resistance point.

Front fog lights

Operated by pressing

Light switch in position AUTO:

switching on front fog lights will switch

headlights on automatically.

Lighting

Rear fog light

Operated by pressing

Light switch in position AUTO:

switching on rear fog light will switch

headlights on automatically.
Light switch in position

: rear fog

light can only be switched on with

front fog lights.
The vehicle rear fog light is

deactivated when towing a trailer or a

plug is connected with the socket,

e.g. when a bicycle carrier is used.

Parking lights

When the vehicle is parked, the

parking lights on one side can be

activated:

1. Switch off ignition.
2. Move the lever all the way up

(right parking lights) or down (left

parking lights).

Confirmed by a signal and the

corresponding turn light control

indicator.

Reversing lights

The reversing light comes on when

the ignition is on and reverse gear is

selected.

Misted light covers

The inside of the light housing may

mist up briefly in poor, wet and cold

weather conditions, in heavy rain or

after washing. The mist disappears

quickly by itself. To help, switch on the

headlights.

Lighting

Interior lighting

Instrument panel

illumination control

Brightness of the following lights can

be adjusted when headlights are

switched on:

● instrument cluster illumination
● Info Display
● illuminated switches and

operation elements

Turn thumb wheel

and hold until

the desired brightness is obtained.

Interior lights

During entry and exit of the vehicle,

the front and rear courtesy lights

automatically switch on and then off

after a delay.

Notice

In the event of an accident with

airbag deployment the courtesy

lights are turned on automatically.

Front courtesy light

: automatic switching on

and off

press

: on

press

: off

Rear courtesy lights

Illuminate in conjunction with the front

courtesy light.

Reading lights

Operated by pressing

and

in the

courtesy lights.

Sun visor lights

Illuminates when the cover is opened.

Lighting

Lighting features

Centre console lighting

A spotlight integrated in the overhead

console illuminates the centre

console when headlights are

switched on.

Entry lighting

Welcome lighting

Some or all of the following lights are

switched on for a short time by

unlocking the vehicle:

● headlights
● tail lights
● number plate lights
● centre console lighting
● interior lights

The number of activated lights

depends on the surrounding light

conditions.
The lighting switches off immediately

when the ignition is switched on.

This function can be activated or

deactivated in the vehicle

personalisation.
Vehicle personalisation

83.

The following lights will additionally

switch on when the driver's door is

opened:

● illumination of some switches
● Driver Information Centre
● door pocket lights

Exit lighting

The following lights are switched on if

the ignition is switched off:

● interior lights
● centre console lighting

They will switch off automatically after

a delay. This function works only in

the dark.

Battery discharge protection

Vehicle battery state of charge

function

The function guarantees longest

vehicle battery life via a generator

with controllable power output and

optimised power distribution.
To prevent discharge of the vehicle

battery when driving, the following

systems are reduced automatically in

two stages and finally switched off:

● auxiliary heater
● heated rear window and heated

mirrors

● heated seats
● fan

In the second stage, a message

which confirms the activation of the

vehicle battery discharge protection

will be displayed in the Driver

Information Centre.

Infotainment system

Multimedia Navi Pro ..................... 96

Audio ....................................... 109

External devices ...................... 112

Navigation ............................... 115

Speech recognition .................. 126

Phone ...................................... 128

Multimedia ................................. 133

Audio ....................................... 143

External devices ...................... 147

Speech recognition .................. 152

Phone ...................................... 153

Multimedia Navi Pro

Introduction

Important information on operation

and traffic safety

Warning

Drive safely at all times. Only

operate the Infotainment system if

the traffic conditions allow a safe

usage.
In the interest of safety, it might be

appropriate to stop the vehicle

before operating the Infotainment

system (e.g. for entries of

addresses).

Warning

The usage of the navigation

system does not release the driver

from the responsibility for a

correct, vigilant attitude in road

traffic. Always follow the

applicable traffic rules.

Warning

In some areas one-way streets

and other roads and entrances

(e.g. pedestrian zones) that you

are not allowed to turn into are not

marked on the map. In such areas

the Infotainment system may

issue a warning that must be

accepted. Here you must pay

particular attention to one-way

streets, roads and entrances that

you are not allowed to drive into.

Radio reception

Radio reception may be disrupted by

static, noise, distortion or loss of

reception due to:

● changes in distance from the

transmitter

● multi-path reception due to

reflection

● shadowing

Theft-deterrent feature

The Infotainment system is equipped

with an electronic security system for

the purpose of theft deterrence.

Infotainment system

Info Display / touchscreen

with home menu (home

menu only visible after 3-

finger touch on screen)

AUDIO
Open audio menu:
Radio ................................... 109
External devices (USB,

Bluetooth) ............................ 112
CD player ............................ 112

NAV
Display embedded

navigation map ................... 115

Open phone menu .............. 128
Display phone projection

screen when phone

projection is active .............. 112

)

If switched off: switch

power on / off
If switched on: mute system
Turn: adjust volume

SET /

Open settings menu
or open charging settings

(hybrid vehicles)

Open apps menu ................ 112

Open vehicle settings menu . 83

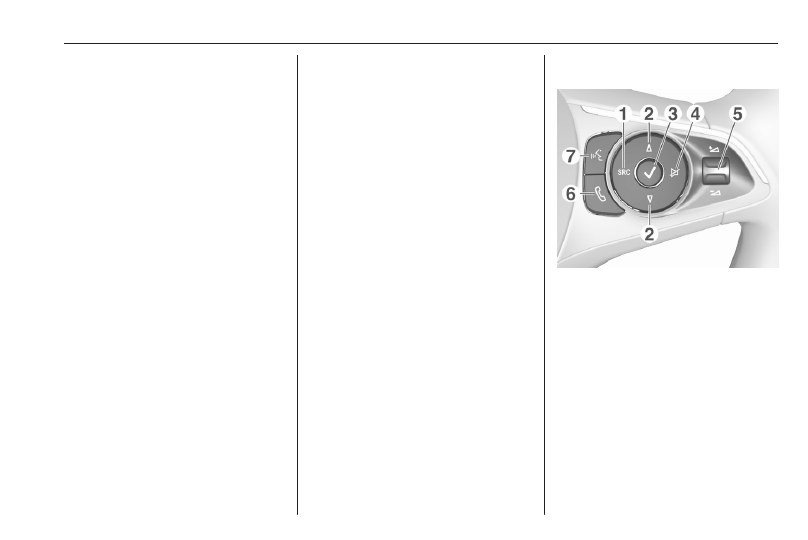

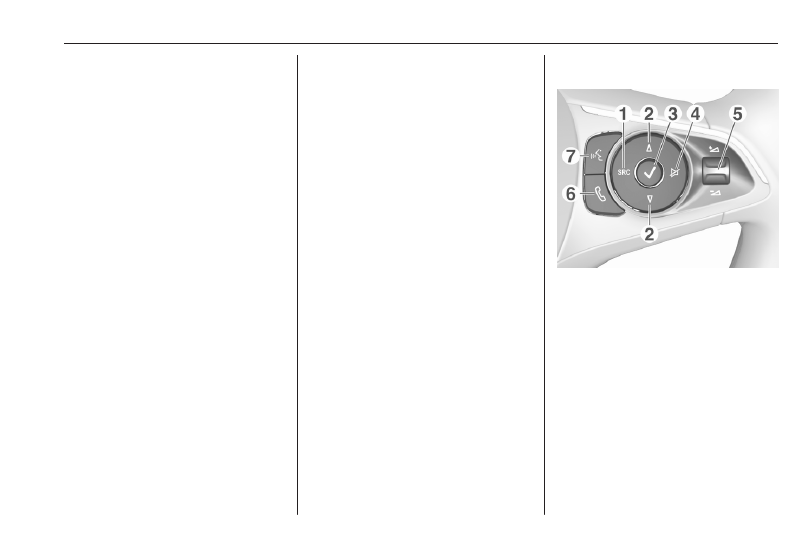

Steering wheel controls

SRC (Source)
Select audio source,

confirm selection with

Long press: mute system

Select next / previous

preset radio station when

radio active .......................... 109
or select next / previous

track / picture when

external devices active ....... 112

100

Infotainment system

or select next / previous

entry in station list, media

list, call / contacts list when

operation started via

steering wheel controls
Confirm selection with

Confirm selected item
or open station list, media list

Activate / deactivate mute

function

Turn upwards /

downwards: increase /

decrease volume

Short press: accept

incoming call
Long press: reject

incoming call, hang up call .. 128

or open call / contacts list . . . 128
If phone call active: open

call in progress menu

Short press: activate

embedded speech recognition
Long press: activate

speech recognition in

Apple CarPlay™ or

Android™ Auto if phone

connected via USB port ...... 126

Control elements

The Infotainment system is operated

via function buttons, a touchscreen

and menus that are shown on the

display.
Inputs are made optionally via:

● the control panel on the

Infotainment system

● the touchscreen
● the steering wheel controls
● the speech recognition

126

Switching the Infotainment

system on or off

Press

)

. After switching on, the last

selected Infotainment source

becomes active.

Notice

Some functions of the Infotainment

system are only available if ignition

is switched on or engine is running.

Infotainment system

101

Automatic switch-off

If the Infotainment system has been

switched on pressing

)

while the

ignition is switched off, it will switch off

again automatically when the Eco

mode becomes active.

Setting the volume

Turn

)

. The current setting is shown

on the display.
When the Infotainment system is

switched on, the last selected volume

is set.

Speed compensated volume

When the speed compensated

volume is activated, the volume is

adapted automatically to make up for

the road and wind noise as you drive.

Mute

Press

)

to mute the Infotainment

system.
To cancel the mute function,

press

)

again. The last selected

volume is set again.

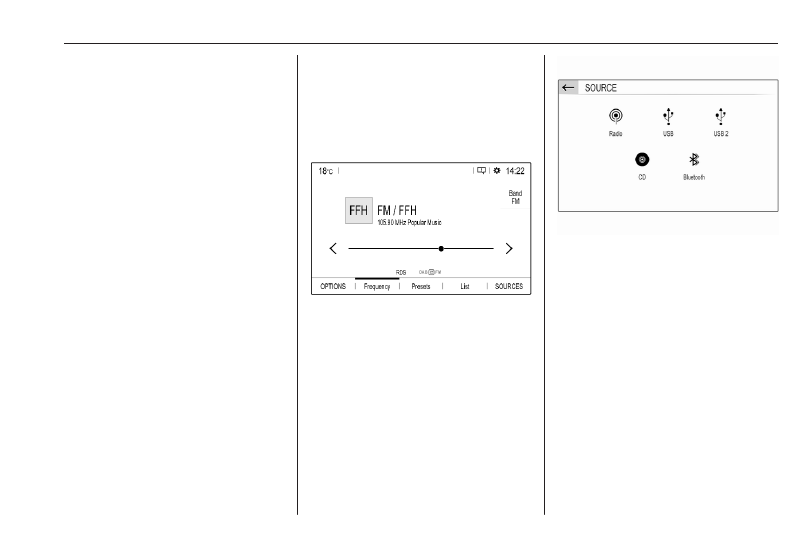

Modes of operation

Audio-Media

Press AUDIO to display the main

menu of the last selected audio mode.

Changing the media source

Select SOURCES to display the

menu for media source selection.

Select the desired media source.
For a detailed description of:

● Radio functions

109

● CD player

112

● External devices

112

Navigation

Press NAV to display the navigation

map showing the area around the

current location.

Vauxhall Crossland X (2023 year). Manual in english - page 3
