Vauxhall Crossland X (2023 year). Manual in english

Keys, doors and windows

Keys, doors and

windows

Keys, locks ..................................... 6

Keys ............................................ 6

Radio remote control ................... 7

Electronic key system .................. 8

Central locking system .............. 10

Automatic locking ...................... 14

Child locks ................................. 14

Doors ........................................... 15

Load compartment .................... 15

Vehicle security ............................ 16

Anti-theft locking system ........... 16

Anti-theft alarm system .............. 17

Immobiliser ................................ 19

Exterior mirrors ............................ 19

Convex shape ........................... 19

Electric adjustment .................... 19

Folding mirrors .......................... 20

Heated mirrors ........................... 20

Interior mirrors ............................. 21

Manual anti-dazzle .................... 21

Automatic anti-dazzle ................ 21

Windows ...................................... 21

Windscreen ............................... 21

Manual windows ........................ 22

Power windows ......................... 22

Heated rear window .................. 23

Heated windscreen .................... 24

Sun visors .................................. 24

Roof ............................................. 24

Glass panel ............................... 24

Keys, locks

Keys

Caution

Do not attach heavy or bulky items

to the ignition key.

Replacement keys

The key number is specified on a

detachable tag.
The key number must be quoted

when ordering replacement keys as it

is a component of the immobiliser

system.
Locks

266.

Central locking

10.

Starting the engine

174.

Radio remote control

Electronic key

The code number of the adapter for

the locking wheel nuts is specified on

a card. It must be quoted when

ordering a replacement adapter.
Wheel changing

256.

CarManuals2.com

Keys, doors and windows

Key with foldaway key section

Danger

Never remove the key from

ignition switch during driving as

this will cause, depending on

version, steering wheel lock.

Press button to extend. To fold the

key, first press the button.

Lock cylinders

Designed to free-wheel if they are

forcefully rotated without the correct

key or if the correct key is not fully

inserted. To reset, insert the correct

key only half way and turn cylinder

until its slot is vertical, remove key

then re-insert it. If the cylinder still

free-wheels, insert the key only half

way and turn the key through 180°

and repeat operation.

Radio remote control

: unlocks the vehicle

: locks the vehicle

: long press unlocks and

opens the tailgate

Enables operation of the following

functions via the use of the remote

control buttons:

● central locking system

● anti-theft locking system

● anti-theft alarm system

● tailgate unlocking

● power windows

● mirrors folding

The remote control has a range of up

to 100 m, but may also be much less

due to external influences. The

hazard warning flashers confirm

operation.
Handle with care, protect from

moisture and high temperatures and

avoid unnecessary operation.

CarManuals2.com

Keys, doors and windows

Replacing battery in radio remote

control

Replace the battery as soon as the

system no longer operates properly

or the range is reduced.

Batteries do not belong in household

waste. They must be disposed of at

an appropriate recycling collection

point.

1. To unclip the cover insert a small

screwdriver between the back

cover and the remote control.

2. Remove the back cover.
3. Extract the flat battery from its

location.

4. Replace battery with a battery of

the same type. Pay attention to

the installation position.

5. Clip the cover in place.

Fault

If the central locking system cannot

be operated with the radio remote

control, the cause may be one of the

following:

● Fault in radio remote control.
● Electronic key is out of reception

range.

● The battery voltage is too low.
● Frequent, repeated operation of

the radio remote control while not

in range.

● Overload of the central locking

system by operating at frequent

intervals, the power supply is

interrupted for a short time.

● Interference from higher-power

radio waves from other sources.

Manual unlocking

10.

Electronic key system

Warning

The electronic key can affect a

pacemaker.
Keep the electronic key away from

the breast.

CarManuals2.com

Keys, doors and windows

Enables a keyless operation of the

following functions:

● central locking system

● ignition switching on and starting

the engine

174

The electronic key simply needs to be

on the driver's person.
Additionally, the electronic key

includes the functionality of the radio

remote control

Handle with care, protect from

moisture and high temperatures and

avoid unnecessary operation.

Notice

To save battery power, the keyless

functions are set to stand-by after 21

days of non-use. To reactivate the

functions, press a button on the

electronic key.

Replacing battery in electronic

key

Replace the battery as soon as the

system no longer operates properly

or the range is reduced. The need for

battery replacement is indicated by a

message in the Driver Information

Centre

82.

Batteries do not belong in household

waste. They must be disposed of at

an appropriate recycling collection

point.

1. To unclip the cover insert a small

screwdriver in the cutout.

2. Remove the cover.
3. Extract the flat battery from its

location.

4. Replace battery with a battery of

the same type. Pay attention to

the installation position.

5. Clip the cover in place.

Fault

If the central locking cannot be

operated or the engine cannot be

started, the cause may be one of the

following:

● Fault in electronic key.
● Electronic key is out of reception

range.

● The battery voltage is too low.
● Overload of the central locking

system by operating at frequent

intervals, the power supply is

interrupted for a short time.

● Interference from higher-power

radio waves from other sources.

To rectify the cause of the fault,

change the position of the electronic

key.
Manual unlocking

10.

CarManuals2.com

Keys, doors and windows

Central locking system

Unlocks and locks doors, load

compartment and fuel filler flap.
A pull on an interior door handle

unlocks and opens the respective

door.

Notice

In the event of an accident in which

airbags or belt pretensioners are

deployed, the vehicle is

automatically unlocked.

Automatic locking

Rigid key

Unlocking

Turn key in the lock cylinder at the left

front door.
Unlocking mode can be set in the

vehicle personalisation menu in the

Info Display. Two settings are

selectable:

● All doors, load compartment and

fuel filler flap will be unlocked by

turning the key once.

● Only the left front door and fuel

filler flap will be unlocked by

turning the key once. To unlock

entire vehicle, turn the key twice.

Vehicle personalisation

83.

Locking

Close doors, load compartment and

fuel filler flap.

Turn key in the lock cylinder at the left

front door.
If the vehicle is not closed properly,

the central locking system will not

work.

CarManuals2.com

Keys, doors and windows

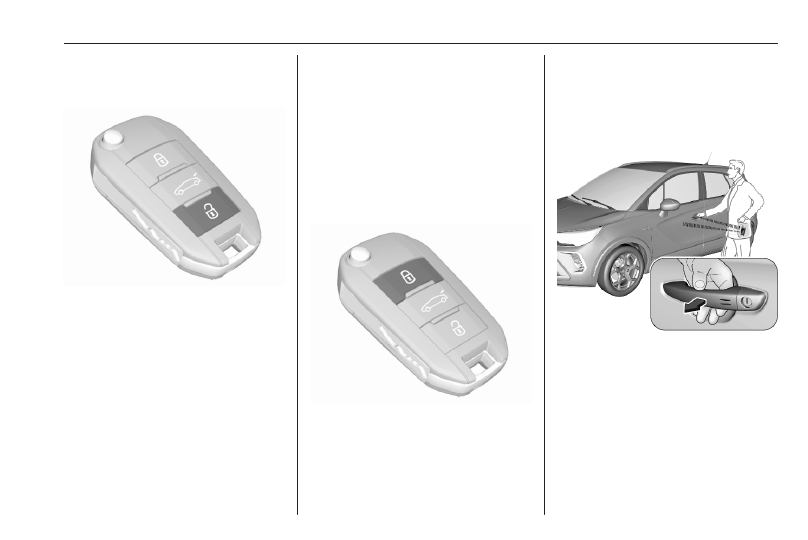

Remote control operation

Unlocking

Press

Unlocking mode can be set in the

vehicle personalisation menu in the

Info Display. Two settings are

selectable:

● All doors, load compartment and

fuel filler flap will be unlocked by

pressing

once.

● Only the driver's door and fuel

filler flap will be unlocked by

pressing

once. To unlock entire

vehicle, press

twice.

Vehicle personalisation

83.

Unlocking the tailgate

Press

longer to unlock the

tailgate only.
Vehicle personalisation

83.

Unlocking and opening the tailgate

15.

Locking

Close doors, load compartment and

fuel filler flap.

Press

If the vehicle is not closed properly,

the central locking system will not

work.

Confirmation

Operation of the central locking

system is confirmed by the hazard

warning flashers.

Electronic key system operation

The electronic key must be outside

the vehicle, within a range of approx.

1 m of the relevant door side.

Keys, doors and windows

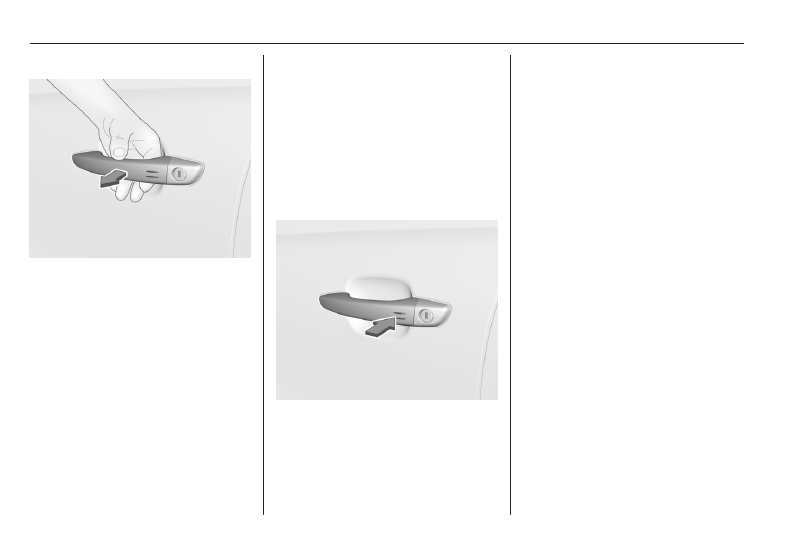

Unlocking

Pass hand behind one of the front

door handles to unlock the vehicle or

press the tailgate button.
Unlocking mode can be set in the

vehicle personalisation. Three

settings are selectable:

● Only the driver's door and fuel

filler flap will be unlocked by

passing hand behind the driver's

door handle.

● All doors, load compartment and

fuel filler flap will be unlocked by

passing a hand behind the

passenger's door handle or by

pressing the tailgate button.

● Only the tailgate will be unlocked

by pressing the tailgate button.

Vehicle personalisation

Locking

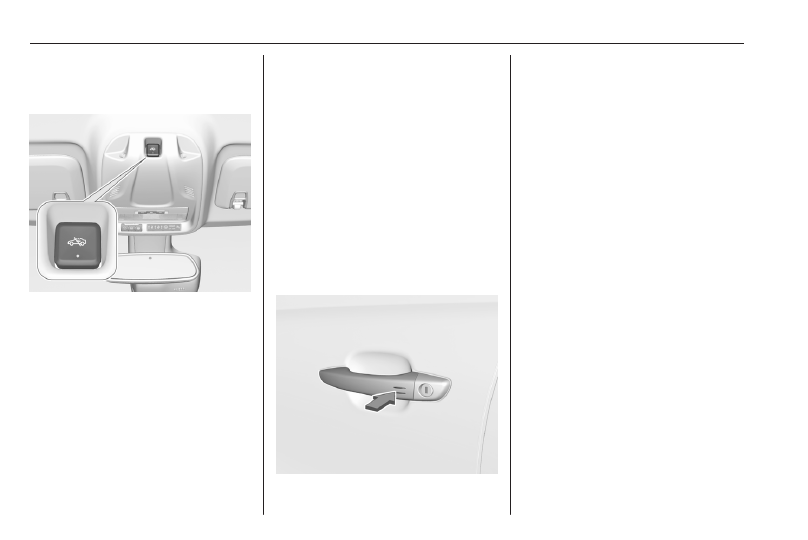

Press marking of the front door

handles.
Entire vehicle will be locked.

If the vehicle is not closed properly,

the electronic key remains in the

vehicle or the ignition is not off,

locking will not be permitted and a

warning chime sounds.

Unlocking and opening the tailgate

The tailgate can be unlocked and

opened by pushing the tailgate button

when the electronic key is in range.

The doors remain locked depending

on the configuration in the vehicle

personalisation.
Load compartment

Vehicle personalisation

Confirmation

Operation of central locking system is

confirmed by the hazard warning

flashers.

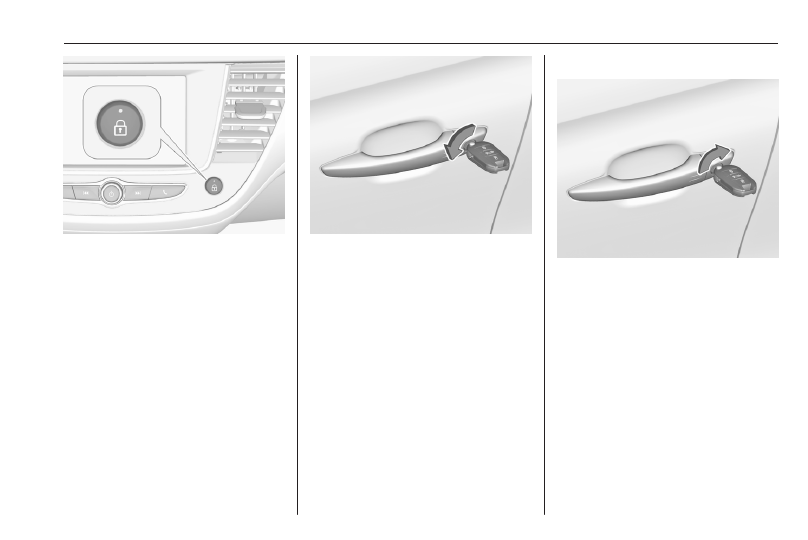

Central locking button

Locks or unlocks entire vehicle from

the passenger compartment via a

switch.

CarManuals2.com

Keys, doors and windows

Press

to lock. The LED in the button

illuminates.
Press

again to unlock. The LED in

the button extinguishes.

Operation with the key in case of

a central locking system fault

In case of a fault, e.g. vehicle battery

or remote control / electronic key

battery is discharged, the vehicle can

be locked or unlocked with the

mechanical key.

Manual unlocking

Electronic key: press and hold the

latch to extract the integral key.

Manually unlock the left front door by

inserting and turning the key in the

lock cylinder. With working central

locking system the vehicle will be

unlocked.
By switching on the ignition, the anti-

theft locking system is deactivated.
The other doors can be opened by

pulling the interior handle. The load

compartment and fuel filler flap will

possibly not be unlocked.

Manual locking

Manually lock the left front door by

inserting and turning the key in the

lock cylinder. With working central

locking system the vehicle will be

locked.

CarManuals2.com

Keys, doors and windows

To lock the other doors, first make

sure the child lock is not activated.

Then remove the black cover by

inserting a key and turning clockwise.
Insert key into the recess and move

latch sideways.
Remove key and attach the black

cover.
The fuel filler flap and tailgate are

possibly not locked.

Automatic locking

Automatic locking after driving off

This system allows automatic locking

as soon as the speed of the vehicle

exceeds 6 mph.
If the vehicle is not closed properly,

the automatic locking does not take

place. This is signalled by the sound

of the locks rebounding,

accompanied by illumination of

the instrument panel, an audible

signal and the display of an alert

message.

Activation or deactivation

With the ignition on, press

until an

audible signal starts and a

corresponding message is displayed.
The state of the system stays in

memory when switching off the

ignition.

Automatic relock after unlocking

This feature automatically relocks the

vehicle a short time after unlocking

with the remote control or electronic

key, provided vehicle has not been

opened.

Child locks

Warning

Use the child locks whenever

children are occupying the rear

seats.

CarManuals2.com

Keys, doors and windows

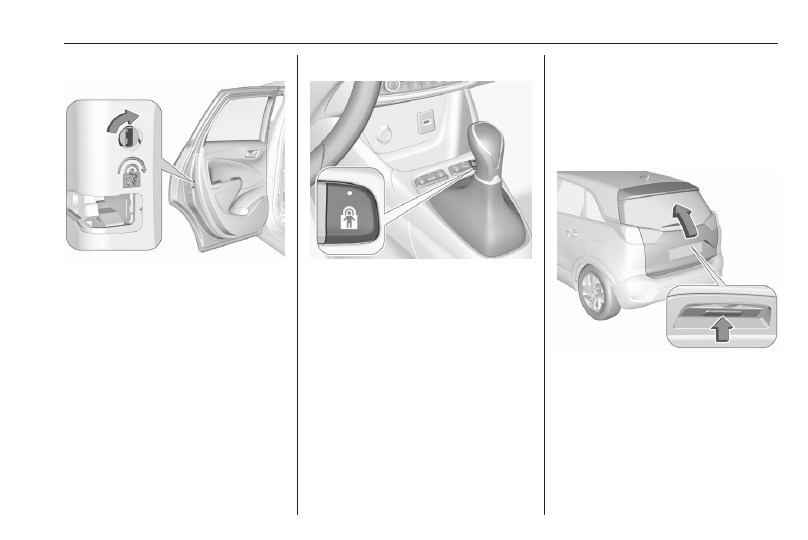

Mechanical child locks

Turn the red child lock in the rear

doors to the horizontal position by

using a key. The door cannot be

opened from the inside.
To deactivate, turn the child lock to

the vertical position.

Electric child locks

Remotely operated system to prevent

opening of the rear doors using the

interior handles.

Switching on

Press

. The indicator light in the

button comes on, accompanied by a

confirmation message. This indicator

light remains on until the child lock is

switched off.

Switching off

Press

again. The indicator light in

the button goes off, accompanied by

a confirmation message.

Doors

Load compartment

Tailgate

Opening

Press the tailgate button and open the

tailgate.

CarManuals2.com

Keys, doors and windows

Closing

Use the interior handle.
Do not push the tailgate button whilst

closing as this will open the tailgate

again.
Central locking system

10.

General hints for operating

tailgate

Danger

Do not drive with the tailgate open

or ajar, e.g. when transporting

bulky objects, since toxic exhaust

gases, which cannot be seen or

smelled, could enter the vehicle.

This can cause unconsciousness

and even death.

Caution

Before opening the tailgate, check

overhead obstructions, e.g. a

garage door, to avoid damage to

the tailgate. Always check the

moving area above and behind the

tailgate.

Notice

The installation of certain heavy

accessories onto the tailgate may

affect its ability to remain open.
Notice

At low outside temperatures the

tailgate may not open fully by itself.

In this event, lift the tailgate manually

to its normal end position.

Vehicle security

Anti-theft locking system

Warning

Do not use the system if there are

people in the vehicle! The doors

cannot be unlocked from the

inside.

The system deadlocks all the doors.

All doors must be closed otherwise

the system cannot be activated.
Unlocking the vehicle disables the

mechanical anti-theft locking system.

This is not possible with the central

locking button.

CarManuals2.com

Keys, doors and windows

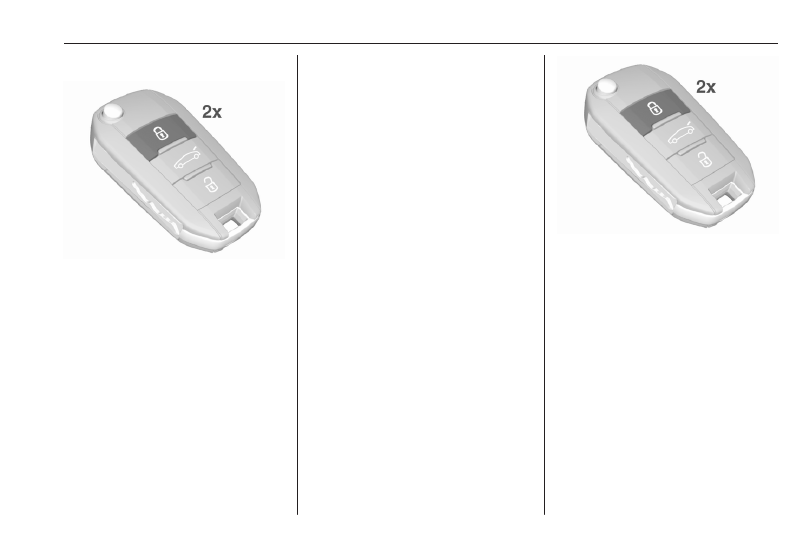

Activating

Press

on the radio remote control

twice within five seconds.
Or with electronic key system press

twice the marking on one of the front

door handles.

Anti-theft alarm system

The anti-theft alarm system is

combined with the central locking

system.

It monitors:

● doors, tailgate, bonnet
● passenger compartment

including adjoining load

compartment

● vehicle inclination, e.g. if it is

raised

● ignition

Activation

All doors must be closed.
The electronic key of the electronic

key system must not remain in the

vehicle.

● Radio remote control: activated

30 seconds after locking the

vehicle by pressing

once.

● Electronic key system: activated

30 seconds after locking the

vehicle by pressing marking on

one of the front door handles.

● Radio remote control: directly by

pressing

twice within five

seconds.

● Electronic key system: directly by

pressing twice the marking on

one of the front door handles.

Notice

Changes to the vehicle interior such

as the use of seat covers and open

windows, could impair the function

of passenger compartment

monitoring.

CarManuals2.com

Keys, doors and windows

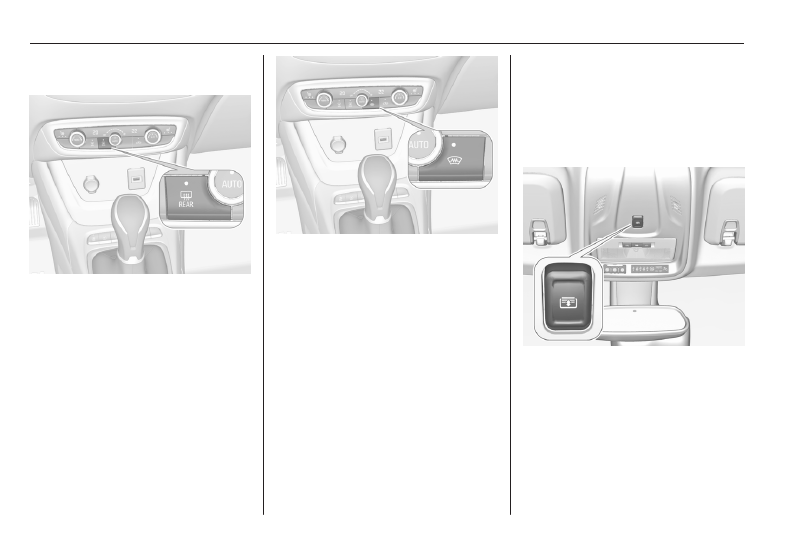

Activation without monitoring of

passenger compartment and

vehicle inclination

Switch off the monitoring of

passenger compartment and vehicle

inclination when animals are being

left in the vehicle, because of high

volume ultrasonic signals and

because movements could trigger the

alarm. Also switch off when the

vehicle is on a ferry or train.

1. Close tailgate, bonnet, windows.
2. Press

. LED in the button

illuminates for a maximum of ten

minutes.

3. Close doors.
4. Activate the anti-theft alarm

system.

Indication

LED in the

button flashes if the

anti-theft alarm system is activated.
Seek the assistance of a workshop in

the event of faults.

Deactivation

Radio remote control: Unlocking the

vehicle by pressing

deactivates the

anti-theft alarm system.

Electronic key system: Unlocking the

vehicle by pressing marking on one of

the front door handles deactivates the

anti-theft alarm system.
The electronic key must be outside

the vehicle, within a range of approx.

1 m of the relevant door side.
The system is not deactivated by

unlocking the driver's door with the

key or with the central locking button

in the passenger compartment.

Alarm

When triggered, the alarm siren

sounds and the hazard warning lights

flash simultaneously. The number

and duration of alarm signals are

stipulated by legislation.
The anti-theft alarm system can be

deactivated by pressing

switching on the ignition.
Electronic key system: The anti-theft

alarm system can be deactivated by

pressing marking on one of the front

door handles.
A triggered alarm, which has not been

interrupted by the driver, will be

indicated by the hazard warning

CarManuals2.com

Keys, doors and windows

lights. They will flash quickly four

times the next time the vehicle is

unlocked with the radio remote

control.
If the vehicle's battery is to be

disconnected (e.g. for maintenance

work), the alarm siren must be

deactivated as follows: switch the

ignition on then off, then disconnect

the vehicle's battery within

15 seconds.
If the battery has been reconnected

(e.g. after maintenance work), wait for

ten minutes to restart the engine.

Immobiliser

The system is part of the ignition

switch and checks whether the

vehicle is allowed to be started with

the key being used.
The immobiliser is activated

automatically at the end of a trip.

Notice

Radio Frequency Identification

(RFID) tags may cause interference

with the key. Do not have it placed

near the key when starting the

vehicle.

Notice

The immobiliser does not lock the

doors. Always lock the vehicle after

leaving it

10.

Switch on the anti-theft alarm

system

17.

Emergency operation of electronic

key

173.

Exterior mirrors

Convex shape

The shape of the mirror makes

objects appear smaller, which will

affect the ability to estimate

distances.

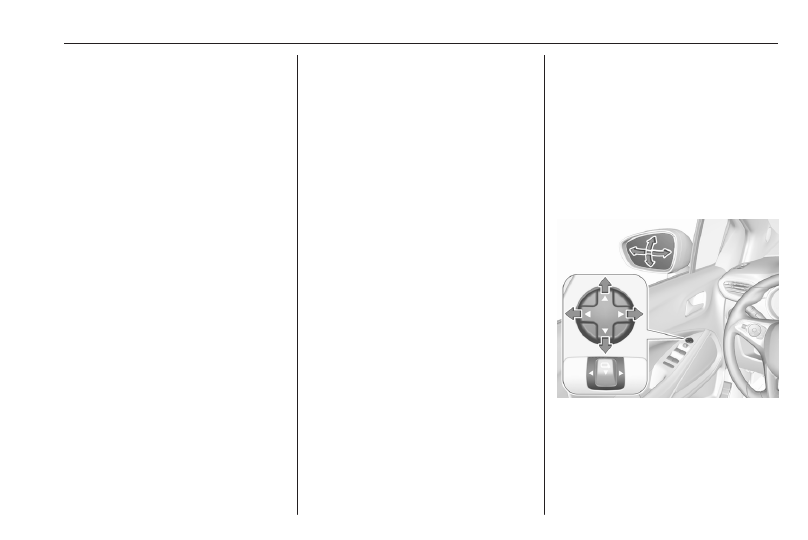

Electric adjustment

Select the relevant exterior mirror by

pushing the mirror button to the left or

right.
Then swivel the control to adjust the

mirror.

CarManuals2.com

Keys, doors and windows

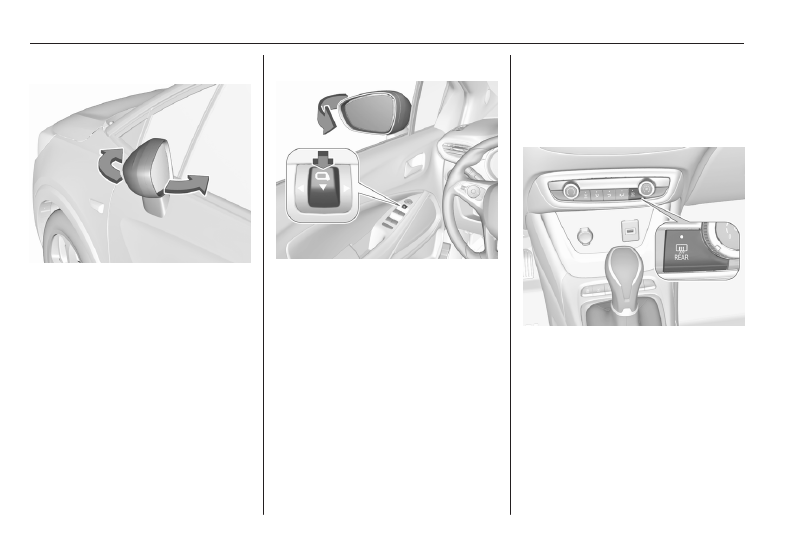

Folding mirrors

For pedestrian safety, the exterior

mirrors will swing out of their normal

mounting position if they are struck

with sufficient force. Reposition the

mirror by applying slight pressure to

the mirror housing.

Electric folding

Pull mirror button rearwards. Both

exterior mirrors will fold.
Pull mirror button rearwards again to

return both exterior mirrors to their

original position.
If an electrically folded mirror is

manually extended, pulling mirror

button rearwards will only electrically

extend the other mirror.

Automatic folding

When the vehicle is unlocked, the

mirrors swing to their normal

mounting position. When the vehicle

is locked, the mirrors are folded down.

To enable or disable automatic

folding of the exterior mirrors, consult

a workshop.

Heated mirrors

Operated by pressing

The heating switches off

automatically after a certain time

depending on the outside

temperature.
Heated rear window

23.

CarManuals2.com

Keys, doors and windows

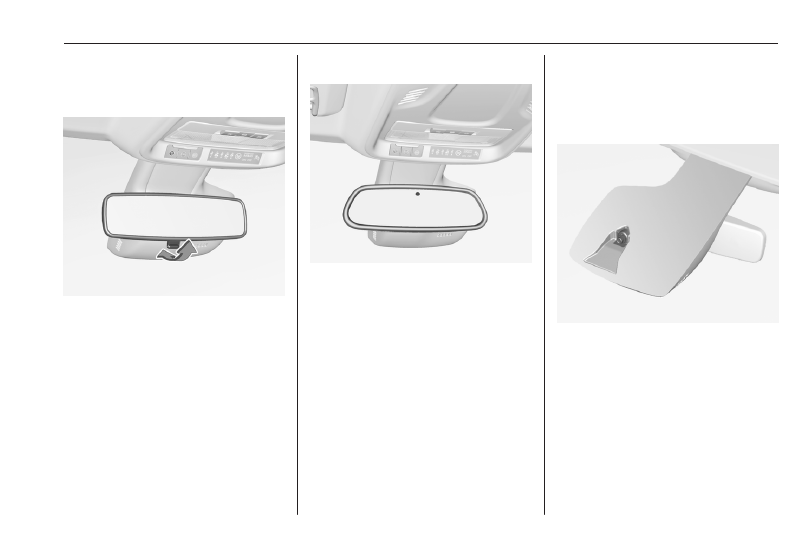

Interior mirrors

Manual anti-dazzle

To reduce dazzle, adjust the lever on

the underside of the mirror housing.

Automatic anti-dazzle

Dazzle from following vehicles is

automatically reduced, when driving

in the dark.

Windows

Windscreen

Windscreen stickers

Do not attach stickers such as toll

road stickers or similar on the

windscreen in the area of the interior

mirror. Keep the sensor free from

dust, dirt and ice. Otherwise, the

detection zone of the rain sensor /

light sensor and the view area of the

camera in the mirror housing could be

restricted.
Sensors

59,

CarManuals2.com

Keys, doors and windows

Windscreen replacement

Caution

If the vehicle has a front-looking

camera sensor for the driver

assistance systems, it is very

important that any windscreen

replacement is performed

accurately according to Vauxhall

specifications. Otherwise, these

systems may not work properly

and there is a risk of unexpected

behaviour and / or messages from

these systems.

Manual windows

The rear door windows can be

opened or closed manually with the

window cranks.

Power windows

Warning

Take care when operating the

power windows. Risk of injury,

particularly to children.

If there are children on the rear

seats, switch on the child safety

system for the power windows.
Keep a close watch on the

windows when closing them.

Ensure that nothing becomes

trapped in them as they move.

Switch on ignition to operate power

windows.

Operate the switch for the respective

window by pushing to open or pulling

to close.
Pushing or pulling gently to the first

detent: window moves up or down as

long as the switch is operated.

Pushing or pulling firmly to the second

detent then releasing: window moves

up or down automatically with safety

function enabled. To stop movement,

operate the switch once more in the

same direction.

Safety function

If the window glass encounters

resistance above the middle of the

window during automatic closing, it is

immediately stopped and opened

again.

Override safety function

In the event of closing difficulties due

to frost or the like, switch on the

ignition, then pull the switch to the first

detent and hold. The window moves

up without safety function enabled.

To stop movement, release the

switch.

CarManuals2.com

Keys, doors and windows

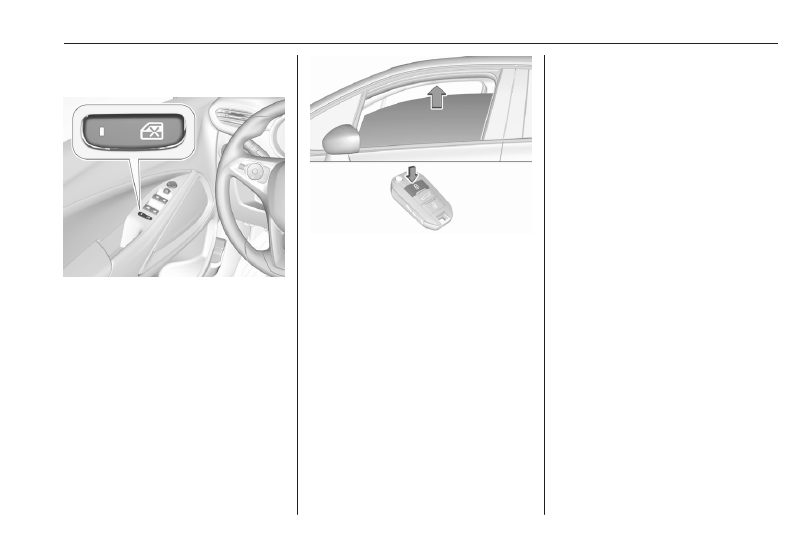

Child safety system for rear

windows

Press

to deactivate rear door

power windows; the LED illuminates.

To activate, press

again.

Operating windows from outside

The windows can be operated

remotely from outside the vehicle.

Press and hold

to close windows.

Release button to stop window

movement.
If the windows are fully closed, the

hazard warning lights will flash twice.

Overload

If the windows are repeatedly

operated within short intervals, the

window operation is disabled for

some time.

Initialising the power windows

If the windows cannot be closed

automatically (e.g. after

disconnecting the vehicle battery), a

warning message is displayed in the

Driver Information Centre.
Vehicle messages

82.

Activate the window electronics as

follows:

1. Close doors.
2. Switch on ignition.
3. Pull switch until the window is

closed and keep pulling for

additional two seconds.

4. Push switch until the window is

completely open and keep

pushing for additional two

seconds.

5. Repeat for each window.

Heated rear window

Operated by pressing

The heating switches off

automatically after a certain time

depending on the outside

temperature.

CarManuals2.com

Keys, doors and windows

Depending on climate control system,

is located at a different position.

Heated exterior mirrors

20.

Heated windscreen

Operated by pressing

. LED in

button illuminates.
The heating works only with freezing

outside temperatures and switches

off automatically after a certain time

depending on the outside

temperature.
Depending on climate control

system,

is located at a different

position.

Sun visors

The sun visors can be folded down or

swivelled to the side to prevent

dazzling.
If the sun visors have integral mirrors,

the mirror covers should be closed

when driving.
A ticket holder is located on the

backside of the sun visor.

Roof

Glass panel

Sunblind

The sunblind is electrically operated.

Press

gently to the first detent at

the rear: the sunblind is opened as

long as the switch is operated.
Press

firmly to the second detent

and then release at the rear: the

sunblind is completely opened.
Press

gently to the first detent at

the front: the sunblind is closed as

long as the switch is operated.

CarManuals2.com

Keys, doors and windows

Press

firmly to the second detent

and then release at the front: the

sunblind is completely closed.

Safety function

If the sunblind encounters resistance

during automatic closing, it is

immediately stopped and opened

again.

Initialising after a power failure

After a power failure, it may only be

possible to operate the sunblind to a

limited extent. Initialise the system as

follows:

1. Switch on ignition.
2. Press

twice gently to the first

detent at the rear, the sunblind

opens slightly.

3. Immediately press

twice gently

to the first detent at the front, the

sunblind closes slightly.
After step 3 the sunblind is in

initialising mode without safety

function.

4. Press

gently to the first detent

at the rear until the sunblind is

completely opened.

5. Press

gently to the first detent

at the front until the sunblind is

completely closed.

After this procedure, the sunblind is

initialised with safety function

activated.
When

is pressed firmly to the

second detent during initialising, the

procedure is cancelled.

CarManuals2.com

Seats, restraints

Head restraints ............................ 26
Front seats ................................... 27

Seat position .............................. 27

Seat adjustment ........................ 28

Armrest ...................................... 30

Heating ...................................... 30

Rear seats ................................... 31

Armrest ...................................... 32

Seat belts ..................................... 32

Three-point seat belt ................. 33

Airbag system .............................. 35

Front airbag system ................... 38

Side airbag system .................... 39

Curtain airbag system ............... 40

Airbag deactivation .................... 40

Child restraints ............................. 41

Child restraint systems .............. 41

Child restraint installation

locations ................................... 45

Head restraints

Position

Warning

Only drive with the head restraint

set to the proper position.

The upper edge of the head restraint

should be at upper head level. If this

is not possible for extremely tall

people, set to highest position, and

set to lowest position for small people.

Head restraints on front seats

Height adjustment

Press release button, adjust height,

engage.

CarManuals2.com

Seats, restraints

Head restraints on rear seats

Height adjustment

Pull the head restraint upwards or

press the catch to release and push

the head restraint downwards.

Removal of rear head restraint

E.g. when using a child restraint

system

41.

Pull the head restraint upwards, press

the catch to release and pull the head

restraint out.

Front seats

Seat position

Danger

Do not sit closer than 25 cm to the

steering wheel, to permit safe

airbag deployment.

Warning

Only drive with the seat correctly

adjusted.

Warning

Never adjust seats while driving as

they could move uncontrollably.

Warning

Never store any objects under the

seats.

● Sit with buttocks as far back

against the backrest as possible.

Adjust the distance between the

seat and the pedals so that legs

are slightly angled when fully

pressing the pedals. Slide the

front passenger seat as far back

as possible.

● Set seat height high enough to

have a clear field of vision on all

sides and on instrument cluster.

There should be at least one

hand of clearance between head

and the roof frame. Thighs

should rest lightly on the seat

without pressing into it.

CarManuals2.com

Seats, restraints

● Sit with shoulders as far back

against the backrest as possible.

Set the backrest rake so that it is

possible to easily reach the

steering wheel with arms slightly

bent. Maintain contact between

shoulders and the backrest when

turning the steering wheel. Do

not angle the backrest too far

back. We recommend a

maximum rake of approx. 25°.

● Adjust seat and steering wheel in

a way that the wrist rests on top

of the steering wheel while the

arm is fully extended and

shoulders are on the backrest.

● Adjust the steering wheel

58.

● Adjust the head restraint

26.

● Adjust the thigh support so that

there is a space approx. two

fingers wide between the edge of

the seat and the hollow of the

knee.

● Adjust the lumbar support so that

it supports the natural shape of

the spine.

Seat adjustment

Drive only with engaged seats and

backrests.

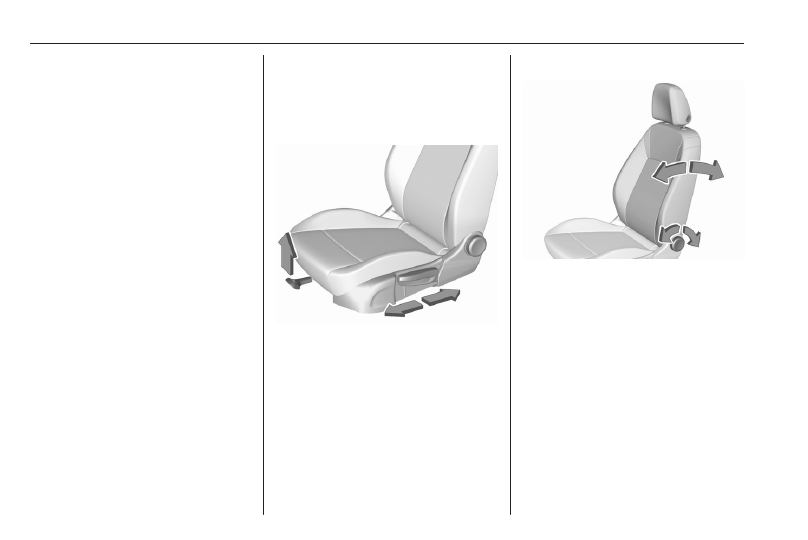

Longitudinal adjustment

Pull handle, slide seat, release

handle. Try to move the seat back and

forth to ensure that the seat is locked

in place.

Backrest inclination

Turn handwheel. Do not lean on

backrest when adjusting.

CarManuals2.com

Seats, restraints

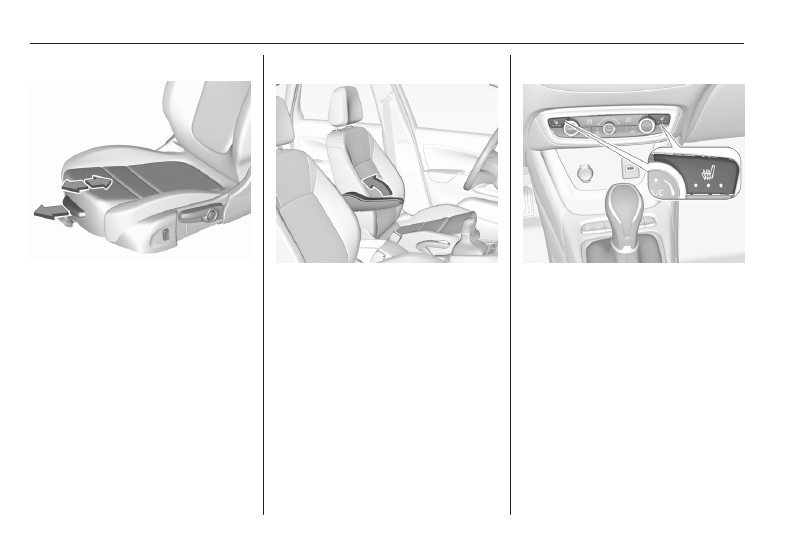

Adjustable thigh support

Pull the lever and slide the thigh

support.

Armrest

Armrest can be folded up.

Heating

Adjust heating to the desired setting

by pressing

for the respective seat

one or more times. The control

indicator in the button indicates the

setting.
The heating works only when the

outside temperature is below 20 °C.
Prolonged use of the highest setting

for people with sensitive skin is not

recommended.
Seat heating is operational when

engine is running.
During an Autostop, seat heating is

also operational.

CarManuals2.com

Seats, restraints

Stop-start system

175.

Rear seats

Drive only with engaged seats and

backrests.

Warning

Never adjust seats while driving as

they could move uncontrollably.

Folding backrests

48.

Longitudinal adjustment

Both parts of the rear seat can be

individually moved forwards or

backwards.

Pull handle, slide seat, release

handle. Try to move the seat back and

forth to ensure that the seat is locked

in place.

Backrest inclination

Pull the loop, adjust inclination and

release loop. Do not lean on backrest

when adjusting.

CarManuals2.com

Seats, restraints

Armrest

Folding down armrest

48.

Seat belts

The seat belts are locked during

heavy acceleration or deceleration of

the vehicle, holding the occupants in

the seat position. Therefore the risk of

injury is considerably reduced.

Warning

Fasten seat belt before each trip.
In the event of an accident, people

not wearing seat belts endanger

their fellow occupants and

themselves.

Seat belts are designed to be used by

only one person at a time.
Child restraint system

41.

Periodically check all parts of the seat

belt system for damage, soiling and

proper functionality.
Have damaged components

replaced. After an accident, have the

seat belts and triggered seat belt

pretensioners replaced by a

workshop.

Notice

Make sure that the seat belts are

neither damaged by shoes or sharp-

edged objects nor trapped. Prevent

dirt from getting into the seat belt

retractors.
Notice

Use the belt buckle inteded for the

respective seat belt when fastening

in order to ensure proper

functionality.

Seat belt reminder

Each seat is equipped with a seat belt

reminder, indicated by a control

indicator

for the respective seat in

the overhead console .

CarManuals2.com

Seats, restraints

Seat belt reminder

70.

Belt force limiters

Stress on the body is reduced by the

gradual release of the seat belt during

a collision.

Belt pretensioners

In the event of a head-on, rear-end or

side-on collision of a certain severity,

the front seat belts and the outer rear

seat belts are tightened by seat belt

pretensioners.

Warning

Incorrect handling (e.g. removal or

fitting of seat belts) can trigger the

belt pretensioners.

The deployment of the belt

pretensioners is indicated by

continuous illumination of the control

indicator

Airbag and belt pretensioners

70.

Triggered belt pretensioners must be

replaced by a workshop. Belt

pretensioners can only be triggered

once.

Notice

Do not affix or install accessories or

other objects that may interfere with

the operation of the belt

pretensioners. Do not make any

modifications to belt pretensioner

components as this will invalidate

the vehicle operating permit.

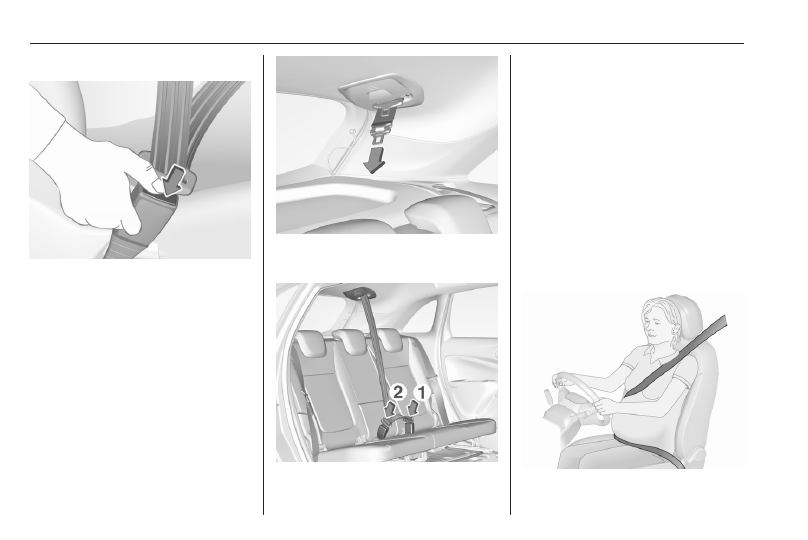

Three-point seat belt

Fasten

Withdraw the seat belt from the

retractor, guide it untwisted across

the body and insert the latch plate into

the buckle. Make sure the seat belt

lies across the shoulder and fits tightly

to the body while driving.

Loose or bulky clothing prevents the

seat belt from fitting snugly. Do not

place objects such as handbags or

mobile phones between the seat belt

and your body.

Warning

The seat belt must not rest against

hard or fragile objects in the

pockets of your clothing.

Seat belt reminder

70.

CarManuals2.com

Seats, restraints

Unfasten

To release seat belt, press red button

on seat belt buckle and guide the seat

belt back.

Centre seat belt of the second

seat row

The centre seat is equipped with a

particular three-point seat belt.

Pull latch plates with the seat belt out

of seat belt holder in the roof.

Insert lower latch plate into left-hand

buckle (1) at the centre seat. Guide

the upper latch plate with the seat belt

over the lap area and the shoulder (do

not twist) and insert it into right-hand

buckle (2) at centre seat.
To unfasten the seat belt, first press

the button on the right-hand buckle

(2) and remove upper latch plate.

Then press the button on the left-

hand buckle (1) and remove lower

latch plate. The seat belt retracts

automatically.

Using the seat belt while pregnant

CarManuals2.com

Seats, restraints

Warning

The lap seat belt must be

positioned as low as possible

across the pelvis to prevent

pressure on the abdomen.

Airbag system

The airbag system consists of a

number of individual systems

depending on the scope of

equipment.
When triggered, the airbags inflate

within milliseconds. They also deflate

so quickly that it is often unnoticeable

during the collision.

Warning

The airbag system deploys in an

explosive manner, repairs must be

performed by skilled personnel

only.

Warning

Adding accessories that change

the vehicle's frame, bumper

system, height, front end or side

sheet metal, may keep the airbag

system from working properly. The

operation of the airbag system can

also be affected by changing any

parts of the front seats, seat belts,

airbag sensing and diagnostic

module, steering wheel,

instrument panel, inner door seals

including the speakers, any of the

airbag modules, ceiling or pillar

trim, front sensors, side impact

sensors or airbag wiring.

Warning

Keep the area in which the airbag

inflates clear of obstructions.

Notice

The airbag systems and belt

pretensioner control electronics are

located in the centre console. Do not

put any magnetic objects in this

area.
Do not affix any objects onto the

airbag covers and do not cover them

with other materials. Have damaged

covers replaced by a workshop.
Each airbag is triggered only once.

Have deployed airbags replaced by

a workshop. Furthermore, it may be

necessary to have the steering

CarManuals2.com

Seats, restraints

wheel, the instrument panel, parts of

the panelling, the door seals,

handles and the seats replaced.
Do not make any modifications to

the airbag system as this will

invalidate the vehicle operating

permit.

Control indicator

for airbag systems

70.

Child restraint systems on front

passenger seat with airbag

systems

EN: NEVER use a rearward-facing

child restraint on a seat protected by

an ACTIVE AIRBAG in front of it;

DEATH or SERIOUS INJURY to the

CHILD can occur.
DE: Nach hinten gerichtete

Kindersitze NIEMALS auf einem Sitz

verwenden, der durch einen davor

befindlichen AKTIVEN AIRBAG

geschützt ist, da dies den TOD oder

SCHWERE VERLETZUNGEN DES

KINDES zur Folge haben kann.
FR: NE JAMAIS utiliser un siège

d'enfant orienté vers l'arrière sur un

siège protégé par un COUSSIN

GONFLABLE ACTIF placé devant lui,

sous peine d'infliger des

BLESSURES GRAVES, voire

MORTELLES à l'ENFANT.
ES: NUNCA utilice un sistema de

retención infantil orientado hacia

atrás en un asiento protegido por un

AIRBAG FRONTAL ACTIVO. Peligro

de MUERTE o LESIONES GRAVES

para el NIÑO.
RU: ЗАПРЕЩАЕТСЯ

устанавливать детское

удерживающее устройство лицом

назад на сиденье автомобиля,

оборудованном фронтальной

подушкой безопасности, если

ПОДУШКА НЕ ОТКЛЮЧЕНА! Это

может привести к СМЕРТИ или

СЕРЬЕЗНЫМ ТРАВМАМ

РЕБЕНКА.
NL: Gebruik NOOIT een achterwaarts

gericht kinderzitje op een stoel met

een ACTIEVE AIRBAG ervoor, om

DODELIJK of ERNSTIG LETSEL van

het KIND te voorkomen.
DA: Brug ALDRIG en bagudvendt

autostol på et forsæde med AKTIV

AIRBAG, BARNET kan komme i

LIVSFARE eller komme ALVORLIGT

TIL SKADE.
SV: Använd ALDRIG en bakåtvänd

barnstol på ett säte som skyddas med

en framförvarande AKTIV AIRBAG.

DÖDSFALL eller ALLVARLIGA

SKADOR kan drabba BARNET.
FI: ÄLÄ KOSKAAN sijoita taaksepäin

suunnattua lasten turvaistuinta

istuimelle, jonka edessä on

AKTIIVINEN TURVATYYNY, LAPSI

VOI KUOLLA tai VAMMAUTUA

VAKAVASTI.

CarManuals2.com

Seats, restraints

NO: Bakovervendt

barnesikringsutstyr må ALDRI brukes

på et sete med AKTIV

KOLLISJONSPUTE foran, da det kan

føre til at BARNET utsettes for

LIVSFARE og fare for ALVORLIGE

SKADER.
PT: NUNCA use um sistema de

retenção para crianças voltado para

trás num banco protegido com um

AIRBAG ACTIVO na frente do

mesmo, poderá ocorrer a PERDA DE

VIDA ou FERIMENTOS GRAVES na

CRIANÇA.
IT: Non usare mai un sistema di

sicurezza per bambini rivolto

all'indietro su un sedile protetto da

AIRBAG ATTIVO di fronte ad esso:

pericolo di MORTE o LESIONI

GRAVI per il BAMBINO!
EL: ΠΟΤΕ μη χρησιμοποιείτε παιδικό

κάθισμα ασφαλείας με φορά προς τα

πίσω σε κάθισμα που προστατεύεται

από μετωπικό ΕΝΕΡΓΟ ΑΕΡΟΣΑΚΟ,

διότι το παιδί μπορεί να υποστεί

ΘΑΝΑΣΙΜΟ ή ΣΟΒΑΡΟ

ΤΡΑΥΜΑΤΙΣΜΟ.

PL: NIE WOLNO montować fotelika

dziecięcego zwróconego tyłem do

kierunku jazdy na fotelu, przed

którym znajduje się WŁĄCZONA

PODUSZKA POWIETRZNA.

Niezastosowanie się do tego

zalecenia może być przyczyną

ŚMIERCI lub POWAŻNYCH

OBRAŻEŃ u DZIECKA.
TR: Arkaya bakan bir çocuk emniyet

sistemini KESİNLİKLE önünde bir

AKTİF HAVA YASTIĞI ile

korunmakta olan bir koltukta

kullanmayınız. ÇOCUK ÖLEBİLİR

veya AĞIR ŞEKİLDE

YARALANABİLİR.
UK: НІКОЛИ не використовуйте

систему безпеки для дітей, що

встановлюється обличчям назад,

на сидінні з УВІМКНЕНОЮ

ПОДУШКОЮ БЕЗПЕКИ, інакше це

може призвести до СМЕРТІ чи

СЕРЙОЗНОГО ТРАВМУВАННЯ

ДИТИНИ.
HU: SOHA ne használjon hátrafelé

néző biztonsági gyerekülést előlről

AKTÍV LÉGZSÁKKAL védett ülésen,

mert a GYERMEK HALÁLÁT vagy

KOMOLY SÉRÜLÉSÉT okozhatja.

HR: NIKADA nemojte koristiti sustav

zadržavanja za djecu okrenut prema

natrag na sjedalu s AKTIVNIM

ZRAČNIM JASTUKOM ispred njega,

to bi moglo dovesti do SMRTI ili

OZBILJNJIH OZLJEDA za DIJETE.
SL: NIKOLI ne nameščajte otroškega

varnostnega sedeža, obrnjenega v

nasprotni smeri vožnje, na sedež z

AKTIVNO ČELNO ZRAČNO

BLAZINO, saj pri tem obstaja

nevarnost RESNIH ali SMRTNIH

POŠKODB za OTROKA.
SR: NIKADA ne koristiti bezbednosni

sistem za decu u kome su deca

okrenuta unazad na sedištu sa

AKTIVNIM VAZDUŠNIM

JASTUKOM ispred sedišta zato što

DETE može da NASTRADA ili da se

TEŠKO POVREDI.
MK: НИКОГАШ не користете детско

седиште свртено наназад на

седиште заштитено со АКТИВНО

ВОЗДУШНО ПЕРНИЧЕ пред него,

затоа што детето може ДА ЗАГИНЕ

или да биде ТЕШКО ПОВРЕДЕНО.
BG: НИКОГА не използвайте

детска седалка, гледаща назад,

върху седалка, която е защитена

CarManuals2.com

Vauxhall Crossland X (2023 year). Manual in english - page 1
