Vauxhall Corsa F (2023 year). Manual in english

294

Service and maintenance

Service intervals

Engine code

EB2FAD,
EB2FAMD

EB2ADTD,
EB2ADTS,
EB2ADTSM,
EB2ADTMD

DV5RCf

Electric vehicle

Country group 1 12,000 miles / 1 year

12,000 miles / 1 year

19,000 miles / 1 year

16,000 miles / 2 years

Unless otherwise indicated in the service display.

Initial service interval is 8,000 miles / 1 year

Country Group 1:

Andorra, Austria, Belgium, Cyprus, Denmark, Finland, France, Germany, Greece, Iceland, Italy, Liechtenstein,

Luxembourg, Malta, Monaco, Netherlands, Norway, Portugal, Republic of Ireland, San Marino, Spain, Sweden,

Switzerland, United Kingdom.
Country Group 2:

Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Hungary, Latvia, Lithuania, North Macedonia, Poland,

Romania, Slovakia, Slovenia.
Country Group 3:

Albania, Kosovo, Montenegro, New Zealand, Serbia.
Country Group 4:

Israel, Lesotho, South Africa, Swaziland, Turkey.
Country Group 5:

Russia.
Country Group 6:

All other countries which are not listed in the previous country groups.

296

Service and maintenance

Recommended fluids,

lubricants and parts

Recommended fluids and

lubricants

Only use products that meet the

recommended specifications.

Warning

Operating materials are

hazardous and could be

poisonous. Handle with care. Pay

attention to information given on

the containers.

Engine oil

Engine oil is identified by its quality

and its viscosity. Quality is more

important than viscosity when

selecting which engine oil to use. The

oil quality ensures e.g. engine

cleanliness, wear protection and oil

aging control, whereas viscosity

grade gives information on the oil's

thickness over a temperature range.

Select the appropriate engine oil

based on its quality and on the

minimum ambient temperature

300.

Topping up engine oil

Caution

In case of any spilled oil, wipe it up

and dispose it properly.

Engine oils of different manufacturers

and brands can be mixed as long as

they comply with the required engine

oil quality and viscosity.
Use of engine oils for all petrol

engines with only ACEA quality is

prohibited, since it can cause engine

damage under certain operating

conditions.

Additional engine oil additives

The use of additional engine oil

additives could cause damage and

invalidate the warranty.

Engine oil viscosity grades

The SAE viscosity grade gives

information of the thickness of the oil.

Multigrade oil is indicated by two

figures, e.g. SAE 5W-30. The first

figure, followed by a W, indicates the

low temperature viscosity and the

second figure the high temperature

viscosity.
Select the appropriate viscosity grade

depending on the minimum ambient

temperature

300.

All of the recommended viscosity

grades are suitable for high ambient

temperatures.

Coolant and antifreeze

Use only antifreeze approved for the

vehicle. Consult a workshop.
The system is factory filled with

coolant designed for excellent

corrosion protection and frost

protection down to approx. -28 °C. In

cold regions with very low

temperatures the factory filled coolant

provides frost protection down to

approx. -37 °C. This concentration

should be maintained all year round.

The use of additional coolant

additives that intend to give additional

corrosion protection or seal against

minor leaks can cause function

Service and maintenance

297

problems. Liability for consequences

resulting from the use of additional

coolant additives will be rejected.

Washer fluid

Use only washer fluid approved for

the vehicle to prevent damage of

wiper blades, paintwork, plastic and

rubber parts. Consult a workshop.

Brake and clutch fluid

Over time, brake fluid absorbs

moisture which will reduce braking

effectiveness. The brake fluid should

therefore be replaced at the specified

interval.
Use only brake fluid approved for the

vehicle. Consult a workshop.

AdBlue

Only use AdBlue to reduce the

nitrogen oxides in the exhaust

emission

178.

298

Technical data

Vehicle identification .................. 298

Vehicle identification number . . 298

Identification plate ................... 298

Engine identification ................ 299

Vehicle data ............................... 300

Recommended fluids and

lubricants ................................ 300

Engine data ............................. 301

Vehicle dimensions ................. 302

Capacities ................................ 303

Tyre pressures ........................ 304

Vehicle identification

number

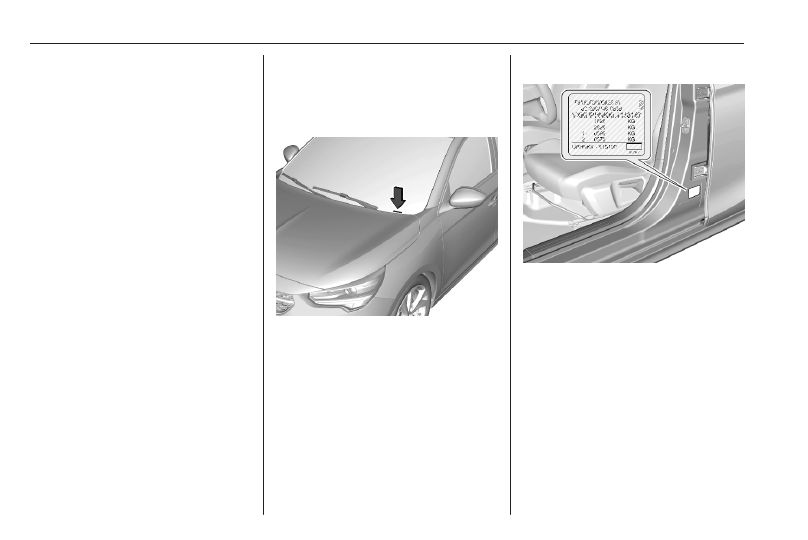

The Vehicle Identification Number

may be embossed on the instrument

panel, visible through the windscreen,

or in the engine compartment on the

right body panel.

Identification plate

The identification plate is located on

the front left or right door frame. The

layout and position differ for some

export countries.

Technical data

299

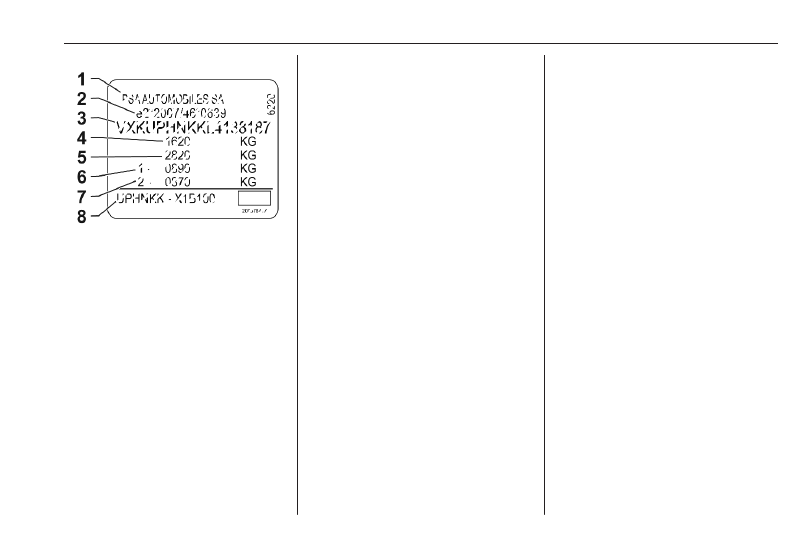

Information on identification label:
1 : manufacturer

2 : type approval number

3 : vehicle identification number

4 : permissible gross vehicle weight

rating in kg

5 : permissible gross train weight

in kg

6 : maximum permissible front axle

load in kg

7 : maximum permissible rear axle

load in kg

8 : manufacturer address, vehicle-

specific or country-specific data

The combined total of front and rear

axle loads must not exceed the

permissible gross vehicle weight.

Vehicle's kerb weight depends on the

specification of the vehicle, e.g.

optional equipment and accessories.

Refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
The technical data is determined in

accordance with European

Community standards. We reserve

the right to make modifications.

Specifications in the vehicle

documents always have priority over

those given in this manual.

Engine identification

The technical data tables show the

engine identifier code.
Engine data

301.

To identify the respective engine,

refer to the engine power in the EEC

Certificate of Conformity provided

with your vehicle or other national

registration documents.

Technical data

301

Engine data

Engine identifier code

EB2FAD,
EB2FAMD

EB2ADTD,
EB2ADTMD

EB2ADTS,
EB2ADTSM

DV5RCf

Electric vehicle

Sales designation

1.2

1.2 T

1.5 D

–

Piston displacement [cm

]

1199

1499

–

Engine power [kW]

97 / 100 / 115

at rpm

5750

5500

3500

–

Torque [Nm]

110 / 116

205

230

240 / 250

260

at rpm

2750

1750

–

Fuel type

Petrol

Diesel

–

Octane rating RON

1)2)

recommended

–

possible

–

possible

–

Additional fuel type

–

A country specific label at the fuel filler flap can supersede the engine specific requirement.

In certain countries, the use of a particular fuel, e.g. a specific octane rating, may be required to ensure proper engine operation.

302

Technical data

Vehicle dimensions

Length [mm]

4060

Width without exterior mirrors [mm]

1745

Width with two exterior mirrors folded [mm]

1791

Width with two exterior mirrors [mm]

1960

Height (without antenna) [mm]

1432

Length of load compartment floor [mm]

680

Length of load compartment with folded second row [mm]

1385

Load compartment width between wheel arches [mm]

1018

Load compartment width at seat belt height [mm]

833

Wheelbase [mm]

2538

Turning circle diameter [m]

10.32

Technical data

303

Capacities

Engine oil

Engine

EB2FAD,
EB2FAMD

EB2ADTD,
EB2ADTMD

EB2ADTS,
EB2ADTSM,

DV5RCf

including filter [l]

3.25

3.5

4.0

between MIN and MAX [l]

1.0

1.5

Fuel tank

Petrol, refilling quantity [l]

Diesel, refilling quantity [l]

AdBlue tank

AdBlue, refilling quantity [l]

High voltage battery

Battery capacity [kWh]

304

Technical data

Tyre pressures

Vehicle with up to 3 people

With full load

Engine

Tyres

front

rear

front

rear

[kPa/bar] ([psi])

EB2FAD,
EB2FAMD

185/65 R15,
195/55 R16,

220/2.2 (32)

210/2.1 (30)

270/2.7 (39)

290/2.9 (42)

EB2ADTD,
EB2ADTS,
EB2ADTSM,
DV5RD,
DV5RCf

195/55 R16,
205/45 R17

220/2.2 (32)

210/2.1 (30)

270/2.7 (39)

290/2.9 (42)

Electric vehicle

205/45 R17

250/2.5 (36)

300/3.0 (45)

All

Temporary spare wheel

420/4.2 (60)

Customer information

305

Customer

information

Customer information ................ 305

Declaration of conformity ......... 305

REACH .................................... 307

Software update ...................... 307

Registered trademarks ............ 308

Vehicle data recording and pri‐

vacy ........................................... 309

Emergency call data recording

and privacy ............................. 309

Event data recorders ............... 310

Radio Frequency Identification

(RFID) ..................................... 313

Customer information

Declaration of conformity

Radio transmission systems

This vehicle has systems that

transmit and / or receive radio waves

subject to Directive 2014/53/EU and

The Radio Equipment Regulations

2017 by the United Kingdom. The

manufacturers of the systems listed

below declare conformity with

Directive 2014/53/EU and

The Radio Equipment Regulations

2017. The full text of the EU

declaration of conformity for each

system is available at the following

internet address: www.opel.com/

conformity.
Importer is

Opel / Vauxhall, Bahnhofsplatz,

65423 Ruesselsheim am Main,

Germany.
Importer is Vauxhall Motors Limited,

MP UK 1-101-135, Chalton House,

Luton Road, Chalton, Luton,

Bedfordshire, LU4 9TT, United

Kingdom.

Infotainment system Multimedia Navi

Pro / Multimedia Navi

Continental Automotive Czech

Republic s.r.o
Prumyslová 1851, 250 01 Brandys

nad Labem, Czech Republic

Operation

frequency

(MHz)

Maximum

output (dBm)

BT 2402.0 -

2480.0

4.1

Wifi 2412.0 -

2462.0

16.7

Infotainment system Radio

Hangsheng France Front Office
Coeur Défense, 110 Espl. du Général

de Gaulle, Paris, 9231 la Défense,

France
Operation frequency:

2402.0 - 2480.0 MHz
Maximum output: 4 dBm

Infotainment system Multimedia

Robert Bosch Car Multimedia GmbH
Robert-Bosch-Strasse 200, 31139

Hildesheim, Germany

306

Customer information

Operation frequency:

2400.0 - 2483.5 MHz
Maximum output: 4 dBm

Wireless charger

Continental Automotive GmbH
Siemensstrasse 12, 93055

Regensburg, Germany
Operation frequency:

90.0 - 119.0 kHz
Maximum output:

39.24dBµA/m at 3m

Antenna module

Hirschmann Car Communication

GmbH
Stuttgarter Strasse 45-51, 72654

Neckartenzlingen, Germany
Operation frequency: N/A
Maximum output: N/A
ASK Industrie SpA
C.P. 110 c/o U.P. RE2, 42121 Reggio

Emilia, Italy
Operation frequency: N/A
Maximum output: N/A
Fiamm France - RCA Spa

12 rue Augustin Fresnel, 78420

Aubergenville, France
Operation frequency: N/A
Maximum output: N/A

Electronic key transmitter

Valeo Comfort and Driving

Assistance
76, rue Auguste Perret 94046 Créteil

- CEDEX France
Operation frequency:

433.05 - 434.79 MHz
Maximum output: -6,85 dBm

Electronic key receiver

Valeo Comfort and Driving

Assistance
76, rue Auguste Perret 94046 Créteil

- CEDEX France

Operation

frequency

Maximum

output (dBm)

2402.0 -

2480.0

5.0

Radio 125 kHz

- 7.3

Radio remote control transmitter

Huf Hülsbeck & Fürst GmbH & Co.

KG
Steeger Str. 17, 42551 Velbert,

Germany
Operation frequency:

433.05 - 434.79 MHz
Maximum output: -14 dBm

Radio remote control receiver

Aptiv Services France SAS
22 Avenue des Nations ZAC Paris

Nord II 93420 Villepinte France
Operation frequency: 125 kHz
Maximum output: 66 dBμA/m at 10m

Immobiliser

Kostal Bulgaria Automotive

Pazardzhik
ul. "Sinitevska" 4, 4400 Southern

Industrial Zone, Bulgaria
Operation frequency: 119 - 134 kHz
Maximum output: 72 dBμA/m at 10m

Radar unit

ZF TRW Autocruise SAS

Customer information

307

Secteur de la Pointe du Diable,

Avenue du technopôle, 29280

Plouzane, France
Operation frequency:

76.0 - 77.0 GHz
Maximum output: 28 dBm

BTA Module

Marelli S.p.A.
Viale A. Borletti 61/63, 20011

Corbetta, Italy

Operation

frequency

(MHz)

Maximum

output

(dBm)

GSM

900

880 -960

GSM

1800

1710 - 1880 30

UMTS

880 -960

1920 - 2170 24

ICASA type approval numbers

List of all Independent

Communications Authority of South

Africa (ICASA) type approval

numbers:

TA-2018/5025, TA-2018/5031,

TA-2017/2387, TA-2018/1848,

TA-2018/208, TA-2017/1106,

TA-2017/3180

REACH

Registration, Evaluation,

Authorisation and Restriction of

Chemicals (REACH) is a European

Union regulation adopted to improve

the protection of human health and

the environment from the risks that

can be posed by chemicals. Visit

www.opel.com for further information

and for access to the Article 33

communication.

Software update

The Infotainment system can

download and install selected

software updates over a wireless

connection.

Notice

The availability of these over-the-air

vehicle software updates varies by

vehicle and country. Find more

information on our website.

Remote device management and

remote software and firmware

updates

As an integral part of the service

related to the performance of

subscribed connected service

contracts, necessary device

management and necessary

software and firmware updates

related to the software and firmware

for the named connected service will

be performed remotely, in particular

by using over-the-air technology.
For this, a secure radio network

connection between the vehicle and

the device management server will be

established when ignition is switched

on and a mobile network is available.

Depending on the equipment of the

vehicle, connection configuration

must be set to Connected vehicle to

allow the establishment of the radio

network connection.
Irrespective of a valid connected

service subscription, remote product

security or product safety related

device management and software

and firmware updates will be

performed when the processing is

308

Customer information

necessary for the compliance with a

legal obligation to which the

manufacturer is subject (e.g.

applicable product liability law,

emergency call regulation) or when

the processing is necessary in order

to protect the vital interests of the

respective vehicle users and

passengers.
The establishment of a secure radio

network connection and the related

remote updates are not affected by

privacy settings and will be performed

in principal after an initiation by the

vehicle user following a respective

notification.
The system is able to notify receipt of

an update as soon as it is connected

to an exterior Wi-Fi network or a

mobile network. Large updates are

downloaded only via the Wi-Fi

network.
The availability of an update is

notified on the Info Display at the end

of a trip with an option of immediate

installation or postponement of

installation.

The installation time is variable and

can take several minutes with a

maximum of about 30 minutes. A

notification will give an estimate of the

duration and a description of the

update.
Updates can be checked manually

via the Info Display. Follow the on-

screen prompts in the respective

menu.
Info Display

77.

Notice

Steps for downloading and installing

updates may vary by vehicle.

For safety reasons and because it

requires sustained attention by the

driver, the installation must be carried

out with the ignition on without

starting the engine. The installation

cannot be carried out in the following

cases:

● engine running
● emergency call in progress
● insufficient vehicle battery

charge

● charging the vehicle's high

voltage battery

Notice

During the installation process, the

vehicle may not be operational.

If the update has failed, seek the

assistance of a workshop.

Registered trademarks

Apple Inc.

Apple CarPlay™ is a trademark of

Apple Inc.
App Store

and iTunes Store

are

registered trademarks of Apple Inc.
iPhone

, iPod

, iPod touch

, iPod

nano

, iPad

and Siri

are registered

trademarks of Apple Inc.

Bluetooth SIG, Inc.

Bluetooth

is a registered trademark

of Bluetooth SIG, Inc.

DivX, LLC

DivX

and DivX Certified

are

registered trademarks of DivX, LLC.

Customer information

309

Google Inc.

Android™ and Google Play™ Store

are trademarks of Google Inc.

Velcro Companies

Velcro

is a registered trademark of

Velcro Companies.

Verband der Automobilindustrie

e.V.

AdBlue

is a registered trademark of

the VDA.

Vehicle data recording

and privacy

Emergency call data

recording and privacy

Data processing

All processing of personal information

by the emergency call function

complies with the framework for

protection of personal information

established by regulation 2016/679

(GDPR) and directive 2002/58/EC of

the European Parliament and the

Council, and in particular, seeks to

protect the vital interests of the data

subject, in accordance with article

6.1, paragraph d) of regulation

2016/679.
The processing of personal

information is strictly limited to the

requirements of the emergency call

function used with the European

emergency call number.
The emergency call function is only

able to collect and process the

following data relating to the vehicle:

chassis number, type (passenger

vehicle or light commercial vehicle),

fuel type or power source, three most

recent locations and direction of

travel, number of passengers and a

timestamped log file recording

technical data related to the system's

operation.
The recipients of the processed data

are the emergency call handling

centres designated by the relevant

national authorities in the territory in

which they are located, enabling

priority routing and handling of calls to

the emergency number.

Data storage

Data contained in the system’s

memory is not accessible from

outside the system until a call is

made. The system is not traceable

and is not continuously monitored in

its normal operation mode.
The data in the system's internal

memory is automatically and

continuously erased. Only the

vehicle’s three most recent locations,

necessary for the normal functioning

of the system, are stored.

310

Customer information

When an emergency call is triggered,

the data log is stored for no more than

13 hours.

Access to data

You have the right to access the data

and, if necessary, submit a request to

rectify, erase or restrict the

processing of any personal

information not processed in

accordance with the provisions of

Regulation 2016/679 (GDPR). Third

parties to which data has been

communicated shall be notified of any

rectification, erasure or restriction

carried out in accordance with the

aforementioned directive, unless

doing so would be impossible or

require a disproportionate effort.
You also have the right to lodge a

complaint with the relevant data

protection authority.
If you want to claim your above-

mentioned rights please contact us

per email at

privacyrights@mpsa.com.

For more information regarding our

contact details please take a look at

our Privacy & Cookies Policy on our

website.

Event data recorders

Electronic control units are installed in

your vehicle. Control units process

data which is received by vehicle

sensors, for example, or which they

generate themselves or exchange

amongst themselves. Some control

units are necessary for the safe

functioning of your vehicle, others

assist you while you drive (driver

assistance systems), while others

provide comfort or infotainment

functions.
The following contains general

information about data processing in

the vehicle. You will find additional

information as to which specific data

is uploaded, stored and passed on to

third parties and for what purpose in

your vehicle under the key word Data

Protection closely linked to the

references for the affected functional

characteristics in the relevant owner's

manual or in the general terms of

sale. These are also available online.

Operating data in the vehicle

Control units process data for

operation of the vehicle.
This data includes, for example:

● vehicle status information (e.g.

speed, movement delay, lateral

acceleration, wheel rotation rate,

"seat belts fastened" display)

● ambient conditions (e.g.

temperature, rain sensor,

distance sensor)

As a rule such data is transient and is

not stored for longer than an

operational cycle, and only processed

on board the vehicle itself. Often

control units include data storage

(including the vehicle key). This is

used to allow information to be

documented temporarily or

permanently on vehicle condition,

component stress, maintenance

requirements and technical events

and errors.

Customer information

311

Depending on technical equipment

levels, the data stored is as follows:

● system component operating

states (e.g. fill level, tyre

pressure, battery status)

● faults and defects in important

system components (e.g. lights,

brakes)

● system reactions in special

driving situations (e.g. triggering

of an airbag, actuation of the

stability control systems)

● information on events damaging

the vehicle

● for electric vehicles the amount of

charge in the high-voltage

battery, estimated range

In special cases (e.g. if the vehicle

has detected a malfunction), it may be

necessary to save data that would

otherwise just be volatile.
When you use services (e.g. repairs,

maintenance), the operating data

saved can be read together with the

vehicle identification number and

used where necessary. Staff working

for the service network (e.g. garages,

manufacturers) or third parties (e.g.

breakdown services) can read the

data from the vehicle. The same

applies to warranty work and quality

assurance measures.
Data is generally read via the OBD

(On-Board Diagnostics) port

prescribed by law in the vehicle. The

operating data read documents the

technical condition of the vehicle or

individual components and assists

with fault diagnosis, compliance with

warranty obligations and quality

improvement. This data, in particular

information on component stress,

technical events, operator errors and

other faults, is transmitted to the

manufacturer where appropriate,

together with the vehicle identification

number. The manufacturer is also

subject to product liability. The

manufacturer potentially also uses

operating data from vehicles for

product recalls. This data can also be

used to check customer warranty and

guarantee claims.
Fault memories in the vehicle can be

reset by a service company when

carrying out servicing or repairs or at

your request.

Comfort and infotainment

functions

Comfort settings and custom settings

can be stored in the vehicle and

changed or reset at any time.
Depending on the equipment level in

question, these include

● seat and steering wheel position

settings

● chassis and air conditioning

settings

● custom settings such as interior

lighting

You can input your own data in the

infotainment functions for your

vehicle as part of the selected

features.
Depending on the equipment level in

question, these include

● multimedia data such as music,

videos or photos for playback in

an integrated multimedia system

● address book data for use with an

integrated hands-free system or

an integrated navigation system

312

Customer information

● input destinations
● data on the use of online services

This data for comfort and

infotainment functions can be stored

locally in the vehicle or be kept on a

device that you have connected to the

vehicle (e.g. a smartphone, USB stick

or MP3 player). Data that you have

input yourself can be deleted at any

time.
This data can only be transmitted out

of the vehicle at your request,

particularly when using online

services in accordance with the

settings selected by you.

Smartphone integration, e.g.

Android Auto or Apple CarPlay

If your vehicle is equipped

accordingly, you can connect your

smartphone or another mobile device

to the vehicle so that you can control

it via the controls integrated in the

vehicle. The smartphone image and

sound can be output via the

multimedia system in this case. At the

same time, specific information is

transmitted to your smartphone.

Depending on the type of integration,

this includes data such as position

data, day / night mode and other

general vehicle information. For more

information, please see the operating

instructions for the vehicle /

infotainment system.
Integration allows selected

smartphone apps to be used, such as

navigation or music playback. No

further integration is possible

between smartphone and vehicle, in

particular active access to vehicle

data. The nature of further data

processing is determined by the

provider of the app used. Whether

you can define settings, and if so

which ones, is dependent on the app

in question and your smartphone's

operating system.

Online services

If your vehicle has a radio network

connection, this allows data to be

exchanged between your vehicle and

other systems. The radio network

connection is made possible by

means of a transmitter device in your

vehicle or a mobile device provided

by you (e.g. a smartphone). Online

functions can be used via this radio

network connection. These include

online services and applications /

apps provided to you by the

manufacturer or other providers.

Proprietary services

In the case of the manufacturer's

online services, the relevant functions

are described by the manufacturer in

an appropriate location (e.g. Owner's

Manual, the manufacturer's website)

and the associated data protection

information is provided. Personal

data may be used to provide online

services. Data exchange for this

purpose takes place via a protected

connection, e.g. using the

manufacturer's IT systems provided

for the purpose. Collection,

Customer information

313

processing and use of personal data

for the purposes of preparation of

services take place solely on the

basis of legal permission, e.g. in the

case of a legally prescribed

emergency communication system or

a contractual agreement, or by virtue

of consent.
You can activate or deactivate the

services and functions (which are

subject to charges to some extent)

and, in some cases, the vehicle's

entire radio network connection. This

does not include statutory functions

and services such as an emergency

communication system.

Third party services

If you make use of online services

from other providers (third parties),

these services are subject to the

liability and data protection and usage

conditions of the provider in question.

The manufacturer frequently has no

influence over the content exchanged

in this regard.

Therefore, please note the nature,

scope and purpose of the collection

and use of personal data within the

scope of third party services provided

by the service provider in question.

Radio Frequency

Identification (RFID)

RFID technology is used in some

vehicles for functions such as tyre

pressure monitoring and immobiliser.

It is also used in connection with

conveniences such as radio remote

controls for door locking / unlocking

and starting. RFID technology in

Vauxhall vehicles does not use or

record personal information or link

with any other Vauxhall system

containing personal information.

314

Index

Accessories and vehicle

modifications .......................... 255

Active emergency braking.... 73, 212

Adaptive cruise control .............. 203

AdBlue.................................. 71, 178

Adjustable air vents ................... 166

Advanced parking assist............ 222

Airbag and belt tensioners ........... 68

Airbag deactivation ................ 38, 68

Airbag label................................... 33

Airbag system .............................. 33

Air conditioning regular

operation ................................ 168

Air conditioning system .............. 159

Air intake .................................... 167

Air vents...................................... 166

Antilock brake system ................ 193

Antilock brake system (ABS) ....... 70

Anti-theft alarm system ................ 18

Anti-theft locking system .............. 17

Appearance care........................ 289

Armrest......................................... 30

Audio.......................... 107, 140, 153

Automatic anti-dazzle .................. 22

Automatic crash notification.......... 81

Automatic light control ................. 84

Automatic locking ........................ 15

Automatic operation of electric

parking brake off....................... 70

Automatic transmission ............. 185

Autostop............................... 73, 174

Auxiliary heater........................... 165

Battery discharge protection ........ 91

BlueInjection............................... 178

Bluetooth audio streaming. 110,

142, 153

Bluetooth connection.. 126, 147, 155

Bonnet ....................................... 260

Brake and clutch fluid................. 296

Brake and clutch system ............. 69

Brake assist ............................... 196

Brake fluid .................................. 263

Brakes........................................ 263

Breakdown.................................. 287

Bulb replacement ....................... 267

Capacities .................................. 303

Car wash mode.......... 181, 185, 193

Catalytic converter ..................... 178

Central locking system ................ 10

Centre console storage ............... 46

Changing tyre and wheel size ... 276

Charging..................................... 245

Charging cable........................... 242

Charging cable connected............ 72

Charging status.......................... 249

Charging system .......................... 68

315

Charging types........................... 241

Child locks ................................... 15

Child restraint installation

locations ................................... 43

Child restraints.............................. 39

Child restraint systems ................ 39

Climate control systems............. 158

Clock............................................. 58

Control indicators.......................... 65

Control of the vehicle ................. 170

Controls........................................ 54

Convex shape .............................. 20

Coolant and antifreeze............... 296

Cruise control ............................ 198

Cupholders .................................. 45

Curtain airbag system .................. 38

Curve lighting................................ 86

DAB.................................... 107, 140

Danger, Warnings and Cautions ... 4

Daytime running lights ................. 86

Declaration of conformity............ 305

DEF............................................ 178

Deflation detection system........... 72

Diesel exhaust fluid.................... 178

Diesel fuel system bleeding ....... 266

Door open .................................... 74

Door panel storage....................... 46

Doors............................................ 16

Drive modes............................... 192

Driver alert.................................. 239

Driver assistance systems.......... 198

Driver Information Centre............. 74

Driving characteristics and

towing tips .............................. 253

Driving hints................................ 170

Electric adjustment ...................... 20

Electrical system......................... 272

Electric drive unit........................ 181

Electric parking brake................. 193

Electric parking brake fault........... 70

Electric power consumption........ 241

Electric range.............................. 241

Electronic climate control system 161

Electronic key system..................... 8

Electronic Stability Control and

Traction Control system.... 71, 197

Emergencies............................... 170

Emergency call............................. 81

Emergency call data recording

and privacy.............................. 309

End-of-life vehicle recovery ....... 258

Engine coolant ........................... 262

Engine coolant temperature ........ 71

Engine coolant temperature

gauge ....................................... 64

Engine data ............................... 301

Engine exhaust .......................... 177

Engine identification................... 299

Engine oil ................... 260, 296, 300

Engine oil level monitor................ 64

Engine oil pressure ...................... 72

Entry lighting ................................ 91

Event data recorders.................. 310

Exhaust filter......................... 71, 177

Exit lighting .................................. 91

Exterior care .............................. 289

Exterior light ................................. 73

Exterior lighting............................. 83

Exterior mirrors............................. 20

External devices................. 110, 142

Fixed air vents ........................... 167

Floor mats................................... 291

Folding mirrors ............................. 20

Forward collision alert................. 210

Front airbag system ..................... 37

Front fog lights ............... 73, 88, 269

Front pedestrian protection........ 215

Front seats.................................... 27

Front turn lights .......................... 269

Fuel............................................. 249

Fuel consumption - CO

Emissions ............................... 252

Fuel for diesel engines .............. 250

Fuel for petrol engines ............... 249

316

Fuel gauge ................................... 63

Fuses ......................................... 272

Gauges......................................... 60

Gear shifting................................. 70

General information............ 241, 253

Glass panel .................................. 25

Glovebox ..................................... 45

Halogen headlights .................... 267

Hand brake................................. 193

Hazard warning flashers .............. 88

Headlight flash ............................. 85

Headlight range adjustment ........ 85

Headlights..................................... 83

Headlights when driving abroad . . 86

Head restraints ............................ 26

Heated mirrors ............................. 21

Heated rear window ..................... 24

Heated steering wheel ................. 54

Heating ........................................ 30

Heating and ventilation system . 158

High beam ............................. 73, 84

High beam assist.................... 73, 84

High voltage battery........... 258, 266

High voltage battery gauge.......... 63

Hill start assist ........................... 196

Horn ............................................. 55

Identification plate ..................... 298

Ignition switch positions ............. 171

Immobiliser .................................. 19

Indicators...................................... 65

Inductive charging........................ 59

Info Display................................... 77

Instrument panel illumination

control ...................................... 90

Instrument panel overview ........... 52

Interior care ............................... 291

Interior lighting.............................. 90

Interior lights ........................ 90, 272

Interior mirrors.............................. 22

Introduction .................................... 3

Jump starting ............................. 285

Keys ............................................... 6

Keys, locks..................................... 6

Lane departure warning............. 236

Lane keep assist.................. 70, 237

Lashing eyes ............................... 49

LED headlights........................... 269

Light switch .................................. 83

Load compartment ................ 16, 47

Load compartment cover ............. 48

Loading information ..................... 50

Low beam..................................... 73

Low fuel ....................................... 72

Malfunction indicator light ............ 68

Manual anti-dazzle ...................... 22

Manual seat adjustment............... 28

Manual transmission .................. 191

Massage....................................... 31

Matrix-LED headlights.................. 86

Misted light covers ....................... 89

Multimedia.................................. 131

Multimedia Navi Pro..................... 92

Navigation................................... 113

New vehicle running-in .............. 171

Number plate light ..................... 271

Object detection systems........... 217

Odometer ..................................... 61

Oil, engine.......................... 296, 300

Outside temperature .................... 57

Overrun cut-off ........................... 174

Panoramic roof............................. 25

Panoramic view system.............. 229

Parking ...................................... 176

317

Parking assist ...................... 71, 217

Parking brake....................... 69, 193

Parking lights ............................... 89

Particulate filter........................... 177

Pedestrian safety alert.................. 55

Pedestrian safety alert fault.......... 73

Performing work ........................ 259

Phone......................... 126, 147, 155

Phone projection................ 110, 142

Power button.............................. 171

Power indicator gauge.................. 63

Power outlets ............................... 58

Power seat adjustment ................ 29

Power windows ............................ 23

Preheating ................................... 71

Programmable charging............. 248

Propulsion types............................. 4

Puncture..................................... 282

Quickheat................................... 165

Radio.......................................... 149

Radio Frequency Identification

(RFID)..................................... 313

Radio remote control ..................... 7

Rain sensor.................................. 73

RDS............................ 107, 140, 153

REACH....................................... 307

Reading lights .............................. 90

Rear floor storage cover .............. 48

Rear fog light ................. 73, 89, 270

Rear view camera ...................... 232

Rear window wiper and washer . . 57

Recommended fluids and

lubricants ........................ 296, 300

Reduced engine power................ 73

Refuelling ................................... 251

Regenerative braking................. 196

Registered trademarks............... 308

Reversing lights ........................... 89

Ride control systems.................. 197

Roadside assistance.................... 81

Roof.............................................. 25

Roof load...................................... 50

Roof rack ..................................... 49

Seat belt reminder ....................... 67

Seat belts ..................................... 31

Seat heating................................. 30

Seat position ................................ 27

Selective catalytic reduction....... 178

Selector...................................... 185

Service ............................... 168, 293

Service display ............................ 64

Service information .................... 293

Service vehicle soon .................... 69

Side airbag system ...................... 37

Side blind spot alert.................... 227

Sidelights...................................... 83

Software update......................... 307

SOS.............................................. 81

Spare wheel ............................... 282

Speech recognition..... 124, 145, 155

Speed limiter............................... 201

Speed limit recognition 198, 201, 203

Speedometer ............................... 60

Sport mode ................................ 198

Starting and operating................ 171

Starting the engine .................... 173

Steering...................................... 170

Steering wheel adjustment .......... 54

Steering wheel controls ............... 54

Stop engine.................................. 69

Stop-start system........................ 174

Storage......................................... 45

Storage compartments................. 45

Sun visors .................................... 25

Symbols ......................................... 4

System check............................... 69

Tachometer ................................. 62

Tailgate......................................... 16

Tail lights ................................... 270

Temperature preconditioning..... 165

Three-point seat belt .................... 32

Tools .......................................... 272

Tow bar....................................... 253

318

Towing................................ 253, 287

Towing another vehicle ............. 288

Towing the vehicle ..................... 287

Traffic Announcements 107, 140, 153

Traffic sign assistant............. 74, 233

Trailer coupling........................... 253

Trailer towing ............................. 254

Tread depth ............................... 275

Trip odometer .............................. 61

Turn lights .............................. 67, 88

Tyre chains ................................ 277

Tyre deflation detection system . 275

Tyre designations ...................... 273

Tyre pressure ............................ 274

Tyre pressures ........................... 304

Tyre repair kit ............................. 277

Ultrasonic parking assist............. 217

Upholstery.................................. 291

USB devices............... 110, 142, 153

USB port....................................... 58

Using this manual .......................... 3

Vauxhall Connect......................... 81

Vehicle battery ........................... 263

Vehicle checks............................ 259

Vehicle data................................ 300

Vehicle data recording and

privacy..................................... 310

Vehicle dimensions .................... 302

Vehicle identification number .... 298

Vehicle jack................................ 272

Vehicle locator lighting................. 91

Vehicle messages ....................... 79

Vehicle personalisation ............... 80

Vehicle ready................................ 73

Vehicle security............................ 17

Vehicle specific data ...................... 3

Vehicle storage........................... 257

Vehicle tools............................... 272

Ventilation................................... 158

Warning chimes ........................... 79

Warning lights............................... 65

Washer fluid ............................... 263

Wheel changing ......................... 280

Wheel covers ............................. 276

Wheels and tyres ....................... 273

Windows....................................... 23

Windscreen................................... 23

Windscreen wiper and washer .... 55

Winter tyres ............................... 273

Wiper blade replacement .......... 267

Vauxhall Corsa F (2023 year). Manual in english - page 10
