Vauxhall Combo E (2023 year). Manual in english

326

Vehicle care

Temporary spare wheel

The use of tyre chains is not permitted

on the temporary spare wheel.

Tyre repair kit

Minor damage to the tyre tread can be

repaired with the tyre repair kit.
Do not remove foreign bodies from

the tyres.
Tyre damage exceeding 4 mm or that

is at tyre's sidewall cannot be repaired

with the tyre repair kit.
Depending on version, there are two

different tyre repair kits (Type A and

Type B).

Warning

Do not drive faster than 50 mph.
Do not use for a lengthy period.
Steering and handling may be

affected.

In the case of a flat tyre:
Apply the parking brake and engage

first gear, reverse gear or P.

Type A

Type B

The tyre repair kit is loacted in the

storage compartment underneath the

passenger front seat.

1. Remove the sealant bottle and the

compressor.

2. Pull speed limit label from sealant

bottle and place it in driver's

visible area.

3. Remove the electrical connection

cable (1) and air hose (2) from the

stowage compartments on the

underside of the compressor.

Vehicle care

327

4. Type A: Open sealant bottle and

lift the lid.

5. Type A: First, insert sealant bottle

into the compresor and align the

triangle symbols. Then, push

down sealant bottle and turn it to

the lock position.

Type B: Screw the compressor air

hose to the connection on the

sealant bottle.

6. Type B: Fit the sealant bottle into

the bracket on the compressor.

7. Set the compressor near the tyre

in such a way that the sealant

bottle is upright.

8. Unscrew valve cap from defective

tyre.

9. Screw the filler hose to the tyre

valve.

10. The switch on the compressor

must be set to

11. Connect the compressor plug to

the 12 V power outlet or cigarette

lighter socket

83.

To avoid discharging the vehicle

battery, we recommend to use the

tyre repair kit only when the

combustion engine is running or

when the electric engine is ready.

328

Vehicle care

12. Set the rocker switch on the

compressor to I. The tyre is filled

with sealant.

13. The compressor pressure gauge

briefly indicates up to

600 kPa (6 bar) whilst the sealant

bottle is emptying (approx.

30 seconds). Then the pressure

starts to drop.

14. All of the sealant is pumped into

the tyre. Then the tyre is being

inflated.

15. The prescribed tyre pressure

should be obtained within ten

minutes.
Tyre pressure

354.

When the correct pressure is

obtained, switch off the

compressor.
If the prescribed tyre pressure is

not obtained within ten minutes,

remove the tyre repair kit. Move

the vehicle one tyre rotation.

Reattach the tyre repair kit and

continue the filling procedure for

ten minutes. If the prescribed tyre

pressure is still not obtained, the

tyre is too badly damaged. Seek

the assistance of a workshop.

Drain excess tyre pressure with

the button on the air hose.
Do not run the compressor longer

than ten minutes.

16. Detach the tyre repair kit. Remove

sealant bottle from compressor.

Screw the filler hose to the free

connection of the sealant bottle.

This prevents sealant from

escaping. Stow tyre repair kit in

load compartment.

17. Remove any excess sealant

using a cloth.

18. Continue driving immediately so

that sealant is evenly distributed

in the tyre. Drive between

13 mph and 37 mph. After driving

approx. 3 miles but no more than

ten minutes, stop and check tyre

pressure. Screw compressor air

hose directly onto tyre valve when

doing this. Fill tyre as described

before. Drain excess tyre

pressure with the button on the air

hose.
If tyre pressure hasn't decreased

under 200 kPa (2 bar), set it to the

correct value. Otherwise the

vehicle must not be used. Seek

assistance of a workshop.
Repeat the checking procedure

once more after driving further

6 miles but no more than ten

Vehicle care

329

minutes to check that there is no

more loss of pressure.
If the tyre pressure has fallen

below 200 kPa (2 bar), the vehicle

must not be used. Seek the

assistance of a workshop.

19. Stow away tyre repair kit in load

compartment.

Notice

The driving characteristics of the

repaired tyre are severely affected,

therefore have this tyre replaced.
If unusual noise is heard or the

compressor becomes hot, turn

compressor off for at least 30 min.
The built-in safety valve opens at a

pressure of seven bar (102 psi).
Note the expiry date of the kit. After

this date its sealing capability is no

longer guaranteed. Pay attention to

storage information on sealant

bottle.
Replace the used sealant bottle.

Dispose of the bottle as prescribed

by applicable laws.
The compressor and sealant can be

used from approx. -30 °C.

Wheel changing

Make the following preparations and

observe the following information:

● Park the vehicle on a level, firm

and non-skid surface. The front

wheels must be in the straight-

ahead position.

● Apply the parking brake and

engage first gear, reverse gear or

● Place a chock under the wheel

diagonally opposite the wheel to

be changed.

● If the ground on which the vehicle

is standing is soft, a solid board

(approx. 1 cm thick) should be

placed under the jack.

● Take heavy objects out of the

vehicle before jacking up.

● No people or animals may be in

the vehicle when it is jacked-up.

● Never crawl under a jacked-up

vehicle.

● Do not start the vehicle when it is

raised on the jack.

● Before screwing in the wheel

bolts, clean them.

Warning

Do not grease wheel bolts.

Tightening torques

Warning

Ensure to use always the correct

wheel bolts if changing the

wheels. When installing the spare

wheel for temporary usage, the

bolts for alloy wheel rims can also

be used.

Caution

If the vehicle is equipped with alloy

wheel rims, tighten the wheel bolts

manually at least for the first five

turns.

Depending on the wheel rim material,

two different bolts are available.

330

Vehicle care

Tightening torque for alloy wheel rims

is 115 Nm.

Tightening torque for steel wheel rims

is 115 Nm.
Use the correct wheel bolts for the

respective wheel rims.

Jacking positions

The jacking positions shown refer to

the use of lifting arms and accessory

jacks used for changing winter /

summer tyres.

The rear arm position of the lifting

platform is centrically under the

relevant vehicle jacking point.

The front arm position of the lifting

platform is centrically under the

relevant vehicle jacking point.

Spare wheel

The spare wheel can be classified as

a temporary spare wheel depending

on the size compared to the other

mounted wheels and country

regulations. In this case a permissible

maximum speed applies, even

though no label at the spare wheel

indicates this.
If there is a label on the spare wheel,

the permissible speed still depends

on the country regulations.
Only mount one temporary spare

wheel. Take curves slowly. Do not

use for a long period of time.

Caution

The use of a spare wheel that is

smaller than the other wheels or in

combination with winter tyres

could affect driveability. Have the

defective tyre replaced as soon as

possible.

Vehicle care

331

The spare wheel is located in a holder

beneath the vehicle floor.
Vehicle tools

321.

1. Depending on the version, open

the tailgate or the rear doors

16,

18.

2. Fit the wheel wrench on one

hexagon bolt. Turn it

anticlockwise until the spare

wheel holder is low enough allow

the catch to be unhooked.

3. Lift the spare wheel holder and

unhook the catch.
Lower the spare wheel holder.

4. Remove the spare wheel.

5. Change the wheel.
6. Position the damaged wheel with

the outside down in the spare

wheel holder.

7. Lift the spare wheel holder and

engage in the catch. The open

side of the catch must point in the

direction of travel.

8. Close the spare wheel holder by

turning the hexagon bolt

clockwise using the wheel

wrench.

9. Stow wheel wrench in the storage.

10. Close the tailgate or the rear

doors.

Only mount one temporary spare

wheel. The permissible maximum

speed on the label on the temporary

spare wheel is only valid for the

factory-fitted tyre size.

Fitting the spare wheel

Make the following preparations and

observe the following information:

● Park the vehicle on a level, firm

and non-skid surface. The front

wheels must be in the straight-

ahead position.

332

Vehicle care

● Apply the parking brake and

engage first gear, reverse gear or

● Place a chock under the wheel

diagonally opposite the wheel to

be changed.

● Remove the spare wheel.
● Never change more than one

wheel at once.

● Use the jack only to change

wheels in case of puncture, not

for seasonal winter or summer

tyre change.

● The jack is maintenance-free.
● If the ground on which the vehicle

is standing is soft, a solid board

(approx. 1 cm thick) should be

placed under the jack.

● Take heavy objects out of the

vehicle before jacking up.

● No people or animals may be in

the vehicle when it is jacked-up.

● Never crawl under a jacked-up

vehicle.

● Do not start the vehicle when it is

raised on the jack.

● Before screwing in the wheel

bolts, clean them.

Warning

Do not grease wheel bolts.

Warning

Ensure to use always the correct

wheel bolts if changing the

wheels. When installing the spare

wheel for temporary usage, the

bolts for alloy wheel rims can also

be used.

● Note that the spare wheel is

secured by the conical contact of

each bolt if the wheel bolts for the

alloy wheel rims are used. In this

case, the washers do not come

into contact with the spare wheel.

1. Disengage wheel bolt caps with

the wheel bolt cover remover.
Steel wheel rims with cover: Pull

off the wheel cover.

2. Attach the wheel wrench and

loosen each wheel bolt by half a

turn.
The wheels might be protected by

locking wheel nuts. To loosen

these specific nuts first attach the

Vehicle care

333

adapter onto the head of the nut

before installing the wheel

wrench. The adapter is located in

the tool box.

3. Ensure the jack is correctly

positioned under the relevant

vehicle jacking point.

4. Set the jack to the necessary

height. Position it directly below

the jacking point in a manner that

prevents it from slipping.

Ensure that the edge of the body

fits into the notch of the jack.

With the jack correctly aligned

jack up until wheel is clear of the

ground.

5. Unscrew the wheel nuts.
6. Change the wheel.
7. Screw on the wheel nuts.
8. Lower the vehicle and remove

jack.

9. Install the wheel wrench ensuring

that it is located securely and

tighten each bolt in a crosswise

sequence. Tightening torque is

115 Nm.

334

Vehicle care

10. Align the valve hole in the wheel

cover with the tyre valve before

installing.
Install wheel nut caps.

11. Stow the replaced wheel, the

vehicle tools and the adapter for

the locking wheel nuts.

12. Check the tyre pressure of the

installed tyre and the wheel nut

torque as soon as possible.

Jump starting

Do not start with quick charger.
A vehicle with a discharged vehicle

battery can be started using jump

leads and the vehicle battery of

another vehicle.

Caution

Never jump start another vehicle

with an electric vehicle.

Warning

Be extremely careful when starting

with jump leads. Any deviation

from the following instructions can

lead to injuries or damage caused

by battery explosion or damage to

the electrical systems of both

vehicles.

Warning

Avoid contact of the battery with

eyes, skin, fabrics and painted

surfaces. The fluid contains

sulphuric acid which can cause

injuries and damage in the event

of direct contact.

● Never expose the vehicle battery

to naked flames or sparks.

● A discharged vehicle battery can

already freeze at a temperature

of 0 °C. Defrost the frozen battery

before connecting jump leads.

● Wear eye protection and

protective clothing when

handling a battery.

● Use a booster battery with the

same voltage (12 V). Its capacity

(Ah) must not be much less than

that of the discharged vehicle

battery.

● Use jump leads with insulated

terminals and a cross section of

at least 16 mm

(25 mm

for

diesel engines).

Vehicle care

335

● Do not disconnect the discharged

vehicle battery from the vehicle.

● Switch off all unnecessary

electrical consumers.

● Do not lean over the vehicle

battery during jump starting.

● Do not allow the terminals of one

lead to touch those of the other

lead.

● The vehicles must not come into

contact with each other during

the jump starting process.

● Apply the parking brake,

transmission in neutral,

automatic transmission in P.

Open the positive terminal protection

caps of both vehicle batteries.

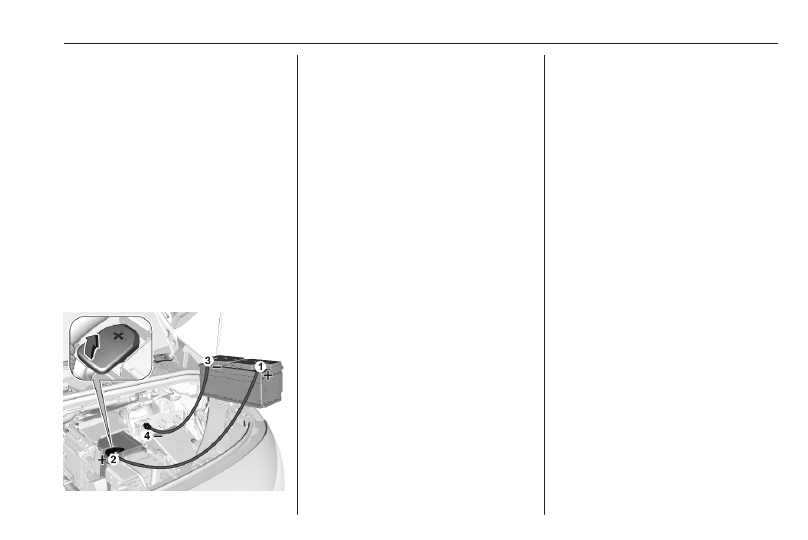

Lead connection order:

1. Connect the red lead to the

positive terminal of the booster

battery.

2. Connect the other end of the red

lead to the positive terminal of the

discharged battery.

3. Connect the black lead to the

negative terminal of the booster

battery.

4. Connect the other end of the black

lead to a vehicle grounding point

of your vehicle in the engine

compartment.

Route the leads so that they cannot

catch on rotating parts in the engine

compartment.
To start the engine:

1. Start the engine of the vehicle

providing the jump.

2. After five minutes, start the other

engine. Start attempts should be

made for no longer than 15 s at an

interval of 1 min.

3. Allow both engines to idle for

approx. three minutes with the

leads connected.

4. Switch on electrical consumers

e.g. headlights, heated rear

window of the vehicle receiving

the jump start.

5. Reverse above sequence exactly

when removing leads.

336

Vehicle care

Towing

Towing the vehicle

Wrap a cloth around the tip of a flat

screwdriver to prevent paint damage.

Insert the screwdriver in the slot at the

lower part of the cap. Release the cap

carefully.
The towing eye is stowed with the

vehicle tools

321.

Screw in the towing eye as far as it will

go until it stops in a horizontal

position.
Attach a tow rope – or better still a tow

rod – to the towing eye.
The towing eye must only be used for

towing and not for recovering the

vehicle.
Switch on ignition to release steering

wheel lock and to permit operation of

brake lights, horn and windscreen

wiper.

Caution

Deactivate the driver assistance

systems like active emergency

braking

258, otherwise the

vehicle may automatically brake

during towing.

Switch the selector lever to neutral.
Release the parking brake.

Caution

Never tow a vehicle equipped with

All Wheel Drive (AWD) with the

front or rear tyres on the road. If

you tow a vehicle equipped with

AWD while the front or rear tyres

are rolling on the road, the drive

system in the vehicle could be

severely damaged. When towing

vehicles equipped with AWD, all

four tyres must not be in contact

with the road.

Vehicle care

337

Caution

Drive slowly. Do not drive jerkily.

Excessive tractive force can

damage the vehicle.

When the engine is not running,

considerably more force is needed to

brake and steer.
To prevent the entry of exhaust gases

from the towing vehicle, switch on the

air recirculation and close the

windows.

When towing an electric vehicle or a

vehicle equipped with an automatic

transmission, transport the vehicle on

a platform or tow it with the front

wheels lifted.
Seek the assistance of a workshop.
After towing, unscrew the towing eye.
Insert cap with the flange into the

recess and fix cap by pushing.

Towing another vehicle

Wrap a cloth around the tip of a flat

screwdriver to prevent paint damage.

Insert the screwdriver in the slot at the

lower part of the cap. Release the cap

carefully.
The towing eye is stowed with the

vehicle tools

321.

Screw in the towing eye as far as it will

go until it stops in a horizontal

position.
The lashing eye at the rear

underneath the vehicle must never be

used as a towing eye.
Attach a tow rope – or better still a tow

rod – to the towing eye.

338

Vehicle care

The towing eye must only be used for

towing and not for recovering a

vehicle.

Caution

Drive slowly. Do not drive jerkily.

Excessive tractive force can

damage the vehicle.

After towing, unscrew the towing eye.
Insert cap with the upper flange into

the recess and fix cap by pushing.

Appearance care

Exterior care

Locks

The locks are lubricated at the factory

using a high quality lock cylinder

grease. Use a de-icing agent only

when absolutely necessary, as this

has a degreasing effect and impairs

lock function. After using a de-icing

agent, have the locks regreased by a

workshop.

Washing

The paintwork of your vehicle is

exposed to environmental influences.
Bird droppings, dead insects, resin,

pollen and the like should be cleaned

off immediately, as they contain

aggressive constituents which can

cause paint damage.
If using a vehicle wash, comply with

the vehicle wash manufacturer's

instructions. The windscreen wiper

and rear window wiper must be

switched off. Remove antenna and

external accessories such as roof

racks etc.
If you wash your vehicle by hand,

make sure that the insides of the

wheel housings are also thoroughly

rinsed out.
Wax painted parts of the vehicle

regularly.
Clean edges and folds on opened

doors and the bonnet as well as the

areas they cover.
Clean bright metal mouldings with a

cleaning solution approved for

aluminium to avoid damages.

Caution

Always use a cleaning agent with

a pH value of 4 to 9.
Do not use cleaning agents on hot

surfaces.

Do not clean the engine compartment

with a steam-jet or high-pressure jet

cleaner.

Vehicle care

339

Thoroughly rinse and leather-off the

vehicle. Rinse leather frequently. Use

separate leathers for painted and

glass surfaces: remnants of wax on

the windows will impair vision.
Have the door hinges of all doors

greased by a workshop.

Exterior lights

Headlight and other light covers are

made of plastic. Do not use any

abrasive or caustic agents, do not use

an ice scraper, and do not clean them

dry.

Polishing and waxing

Polishing is necessary only if the paint

has become dull or if solid deposits

have become attached to it.
Plastic body parts must not be treated

with wax or polishing agents.

Windows and wiper blades

Switch off wipers before handling in

their areas.
Use a soft lint-free cloth or chamois

leather together with window cleaner

and insect remover.

When cleaning the rear window from

inside, always wipe in parallel to the

heating element to prevent damage.
For mechanical removal of ice, use a

sharp-edged ice scraper. Press the

scraper firmly against the glass so

that no dirt can get under it and

scratch the glass.
Clean smearing wiper blades with a

soft cloth and window cleaner. Also

make sure to remove any residues

such as wax, insect residues and

similar from the window.
Ice residues, pollution and continuous

wiping on dry windows will damage or

even destroy the wiper blades.

Glass panel

Use a soft lint-free cloth or chamois

leather together with window cleaner

to clean the glass panel.

Wheels and tyres

Do not use high-pressure jet

cleaners.
Clean rims with a pH-neutral wheel

cleaner.

Rims are painted and can be treated

with the same agents as the body.

Paintwork damage

Rectify minor paintwork damage with

a touch-up pen before rust forms.

Have more extensive damage or rust

areas repaired by a workshop.

Underbody

Some areas of the vehicle underbody

have a PVC undercoating while other

critical areas have a durable

protective wax coating.
After the underbody is washed, check

the underbody and have it waxed if

necessary.
Bitumen / rubber materials could

damage the PVC coating. Have

underbody work carried out by a

workshop.
Before and after winter, wash the

underbody and have the protective

wax coating checked.

340

Vehicle care

Liquid gas system

Danger

Liquid gas is heavier than air and

can collect in sink points.
Take care when performing work

at the underbody in a pit.

For painting work and when using a

drying booth at a temperature above

60 °C, the liquid gas tank must be

removed.
Do not make any modifications to the

liquid gas system.

Towing equipment

Do not clean the coupling ball bar with

a steam-jet or high-pressure jet

cleaner.

Interior care

Interior and upholstery

Only clean the vehicle interior,

including the instrument panel fascia

and panelling, with a dry cloth or

interior cleaner.

Clean the leather upholstery with

clear water and a soft cloth. In case of

heavy soiling, use leather care.
The instrument cluster and the

displays should only be cleaned using

a soft damp cloth. If necessary use a

weak soap solution.
Clean fabric upholstery with a

vacuum cleaner and brush. Remove

stains with an upholstery cleaner.
Clothing fabrics may not be

colourfast. This could cause visible

discolourations, especially on light-

coloured upholstery. Removable

stains and discolourations should be

cleaned as soon as possible.
Clean seat belts with lukewarm water

or interior cleaner.

Caution

Close Velcro fasteners as open

Velcro fasteners on clothing could

damage seat upholstery.
The same applies to clothing with

sharp-edged objects, like zips or

belts or studded jeans.

Plastic and rubber parts

Plastic and rubber parts can be

cleaned with the same cleaner as

used to clean the body. Use interior

cleaner if necessary. Do not use any

other agent. Avoid solvents and petrol

in particular. Do not use high-

pressure jet cleaners.

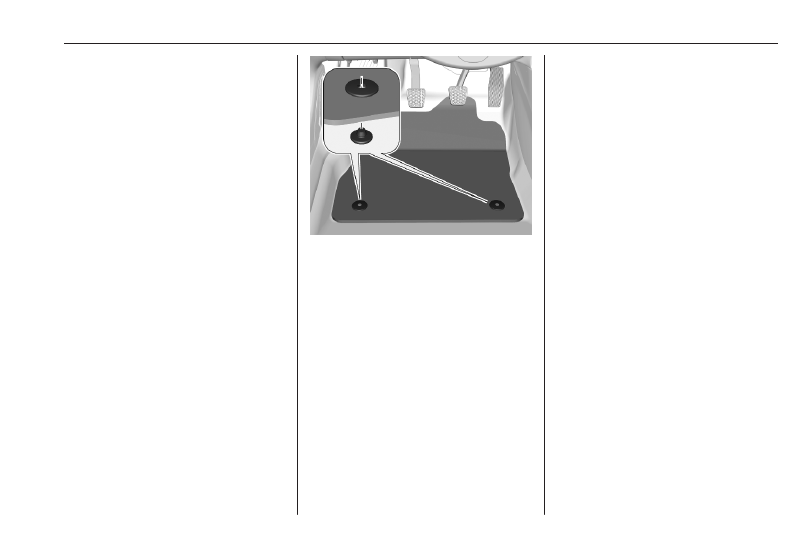

Floor mats

Warning

If a floor mat has the wrong size or

is not properly installed, it can

interfere with pedals, what can

cause unintended acceleration or

increased stopping distance which

can cause a crash and injury.

Use the following guidelines for

proper floor mat usage.

● The original equipment floor mats

were designed for this vehicle. If

the floor mats need to be

replaced, it is recommended to

buy certified floor mats which fit

properly and are fixed by the

Vehicle care

341

retainers on the driver side.

Always check that the floor mats

do not interfere with the pedals.

● Use the floor mat with the correct

side up. Do not turn it over.

● Do not place anything on top of

the driver side floor mat.

● Use only a single floor mat on the

driver side.

Inserting and removing the floor

mats

The driver side floor mat is held in

place by two retainers.
To install the floor mat:

1. Move the seat backwards as far

as possible.

2. Align slots in the mat with the

retainers, as shown.

3. Push the mat to the floor.

Removing

1. Move the seat backwards as far

as possible.

2. Remove the mat.

342

Service and maintenance

Service and

maintenance

General information ................... 342

Service information .................. 342

Recommended fluids, lubricants

and parts .................................... 345

Recommended fluids and

lubricants ................................ 345

General information

Service information

In order to ensure economical and

safe vehicle operation and to

maintain the value of your vehicle, it

is of vital importance that all

maintenance work is carried out at the

proper intervals as specified.
The detailed, up-to-date service

schedule for your vehicle is available

at the workshop.
Severe operating conditions exist if

one or more of the following

circumstances occur frequently: Cold

starting, stop and go operation, e.g.

for taxis and police vehicles, trailer

operation, mountain driving, driving

on poor and sandy road surfaces,

increased air pollution, presence of

airborne sand and high dust content,

driving at high altitude and large

variations of temperature.
Under these severe operating

conditions, certain service work may

be required more frequently than the

regular service interval indicated in

the service display. Contact a

workshop for customised service

schedules.
Service display

89.

Service and maintenance

343

Service intervals – Combo Life

Engine code

EB2ADT

DV5RC
DV5RCf
DV5RD
DV5RE

DV6D Electric vehicle

Country group 1

12,000 miles / 1 year

19,000 miles / 1 year

25000 miles / 2 years

Unless otherwise indicated in the service display.

Initial service interval is 12,500 miles / 1year

Service intervals – Combo Cargo

Engine code

EB2ADT
EB2ADTS

DV5RC
DV5RD
DV5RE

DV6FE
DV6FD

DV6D Electric vehicle

Country group 1 12,000 miles / 1 year 25,000 miles / 2 years 16,000 miles / 1 year

25,000 miles / 2 years

Initial service interval is 12,500 miles / 1year

Country Group 1:

Andorra, Austria, Belgium, Cyprus, Denmark, Finland, France, Germany, Greece, Iceland, Italy, Liechtenstein,

Luxembourg, Malta, Monaco, Netherlands, Norway, Portugal, Republic of Ireland, San Marino, Spain, Sweden,

Switzerland, United Kingdom.
Country Group 2:

Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Hungary, Latvia, Lithuania, North Macedonia, Poland,

Romania, Slovakia, Slovenia.

344

Service and maintenance

Country Group 3:

Albania, Kosovo, Montenegro, New Zealand, Serbia.
Country Group 4:

Israel, Lesotho, South Africa, Swaziland, Turkey.
Country Group 5:

Russia.
Country Group 6:

All other countries which are not listed in the previous country groups.
Confirmations

Confirmation of service is recorded in the Service and warranty booklet. The date and mileage is completed with the stamp

and signature of the servicing workshop.
Make sure that the Service and warranty booklet is completed correctly as continuous proof of service is essential if any

warranty or goodwill claims are to be met, and is also a benefit when selling the vehicle.

Service and maintenance

345

Recommended fluids,

lubricants and parts

Recommended fluids and

lubricants

Only use products that meet the

recommended specifications.

Warning

Operating materials are

hazardous and could be

poisonous. Handle with care. Pay

attention to information given on

the containers.

Engine oil

Engine oil is identified by its quality

and its viscosity. Quality is more

important than viscosity when

selecting which engine oil to use. The

engine oil quality ensures e.g. engine

cleanliness, wear protection and

engine oil aging control, whereas

viscosity grade gives information on

the engine oil's thickness over a

temperature range.

Select the appropriate engine oil

based on its quality and on the

minimum ambient temperature

349.

Topping up engine oil

Caution

In case of any spilled engine oil,

wipe it up and dispose of it

properly.

Engine oils of different manufacturers

and brands can be mixed as long as

they comply with the required engine

oil quality and viscosity.
Select the appropriate engine oil

based on its quality and on the

minimum ambient temperature

349.

Additional engine oil additives

The use of additional engine oil

additives could cause damage and

invalidate the warranty.

Engine oil viscosity grades

The SAE viscosity grade gives

information of the thickness of the

engine oil.
Multigrade engine oil is indicated by

two figures, e.g. SAE 5W-30. The first

figure, followed by a W, indicates the

low temperature viscosity and the

second figure the high temperature

viscosity.
Select the appropriate viscosity grade

depending on the minimum ambient

temperature

349.

All of the recommended viscosity

grades are suitable for high ambient

temperatures.

Coolant and antifreeze

Use only antifreeze approved for the

vehicle. Consult a workshop.
The system is factory filled with

coolant designed for excellent

corrosion protection and frost

protection down to approx. -37 °C.

This concentration should be

maintained all year round. The use of

additional coolant additives that

346

Service and maintenance

intend to give additional corrosion

protection or seal against minor leaks

can cause function problems. Liability

for consequences resulting from the

use of additional coolant additives will

be rejected.

Washer fluid

Use only washer fluid approved for

the vehicle to prevent damage of

wiper blades, paintwork, plastic and

rubber parts. Consult a workshop.

Brake fluid

Over time, brake fluid absorbs

moisture which will reduce braking

effectiveness. The brake fluid should

therefore be replaced at the specified

interval.

AdBlue

Only use AdBlue to reduce the

nitrogen oxides in the exhaust

emission

227.

Technical data

347

Technical data

Vehicle identification .................. 347

Vehicle identification number . . 347

Identification plate ................... 347

Engine identification ................ 348

Vehicle data ............................... 349

Recommended fluids and

lubricants ................................ 349

Engine data ............................. 350

Vehicle dimensions ................. 352

Capacities ................................ 353

Tyre pressures ........................ 354

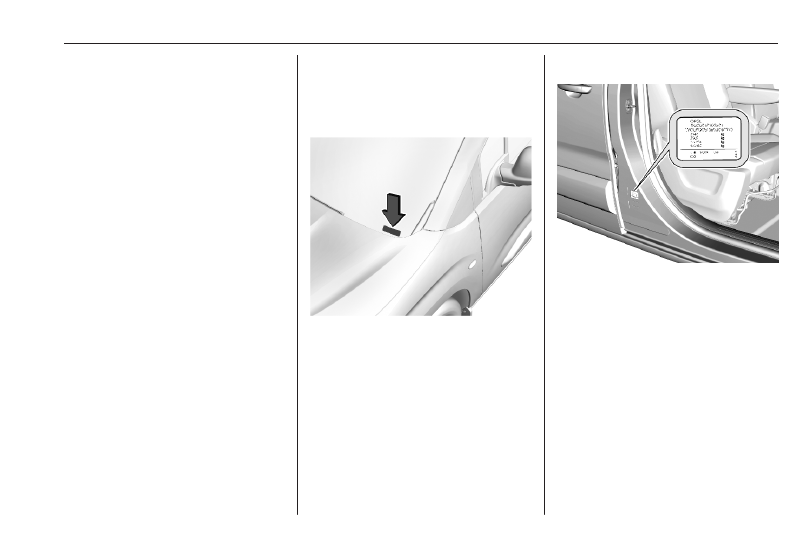

Vehicle identification

number

The Vehicle Identification Number

may be embossed on the instrument

panel, visible through the windscreen.

Identification plate

The identification plate is located on

the front left or right door frame. The

layout and position differ for some

export countries.

348

Technical data

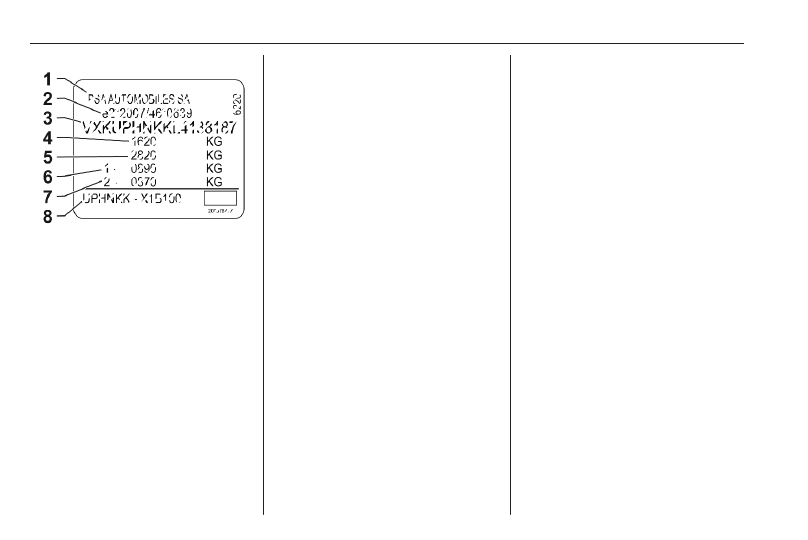

Information on identification label:
1 : manufacturer

2 : type approval number

3 : vehicle identification number

4 : permissible gross vehicle weight

rating in kg

5 : permissible gross train weight

in kg

6 : maximum permissible front axle

load in kg

7 : maximum permissible rear axle

load in kg

8 : manufacturer address, vehicle-

specific or country-specific data

The combined total of front and rear

axle loads must not exceed the

permissible gross vehicle weight.

Vehicle's kerb weight depends on the

specification of the vehicle, e.g.

optional equipment and accessories.

Refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
The technical data is determined in

accordance with European

Community standards. We reserve

the right to make modifications.

Specifications in the vehicle

documents always have priority over

those given in this manual.

Engine identification

The technical data tables show the

engine identifier code.
Engine data

350.

To identify the respective engine,

refer to the engine power in the EEC

Certificate of Conformity provided

with your vehicle or other national

registration documents.

Technical data

349

Vehicle data

Recommended fluids and lubricants

Required engine oil quality

Country groups

342

Countries included in country groups 1 to 3 and 5

EB2ADT
EB2ADTS
DV5RC
DV5RCf
DV5RD
DV5RE

EC5F
DV6D
DV6DR
DV6FD
DV6FE

Vauxhall Original engine oil

B71 2010 / B71 2312

B71 2312

Engine EC5F: B71 2290, B71 2296 or B71 300 may also be used.

Engine oil viscosity grades

B71 2010

B71 2312

B71 2302

B71 2297

Engine oil viscosity grade

SAE 0W-20

SAE 0W-30

SAE 5W-30

350

Technical data

Engine data

Engine identifier code

D12XHL
F12XHL

F12XHT

Z16XU

D15DTL

D15DT

Sales designation

1.2 Turbo

1.2

1.6

1.5 Turbo

Engineering code

EB2ADT

EB2ADTS

EC5F

DV5RE

DV5RD

Piston displacement [cm

]

1199

1587

1499

Engine power [kW]

at rpm

5500

5750

3500

Torque [Nm]

205

230

150

230

250

at rpm

1750

4000

1750

Fuel type

Petrol

Diesel

Octane rating RON

1)2)

recommended

possible

A country specific label at the fuel filler flap can supersede the engine specific requirement.

In certain countries, the use of a particular fuel, e.g. a specific octane rating, may be required to ensure proper engine operation.

Technical data

351

Engine identifier code

F15DT

D15DTH

B16DTL

A16DT

B16DT

Electric vehicle

Sales designation

1.5 Turbo

1.6 Turbo

–

Engineering code

DV5RCf

DV5RC

DV6FE

DV6D
DV6DR

DV6FD

–

Piston displacement [cm

]

1499

1560

–

Engine power [kW]

100

at rpm

3750

3500

4000

3750

–

Torque [Nm]

240

300

210

230

255

260

at rpm

1750

–

Fuel type

Diesel

–

352

Technical data

Vehicle dimensions

Size

Length [mm]

4403

4753

Width without exterior mirrors [mm]

1848

Width with exterior mirrors [mm]

2107

Combo LIFE
Height without roof railing [mm]

1800 - 1807

1812 - 1818

Combo LIFE
Height with roof railing [mm]

1837 - 1844

1843 - 1849

Combo-e LIFE
Height with roof railing [mm]

1841

1880

Combo
Height without roof railing [mm]

1796 - 1851

1815 - 1821

Combo
Height with roof railing [mm]

1797 - 1998

1845 - 1857

Combo-e
Height with roof railing [mm]

1796 - 1860

1812 - 1860

Wheelbase [mm]

2785

2975 / 2977

Turning circle diameter [m]

10.8 / 11

11.5 / 11.8

Technical data

353

Capacities

Engine oil

Engine

DV5RC
DV5RCf
DV5RD
DV5RE

EB2ADT
EB2ADTS

DV6D
DV6FE
DV6FD

EC5F

including filter [l]

3.95

5.3

3.5

3.75

3.25

between MIN and MAX [l]

1.5

Combo LIFE

Combo

Fuel tank

Petrol / diesel, refilling quantity [l]

60 / 50

AdBlue tank

AdBlue, refilling quantity [l]

354

Technical data

Tyre pressures

Combo CARGO

Payload 650 kg

Vehicle with up to 3 people

With full load

Tyres

front

rear

front

rear

[kPa/bar] ([psi])

195/65 R16

260/2,6 (38)

290/2,9 (42)

260/2,6 (38)

320/3,2 (46)

205/60 R16

250/2,5 (36)

320/3,2 (46)

215/65 R16

260/2,6 (38)

280/2,8 (41)

260/2,6 (38)

300/3,0 (44)

Technical data

355

Payload 1000 kg

Vehicle with up to 3 people

With full load

Tyres

front

rear

front

rear

[kPa/bar] ([psi])

205/60 R16

250/2,5 (36)

290/2,9 (42)

250/2,5 (36)

290/2,9 (42)

215/65 R16

260/2,6 (38)

280/2,8 (41)

260/2,6 (38)

300/3,0 (44)

Combo LIFE

Vehicle with up to 3 people

With full load

Tyres

front

rear

front

rear

[kPa/bar] ([psi])

195/65 R16

260/2,6 (38)

290/2,9 (42)

260/2,6 (38)

320/3,2 (46)

205/60 R16

240/2,4 (35)

260/2,6 (38)

320/3,2 (46)

205/60 R17

250/2,5 (36)

260/2,6 (38)

320/3,2 (46)

356

Customer information

Customer

information

Customer information ................ 356

Declaration of conformity ......... 356

REACH .................................... 357

Software update ...................... 357

Registered trademarks ............ 359

Vehicle data recording and pri‐

vacy ........................................... 359

Emergency call data recording

and privacy ............................. 359

Event data recorders ............... 360

Radio Frequency Identification

(RFID) ..................................... 363

Customer information

Declaration of conformity

Radio transmission systems

This vehicle has systems that

transmit and / or receive radio waves

subject to Directive 2014/53/EU and

The Radio Equipment Regulations

2017 by the United Kingdom. The

manufacturers of the systems listed

below declare conformity with

Directive 2014/53/EU and

The Radio Equipment Regulations

2017. The full text of the EU

declaration of conformity for each

system is available at the following

internet address: www.opel.com/

conformity.
Importer is Vauxhall Motors Limited,

MP UK 1-101-135, Chalton House,

Luton Road, Chalton, Luton,

Bedfordshire, LU4 9TT, United

Kingdom.

Infotainment system

Multimedia Navi Pro

Continental

LCIE Bureau Veritas-Site de

Fontenay aux Roses, 33 avenue du

général Leclerc, 92260 Fontenay aux

Roses, France
Operation

frequency (MHz)

Maximum output

(dBm)

2400.0 - 2483.5 2.2
2400.0 - 2483.5 15

Infotainment system Radio

Clarion
244 rue du Pré à Varois, 54670

Custines, France
Operation frequency:

2400 - 2480 MHz
Maximum output: 4 dBm

Infotainment system Multimedia

Robert Bosch Car Multimedia GmbH
Robert-Bosch-Straße 200, 31139

Hildesheim, Germany

Customer information

357

Operation

frequency (MHz)

Maximum output

(dBm)

2402.0 - 2480.0 17
2412.0 - 2472.0 4.15

Antenna module

Yokowo Manufacturing of America,

LLC
28221 Beck Road, Unit A-21
Wixom, MI 48394, USA
Operation frequency: N/A
Maximum output: N/A
ASK Automotive Pvt. Ltd.
Unit 2 Plot No. 30-31, Fathepur-

Nawada, Manesar, Gurugram,

Haryana 122050, India
Operation frequency: N/A
Maximum output: N/A

Radio remote control transmitter

Hülsbeck & Fürst GmbH & Co. KG
Steeger Straße 17
42551 Velbert, Germany
Operation frequency: 433.92 MHz
Maximum output: 10 dBm

Radio remote control receiver

Delphi European, Middle Eastern &

African Regional Offices Customer

Technology
Center Avenue de Luxembourg,

L-4940 Bascharage, G.D. of

Luxembourg
Operation frequency: 119 - 128.6
Maximum output:

16 dBµA/m @ 10 m

Electronic key transmitter

Valeo
43 Rue Bayen, 75017 Paris, France
Operation frequency: 433.92 MHz
Maximum output: 10 dBm

Immobiliser

KOSTAL of America, Inc.
350 Stephenson Hwy, Troy MI 48083,

USA
Operation frequency: 125 kHz
Maximum output: 5 dBμA/m at 10 m

ICASA type approval numbers

List of all Independent

Communications Authority of South

Africa (ICASA) type approval

numbers:
TA-2016/121, TA-2016/3261,

TA-2017/2387,TA-2017/2745,

TA-2013/430, TA-2017/1106,

TA-2016/929, TA-2017/3180

REACH

Registration, Evaluation,

Authorisation and Restriction of

Chemicals (REACH) is a European

Union regulation adopted to improve

the protection of human health and

the environment from the risks that

can be posed by chemicals. Visit

www.opel.com for further information

and for access to the Article 33

communication.

Software update

The Infotainment system can

download and install selected

software updates over a wireless

connection.

Vauxhall Combo E (2023 year). Manual in english - page 11
