Driving and operating

Arctic grade diesel fuel can be used

at extremely low temperatures below

-20 °C. Using this fuel grade in warm

or hot climates is not recommended

and may cause engine stalling, poor

starting or damage on the fuel

injection system.

Refuelling

Danger

Before refuelling, switch off

ignition and any external heaters

with combustion chambers.
Follow the operating and safety

instructions of the filling station

when refuelling.

Danger

Fuel is flammable and explosive.

No smoking. No naked flames or

sparks.
If you can smell fuel in your

vehicle, have the cause of this

remedied immediately by a

workshop.

A label with symbols at the fuel filler

flap is indicating the allowed fuel

types. In Europe the pump nozzles of

the filling stations are marked with

these symbols. Refuel only the

allowed fuel type.

Caution

In case of misfuelling, do not

switch on ignition.

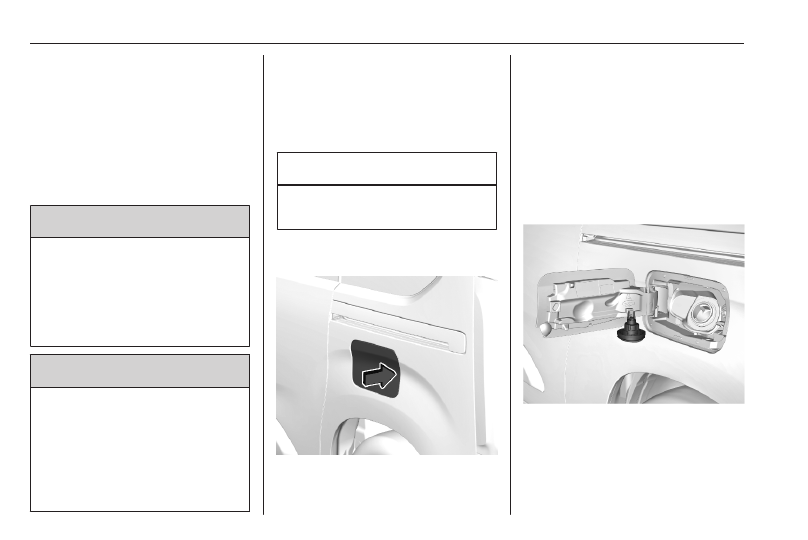

Fuel filler flap is located at left rear

side of vehicle.

If the vehicle is equipped with an

electronic key system, the fuel filler

flap can only be opened if the vehicle

is unlocked. Depending on the

version, release the fuel filler flap by

pushing the flap or pulling at the right

bottom corner.

Petrol and diesel refuelling

Depending on the version, place the

key in the lock and unlock the cap.
To open, turn the cap slowly

anticlockwise.

The fuel filler cap can be attached to

the hook on the fuel filler flap.
Place the nozzle in straight position to

the filler neck and press with slight

force to insert.
To refuel, switch on pump nozzle.

Driving and operating

295

After the automatic cut-off, the tank

can be topped up by operating the

pump nozzle a maximum of two more

times.

Caution

Wipe off any overflowing fuel

immediately.

To close, turn the fuel filler cap

clockwise until it clicks.
Close the flap and allow it to engage.

Fuel filler cap

Only use genuine fuel filler caps.
Diesel-engined vehicles have special

fuel filler caps.

Fuel consumption - CO

Emissions

The fuel consumption (combined) is

within a range of 47 to 65 mpg.
The CO

emission is within a range of

137 to 106 g/km.

General information

For the values specific to your

vehicle, refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
The determination of fuel

consumption is regulated by directive

R (EC) No. 715/2007 and No.

2017/1151 (in the latest applicable

version).
The specification of CO

emission is

also a constituent of the directive.
The figures given must not be taken

as a guarantee for the actual fuel

consumption of a particular vehicle.

Furthermore, fuel consumption is

dependent on personal driving style

as well as road and traffic conditions.
All values are based on the EU base

model with standard equipment.
The calculation of fuel consumption

takes into account the vehicle's kerb

weight, ascertained in accordance

with the regulations. Optional

equipment may result in slightly

higher fuel consumption and

emission levels and a lower

maximum speed.

296

Driving and operating

Trailer hitch

General information

Only use towing equipment that has

been approved for your vehicle.
Entrust retrofitting of towing

equipment to a workshop. It may be

necessary to make changes that

affect the cooling system, heat

shields or other equipment.
The bulb outage detection function for

trailer brake light cannot detect a

partial bulb outage e.g. in case of four

bulbs with a power of 5 W each, the

function only detects lamp outage

when only a single 5 W lamp remains

or none remain.
Fitting of towing equipment could

cover the opening of the towing eye.

If this is the case use the coupling ball

bar for towing. Always keep the

coupling ball bar in the vehicle to have

it on hand if needed.

Driving characteristics and

towing tips

Before attaching a trailer, lubricate

the coupling ball. However, do not do

so if a stabiliser, which acts on the

coupling ball, is being used to reduce

snaking movements.
During trailer towing do not exceed a

speed of 50 mph. A maximum speed

of 60 mph is only appropriate if an

oscillation damper is used and the

permissible gross trailer weight does

not exceed the vehicle's curb weight.
For trailers with low driving stability

and caravan trailers, the use of an

oscillation damper is strongly

recommended.
If the trailer starts snaking, drive more

slowly, do not attempt to correct the

steering and brake sharply if

necessary.
When driving downhill, drive in the

same gear as if driving uphill and

drive at a similar speed.
Adjust tyre pressure to the value

specified for full load

354.

Trailer towing

Trailer loads

The permissible trailer loads are

vehicle and engine-dependent

maximum values which must not be

exceeded. The actual trailer load is

the difference between the actual

gross weight of the trailer and the

actual coupling socket load with the

trailer coupled.
The permissible trailer loads are

specified in the vehicle documents. In

general, they are valid for inclines up

to 12%.
The permissible trailer load applies

up to the specified incline and at sea

level. Since engine power decreases

as altitude increases due to the air

becoming thinner, therefore reducing

climbing ability, the permissible gross

train weight also decreases by 10%

for every 1000 metres of altitude. The

gross train weight does not have to be

reduced when driving on roads with

slight inclines (less than 8%, e.g.

motorways).

Driving and operating

297

The permissible gross train weight

must not be exceeded. This weight is

specified on the identification plate

347.

Vertical coupling load

The vertical coupling load is the load

exerted by the trailer on the coupling

ball. It can be varied by changing the

weight distribution when loading the

trailer.
The maximum permissible vertical

coupling load is specified on the

towing equipment identification plate

and in the vehicle documents.
Always aim for the maximum vertical

coupling load, especially in the case

of heavy trailers. The vertical coupling

load should never fall below 25 kg.

Rear axle load

When the trailer is coupled and the

towing vehicle fully loaded, the

permissible rear axle load (see

identification plate or vehicle

documents) may be exceeded by

60 kg, the gross vehicle weight rating

must not be exceeded. If the

permissible rear axle load is

exceeded, a maximum speed of

60 mph applies.

Towing equipment

Depending on version the vehicle can

be fitted with a detachable or a fixed

coupling ball bar.

Type A

Caution

When operating without a trailer,

remove the coupling ball bar.

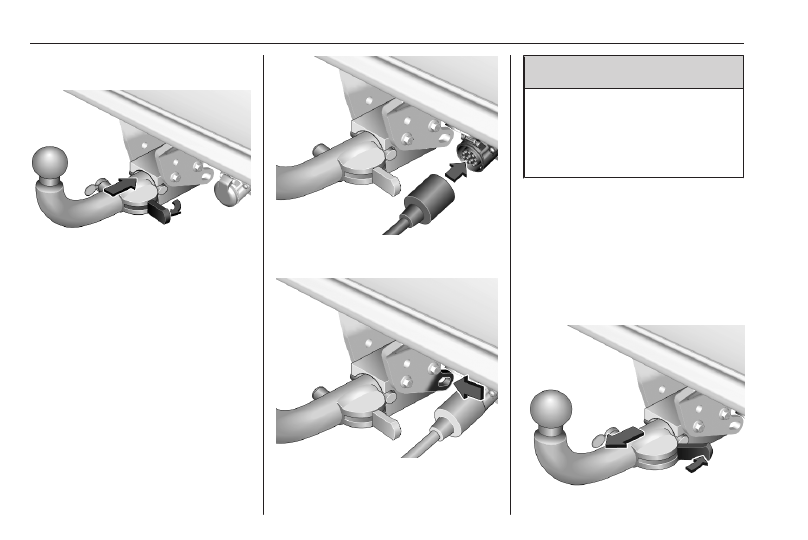

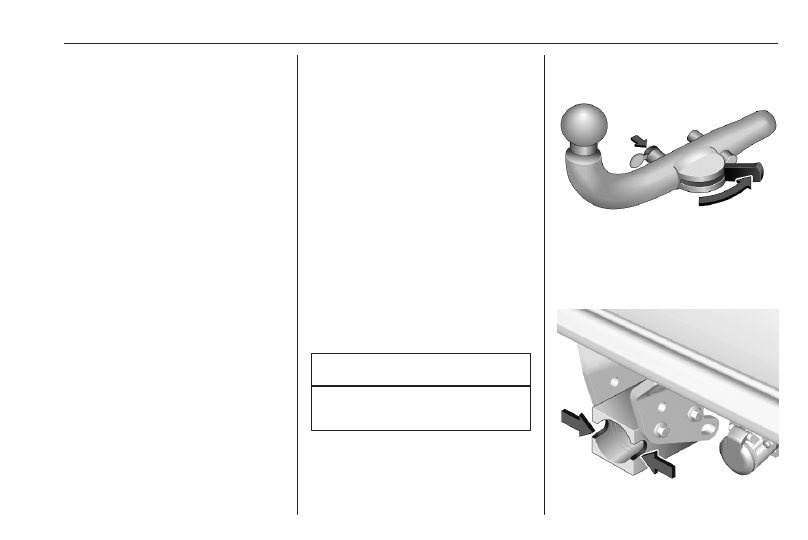

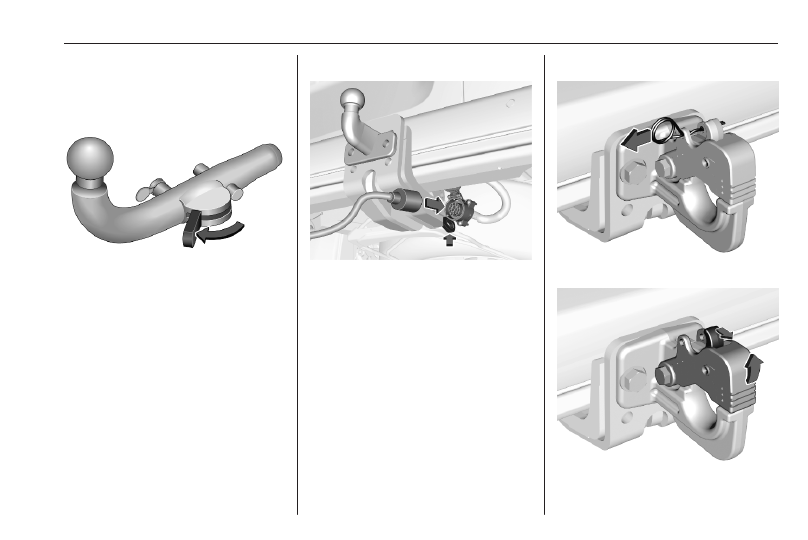

Fitting the coupling ball bar

1. Place the key in the lock and

unlock the coupling ball bar. Move

the lever to the rear position.

298

Driving and operating

2. Clean the contact points with a

soft clean cloth.

3. Insert the coupling ball bar in the

opening and push firmly up to the

stop.
Secure the coupling ball bar

correctly by moving the lever to

the locked position, shown in the

picture.

4. Lock the coupling ball bar by

turning the key. Remove the key

and close the protective flap.

5. Attach the trailer.
6. Fold the socket forward.

7. Connect the trailer plug to the

socket.

8. Attach the breakaway stopping

cable to the eye on the carrier.

Warning

Towing a trailer is permitted only

when a coupling ball bar is fitted

correctly. If the coupling ball bar

does not engage correctly, seek

the assistance of a workshop.

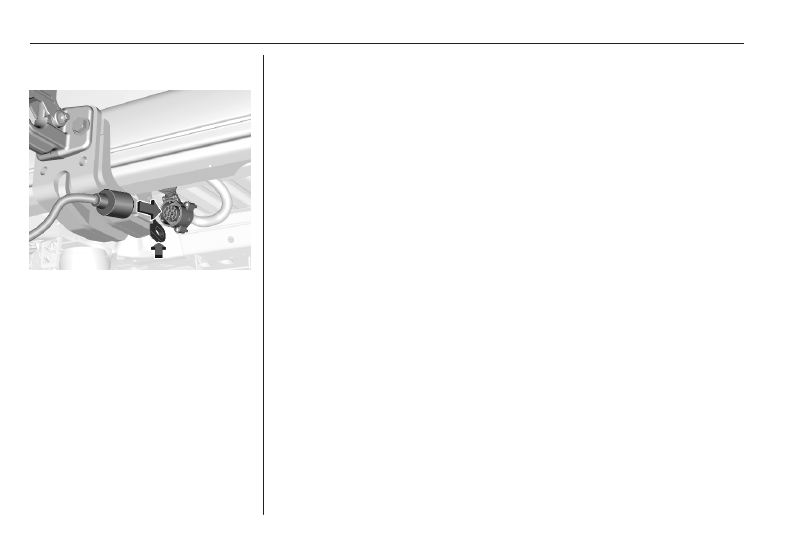

Dismounting coupling ball bar

1. Disconnect the trailer plug.
2. Unfasten the breakaway stopping

cable.

3. Remove the trailer.
4. Open the protective flap and

unlock the coupling ball bar with

the key.

300

Driving and operating

3. Attach the trailer, close the towing

ring and fix the splint.

4. Connect the trailer plug to the

socket and attach the breakaway

stopping cable to the eye on the

carrier.

Trailer stability assist

If the system detects snaking

movements, engine power is reduced

and the vehicle / trailer combination is

selectively braked until the snaking

ceases. While system is working keep

steering wheel as still as possible.
Trailer stability assist is a function of

the Electronic Stability Control

242.

Vehicle care

301

Vehicle care

General Information ................... 301

Accessories and vehicle

modifications .......................... 301

Vehicle storage ........................ 302

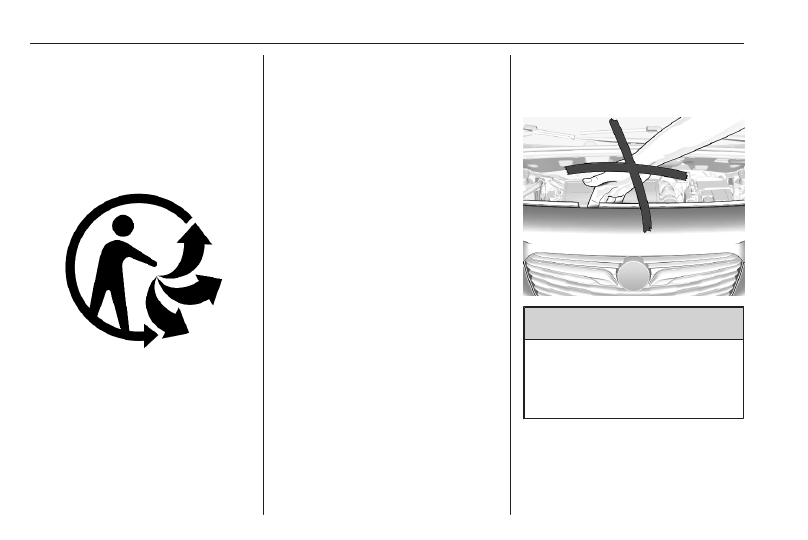

End-of-life vehicle recovery ..... 304

Vehicle checks ........................... 304

Performing work ...................... 304

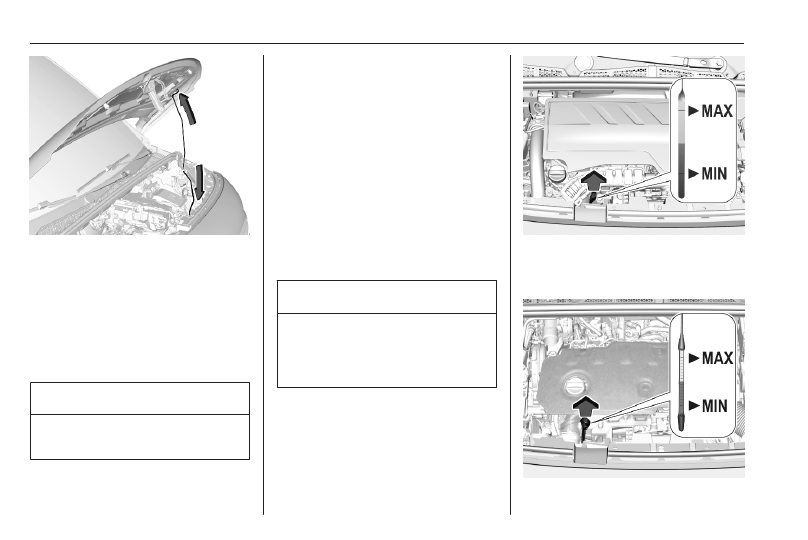

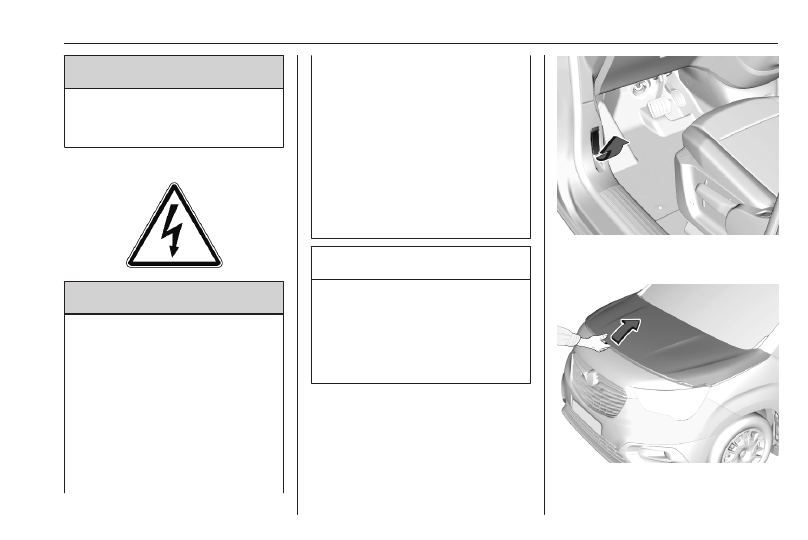

Bonnet ..................................... 305

Engine oil ................................. 306

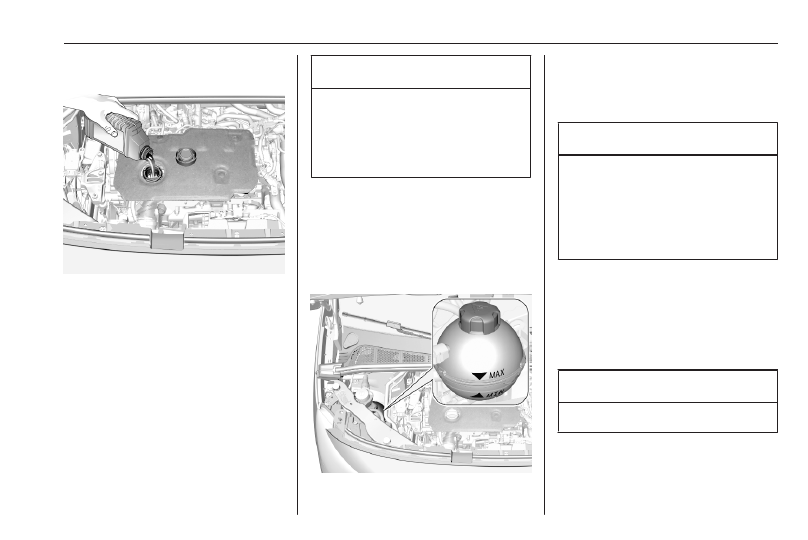

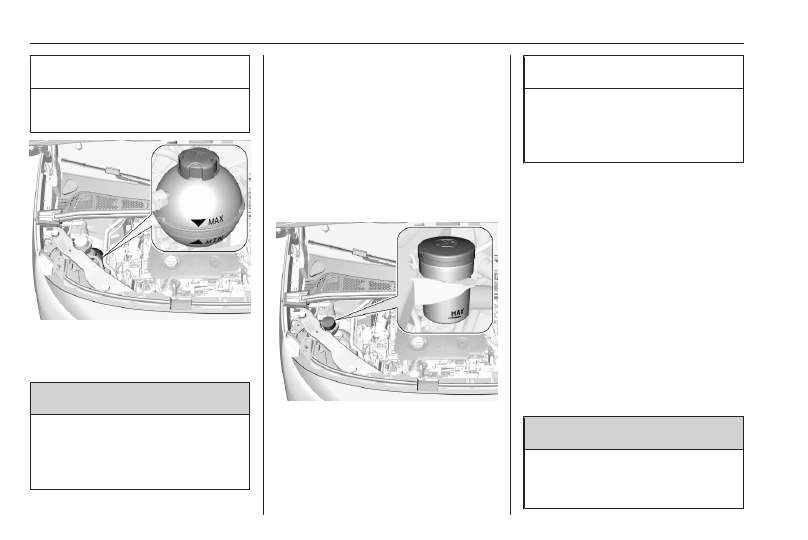

Engine coolant ......................... 307

Washer fluid ............................ 308

Brakes ..................................... 308

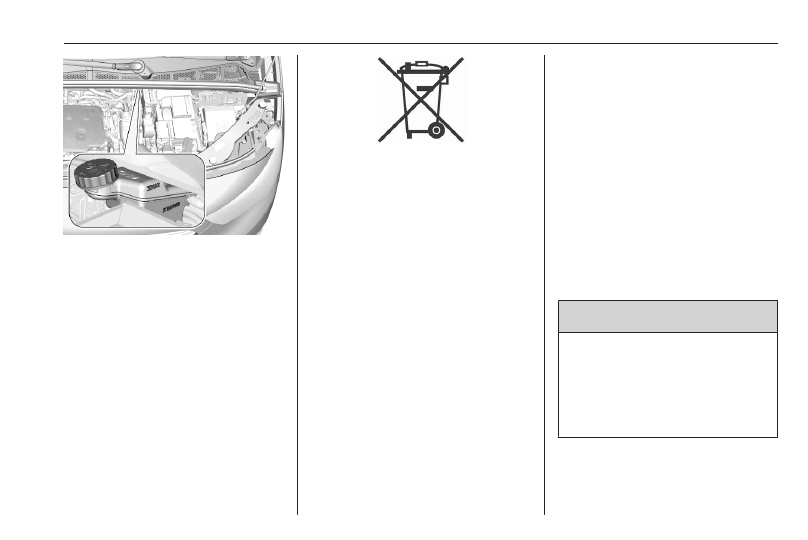

Brake fluid ............................... 308

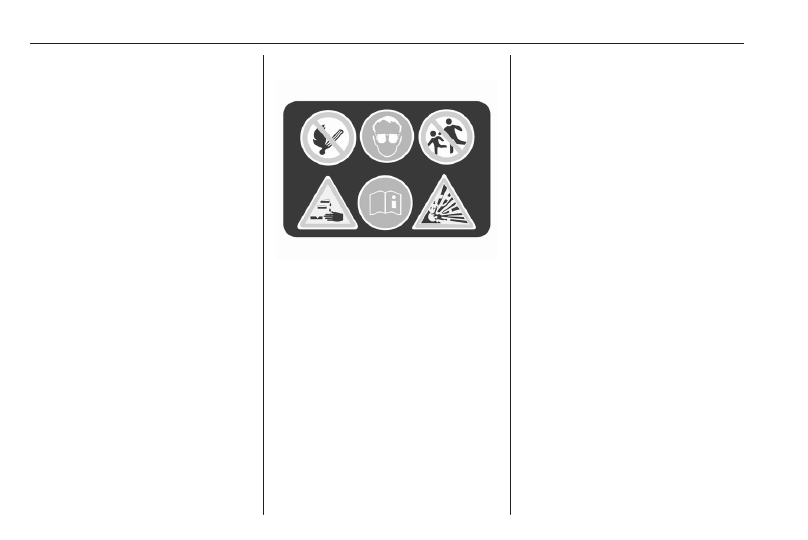

Vehicle battery ......................... 309

High voltage battery ................ 311

Diesel fuel system bleeding ..... 312

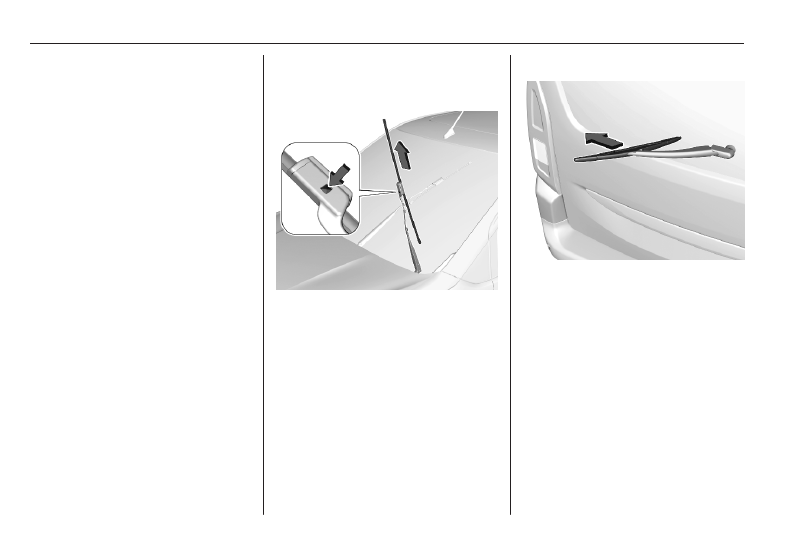

Wiper blade replacement ........ 312

Bulb replacement ....................... 313

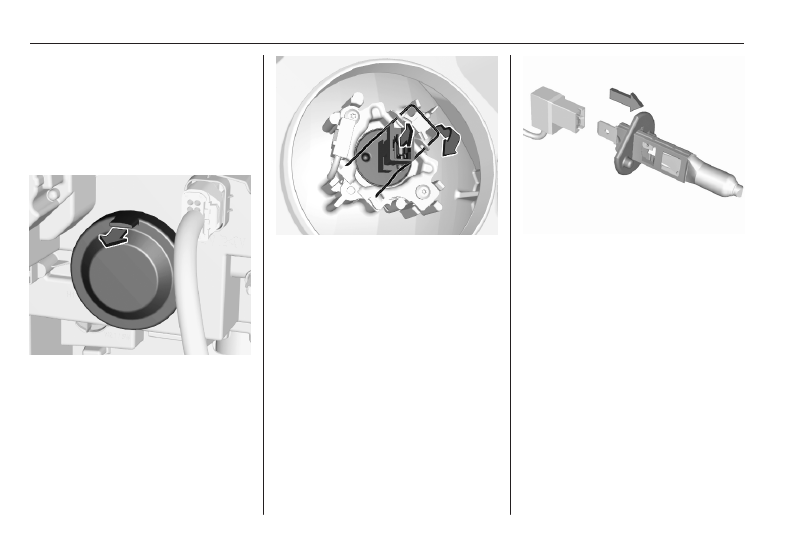

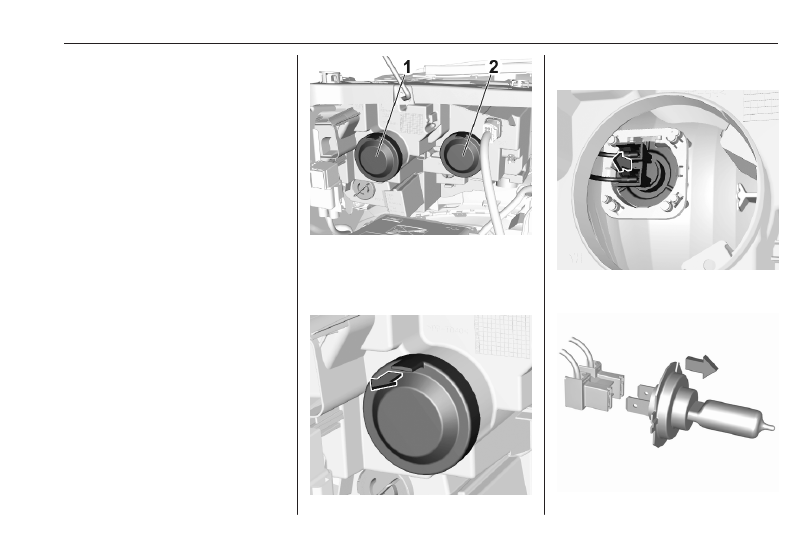

Halogen headlights .................. 313

LED headlights ........................ 315

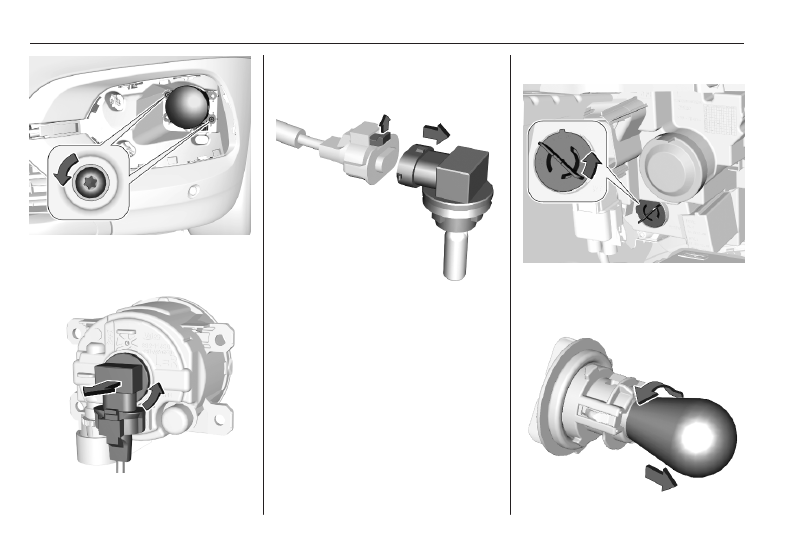

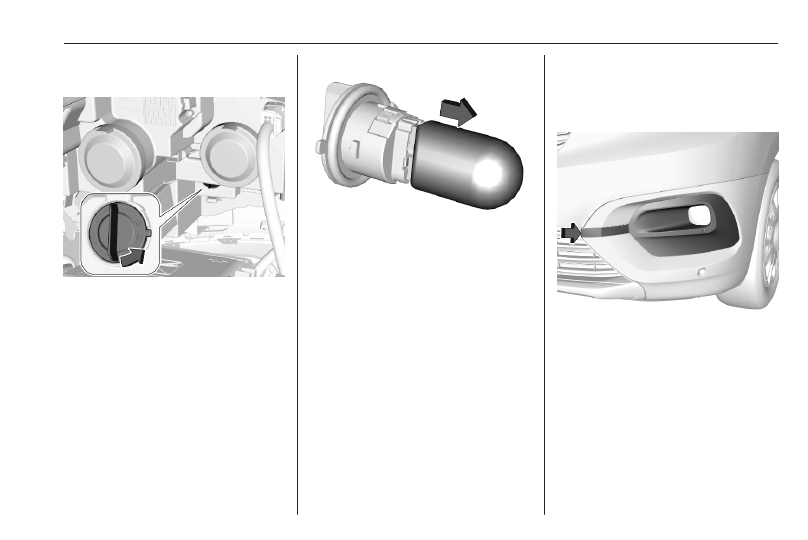

Front fog lights ......................... 315

Front turn lights ....................... 316

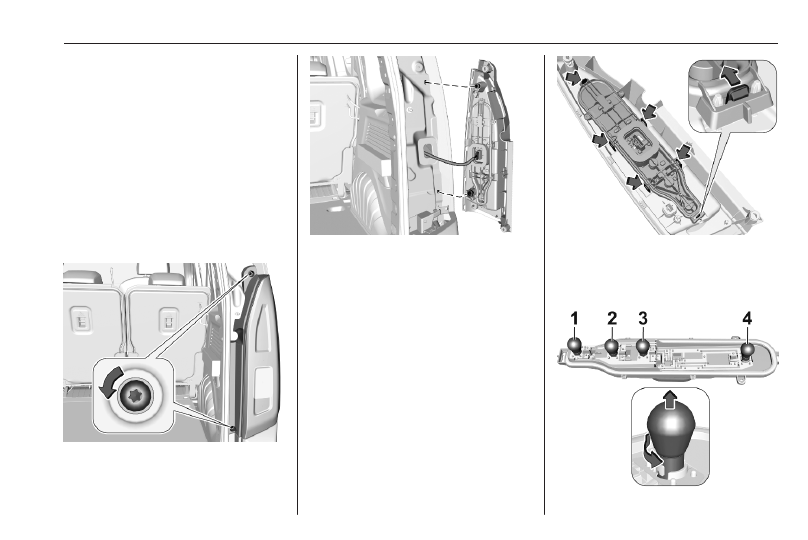

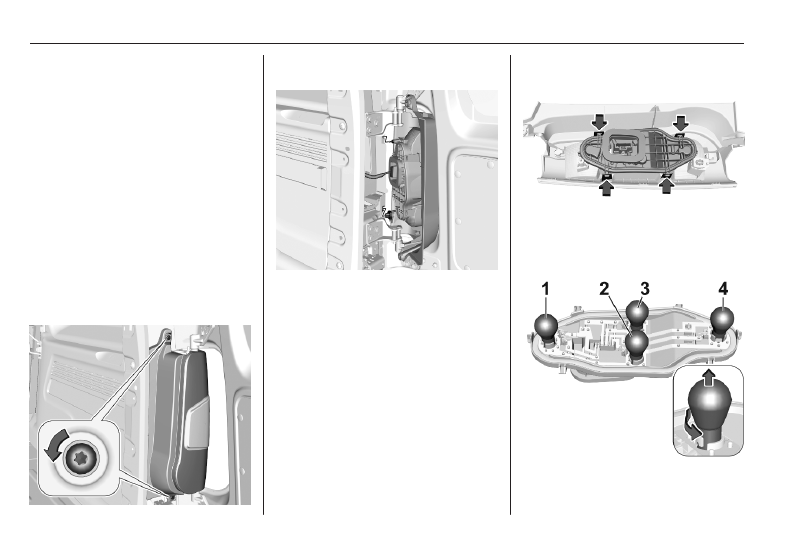

Tail lights ................................. 317

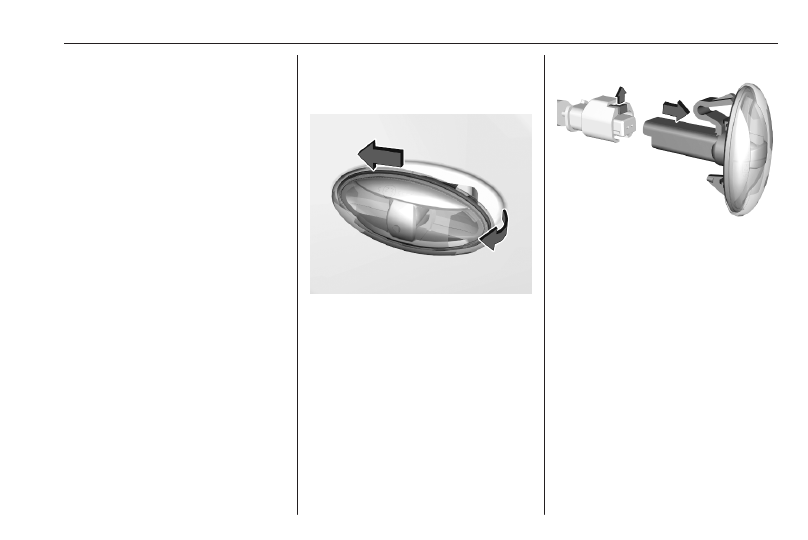

Side turn lights ......................... 319

Number plate light ................... 320

Interior lights ............................ 320

Electrical system ........................ 320

Fuses ....................................... 320

Vehicle tools .............................. 321

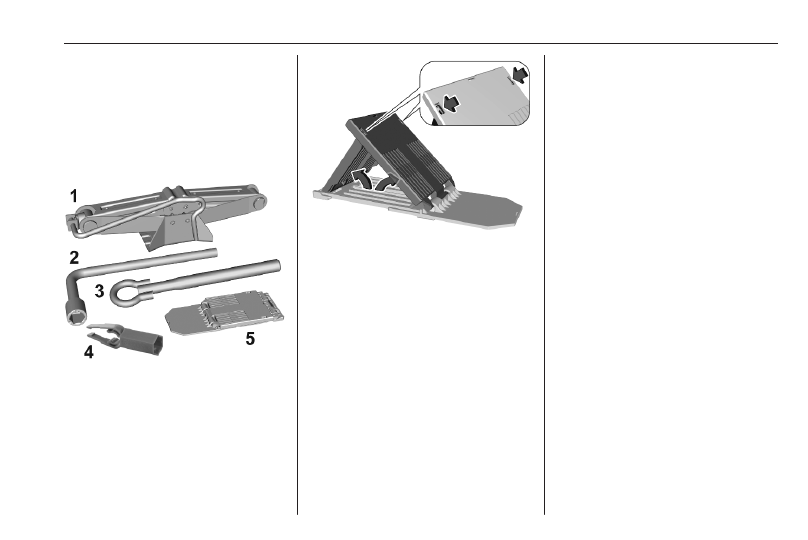

Tools ........................................ 321

Wheels and tyres ....................... 321

Winter tyres ............................. 321

Tyre designations .................... 322

Tyre pressure .......................... 322

Tyre deflation detection

system .................................... 323

Tread depth ............................. 324

Changing tyre and wheel size . 325

Wheel covers ........................... 325

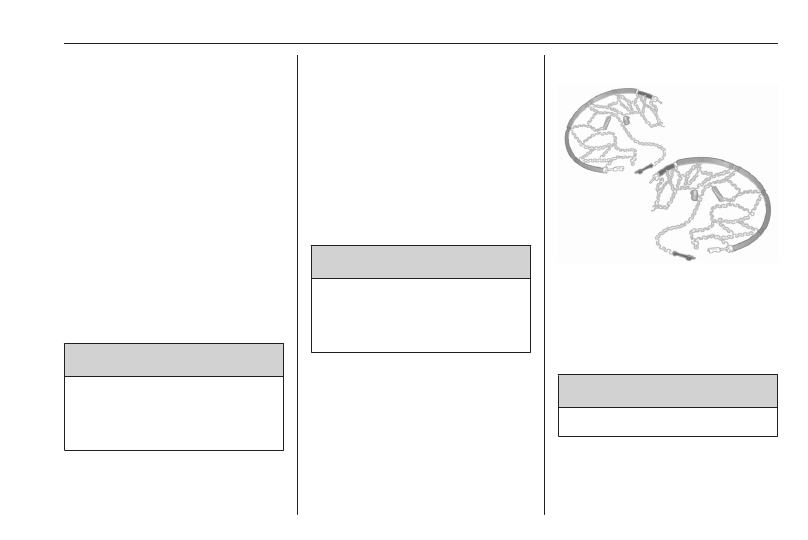

Tyre chains .............................. 325

Tyre repair kit .......................... 326

Wheel changing ....................... 329

Spare wheel ............................ 330

Jump starting ............................. 334
Towing ....................................... 336

Towing the vehicle ................... 336

Towing another vehicle ........... 337

Appearance care ....................... 338

Exterior care ............................ 338

Interior care ............................. 340

Floor mats ............................... 340

General Information

Accessories and vehicle

modifications

We recommend the use of genuine

parts and accessories and factory

approved parts specific for your

vehicle type. We cannot assess or

guarantee reliability of other products

- even if they have a regulatory or

otherwise granted approval.
Any modification, conversion or other

changes made to standard vehicle

specifications (including, without

limitation, software modifications,

modifications of the electronic control

units) may invalidate the warranty

offered by Vauxhall. Furthermore,

such changes may affect driver

assistance systems, may impact fuel

consumption, CO

emissions and

other emissions of the vehicle and

cause the vehicle to no longer

conform to the operating permit,

impacting the validity of your vehicle

registration.

302

Vehicle care

Caution

Access to the diagnostic socket

associated with the on-board

electronics is reserved for

qualified technicians and

approved tools.

Caution

When transporting the vehicle on

a train or on a recovery vehicle, the

mud flaps might be damaged.

Cold protection covers

In order to prevent the accumulation

of snow at the radiator cooling fan, it

is recommended to install removable

protection covers.
The protection covers must be

professionally installed, consult a

workshop.

Caution

The cold protection covers must

be removed when one of the

following conditions occurs:

● The ambient temperature is

above 10 °C.

● The vehicle is towing a trailer.
● The vehicle is driven at speeds

above 75 mph.

Vehicle storage

Storage for a long period of time

If the vehicle is to be stored for several

months:

● Wash the vehicle.
● Have the wax in the engine

compartment and underbody

checked.

● Clean and preserve the rubber

seals.

● Fill up fuel tank completely.
● Change the engine oil.
● Drain the washer fluid reservoir.

● Check the coolant antifreeze and

corrosion protection.

● Adjust tyre pressure to the value

specified for full load.

1. Park the vehicle in a dry, well

ventilated place. Engage first or

reverse gear or set selector lever

to P. Prevent the vehicle from

rolling.

2. Do not apply the parking brake.
3. Switch off ignition and all electrical

consumers.

4. Wait four minutes.
5. Open the bonnet, close all doors

and lock the vehicle.

6. Lift the plastic cover of the vehicle

battery's positive terminal in the

engine compartment.

7. Raise the lever fully and remove

clamp from the terminal.

Vehicle care

303

Storage for a long period of time

(electric vehicle)

If the vehicle is to be stored for several

months:

● Wash and wax the vehicle.
● Have the wax in the engine

compartment and underbody

checked.

● Clean and preserve the rubber

seals.

● Drain the washer fluid reservoir.
● Check the coolant antifreeze and

corrosion protection.

● Adjust tyre pressure to the value

specified for full load.

● Park the vehicle in a dry, well

ventilated place. Engage first or

reverse gear or set selector lever

to P. Prevent the vehicle from

rolling.

● Do not apply the parking brake.
● Open the bonnet, close all doors

and lock the vehicle.

Up to four weeks

Plug in the charging cable.

Four weeks to twelve months

● Discharge the high voltage

battery until 30 percent remain on

the battery range indicator

(battery symbol) on the

instrument cluster.

● Do not plug in the charging cable.
● Always store the vehicle in a

place with temperatures between

−10 °C and 30 °C.

● Vehicle storage at extreme

temperatures may cause

damage to the high voltage

battery.

● Remove the black negative (−)

cable from the 12 V vehicle

battery and attach a trickle

charger to the vehicle battery

terminals or keep the 12 V

vehicle battery cables connected

and trickle charge from the

positive (+) and negative (−)

terminals in the engine

compartment.

● Every three months, check the

battery's state of charge. If the

state of charge is below 30

percent, recharge the battery to

30 percent.

Putting back into operation

When the vehicle is to be put back into

operation:

1. Connect the clamp to the positive

terminal of the vehicle battery in

the engine compartment.

2. Initialise the power windows

27.

● Check tyre pressure.
● Fill up the washer fluid reservoir.
● Check the engine oil level.
● Check the coolant level.
● Fit the number plate if necessary.

Putting back into operation

(electric vehicle)

When the vehicle is to be put back into

operation:

● Connect the clamp to the

negative terminal of the vehicle

battery. Initialise the power

windows

27.

● Check tyre pressure.
● Fill up the washer fluid reservoir.
● Check the coolant level.
● Fit the number plate if necessary.

304

Vehicle care

End-of-life vehicle recovery

Information on end-of-life vehicle

recovery centres and the recycling of

end-of-life vehicles is available on our

website, where legally required. Only

entrust this work to an authorised

recycling centre.

High voltage battery

The high voltage battery is designed

for the life of the vehicle if the

recommendations are followed. If it

becomes necessary to replace the

high voltage battery, contact a

workshop for instructions on its

disposal. Improper disposal carries

the risk of severe burns, electric

shock, and damage to the

environment.
Recommendations

311.

Vehicle checks

Performing work

Warning

Only perform engine compartment

checks when the ignition is off.
The cooling fan may start

operating even if the ignition is off.

Vehicle care

305

Danger

The ignition system uses

extremely high voltage. Do not

touch.

Electric vehicle

Danger

Never try to perform maintenance

work on high voltage components

yourself. You may be injured and

the vehicle may be damaged.

Service and repair of these high

voltage components should only

be performed by a trained service

technician with proper knowledge

and tools. Exposure to high

voltage may cause shock, burns,

and even death. The high voltage

components in the vehicle can

only be serviced by technicians

with special training.
High voltage components are

identified by labels. Do not

remove, open, take apart, or

modify these components. High

voltage cable or wiring has orange

covering. Do not probe, tamper

with, cut, or modify high voltage

cable or wiring.

Caution

Even small amounts of

contamination to the liquids can

cause damage to vehicle systems.

Do not allow contaminants to

contact the fluids, reservoir caps,

or dipsticks.

Bonnet

Opening

Open the left front door.

Pull the release lever and return it to

its original position.

Push the safety catch upwards and

open the bonnet.

306

Vehicle care

Secure the bonnet support.

Closing

Before closing the bonnet, press the

support into the holder.
Lower the bonnet and let it fall into the

latch from a low height (20-25 cm).

Check that the bonnet is engaged.

Caution

Do not press the bonnet into the

latch to avoid dents.

Engine oil

Check the engine oil level manually

on a regular basis to prevent damage

to the engine. Ensure that the correct

specification of engine oil is used.
Recommended fluids and lubricants

345.

The maximum engine oil

consumption is 0.6 l per 600 miles.
Check with the vehicle on a level

surface. The engine must be at

operating temperature and switched

off for at least five minutes.

Caution

It is the owner's responsibility to

maintain the proper level of an

appropriate quality engine oil in

the engine.

Pull out the dipstick, wipe it clean,

reinsert it fully, pull out and read the

engine oil level.

Vehicle care

307

Different dipsticks are used

depending on engine variant.

When the engine oil level has

dropped to the MIN mark, top up the

engine oil.
We recommend the use of the same

grade of engine oil that was used at

last change.
The engine oil level must not exceed

the MAX mark on the dipstick.

Caution

Overfilled engine oil must be

drained or suctioned out. If the

engine oil exceeds the maximum

level, do not start the vehicle and

contact a workshop.

Capacities

353.

Fit the cap on straight and tighten it.

Engine coolant

Coolant level BEV

If the coolant level is at the MIN mark

or below, seek the assistance of a

workshop to have the engine coolant

topped up.

Caution

Using the wrong engine coolant

can cause severe damages to the

high voltage battery. Only

experienced mechanics are

allowed to open the coolant

reservoir and to top up coolant.

Propulsion types

Coolant level ICE

The factory filled coolant provides

freeze protection down to approx.

-37 °C.

Caution

Only use approved antifreeze.

Coolant and antifreeze

345.

308

Vehicle care

Caution

Too low a coolant level can cause

engine damage.

If the cooling system is cold, the

coolant level should be above the

MIN mark. Top up if the level is low.

Warning

Allow the engine to cool before

opening the cap. Carefully open

the cap, relieving the pressure

slowly.

To top up, use a 1:1 mixture of

released coolant concentrate mixed

with clean tap water. If no coolant

concentrate is available, use clean

tap water. Install the cap tightly. Have

the coolant concentration checked

and have the cause of the coolant

loss remedied by a workshop.

Washer fluid

Fill with clean water mixed with a

suitable quantity of approved

windscreen washer fluid which

contains antifreeze.
The washer fluid level has to be

underneath the MAX mark.

Caution

Only washer fluid with a sufficient

antifreeze concentration provides

protection at low temperatures or

a sudden drop in temperature.

Washer fluid

345.

Brakes

In the event of minimum thickness of

the brake lining, a squealing noise

sounds during braking.
Continued driving is possible but

have the brake lining replaced as

soon as possible.
Once new brake linings are installed,

do not brake unnecessarily hard for

the first few journeys.

Brake fluid

Warning

Brake fluid is poisonous and

corrosive. Avoid contact with eyes,

skin, fabrics and painted surfaces.

Vehicle care

309

The brake fluid level must be between

the DANGER and MAX marks.
If fluid level is below DANGER, seek

the assistance of a workshop.
Brake and clutch fluid

345.

Vehicle battery

The vehicle battery is maintenance-

free provided that the driving profile

allows sufficient charging of the

battery. Short-distance-driving and

frequent engine starts can discharge

the battery. Avoid the use of

unnecessary electrical consumers.

Batteries do not belong in household

waste. They must be disposed of at

an appropriate recycling collection

point.
Laying up the vehicle for more than

four weeks can lead to battery

discharge. Disconnect the clamp from

the negative terminal of the vehicle

battery.
Ensure the ignition is switched off

before connecting or disconnecting

the vehicle battery.
Battery discharge protection

118.

Replacing the vehicle battery

Notice

Any deviation from the instructions

given in this section may lead to

temporary deactivation or

disturbance of the stop-start system.

When the vehicle battery is being

replaced, please ensure that there

are no open ventilation holes in the

vicinity of the positive terminal. If a

ventilation hole is open in this area, it

must be closed off with a dummy cap,

and the ventilation in the vicinity of the

negative terminal must be opened.
Ensure that the battery is always

replaced by the same type of battery.
The vehicle battery has to be

replaced by a workshop.
Stop-start system

222.

Charging the vehicle battery

Warning

On vehicles with stop-start

system, ensure that the charging

potential does not exceed 14.6 V

when using a battery charger.

Otherwise the vehicle battery may

be damaged.

Jump starting

334.

310

Vehicle care

Discharge protection

Battery voltage

When the vehicle battery voltage is

running low, a warning message will

appear in the Driver Information

Centre.
When the vehicle is being driven, the

load reduction function temporarily

deactivates certain functions, e.g. the

heated rear window.
The deactivated functions are

reactivated automatically as soon as

conditions permit.

Idle boost

If charging of the vehicle battery is

required due to battery condition, the

power output of the generator must

be increased. This will be achieved by

an idle boost which may be audible.
A message appears in the Driver

Information Centre.

Power outlet

The power outlets are deactivated in

the event of low vehicle battery

voltage.

Warning label

Meaning of symbols:

● No sparks, naked flames or

smoking.

● Always shield eyes. Explosive

gases can cause blindness or

injury.

● Keep the vehicle battery out of

reach of children.

● The vehicle battery contains

sulphuric acid which could cause

blindness or serious burn

injuries.

● See the Owner's Manual for

further information.

● Explosive gas may be present in

the vicinity of the vehicle battery.

Power saving mode

This mode deactivates electrical

consumers to avoid excessive

discharging of the vehicle battery.

These consumers, such as the

infotainment system, windscreen

wipers, low beam headlights,

courtesy light, etc. can be used for a

total maximum time of about

40 minutes after ignition is switched

off.

Changing into power saving mode

When power saving mode is

activated, a message appears in the

Driver Information Centre indicating

Power saving mode.
An active telephone call using the

hands-free option will be maintained

for around 10 minutes longer.

Vehicle care

311

Deactivating power saving mode

Power saving mode is deactivated

automatically when the engine is

restarted. Run the engine for a

sufficient charge:

● for less than 10 minutes to use

the consumers for approx.

5 minutes

● for more than 10 minutes to use

the consumers for up to approx.

30 minutes

Heating functionalities

Notice

Individual heating functionalities,

such as heated seats or heated

steering wheel, may be temporarily

unavailable in the event of electrical

loading constraints. Functions will

be resumed after some minutes.

High voltage battery

To preserve the range and the

durability of the high voltage battery,

the following is recommended:

● Whenever possible do not

charge the high voltage battery

more than 80%.

● Do not completely discharge the

high voltage battery.

● Do not store the vehicle for a long

period of non-use (more than

twelve hours) when the high

voltage battery has a low or high

charge level. Prefer a charge

level between 20 and 40%.

● Limit the use of fast charging.
● Do not expose the vehicle to

temperatures below -30 °C and

above 60 °C for more than 24

hours.

● Avoid charging the vehicle at low

temperatures (except if the

vehicle ran more than 20

minutes) or above 30 °C.

● Do not use the high voltage

battery as a generator of energy.

● Do not use a generator to

recharge the high voltage

battery.

Vehicle storage

302.

Leakage

Damage to the high voltage battery

could result in the leakage of toxic

gases or fluids either immediately or

later. The following is recommended:

● Always inform the fire and

emergency services in the event

of an incident, that the vehicle is

equipped with a high voltage

battery.

● Never touch the liquids leaking

from the high voltage battery.

● Do not inhale the gases emitted

by the high voltage battery which

are toxic.

312

Vehicle care

● Move away from the vehicle in

the event of incident or accident,

the gases emitted being

flammable and could cause a

fire.

● Too low a coolant level must be

topped up and the cause of the

coolant loss remedied by a

workshop.

Diesel fuel system bleeding

If the tank has been run dry, the diesel

fuel system must be bled. Switch on

the ignition three times for

15 seconds at a time. Then crank the

engine for a maximum of

40 seconds. Repeat this process after

no less than five seconds. If the

engine fails to start, seek the

assistance of a workshop.

Wiper blade replacement

Windscreen

Switch off the ignition.
Within one minute after switching off

the ignition, operate the wiper lever to

positon the wiper blades vertically on

the windscreen.
Lift the wiper arm until it stays in the

raised position, press button to

disengage the wiper blade and

remove.
Attach the wiper blade to the wiper

arm and push until it engages.
Lower the wiper arm carefully.

Rear window

Lift the wiper arm. Disengage the

wiper blade as shown in the

illustration and remove.
Attach the wiper blade slightly angled

to the wiper arm and push until it

engages.
Lower the wiper arm carefully.

Vehicle care

313

Bulb replacement

Before replacing a bulb, ensure that

all exterior and interior lights and the

ignition are switched off. All doors

have to be closed.
Only hold a new bulb at the base. Do

not touch the bulb glass with bare

hands.
Use only the same bulb type for

replacement.
Replace headlight bulbs from within

the engine compartment.

Bulb check

After a bulb replacement switch on

the ignition, operate and check the

lights.

Halogen headlights

Halogen headlights with separate

bulbs for low beam and high beam.

Low beam (1) outer bulb
High beam (2) inner bulb

Low beam (1)

1. Remove the protective cover by

pulling.

2. Withdraw the bulb socket from the

reflector housing.

314

Vehicle care

3. Detach the bulb from the bulb

socket and replace the bulb.

4. Insert the bulb socket into the

reflector housing.

5. Fit the protective cover on.

High beam (2)

1. Remove the protective cover by

pulling.

2. Disengage the spring clip from the

retainer by moving it to the

righthand side. Swivel the spring

clip downwards.
Withdraw the bulb socket from the

reflector housing.

3. Detach the bulb from the bulb

socket and replace the bulb.

4. Insert the bulb socket into the

reflector housing.

5. Fit the protective cover on.

Vehicle care

315

Sidelight / daytime running light

with bulbs

1. Rotate the bulb socket

anticlockwise to disengage and

withdraw from the reflector.

2. Remove the bulb from the bulb

socket by pulling.

3. Replace and insert the new bulb

into the bulb socket.

4. Insert the bulb socket into the light

assembly and turn clockwise.

Sidelight / daytime running light

with LEDs

In case of defective LEDs, have them

replaced by a workshop.

LED headlights

Daytime running lights are designed

as LEDs and can not be changed.

Have lights repaired by a workshop in

case of failure.

Front fog lights

1. Wrap a cloth around the tip of a flat

screwdriver to prevent paint

damage. Insert the screwdriver in

the recess at the edge of the

cover. Release the cover by

levering it out carefully.

316

Vehicle care

2. Unscrew and remove the two

screws and remove the light

assembly to the front.

3. Turn the bulb socket

anticlockwise and remove it from

the light assembly.

4. Disengage the plug connector by

pulling the retaining lug.

5. Remove and replace the bulb unit

and attach the plug connector.

Note that the bulb and the socket

are one unit and have to be

changed together.

6. Insert the bulb socket into the light

assembly by turning clockwise

and engage.

7. Mount the light assembly by

tightening the two screws.

8. Attach and engage the cover.

Front turn lights

1. Rotate the bulb socket

anticlockwise to disengage and

withdraw from the reflector.

Vehicle care

317

2. Slightly press down the bulb, turn

it anticlockwise and remove it

from the socket.

3. Replace and insert the new bulb

into socket by turning clockwise.

4. Insert the bulb socket into the

reflector and turn clockwise.

Tail lights

Light assembly in the body

Vehicle with tailgate

1. Unscrew and remove the two

screws.

2. Carefully withdraw the tail light

assembly from recess and

remove. Take care that the cable

duct remains in position.

3. Detach the cable from the

retainer.

4. Press the retaining lug

backwards, pull the bulb carrier

and disengage the remaining

retaining lugs.

318

Vehicle care

5. Push the bulb slightly down, turn

it and remove it from the bulb

carrier. Replace the bulb:
Rear fog light (1)
Reversing light (2)
Turn light / hazard warning flasher

(3)
Tail light / brake light (4)

6. Attach the bulb carrier to the light

assembly.

7. Attach the cable to the retainer.
8. Attach the light assembly to the

vehicle body and tighten both

screws.

Vehicle with rear doors

1. Unscrew and remove the two

screws.

2. Carefully withdraw the tail light

assembly from recess and

remove. Take care that the cable

duct remains in position.

3. Detach the cable from the

retainer.

4. Disengage the retaining lugs to

remove the bulb carrier.

5. Push the bulb slightly down, turn

it and remove it from the bulb

carrier. Replace the bulb:

Vehicle care

319

Tail light / brake light (1)
Turn light / hazard warning flasher

(2) outer bulb
Reversing light (3) inner bulb
Rear fog light (4)

6. Attach the bulb carrier to the light

assembly.

7. Attach the cable to the retainer.
8. Attach the light assembly to the

vehicle body and tighten both

screws.

3rd-brake light

The 3rd-brake light is designed as

LED and can not be changed.
Have lights repaired by a workshop in

case of failure.

Bulb check

Switch on the ignition, operate and

check all lights.

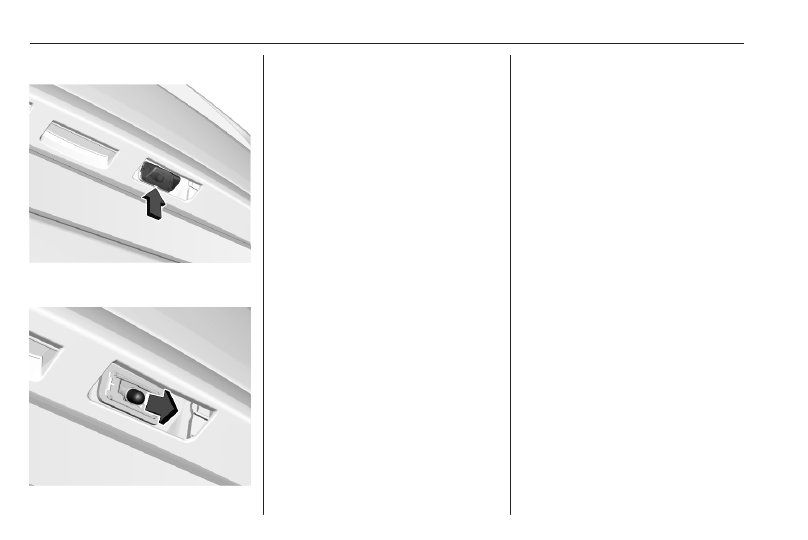

Side turn lights

To replace the bulb, remove the lamp

housing:

1. Slide the lamp housing forward

and remove it at the back.

2. Press the retaining lug upwards

and remove the bulb socket from

the plug connector.

3. Replace the complete unit.
4. Insert left end of the lamp, slide to

the left and insert right end.

Vehicle care

321

Vehicle tools

Tools

The tool box is located either

underneath the driver seat or the

passenger seat. The jack is located

underneath the passenger seat.

The tool box consists:

● Jack
● Towing eye
● Tool to access the headlights
● Wrench
● Wheel bolt cover remover
● Choke

To use the chock, fold apart and stick

together.

Wheels and tyres

Tyre condition, wheel condition

Drive over edges slowly and at right

angles if possible. Driving over sharp

edges can cause tyre and wheel

damage. Do not trap tyres on the kerb

when parking.
Regularly check the wheels for

damage. Seek the assistance of a

workshop in the event of damage or

unusual wear.

Winter tyres

Winter tyres improve driving safety at

temperatures below 7 °C and should

therefore be fitted on all wheels.
In accordance with country-specific

regulations, affix the speed sticker in

the driver's field of view, if the tyre

speed code is below the maximum

speed of the vehicle.
All tyre sizes are permitted as winter

tyres

354.

322

Vehicle care

Tyre designations

E.g. 225/55 R 18 98 V
225 : tyre width, mm

55 : cross-section ratio (tyre height

to tyre width), %

: belt type: Radial

RF : type: RunFlat

18 : wheel diameter, inches

98 : load index e.g. 98 is equivalent

to 750 kg

: speed code letter

Speed code letter:
Q : up to 100 mph

S : up to 112 mph

T : up to 118 mph

H : up to 130 mph

V : up to 150 mph

W : up to 168 mph
Choose a tyre appropriate for the

maximum speed of your vehicle.

Refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents. Optional equipment

could reduce the maximum speed of

the vehicle.

Directional tyres

Directional tyres should be mounted

so that they rotate in the correct

direction. The proper rotation

direction is indicated by a symbol

(e.g. an arrow) on the sidewall.

Tyre pressure

Check the pressure of cold tyres at

least every 14 days and before any

long journey. Do not forget the spare

wheel. This also applies to vehicles

with tyre pressure monitoring system.

Tyre pressure

354.

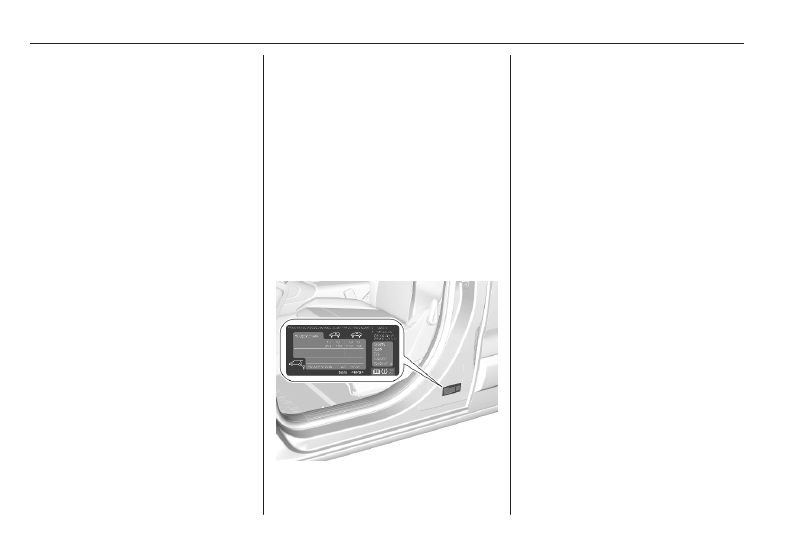

The tyre pressure information label

on the left door frame indicates the

original equipment tyres and the

correspondent tyre pressures.
The tyre pressure data refers to cold

tyres. It applies to summer and winter

tyres.
Always inflate the spare tyre to the

pressure specified for full load.
Incorrect tyre pressures will impair

safety, vehicle handling, comfort and

fuel economy and will increase tyre

wear.
Tyre pressures differ depending on

various options. For the correct tyre

pressure value, follow the procedure

below:

1. Depending on the vehicle variant,

i.e. Combo CARGO or

Combo LIFE, identify the payload

354.

2. Identify the respective tyre.

The tyre pressure tables show all

possible tyre combinations

354.

Vehicle care

323

For the tyres approved for your

vehicle, refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
The driver is responsible for correct

adjustment of tyre pressure.

Warning

If the pressure is too low, this can

result in considerable tyre warm-

up and internal damage, leading to

tread separation and even to tyre

blow-out at high speeds.

Warning

For specific tyres the

recommended tyre pressure as

shown in the tyre pressure table

may exceed the maximum tyre

pressure as indicated on the tyre.

Never exceed the maximum tyre

pressure as indicated on the tyre.

Temperature dependency

The tyre pressure depends on the

temperature of the tyre. During

driving, tyre temperature and

pressure increase. Tyre pressure

values provided on the tyre

information label and tyre pressure

chart are valid for cold tyres, which

means at 20 °C.
The pressure increases by nearly

1.5 psi for a 10 °C temperature

increase. This must be considered

when warm tyres are checked.

Tyre deflation detection

system

The tyre deflation detection system

continually checks the rotation speed

of all four wheels and warns on low

tyre pressure condition once vehicle

is driving. This is achieved by

comparing tyre rolling circumference

with reference values and further

signals.

If a tyre loses pressure the control

indicator

illuminates, a warning

chime is given and a warning

message is displayed in the Driver

Information Centre.
In this case reduce speed, avoid

sharp cornering and strong braking.

Stop at next safe opportunity and

check tyre pressure.
Control indicator

96.

After adjusting tyre pressure initialise

system to extinguish the control

indicator and restart system.

Caution

Deflation detection system warns

just about low tyre pressure

condition and does not replace

regular tyre maintenance by the

driver.

In case of a system malfunction a

message is displayed in the Driver

Information Centre. Set correct tyre

pressure and reinitialise system. If the

failure continues to be displayed,

contact a workshop. The system is

inoperable when ABS or ESC has a

324

Vehicle care

malfunction or a temporary spare

wheel is used. Once the road tyre has

been refitted, check the tyre pressure

with cold tyres and initialise the

system.

System initialisation

After tyre pressure correction or

wheel change, the system must be

initialised to learn new circumference

reference values:

1. Always ensure that all four tyres

have correct tyre pressure

354.

2. Apply parking brake.

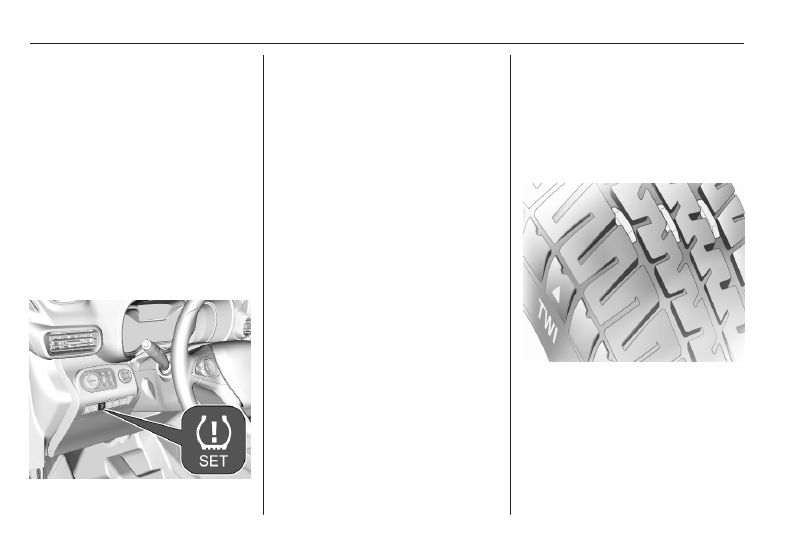

3. Initialise the deflation detection

system: If the vehicle has a

graphic info display, press

for

three seconds. If the vehicle has a

colour info display, the

initialisation is done in the vehicle

personalisation

107.

4. Reset is confirmed by pop-up

indication.

After initialisation system

automatically calibrates to new tyre

pressures during driving. After longer

drive the system will adopt and

monitor new pressures.
Always check tyre pressure with cold

tyres.
System has to be reinitialised when:

● Tyre pressure has been changed
● Load condition has been

changed

● Wheels have been swapped or

exchanged

The system will not warn

instantaneously on a tyre blow out or

a rapid deflation. This is due to

required calculation time.

Tread depth

Check tread depth at regular

intervals.
For safety reasons, it is

recommended that the tread depth of

the tyres on one axle should not vary

by more than 2 mm.

The legally permissible minimum

tread depth (1.6 mm) has been

reached when the tread has worn

down as far as one of the tread wear

indicators (TWI). Their position is

indicated by markings on the

sidewall.

Vehicle care

325

If there is more wear at the front than

the rear, swap round front wheels and

rear wheels periodically. Ensure that

the direction of rotation of the wheels

remains the same.
Tyres age, even if they are not used.

We recommend tyre replacement

every six years.

Changing tyre and wheel

size

If tyres of a different size than those

fitted at the factory are used, it may be

necessary to reprogramme systems

and make other vehicle modifications.
Have the label with tyre pressures

replaced.

Warning

The use of unsuitable tyres or

wheels may lead to accidents and

will invalidate the vehicle

operating permit.

Wheel covers

Wheel covers and tyres that are

factory approved for the respective

vehicle and comply with all of the

relevant wheel and tyre combination

requirements must be used.
If the wheel covers and tyres used are

not factory approved, the tyres must

not have a rim protection ridge.
Wheel covers must not impair brake

cooling.

Warning

Use of unsuitable tyres or wheel

covers could lead to sudden

pressure loss and thereby

accidents.

Vehicles with steel wheels: When

using locking wheel nuts, do not

attach wheel covers.

Tyre chains

Tyre chains are only permitted on the

front wheels.
Always use fine mesh chains that add

no more than 9 mm to the tyre tread

and the inboard sides (including chain

lock).

Warning

Damage may lead to tyre blowout.

Tyre chains are permitted on all tyres

sizes allowed for the vehicle.

Vauxhall Combo E (2023 year). Manual in english - page 10
