Vauxhall Astra L (2023 year). Manual in english

230

Vehicle care

The front arm position of the lifting

platform is centrically under the

relevant vehicle jacking point.

Spare wheel

The spare wheel can be classified as

a temporary spare wheel depending

on the size compared to the other

mounted wheels and country

regulations. In this case a permissible

maximum speed applies, even

though no label at the spare wheel

indicates this.
If there is a label on the spare wheel,

the permissible speed still depends

on the country regulations.
Only mount one temporary spare

wheel. Take curves slowly. Do not

use for a long period of time.

Caution

The use of a spare wheel that is

smaller than the other wheels or in

combination with winter tyres

could affect driveability. Have the

defective tyre replaced as soon as

possible.

The spare wheel is located in the load

compartment beneath the floor

covering.
To remove:

1. Open the floor cover

60.

2. The temporary spare wheel is

secured with a wing nut. Unscrew

nut and take out the spare wheel.

3. When, after a wheel change, no

wheel is placed in the spare wheel

well, tighten the wing nut and

close floor cover.

4. After wheel change back to full

size wheel, place the temporary

spare wheel in the well and secure

with the wing nut.

The permissible maximum speed on

the label on the temporary spare

wheel is only valid for the factory-

fitted tyre size.

Fitting the spare wheel

Make the following preparations and

observe the following information:

● Park the vehicle on a level, firm

and non-skid surface. The front

wheels must be in the straight-

ahead position.

● Apply the parking brake and

engage first gear, reverse gear or

● Place a chock under the wheel

diagonally opposite the wheel to

be changed.

● Remove the spare wheel.
● Never change more than one

wheel at once.

● Use the jack only to change

wheels in case of puncture, not

for seasonal winter or summer

tyre change.

● The jack is maintenance-free.

Vehicle care

231

● If the ground on which the vehicle

is standing is soft, a solid board

(approx. 1 cm thick) should be

placed under the jack.

● Take heavy objects out of the

vehicle before jacking up.

● No people or animals may be in

the vehicle when it is jacked-up.

● Never crawl under a jacked-up

vehicle.

● Do not start the vehicle when it is

raised on the jack.

● Before screwing in the wheel

bolts, clean them.

Warning

Do not grease wheel bolts.

Warning

Ensure to use always the correct

wheel bolts if changing the

wheels. When installing the spare

wheel for temporary usage, the

bolts for alloy wheel rims can also

be used.

● Note that the spare wheel is

secured by the conical contact of

each bolt if the wheel bolts for the

alloy wheel rims are used. In this

case, the washers do not come

into contact with the spare wheel.

1. Disengage wheel bolt caps with

the wheel bolt cover remover.
Vehicle tools

220.

Steel wheel rims with cover: Pull

off the wheel cover.

2. Attach the wheel wrench and

loosen each wheel bolt by half a

turn.
The wheels might be protected by

locking wheel nuts. To loosen

these specific nuts first attach the

adapter onto the head of the nut

before installing the wheel

wrench. The adapter is located in

the tool bag

220.

232

Vehicle care

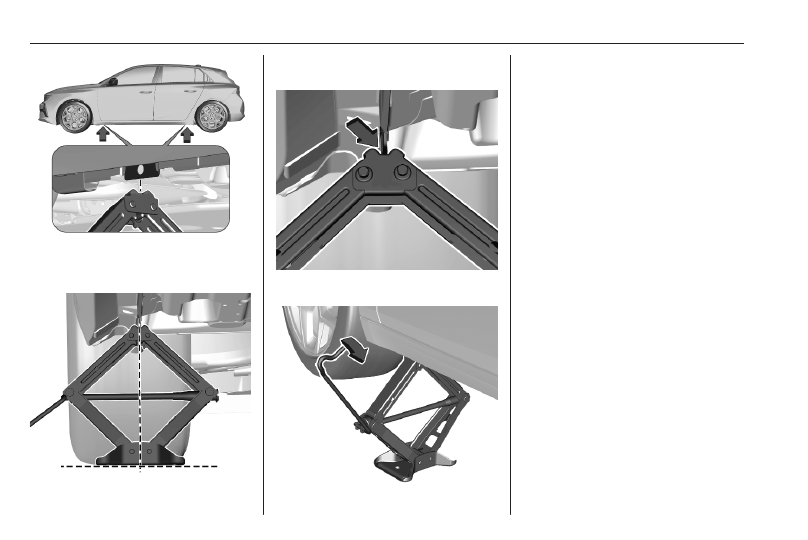

3. Ensure the jack is correctly

positioned under the relevant

vehicle jacking point.

4. Set the jack to the necessary

height. Position it directly below

the jacking point in a manner that

prevents it from slipping.

Ensure that the edge of the body

fits into the notch of the jack.

With the jack correctly aligned

jack up until wheel is clear of the

ground.

5. Unscrew the wheel nuts.
6. Change the wheel.
7. Screw on the wheel nuts.
8. Lower the vehicle and remove

jack.

9. Install the wheel wrench ensuring

that it is located securely and

tighten each bolt in a crosswise

sequence.
Tightening torque is 115 Nm.

10. Stow the replaced wheel, the

vehicle tools and the adapter for

the locking wheel nuts

220.

11. Check the tyre pressure of the

installed tyre and the wheel bolt

torque as soon as possible.

Stowing a damaged full size

wheel in the load compartment

The spare wheel well is not designed

for other tyre sizes than the spare

wheel. A damaged full size wheel

must be stowed in the load

compartment and secured properly.

Vehicle care

233

Loading information

63.

Jump starting

Do not start with quick charger.
A vehicle with a discharged vehicle

battery can be started using jump

leads and the vehicle battery of

another vehicle.

Caution

Never jump start another vehicle

with a PHEV or BEV.

Warning

Be extremely careful when starting

with jump leads. Any deviation

from the following instructions can

lead to injuries or damage caused

by battery explosion or damage to

the electrical systems of both

vehicles.

Warning

Avoid contact of the battery with

eyes, skin, fabrics and painted

surfaces. The fluid contains

sulphuric acid which can cause

injuries and damage in the event

of direct contact.

Caution

Connect the jump lead terminals in

a way that they do not come in

contact with control units. Select a

suitable terminal position.

● Never expose the vehicle battery

to naked flames or sparks.

● A discharged vehicle battery can

already freeze at a temperature

of 0 °C. Defrost the frozen battery

before connecting jump leads.

● Wear eye protection and

protective clothing when

handling a battery.

234

Vehicle care

● Use a booster battery with the

same voltage (12 V). Its capacity

(Ah) must not be much less than

that of the discharged vehicle

battery.

● Use jump leads with insulated

terminals and a cross section of

at least 16 mm

(25 mm

for

diesel engines).

● Do not disconnect the discharged

vehicle battery from the vehicle.

● Switch off all unnecessary

electrical consumers.

● Do not lean over the vehicle

battery during jump starting.

● Do not allow the terminals of one

lead to touch those of the other

lead.

● The vehicles must not come into

contact with each other during

the jump starting process.

● Apply the parking brake,

transmission in neutral,

automatic transmission in P.

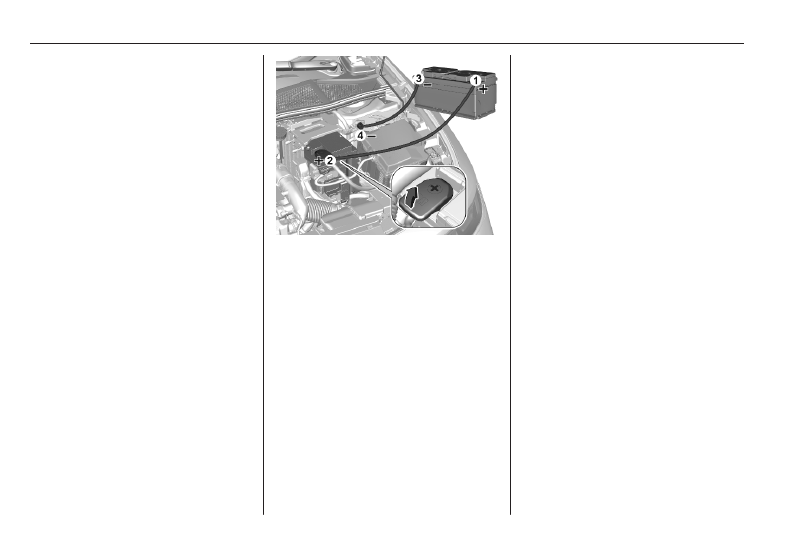

Lead connection order:

1. Connect the red lead to the

positive terminal of the booster

battery.

2. Connect the other end of the red

lead to the positive terminal of the

discharged battery.

3. Connect the black lead to the

negative terminal of the booster

battery.

4. Connect the other end of the black

lead to a vehicle grounding point

of your vehicle in the engine

compartment.

Route the leads so that they cannot

catch on rotating parts in the engine

compartment.
To start the engine:

1. Start the engine of the vehicle

providing the jump.

2. After five minutes, start the other

engine. Start attempts should be

made for no longer than

15 seconds at an interval of one

minute.

3. Allow both engines to idle for

approx. three minutes with the

leads connected.

4. Switch on electrical consumers

e.g. headlights, heated rear

window.

5. Reverse above sequence exactly

when removing leads.

Vehicle care

235

Towing

Towing the vehicle

Remove the cap.
The towing eye is stowed with the

vehicle tools

220.

Screw in the towing eye as far as it will

go until it stops in a horizontal

position.
Attach the tow rod to the towing eye.
The towing eye must only be used for

towing and not for recovering the

vehicle.
Switch on ignition to release steering

wheel lock and to permit operation of

brake lights, horn and windscreen

wiper.

Caution

Deactivate the driver assistance

systems like active emergency

braking

161, otherwise the

vehicle may automatically brake

during towing.

Switch the selector lever to neutral.
Release the parking brake.

Caution

Drive slowly. Do not drive jerkily.

Excessive tractive force can

damage the vehicle.

When the engine is not running,

considerably more force is needed to

brake and steer.
To prevent the entry of exhaust gases

from the towing vehicle, switch on the

air recirculation and close the

windows.
When towing a vehicle equipped with

an automatic transmission, transport

the vehicle on a platform or tow it with

the front wheels lifted.

236

Vehicle care

After towing, unscrew the towing eye.
Insert cap with the flange into the

recess and fix cap by pushing.

Towing another vehicle

Remove the cap.
The towing eye is stowed with the

vehicle tools

220.

Screw in the towing eye as far as it will

go until it stops in a horizontal

position.
Attach a tow rope – or better still a tow

rod – to the towing eye.
The towing eye must only be used for

towing and not for recovering a

vehicle.

Caution

Drive slowly. Do not drive jerkily.

Excessive tractive force can

damage the vehicle.

After towing, unscrew the towing eye.

Insert cap with the upper flange into

the recess and fix cap by pushing.

Vehicle care

237

Appearance care

Exterior care

Locks

The locks are lubricated at the factory

using a high quality lock cylinder

grease. Use a de-icing agent only

when absolutely necessary, as this

has a degreasing effect and impairs

lock function. After using a de-icing

agent, have the locks regreased by a

workshop.

Washing

The paintwork of your vehicle is

exposed to environmental influences.
Bird droppings, dead insects, resin,

pollen and the like should be cleaned

off immediately, as they contain

aggressive constituents which can

cause paint damage.
If using a vehicle wash, comply with

the vehicle wash manufacturer's

instructions. The windscreen wiper

and rear window wiper must be

switched off. Remove antenna and

external accessories such as roof

racks etc.
If you wash your vehicle by hand,

make sure that the insides of the

wheel housings are also thoroughly

rinsed out.
Clean edges and folds on opened

doors and the bonnet as well as the

areas they cover.
Clean bright metal mouldings with a

cleaning solution approved for

aluminium to avoid damages.

Caution

Always use a cleaning agent with

a pH value of 4 to 9.
Do not use cleaning agents on hot

surfaces.

Do not clean the engine compartment

with a steam-jet or high-pressure jet

cleaner.
Thoroughly rinse and leather-off the

vehicle. Rinse leather frequently. Use

separate leathers for painted and

glass surfaces: remnants of wax on

the windows will impair vision.

Have the door hinges of all doors

greased by a workshop.

Exterior lights

Headlight and other light covers are

made of plastic. Do not use any

abrasive or caustic agents, do not use

an ice scraper, and do not clean them

dry.

Polishing and waxing

Polishing is necessary only if the paint

has become dull or if solid deposits

have become attached to it.
Plastic body parts must not be treated

with wax or polishing agents.

Windows and wiper blades

Switch off wipers before handling in

their areas.
Use a soft lint-free cloth or chamois

leather together with window cleaner

and insect remover.
When cleaning the rear window from

inside, always wipe in parallel to the

heating element to prevent damage.

238

Vehicle care

For mechanical removal of ice, use a

sharp-edged ice scraper. Press the

scraper firmly against the glass so

that no dirt can get under it and

scratch the glass.
Clean smearing wiper blades with a

soft cloth and window cleaner. Also

make sure to remove any residues

such as wax, insect residues and

similar from the window.
Ice residues, pollution and continuous

wiping on dry windows will damage or

even destroy the wiper blades.

Wheels and tyres

Do not use high-pressure jet

cleaners.
Clean rims with a pH-neutral wheel

cleaner.
Rims are painted and can be treated

with the same agents as the body.

Paintwork damage

Rectify minor paintwork damage with

a touch-up pen before rust forms.

Have more extensive damage or rust

areas repaired by a workshop.

Underbody

Some areas of the vehicle underbody

have a PVC undercoating while other

critical areas have a durable

protective wax coating.
After the underbody is washed, check

the underbody and have it waxed if

necessary.
Bitumen / rubber materials could

damage the PVC coating. Have

underbody work carried out by a

workshop.
Before and after winter, wash the

underbody and have the protective

wax coating checked.

Towing equipment

Do not clean the coupling ball bar with

a steam-jet or high-pressure jet

cleaner.

Interior care

Interior and upholstery

Only clean the vehicle interior,

including the instrument panel fascia

and panelling, with a dry cloth or

interior cleaner.
Clean the leather upholstery with

clear water and a soft cloth. In case of

heavy soiling, use leather care.
The Driver Information Centre and

the displays should only be cleaned

using a soft damp cloth. If necessary

use a weak soap solution.
Clean the inside of the windscreen as

needed to remove any dirt or film that

could reduce the sharpness or clarity

of the head-up image.
Clean the head-up display lens in the

instrument panel with a soft cloth

sprayed with glass cleaner. Wipe the

lens gently, then dry it.
Clean fabric upholstery with a

vacuum cleaner and brush. Remove

stains with an upholstery cleaner.

Vehicle care

239

Clothing fabrics may not be

colourfast. This could cause visible

discolourations, especially on light-

coloured upholstery. Removable

stains and discolourations should be

cleaned as soon as possible.
Clean seat belts with lukewarm water

or interior cleaner.

Caution

Close Velcro fasteners as open

Velcro fasteners on clothing could

damage seat upholstery.
The same applies to clothing with

sharp-edged objects, like zips or

belts or studded jeans.

Plastic and rubber parts

Plastic and rubber parts can be

cleaned with the same cleaner as

used to clean the body. Use interior

cleaner if necessary. Do not use any

other agent. Avoid solvents and petrol

in particular. Do not use high-

pressure jet cleaners.

Floor mats

Warning

If a floor mat has the wrong size or

is not properly installed, it can

interfere with pedals, what can

cause unintended acceleration or

increased stopping distance which

can cause a crash and injury.

Use the following guidelines for

proper floor mat usage.

● The original equipment floor mats

were designed for this vehicle. If

the floor mats need to be

replaced, it is recommended to

buy certified floor mats which fit

properly and are fixed by the

retainers on the driver side.

Always check that the floor mats

do not interfere with the pedals.

● Use the floor mat with the correct

side up. Do not turn it over.

● Do not place anything on top of

the driver side floor mat.

● Use only a single floor mat on the

driver side.

Inserting and removing the floor

mats

The driver side floor mat is held in

place by two retainers.
To install the floor mat:

1. Move the seat backwards as far

as possible.

2. Align slots in the mat with the

retainers, as shown.

3. Push the mat to the floor.

Removing

1. Move the seat backwards as far

as possible.

2. Remove the mat.

240

Service and maintenance

Service and

maintenance

General information ................... 240

Service information .................. 240

Recommended fluids, lubricants

and parts .................................... 243

Recommended fluids and

lubricants ................................ 243

General information

Service information

In order to ensure economical and

safe vehicle operation and to

maintain the value of your vehicle, it

is of vital importance that all

maintenance work is carried out at the

proper intervals as specified.
The detailed, up-to-date service

schedule for your vehicle is available

at the workshop.
Severe operating conditions exist if

one or more of the following

circumstances occur frequently: Cold

starting, stop and go operation, e.g.

for taxis and police vehicles, trailer

operation, mountain driving, driving

on poor and sandy road surfaces,

increased air pollution, presence of

airborne sand and high dust content,

driving at high altitude and large

variations of temperature.
Under these severe operating

conditions, certain service work may

be required more frequently than the

regular service interval indicated in

the service display. Contact a

workshop for customised service

schedules.
Service display

76.

Service and maintenance

241

Service intervals

Engine code

EB2ATD,
EB2ADTS,
EB2ADTSM

DV5RC

EP6FADTXHPD
EP6FADTXHPE

Electric engine

Country group 1 12,500 miles / 1 year

20,000 miles / 1 year

16,000 miles / 2 years

Unless otherwise indicated in the service display.

Initial service interval is 8,000 miles / 1 year

Country Group 1:

Andorra, Austria, Belgium, Cyprus, Denmark, Finland, France, Germany, Greece, Iceland, Italy, Liechtenstein,

Luxembourg, Malta, Monaco, Netherlands, Norway, Portugal, Republic of Ireland, San Marino, Spain, Sweden,

Switzerland, United Kingdom.
Country Group 2:

Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Hungary, Latvia, Lithuania, North Macedonia, Poland,

Romania, Slovakia, Slovenia.
Country Group 3:

Albania, Kosovo, Montenegro, New Zealand, Serbia.
Country Group 4:

Israel, Lesotho, South Africa, Swaziland, Turkey.
Country Group 5:

Russia.
Country Group 6:

All other countries which are not listed in the previous country groups.

Service and maintenance

243

Recommended fluids,

lubricants and parts

Recommended fluids and

lubricants

Only use products that meet the

recommended specifications.

Warning

Operating materials are

hazardous and could be

poisonous. Handle with care. Pay

attention to information given on

the containers.

Engine oil

Engine oil is identified by its quality

and its viscosity. Quality is more

important than viscosity when

selecting which engine oil to use. The

oil quality ensures e.g. engine

cleanliness, wear protection and oil

aging control, whereas viscosity

grade gives information on the oil's

thickness over a temperature range.

Select the appropriate engine oil

based on its quality and on the

minimum ambient temperature.

Topping up engine oil

Caution

In case of any spilled oil, wipe it up

and dispose it properly.

Engine oils of different manufacturers

and brands can be mixed as long as

they comply with the required engine

oil quality and viscosity.
Use of engine oils for all petrol

engines with only ACEA quality is

prohibited, since it can cause engine

damage under certain operating

conditions.
Select the appropriate engine oil

based on its quality and on the

minimum ambient temperature.

Additional engine oil additives

The use of additional engine oil

additives could cause damage and

invalidate the warranty.

Engine oil viscosity grades

The SAE viscosity grade gives

information of the thickness of the oil.
Multigrade oil is indicated by two

figures, e.g. SAE 5W-30. The first

figure, followed by a W, indicates the

low temperature viscosity and the

second figure the high temperature

viscosity.
Select the appropriate viscosity grade

depending on the minimum ambient

temperature.
All of the recommended viscosity

grades are suitable for high ambient

temperatures.

Coolant and antifreeze

Use only antifreeze approved for the

vehicle. Consult a workshop.
The system is factory filled with

coolant designed for excellent

corrosion protection and frost

protection down to approx. -28 °C. In

cold regions with very low

temperatures the factory filled coolant

provides frost protection down to

approx. -37 °C. This concentration

should be maintained all year round.

244

Service and maintenance

The use of additional coolant

additives that intend to give additional

corrosion protection or seal against

minor leaks can cause function

problems. Liability for consequences

resulting from the use of additional

coolant additives will be rejected.

Washer fluid

Use only washer fluid approved for

the vehicle to prevent damage of

wiper blades, paintwork, plastic and

rubber parts. Consult a workshop.

Brake and clutch fluid

Over time, brake fluid absorbs

moisture which will reduce braking

effectiveness. The brake fluid should

therefore be replaced at the specified

interval.
Use only brake fluid approved for the

vehicle. Consult a workshop.

AdBlue

Only use AdBlue to reduce the

nitrogen oxides in the exhaust

emission

132.

Technical data

245

Technical data

Vehicle identification .................. 245

Vehicle identification number . . 245

Identification plate ................... 245

Engine identification ................ 246

Vehicle data ............................... 247

Recommended fluids and

lubricants ................................ 247

Engine data ............................. 248

Vehicle dimensions ................. 250

Capacities ................................ 251

Tyre pressures ........................ 252

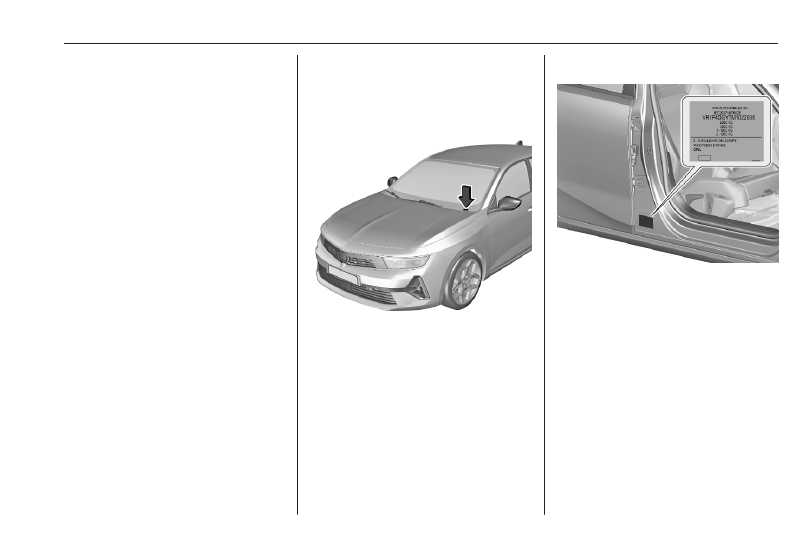

Vehicle identification

number

The Vehicle Identification Number

may be embossed on the instrument

panel, visible through the windscreen,

or in the engine compartment on the

right body panel.

Identification plate

The identification plate is located on

the front right door frame. The layout

and position differ for some export

countries.

246

Technical data

Information on identification label:
1 : manufacturer

2 : type approval number

3 : vehicle identification number

4 : permissible gross vehicle weight

rating in kg

5 : permissible gross train weight

in kg

6 : maximum permissible front axle

load in kg

7 : maximum permissible rear axle

load in kg

8 : manufacturer address, vehicle-

specific or country-specific data

9 : vehicle brand

The combined total of front and rear

axle loads must not exceed the

permissible gross vehicle weight.
Vehicle's kerb weight depends on the

specification of the vehicle, e.g.

optional equipment and accessories.

Refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
The technical data is determined in

accordance with European

Community standards. We reserve

the right to make modifications.

Specifications in the vehicle

documents always have priority over

those given in this manual.

Engine identification

The technical data tables show the

engine identifier code.
Engine data

248.

To identify the respective engine,

refer to the engine power in the EEC

Certificate of Conformity provided

with your vehicle or other national

registration documents.

Technical data

247

Vehicle data

Recommended fluids and lubricants

Required engine oil quality

Country groups

240

Countries included in country groups 1 to 3 and 5

all engines

Vauxhall Original engine oil

B71 2010 / B71 2312

Engine oil viscosity grades

B71 2010

B71 2312

B71 2302

B71 2297

Engine oil viscosity grade

SAE 0W-20

SAE 0W-30

SAE 5W-30

248

Technical data

Engine data

Engine identifier code

EB2ADT EB2ADTS EB2ADTSM DV5RC

EP6FADTXHPE

EP6FADTXHPD

Sales designation

1.2 T

1.5 D

–

Piston displacement [cm

]

1199

1498/1499

1598

Engine power [kW]

110

133

at rpm

5500

3750

6000

Torque [Nm]

205

230

300

250

at rpm

1750

Fuel type

Petrol

Diesel

Petrol

Octane rating RON

1)2)

recommended

–

possible

–

possible

–

A country specific label at the fuel filler flap can supersede the engine specific requirement.

In certain countries, the use of a particular fuel, e.g. a specific octane rating, may be required to ensure proper engine operation.

250

Technical data

Vehicle dimensions

5-door Hatchback

Sports Tourer

Length [mm]

4374

4642

Width with two exterior mirrors folded [mm]

1860

Width with two exterior mirrors [mm]

2062

Height (without antenna) [mm]

1441-1472

1443-1481

Length of load compartment floor [mm]

795
770

1026

Length of load compartment with folded second row [mm]

1589

1850

Load compartment width between wheel arches [mm]

1020

1032

Wheelbase [mm]

2675

2732

Turning circle diameter [m]

10.51

10.7

PHEV

with front seat in middle longitudinal position

Technical data

251

Capacities

Engine oil

Engine

EB2ADT,
EB2ADTS

EB2ADTSM

DV5RC

EP6FADTXHPE,
EP6FADTXHPD

including filter [l]

3.5

3.6

3.8

4.3

between MIN and MAX [l]

1.1

1.6

1.2

Fuel tank

Petrol / diesel (ICE), refilling quantity [l]

Petrol (PHEV), refilling quantity [l]

AdBlue tank

AdBlue, refilling quantity [l]

High voltage battery

Battery capacity (PHEV) [kWh]

12.4

Battery capacity (BEV) [kWh]

252

Technical data

Tyre pressures

5-door Hatchback

Vehicle with up to 3 people

With full load

Tyres

Engine

front

rear

front

rear

[kPa/bar] ([psi]) [kPa/bar] ([psi]) [kPa/bar] ([psi]) [kPa/bar] ([psi])

205/55 R16 94V XL

EB2ADT,
EB2ADTS,
DV5RC,
EP6FADTXHPD

230/2.3 (33)

240/2.4 (35)

320/3.2 (46)

205/55 R16 91V NL

EB2ADT,
EB2ADTS

230/2.3 (33)

210/2.1 (30)

240/2.4 (35)

310/3.1 (45)

205/55 R16 94V all-season tyre EB2ADT,

EB2ADTS,
DV5RC

230/2.3 (33)

210/2.1 (30)

240/2.4 (35)

310/3.1 (45)

225/45 R17

EB2ADT,
EB2ADTS

240/2.4 (35)

220/2.2 (32)

250/2.5 (36)

310/3.1 (45)

DV5RC

240/2.4 (35)

230/2.3 (33)

250/2.5 (36)

310/3.1 (45)

EP6FADTXHPD 280/2.8 (41)

260/2.6 (38)

270/2.7 (39)

330/3.3 (48)

Technical data

253

Vehicle with up to 3 people

With full load

Tyres

Engine

front

rear

front

rear

[kPa/bar] ([psi]) [kPa/bar] ([psi]) [kPa/bar] ([psi]) [kPa/bar] ([psi])

225/40 R18

EB2ADT,
EB2ADTS

230/2.3 (33)

210/2.1 (30)

230/2.3 (33)

300/3.0 (44)

DV5RC

230/2.3 (33)

220/2.2 (32)

230/2.3 (33)

300/3.0 (44)

EP6FADTXHPD 260/2.6 (38)

250/2.5 (36)

260/2.6 (38)

310/3.1 (45)

215/45 R18

Electric engine

260/2.6 (38)

240/2.4 (35)

290/2.9 (42)

Manual transmission

254

Technical data

Sports Tourer

Vehicle with up to 3 people

With full load

Tyres

Engine

front

rear

front

rear

[kPa/bar] ([psi])

205/55 R16 91V XL

EB2ADT,
EB2ADTS,
DV5RC

230/2.3 (33)

240/2.4 (35)

320/3.2 (46)

205/55 R16 91V NL

EB2ADT

230/2.3 (33)

210/2.1 (30)

240/2.4 (35)

320/3.2 (46)

225/45 R17 94V XL

EB2ADT,
EB2ADTS

240/2.4 (35)

220/2.2 (32)

250/2.5 (36)

310/3.1 (45)

EB2ADTS

DV5RC

240/2.4 (35)

230/2.3 (33)

250/2.5 (36)

310/3.1 (45)

EP6FADTXHPD

280/2.8 (41)

270/2.7 (39)

330/3.3 (48)

225/40 R18 92Y XL

EB2ADT,
EB2ADTS

230/2.3 (33)

210/2.1 (30)

230/2.3 (33)

300/3.0 (44)

DV5RC

230/2.3 (33)

220/2.2 (32)

230/2.3 (33)

300/3.0 (44)

EP6FADTXHPD

260/2.6 (38)

250/2.5 (36)

260/2.6 (38)

310/3.1 (45)

Manual transmission

Automatic transmission

Customer information

255

Customer

information

Customer information ................ 255

Declaration of conformity ......... 255

REACH .................................... 255

Software update ...................... 255

Registered trademarks ............ 257

Vehicle data recording and pri‐

vacy ........................................... 257

Emergency call data recording

and privacy ............................. 257

Event data recorders ............... 258

Radio Frequency Identification

(RFID) ..................................... 261

Customer information

Declaration of conformity

Radio transmission systems

This vehicle has systems that

transmit and / or receive radio waves

subject to Directive 2014/53/EU and

The Radio Equipment Regulations

2017 by the United Kingdom. The

manufacturers of the systems declare

conformity with

Directive 2014/53/EU and

The Radio Equipment Regulations

2017. The full text of the EU

declaration of conformity and

information about operation

frequency with maximum power for

each system are available at the

following internet address:

www.opel.com/conformity.
Importer is Vauxhall Motors Limited,

MP UK 1-101-135, Chalton House,

Luton Road, Chalton, Luton,

Bedfordshire, LU4 9TT, United

Kingdom.

REACH

Registration, Evaluation,

Authorisation and Restriction of

Chemicals (REACH) is a European

Union regulation adopted to improve

the protection of human health and

the environment from the risks that

can be posed by chemicals. Visit

www.opel.com for further information

and for access to the Article 33

communication.

Software update

The Infotainment system can

download and install selected

software updates over a wireless

connection.

Notice

The availability of these over-the-air

vehicle software updates varies by

vehicle and country. Find more

information on our website.

256

Customer information

Remote device management and

remote software and firmware

updates

As an integral part of the service

related to the performance of

subscribed connected service

contracts, necessary device

management and necessary

software and firmware updates

related to the software and firmware

for the named connected service will

be performed remotely, in particular

by using over-the-air technology.
For this, a secure radio network

connection between the vehicle and

the device management server will be

established when ignition is switched

on and a mobile network is available.

Depending on the equipment of the

vehicle, connection configuration

must be set to Connected vehicle to

allow the establishment of the radio

network connection.
Irrespective of a valid connected

service subscription, remote product

security or product safety related

device management and software

and firmware updates will be

performed when the processing is

necessary for the compliance with a

legal obligation to which the

manufacturer is subject (e.g.

applicable product liability law,

emergency call regulation) or when

the processing is necessary in order

to protect the vital interests of the

respective vehicle users and

passengers.
The establishment of a secure radio

network connection and the related

remote updates are not affected by

privacy settings and will be performed

in principal after an initiation by the

vehicle user following a respective

notification.
The system is able to notify receipt of

an update as soon as it is connected

to an exterior Wi-Fi network or a

mobile network. Large updates are

downloaded only via the Wi-Fi

network.
The availability of an update is

notified on the Info Display at the end

of a trip with an option of immediate

installation or postponement of

installation.

The installation time is variable and

can take several minutes with a

maximum of about 30 minutes. A

notification will give an estimate of the

duration and a description of the

update.
Updates can be checked manually

via the Info Display. Follow the on-

screen prompts in the respective

menu.
Info Display

87.

Notice

Steps for downloading and installing

updates may vary by vehicle.

For safety reasons and because it

requires sustained attention by the

driver, the installation must be carried

out with the ignition on without

starting the engine. The installation

cannot be carried out in the following

cases:

● engine running
● emergency call in progress
● insufficient vehicle battery

charge

● charging the vehicle's high

voltage battery

Customer information

257

Notice

During the installation process, the

vehicle may not be operational.

If the update has failed, seek the

assistance of a workshop.

Registered trademarks

Apple Inc.

Apple CarPlay™ is a trademark of

Apple Inc.
App Store

and iTunes Store

are

registered trademarks of Apple Inc.
iPhone

, iPod

, iPod touch

, iPod

nano

, iPad

and Siri

are registered

trademarks of Apple Inc.
Bluetooth SIG, Inc.

Bluetooth

is a registered trademark

of Bluetooth SIG, Inc.
DivX, LLC

DivX

and DivX Certified

are

registered trademarks of DivX, LLC.
Google Inc.

Android™ and Google Play™ Store

are trademarks of Google Inc.

Velcro Companies

Velcro

is a registered trademark of

Velcro Companies.
Verband der Automobilindustrie e.V.

AdBlue

is a registered trademark of

the VDA.

Vehicle data recording

and privacy

Emergency call data

recording and privacy

Data processing

All processing of personal information

by the emergency call function

complies with the framework for

protection of personal information

established by regulation 2016/679

(GDPR) and directive 2002/58/EC of

the European Parliament and the

Council, and in particular, seeks to

protect the vital interests of the data

subject, in accordance with article

6.1, paragraph d) of regulation

2016/679.
The processing of personal

information is strictly limited to the

requirements of the emergency call

function used with the European

emergency call number.
The emergency call function is only

able to collect and process the

following data relating to the vehicle:

chassis number, type (passenger

258

Customer information

vehicle or light commercial vehicle),

fuel type or power source, three most

recent locations and direction of

travel, number of passengers and a

timestamped log file recording

technical data related to the system's

operation.
The recipients of the processed data

are the emergency call handling

centres designated by the relevant

national authorities in the territory in

which they are located, enabling

priority routing and handling of calls to

the emergency number.

Data storage

Data contained in the system's

memory is not accessible from

outside the system until a call is

made. The system is not traceable

and is not continuously monitored in

its normal operation mode.
The data in the system's internal

memory is automatically and

continuously erased. Only the

vehicle's three most recent locations,

necessary for the normal functioning

of the system, are stored.

When an emergency call is triggered,

the data log is stored for no more than

13 hours.

Access to data

You have the right to access the data

and, if necessary, submit a request to

rectify, erase or restrict the

processing of any personal

information not processed in

accordance with the provisions of

Regulation 2016/679 (GDPR). Third

parties to which data has been

communicated shall be notified of any

rectification, erasure or restriction

carried out in accordance with the

aforementioned directive, unless

doing so would be impossible or

require a disproportionate effort.
You also have the right to lodge a

complaint with the relevant data

protection authority.
If you want to claim your above-

mentioned rights please contact us

per email at

privacyrights@mpsa.com.

For more information regarding our

contact details please take a look at

our Privacy & Cookies Policy on our

website.

Event data recorders

Electronic control units are installed in

your vehicle. Control units process

data which is received by vehicle

sensors, for example, or which they

generate themselves or exchange

amongst themselves. Some control

units are necessary for the safe

functioning of your vehicle, others

assist you while you drive (driver

assistance systems), while others

provide comfort or infotainment

functions.
The following contains general

information about data processing in

the vehicle. You will find additional

information as to which specific data

is uploaded, stored and passed on to

third parties and for what purpose in

your vehicle under the key word Data

Protection closely linked to the

references for the affected functional

Customer information

259

characteristics in the relevant owner's

manual or in the general terms of

sale. These are also available online.

Operating data in the vehicle

Control units process data for

operation of the vehicle.
This data includes, for example:

● vehicle status information (e.g.

speed, movement delay, lateral

acceleration, wheel rotation rate,

"seat belts fastened" display)

● ambient conditions (e.g.

temperature, rain sensor,

distance sensor)

As a rule such data is transient and is

not stored for longer than an

operational cycle, and only processed

on board the vehicle itself. Often

control units include data storage

(including the vehicle key). This is

used to allow information to be

documented temporarily or

permanently on vehicle condition,

component stress, maintenance

requirements and technical events

and errors.

Depending on technical equipment

levels, the data stored is as follows:

● system component operating

states (e.g. fill level, tyre

pressure, battery status)

● faults and defects in important

system components (e.g. lights,

brakes)

● system reactions in special

driving situations (e.g. triggering

of an airbag, actuation of the

stability control systems)

● information on events damaging

the vehicle

● for electric vehicles the amount of

charge in the high-voltage

battery, estimated range

In special cases (e.g. if the vehicle

has detected a malfunction), it may be

necessary to save data that would

otherwise just be volatile.
When you use services (e.g. repairs,

maintenance), the operating data

saved can be read together with the

vehicle identification number and

used where necessary. Staff working

for the service network (e.g. garages,

manufacturers) or third parties (e.g.

breakdown services) can read the

data from the vehicle. The same

applies to warranty work and quality

assurance measures.
Data is generally read via the OBD

(On-Board Diagnostics) port

prescribed by law in the vehicle. The

operating data read documents the

technical condition of the vehicle or

individual components and assists

with fault diagnosis, compliance with

warranty obligations and quality

improvement. This data, in particular

information on component stress,

technical events, operator errors and

other faults, is transmitted to the

manufacturer where appropriate,

together with the vehicle identification

number. The manufacturer is also

subject to product liability. The

manufacturer potentially also uses

operating data from vehicles for

product recalls. This data can also be

used to check customer warranty and

guarantee claims.
Fault memories in the vehicle can be

reset by a service company when

carrying out servicing or repairs or at

your request.

260

Customer information

Comfort and infotainment

functions

Comfort settings and custom settings

can be stored in the vehicle and

changed or reset at any time.
Depending on the equipment level in

question, these include

● seat and steering wheel position

settings

● chassis and air conditioning

settings

● custom settings such as interior

lighting

You can input your own data in the

infotainment functions for your

vehicle as part of the selected

features.
Depending on the equipment level in

question, these include

● multimedia data such as music,

videos or photos for playback in

an integrated multimedia system

● address book data for use with an

integrated hands-free system or

an integrated navigation system

● input destinations
● data on the use of online services

This data for comfort and

infotainment functions can be stored

locally in the vehicle or be kept on a

device that you have connected to the

vehicle (e.g. a smartphone, USB stick

or MP3 player). Data that you have

input yourself can be deleted at any

time.
This data can only be transmitted out

of the vehicle at your request,

particularly when using online

services in accordance with the

settings selected by you.

Smartphone integration, e.g.

Android Auto or Apple CarPlay

If your vehicle is equipped

accordingly, you can connect your

smartphone or another mobile device

to the vehicle so that you can control

it via the controls integrated in the

vehicle. The smartphone image and

sound can be output via the

multimedia system in this case. At the

same time, specific information is

transmitted to your smartphone.

Depending on the type of integration,

this includes data such as position

data, day / night mode and other

general vehicle information. For more

information, please see the operating

instructions for the vehicle /

infotainment system.
Integration allows selected

smartphone apps to be used, such as

navigation or music playback. No

further integration is possible

between smartphone and vehicle, in

particular active access to vehicle

data. The nature of further data

processing is determined by the

provider of the app used. Whether

you can define settings, and if so

which ones, is dependent on the app

in question and your smartphone's

operating system.

Customer information

261

Online services

If your vehicle has a radio network

connection, this allows data to be

exchanged between your vehicle and

other systems. The radio network

connection is made possible by

means of a transmitter device in your

vehicle or a mobile device provided

by you (e.g. a smartphone). Online

functions can be used via this radio

network connection. These include

online services and applications /

apps provided to you by the

manufacturer or other providers.

Proprietary services

In the case of the manufacturer's

online services, the relevant functions

are described by the manufacturer in

an appropriate location (e.g. Owner's

Manual, the manufacturer's website)

and the associated data protection

information is provided. Personal

data may be used to provide online

services. Data exchange for this

purpose takes place via a protected

connection, e.g. using the

manufacturer's IT systems provided

for the purpose. Collection,

processing and use of personal data

for the purposes of preparation of

services take place solely on the

basis of legal permission, e.g. in the

case of a legally prescribed

emergency communication system or

a contractual agreement, or by virtue

of consent.
You can activate or deactivate the

services and functions (which are

subject to charges to some extent)

and, in some cases, the vehicle's

entire radio network connection. This

does not include statutory functions

and services such as an emergency

communication system.

Third party services

If you make use of online services

from other providers (third parties),

these services are subject to the

liability and data protection and usage

conditions of the provider in question.

The manufacturer frequently has no

influence over the content exchanged

in this regard.

Therefore, please note the nature,

scope and purpose of the collection

and use of personal data within the

scope of third party services provided

by the service provider in question.

Radio Frequency

Identification (RFID)

RFID technology is used in some

vehicles for functions such as tyre

pressure monitoring and immobiliser.

It is also used in connection with

conveniences such as radio remote

controls for door locking / unlocking

and starting. RFID technology in

Vauxhall vehicles does not use or

record personal information or link

with any other Vauxhall system

containing personal information.

Vauxhall Astra L (2023 year). Manual in english - page 8
