CHAPTER 24
Endurance
24.1
ENDURANCE CHARTS
3. From point D, continue to trace the gross weight
line up to the 4,000-foot pressure altitude line in the

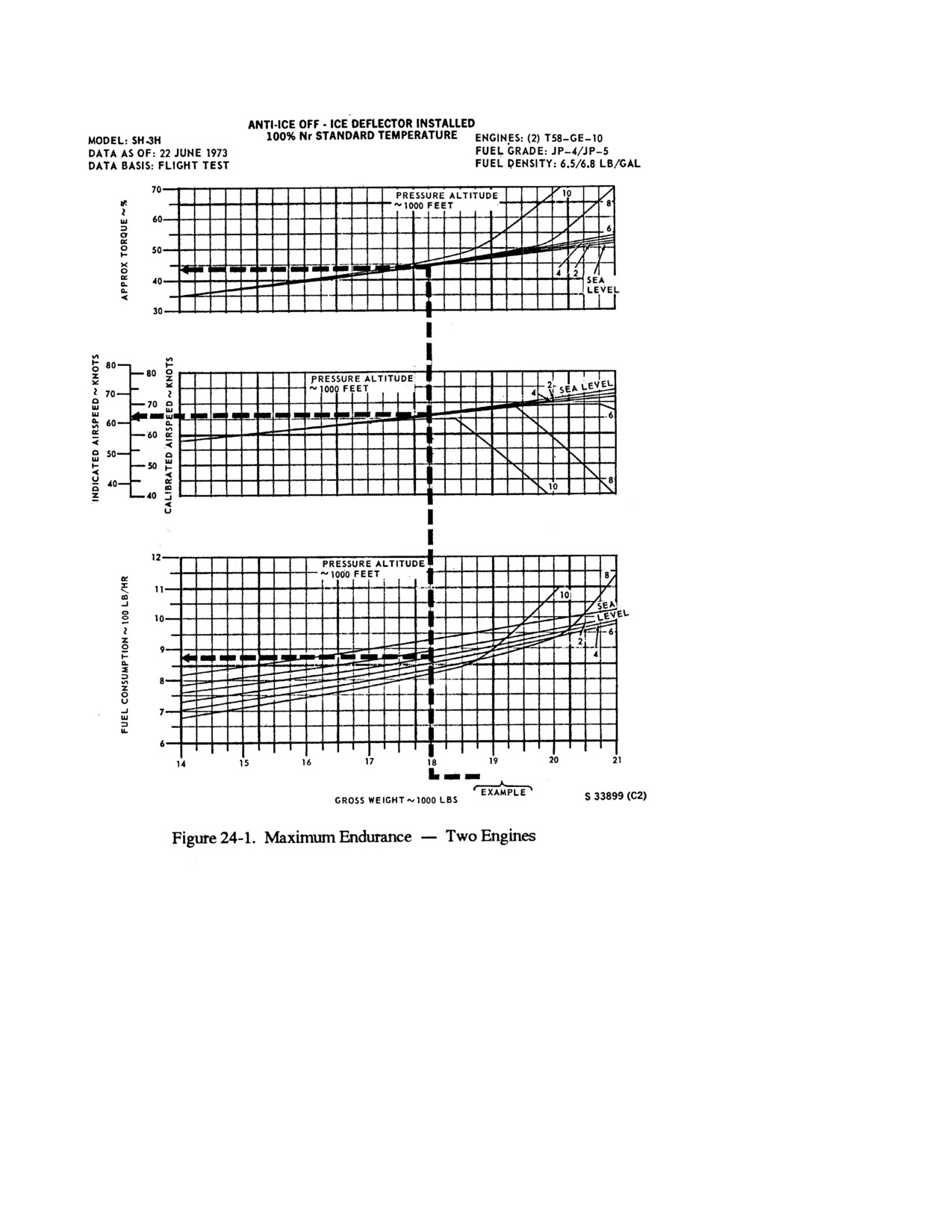

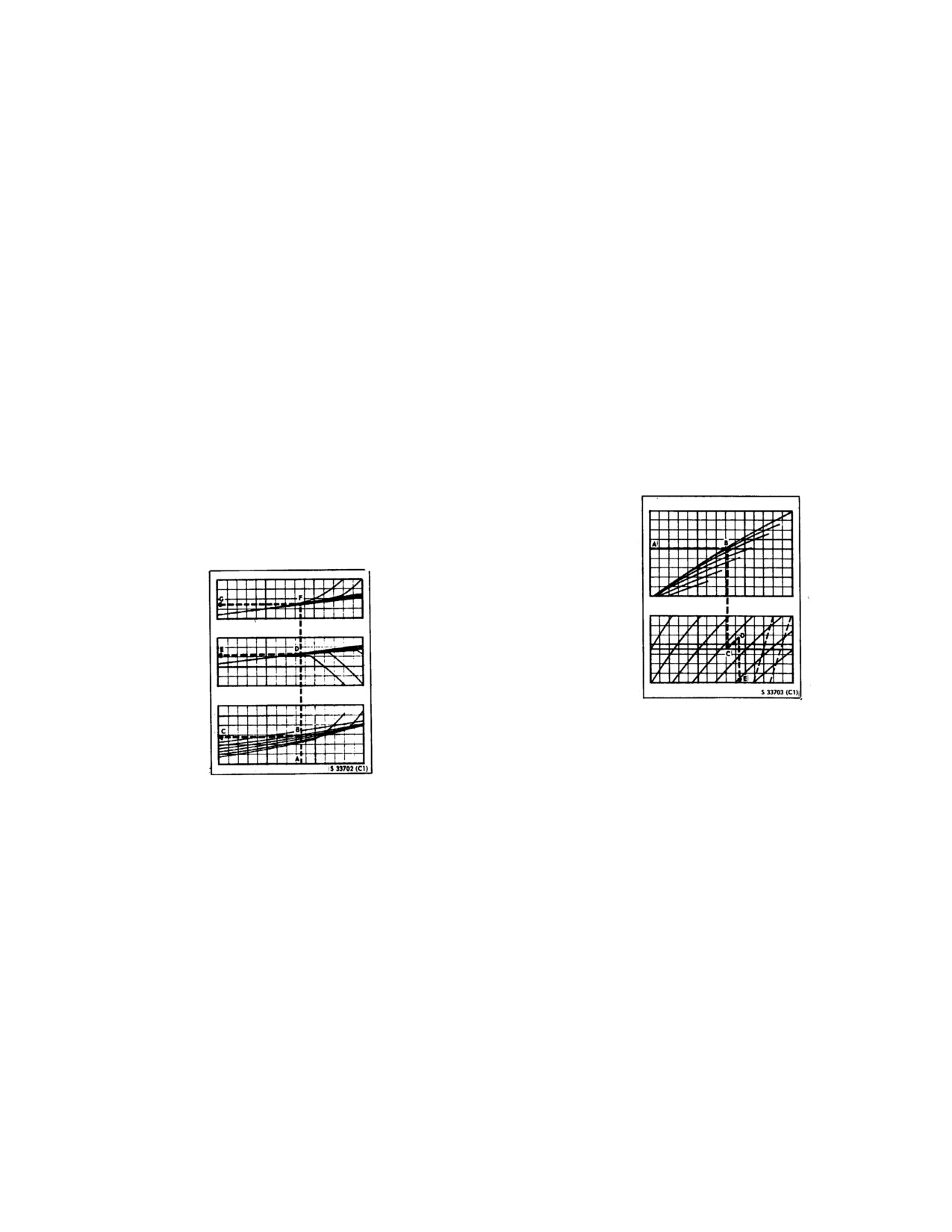

The maximum endurance charts (Figure 24-1 and 24-
next block (point F), then trace left to the torque scale
2) provide fuel flow, indicated and calibrated airspeed, and
(point G), and read 44-percent torque.
approximate torque when gross weight is applied to
pressure altitude to produce maximum endurance.
24.1.2 Hover Endurance
- Two-Engine Chart.

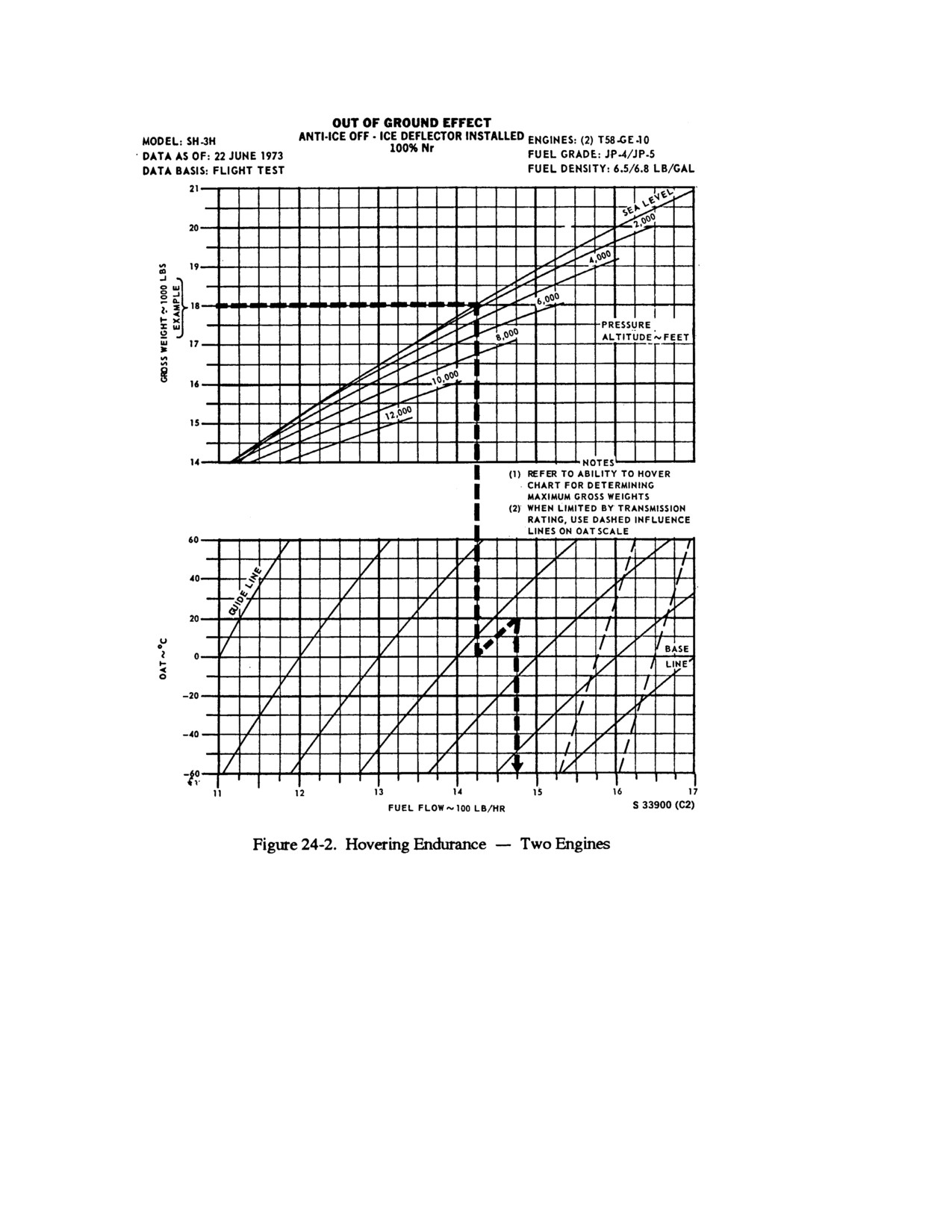

The hover endurance - two-engine chart (Figure 24-2)
24.1.1 Maximum Endurance - Two-Engine Chart.
provides the fuel flow when gross weight is applied to
The maximum endurance - two-engine chart (Figure 24-1)
pressure altitude and OAT to provide hovering endurance.
provides the fuel flow, indicated and calibrated airspeed,
and approximate torque when gross weight is applied to
24.1.2.1 Sample Problem for Use of Hovering
pressure altitude to produce maximum endurance for the
Endurance - Two-Engine Chart (Figure 24-2).
helicopter.
24.1.1.1 Sample Problem for Use of Maximum
Endurance - Two Engine Chart (Figure 24-1).
1. Enter left side of chart at
18,000 pounds gross
weight
(point A), trace right to sea-level pressure
altitude line
(point B), then trace down to the OAT
baseline (point C).
1. Enter bottom of chart at 18,000 pounds gross weight
(point A), trace up to 4,000 foot pressure altitude line
2. From point C, follow the guideline to the
20 °C
(point B), then trace left to the fuel consumption scale
OAT line (point D), then trace down to the fuel-flow
(point C) and read 870 pounds of fuel per hour.
scale (point E) and read 1,475 pounds of fuel per hour.
2. From point B, continue to trace the gross weight
line up to the 4,000-foot pressure altitude line in the
next block (point D), then trace left to the airspeed
scale (point E) and read 66 KCAS and 62 KIAS.
24-1
ORIGINAL
NAVAIR 01-230HLH-1
24-2
ORIGINAL
NAVAIR 01-230HLH-1
24-3
ORIGINAL
NAVAIR 01-230HLH-1
This Page Left Blank Intentionally
24-4
ORIGINAL
NAVAIR 01-230HLH-1
CHAPTER 25
Emergency Operation
25.1
HEIGHT VELOCITY DIAGRAMS

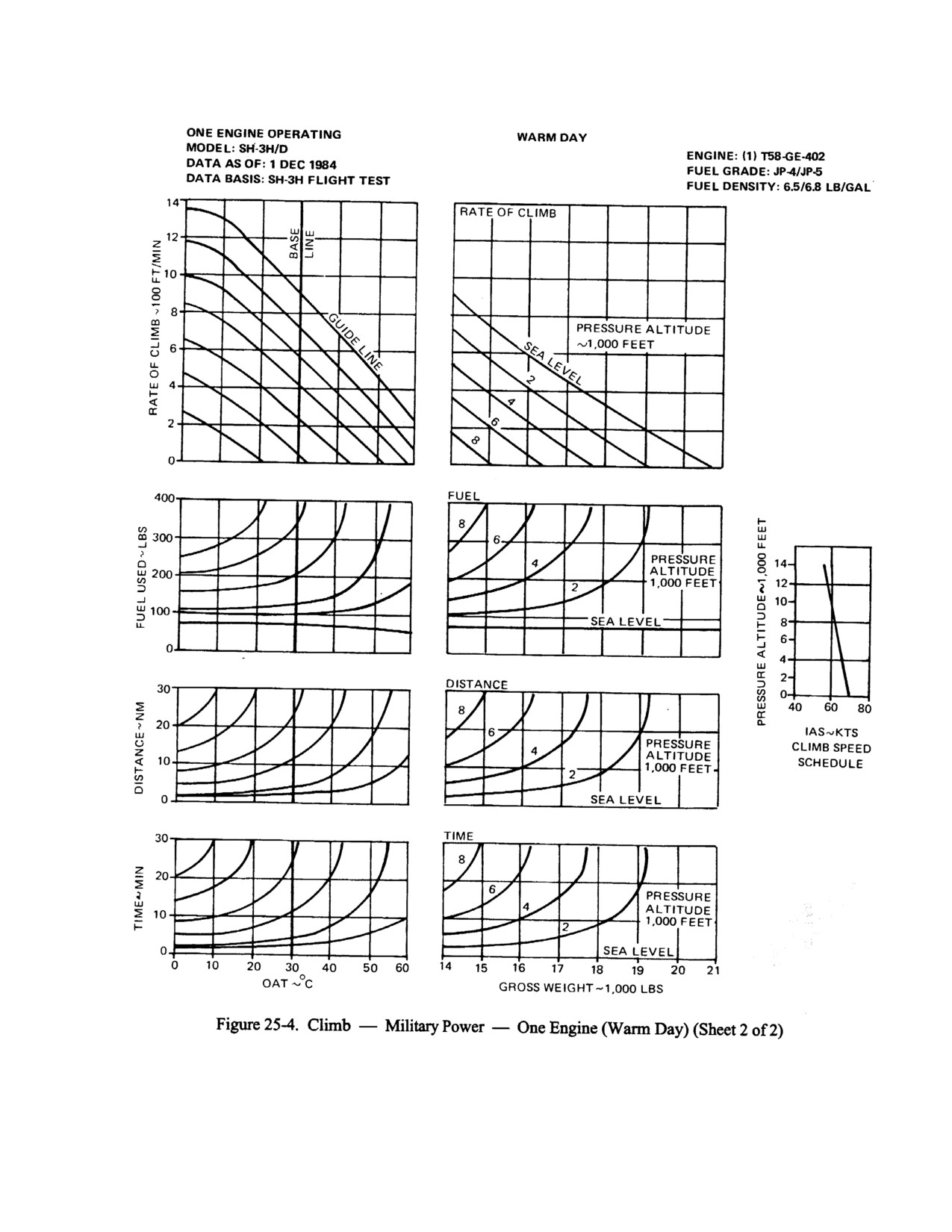

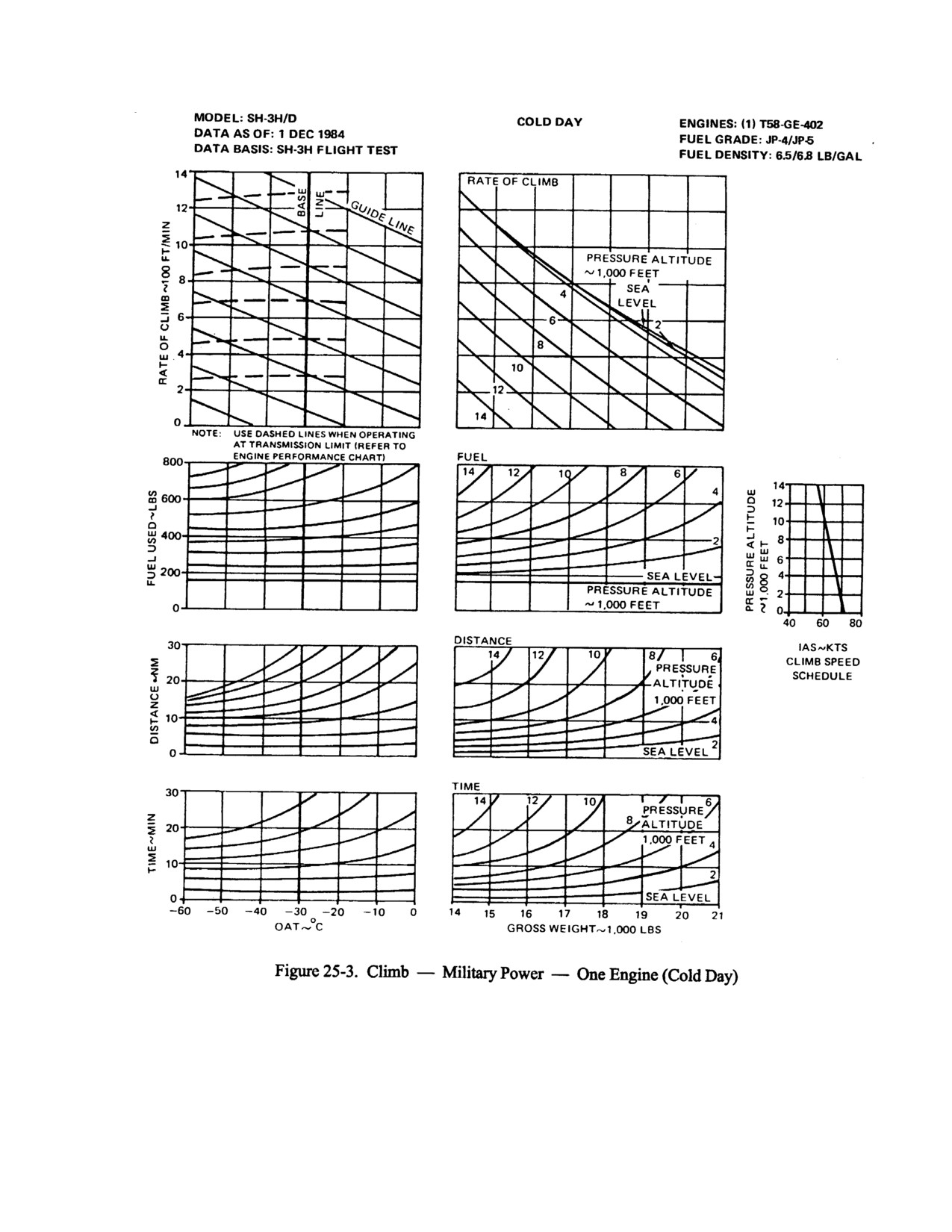

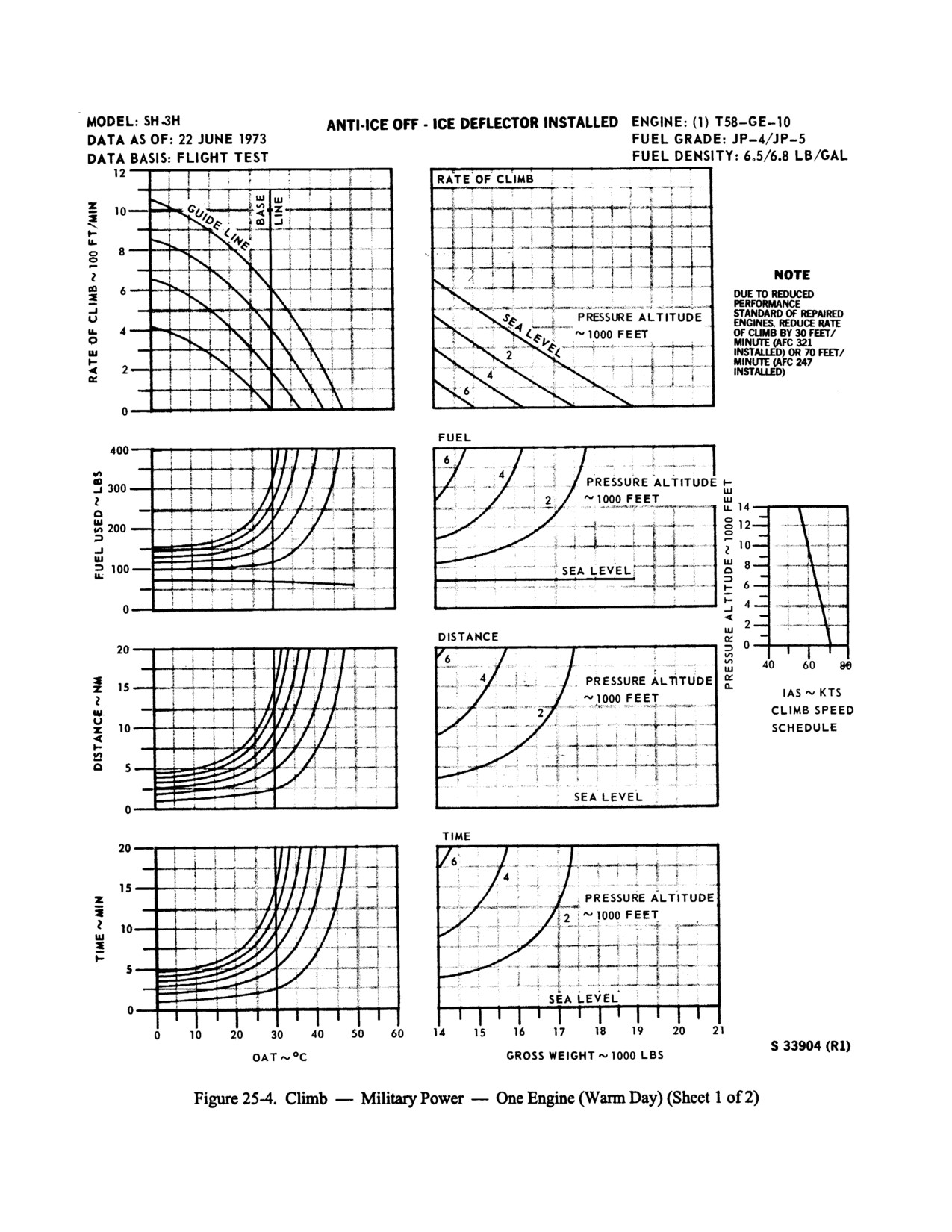

25.2 CLIMB CHARTS

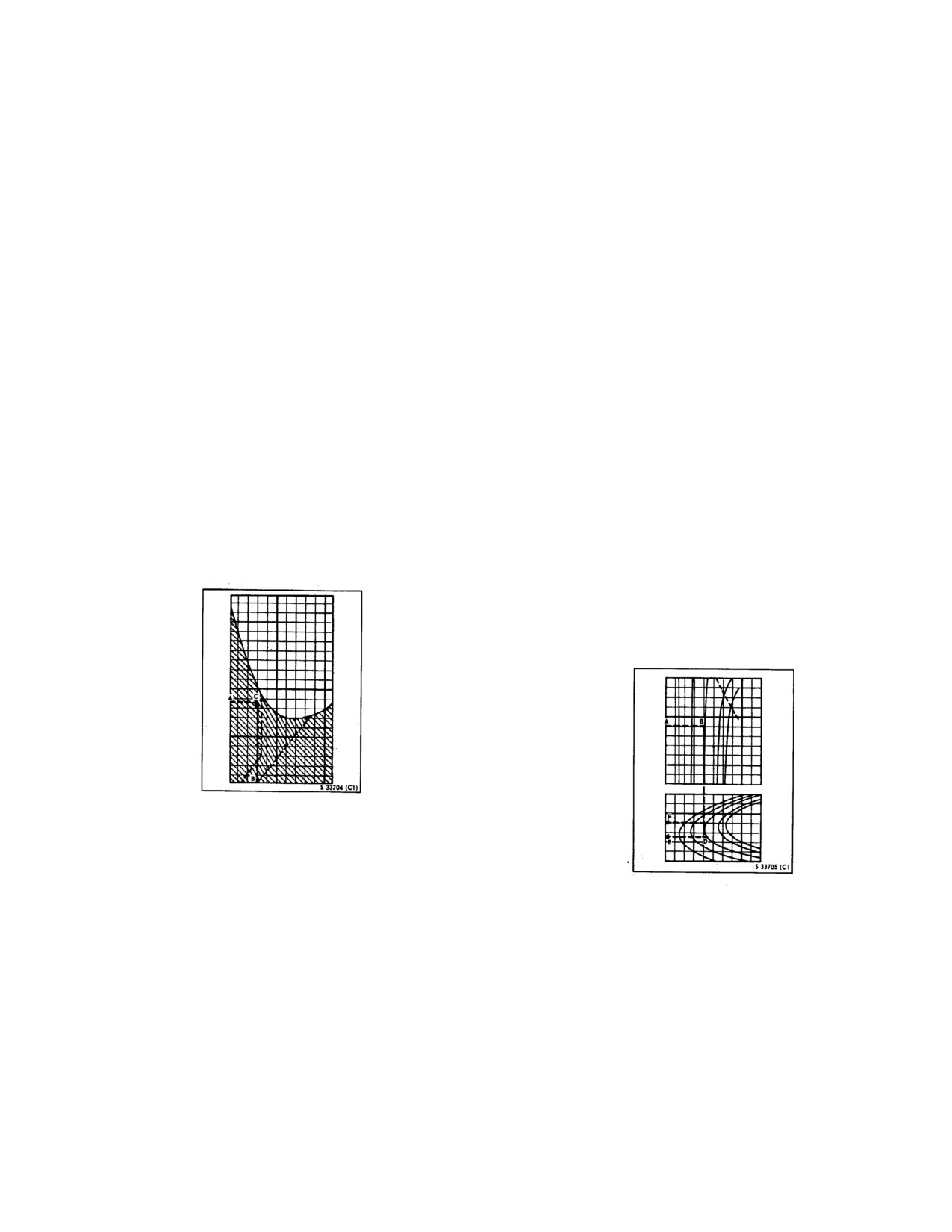

The height velocity diagrams (Figure 25-1 and 25-2)
The climb charts - one engine (Figure 25-3 and 25-4)
provide the limiting altitude and corresponding airspeed
are based on military power and provide one-engine climb
combinations for a safe landing after one or both engines
data for the helicopter on cold and warm days. The chart
have failed.
uses like factors in the same manner as the climb charts in
Chapter
22; therefore, explanatory test and sample
25.1.1 Height Velocity Diagram
- Two-Engine
problem data are not included.
Failure Chart. The height velocity diagram - two engine
failure chart (Figure 25-1) is based on a gross weight of
25.3 ABILITY TO MAINTAIN LEVEL FLIGHT
-
17,000 and 19,000 pounds, 100-percent Nr, and a standard
ONE-ENGINE CHART
day temperature at sea level.

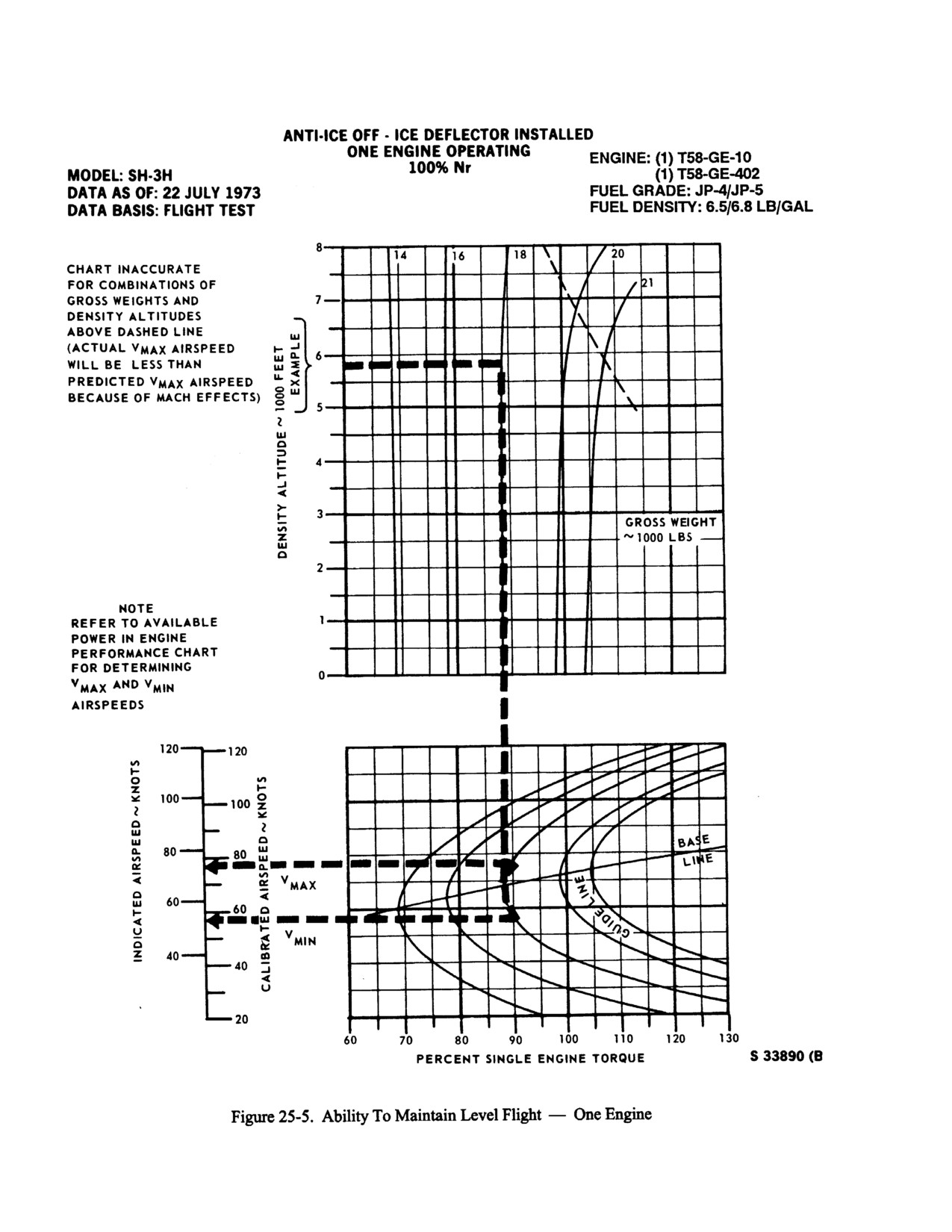

The ability to maintain level flight - one-engine chart
25.1.1.1 Sample Problem for Use of Height
(Figure 25-5) provides the speed range wherein one-engine
Velocity Diagram
- Two-Engine Failure Chart
level flight may be maintained at various density altitudes
(Figure 25-1).
and gross weights at a torque value the engine is actually
producing.
25.3.1
Sample Problem for Use of Ability To
Maintain Level Flight - One-Engine Chart (Figure
25-5).

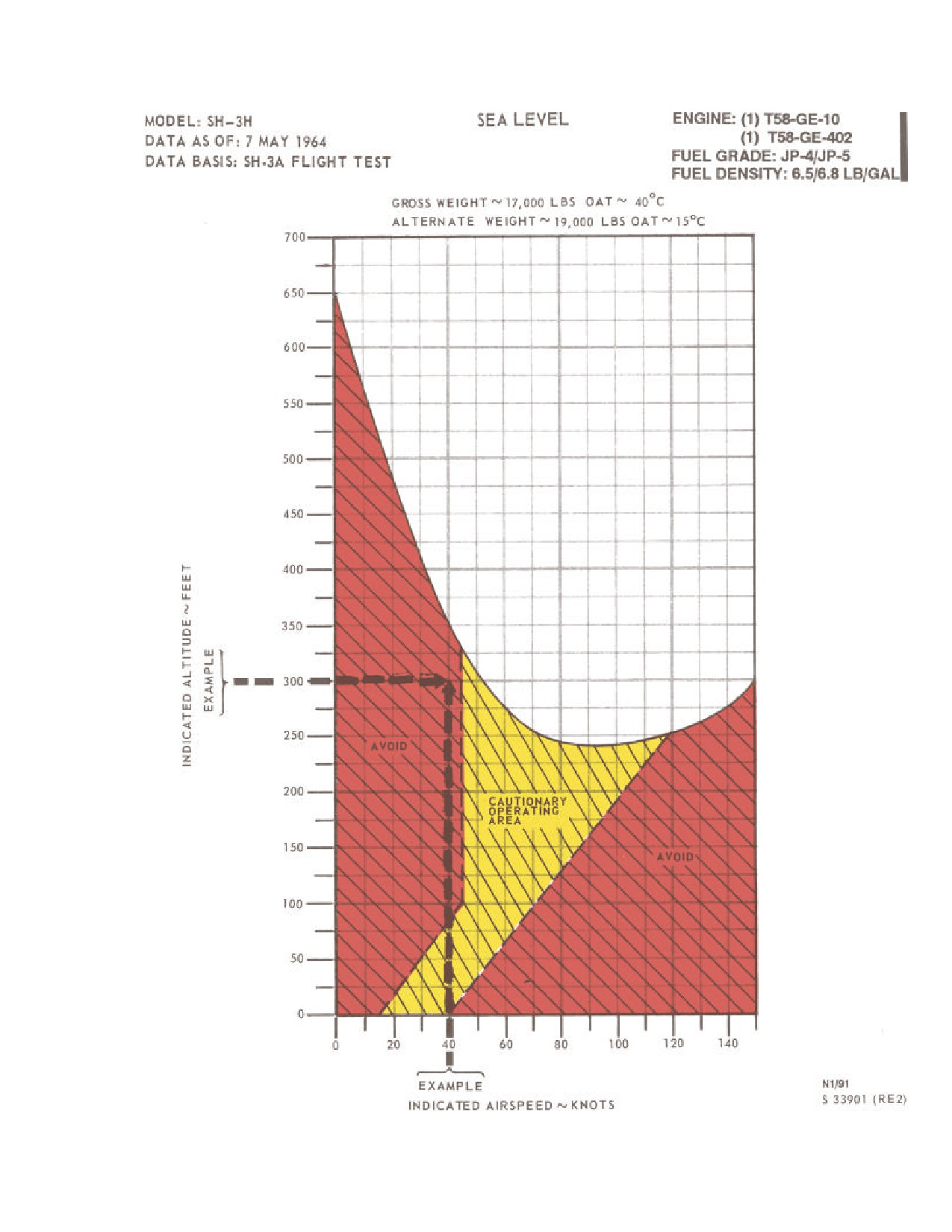

1. Enter left of chart at 300-foot altitude (point A) and
bottom of chart at 40 KIAS (point B).
2. Trace right from point A and up from point B until
the lines intersect at point C and note that sink rate
limit of the landing gear may be exceeded.
1. Convert 4,000-foot pressure altitude and 18 °C to
5,800-foot density altitude, then enter left side of chart
25.1.2 Height Velocity Diagram
- One-Engine
at 5,800-foot density altitude (point A) and trace right
Failure Chart. The height velocity diagram - one-engine
to 18,000 pounds gross weight (point B).
failure chart
(Figure 25-2) is based on gross weights of
15,000, 17,000, and 19,000 pounds; 100-percent Nr; and
2. From point B, trace down to the airspeed baseline
standard day temperature at sea level. Except for the
(point C).
additional gross weight parameters, the chart uses like
factors in the same manner as Figure 25-1.
3. From point C, follow the influence line down to
intersect the 90-percent torque line (point D).
25-1
ORIGINAL
NAVAIR 01-230HLH-1
The 90-percent torque available value is provided by
25.6 ENDURANCE CHART
Figure 20-6. Enter bottom of chart at 18 °C, proceed
upward to intersect the
4,000-foot pressure altitude

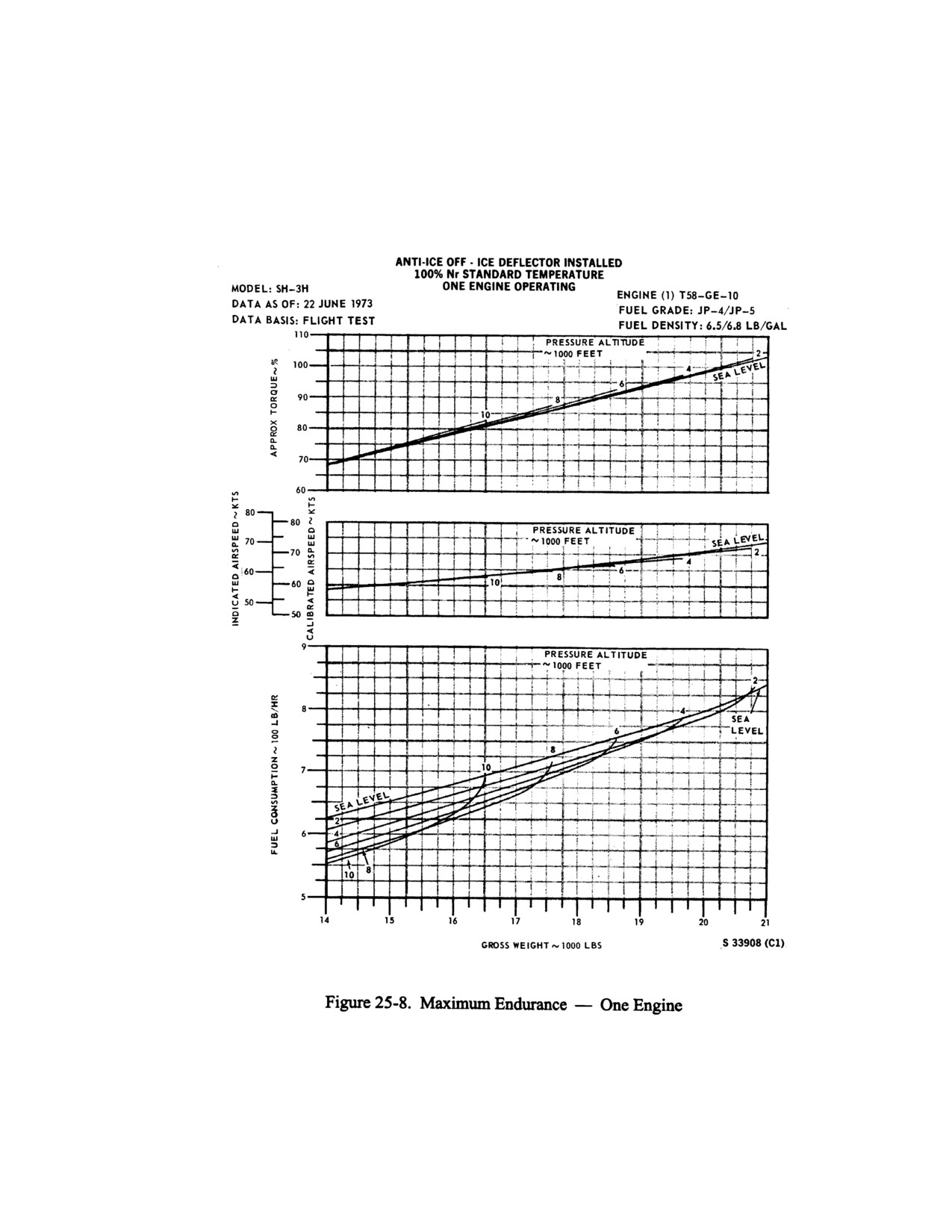

The maximum endurance - one-engine chart (Figure
line, then trace to the left side and read
90-percent
25-8) provides maximum endurance for the helicopter
torque.
during one-engine operation. The chart uses like factors in
the same manner as the endurance charts in Chapter 24;
4. From point D, trace left and read Vmin of 56 KIAS
therefore, explanatory text and sample problem data are
(point E).
not provided.
5. From point C, follow the influence line up to
25.7 LANDING DISTANCE GROUND ROLL
-
intersect the 90-percent torque line and read Vmax at 75
POWER-OFF
KIAS.
The landing distance ground roll
- power-off chart
25.4 ABILITY TO MAINTAIN
70 KNOTS AT
(Figure
25-9) provides the landing distance ground roll
VARIOUS ROTOR SPEEDS - ONE ENGINE
when pressure altitude, temperature, gross weight, and
CHART
headwind components are introduced into the chart.

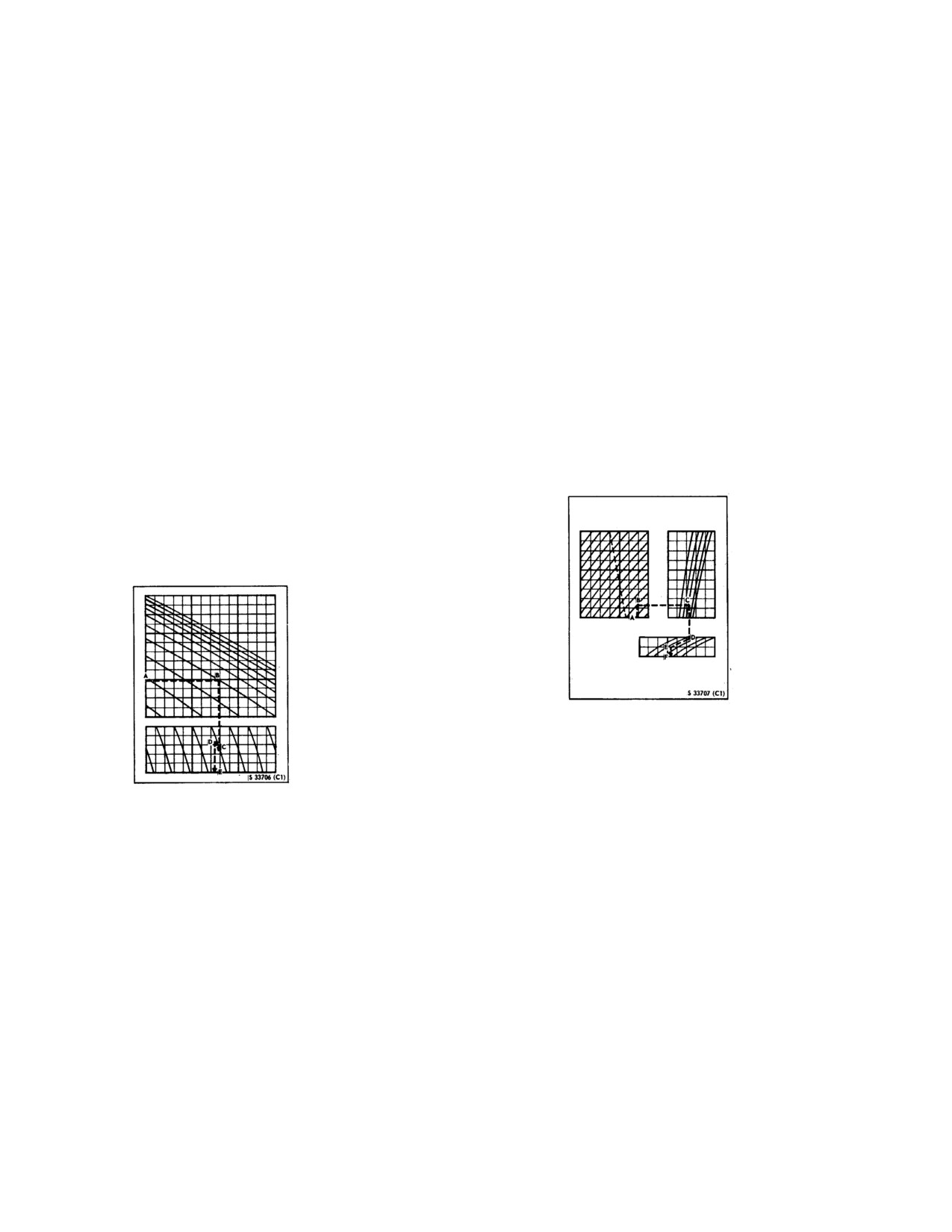

The ability to maintain
70 knots at various rotor
25.7.1 Sample Problem for Use of Landing
speeds (Nr) - one-engine chart (Figure 25-6) provides the
Distance Ground Roll
- Power-Off Chart (Figure
gross weights at which the helicopter can maintain level
25-9).
flight at various pressure altitudes, temperatures, and rotor
speeds.
25.4.1 Sample Problem for Use of Ability To
Maintain
70 Knots at Various Rotor Speeds
-
One-Engine Chart (Figure 25-6).

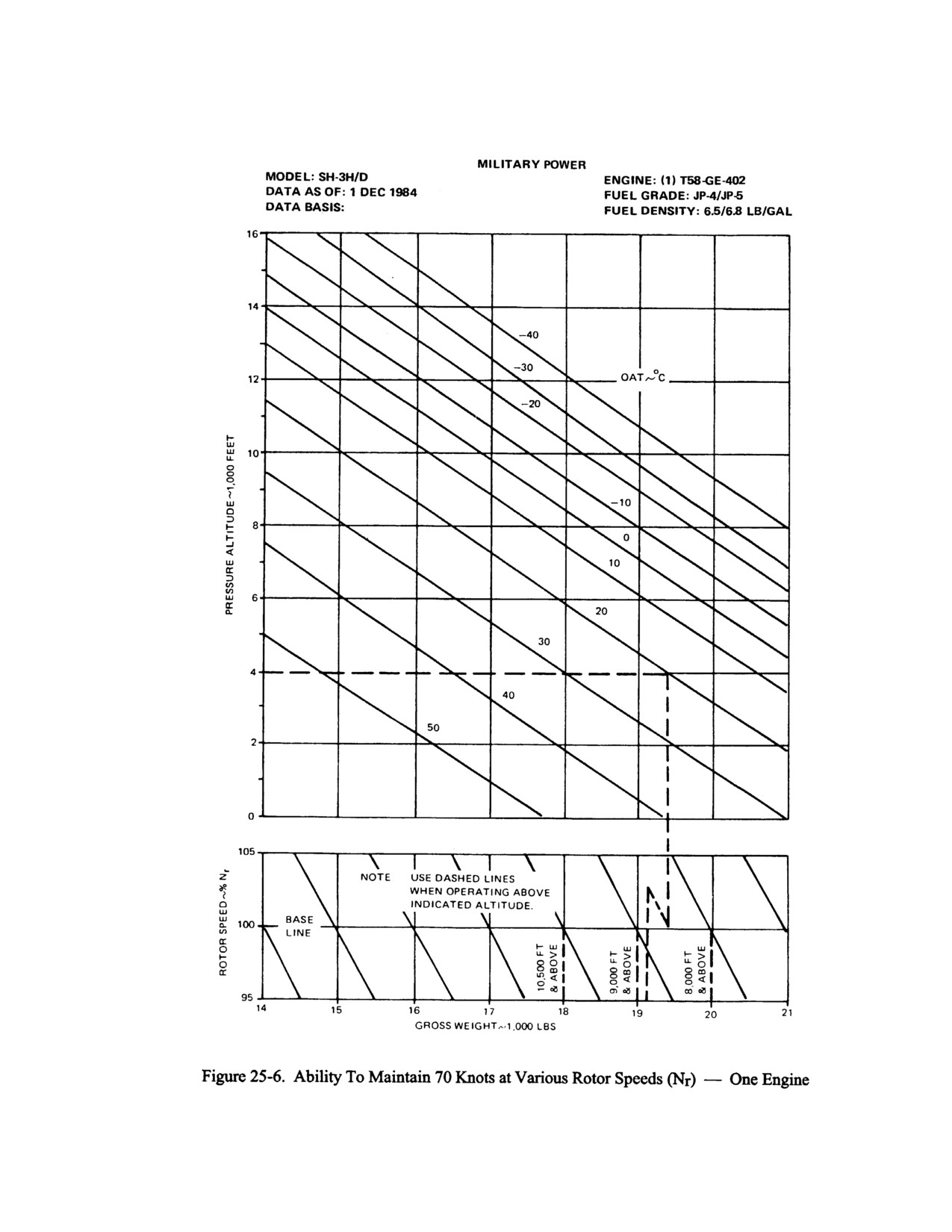

1. Enter bottom of chart at 28 °C (point A), then trace
up to sea level pressure altitude (point B).
2. From point B, trace right
18,000 pounds gross
weight (point C).
1. Enter left side of chart at
4,000-foot pressure
3. From point C, trace down to the headwind baseline
altitude
(point A), trace right 20 °C OAT (point B),
(point D).
then trace down to the rotor speed baseline (point C).
4. From point D, follow the influence line to the 10-
2. From point C, follow the influence line to
102-
knot headwind line (point E).
percent Nr (point D), then trace down to the gross
weight scale (point E) and read 17,750 pounds.
5. From point E, trace down and read 160 feet ground
roll (point F).
25.5 RANGE CHART

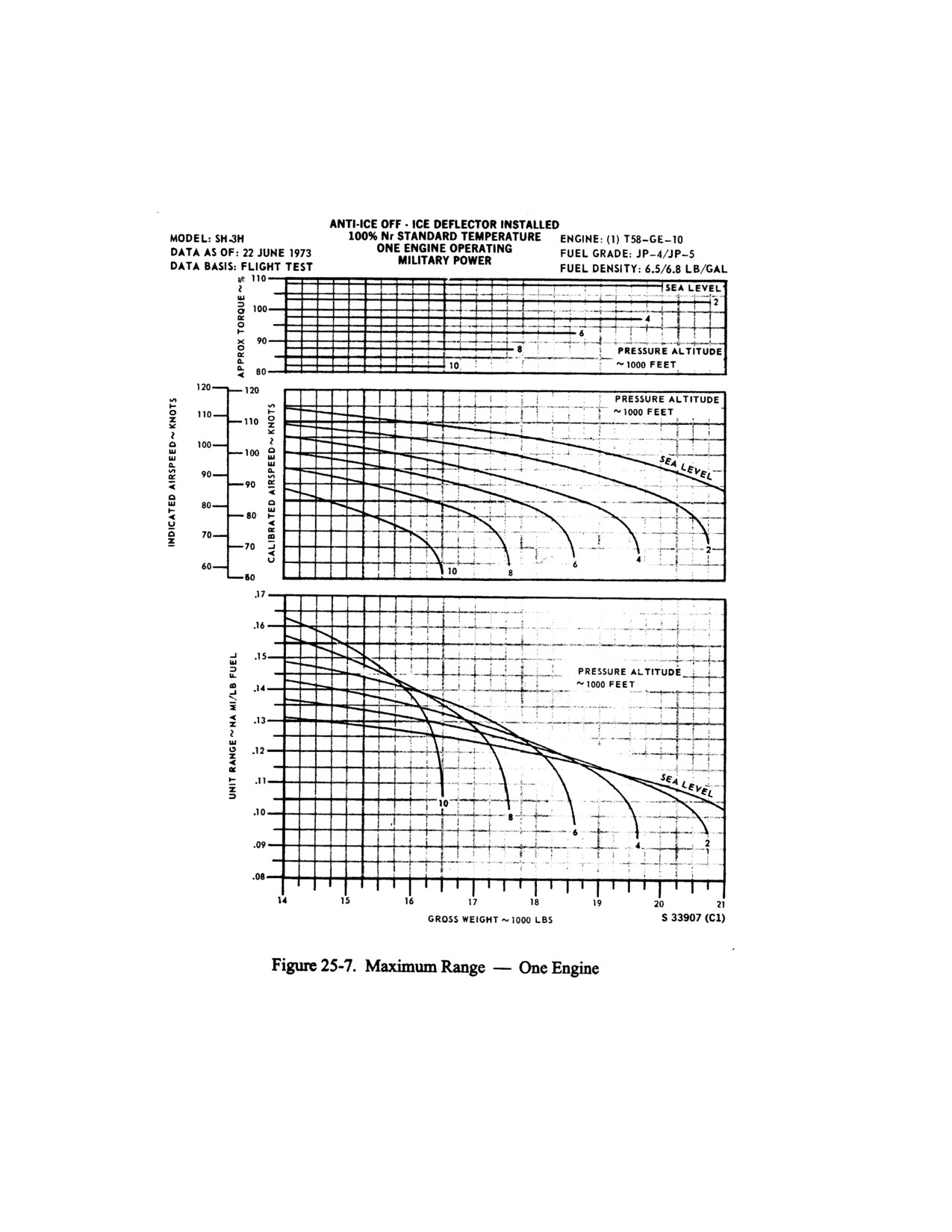

The maximum range - one-engine chart (Figure 25-7)
is based on military power to provide maximum range for
the helicopter during one-engine operation. The chart uses
like factors in the same manner as the range charts in
Chapter
23; therefore, explanatory text and sample
problem data are not included.
25-2
ORIGINAL
NAVAIR 01-230HLH-1

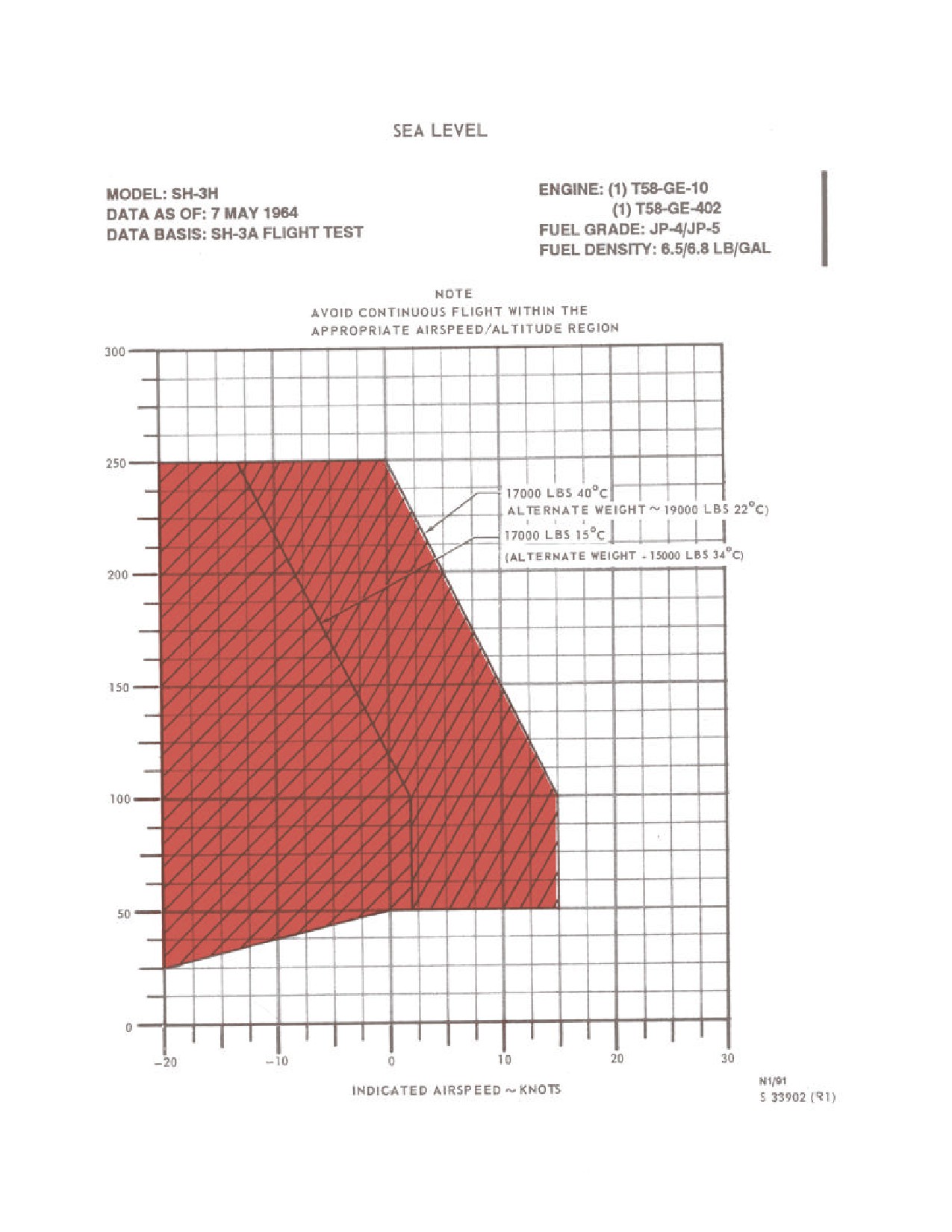

Figure 25-1. Height Velocity Diagram - Two-Engine Failure
25-3
ORIGINAL
NAVAIR 01-230HLH-1
Figure 25-2. Height Velocity Diagram - One-Engine Failure
25-4
ORIGINAL
NAVAIR 01-230HLH-1
25-5
ORIGINAL
NAVAIR 01-230HLH-1
25-6
ORIGINAL
NAVAIR 01-230HLH-1
25-7
ORIGINAL
NAVAIR 01-230HLH-1
25-8
ORIGINAL
NAVAIR 01-230HLH-1
25-9
ORIGINAL
NAVAIR 01-230HLH-1
25-10
ORIGINAL
NAVAIR 01-230HLH-1
25-11
ORIGINAL
NAVAIR 01-230HLH-1

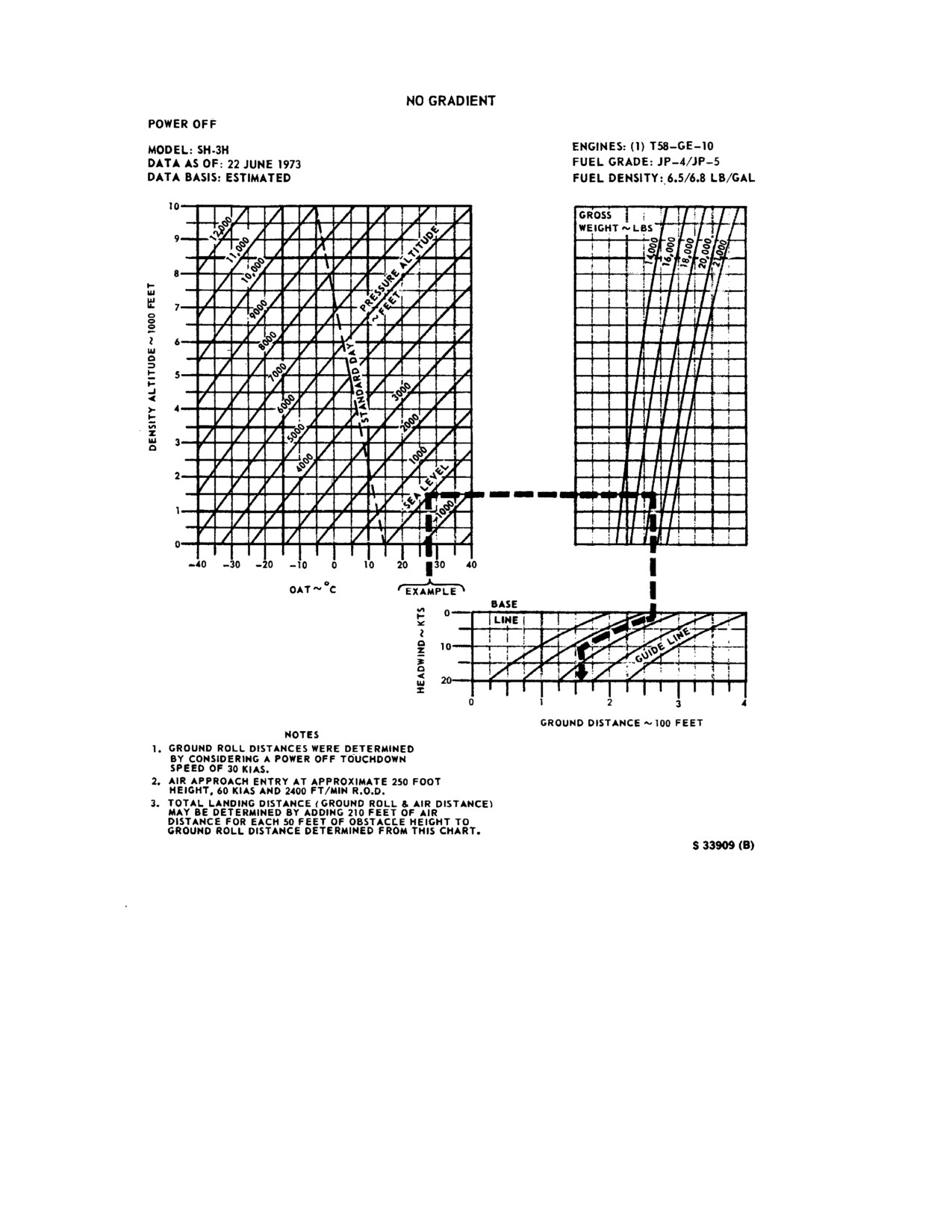

Figure 25-9. Landing Distance Ground Roll - Power-Off
25-12
ORIGINAL
NAVAIR 01-230HLH-1
CHAPTER 26
Special Charts
Not applicable.
