PRINCIPAL TECHNICAL CHARACTERISTICS OF U.S. MARINE CORPS MOTOR TRANSPORTATION EQUIPMENT (2010)

TM 11240-ODA

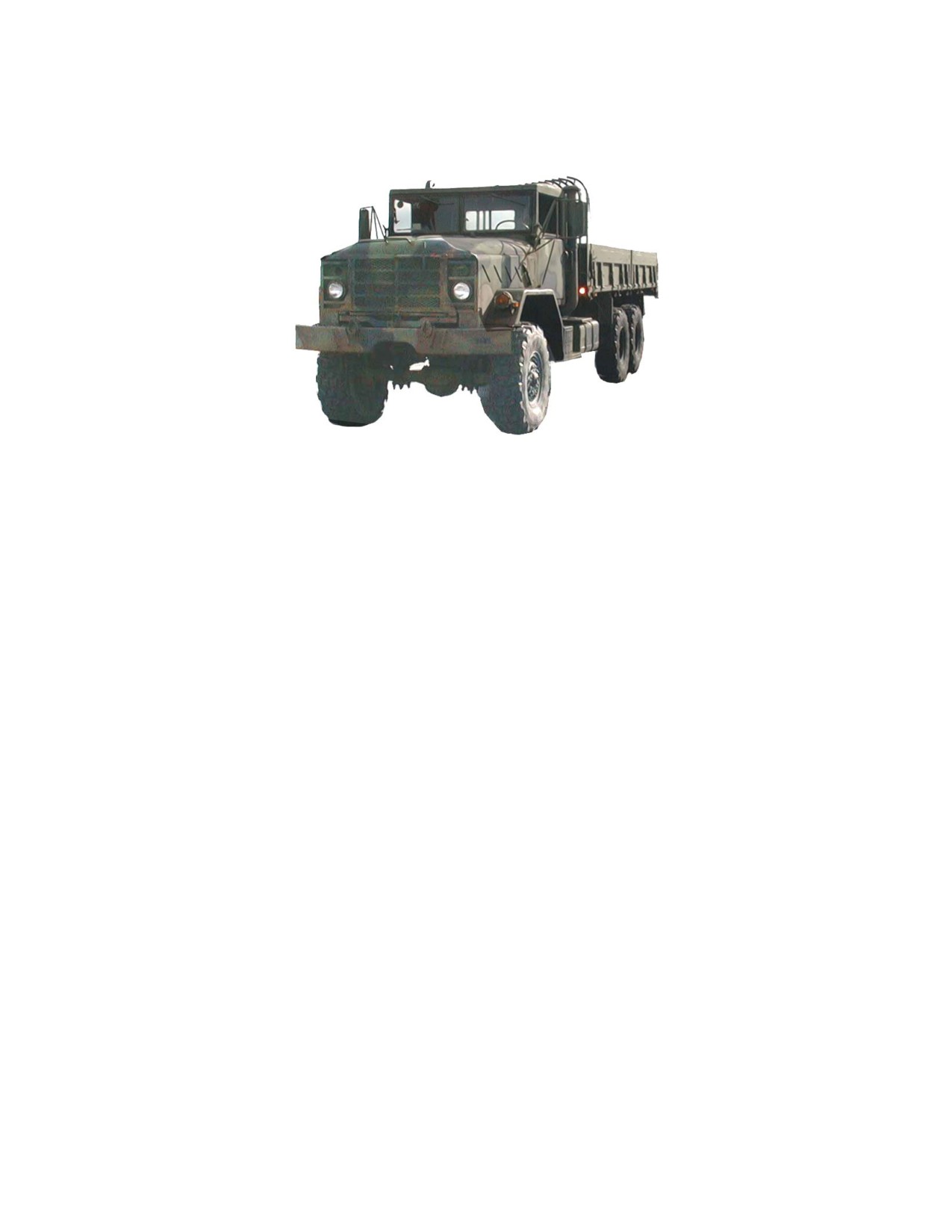

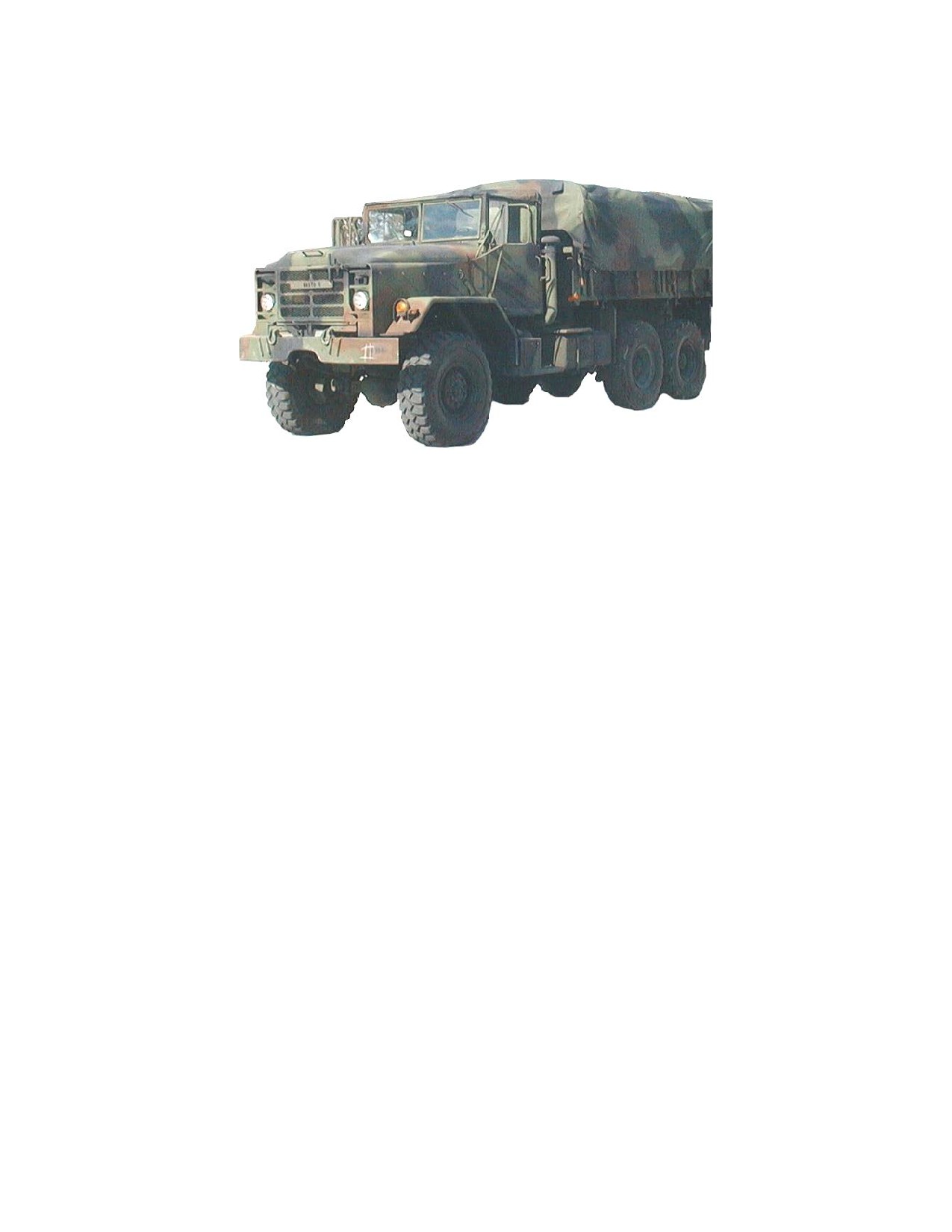

TRUCK, CARGO, DROPSIDE, M923A1

TAMCN D10597K NSN

2320-01-230-0307

08087A

DESCRIPTION AND FUNCTION

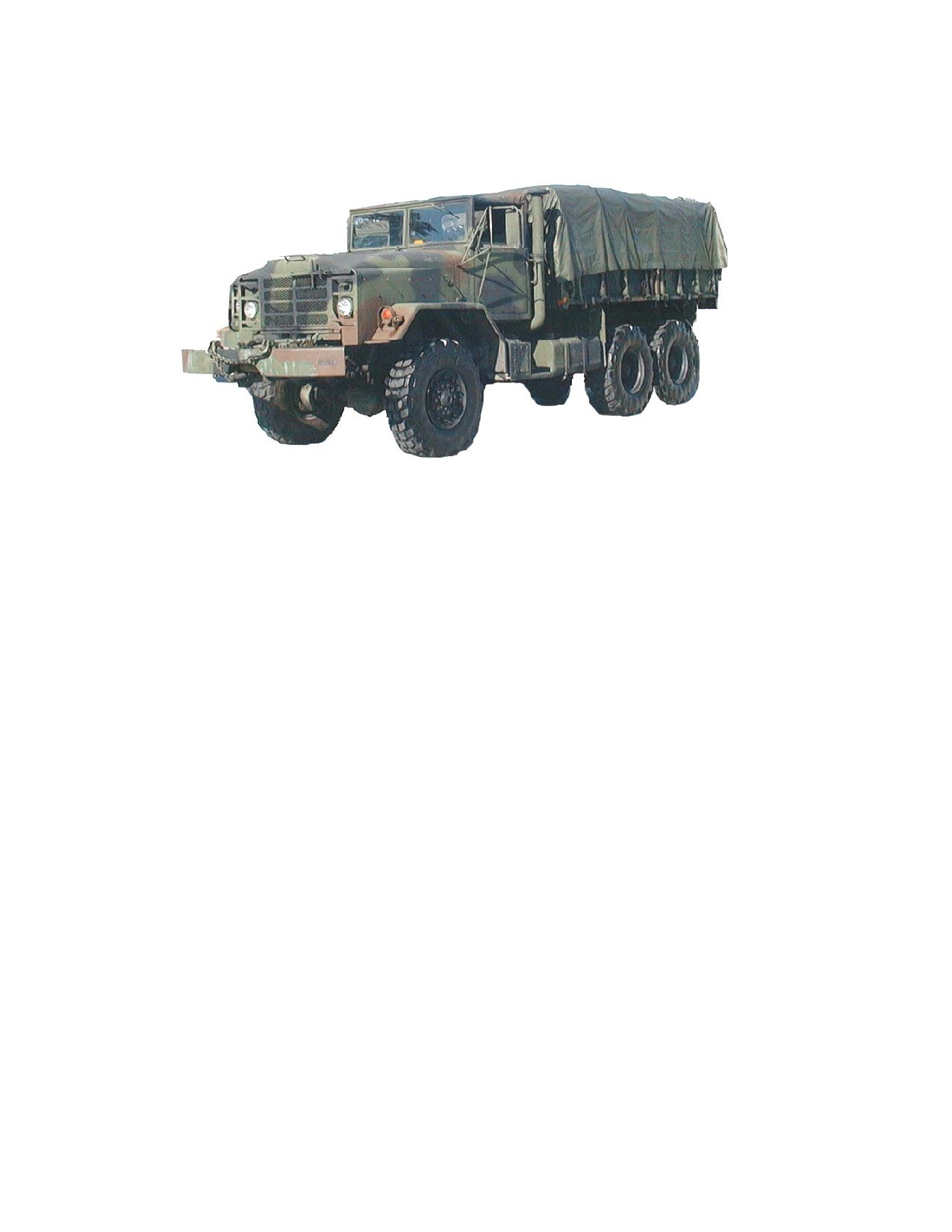

The M923A1 is the dropside variant of the M939 series of 5 ton trucks. The M939 series possesses the tilt

hood and fender configuration. It is utilized to transport payloads of up to 20,000 pounds on the highway

and 10,000 pounds cross-country. The cargo body provides 582 cubic feet of cargo space. The hinged steel

sides fold down and away for loading and unloading operations and troop seats may be positioned for troop

movement operations. The tilt hood and fenders provide increased engine access and reduces maintenance

time for "under-the-hood" component servicing. A towing pintle is provided for the towing of various

trailers and howitzers. The cab of the truck will accommodate a three member crew. The M923A1 is

retrofitted with Super Single 1400R20 steel belted, non-directional radial tires.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Overall Length

310.5 in

Width

97 in

Overall Height

121 in

Reducible Height

93.9 in

Cargo Deck Height Unloaded

Vehicle Curb Weight (includes BII)

11,740 lbs

Gross Vehicle Weight Rating

21,740 lbs

Performance Information

Fording Depth

60 in

Highway Payload

10,000 lbs

Cross Country Payload

10,000 lbs

Cab Capacity

1+1

9-25

TM 11240-ODA

TRUCK, CARGO, DROPSIDE, M925A1

TAMCN D10597K NSN

2320-01-230-0308

08088A

DESCRIPTION AND FUNCTION

The basic difference between the M925A1 and M923A1 is that the M925A1 has a 20,000 pound capacity

winch located behind the front bumper and the M923A1 does not. The winch feature affects truck length,

weight, shipping dimensions and angle of approach.

Manufacturer:

AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

332 in

Width

97 in

Height

121 in

Reducible Height

93.9 in

Cargo Deck Height Unloaded

Vehicle Curb Weight (includes BII)

12,700 lbs

Gross Vehicle Weight Rating

22,700 lbs

Performance Information

Fording Depth

60 in

Highway Payload

10,000 lbs

Cross Country Payload

10,000 lbs

Cab Capacity

1+1

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

81 gal

Fuel Consumption mpg

4.3 mpg

Fuel Consumption per hour

14 gal/hr @ 60 mph

9-27

TM 11240-ODA

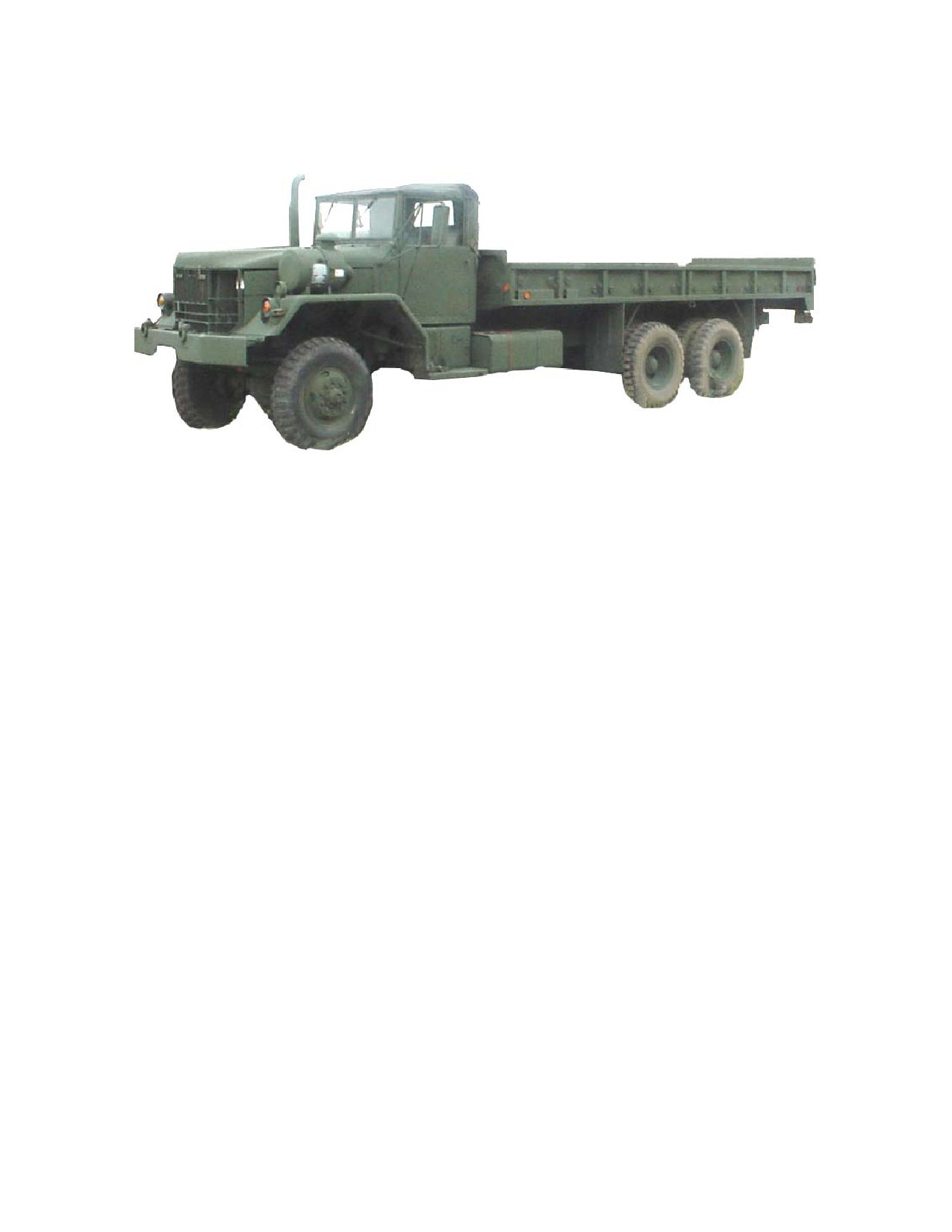

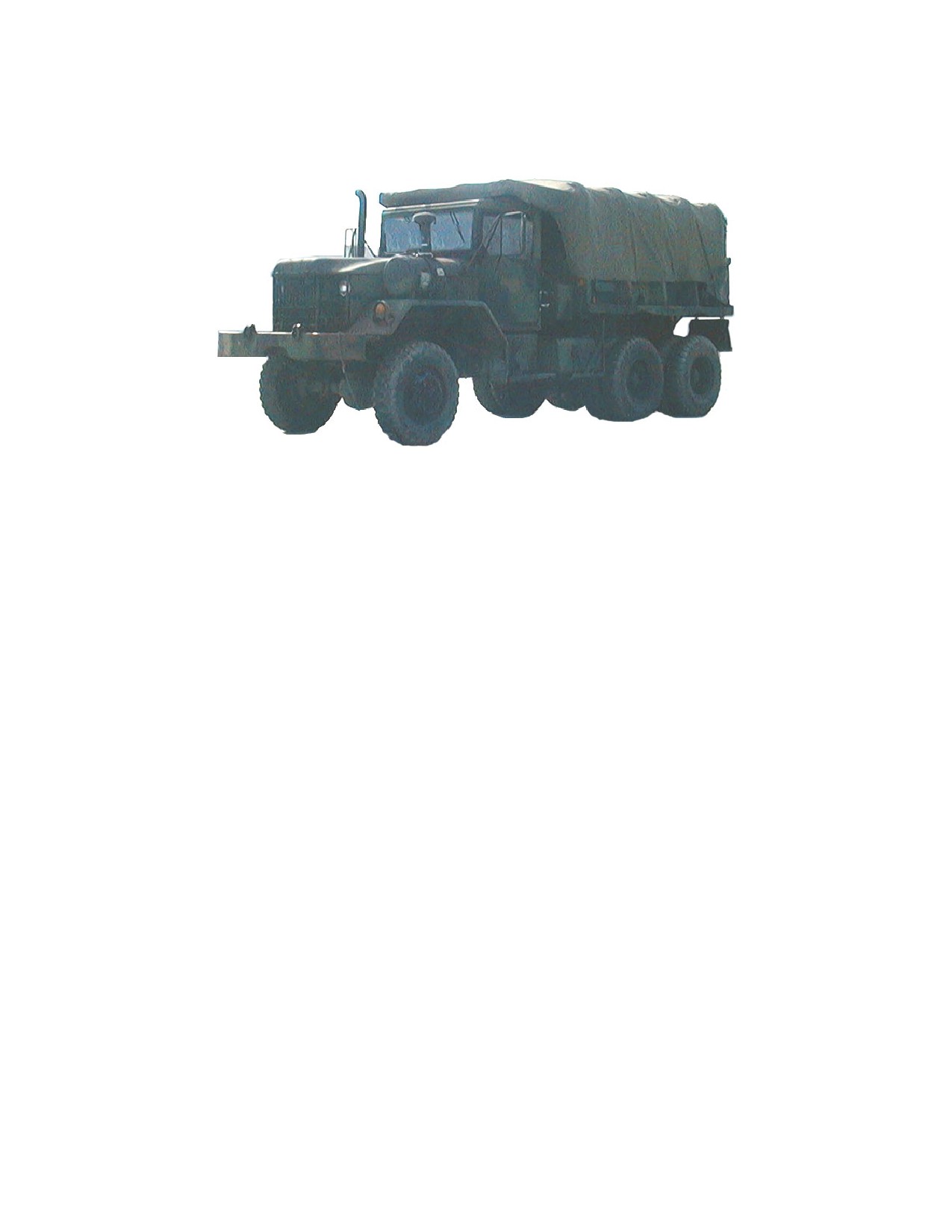

TRUCK, CARGO, EXTRA LONG WHEEL BASE, M814

TAMCN D10617K NSN

2320-00-050-8988

08329A

DESCRIPTION AND FUNCTION

The M814 truck is the extra long wheel base (XLWB) model of the M809 series of 5 ton trucks. It is

utilized to transport equipment, material, personnel and HAWK missile system components. The M814 is a

flat bed, open cab, canvas top truck with permanent steel-welded sides which makes it a preferred truck for

transporting bulky payloads that may shift in transit. The M814 has a spare wheel carrier that is mounted to

the truck side rail at the rear of the cab. A towing pintle is fitted and attached to the rear of the chassis. The

M814 is not suited for operations that require easy side access to the cargo and it is further unsuitable for

operations requiring maneuverability in limited spaces because of its longer cargo compartment. This truck

operates on all types of roads, cross-country terrain and in all weather conditions.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

379.7 in

Width

97.5 in

Height

116.6 in

Reducible Height

84.9 in

Cargo Deck Height Unloaded

Vehicle Curb Weight (includes BII)

12,875 lbs

Gross Vehicle Weight Rating

22,875 lbs

Performance Information

Fording Depth

60 in

Highway Payload

10,000 lbs

Cross Country Payload

10,000 lbs

Cab Capacity

1+1

9-29

TM 11240-ODA

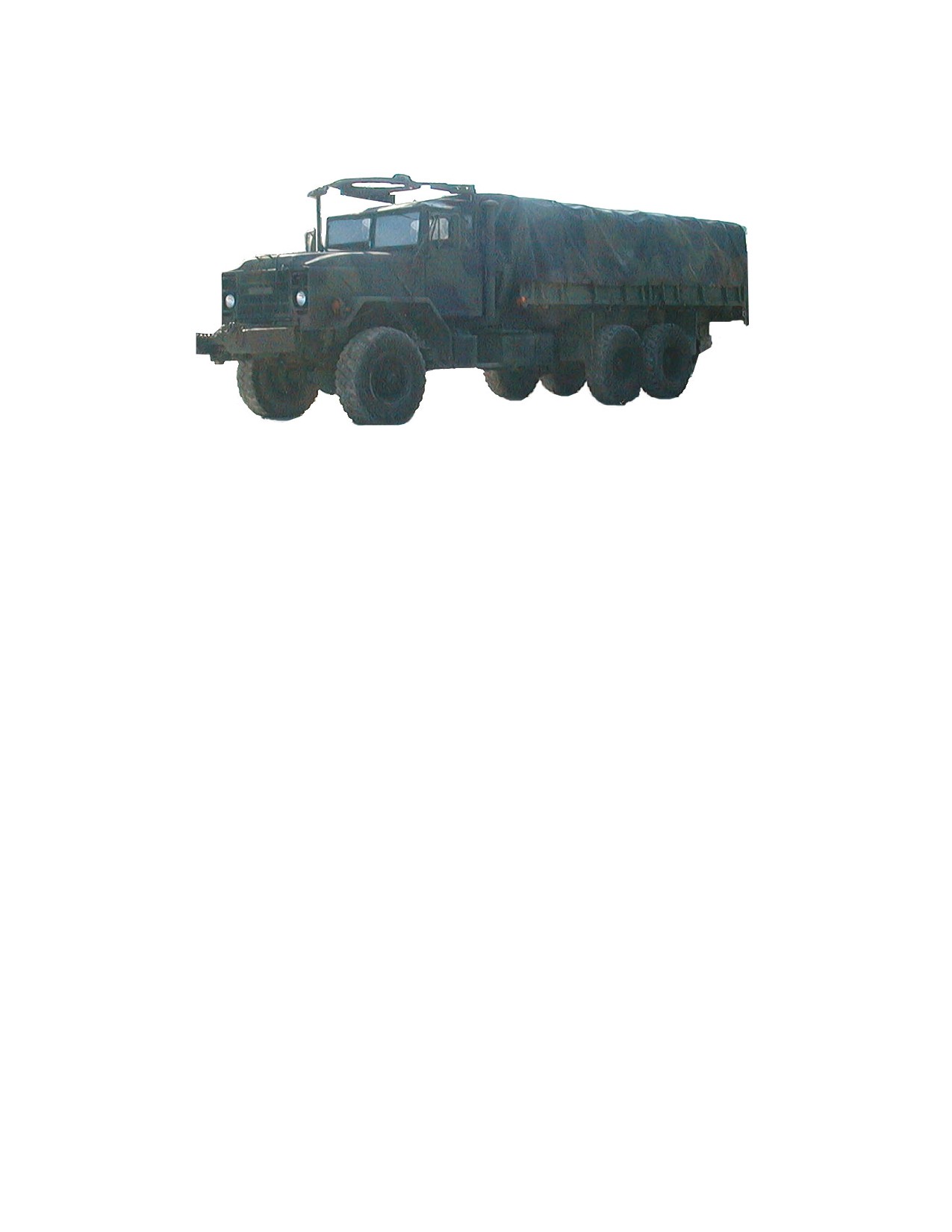

TRUCK, CARGO, EXTRA LONG WHEEL BASE, M927A1

TAMCN D10617K NSN

2320-01-230-0309

08226A

DESCRIPTION AND FUNCTION

The M927A1 truck is the extra long wheel base (XLWB) model of the M939 series of 5 ton trucks. It is

utilized to transport equipment, material, personnel and HAWK missile system components. The M927A1

is a flat bed, open cab, canvas top truck with permanent steel-welded sides which makes it a preferred truck

for transporting bulky payloads that may shift in transit. The M927A1 has a spare wheel carrier that is

mounted to the truck side rail at the rear of the chassis. Two front and rear shackles provide a ready means

for lifting the vehicle for transport. The M927A1 is not suited for operations that require easy side access

to cargo and it is further unsuitable for operations requiring maneuverability in limited spaces because of its

longer cargo compartment. This truck operates on all types of roads, cross-country terrain and in all

weather conditions. The M927A1 is retrofitted with Super Single 1400R20 steel belted, non-directional

radial tires.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

385.5 in

Width

98 in

Height

123.4 in

Reducible Height

93.5 in

Cargo Deck Height Unloaded

Vehicle Curb Weight (includes BII)

14,660 lbs

Gross Vehicle Weight Rating

24,660 lbs

Performance Information

Fording Depth

60 in

Highway Payload

10,000 lbs

Cross Country Payload

10,000 lbs

Cab Capacity

1+1

9-31

TM 11240-ODA

TRUCK, CARGO, EXTRA LONG WHEEL BASE, M928A1

TAMCN D10617K NSN

2320-01-230-0310

08214A

DESCRIPTION AND FUNCTION

The basic difference between the M928A1 and M927A1 is that the M928A1 has a 20,000 pound capacity

winch located behind the front bumper and the M927A1 does not. The winch feature affects truck length,

weight, shipping dimensions and angle of approach.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

408 in

Width

98 in

Height

120.6 in

Reducible Height

93.5 in

Cargo Deck Height Unloaded

Vehicle Curb Weight (includes BII)

15,620 lbs

Gross Vehicle Weight Rating

25,620 lbs

Performance Information

Fording Depth

60 in

Highway Payload

10,000 lbs

Cross Country Payload

10,000 lbs

Cab Capacity

1+1

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

81 gal

Fuel Consumption mpg

4.3 mpg

Fuel Consumption per hour

14 gal/hr @ 60 mph

9-33

TM 11240-ODA

TRUCK, DUMP, 5 TON, W/O WINCH, M817

TAMCN D10727K NSN

2320-00-050-8970

00659C

DESCRIPTION AND FUNCTION

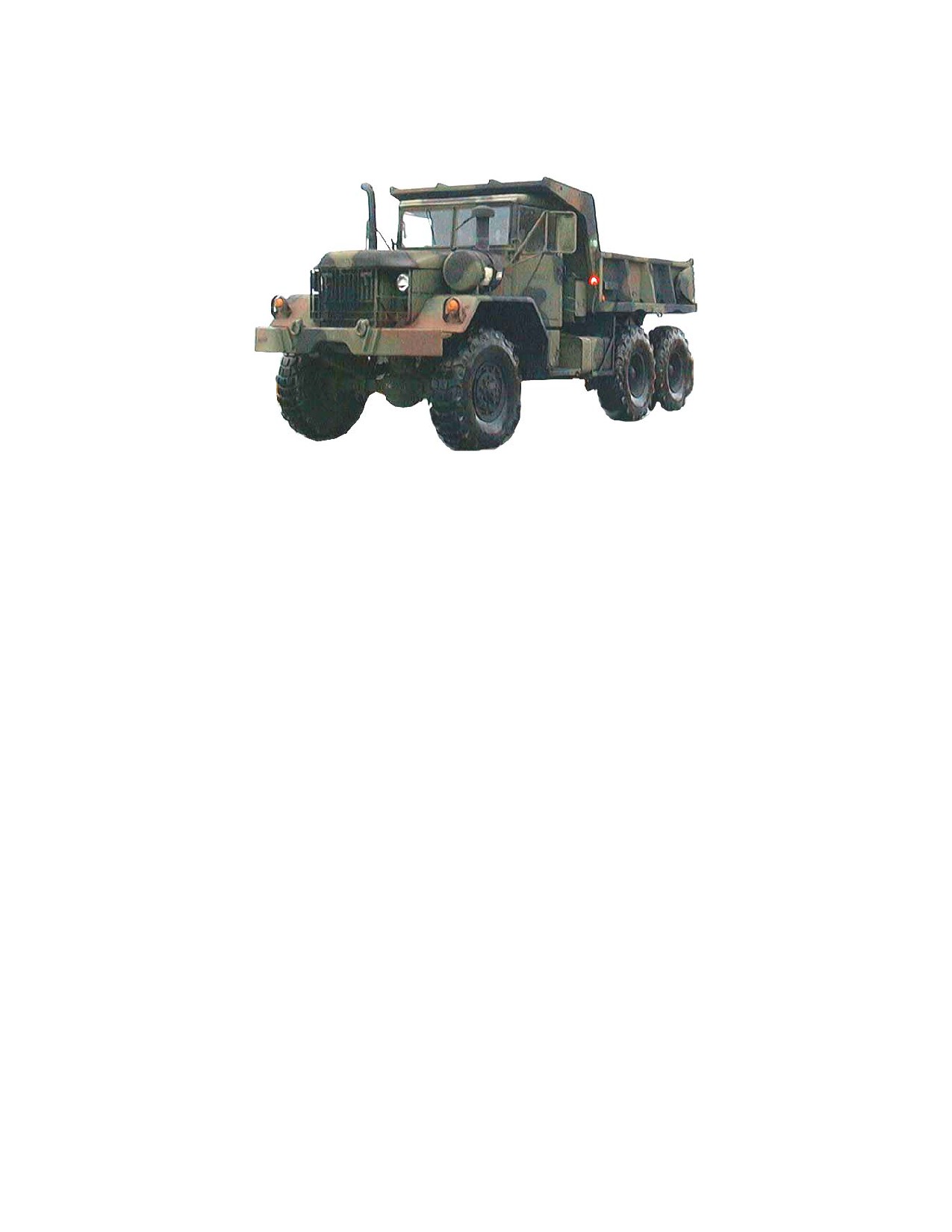

The M817 is the dump truck variant of the M809 series of 5 ton trucks. This truck is utilized to transport

various materials. The M817 operates with load limits up to 20,000 pounds on the highway and 10,000

pounds cross-country. Fully loaded, this truck can tow trailers with additional loads up to 30,000 pounds

on highways and 15,000 pounds cross-country. It is equipped with a steel welded dump body that extends

up and over the truck cab to prevent damage during loading. This truck is equipped with dual fuel tanks,

which extends the cruising range to 400 miles with loads and 480 miles empty. The M817 can operate as a

regular rocker type or spreader type dump by placing the tailgate into various positions.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

273 in

Width

97.5 in

Height

112.1 in

Reducible Height

N/A

Cargo Deck Height Unloaded

Vehicle Curb Weight (includes BII)

13,090 lbs

Gross Vehicle Weight Rating

23,090 lbs

Performance Information

Fording Depth

60 in

Highway Payload

10,000 lbs

Cross Country Payload

10,000 lbs

Cab Capacity

1+1

9-35

TM 11240-ODA

TRUCK, DUMP, 5 TON, W/WINCH, M817

TAMCN D10727K NSN

2320-00-051-0589

00659D

DESCRIPTION AND FUNCTION

This version of the M817 differs from the other in that it is equipped with a 20,000 pound capacity winch

located behind the front bumper. The winch feature affects truck length, weight, shipping dimensions and

angle of approach. A tarp with tie-down straps was offered as an option to keep debris from being ejected

while the dump-bed is loaded.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

288.5 in

Width

97.5 in

Height

112.1 in

Reducible Height

N/A

Cargo Deck Height Unloaded

Vehicle Curb Weight (includes BII)

13,755 lbs

Gross Vehicle Weight Rating

23,755 lbs

Performance Information

Fording Depth

60 in

Highway Payload

10,000 lbs

Cross Country Payload

10,000 lbs

Cab Capacity

1+1

9-37

TM 11240-ODA

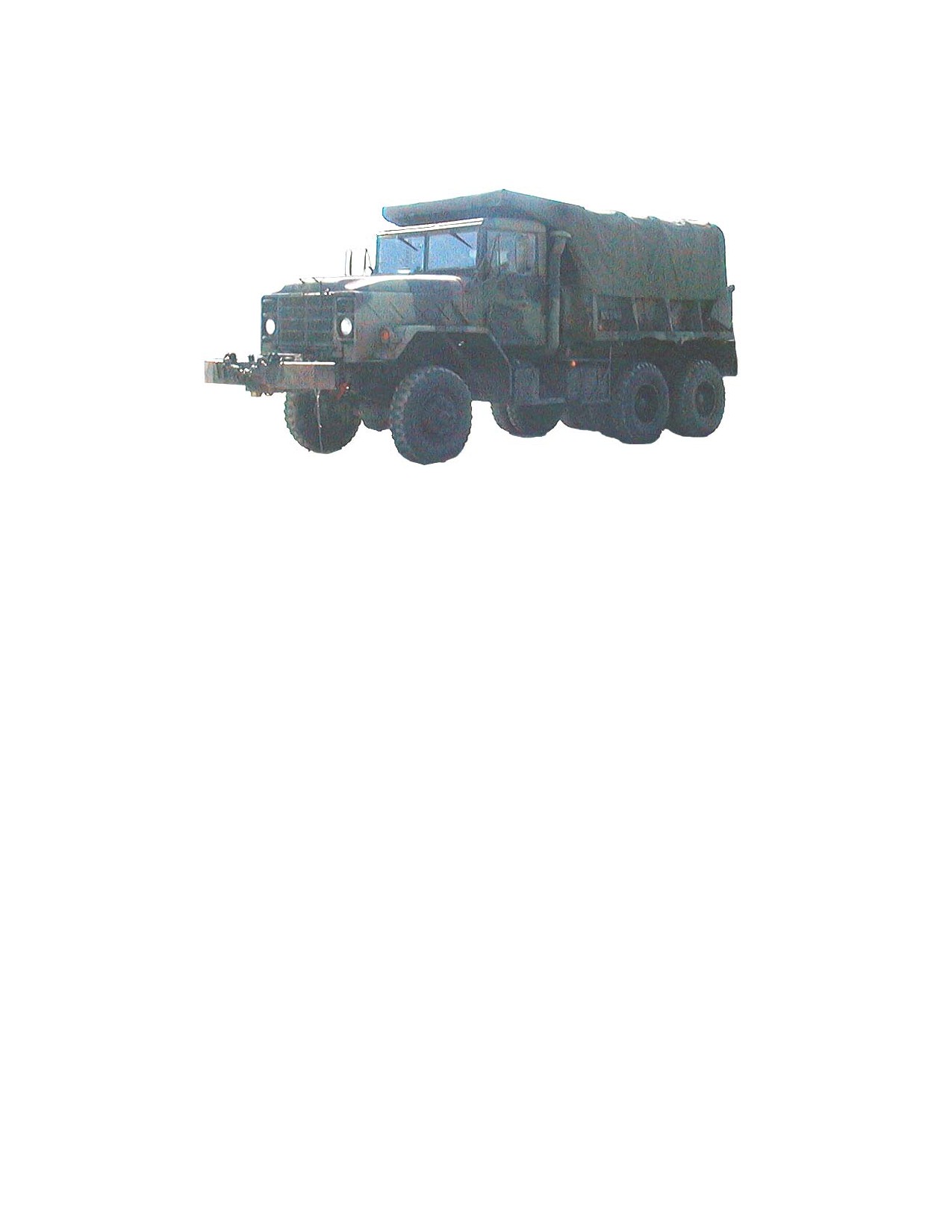

TRUCK, DUMP, 5 TON, M929A1

TAMCN D10727K NSN

2320-01-230-0305

08394A

DESCRIPTION AND FUNCTION

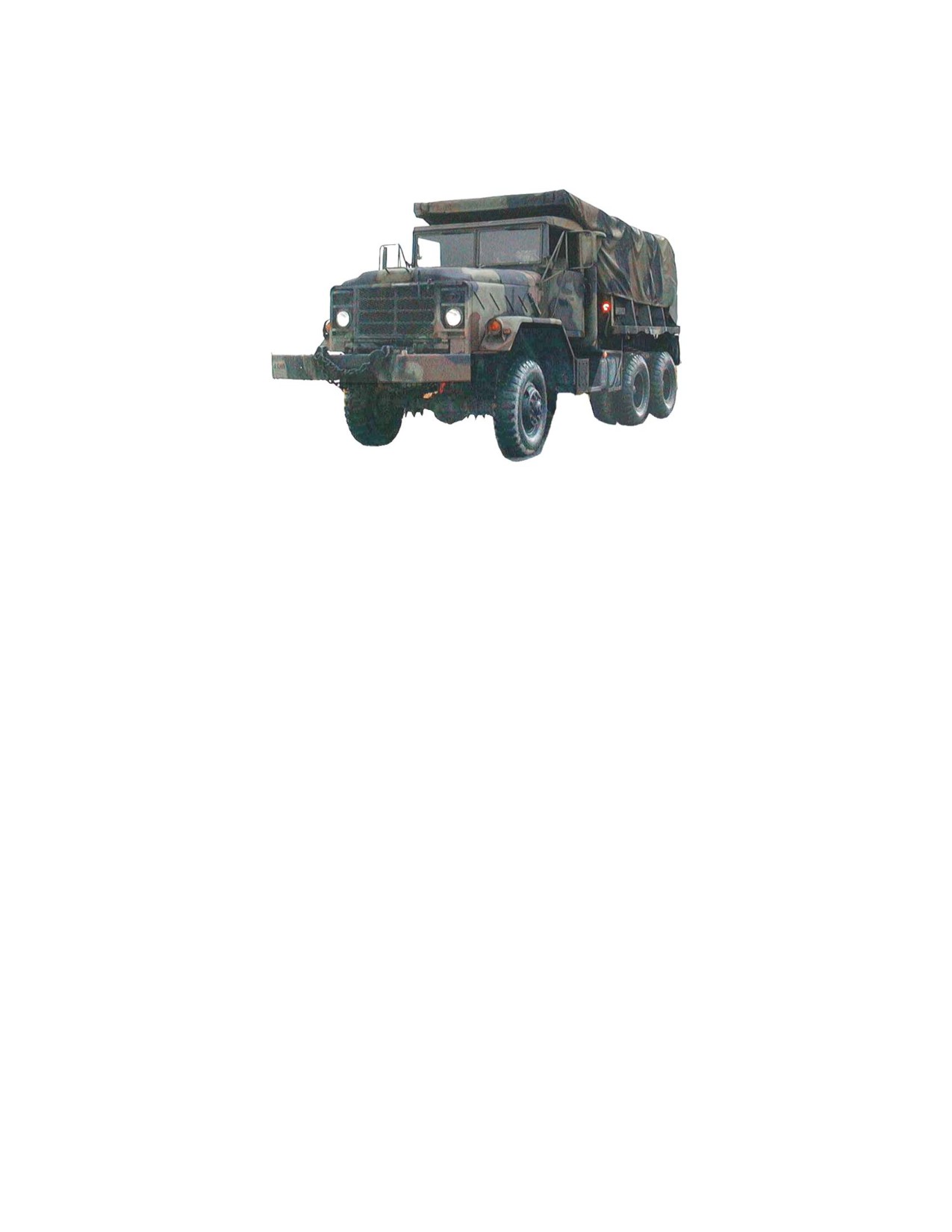

The M929A1 is the dump truck variant of the M939 series of 5 ton trucks. The M929A1 is utilized to

transport various materials. This truck operates with load limits up to 20,000 pounds on the highway and

10,000 pounds cross-country. Fully loaded, this truck can tow trailers with additional loads up to 30,000

pounds on highways and 15,000 pounds cross-country. It is equipped with a steel welded dump body,

which extends up and over the vehicle cab to prevent damage during loading. The truck is equipped with

dual fuel tanks, which extends the cruising range to 400 miles with loads and 480 miles empty. This truck

can operate as a regular rocker type or spreader type dump by placing the tailgate into various positions. A

tarp with tie-down straps was offered as an option to keep debris from being ejected while the dump-bed is

loaded.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

274.8 in

Width

97 in

Height

124.4 in

Reducible Height

N/A

Cargo Deck Height Unloaded

Vehicle Curb Weight (includes BII)

14,000 lbs

Gross Vehicle Weight Rating

24,000 lbs

Performance Information

Fording Depth

60 in

Highway Payload

10,000 lbs

Cross Country Payload

10,000 lbs

Cab Capacity

1+1

9-39

TM 11240-ODA

TRUCK, DUMP, 5 TON, M930A1

TAMCN D10727K NSN

2320-01-230-0306

08689A

DESCRIPTION AND FUNCTION

The basic difference between the M930A1 and the M929A1 is that the M930A1 has a 20,000 pound

capacity winch located behind the front bumper and the M929A1 does not. The winch feature affects truck

length, weight, shipping dimensions and angle of approach. A tarp with tie-down straps was offered as an

option to keep debris from being ejected while the dump-bed is loaded.

Manufacturer:

AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

294.5 in

Width

97 in

Height

124.4 in

Reducible Height

N/A

Cargo Deck Height Unloaded

Vehicle Curb Weight (includes BII)

14,960 lbs

Gross Vehicle Weight Rating

24,960 lbs

Performance Information

Fording Depth

60 in

Highway Payload

10,000 lbs

Cross Country Payload

10,000 lbs

Cab Capacity

1+1

9-41

TM 11240-ODA

TRUCK, TRACTOR, 5 TON, M818

TAMCN D11347K NSN

2320-00-050-8984

08325A

DESCRIPTION AND FUNCTION

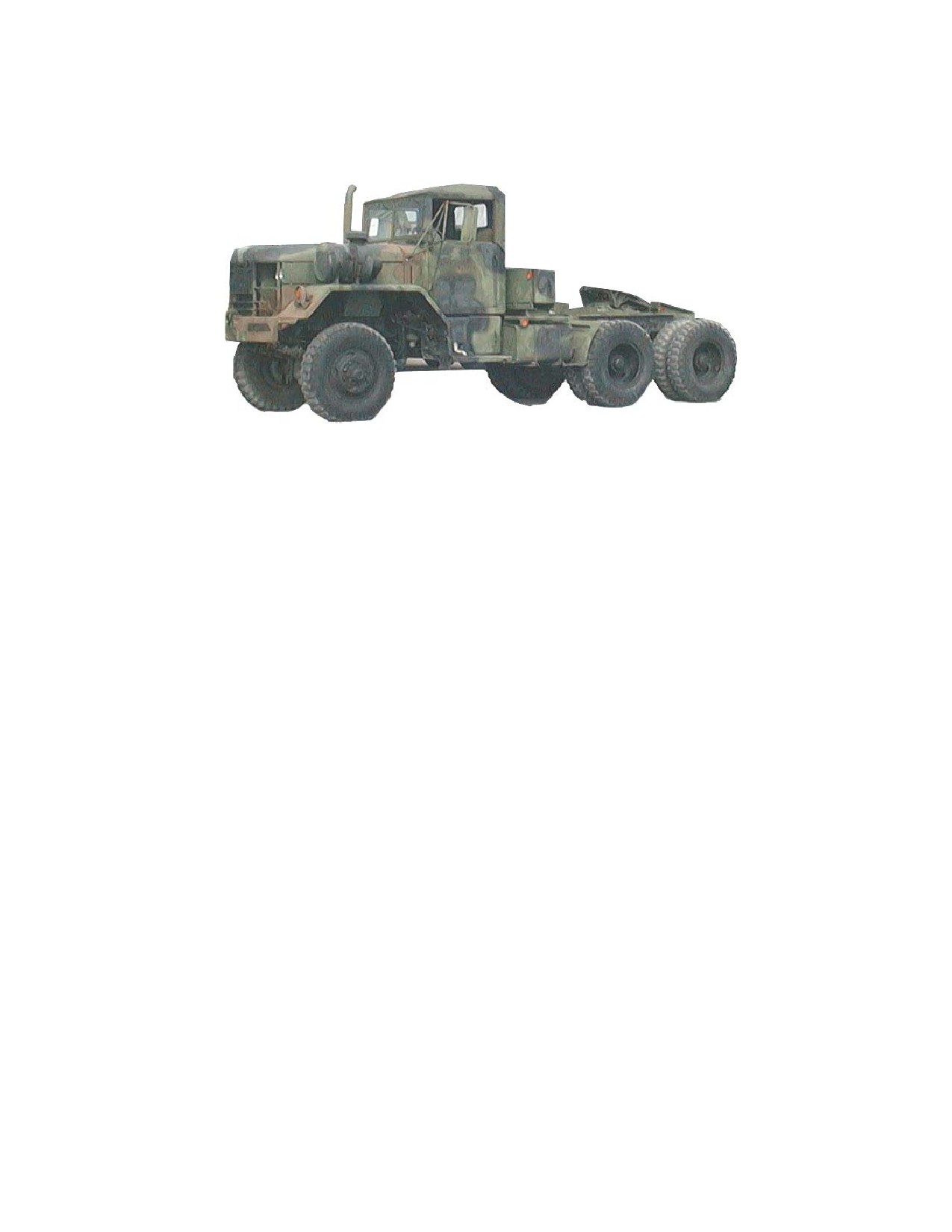

The M818 is a product improvement of the M52A2 5 ton tractor truck. It is the tractor model of the M809

Series of 5 ton trucks. The M818 is an open cab, canvas top, 6x6 wheel drive vehicle used to tow trailers

and semitrailers. The M818 has the same chassis as other models of the M809 Series of 5 ton trucks and is

fitted with a fifth wheel assembly, a towing pintle, approach plates and a deck plate on the rear of the

chassis. It is capable of operation on all types of roads, cross-country terrain and in all weather conditions.

The M818 has cross-country mobility, but its ability to tow semitrailers cross-country is limited by the

narrow articulation of the fifth wheel.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

266 in

Width

98 in

Height

116 in

Reducible Height

86 in

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

10,290 lbs

Gross Vehicle Weight Rating

20,290 lbs

Performance Information

Fording Depth

60 in

Highway Payload

10,000 lbs

Cross Country Payload

10,000 lbs

Cab Capacity

1+1

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

110 gal

Fuel Consumption mpg

4.4 mpg

Fuel Consumption per hour

13.6 gal/hr @ 60 mph

9-43

TM 11240-ODA

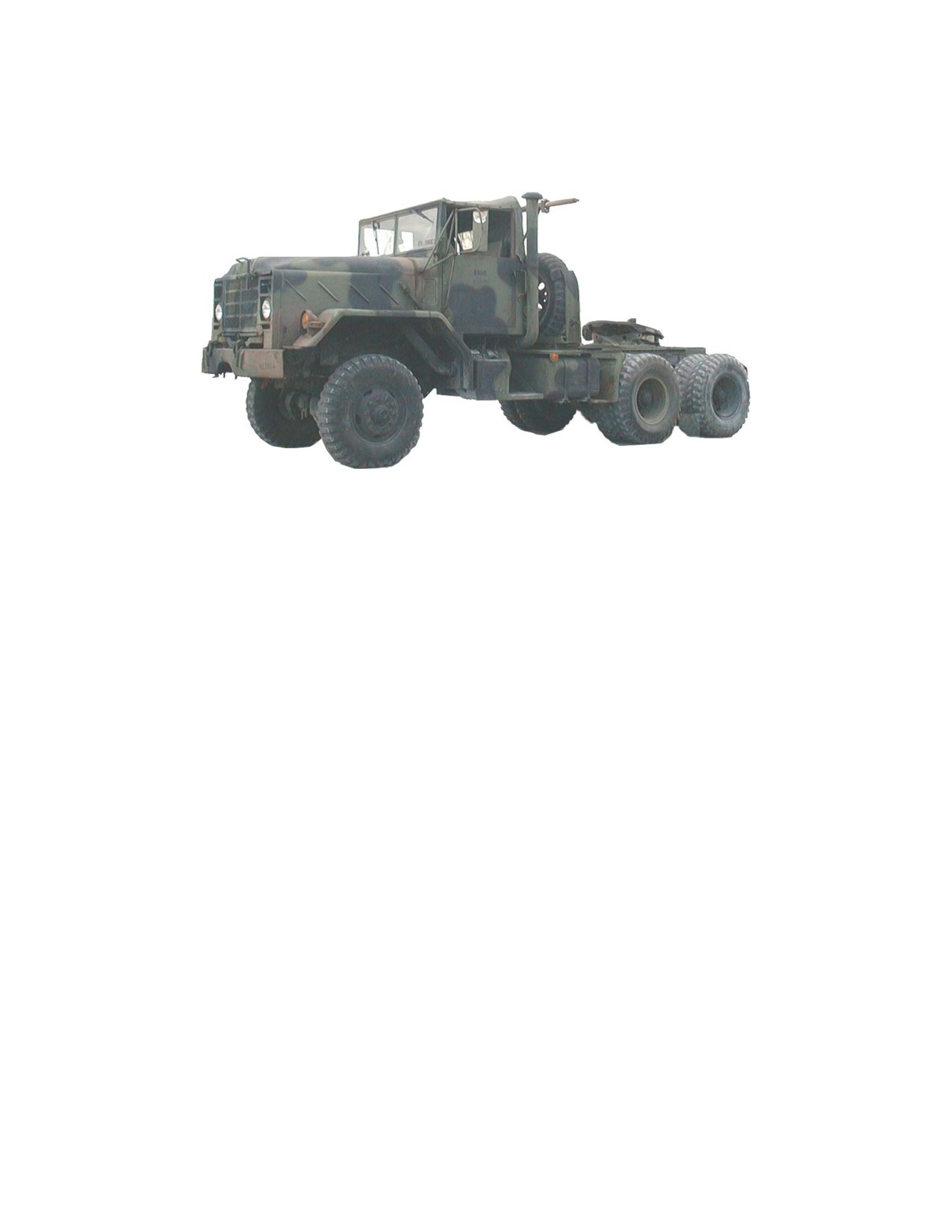

TRUCK, TRACTOR, 5 TON, M931A1

TAMCN D11347K NSN

2320-01-230-0302

08085A

DESCRIPTION AND FUNCTION

The M931A1 is a tractor variant of the M939 series of 5 ton trucks. It is equipped with a fifth wheel used

to tow semitrailers with loads up to 37,500 pounds cross-country and 55,000 pounds on highways. This

truck is equipped with a pintle hook for hauling eye-hook trailer loads. Fully loaded, the M931A1 is

capable of a maximum cruising range of 300 miles. The fifth wheel cannot pivot more than 21 degrees up,

15 degrees down or 7 degrees sideways. For this reason, cross-country semitrailer operations are limited to

easy grades over known terrain.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

264.5 in

Width

97.4 in

Height

121.2 in

Reducible Height

94.1 in

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

19,895 lbs

Gross Vehicle Weight Rating

74,895 lbs

Performance Information

Fording Depth

60 in

Highway Payload

55,000 lbs

Cross Country Payload

37,500 lbs

Cab Capacity

1+1

9-45

TM 11240-ODA

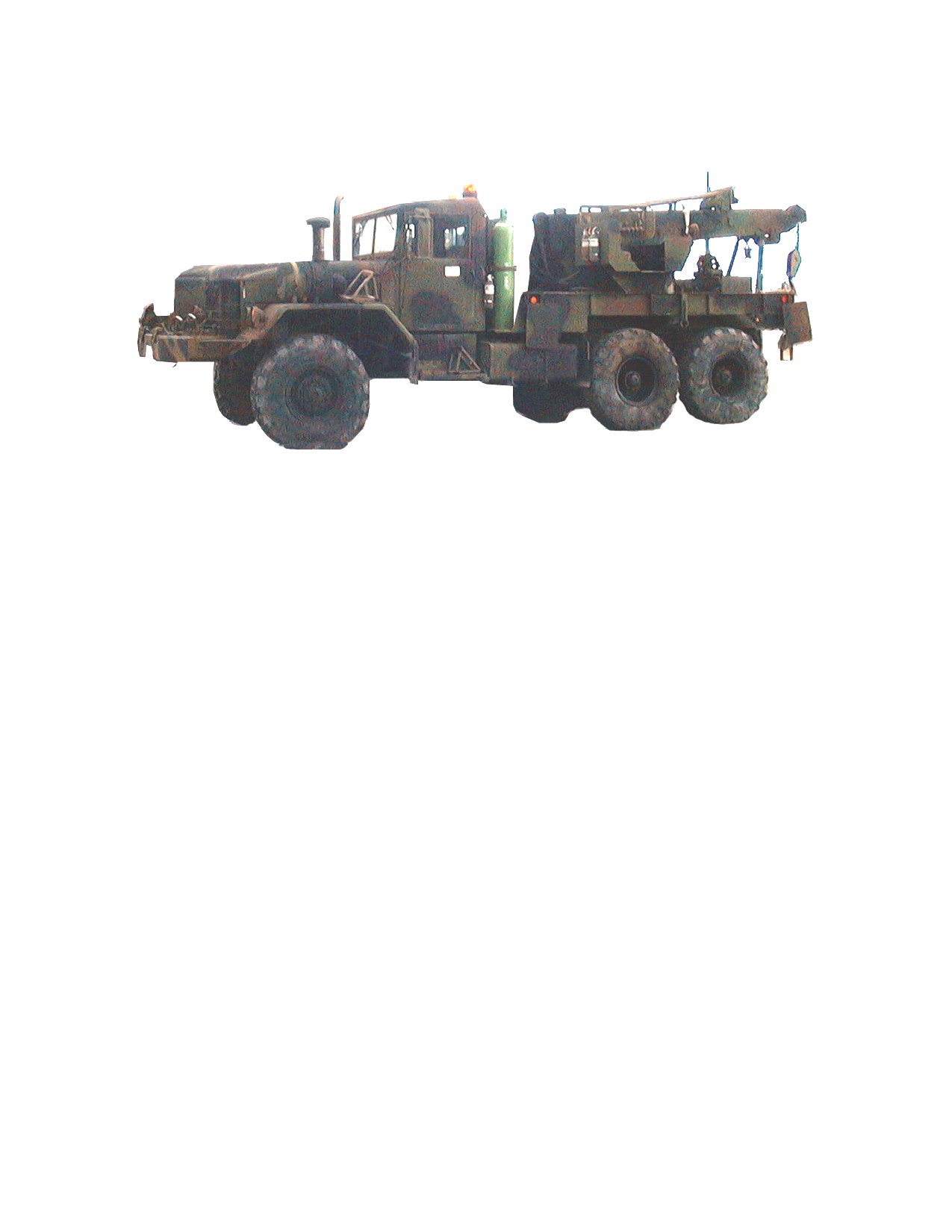

TRUCK, WRECKER, MEDIUM, 5 TON, M816

TAMCN D12127K NSN

2320-00-051-0489

08324A

DESCRIPTION AND FUNCTION

The M816 is the wrecker variant of the M809 series of 5 ton trucks. The wrecker is utilized to return

disabled trucks for repair and to free mired trucks. It is equipped with a hydraulically powered, engine

driven crane, drive shaft driven front winch and rear winch. The front winch is used mainly to free the

wrecker when it becomes mired or to assist the rear winch by acting as an anchor point. The rear crane is

used for lifting loads up to 20,000 pounds. The crane is utilized in operations such as removing and

replacing engines, power packs and gun tubes. For safety reasons, the front winch is restricted to a

maximum load of 9,500 pounds.

Manufacturer:

AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

356.2 in

Width

97.5 in

Height

111.8 in

Reducible Height

108.2 in

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

36,129 lbs

Gross Vehicle Weight Rating

36,129 lbs

Performance Information

Fording Depth

60 in

Highway Payload

N/A

Cross Country Payload

N/A

Cab Capacity

1+1

9-47

TM 11240-ODA

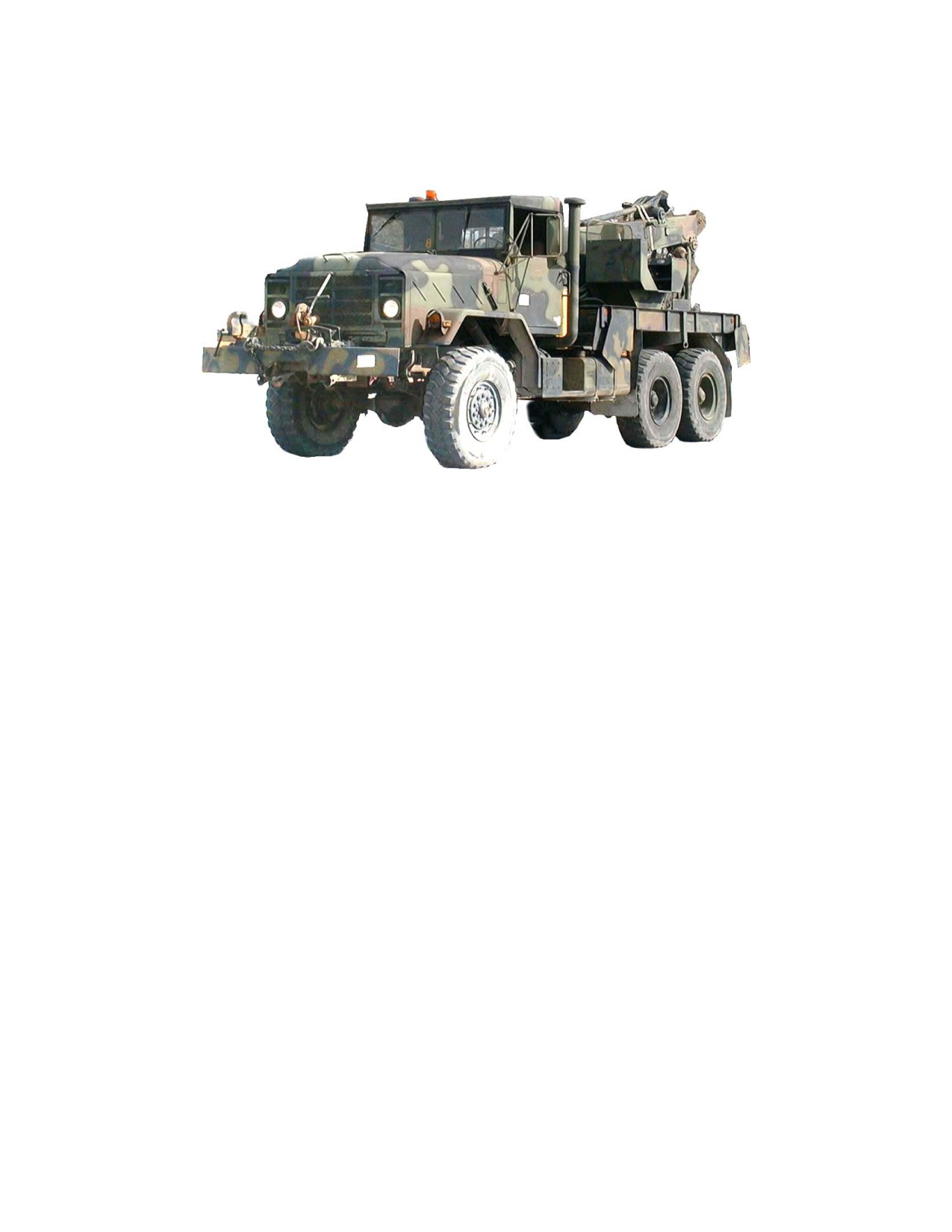

TRUCK, WRECKER, MEDIUM, 5 TON, M936A1

TAMCN D12127K NSN

2320-01-230-0304

08086A

DESCRIPTION AND FUNCTION

The M936A1 is the wrecker variant of the M939 series of 5 ton trucks. The wrecker is utilized to return

disabled trucks for repair and to free mired trucks. It is equipped with a hydraulically powered, engine

driven crane, drive shaft driven front winch and rear winch. The front winch is used mainly to free the

wrecker when it becomes mired or to assist the rear winch by acting as an anchor point. The crane, which

can be extended from 10 to 18 feet, is used for lifting loads up to 20,000 pounds. The crane is utilized in

operations such as removing and replacing engines, power packs and gun tubes. For safety reasons, the

front winch is restricted to a maximum load of 9,500 pounds. The M936A1 is retrofitted with Super Single

1400R20 steel belted, non-directional radial tires.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

362 in

Width

97.4 in

Height

120 in

Reducible Height

108.5 in

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

36,910 lbs

Gross Vehicle Weight Rating

36,910 lbs

Performance Information

Fording Depth

60 in

Highway Payload

N/A

Cross Country Payload

N/A

Cab Capacity

1+1

9-49

TM 11240-ODA

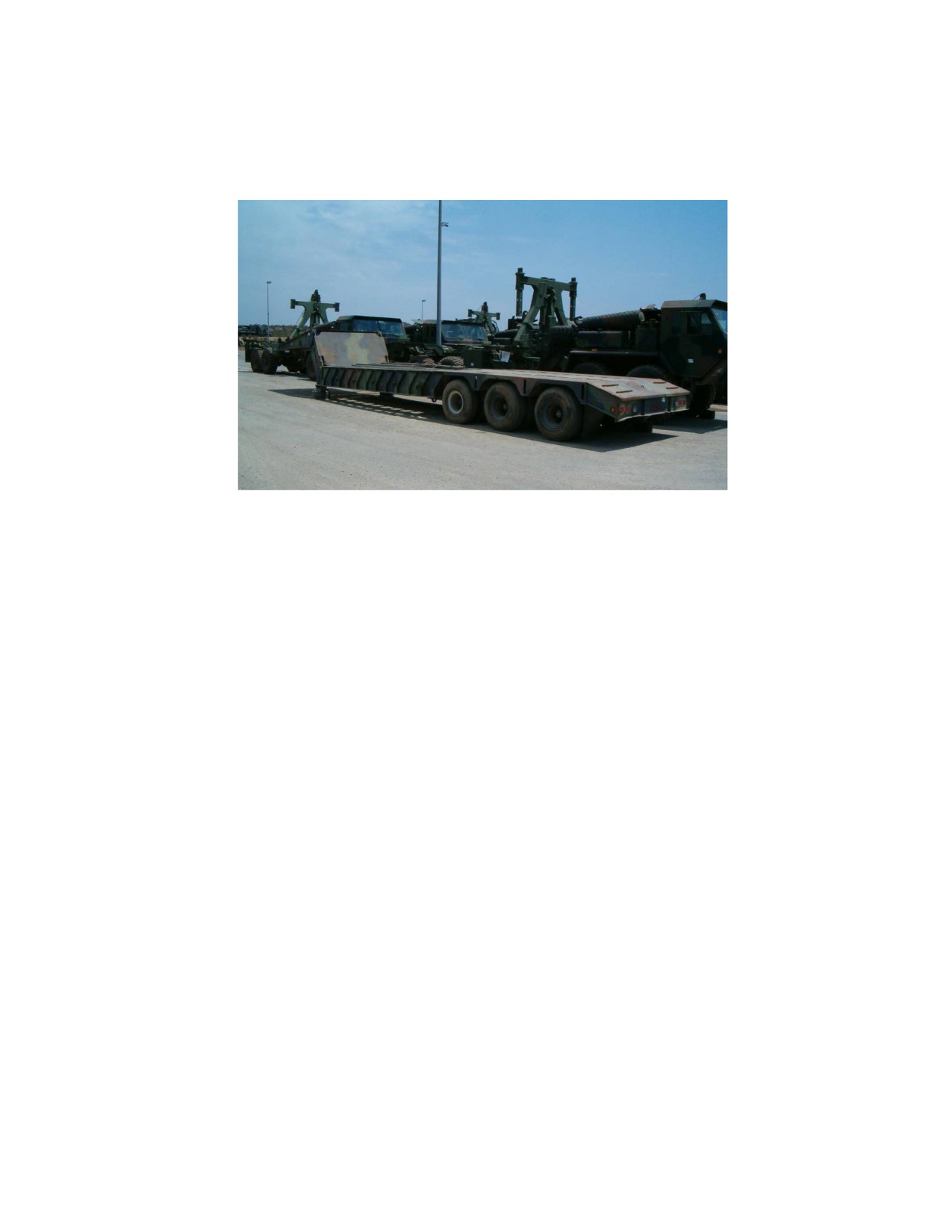

SEMITRAILER, LOW BED, 40 TON, MEDIUM HEAVY EQUIPMENT TRANPSORTER

(MHET), M870A1

TAMCN D02357K NSN

2330-01-224-9245

07862B

DESCRIPTION AND FUNCTION

The M870Al semitrailer is a newer version of the M870 with the same mission of transporting construction

equipment and material. It is towed by the Marine Corps MK48/16 LVS semitrailer adapter configuration.

The semitrailer can transport a payload of 40 tons cross-country at 20 mph and on highways at 40 mph.

The gooseneck of the M870Al drops down to form a ramp for loading and unloading of equipment. To

widen the bed and to help stabilize and support the load, twenty-four permanent outriggers are stored in an

open stowage compartment on the gooseneck behind the air and electrical connectors. A spare tire is

mounted on the rear deck of the vehicle. The prime mover supplies brake control and air pressure.

Manufacturer: Shoals American Industries, Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

510 in

Width

96 in*

Height

72.9 in

Reducible Height

N/A

Cargo Deck Height Unloaded

72.9 in

Vehicle Curb Weight (includes BII)

19,000 lbs

Gross Vehicle Weight Rating

99,000 lbs

* Expandable to 120 in

Performance Information

Fording Depth

60 in

Highway Payload

80,000 lbs

Cross Country Payload

80,000 lbs

Cab Capacity

N/A

9-51

TM 11240-ODA

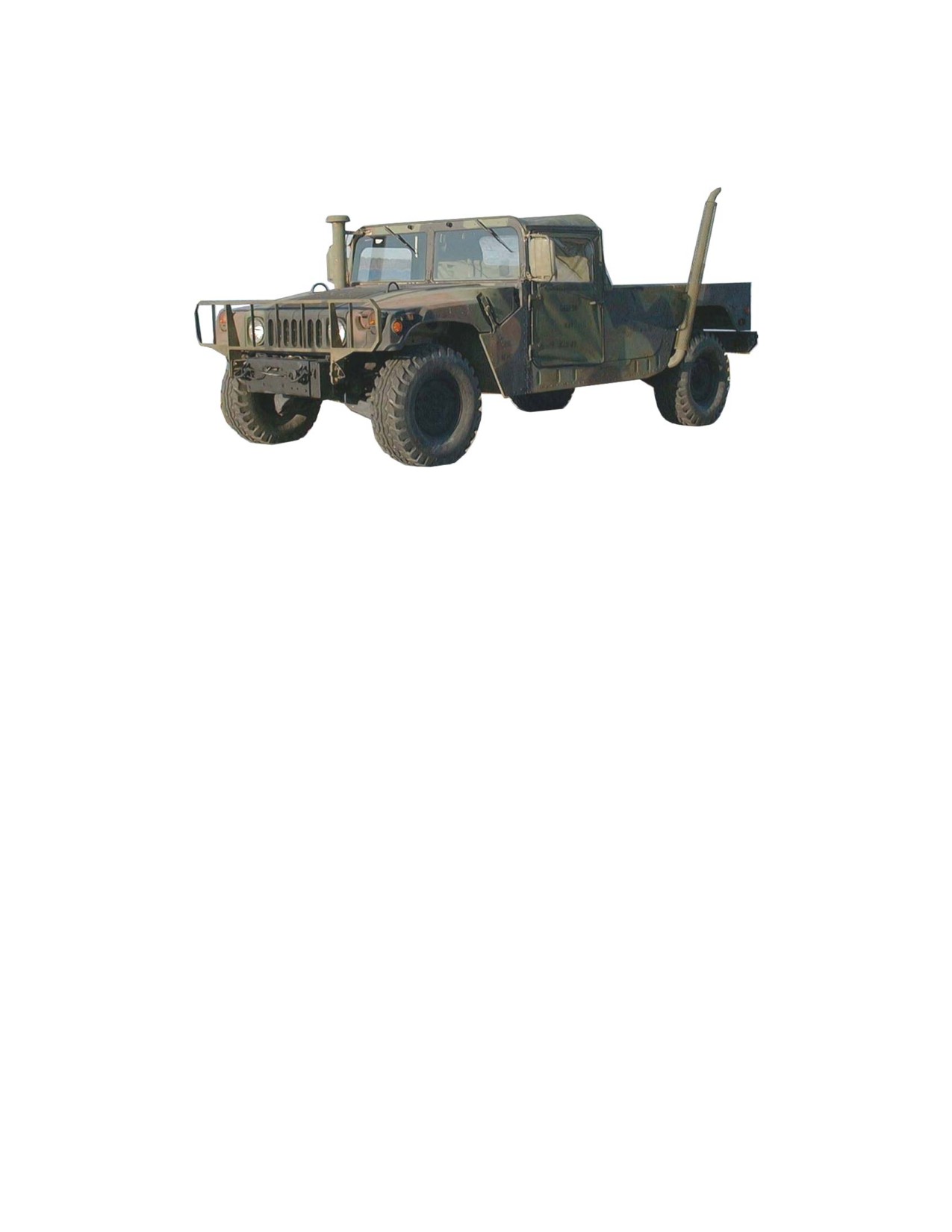

TRUCK, UTILITY, SHELTER CARRIER, M1037

TAMCN D11807K NSN

2320-01-146-7193

08775A

DESCRIPTION AND FUNCTION

The M1037 is the shelter carrier model of the M998 series of 1-1/4 ton trucks. The M1037 is used to

transport the S250 shelter and enclosed equipment on all classes of road and cross-country and in all

weather conditions. It is equipped with tie-downs to secure the S250 electrical equipment shelter. The

M1037 chassis, mechanical components and general performance are the same as other models of the

M998 series.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

180 in

Width

85 in

Height

69 in*

Reducible Height

55 in*

Cargo Deck Height Unloaded

39 in

Vehicle Curb Weight (includes BII)

5,178 lbs

Gross Vehicle Weight Rating

10,300 lbs

* Without S250 Shelter

Performance Information

Fording Depth

30 in (60 in w/ kit)

Highway Payload

3,600 lbs

Cross Country Payload

3,600 lbs

Cab Capacity

1+1

9-53

TM 11240-ODA

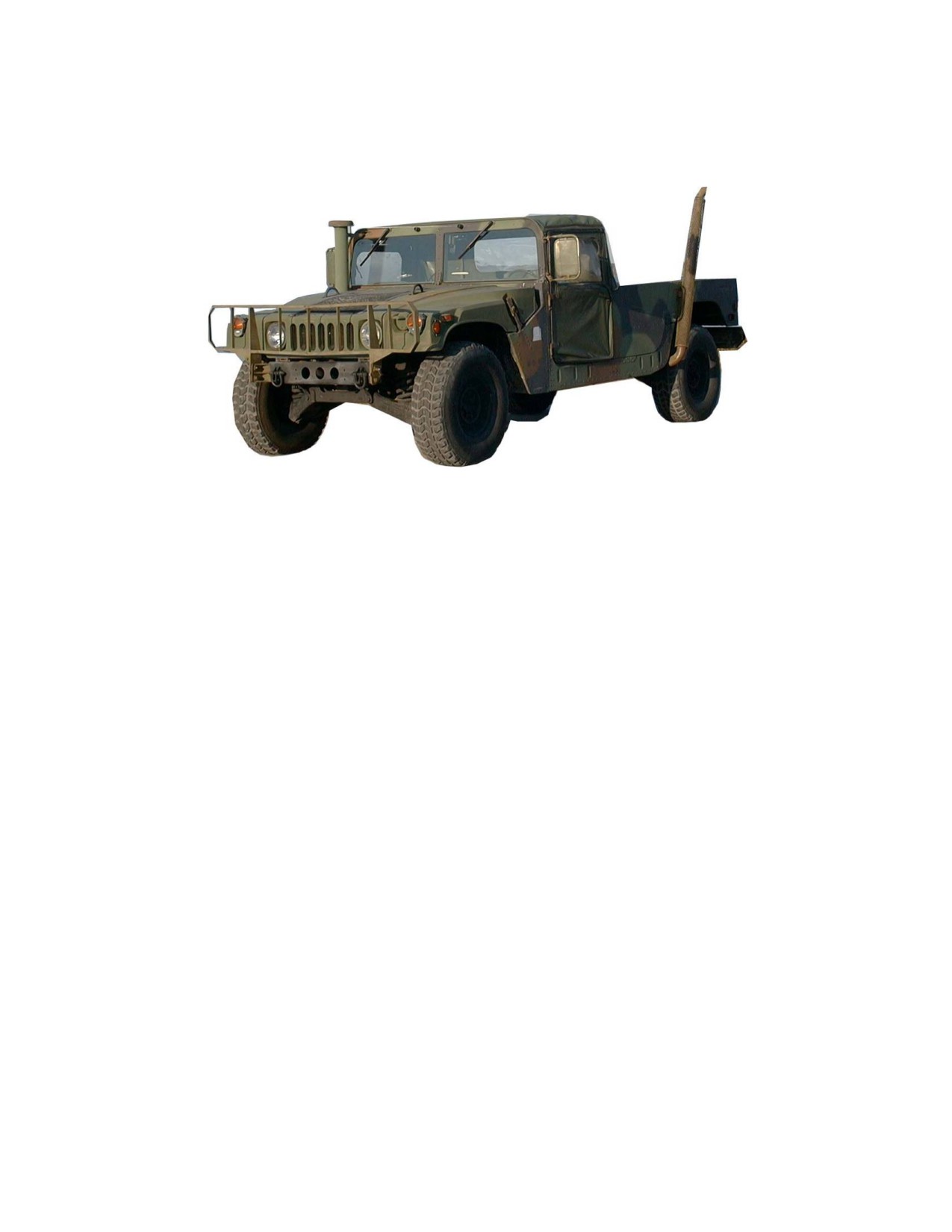

TRUCK, UTILITY, SHELTER CARRIER, M1042

TAMCN D11807K NSN

2320-01-146-7187

08773A

DESCRIPTION AND FUNCTION

The basic difference between the M1042 and the M1037 is that the M1042 is fitted with an 8,000 pound

capacity electric winch on the front bumper. The winch feature affects vehicle length, weight, shipping

dimensions and approach angle and can be installed on any M1037 to convert it to an M1042.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

185 in

Width

85 in

Height

69 in*

Reducible Height

55 in*

Cargo Deck Height Unloaded

39 in

Vehicle Curb Weight (includes BII)

5,178 lbs

Gross Vehicle Weight Rating

10,300 lbs

* Without S250 Shelter

Performance Information

Fording Depth

30 in (60 in w/ kit)

Highway Payload

3,600 lbs

Cross Country Payload

3,600 lbs

Cab Capacity

1+1

9-55

TM 11240-ODA

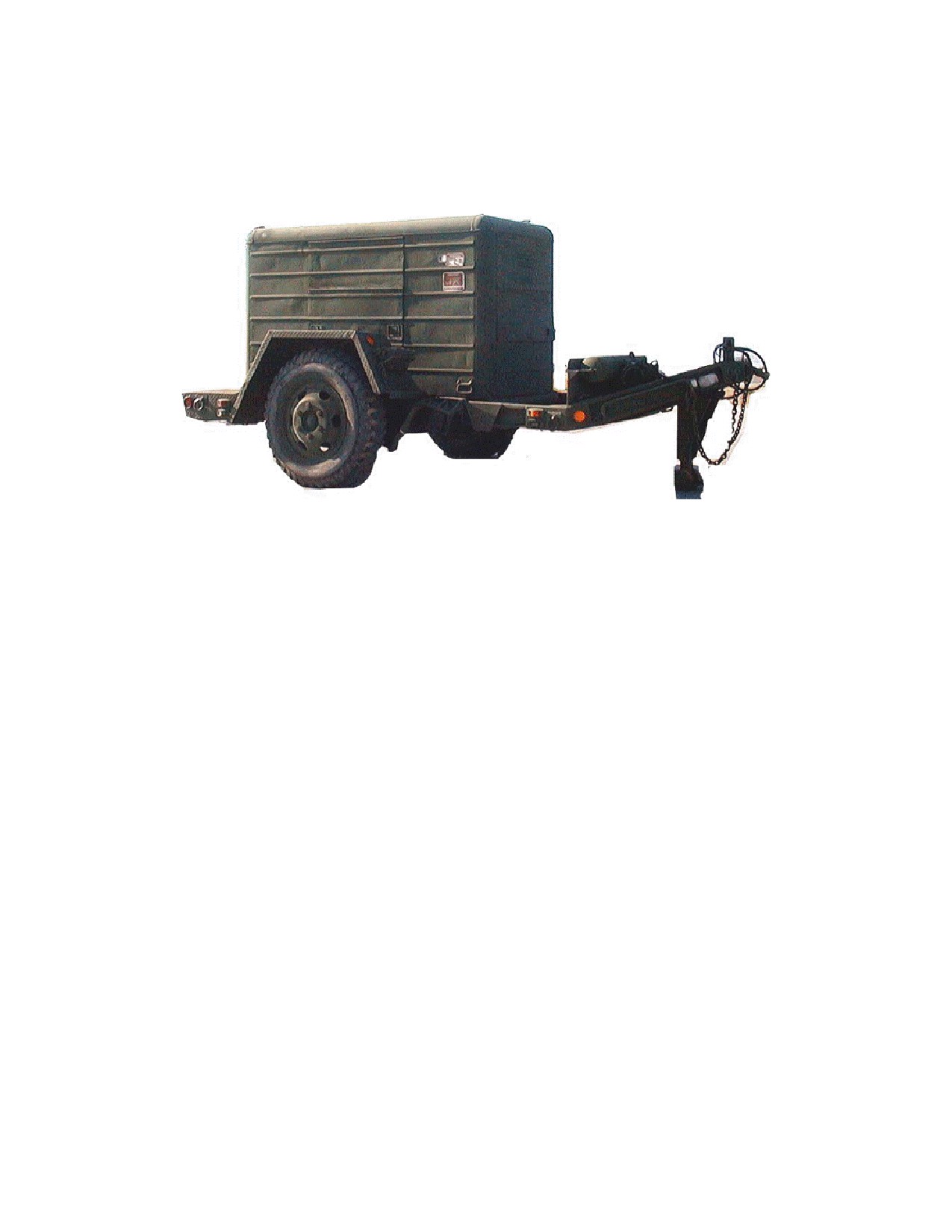

LUBRICATING AND SERVICING UNIT, 4AO32-11/ 4AO32-1

TAMCN D01907K NSN

4930-00-935-4451

00633D

4930-01-230-0781

00633E

DESCRIPTION AND FUNCTION

The 4AO32-11 is a trailer mounted, self-contained, gasoline powered unit equipped to lubricate all types of

automotive equipment and components. It is mounted on a 2-1/2 ton trailer chassis. The unit consists of

three storage tanks (grease, engine oil and gear oil) and five hose reels (two for grease, one for engine oil,

one for gear oil and one for air service). Included are a set of hand guns, adapters and couplings for

specialized lubrication. An enclosure with doors on the side protects the unit from inclement weather. The

only difference between the 4AO32-1and the 4AO32-11 is the manufacturer. The 4A032-1 is made by

Henry Spen Company. The 4AO32-11 is manufactured by Elliott Manufacturing Company.

Manufacturer: Elliott Manufacturing Company

Henry Spen Company

TECHNICAL CHARACTERISTICS

Dimensions

Length

174 in

Width

96 in

Height

77 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

5,610 lbs

Gross Vehicle Weight Rating

5,610 lbs

Fuel Data

Type of Fuel

Gasoline

Fuel Tank Capacity

10 gal

Fuel Consumption mpg

N/A

Fuel Consumption per hour

1 gal/hr

9-57

TM 11240-ODA

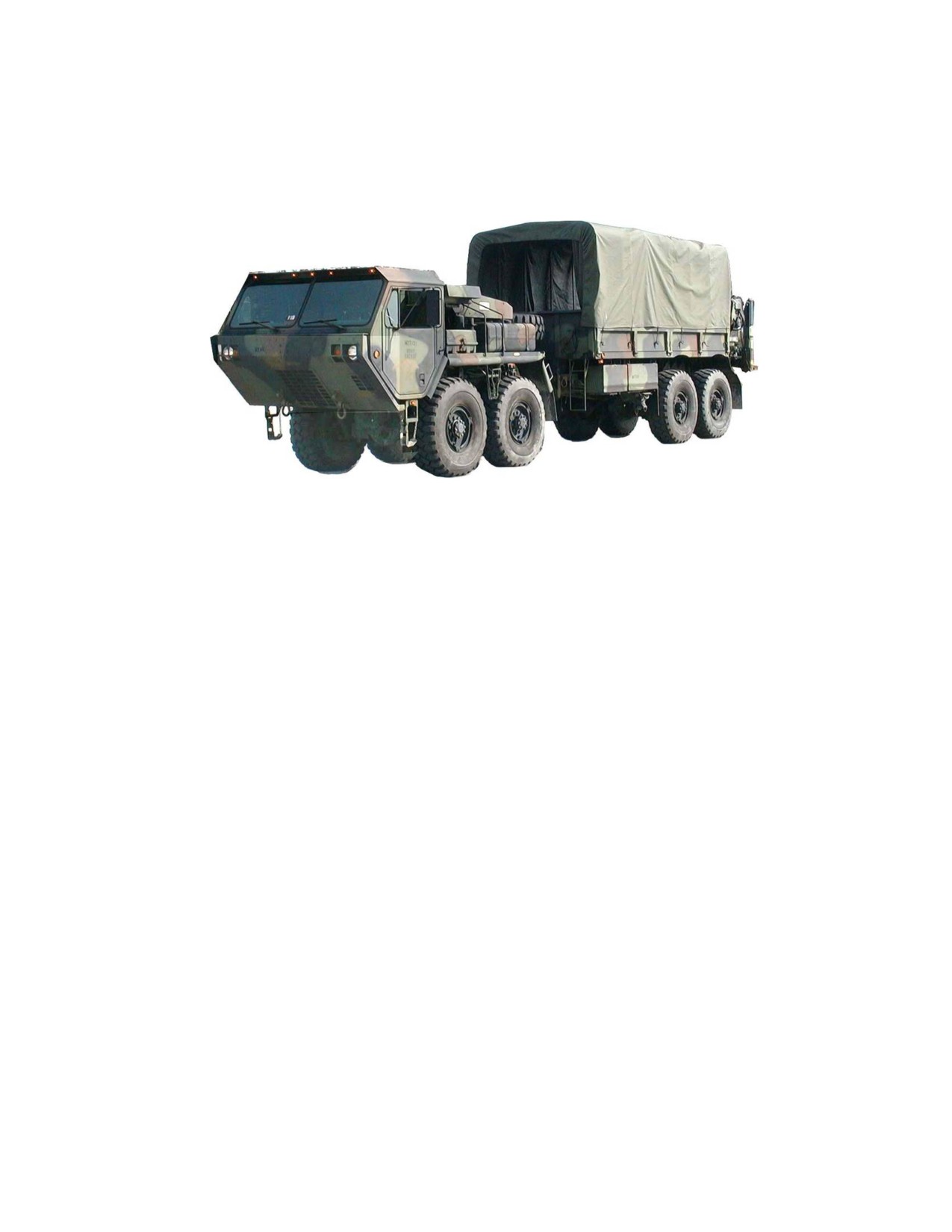

TRAILER, POWERED, 20 TON, CARGO, DROPSIDE, WITH MATERIAL HANDLING CRANE,

MK17/MK17A1 MOD 0

TAMCN D08797K NSN

2320-01-176-0468

08784A

2320-01-417-5296

08784B

DESCRIPTION AND FUNCTION

The MK17/17A1 combines with the MK48/48A1 Power Unit (D0209) to form the cargo-carrying variant

of the Logistics Vehicle System (LVS). The MK17/17A1 is utilized to transport palletized cargo and

International Standards Organization / American National Standards Institute (ISO/ANSI) containers. The

side panels on the cargo bed can be dropped down or removed to ease loading and unloading activities.

The side panels also provide seating for troops. A Material Handling Crane at the rear of the vehicle is

used to load and unload cargo and equipment. The MK17 is equipped with a knuckle boom crane and the

MK17A1 is equipped with a folding telescoping boom crane. The MK17/17A1 is also capable of towing

and positioning any of the towed howitzers within the Marine Corps inventory.

Manufacturer: Oshkosh Truck Corporation

TECHNICAL CHARACTERISTICS

Dimensions

Length

240 in

Width

96 in

Height

96 in

Reducible Height

N/A

Cargo Deck Height Unloaded

96 in

Vehicle Curb Weight (includes BII)

22,360 lbs

Gross Vehicle Weight Rating

67,660 lbs

Performance Information

Fording Depth

60 in

Highway Payload

40,000 lbs

Cross Country Payload

25,000 lbs

Cab Capacity

1+1

9-59

TM 11240-ODA

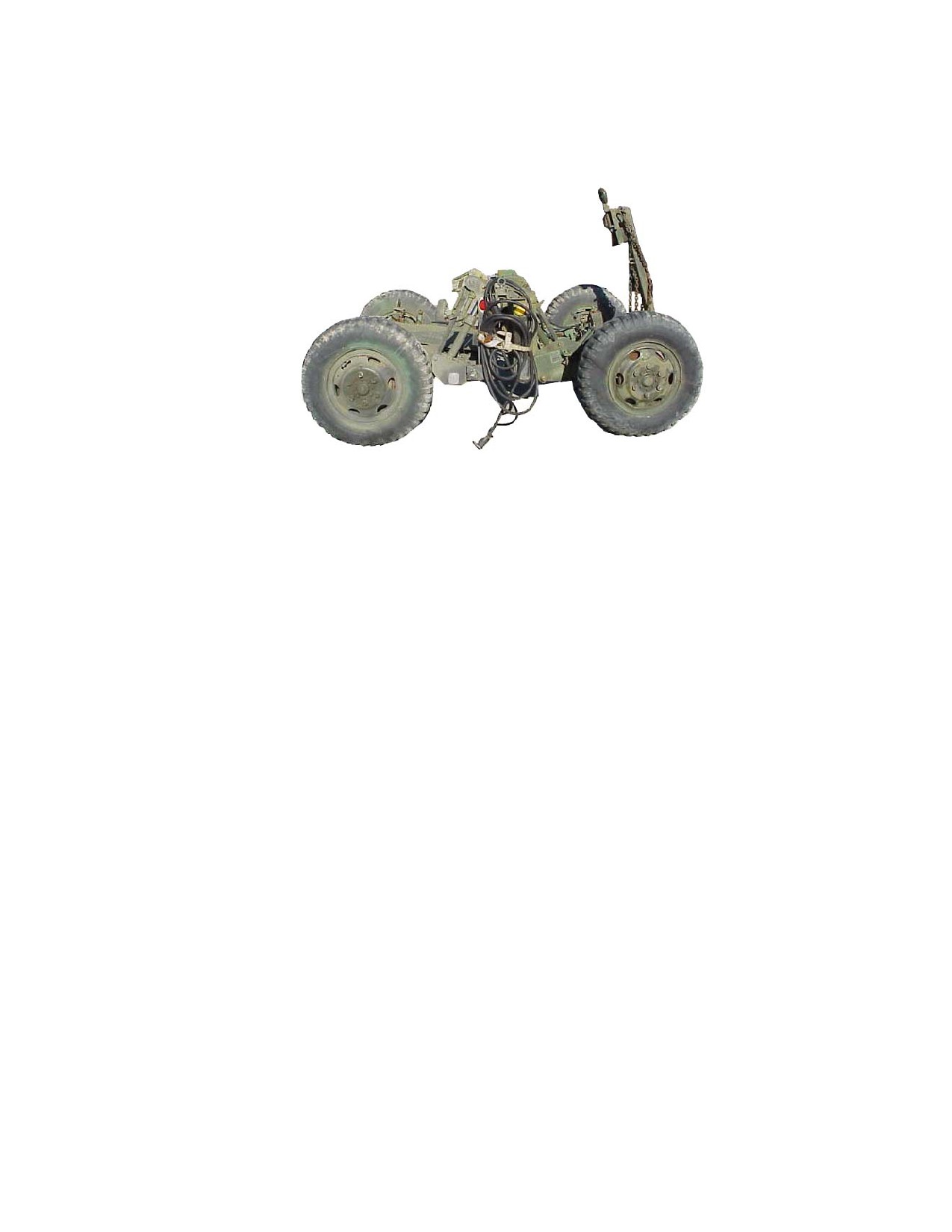

DOLLY SET, LIFT, TRANSPORTABLE SHELTER, M832

TAMCN D01057K NSN

2330-00-221-4939

07513A

DESCRIPTION AND FUNCTION

The M832 consists of a front and rear trailer dolly designed to be attached to the opposite ends of a

transportable shelter for mobility. The front and rear trailer dollies are equipped with adapters that secure

to and support the shelter. The adapters are mounted on the axles by means of rocker arms and strut

assemblies that can be raised or lowered by hydraulic hand pumps. A draw bar with lunette is mounted on

the front trailer dolly. When not in use, the front and rear trailer dollies can be coupled together for storage

or transport. The M832 has a maximum towing speed of 50-mph on highways and 20-mph cross-country.

Manufacturer: Craig System Corporation

TECHNICAL CHARACTERISTICS

Dimensions

Length

125.5 in*

Width

96 in

Height

54.5 in*

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

3,700 lbs

Gross Vehicle Weight Rating

14,200 lbs

* Draw bar removed

Performance Information

Fording Depth

30 in

Highway Payload

10,500 lbs

Cross Country Payload

10,500 lbs

Cab Capacity

N/A

9-61

TM 11240-ODA

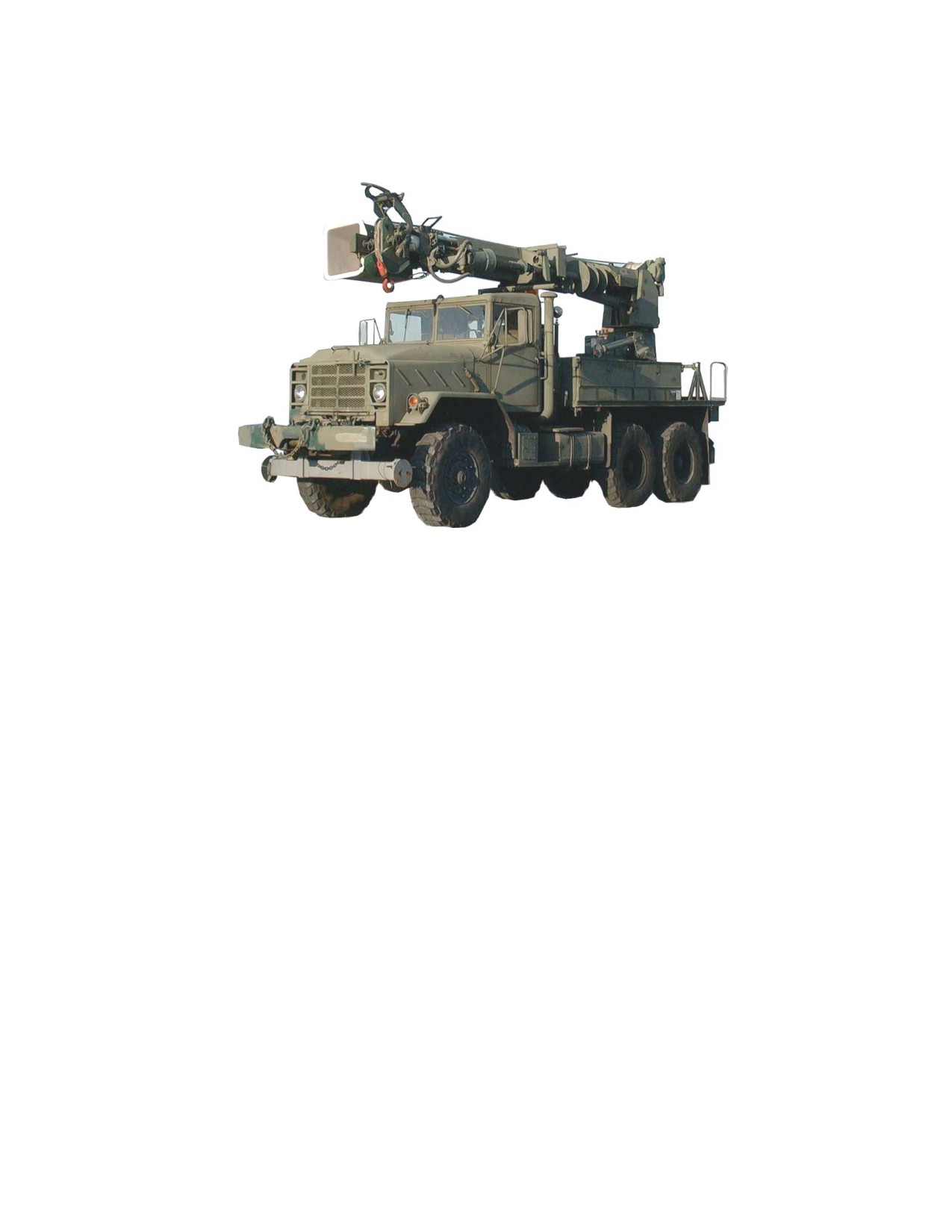

TRUCK, MAINTENANCE, TELEPHONE/UTILITY, CONSTRUCTION, M876A1

TAMCN D10927K NSN

2320-01-387-5781

10110A

DESCRIPTION AND FUNCTION

The M876A1 truck replaces the M876. The mission of the M876A1 Telephone Maintenance Truck is to

construct and maintain large-scale, rear-echelon military telephone and electric power systems. It consists

of a commercial digger derrick assembly mounted directly onto the frame of an M939A1 series 5 ton, 6x6,

cargo truck. As such, the vehicle is considered a variant of the M939A1 series truck. The M876A1 is

capable of operating in cross-country, rough terrain environments as well as on primary and secondary

roads. The unit is also designed to operate in extreme temperatures such as arctic weather conditions and

desert heat. The M876A1 is equipped with an ALTEC Industries, Inc. D845-TR digger derrick assembly,

mounted over the center of the rear axle. The derrick is capable of 360^o continuous rotation. When utilized

as a crane, the maximum load lifting capacity is 12,500 pounds. Hydraulically operated 2nd and 3rd stage

boom sections provide a maximum workable height of 45 feet. The derrick assembly also includes the

following: transferable boom flares with pole guide, dual fiberglass personnel platforms, 8,000 ft-lb.

digger, 12/18/24 inch augers, upper and ground level hydraulic tool circuits, 4-foot fiberglass material

handling jib, 15,000 pound turret winch, 20,000 pound bed winch, 120V AC outlets, compartments for

common and unique tools and various overload safety systems. The lower main control panel, the remote

control or the upper controls at the boom tip, can control Derrick functions. Stability is provided by one set

of A-frame outriggers located at the rear of the vehicle. Towing capabilities are the same as M939A1

series trucks

Manufacturer: AM General

(Chassis)

Altec

(Derrick)

9-63

TM 11240-ODA

TRUCK, MAINTENANCE, TELEPHONE/UTILITY, CONSTRUCTION, M876A1 - CONT’D

TECHNICAL CHARACTERISTICS

Dimensions

Length

332 in

Width

98 in

Height

156 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

22,765 lbs

Gross Vehicle Weight Rating

23,365 lbs

Performance Information

Fording Depth

60 in w/o kit

Highway Payload

600 lbs

Cross Country Payload

600 lbs

Cab Capacity

1+2

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

81 gal

Fuel Consumption mpg

4.3 mpg

Fuel Consumption per hour

13.9 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Apr 1994

Service Life

20 yrs

Planned Exit Date

1 Oct 2007

Special Tool Kits

TAMCN: D06052E Tool Kit, 3^RD ECH FM

SL-3-08427A

NSN:

D07552E Tool Kit, 2^ND ECH Truck 5 Ton

SL-3-08426A

5180-00-762-1737

9-64

TM 11240-ODA

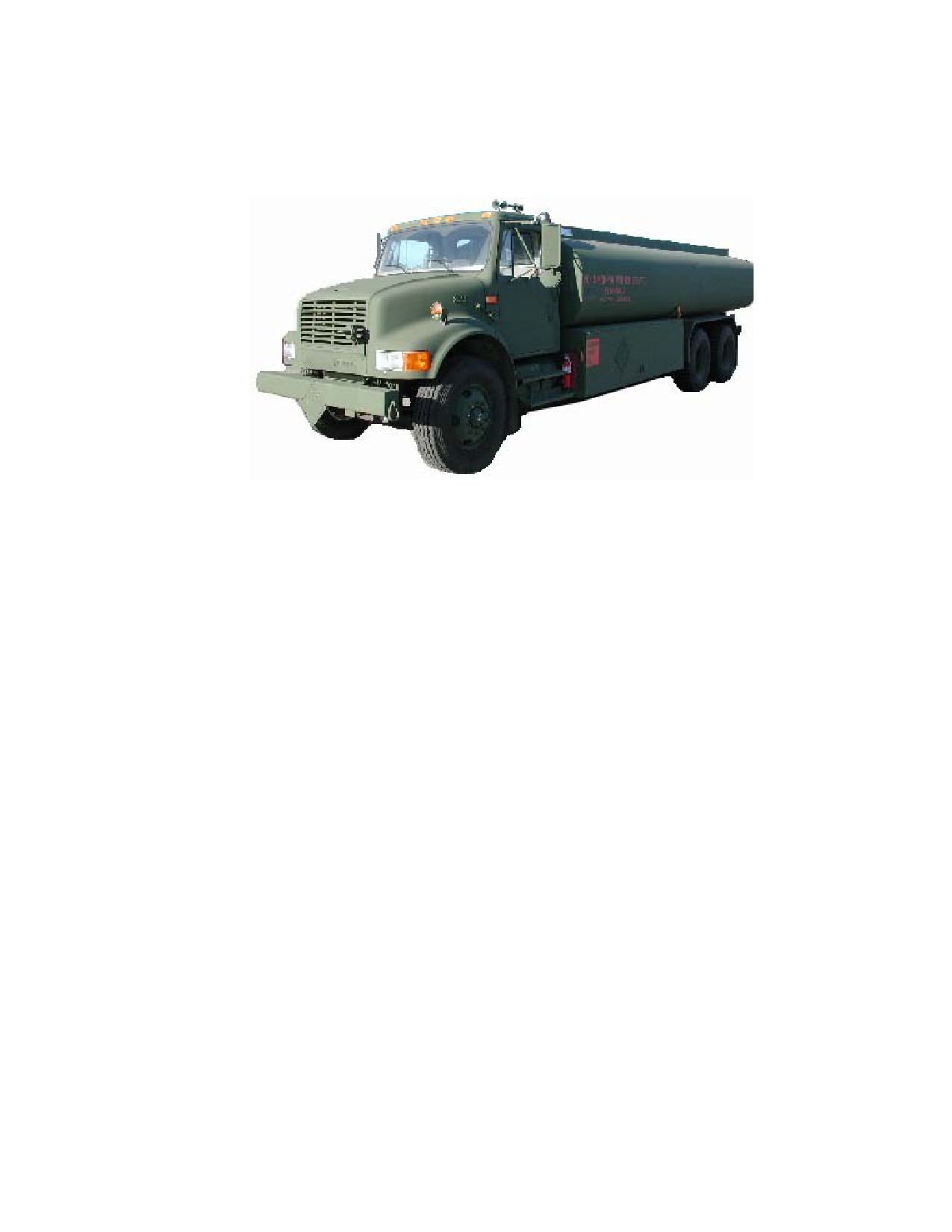

TRUCK, AVIATION REFUELER CAPABILITY, ARC

TAMCN D02107K NSN

2320-01-531-5250

10780C

DESCRIPTION AND FUNCTION

The ARC is a 5,000-gallon commercial aviation refueler modified to incorporate Marine Corps unique

requirements. It is self-propelled, blackout capable and is fully transportable by C-141 or larger aircraft, as

well as Maritime Prepositioning Force and commercial shipping. This system provides under and

overwing aviation refueling; defueling and internal line haul to the Marine Aircraft Wing (MAW), at both

garrison air stations/fields and at deployed expeditionary airfields. The ARC consists of a 4900, 6x4

chassis, while the ARC A1 and A2 variants have a 7400, 6x4 chassis. The ARC was only be fielded to the

MAWs and MPS. The ARC is currently being transferred to bases and stations as a GME asset. Upon

complete fielding of the MK970 the ARC will be phased out of the tactical vehicle inventory.

Manufacturer: Isometrics, Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

419 in

Width

96 in

Height

103 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

21,375 lbs

Gross Vehicle Weight Rating

57,375 lbs

Performance Information

Fording Depth

N/A

Highway Payload

36,000 lbs

Cross Country Payload

N/A

Cab Capacity

1+1

9-65

TM 11240-ODA

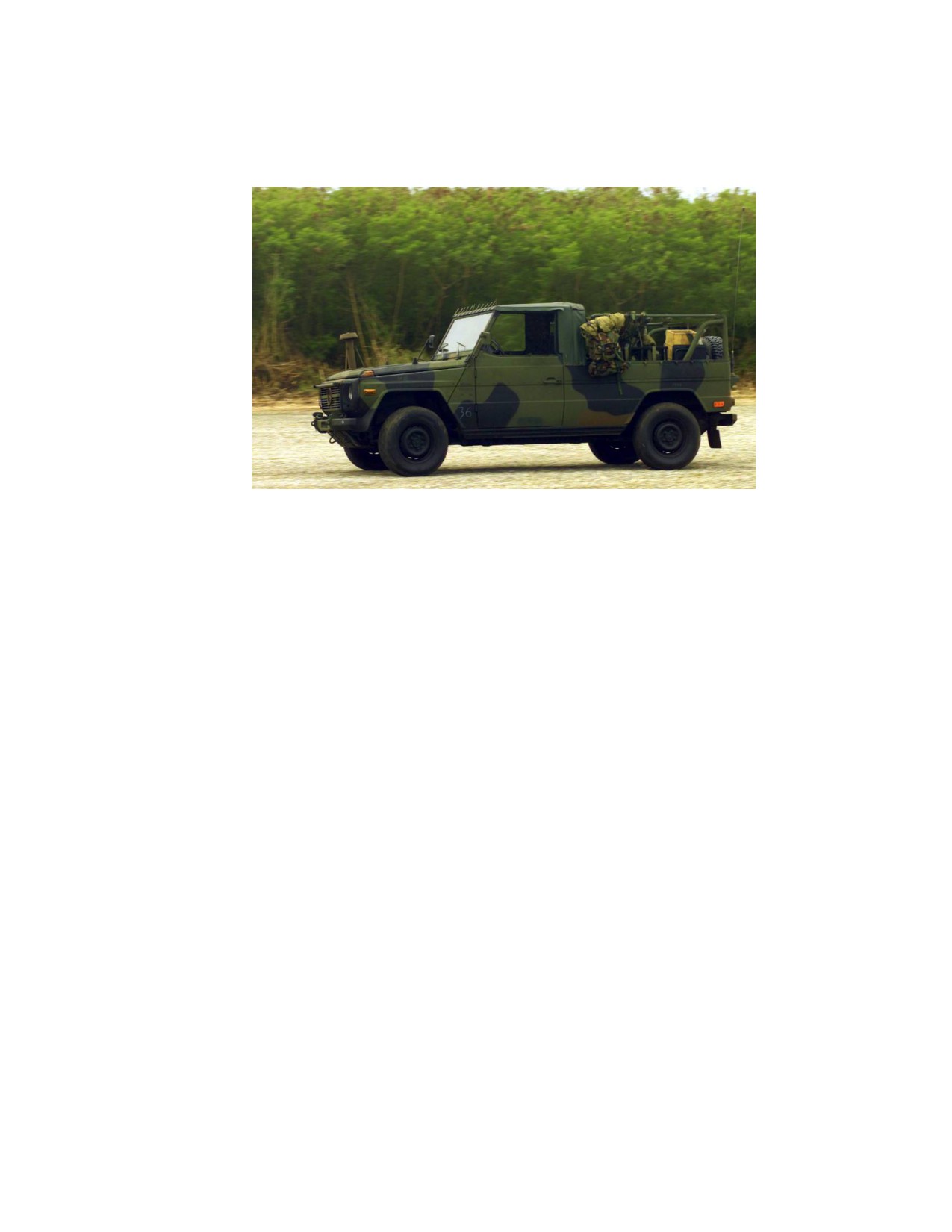

VEHICLE, FAST ATTACK, INTERIM (IFAV)

TAMCN D11607K NSN

2350-01-507-8342

04751F

DESCRIPTION AND FUNCTION

The IFAV is a lightweight, thin-skinned, highly mobile weapons platform providing reconnaissance units

with improved ground mobility. It replaced the Fast Attack Vehicle. It is internally transportable by the

CH-53 helicopter and has mobility comparable to the Marine Air-Ground Task Force (MAGTF) maneuver

elements. Ballistic protection offered by the IFAV is limited to grenade protection provided by the

floorboards. Speed, maneuverability and the use of cover and concealment are the crew’s primary means

of survival. The IFAV is currently being replaced by the Internally Transportable Vehicle (ITV).

Manufacturer: Daimler - Chrysler

TECHNICAL CHARACTERISTICS

Dimensions

Length

179 in

Width

65 in

Height

73 in

Reducible Height

53 in

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

4,290 lbs

Gross Vehicle Weight / Shipping Weight

7,290 lbs

Performance Information

Fording Depth

30 in

Highway Payload

3,000 lbs

Cross Country Payload

3,000 lbs

Cab Capacity

1+4

9-67

TM 11240-ODA

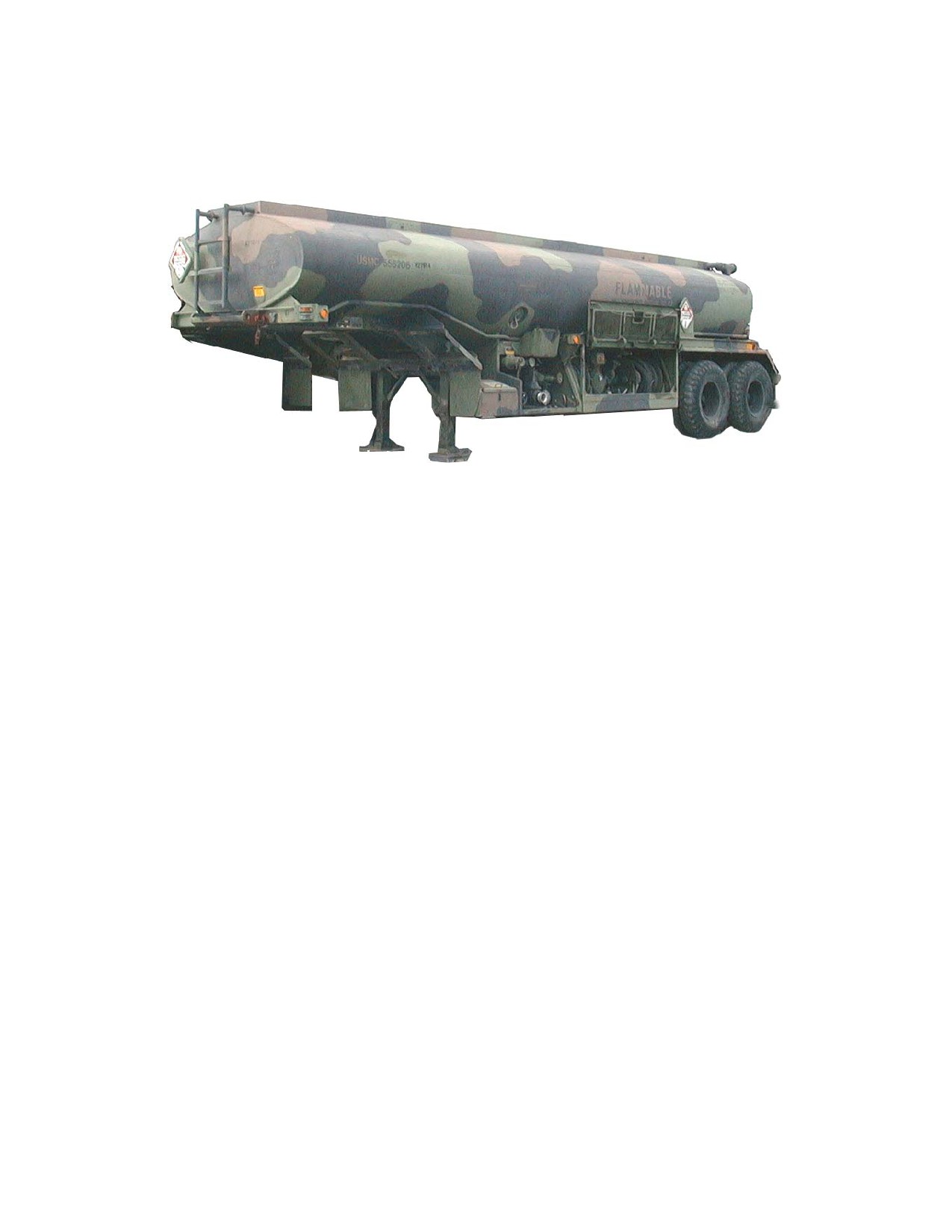

SEMITRAILER, AIRCRAFT REFUELER, 5000 GALLON, M970

TAMCN D02157K NSN

2330-01-050-5635

08089A

DESCRIPTION AND FUNCTION

The M970 is a 5,000-gallon fuel dispensing semitrailer designed for under/over wing refueling of aircraft.

It is equipped with a filter/ separator, recirculation system and two refueling systems, one for under wing

and one for over wing servicing. The tanker is designed to be towed by a 5 ton, 6x6 truck tractor or similar

vehicle equipped with a fifth wheel. The M970 can be loaded through the bottom or through the top fill

openings. A ladder is provided at the front of the semitrailer for access to the top manhole and a 4-cylinder

diesel engine and pump assembly provides self-load/unload capability. The body of the refueler is a 5,000-

gallon, single compartment, stainless steel tank. The chassis is of welded steel construction and is equipped

with full floating tandem axles and a manually operated landing gear.

Manufacturer: Various

TECHNICAL CHARACTERISTICS

Dimensions

Length

366 in

Width

96 in

Height

104.5 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

15,200 lbs

Gross Vehicle Weight Rating

49,150 lbs

Performance Information

Fording Depth

30 in

Highway Payload

5,000 gal

Cross Country Payload

5,000 gal

Cab Capacity

N/A

9-69

TM 11240-ODA

A-2. HMMWVs

Table A-2. HMMWVs

TAMCN

NOMENCLATURE

LIMITATIONS

B00187B

Integrated Trailer, Environmental

Control Unit and Generator (ITEG)

B15837B/

600 GPM Fuel & Water Pump Trailer

35mph Primary Roads

B23947B

25mph Secondary Roads

5mph Cross-Country and Trails

C79052B

Common #22, Shop Equipment

Common Tool Set

D00167K

M1102 LTT-H (Cargo)

D00177K

M1102 LTT-MCC (Chassis)

D00857K

M116 Series, 3/4 Ton

2,250 lbs Primary Roads

1,500 lbs Cross-Country

50 mph Primary Roads

6 mph Cross-Country

D08407KP

Internally Transportable Vehicle

Emergency Use Only

Ammunition Trailer (ITV-AT) M1164

30mph Primary Roads (load of 15-30 rounds)

25mph Primary Roads (load of 0-14 rounds)

15mph Secondary Roads (load of 0-30 rounds)

5mph Cross-Country/Trails (load of 0-30 rounds)

D08507K

M101 Series, Cargo

1,500 lbs

15 mph Cross-Country (If Towed By M998/M1123)

E10707M

Internally Transportable Vehicle

Emergency Use Only

EFSS Rifled Towed Mortar (RTM)

35mph Primary Roads

M327

15mph Secondary Roads

10-15mph Cross-Country and Trails

Base-X Shelter Support Trailer (BST)

HP-2C DRASH

30mph Primary Roads

25mph Secondary Roads

15mph Cross-Country and Trails

Cannot Tow HP-2C Trailers Built Prior To 25 Oct

2004 Unless Trailer Is Modified

M1101 Army High Mobility Trailer

MHU-151 Aviation Ordnance Trailer

3000lbs Max Load

Loaded - 5 mph

Unloaded - 25 mph

Max 2 Tandem -(Loaded/Unloaded) 10 mph

Minimum Operating Strip Lighting

45mph Primary Roads

System (MOSLS)

20mph Secondary Roads

5mph Cross-Country and Trails

Appendix A-2

TM 11240-ODA

A-3. MTVR

Table A-3. MTVR

TAMCN

NOMENCLATURE

LIMITATIONS

A15037G

AN/TPS-59 Radar

B00257B

Trailer Mounted Hydro Seeder (T90-

Must Be Towed Empty

35 mph Primary Roads

20 mph Secondary Roads

5 mph Off-Road

B01157B

BEB Bridge Erection Boat Trailer

Must have lunette adapter.

45 mph Primary Roads

20 mph Secondary Roads

5 mph Off-Road

B00157B

USMC Z-Backscatter Military

MTVR must not be loaded over Cross-Country

(ZBV-MIL)

GVW rating. 45 mph Primary Roads

25 mph Secondary Roads

5 mph Cross-Country

B17807B

Riverine Assault Craft (RAC)

w/Trailer

B19517B

Shop Equipment, General purpose,

Set No. 1

B25657K

Engineering Equipment Trailer

MTVR must not be loaded over its Cross-Country

(EET)

GVW.

5,020 lbs (120MM Tank Ammunition);

5,380 lbs (155MM Separate Loading Projectiles)

C53337B

Open Water Safety Craft Trailer

MTVR must not be loaded over Cross-Country

(OWSC)

GVW.

40 mph Primary Roads

25 mph Secondary Roads

(not authorized for Cross-Country)

C71107G

Tactical Imagery Production System

MTVR must not be loaded over Cross-Country

(TIPS) with 15,000 lb. ISO Container

GVW.

Trailer

45 mph Primary Roads

20 mph Secondary Roads

(not approved Cross-Country)

D00807K

M353 General Purpose Trailer

50 mph Highway/

25 mph Cross Country

D02157K

MK970 5,000 Gallon Semi-trailer

3,000 Gal. with M931

Refueller

D02357K

M870A2/A2S Medium Heavy

55 mph Primary Roads

Equipment Transporter (MHET)

30 mph Secondary Roads

D08607K

M105A2 Cargo Trailer

50 mph Primary Roads

D08617K

MK38 HIMARS RSV Trailer

D08807K

M149 Water Tank Trailer

D08857K

M1073 FUPP Full Up Power Pack

Trailer

E00707B

MCC20-DSESTS Shelter Trailer w/

MTVR must not be loaded over Cross-Country

Appendix A-3

TM 11240-ODA

TAMCN

NOMENCLATURE

LIMITATIONS

DSESTS Shelter, AMS, SAMS, or

GVW.

any component of the EOMSC

50 mph Primary Roads

30 mph Secondary Roads

15 mph Trails

5 mph Cross-Country

E06407M

M101A1 Howitzer

Ceremonial Purposes Only - No Off Road

Capability

E06657M

M198A1 Gun

E06717M

M777 - LW155 Howitzer

M31 Arresting Gear Trailer

45 mph Primary Roads

20 mph Secondary Roads

5 mph Off-Road

M200 2-1/2 Ton Generator Chassis

Trailer

K4-A Aviation Ordnance Trailer

Requires use of K4-A Pintle adapter.

w/adapter only

35 mph Primary Roads

20 mph Secondary Roads

5mph Off-Road

M514 Chassis Trailer 2 Wheel 1-Ton

2,500 lbs

50 mph highway/

25 mph Cross-Country

Rough Terrain Trailer (RTT) for the

MTVR must not be loaded over Cross-Country

Riverine Assault Craft (RAC)

weight.

35 mph Primary Roads

25 mph Secondary Roads

15 mph Trails

5 mph Cross-Country

Appendix A-4

TM 11240-ODA

A-4. LVS

Table A-4. LVS

TAMCN

NOMENCLATURE

LIMITATIONS

B01157B

BEB Bridge Erection Boat Trailer

45 mph Primary Roads

20 mph Secondary Roads

5 mph Off-Road

D00027K

M870A2E1 Medium Heavy Equipment

35 mph Primary Roads

Transporter (MHET)

25 mph Secondary Roads

D00357K

M1076 Palletized Load System (PLS)

Trailer

D02157K

MK970 5,000 Gallon Semi-trailer

Requires use of use MK16 RBU

Refueller

D02357K

M870A2/A2S Medium Heavy

55 mph Primary Roads

Equipment Transporter (MHET)

30 mph Secondary Roads

D08767K

MK14 Rear Body Unit Tandem Tow

22.5 Tons (On Road)

12.5 Tons (Off Road)

D08857K

M1073 FUPP Full Up Power Pack

15,500 lbs

Trailer

55 mph Primary Roads

35 mph Secondary Roads

20 mph Cross-Country

E06657M

M198A1 Gun

E06717M

M777 LW155 Howitzer

M31 Arresting Gear Trailer

45 mph Primary Roads

20 mph Secondary Roads

5 mph Off-Road

M747 Army Heavy Equipment

Transporter System

Riverine Assault Craft (RAC) w/Trailer

Appendix A-5

TM 11240-ODA

INDEX I

MODEL NUMBER LISTING

MODEL NUMBER

NOMENCLATURE

PAGE

TBD

Flatrack Refueling Capability (FRC)

8-7

4AO32-11/4AO32-1

Lubricating and Servicing Unit, 4AO32-11/ 4AO32-1

9-57

A/S32P-P19A

Truck, Fire Fighting, Aircraft Crash and Structure Fire, A/S32P-19A

3-3

AMK23/AMK23A1

Truck, Cargo, 7 Ton, Armored, w/o Winch, AMK23/AMK23A1

2-5

AMK25/AMK25A1

Truck, Cargo, 7 Ton, Armored, w/Winch, AMK25/AMK25A1

2-7

AMK27/AMK27A1

Truck, Cargo, 7 Ton, Armored, w/o Winch, AMK27/AMK27A1

2-11

AMK28/AMK28A1

Truck, Cargo, 7 Ton, Armored, w/Winch, AMK28/AMK28A1

2-13

AMK29/AMK29A1

Truck, Dump, 7 Ton, Armored, w/o Winch, AMK29/AMK29A1

2-17

AMK30/AMK30A1

Truck, Dump, 7 Ton, Armored, w/ Winch, AMK30/AMK30A1

2-19

AMK31/AMK31A1

Truck, Tractor, 7 Ton, Armored, AMK31/AMK31A1

2-23

AMK36/AMK36A1

Truck, Wrecker, 7 Ton, Armored, AMK36

2-27

AMK970

Semitrailer, Aircraft Refueler, 5000 Gallon, Armored, AMK970

7-5

ARC

Truck, Aviation Refueler Capability, ARC

9-65

BUFFALO MK1

Buffalo Mine Protected Clearance Vehicle (BUFFALO MK1)

4-23

CAT I A1

Joint Explosive Ordnance Disposal Rapid Response Vehicle (CAT I A1)

4-9

CAT I A2

Joint Explosive Ordnance Disposal Rapid Response Vehicle (CAT I A2)

4-19

CAT II A1

Joint Explosive Ordnance Disposal Rapid Response Vehicle (CAT II A1)

4-17

CAT II A2

Joint Explosive Ordnance Disposal Rapid Response Vehicle (CAT II A2)

4-21

HAGA

Heavy Armored Ground Ambulance

4-3

HEV 4x4

Cougar Hardened Engineer Vehicle (HEV 4x4)

4-5

HEV 6x6

Cougar Hardened Engineer Vehicle (HEV 6x6)

4-11

IFAV

Vehicle, Fast Attack, Interim (IFAV)

9-67

JERRV EOD 4x4

Joint Explosive Ordnance Disposal Rapid Response Vehicle

(JERRV EOD 4x4)

4-7

JERRV ENG 6x6

Joint Explosive Ordnance Disposal Rapid Response Vehicle

(JERRV ENG 6x6)

4-13

JERRV EOD 6x6

Joint Explosive Ordnance Disposal Rapid Response Vehicle

(JERRV EOD 6x6)

4-15

M-ATV

MRAP All Terrain Vehicle (M-ATV)

4-25

M101A3

Trailer, Cargo, 3/4 Ton, M101A3

6-7

M1030

Motorcycle, Military, M1030

9-3

M1030B1

Motorcycle, Military, M1030B1

9-5

M1030M1

Motorcycle, Military, M1030M1

1-3

M1035

Truck, Ambulance, 2-Litter, Soft Top, M1035

9-19

M1035A2

Truck, Ambulance, 2-Litter, Soft Top, M1035A2

1-7

M1037

Truck, Utility, Shelter Carrier, M1037

9-53

M1038

Truck, Utility, Cargo/Troop Carrier, M1038

9-9

M1042

Truck, Utility, Shelter Carrier, M1042

9-55

M1043

Truck, Utility, Armament Carrier, M1043

9-11

M1043A2

Truck, Utility, Armament Carrier, M1043A2

1-11

M1045

Truck, Utility, Tow Carrier, M1045

9-13

M1045A2

Truck, Utility, Tow Carrier, M1045A2

1-13

M1046

Truck, Utility, Tow Carrier, M1046

9-15

M105A2

Trailer, Cargo, 1 1/2 Ton, M105A2

6-15

Index I-1

TM 11240-ODA

MODEL NUMBER

NOMENCLATURE

PAGE

M1073

Trailer, 7 1/2 Ton, Full Up Power Pack (FUPP), M1073

6-19

M1076

Trailer, Palletized Loading System (PLS), M1076

3-19

M1077/MK1077

Flatrack, Palletized Loading System (PLS), M107/ MK1077

3-21

M1097A2

Truck, Utility, Heavy Variant, M1097A2

1-15

M1102 H

Trailer, Light Tactical, Cargo, Heavy, M1102H

6-11

M1102 LTT-MCC

Trailer, Light Tactical, Marine Corps Chassis, M1102 LTT-MCC

6-9

M1114

Truck, Utility, Expanded Capacity, Up-Armored, Armament Carrier, M1114

1-17

M1123

Truck, Utility, Heavy Variant/Cargo/Troop Carrier, M1123

1-9

M1151A1

Truck, Utility, Expanded Capacity, Armament Carrier, 1151A1,w/B1 Armor

Kit

1-19

M1152

Truck, Utility, Expanded Capacity, Enhanced, M1152

1-21

M1152A1

Truck, Utility, Expanded Capacity, Enhanced, IAP/Armor Ready, M1152A,

w/B2 Armor Kit

1-23

M1161

Truck, Utility: Internally Transportable Vehicle, Light Strike Variant

(ITV-LSV), M1161

1-31

M1163

Truck, Utility: Internally Transportable Vehicle, Prime Mover (ITV-PM),

M1163

1-33

M1164

Trailer, Ammunition: Internally Transportable Vehicle Ammunition Trailer

(ITV-AT), M1164

6-3

M1165

Truck, Utility, Command And Control/General Purpose Vehicle, M1165

1-25

M1165A1

Truck, Utility, Command And Control/General Purpose Vehicle, Enhanced,

IAP/Armor Ready, M1165A1 w/B3 Armor Kit

1-27

M1167

Truck, Utility, Expanded Capacity, Tow Carrier, Armored, M1167

1-29

M116A2/M116A3

Trailer, Chassis, 3/4 Ton, M116A2/M116A3

6-5

M149/M149A1/

Trailer, Tank, Water, 400 Gallon, M149/M149A1/M149A2

M149A2

6-17

M353

Trailer, Chassis, General Purpose, 3 1/2 Ton, M353

6-13

M813A1

Truck, Cargo, Dropside, w/o Winch, M813A1

9-21

M813A1

Truck, Cargo, Dropside, w/Winch, M813A1

9-23

M814

Truck, Cargo, Extra Long Wheel Base, M814

9-29

M816

Truck, Wrecker, Medium, 5 Ton, M816

9-47

M817

Truck, Dump, 5 Ton, w/o Winch, M817

9-35

M817

Truck, Dump, 5 Ton, M817, w/Winch

9-37

M818

Truck, Tractor, 5 Ton, M818

9-43

M832

Dolly Set, Lift, Transportable Shelter, M832

9-61

M870A1

Semitrailer, Low Bed, 40 Ton, Medium Heavy Equipment Transporter

(MHET), M870A1

9-51

M870A2

Semi-Trailer, Lowbed, 40 Ton, Medium Heavy Equipment Transporter

(MHET), M870A2

7-7

M870A2E1

Semi-Trailer, Lowbed, 50 Ton, Medium Heavy Equipment Transporter

(MHET), M870A2E1

7-11

M870A2-S

Semi-Trailer, Lowbed, 40 Ton, Medium Heavy Equipment Transporter

(MHET), M870A2-S

7-9

M876A1

Truck, Maintenance, Telephone/Utility, Construction, M876A1

9-63

M923A1

Truck, Cargo, Dropside, M923A1

9-25

M925A1

Truck, Cargo, Dropside, M925A1

9-27

M927A1

Truck, Cargo, Extra Long Wheel Base, M927A1

9-31

M928A1

Truck, Cargo, Extra Long Wheel base, M928A1

9-33

M929A1

Truck, Dump, 5 Ton, M929A1

9-39

Index I-2

TM 11240-ODA

MODEL NUMBER

NOMENCLATURE

PAGE

M930A1

Truck, Dump, 5 Ton, M930A1

9-41

M931A1

Truck, Tractor, 5 Ton, M931A1

9-45

M936A1

Truck, Wrecker, Medium, 5 Ton, M936A1

9-49

M970

Semitrailer, Aircraft Refueler, 5000 Gallon, M970

9-69

M997

Truck, Ambulance, 4-Litter, M997

9-17

M997A2

Truck, Ambulance, 4-Litter, M997A2

1-5

M998

Truck, Utility, Cargo/Troop Carrier, M998

9-7

MAK

Full Armor Kit, Marine Armor Kit (MAK), F/HMMWV, 2-Door

5-5

MAK

Full Armor Kit, Marine Armor Kit (MAK), F/HMMWV, 4-Door

5-7

MAK

Full Armor Kit, Marine Armor Kit (MAK), F/M1043A2/M1045A2

5-3

MK105

Trailer, Cargo, 4 Ton, MK105

8-9

MK14/MK14A1

Trailer, Powered, 22 1/2 Ton, Container Hauler, MK14/14A1 MOD 0

3-7

MK149

Trailer, Tank, Water, 600 Gallon, MK149

8-13

MK15/MK15A1

Trailer, Powered, Wrecker/Recovery, MK15/MK15A1 MOD 0

3-9

MK16/MK16A1

Trailer, Powered, Fifth Wheel, Semi-Trailer Adapter,

MK16/MK16A1 MOD 0

3-11

MK17/MK17A1

Trailer, Powered, 20 Ton, Cargo, Dropside, With Material Handling Crane,

MK17/17A1 MOD 0

9-59

MK18

Trailer, Self-Loading, Ribbon Bridge/Container Hauler, MK18 MOD 0

3-13

MK18A1

Trailer, Self-Loading, Ribbon Bridge/ Container Hauler, MK18A1 MOD 0

3-15

MK23/MK25

Truck, Cargo, 7 Ton, MK23/MK25, MK23A1/MK25A1

MK23A1/MK25A1

2-3

MK27/MK28,

Truck, Cargo, 7 Ton, Extended Bed (XL), MK27/28, MK27A1/MK28A1

MK27A1/MK28A1

2-9

MK29/MK30,

Truck, Dump, 7 Ton, MK29/30, MK29A1/MK30A1

MK29A1/MK30A1

2-15

MK31/MK31A1

Truck, Tractor, 7 Ton, MK31/MK31A1

2-21

MK353

Trailer, General Purpose, 4 Ton, MK353

8-11

MK36

Truck, Wrecker, 7 Ton, MK36

2-25

MK37/MK371A1/

Truck, Cargo, Re-Supply F/High Mobility Artillery Rocket System

AMK37A1

(HIMARS), MK37/MK37A1/AMK37A1

2-29

MK38

Trailer, Cargo, Re-Supply F/High Mobility Artillery Rocket System

(HIMARS), MK38

6-21

MK48/MK48A1

Power Unit, Front, 12 1/2 Ton, MK48/MK48A1, MOD 0

3-5

MK970

Semitrailer, Aircraft Refueler, 5000 Gallon, MK970

7-3

MKR15

Truck, Wrecker, 10x10, Logistics Vehicle System Replacement (LVSR),

MKR15

8-3

MKR16

Truck, Tractor, 10x10, Logistics Vehicle System Replacement (LVSR),

MKR16

8-5

MKR18

Truck, Cargo, 10x10, Logistics Vehicle System Replacement (LVSR),

MKR18

3-17

Index I-3

TM 11240-ODA

INDEX II

TAMCN LISTING

TAMCN

NOMENCLATURE

PAGE

B00337K

Joint Explosive Ordnance Disposal Rapid Response Vehicle

(JERRV ENG 6x6)

4-13

B50017K

Buffalo Mine Protected Clearance Vehicle (BUFFALO MK1)

4-23

D00017K

Truck, Utility, Expanded Capacity, Up-Armored, Armament Carrier, M1114

1-17

D00027K

Semi-Trailer, Lowbed, 50 Ton, Medium Heavy Equipment Transporter

(MHET), M870A2E1

7-11

D00037K

Truck, Cargo, 7 Ton, Armored, w/o Winch, AMK23/AMK23A1

2-5

D00047K

Truck, Cargo, 7 Ton, Armored, w/Winch, AMK25/AMK25A1

2-7

D00057K

Truck, Cargo, 7 Ton, Armored, w/o Winch, AMK27/AMK27A1

2-11

D00067K

Truck, Cargo, 7 Ton, Armored, w/Winch, AMK28/AMK28A1

2-13

D00077K

Truck, Dump, 7 Ton, Armored, w/o Winch, AMK29/AMK29A1

2-17

D00087K

Truck, Dump, 7 Ton, Armored, w/ Winch, AMK30/AMK30A1

2-19

D00097K

Truck, Tractor, 7 Ton, MK31/MK31A1

2-21

D00137K

Truck, Tractor, 7 Ton, Armored, AMK31/AMK31A1

2-23

D00157K

Truck, Wrecker, 7 Ton, Armored, AMK36

2-27

D00167K

Trailer, Light Tactical, Cargo, Heavy, M1102H

6-11

D00177K

Trailer, Light Tactical, Marine Corps Chassis, M1102 LTT-MCC

6-9

D00197K

Full Armor Kit, Marine Armor Kit (MAK), F/HMMWV, 2-Door

5-5

D00207K

Full Armor Kit, Marine Armor Kit (MAK), F/HMMWV, 4-Door

5-7

D00217K

Full Armor Kit, Marine Armor Kit (MAK), F/M1043A2/M1045A2

5-3

D00227K

Truck, Utility, Expanded Capacity, Enhanced, M1152

1-21

D00237K

Heavy Armored Ground Ambulance (HAGA)

4-3

D00257K

Joint Explosive Ordnance Disposal Rapid Response Vehicle (CAT I A2)

4-19

D00257K

Cougar Hardened Engineer Vehicle (HEV 4x4)

4-5

D00257K

Joint Explosive Ordnance Disposal Rapid Response Vehicle

(JERRV EOD 4x4)

4-7

D00257K

Joint Explosive Ordnance Disposal Rapid Response Vehicle (CAT I A1)

4-9

D00277K

Cougar Hardened Engineer Vehicle (HEV 6x6)

4-11

D00277K

Joint Explosive Ordnance Disposal Rapid Response Vehicle

(JERRV EOD 6x6)

4-15

D00277K

Joint Explosive Ordnance Disposal Rapid Response Vehicle (CAT II A1)

4-17

D00277K

Joint Explosive Ordnance Disposal Rapid Response Vehicle (CAT II A2)

4-21

D00307K

Truck, Utility, Expanded Capacity, Armament Carrier, 1151A1,w/B1 Armor

Kit

1-19

D00317K

Truck, Utility, Command and Control/General Purpose Vehicle, M1165

1-25

D00327K

Truck, Utility, Expanded Capacity, Tow Carrier, Armored, M1167

1-29

D00337K

Truck, Utility, Expanded Capacity, Enhanced, IAP/Armor Ready, M1152A,

w/B2 Armor Kit

1-23

D00347K

Truck, Utility, Command And Control/General Purpose Vehicle, Enhanced,

IAP/Armor Ready, M1165A1 w/B3 Armor Kit

1-27

D00357K

Trailer, Palletized Loading System (PLS), M1076

3-19

D00367K

MRAP All Terrain Vehicle (M-ATV)

4-25

D00807K

Trailer, Chassis, General Purpose, 3 1/2 Ton, M353

6-13

D00817K

Trailer, General Purpose, 4 Ton, MK353

8-11

Index II-1

TM 11240-ODA

TAMCN

NOMENCLATURE

PAGE

D00857K

Trailer, Chassis, 3/4 Ton, M116A2/M116A3

6-5

D01057K

Dolly Set, Lift, Transportable Shelter, M832

9-61

D01877K

Truck, Utility, Heavy Variant, M1097A2

1-15

D01907K

Lubricating and Servicing Unit, 4AO32-11/ 4AO32-1

9-57

D01957K

Flatrack, Palletized Loading System (PLS), M1077/MK1077

3-21

D01987K

Truck, Cargo, 7 Ton, MK23/MK25, MK23A1/MK25A1

2-3

D02017B

Motorcycle, Military, M1030M1

1-3

D02017B

Motorcycle, Military, M1030

9-3

D02017B

Motorcycle, Military, M1030B1

9-5

D02097K

Power Unit, Front, 12 1/2 Ton, MK48/MK48A1, MOD 0

3-5

D02107K

Truck, Aviation Refueler Capability, ARC

9-65

D02117K

Flatrack Refueling Capability (FRC)

8-7

D02157K

Semi-trailer, Aircraft Refueler, 5000 Gallon, Armored, AMK970

7-5

D02157K

Semi-trailer, Aircraft Refueler, 5000 Gallon, MK970

7-3

D02157K

Semi-trailer, Aircraft Refueler, 5000 Gallon, M970

9-69

D02357K

Semi-Trailer, Lowbed, 40 Ton, Medium Heavy Equipment Transporter

(MHET), M870A2

7-7

D02357K

Semi-Trailer, Lowbed, 40 Ton, Medium Heavy Equipment Transporter

(MHET), M870A2-S

7-9

D02357K

Semi-trailer, Low Bed, 40 Ton, Medium Heavy Equipment Transporter

(MHET), M870A1

9-51

D08407K

Trailer, Ammunition: Internally Transportable Vehicle Ammunition Trailer

(ITV-AT), M1164

6-3

D08507K

Trailer, Cargo, 3/4 Ton, M101A3

6-7

D08607K

Trailer, Cargo, 1 1/2 Ton, M105A2

6-15

D08617K

Trailer, Cargo, Re-Supply F/High Mobility Artillery Rocket System

(HIMARS), MK38

6-21

D08627K

Trailer, Cargo, 4 Ton, MK105

8-9

D08767K

Trailer, Powered, 22 1/2 Ton, Container Hauler, MK14/14A1 MOD 0

3-7

D08777K

Trailer, Powered, Wrecker/Recovery, MK15/MK15A1 MOD 0

3-9

D08787K

Trailer, Powered, Fifth Wheel, Semi-Trailer Adapter,

MK16/MK16A1 MOD 0

3-11

D08797K

Trailer, Powered, 20 Ton, Cargo, Dropside, With Material Handling Crane,

MK17/17A1 MOD 0

9-59

D08807K

Trailer, Tank, Water, 400 Gallon, M149/M149A1/M149A2

6-17

D08817K

Trailer, Self-Loading, Ribbon Bridge/Container Hauler, MK18 MOD 0

3-13

D08817K

Trailer, Self-Loading, Ribbon Bridge/ Container Hauler, MK18A1 MOD 0

3-15

D08827K

Trailer, Tank, Water, 600 Gallon, MK149

8-13

D08857K

Trailer, 7 1/2 Ton, Full Up Power Pack (FUPP), M1073

6-19

D08867K

Truck, Cargo, 10x10, Logistics Vehicle System Replacement (LVSR), MKR18

3-17

D08877K

Truck, Tractor, 10x10, Logistics Vehicle System Replacement (LVSR),

MKR16

8-5

D10017K

Truck, Ambulance, 4-Litter, M997A2

1-5

D10017K

Truck, Ambulance, 4-Litter, M997

9-17

D10027K

Truck, Ambulance, 2-Litter, Soft Top, M1035A2

1-7

D10027K

Truck, Ambulance, 2-Litter, Soft Top, M1035

9-19

D10597K

Truck, Cargo, Dropside, w/o Winch, M813A1

9-21

Index II-2

TM 11240-ODA

TAMCN

NOMENCLATURE

PAGE

D10597K

Truck, Cargo, Dropside, w/Winch, M813A1

9-23

D10597K

Truck, Cargo, Dropside, M923A1

9-25

D10597K

Truck, Cargo, Dropside, M925A1

9-27

D10617K

Truck, Cargo, Extra Long Wheel Base, M814

9-29

D10617K

Truck, Cargo, Extra Long Wheel Base, M927A1

9-31

D10617K

Truck, Cargo, Extra Long Wheel Base, M928A1

9-33

D10627K

Truck, Cargo, 7 Ton, Extended Bed (XL), MK27/28, MK27A1/MK28A1

2-9

D10637K

Truck, Cargo, Re-Supply F/High Mobility Artillery Rocket System

(HIMARS), MK37/MK37A1/AMK37A1

2-29

D10647K

Truck, Fire Fighting, Aircraft Crash and Structure Fire, A/S32P-19A

3-3

D10727K

Truck, Dump, 5 Ton, w/o Winch, M817

9-35

D10727K

Truck, Dump, 5 Ton, w/Winch, M817

9-37

D10727K

Truck, Dump, 5 Ton, M929A1

9-39

D10727K

Truck, Dump, 5 Ton, M930A1

9-41

D10737K

Truck, Dump, 7 Ton, MK29/30, MK29A1/MK30A1

2-15

D10927K

Truck, Maintenance, Telephone/Utility, Construction, M876A1

9-63

D11257K

Truck, Utility, Tow Carrier, M1045A2

1-13

D11257K

Truck, Utility, Tow Carrier, M1045

9-13

D11257K

Truck, Utility, Tow Carrier, M1046

9-15

D11347K

Truck, Tractor, 5 Ton, M818

9-43

D11347K

Truck, Tractor, 5 Ton, M931A1

9-45

D11587K

Truck, Utility, Heavy Variant/Cargo/Troop Carrier, M1123

1-9

D11587K

Truck, Utility, Cargo/Troop Carrier, M1038

9-9

D11587K

Truck, Utility, Cargo/Troop Carrier, M998

9-7

D11597K

Truck, Utility, Armament Carrier, M1043A2

1-11

D11597K

Truck, Utility, Armament Carrier, M1043

9-11

D11607K

Vehicle, Fast Attack, Interim (IFAV)

9-67

D11617K

Truck, Utility: Internally Transportable Vehicle, Light Strike Variant

(ITV-LSV), M1161

1-31

D11637K

Truck, Utility: Internally Transportable Vehicle, Prime Mover (ITV-PM),

M1163

1-33

D11807K

Truck, Utility, Shelter Carrier, M1037

9-53

D11807K

Truck, Utility, Shelter Carrier, M1042

9-55

D12127K

Truck, Wrecker, Medium, 5Ton, M816

9-47

D12127K

Truck, Wrecker, Medium, 5Ton, M936A1

9-49

D12137K

Truck, Wrecker, 7 Ton, MK36

2-25

D12147K

Truck, Wrecker, 10x10, Logistics Vehicle System Replacement (LVSR),

MKR15

8-3

Index II-3

PRINCIPAL TECHNICAL CHARACTERISTICS OF U.S. MARINE CORPS MOTOR TRANSPORTATION EQUIPMENT (2010) - page 3
