PRINCIPAL TECHNICAL CHARACTERISTICS OF U.S. MARINE CORPS MOTOR TRANSPORTATION EQUIPMENT (2010)

TM 11240-ODA

U.S. MARINE CORPS TECHNICAL MANUAL

PRINCIPAL TECHNICAL

CHARACTERISTICS OF

U.S. MARINE CORPS

MOTOR TRANSPORTATION

EQUIPMENT

THIS PUBLICATION IS REQUIRED FOR OFFICIAL USE OR FOR ADMINISTRATIVE OR

OPERATIONAL PURPOSES. DISTRIBUTION IS LIMITED TO U.S. GOVERNMENT AGENCIES

ONLY. OTHER REQUESTS FOR THIS DOCUMENT MUST BE REFERRED TO: PROGRAM

MANAGER, MOTOR TRANSPORTATION (PMM 151), GROUND TRANSPORTATION AND

ENGINEER SYSTEMS (GTES), MARINE CORPS SYSTEMS COMMAND, 2200 LESTER STREET,

QUANTICO, VIRGINIA 22134-5010.

DESTRUCTION NOTICE: FOR UNCLASSIFIED, LIMITED DOCUMENTS, DESTROY BY ANY

METHOD THAT WILL PREVENT DISCLOSURE OF CONTENTS OR RECONSTRUCTION OF THE

DOCUMENTS.

FOR OFFICIAL USE ONLY

MARCH 2010

PCN 180 002976 00

TM 11240-ODA

INSERT LATEST CHANGED PAGES. DESTROY SUPERSEDED PAGES.

LIST OF EFFECTIVE PAGES

NOTE: The portion of the text affected by the changes is

indicated by a vertical line in the outer margin of the page.

Changes to illustrations are indicated by miniature pointing

hands. Changes to wiring diagrams are indicated by shaded

areas.

Dates of issue for original and changed pages are:

Revision A

March 2010

TOTAL NUMBER OF PAGES IN THIS PUBLICATION IS 268 CONSISTING OF THE FOLLOWING:

Page No.

*Change No.

Page No.

*Change No.

Title/(blank)

1/(2 blank)

A/(B blank)

Record of Changes/(blank)

i-v/(vi blank)

1-1 - 1-34

2-1 - 2-30

3-1 - 3-22

4-1 - 4-26

5-1 - 5-7/(5-8 blank)

6-1 - 6-22

7-1 - 7-12

8-1 - 8-14

9-1 - 9-70

Appendix A-1 - Appendix A-7(A-8 blank)

Index I-1-Index I-3/(Index I-4 blank)

Index II-1-Index II-3/(Index II-4 blank)

*ZERO IN THIS COLUMN INDICATES AN ORIGINAL PAGE

A/(B blank)

TABLE OF CONTENTS

TAMCN

PAGE

SECTION I.

AUTOMOTIVE - LIGHT FLEET

MOTORCYCLE, MILITARY, M1030M1

D02017B

1-3

TRUCK, AMBULANCE, 4-LITTER, M997A2

D10017K

1-5

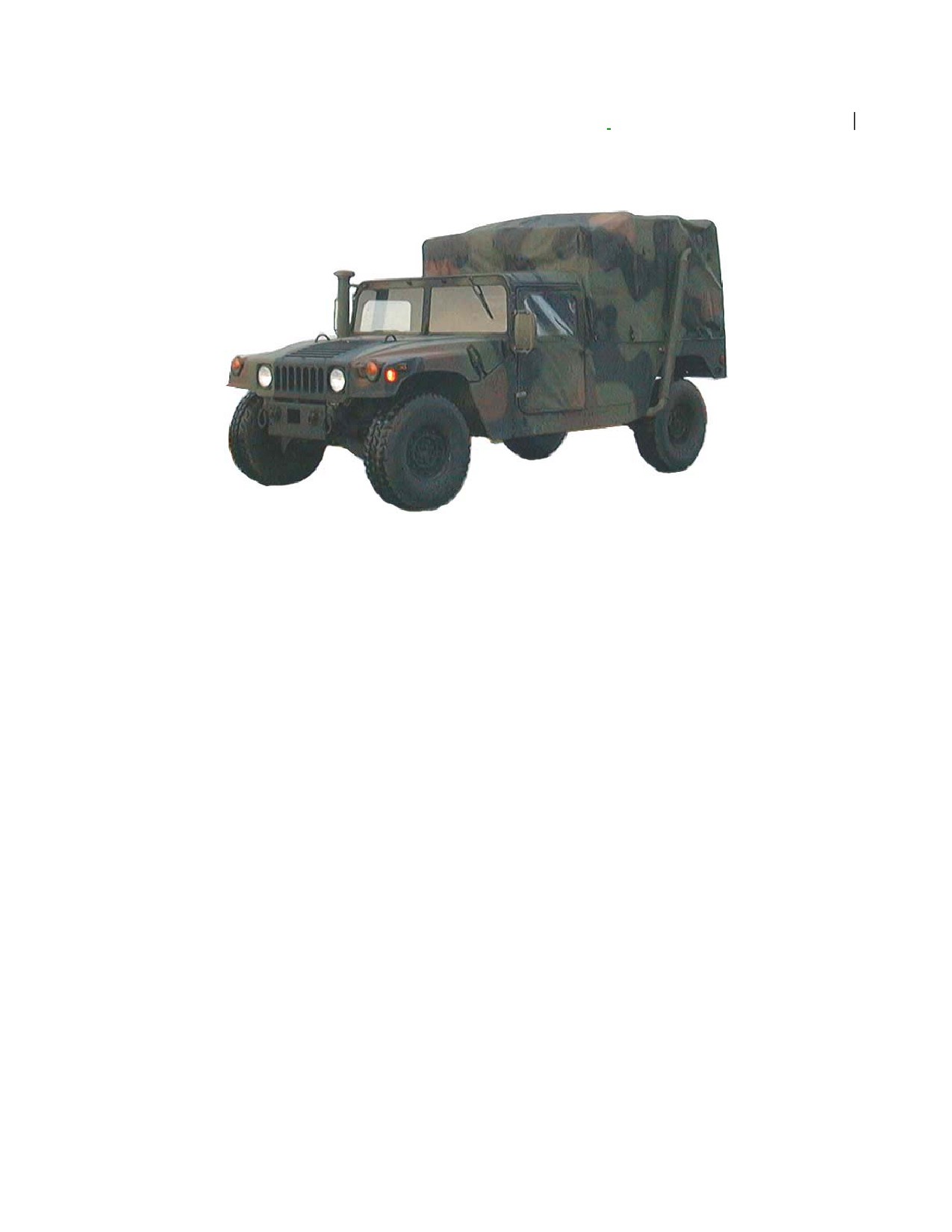

TRUCK, AMBULANCE, 2-LITTER, SOFT TOP, M1035A2

D10027K

1-7

TRUCK, UTILITY, HEAVY VARIANT/CARGO/TROOP CARRIER, M1123

D11587K

1-9

TRUCK, UTILITY, ARMAMENT CARRIER, M1043A2

D11597K

1-11

TRUCK, UTILITY, TOW CARRIER, M1045A2

D11257K

1-13

TRUCK, UTILITY, HEAVY VARIANT, M1097A2

D01877K

1-15

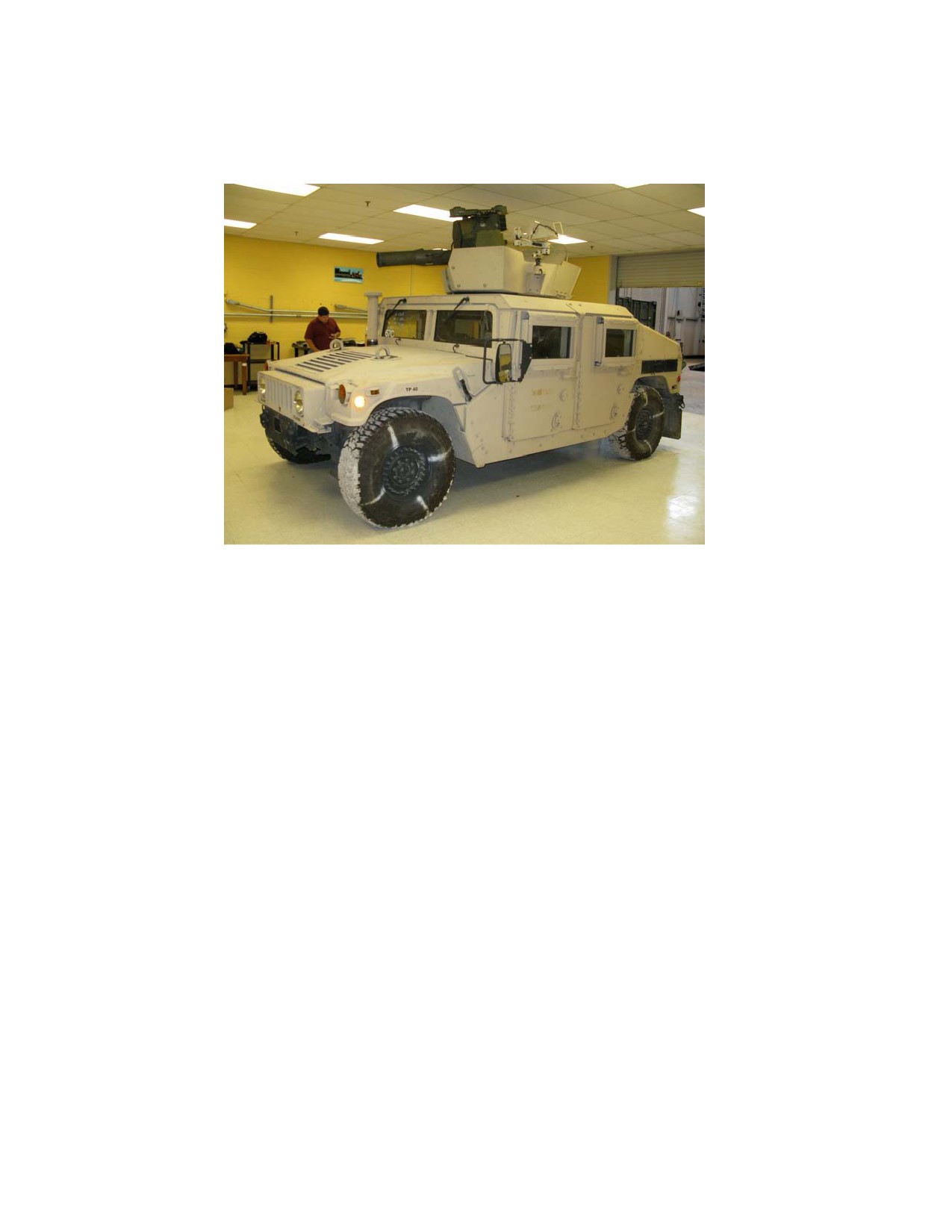

TRUCK, UTILITY, EXPANDED CAPACITY, UP-ARMORED,

ARMAMENT CARRIER, M1114

D00017K

1-17

TRUCK, UTILITY, EXPANDED CAPACITY, ARMAMENT

CARRIER, M1151A1 W/B1 ARMOR KIT

D00307K

1-19

TRUCK, UTILITY, EXPANDED CAPACITY, ENHANCED, M1152

D00227K

1-21

TRUCK, UTILITY, EXPANDED CAPACITY, ENHANCED, IAP/ARMOR

READY, M1152A1 W/B2 ARMOR KIT

D00337K

1-23

TRUCK, UTILITY, COMMAND AND CONTROL/GENERAL PURPOSE

VEHICLE, M1165

D00317K

1-25

TRUCK, UTILITY, COMMAND AND CONTROL/GENERAL PURPOSE

VEHICLE, ENHANCED, IAP/ARMOR READY M1165A1 W/B3

D00347K

1-27

TRUCK, UTILITY, EXPANDED CAPACITY, TOW CARRIER, ARMORED,

M1167…………………………………………………………………………. D00327K

1-29

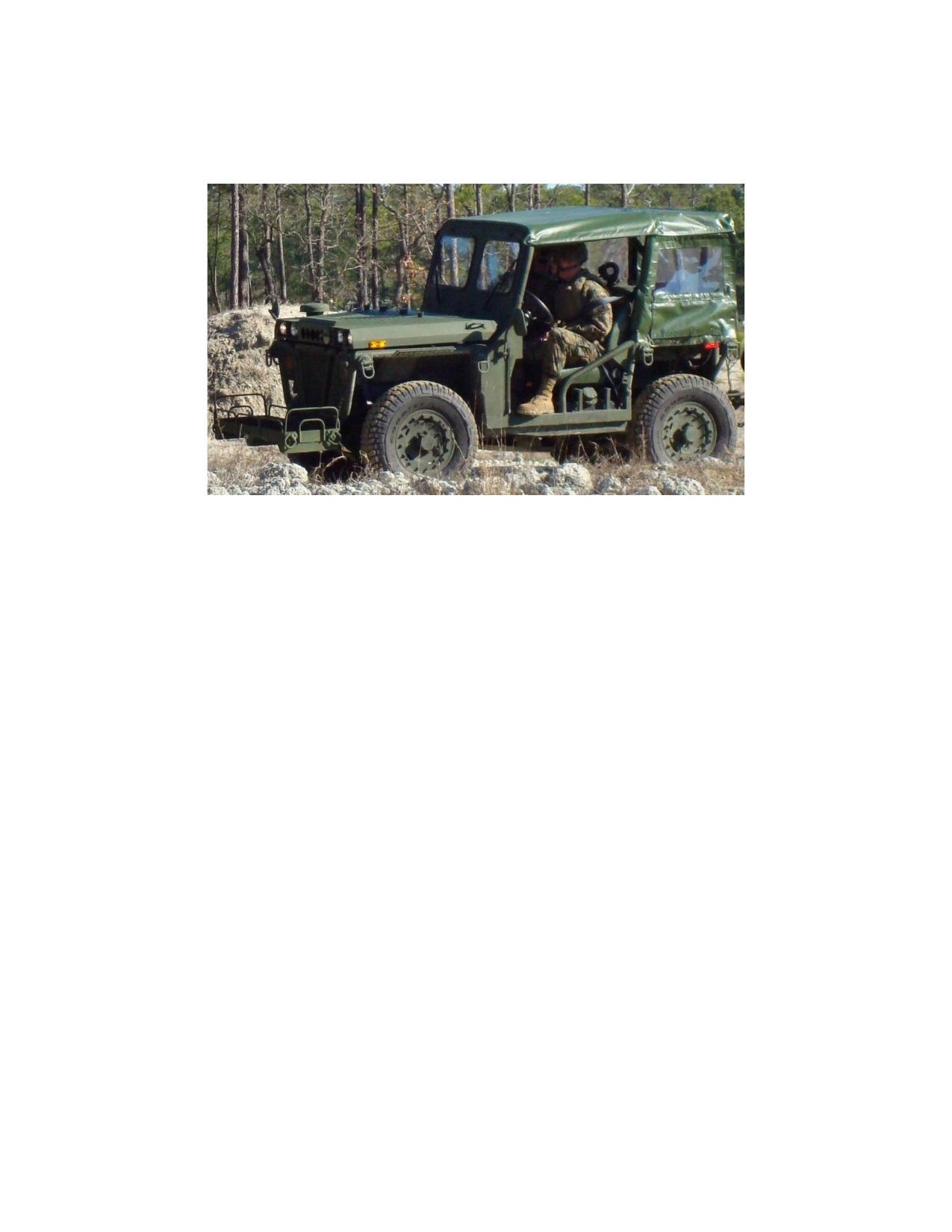

TRUCK, UTILITY: INTERNALLY TRANSPORTABLE VEHICLE,

LIGHT STRIKE VARIANT (ITV-LSV), M1161

D11617K

1-31

TRUCK, UTILITY: INTERNALLY TRANSPORTABLE VEHICLE,

PRIME MOVER (ITV-PM), M1163

D11637K

1-33

SECTION II.

AUTOMOTIVE - MEDIUM FLEET

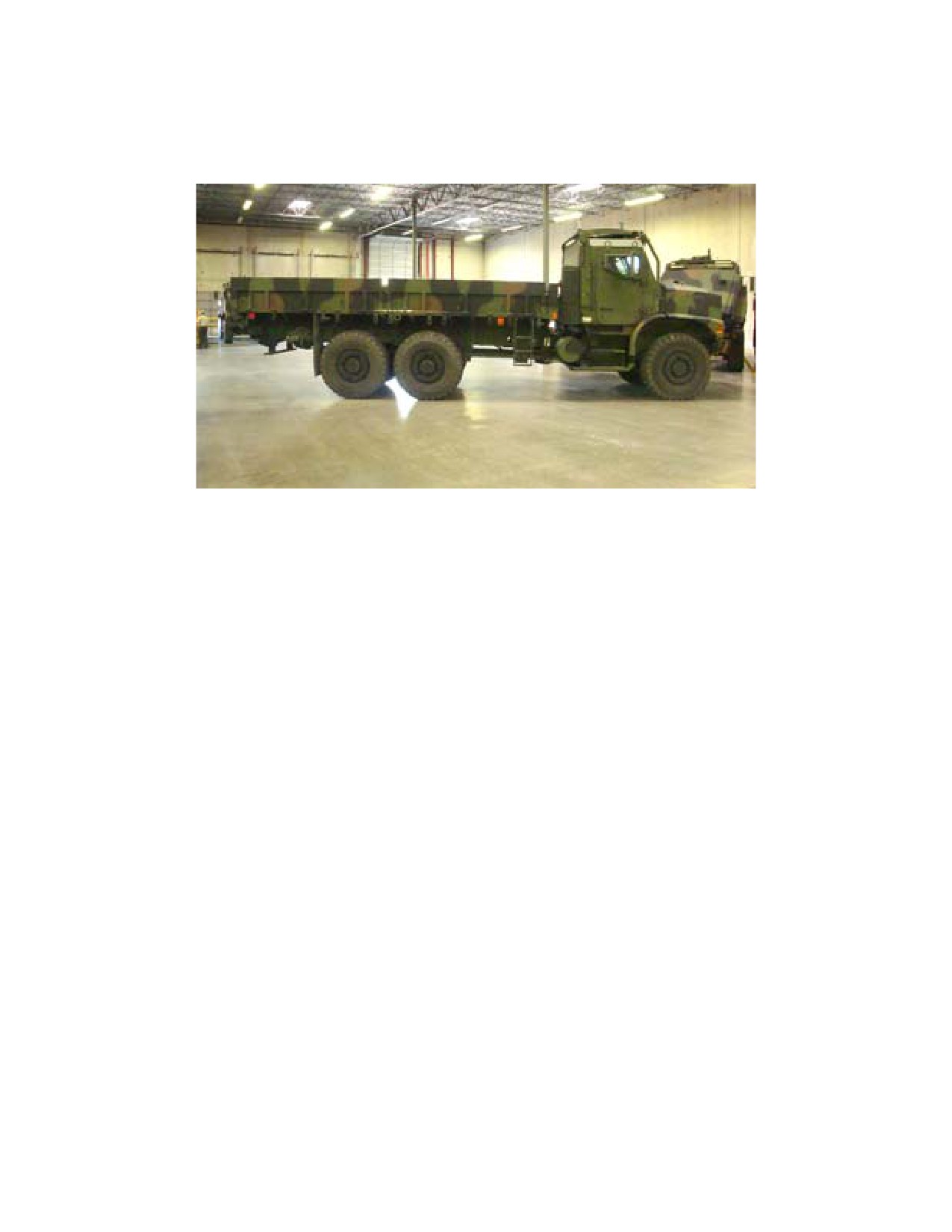

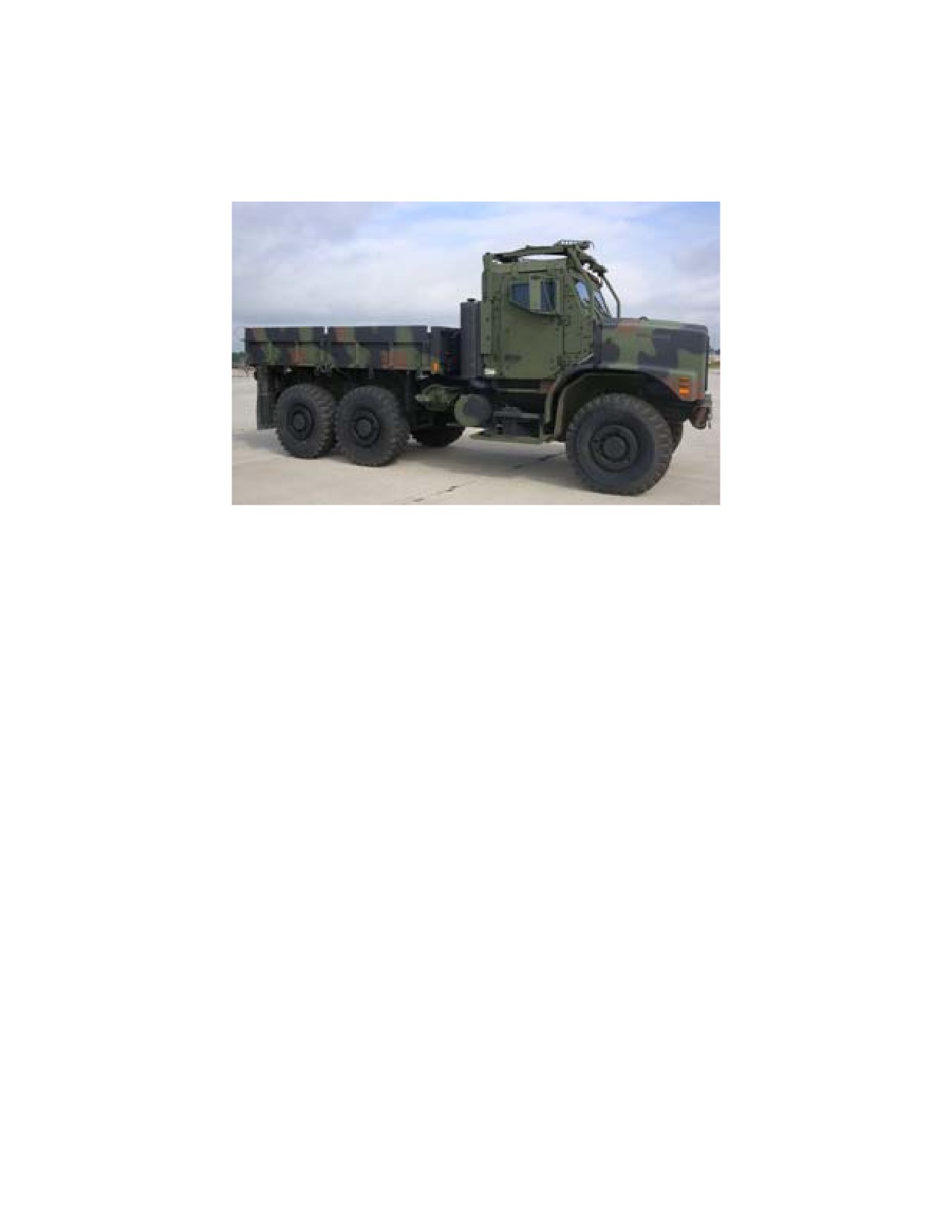

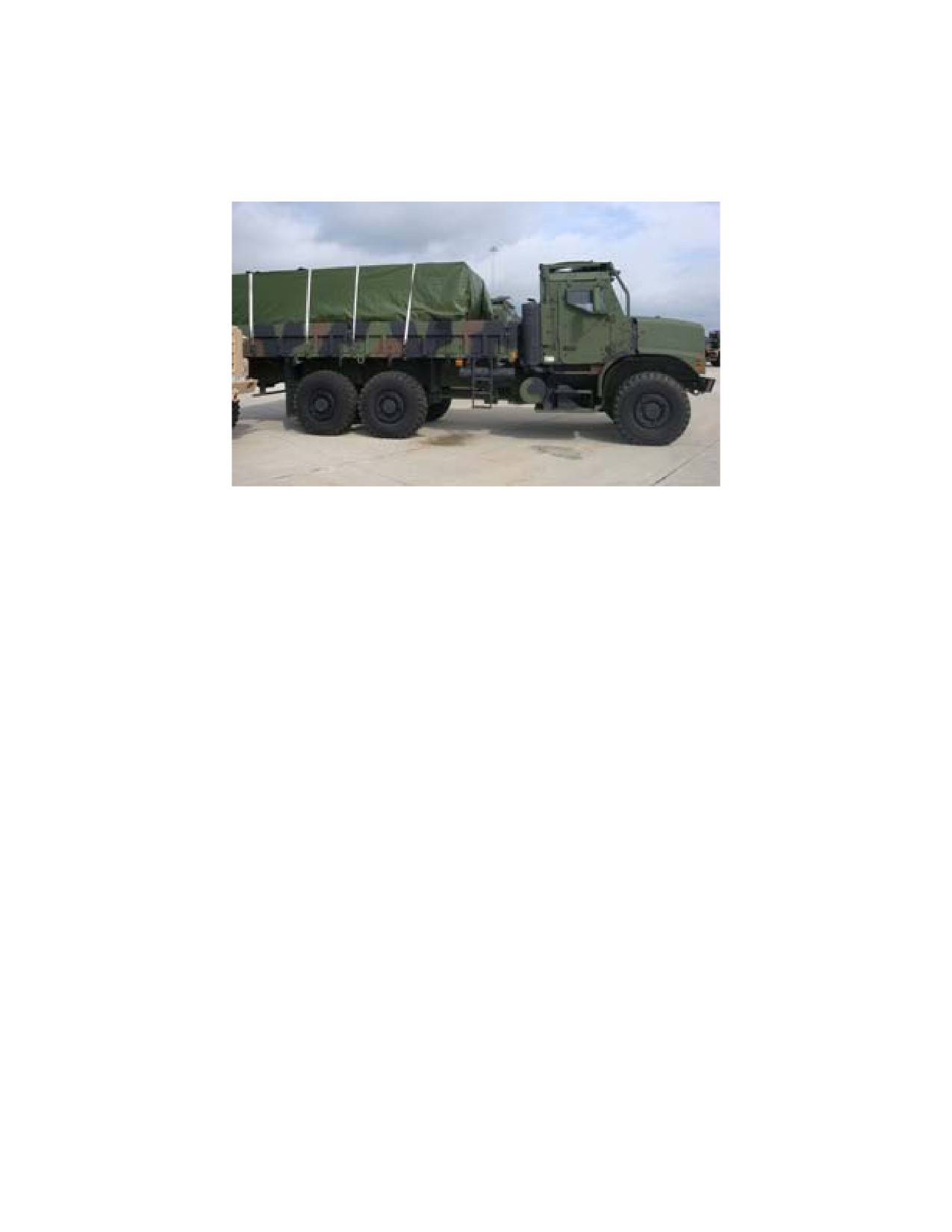

TRUCK, CARGO, 7 TON, MK23/MK25, MK23A1/MK25A1

D01987K

2-3

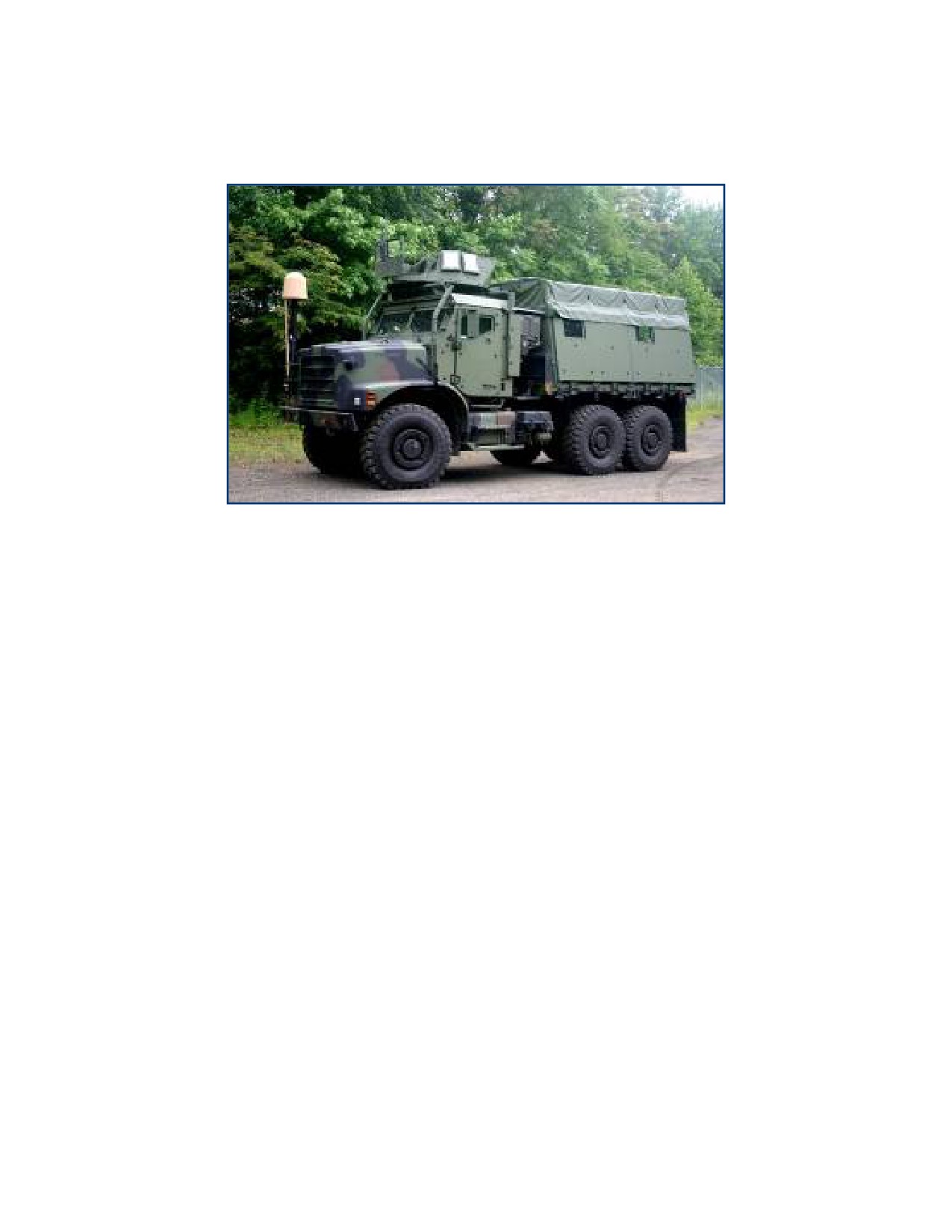

TRUCK, CARGO, 7 TON, ARMORED, W/O WINCH, AMK23/AMK23A1

D00037K

2-5

TRUCK, CARGO, 7 TON, ARMORED, W/WINCH, AMK25/AMK25A1

D00047K

2-7

TRUCK, CARGO, 7 TON, EXTENDED BED (XL), MK27/28, MK27A1/MK28A1

D10627K

2-9

TRUCK, CARGO, 7 TON, ARMORED, W/O WINCH, AMK27/AMK27A1

D00057K

2-11

TRUCK, CARGO, 7 TON, ARMORED, W/WINCH, AMK28/AMK28A1

D00067K

2-13

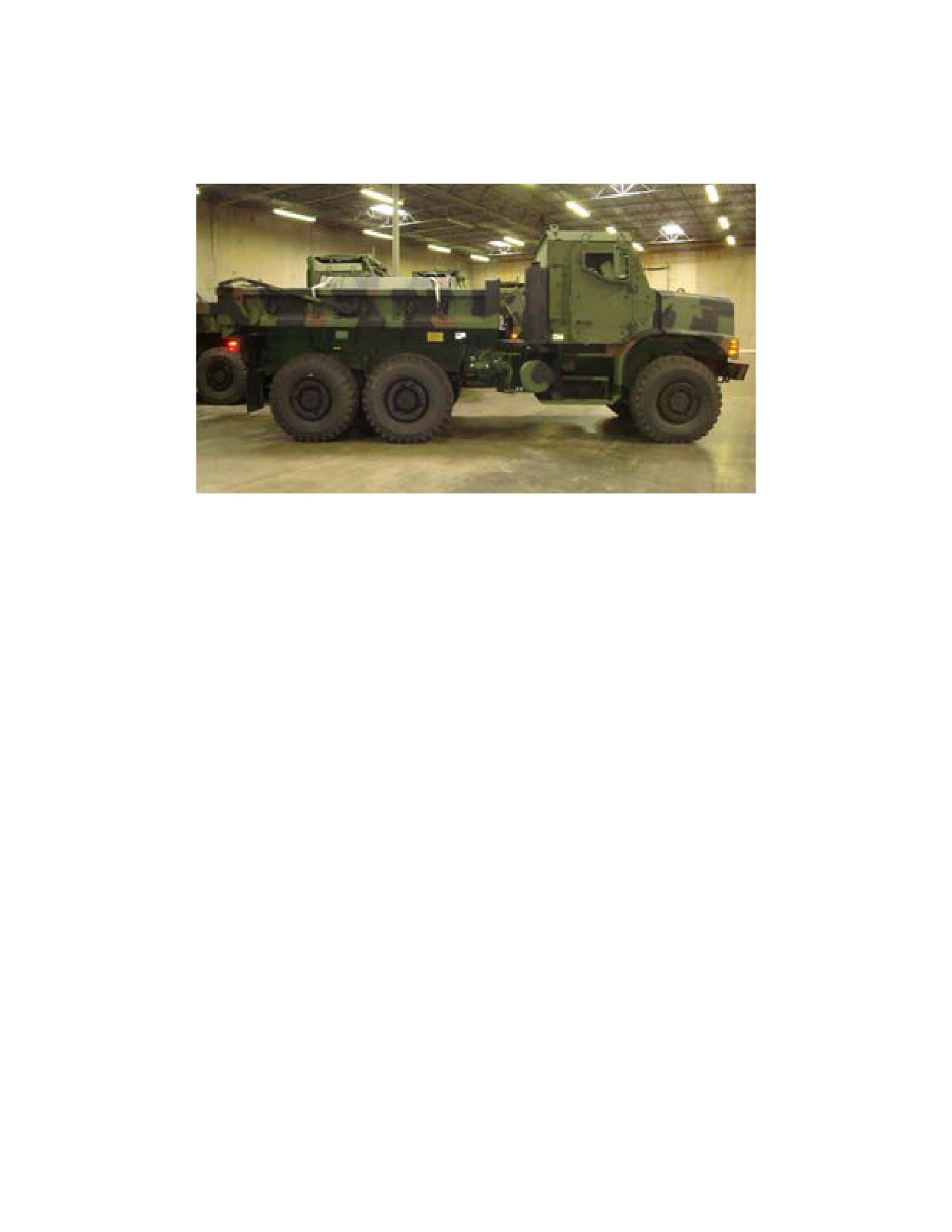

TRUCK, DUMP, 7 TON, MK29/30, MK29A1/MK30A1

D10737K

2-15

TRUCK, DUMP, 7 TON, ARMORED, W/O WINCH, AMK29/AMK29A1

D00077K

2-17

TRUCK, DUMP, 7 TON, ARMORED, W/WINCH, AMK30/AMK30A1

D00087K

2-19

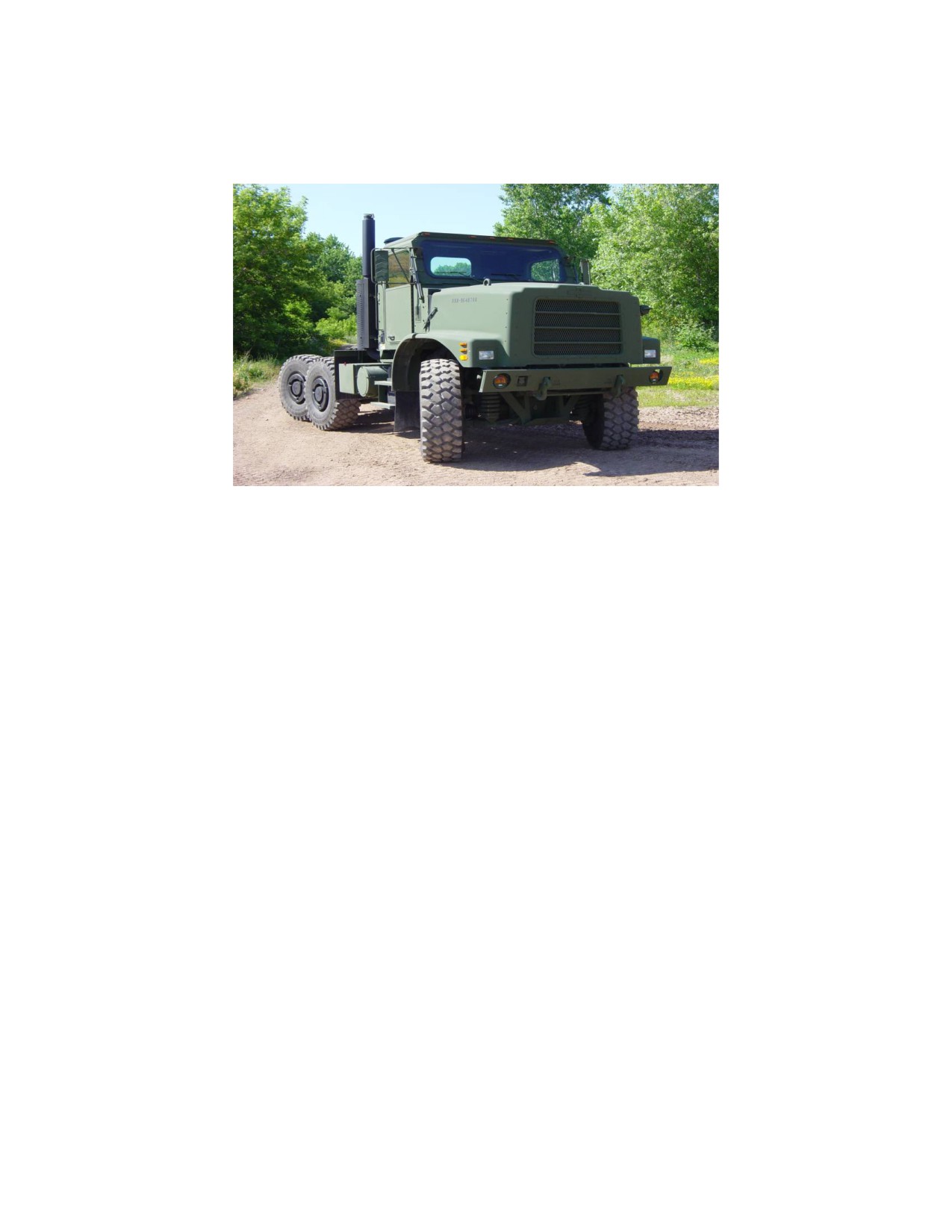

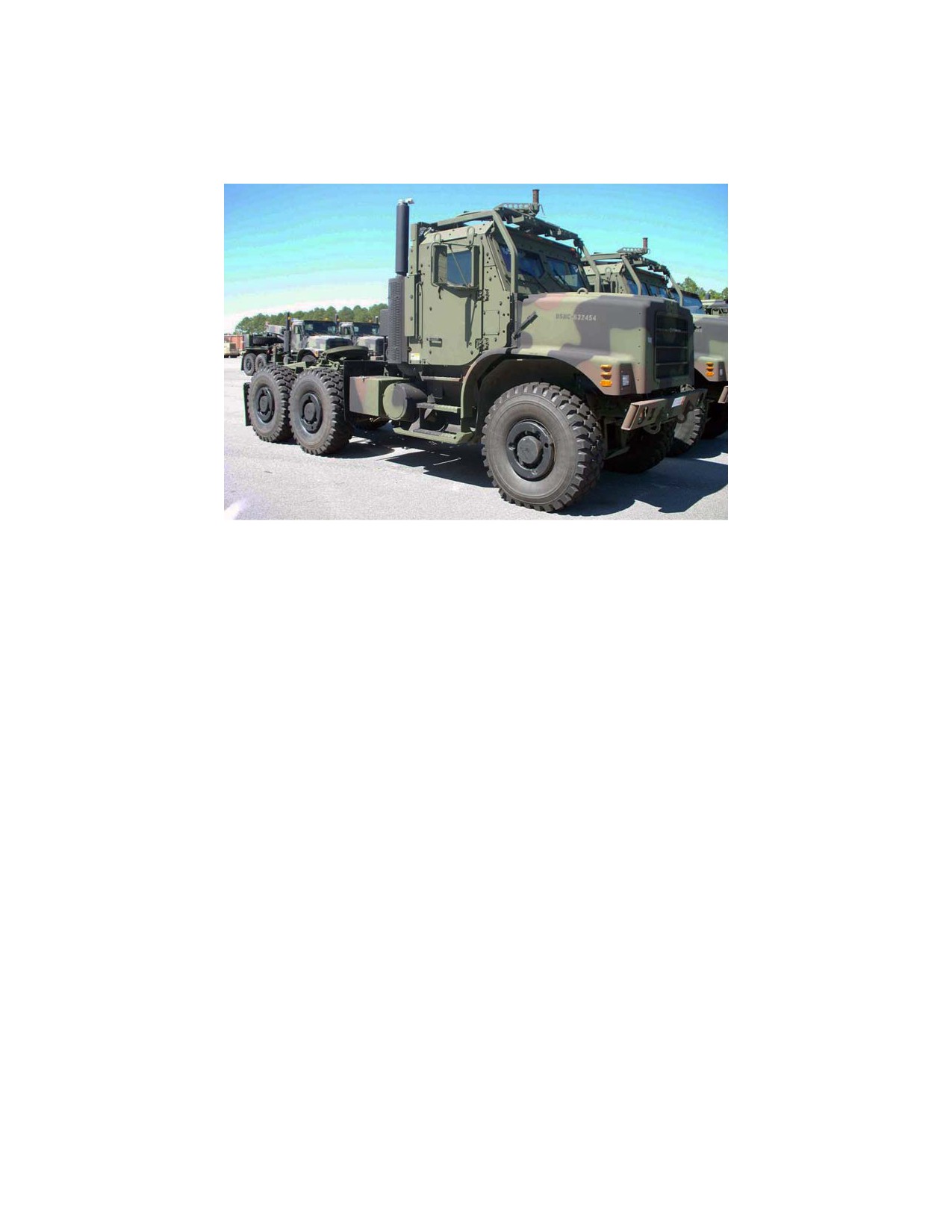

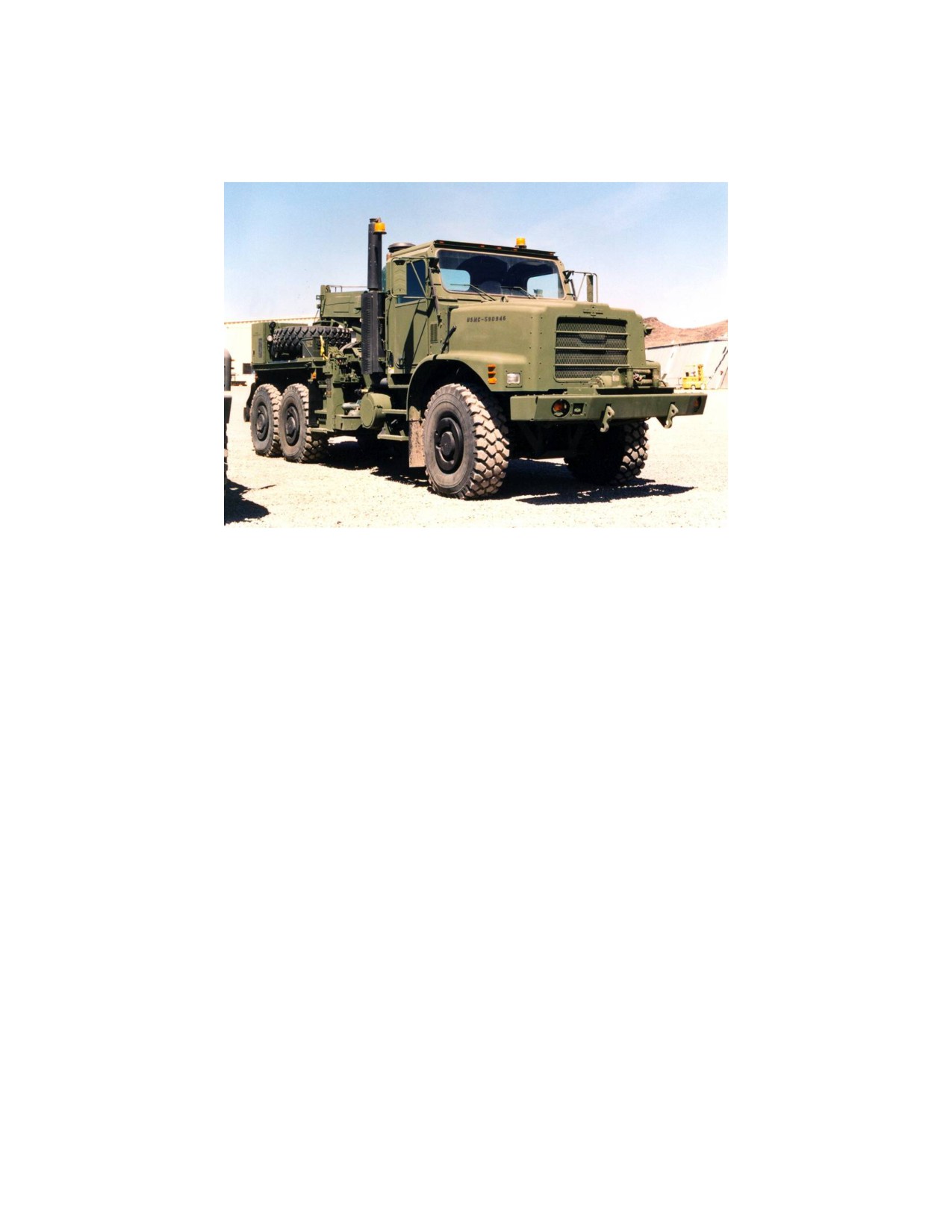

TRUCK, TRACTOR, 7 TON, MK31/MK31A1

D00097K

2-21

TRUCK, TRACTOR, 7 TON, ARMORED, AMK31/AMK31A1

D00137K

2-23

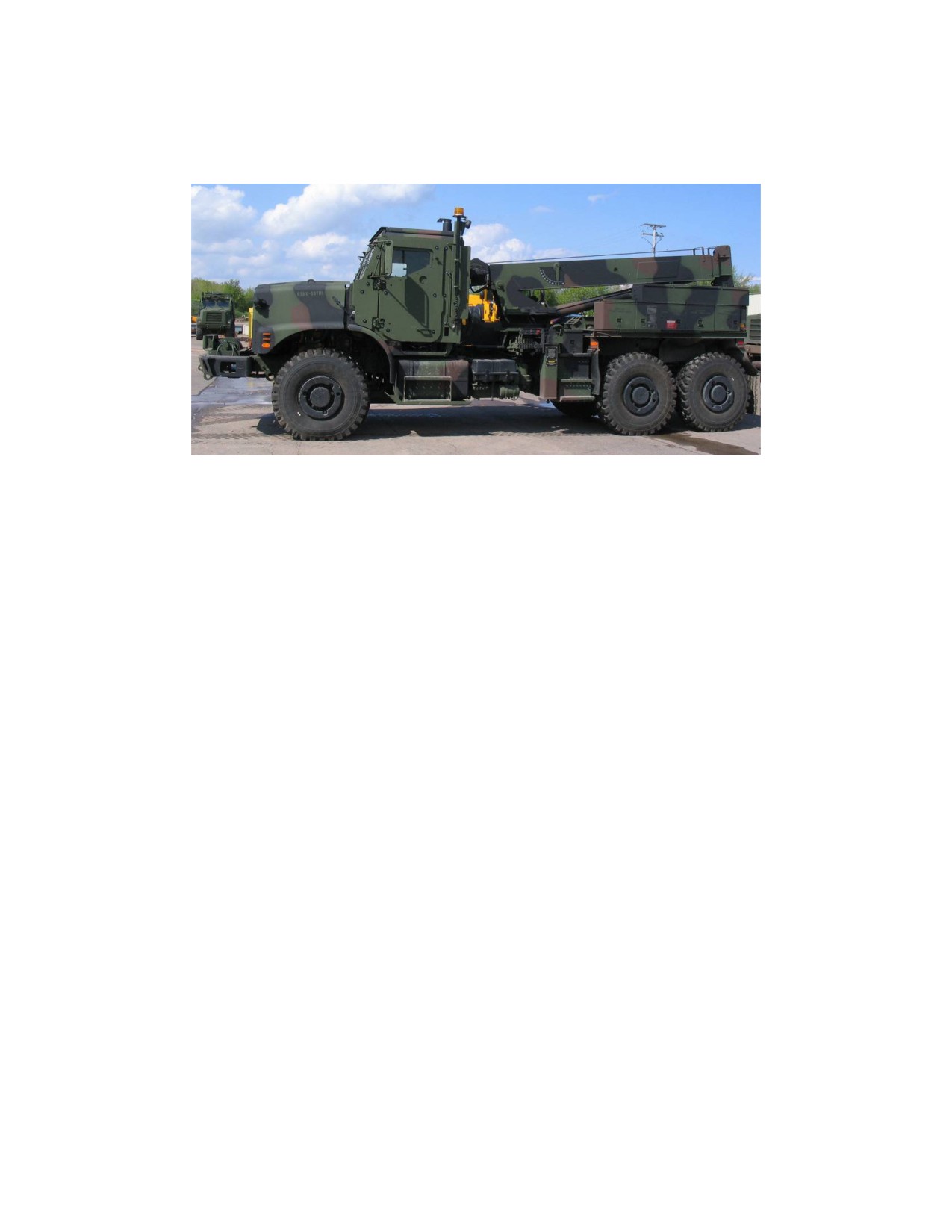

TRUCK, WRECKER, 7 TON, MK36

D12137K

2-25

TRUCK, WRECKER, 7 TON, ARMORED, AMK36

D00157K

2-27

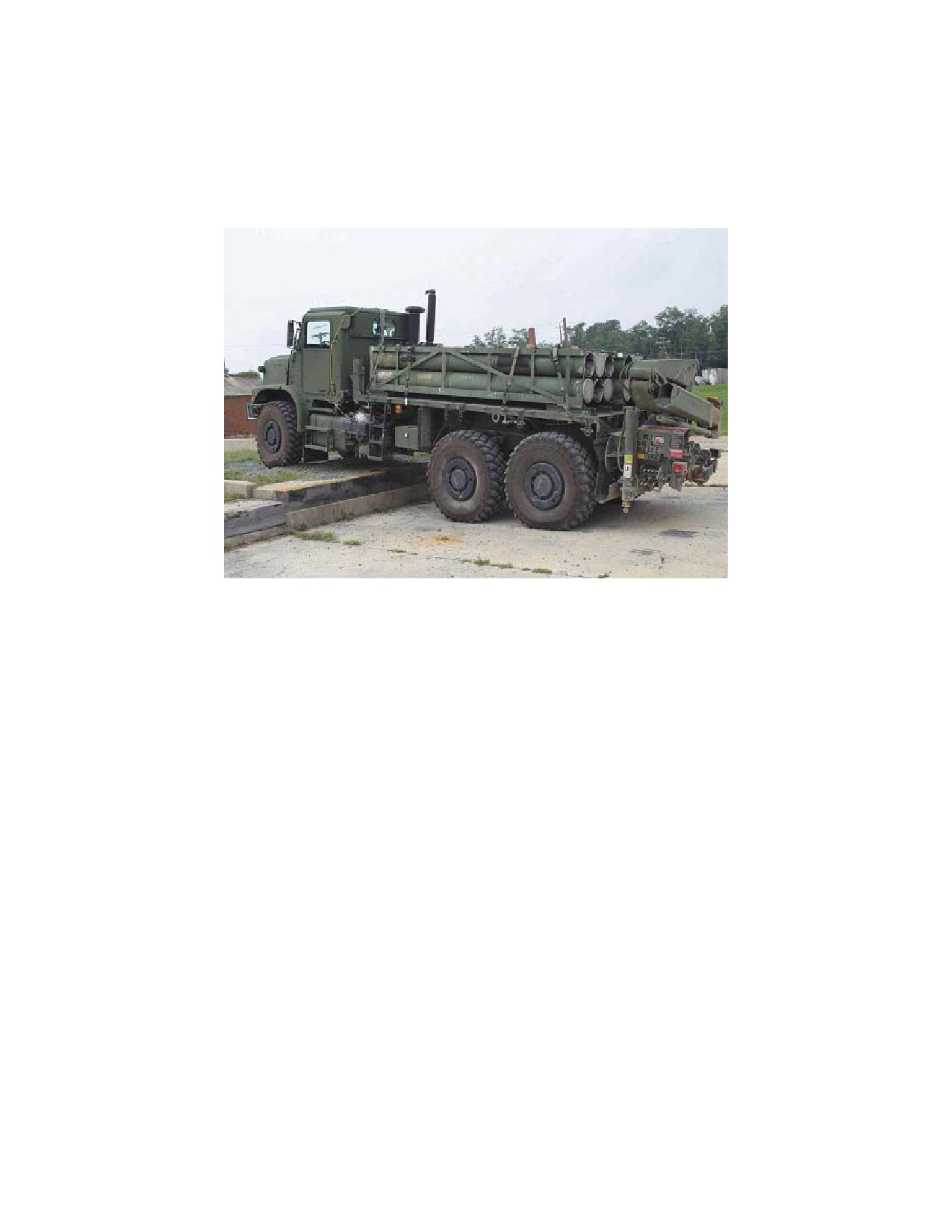

TRUCK, CARGO, RE-SUPPLY F/HIGH MOBILITY ARTILLERY ROCKET

SYSTEM (HIMARS), MK37/MK37A1/AMK37A1

D10637K

2-29

TABLE OF CONTENTS - CONT’D

TAMCN

PAGE

SECTION III.

AUTOMOTIVE - HEAVY FLEET

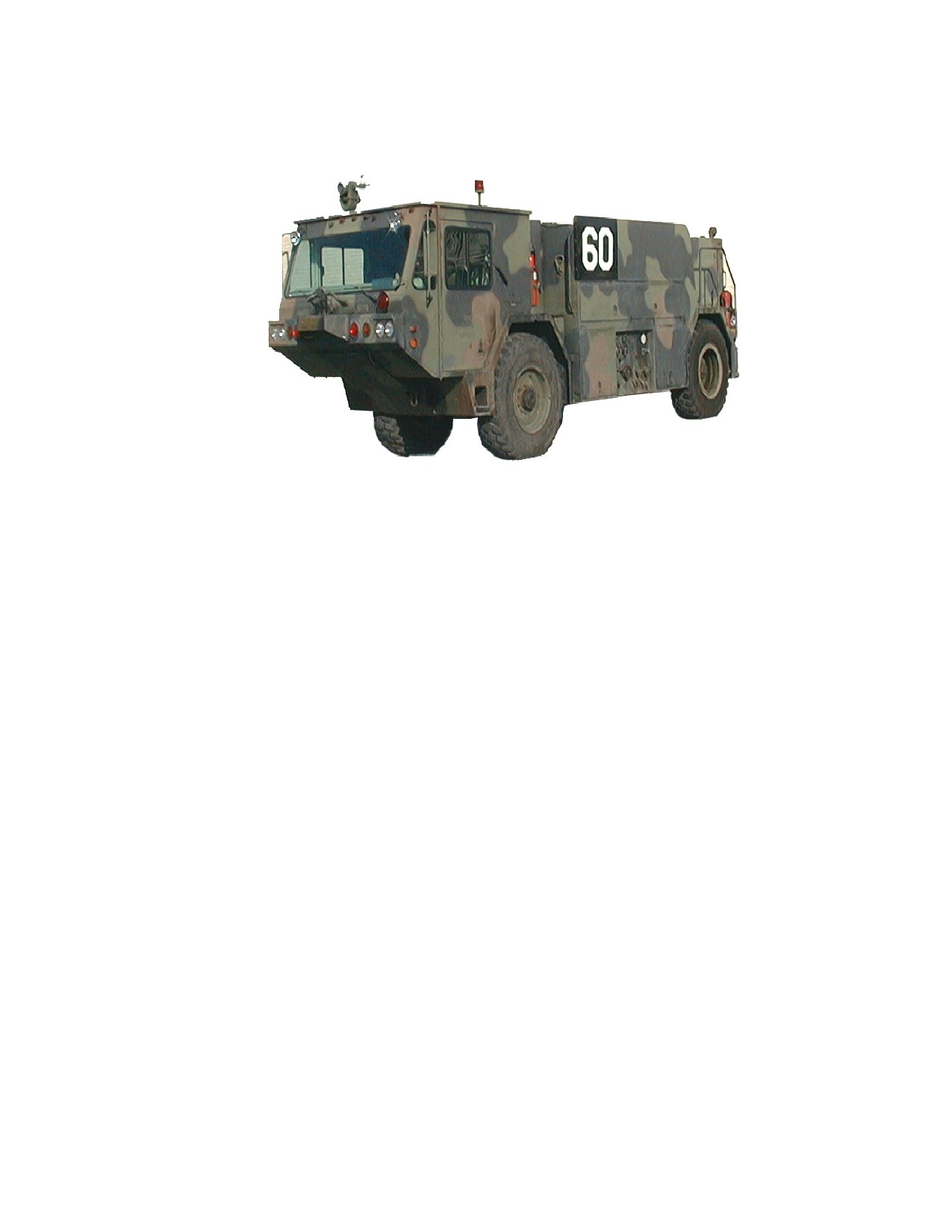

TRUCK, FIRE FIGHTING, AIRCRAFT CRASH AND STRUCTURE FIRE,

A/S32P-19A

D10647K

3-3

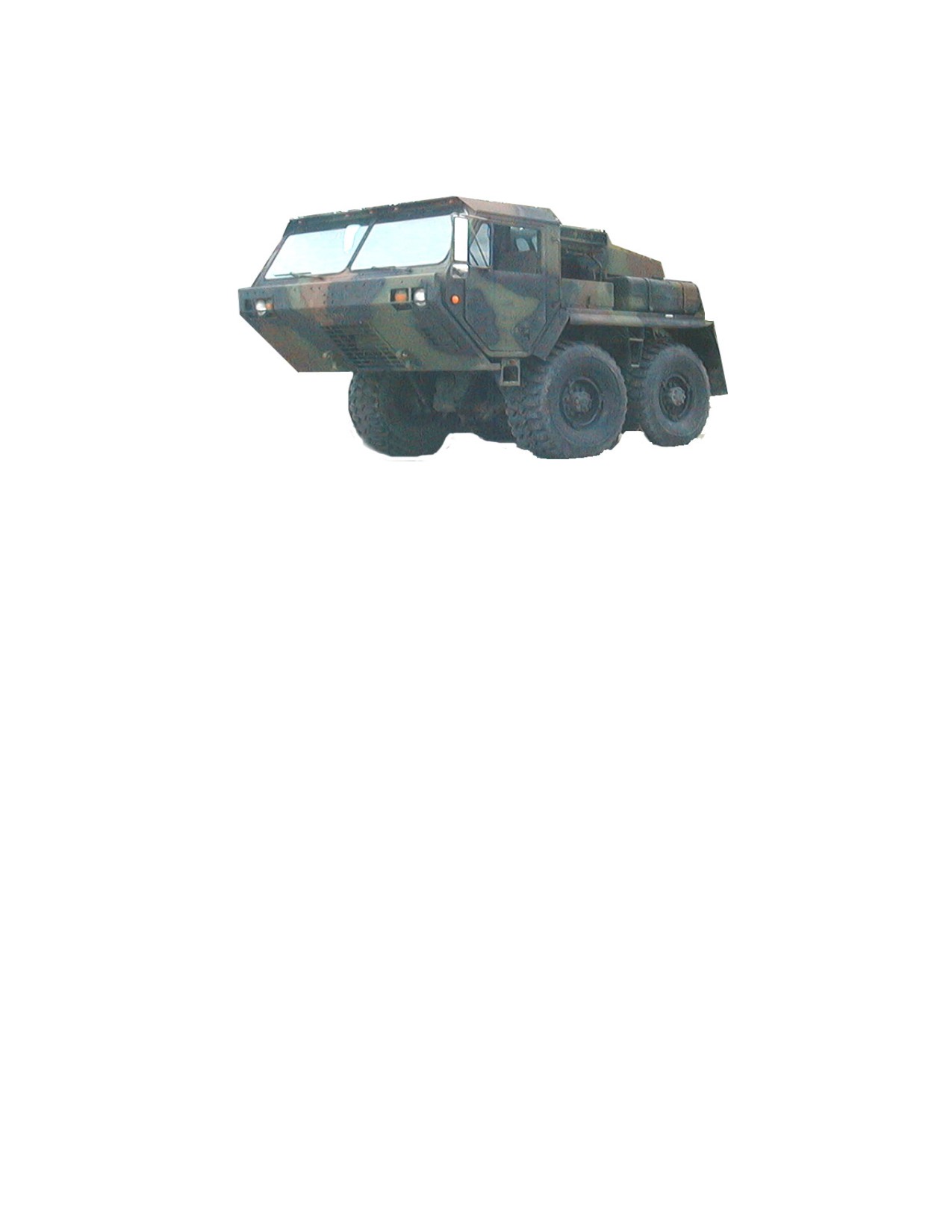

POWER UNIT, FRONT, 12 1/2 TON, MK48/MK48A1, MOD 0

D02097K

3-5

TRAILER, POWERED, 22 1/2 TON, CONTAINER HAULER, MK14/14A1 MOD 0 D08767K

3-7

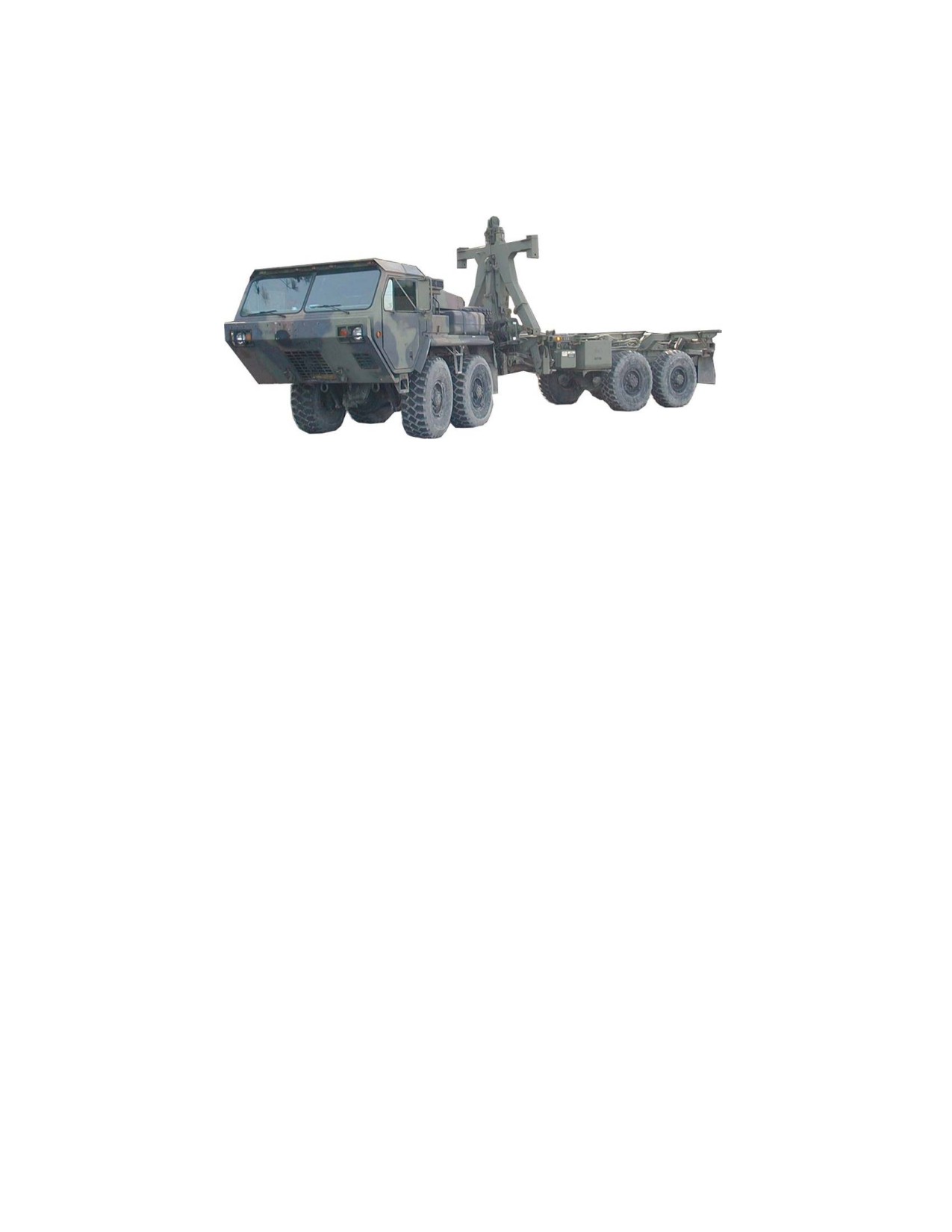

TRAILER, POWERED, WRECKER/RECOVER, MK15/15A1 MOD 0

D08777K

3-9

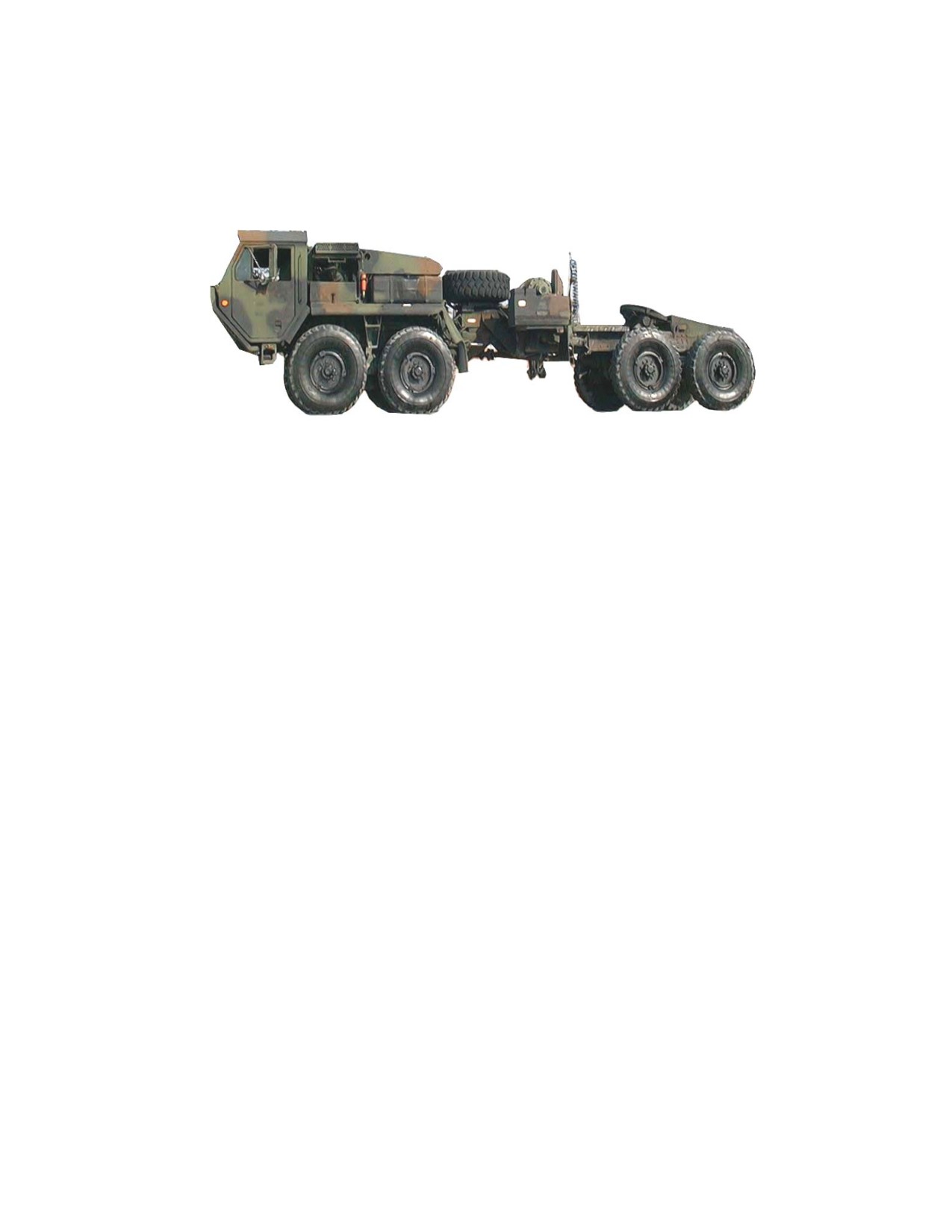

TRAILER, POWERED, FIFTH WHEEL, SEMI-TRAILER ADAPTER,

MK16/MK16A1 MOD 0

D08787K

3-11

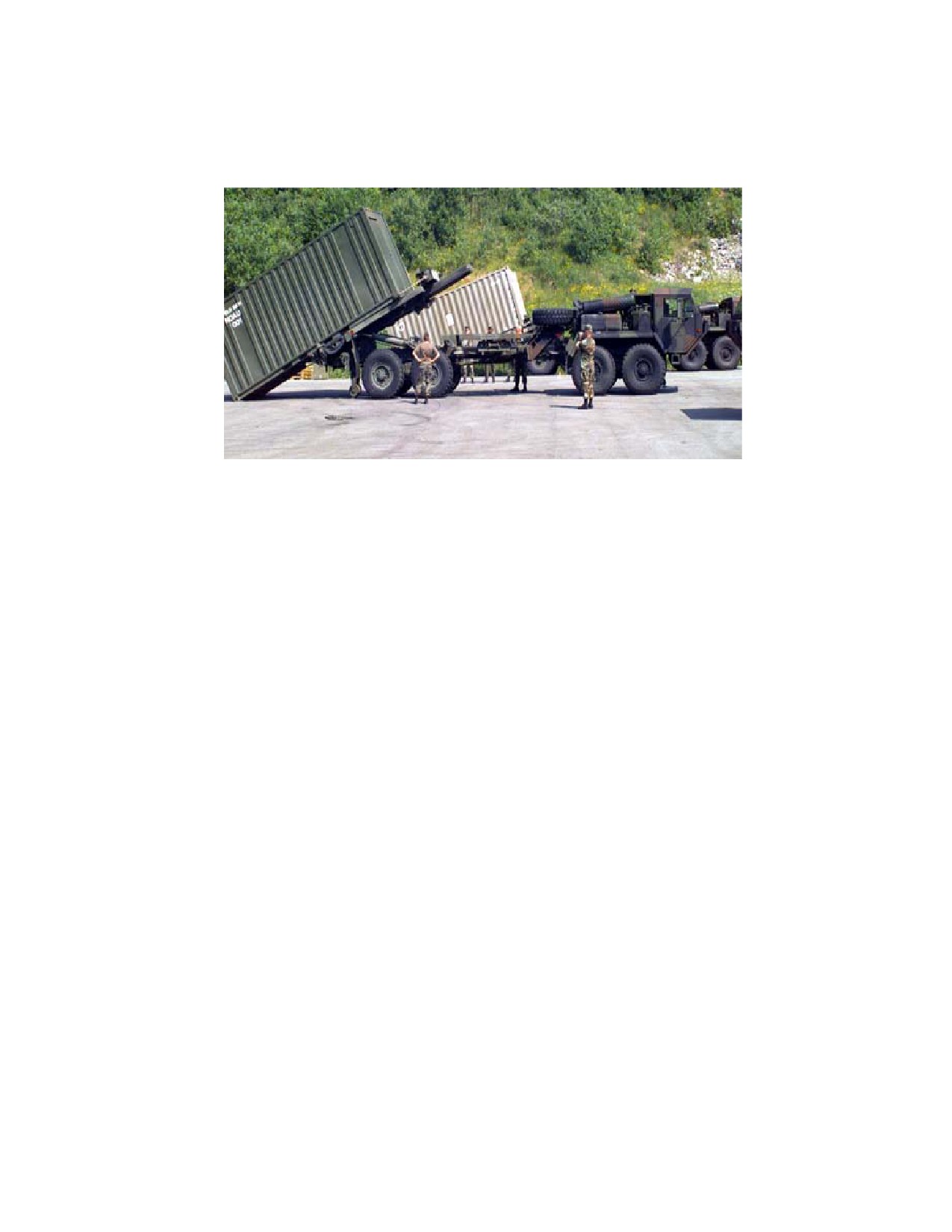

TRAILER, SELF-LOADING, RIBBON BRIDGE/CONTAINER HAULER,

MK18 MOD 0

D08817K

3-13

TRAILER, SELF-LOADING, RIBBON BRIDGE/CONTAINER HAULER,

MK18A1 MOD 0

D08817K

3-15

TRUCK, CARGO, 10X10, LOGISTICS VEHICLE SYSTEM REPLACEMENT

(LVSR), MKR18

D08867K

3-17

TRAILER, PALLETIZED LOADING SYSTEM (PLS), M1076

D00357K

3-19

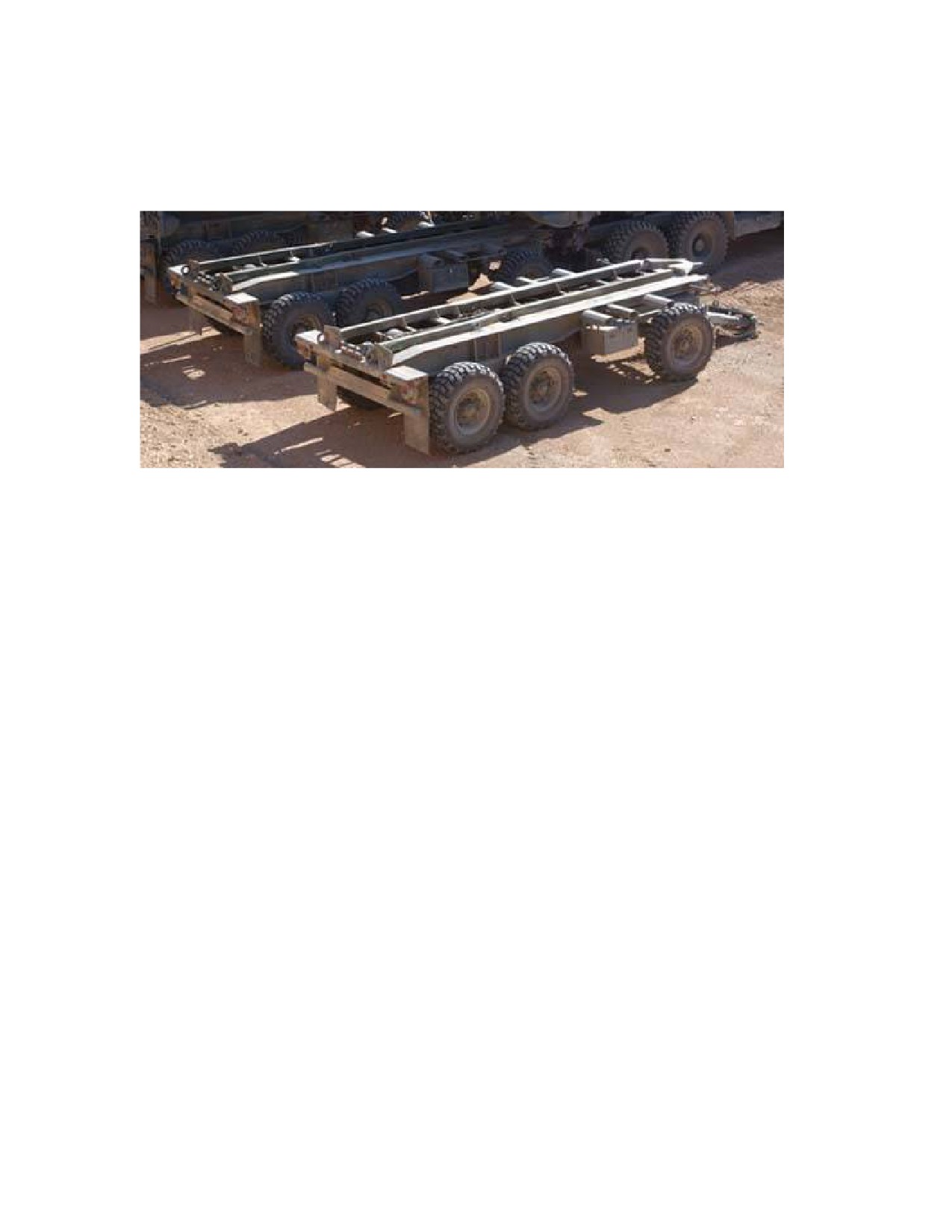

FLATRACK, PALLETIZED LOADING SYSTEM (PLS), M1077/MK1077

D01957K

3-21

SECTION IV. MINE RESISTANT AMBUSH PROTECTED (MRAP)

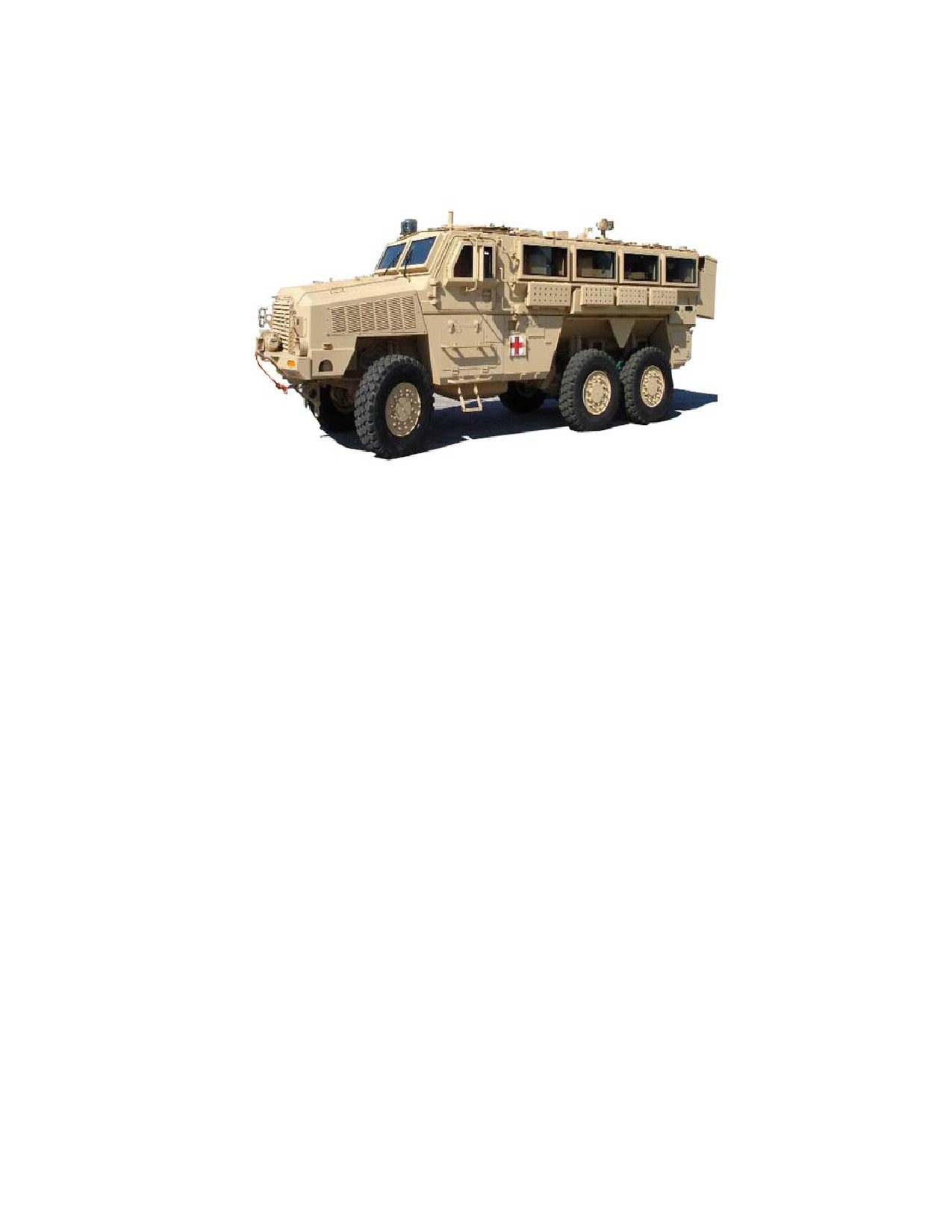

HEAVY ARMORED GROUND AMBULANCE (HAGA)

D00237K

4-3

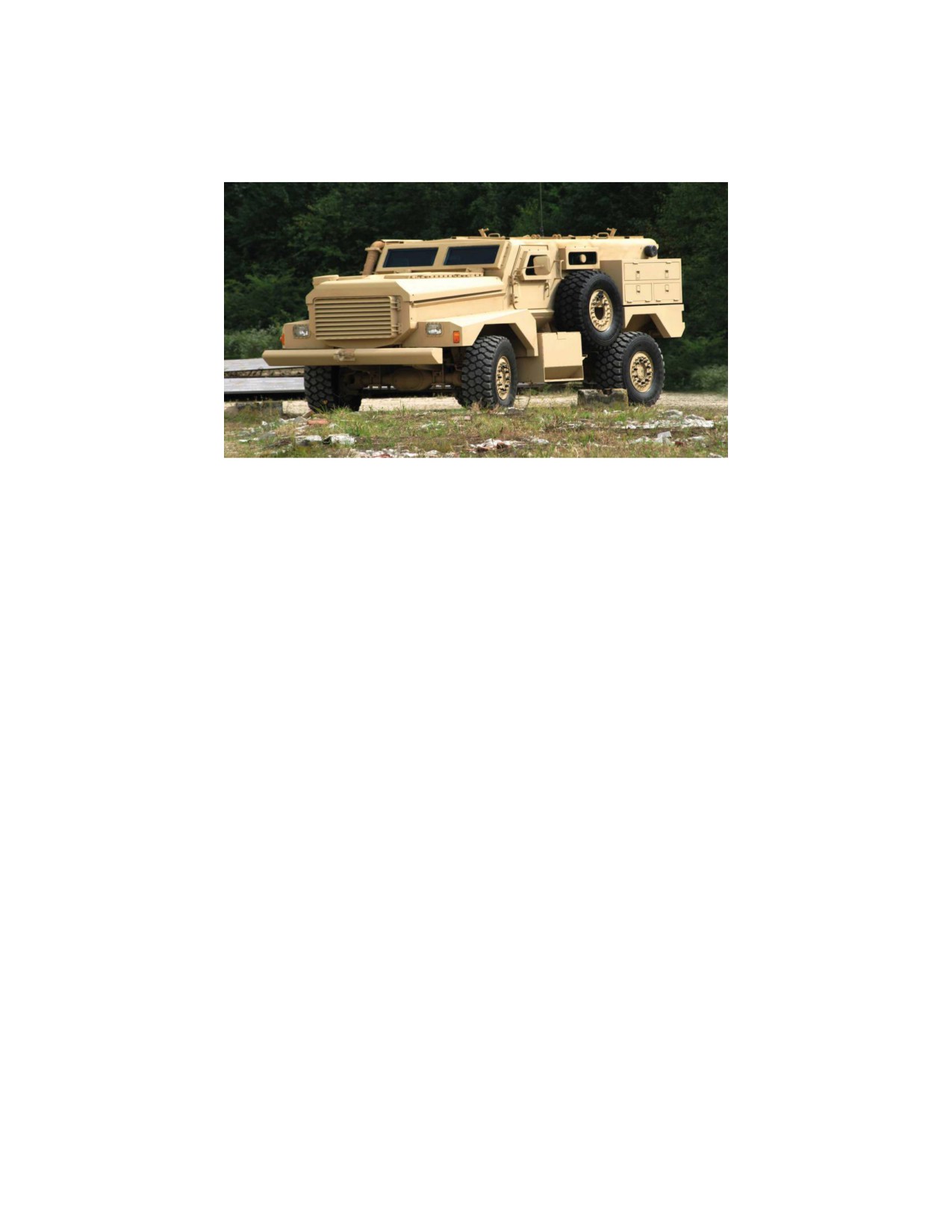

COUGAR HARDENED ENGINEER VEHICLE, (HEV 4x4)

D00257K

4-5

JOINT EXPLOSIVE ORDNANCE DISPOSAL RAPID RESPONSE

VEHICLE (JERRV EOD 4X4)……………………………………………….. D00257K

4-7

JOINT EXPLOSIVE ORDNANCE DISPOSAL RAPID RESPONSE

VEHICLE (CAT I A1)

D00257K

4-9

COUGAR HARDENED ENGINEER VEHICLE (HEV 6X6)

D00277K

4-11

JOINT EXPLOSIVE ORDNANCE DISPOSAL RAPID RESPONSE

VEHICLE (JERRV ENG 6X6)

B00337K

4-13

JOINT EXPLOSIVE ORDNANCE DISPOSAL RAPID RESPONSE

VEHICLE (JERRV EOD 6x6)

D00277K

4-15

JOINT EXPLOSIVE ORDNANCE DISPOSAL RAPID RESPONSE

VEHICLE (CAT II A1)

D00277K

4-17

JOINT EXPLOSIVE ORDNANCE DISPOSAL RAPID RESPONSE

VEHICLE (CAT 1 A2)

D00257K

4-19

JOINT EXPLOSIVE ORDNANCE DISPOSAL RAPID RESPONSE

VEHICLE (CAT II A2)

D00277K

4-21

BUFFALO MINE PROTECTED CLEARANCE VECHICLE (BUFFALO MK1)… B50017K

4-23

MRAP ALL TERRAIN VEHICLE (M-ATV)

D00367K

4-25

SECTION V.

EXAMPLES OF VEHICLE ARMOR

FULL ARMOR KIT, MARINE ARMOR KIT (MAK), F/M1043A2/M1045A2

D00217K

5-3

FULL ARMOR KIT, MARINE ARMOR KIT (MAK), F/HMMWV 2-DOOR

D00197K

5-5

FULL ARMOR KIT, MARINE ARMOR KIT (MAK), F/HMMWV 4-DOOR

D00207K

5-7

TABLE OF CONTENTS - CONT’D

TAMCN PAGE

SECTION VI. TRAILERS

TRAILER, AMMUNITION: INTERNALLY TRANSPORTABLE VEHICLE,

AMMUNITION TRAILER (ITV-AT) M1164

D08407K

6-3

TRAILER, CHASSIS, 3/4 TON, M116A2/M116A3

D00857K

6-5

TRAILER, CARGO, 3/4 TON, M101A3

D08507K

6-7

TRAILER, LIGHT TACTICAL, MARINE CORPS CHASSIS, M1102 LTT-MCC

D00177K

6-9

TRAILER, LIGHT TACTICAL, CARGO, HEAVY, M1102H

D00167K

6-11

TRAILER, CHASSIS, GENERAL PURPOSE, 3 1/2 TON, M353

D00807K

6-13

TRAILER, CARGO, 1 1/2 TON, M105A2

D08607K

6-15

TRAILER, TANK, WATER, 400 GALLON, M149/M149A1/M149A2

D08807K

6-17

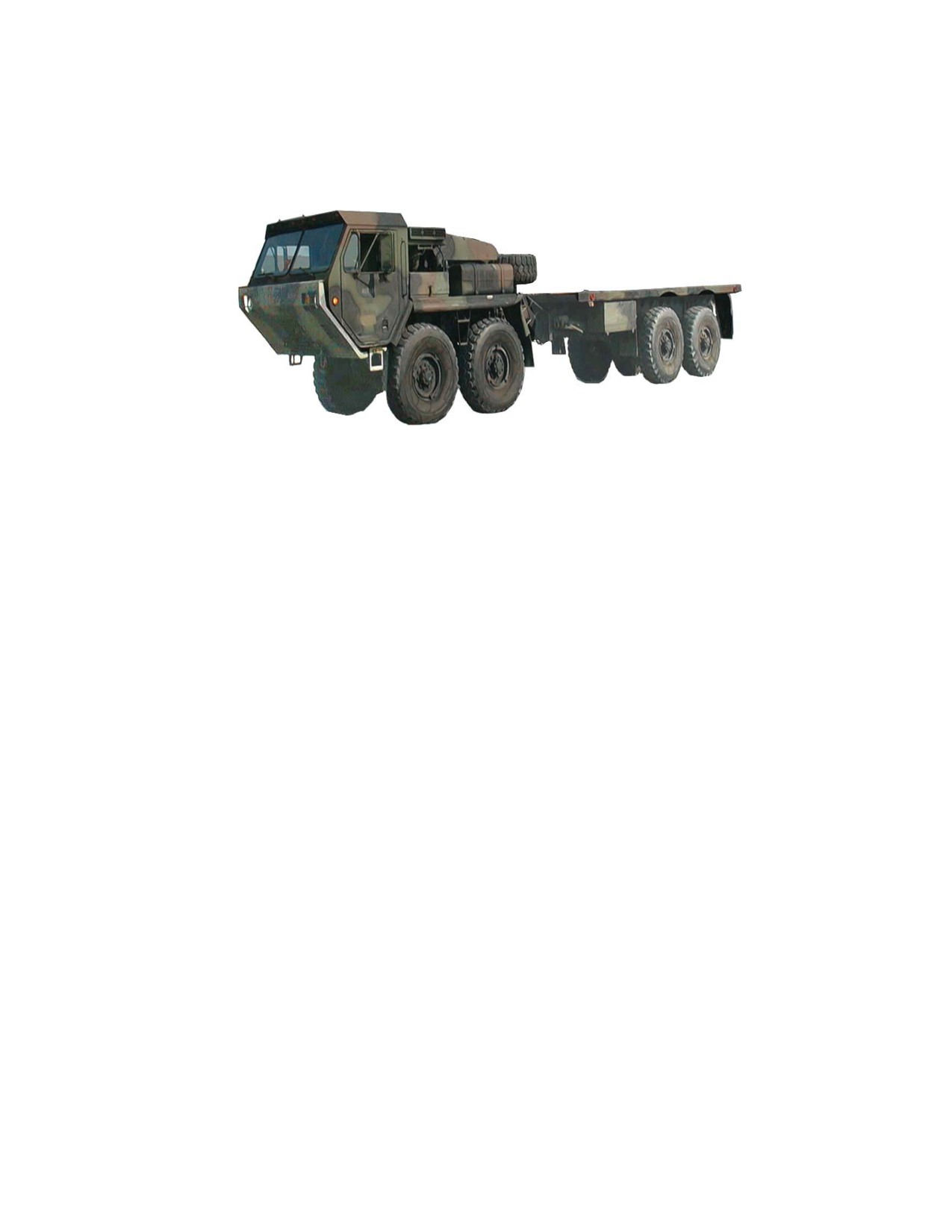

TRAILER, 7 1/2 TON, FULL UP POWER PACK (FUPP), M1073

D08857K

6-19

TRLR, CARGO, RE-SUPPLY F/HIGH MOBILITY ARTILLERY

ROCKET SYSTEM (HIMARS), MK38

D08617K

6-21

SECTION VII. SEMI-TRAILERS

SEMI-TRAILER, AIRCRAFT REFUELER, 5000 GALLON, MK970

D02157K

7-3

SEMI-TRAILER, AIRCRAFT REFUELER, 5000 GALLON, AMK970

D02157K

7-5

SEMI-TRAILER, LOWBED, 40 TON, MEDIUM HEAVY EQUIPMENT

TRANSPORTER (MHET), M870A2

D02357K

7-7

SEMI-TRAILER, LOWBED, 40 TON, MEDIUM HEAVY EQUIPMENT

TRANSPORTER (MHET), M870A2-S

D02357K

7-9

SEMI-TRAILER, LOWBED, 50 TON, MEDIUM HEAVY EQUIPMENT

TRANSPORTER (MHET), M870A2E1

D00027K

7-11

SECTION VIII. PLANNED EQUIPMENT

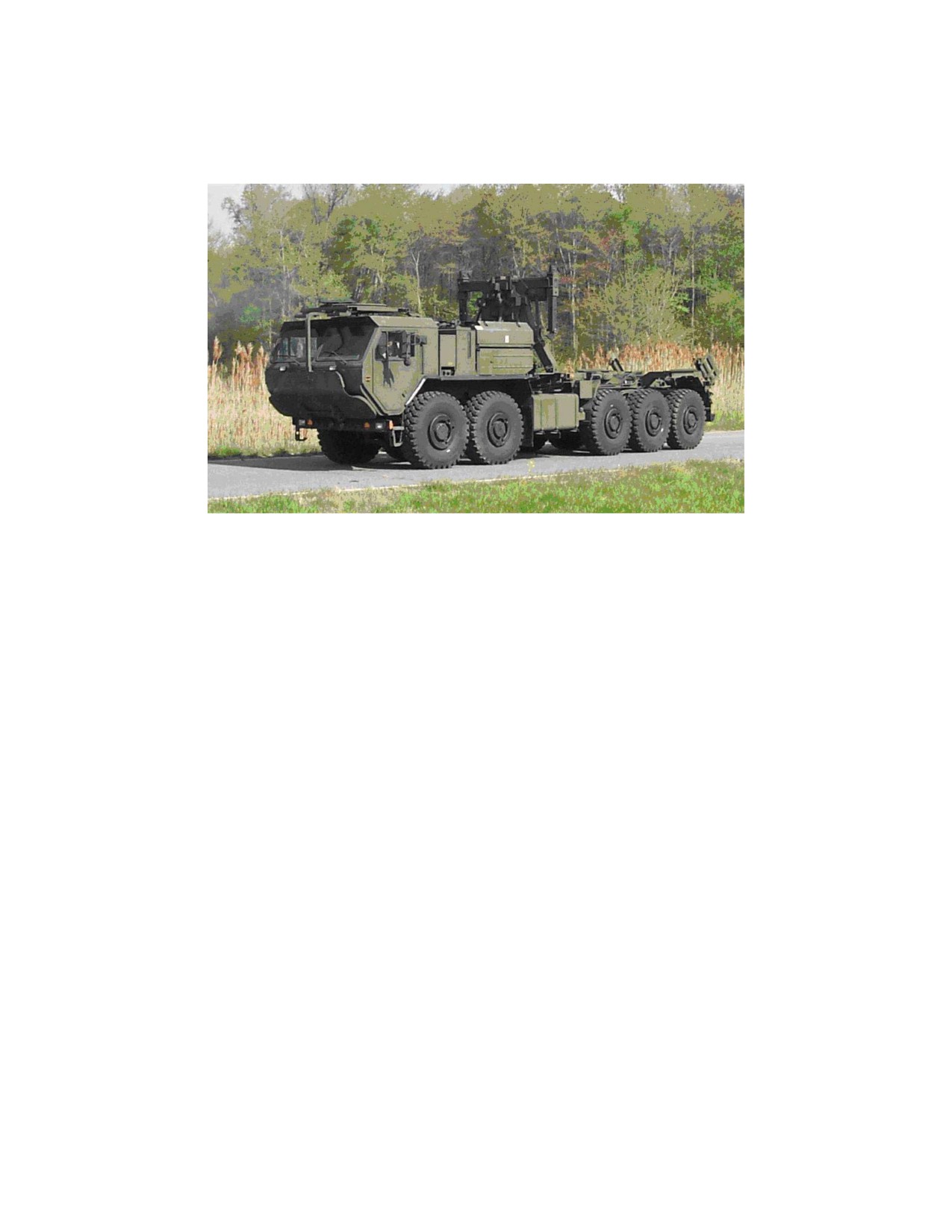

TRUCK WRECKER, 10X10, LOGISTICS VEHICLE SYSTEM

REPLACEMENT (LVSR), MKR15

D12147K

8-3

TRUCK TRACTOR, 10X10, LOGISTICS VEHICLE SYSTEM

REPLACEMENT (LVSR), MKR16

D08877K

8-5

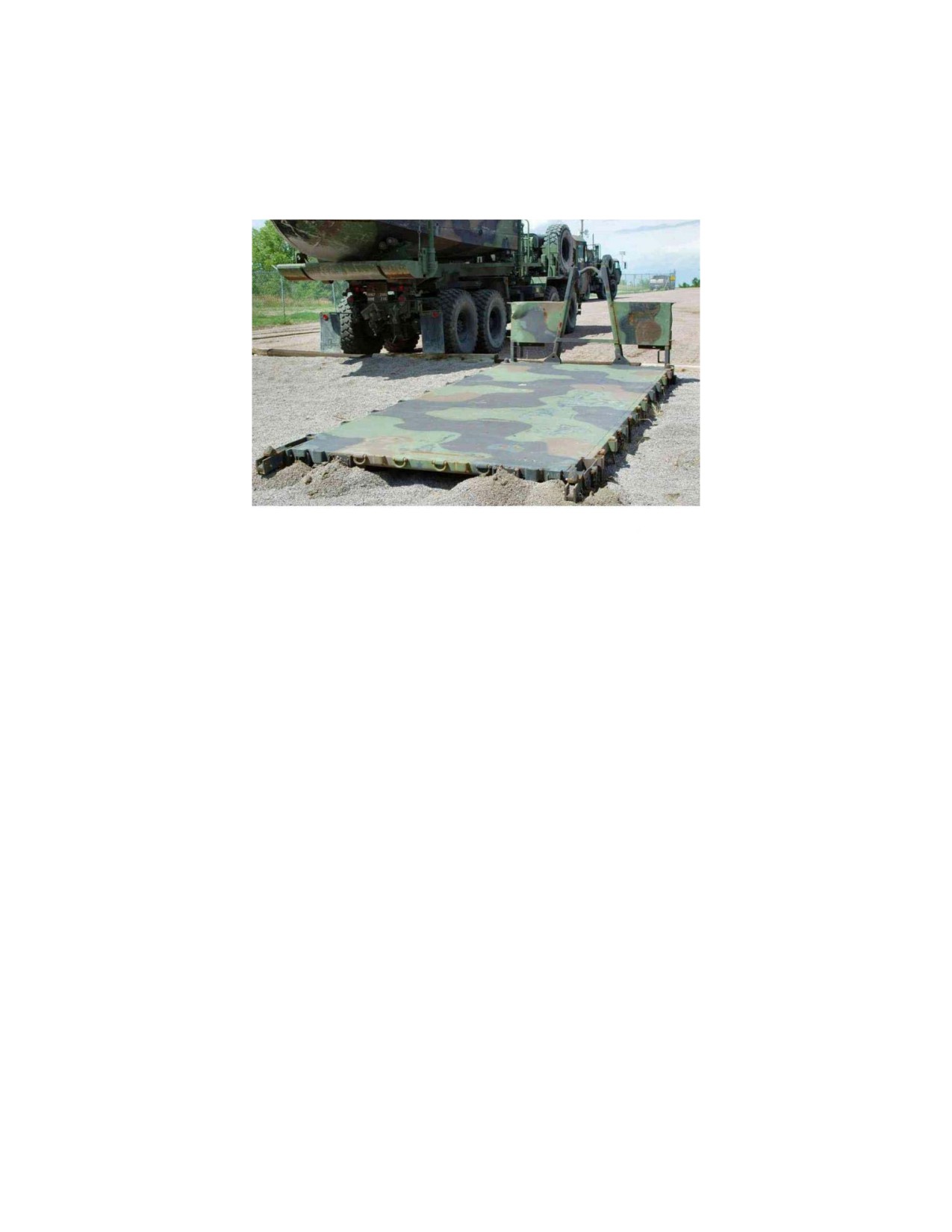

FLATRACK REFUELING CAPABILITY (FRC)

D02117K

8-7

TRAILER, CARGO, 4 TON, MK105

D08627K

8-9

TRAILER, GENERAL PURPOSE, 4 TON, MK353

D00817K

8-11

TRAILER, TANK, WATER, 600 GALLON, MK149

D08827K

8-13

iii

TABLE OF CONTENTS - CONT’D

TAMCN

PAGE

SECTION IX. PHASED-OUT EQUIPMENT

MOTORCYCLE, MILITARY, M1030

9-3

MOTORCYCLE, MILITARY, M1030B1

9-5

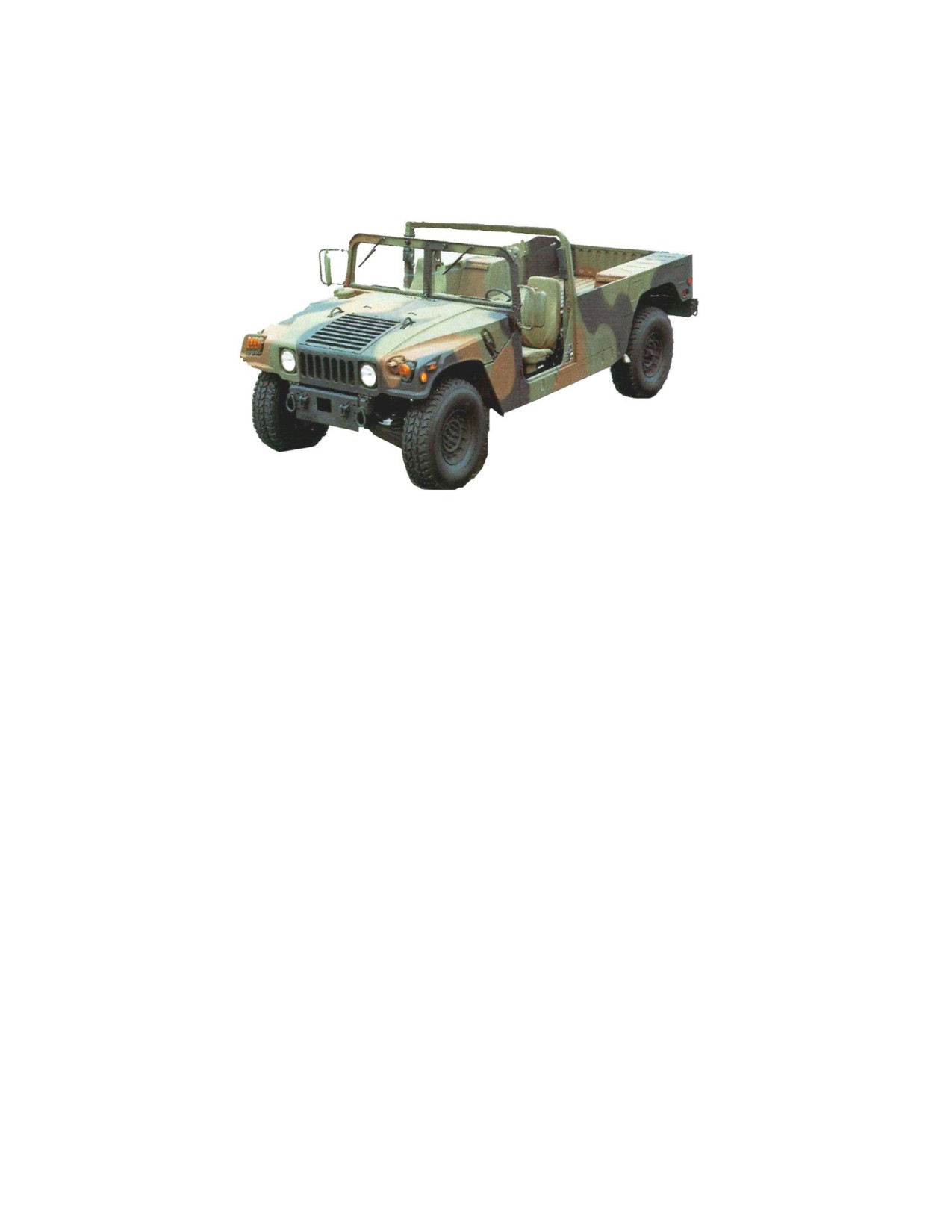

TRUCK, UTILITY, CARGO/TROOP CARRIER, M998

9-7

TRUCK, UTILITY, CARGO/TROOP CARRIER, M1038

9-9

TRUCK, UTILITY, ARMAMENT CARRIER, M1043

9-11

TRUCK, TOW CARRIER, M1045

9-13

TRUCK, TOW CARRIER, M1046

9-15

TRUCK, AMBULANCE, 4-LITTER, M997

9-17

TRUCK, AMBULANCE, 2-LITTER, SOFT TOP, M1035

9-19

TRUCK, CARGO, DROPSIDE, W/O WINCH, M813A1

9-21

TRUCK, CARGO, DROPSIDE, W/WINCH, M813A1

9-23

TRUCK, CARGO, DROPSIDE, M923A1

9-25

TRUCK, CARGO, DROPSIDE, M925A1

9-27

TRUCK, CARGO, EXTRA LONG WHEEL BASE, M814

9-29

TRUCK, CARGO, EXTRA LONG WHEEL BASE, M927A1

9-31

TRUCK, CARGO, EXTRA LONG WHEEL BASE, M928A1

9-33

TRUCK, DUMP, 5 TON, W/O WINCH, M817

9-35

TRUCK, DUMP, 5 TON, W/WINCH, M817

9-37

TRUCK, DUMP, 5 TON, M929A1

9-39

TRUCK, DUMP, 5 TON, M930A1

9-41

TRUCK, TRACTOR, 5 TON, M818

9-43

TRUCK, TRACTOR, 5 TON, M931A1

9-45

TRUCK, WRECKER, MEDIUM, 5 TON, M816

9-47

TRUCK, WRECKER, MEDIUM, 5 TON, M936A1

9-49

SEMITRAILER, LOW BED, MEDIUM HEAVY EQUIPMENT TRANSPORTER

(MHET), M870A1

9-51

TRUCK, UTILITY, SHELTER CARRIER, M1037

9-53

TRUCK, UTILITY, SHELTER CARRIER, M1042

9-55

LUBRICATING AND SERVICING UNIT, 4AO32-11/4AO32-1

9-57

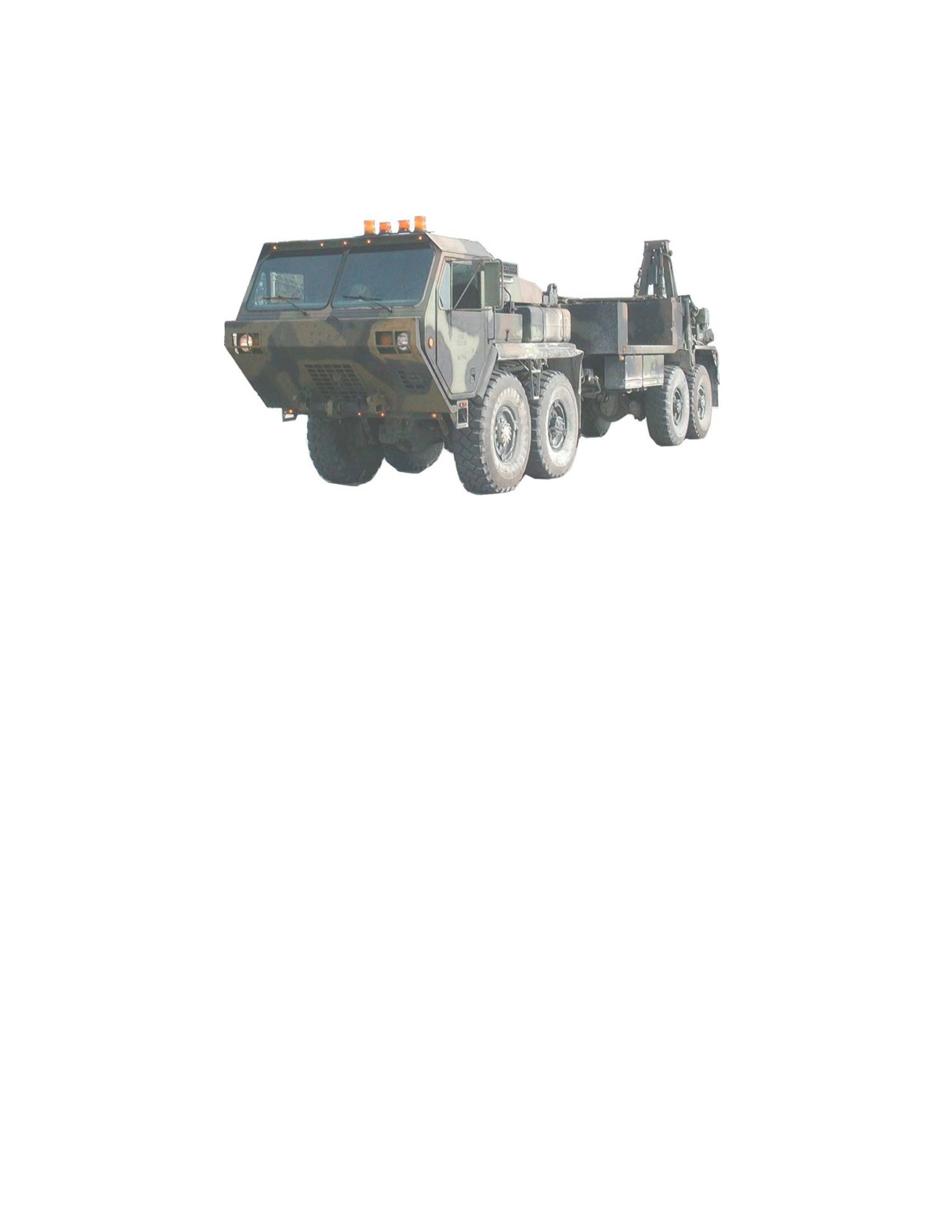

TRAILER, POWERED, 20 TON, CARGO, WITH MATERIAL HANDLING

CRANE, MK17/17A1 MOD 0

9-59

DOLLY SET, LIFT, TRANSPORTABLE SHELTER, M832

9-61

TRUCK, MAINTENANCE, TELEPHONE/UTILITY, CONSTRUCTION,

M876A1

9-63

TRUCK, AVIATION REFUELER CAPABILITY, ARC

9-65

VEHICLE, FAST ATTACK, INTERIM (IFAV)

9-67

SEMITRAILER, AIRCRAFT REFUELER, 5000 GALLON, M970

9-69

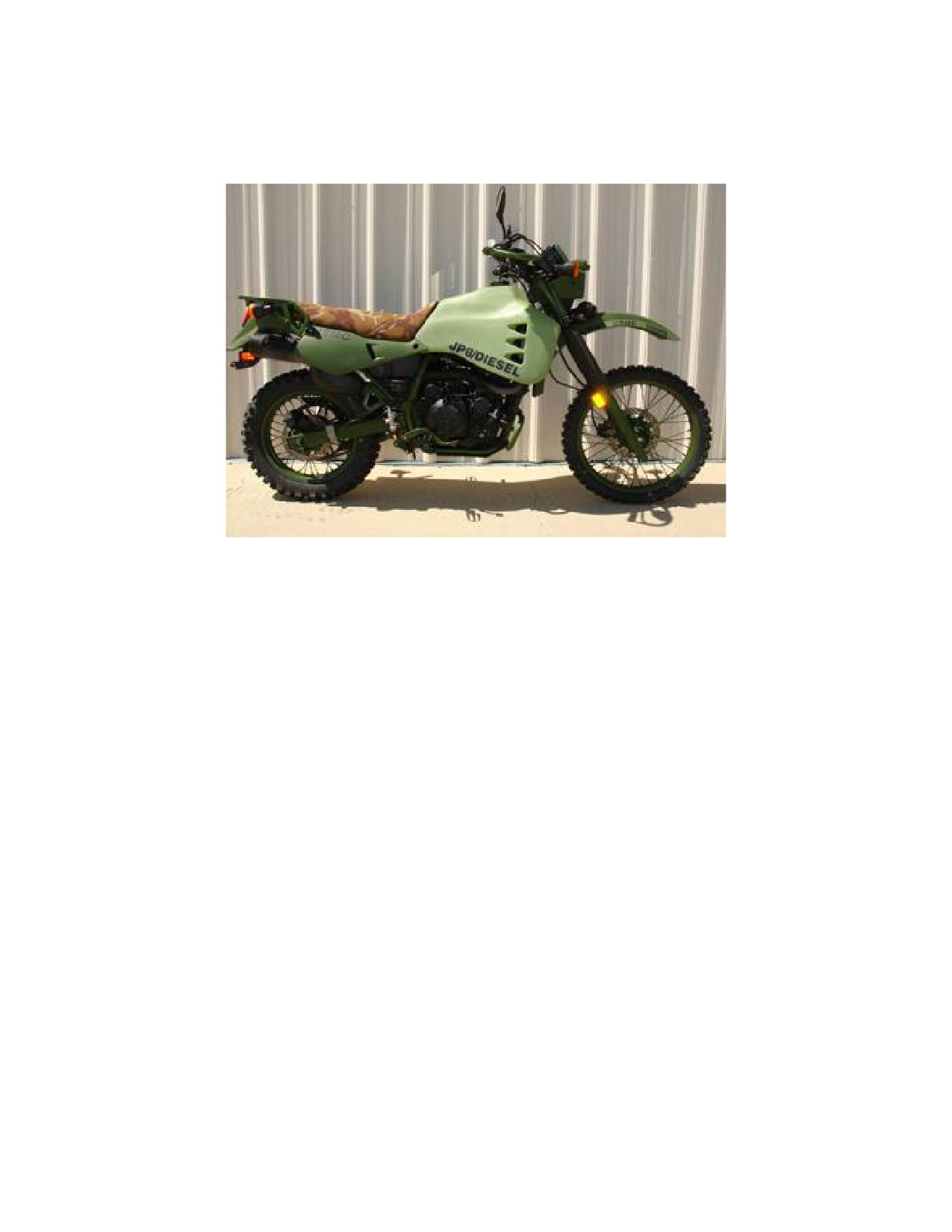

MOTORCYCLE, MILITARY, M1030M1

TAMCN D02017B NSN

2340-01-530-9371

11121A

DESCRIPTION AND FUNCTION

The Military Motorcycle Replacement (MILMO), model M1030M1 is a two-wheeled, multi-fueled, dual purpose on

and off road utility vehicle. The MILMO is a commercially available Hayes Diversified Technologies 650. The

M1030M1 will be employed in garrison and field environments and is designed to perform in all weather conditions

(except snow and ice). The M1030M1 can be used for tactical and urban reconnaissance, convoy control and

military police functions. The M1030M1 is the replacement for the M1030B1 KLR 650 Motorcycle.

Manufacturer:

Hayes Diversified Technologies

TECHNICAL CHARACTERISTICS

Dimensions

Length

85 in

Width

37 in

Height

54 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

369 lbs

Performance Information

Fording Depth

24 in

Highway Payload

N/A

Cross Country Payload

N/A

Cab Capacity

1+1

1-3

TM 11240-ODA

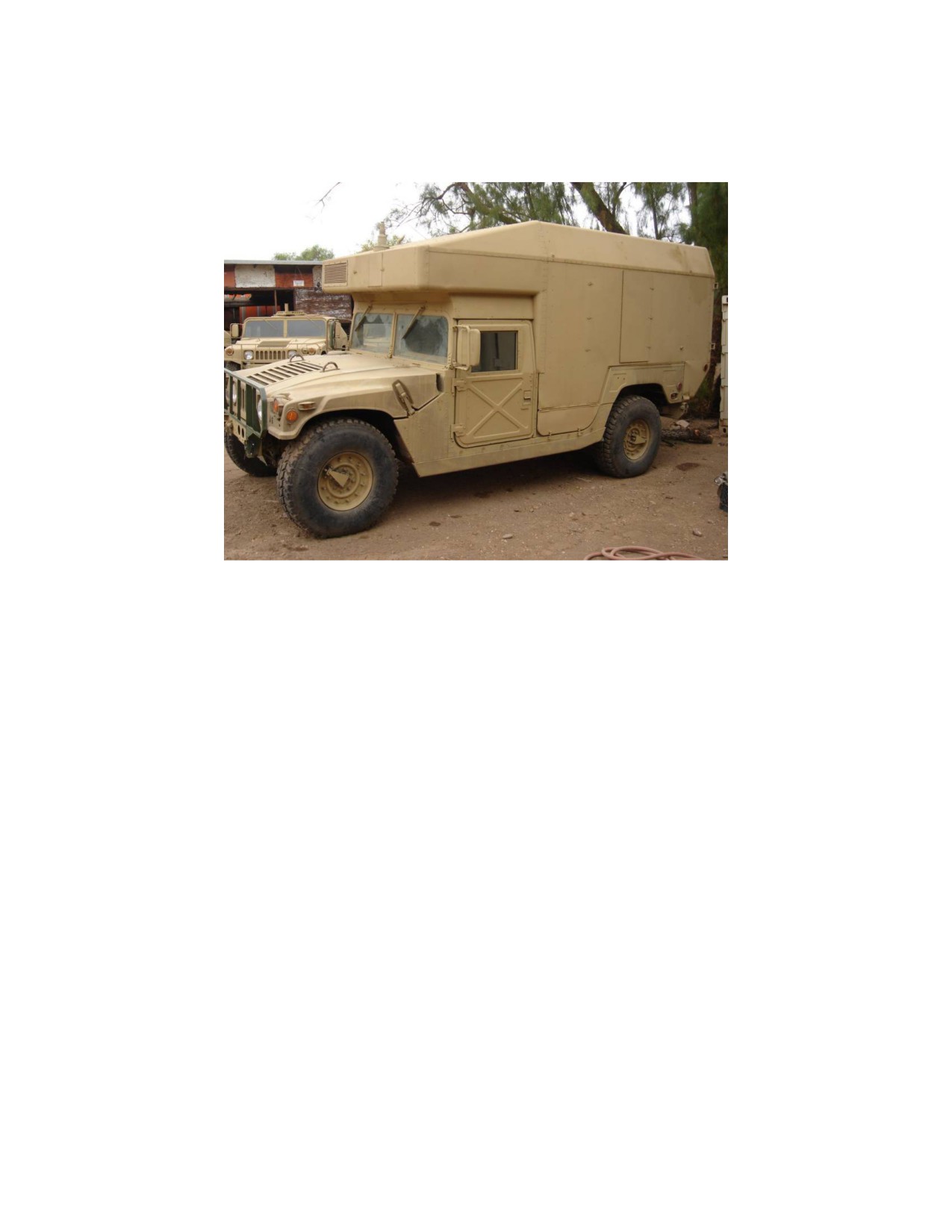

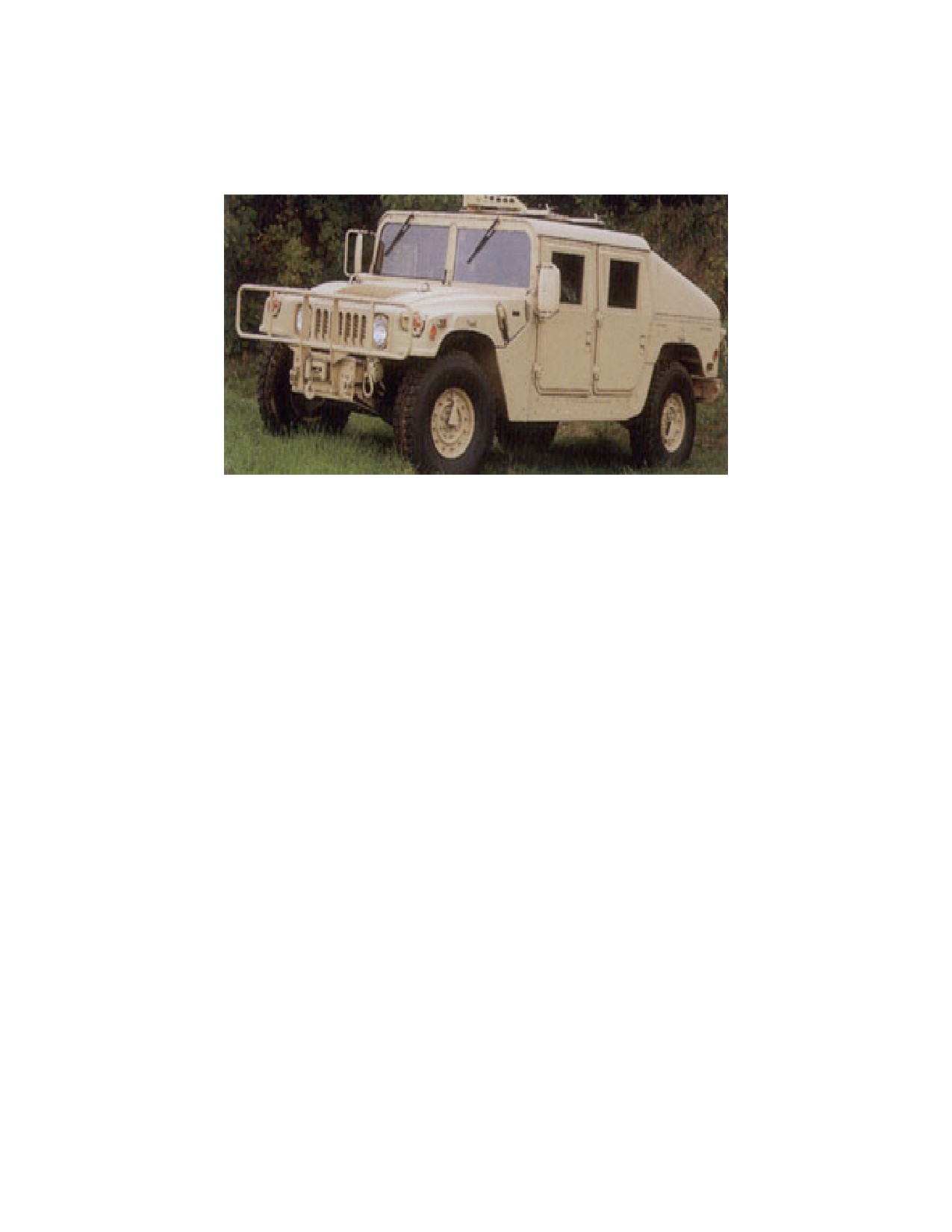

TRUCK, AMBULANCE, 4-LITTER, M997A2

TAMCN D10017K NSN

2310-01-380-8225

08991C

DESCRIPTION AND FUNCTION

The M997A2 replaced the M997 HMMWV variant. The M997A2 can carry four litter or eight ambulatory patients.

These vehicles provide mobility for emergency situations and a quick link between battlefield casualties and

emergency services not readily available on the front lines of battle.

Manufacturer:

AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

204.5 in

Width

86 in

Height

102 in

Reducible Height

102 in

Cargo Deck Height Unloaded

35 in

Vehicle Curb Weight (includes BII)

7,770 lbs

Gross Vehicle Weight Rating

10,300 lbs

Performance Information

Fording Depth

30 in (60 in w/kit)

Highway Payload

2,530 lbs

Cross Country Payload

2,530 lbs

Towed Load

4,200 lbs

Cab Capacity

1+1

1-5

TRUCK, AMBULANCE, 4-LITTER, M997A2 - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

11 mpg

Fuel Consumption per hour

4.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

2 Apr 1985

Service Life

15 yrs

Planned Exit Date

31 Oct 2020

Special Tool Kits

TAMCN: D04752E

Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E

Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E

Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

1-6

TM 11240-ODA

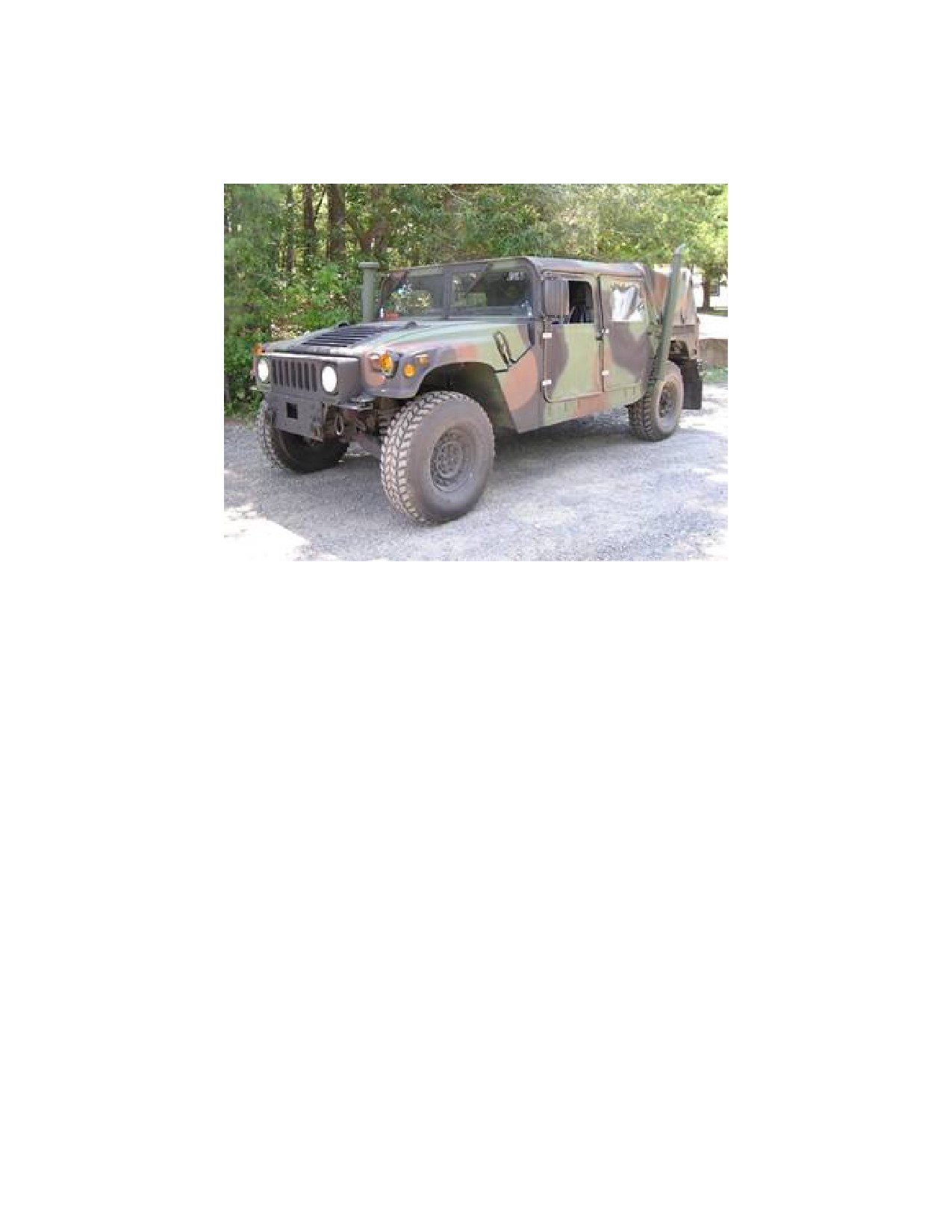

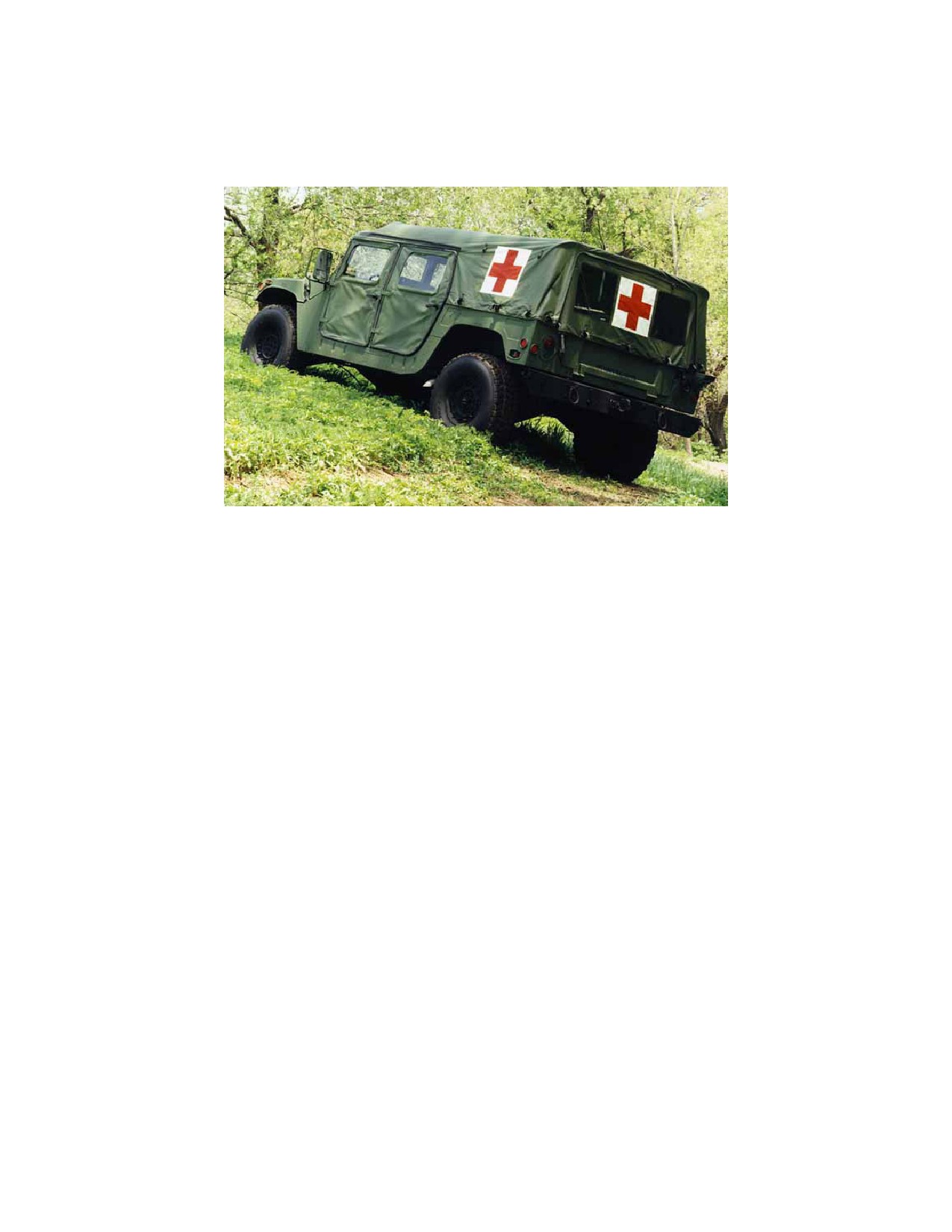

TRUCK, AMBULANCE, 2-LITTER, SOFT TOP, M1035A2

TAMCN D10027K NSN

2310-01-380-8290

08774C

DESCRIPTION AND FUNCTION

The M1035A2 replaced the M1035 HMMWV variant. The M1035A2 can carry two litter or three ambulatory

patients. These vehicles provide mobility for emergency situations and a quick link between battlefield casualties

and emergency services not readily available on the front lines of battle.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

182.5 in

Width

86 in

Height

72 in

Reducible Height

56.0 in

Cargo Deck Height Unloaded

37 in

Vehicle Curb Weight (includes BII)

6,100 lbs

Gross Vehicle Weight Rating

10,300 lbs

Performance Information

Fording Depth

30 in (60 in w/kit)

Highway Payload

4,200 lbs

Cross Country Payload

4,200 lbs

Towed Load

4,200 lbs

Cab Capacity

1+1

1-7

TRUCK, AMBULANCE, 2-LITTER, SOFT TOP, M1035A2 - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

11 mpg

Fuel Consumption per hour

4.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

2 Jan 1985

Service Life

15 yrs

Planned Exit Date

31 Dec 2019

Special Tool Kits

TAMCN: D04752E

Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E

Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E

Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

1-8

TM 11240-ODA

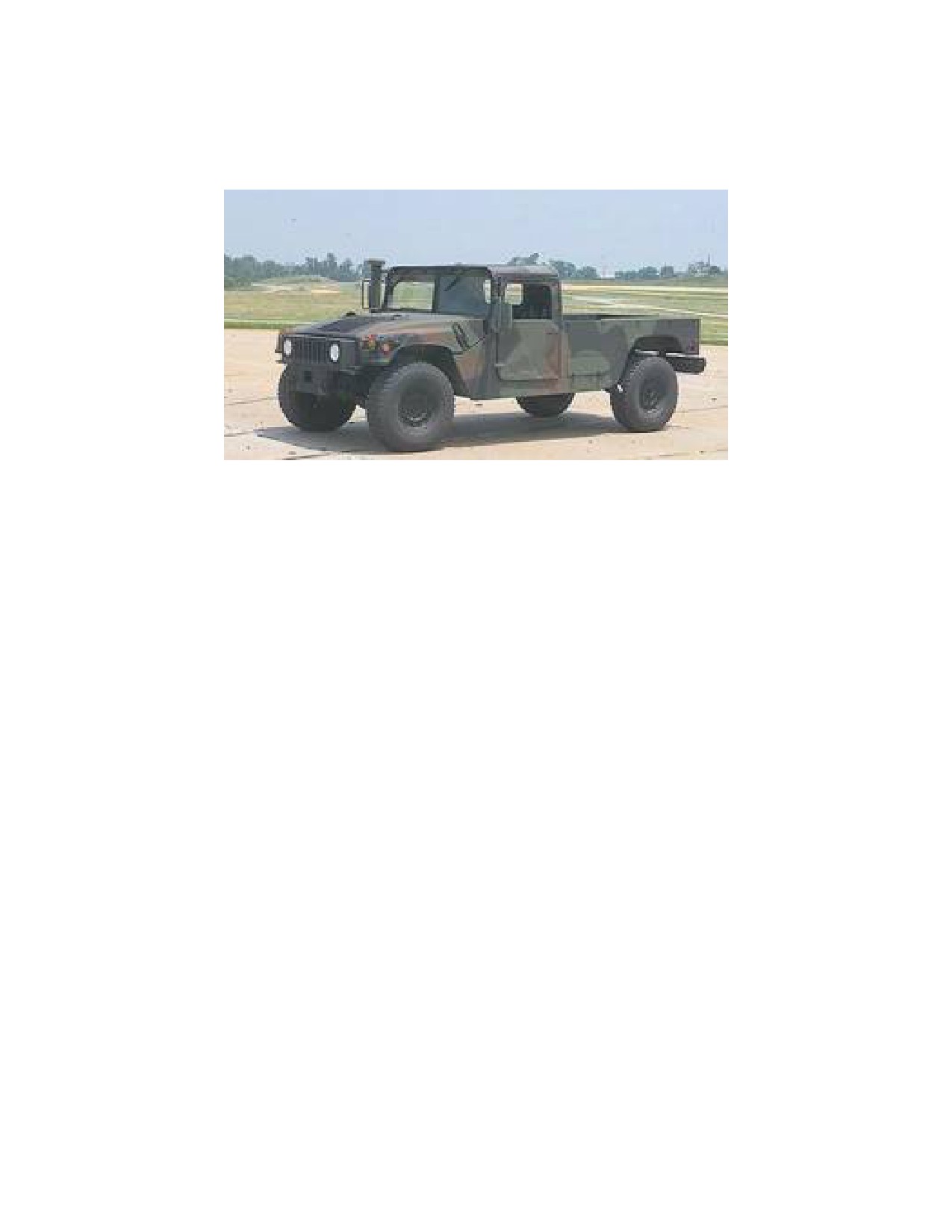

TRUCK, UTILITY, HEAVY VARIANT/CARGO/TROOP CARRIER, M1123

TAMCN D11587K NSN

2320-01-455-9593

08770D

DESCRIPTION AND FUNCTION

The M1123 HMMWV variant replaced the M998 and M1038 variant HMMWVs. The M1123 provides light troop

and cargo transportation. Available in two and four person configurations, this model can accept installation of

troop seats and other modifications. This variant can be used as the vehicle platform for mobile communication

systems as well as other mobile alternate command posts. Marine Armor Kit (MAK) can be installed on M1123, in

either two or four door configurations.

Manufacturer:

AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

182.5 in

Height

73.5 in

Reducible Height

56 in

Width

86 in

Cargo Deck Height Unloaded

37 in

Vehicle Curb Weight (includes BII)

5,850 lbs

Gross Vehicle Weight Rating

10,300 lbs

Performance Information

Fording Depth

30 in (60 in w/kit)

Highway Payload

4,450 lbs

Cross Country Payload

4,450 lbs

Towed Load

4,200 lbs

Cab Capacity

1+1

1-9

TRUCK, UTILITY, HEAVY VARIANT/CARGO/TROOP CARRIER, M1123- CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

11 mpg

Fuel Consumption per hour

4.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

28 Apr 1985

Service Life

15 yrs

Planned Exit Date

31 Dec 2019

Special Tool Kits

TAMCN: D04752E

Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E

Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E

Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

1-10

TM 11240-ODA

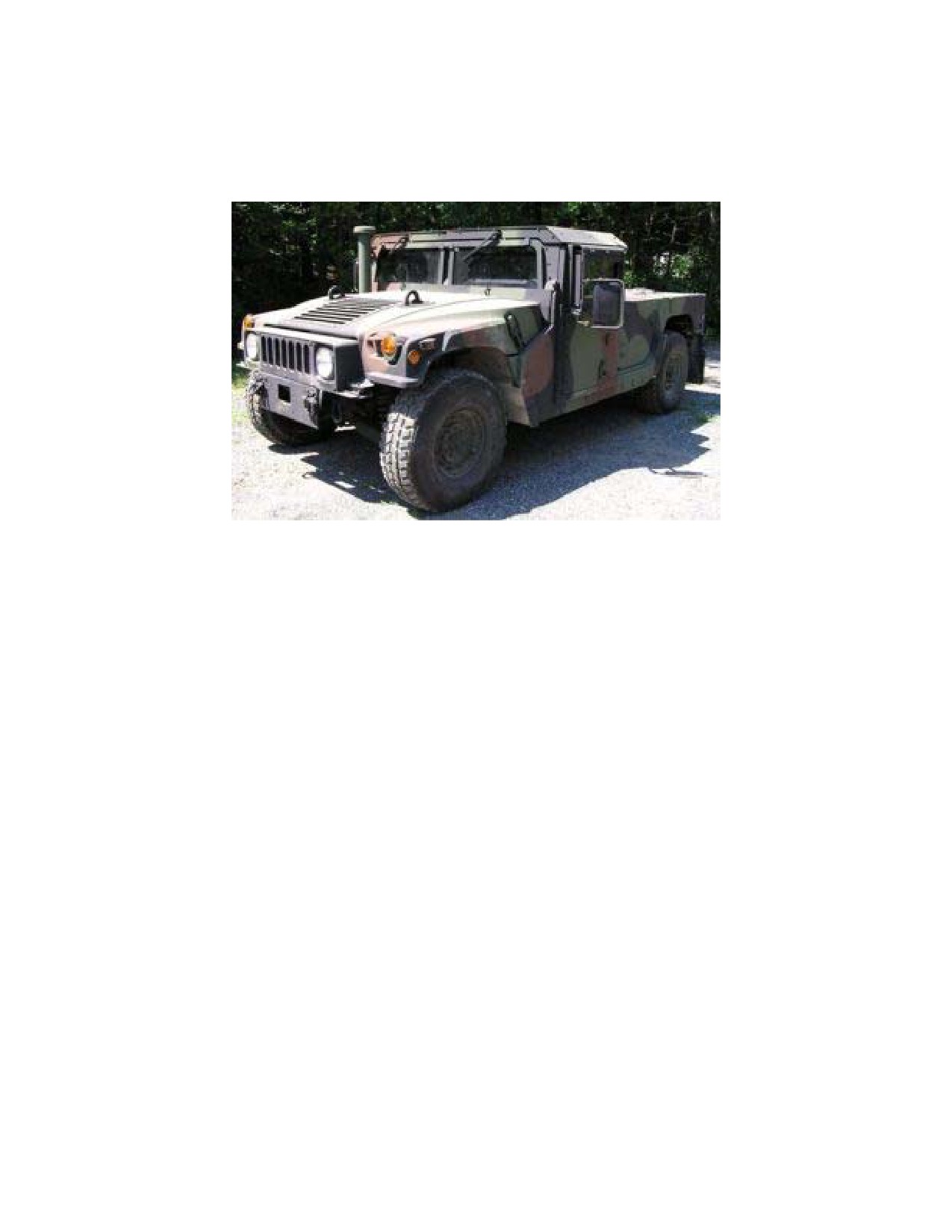

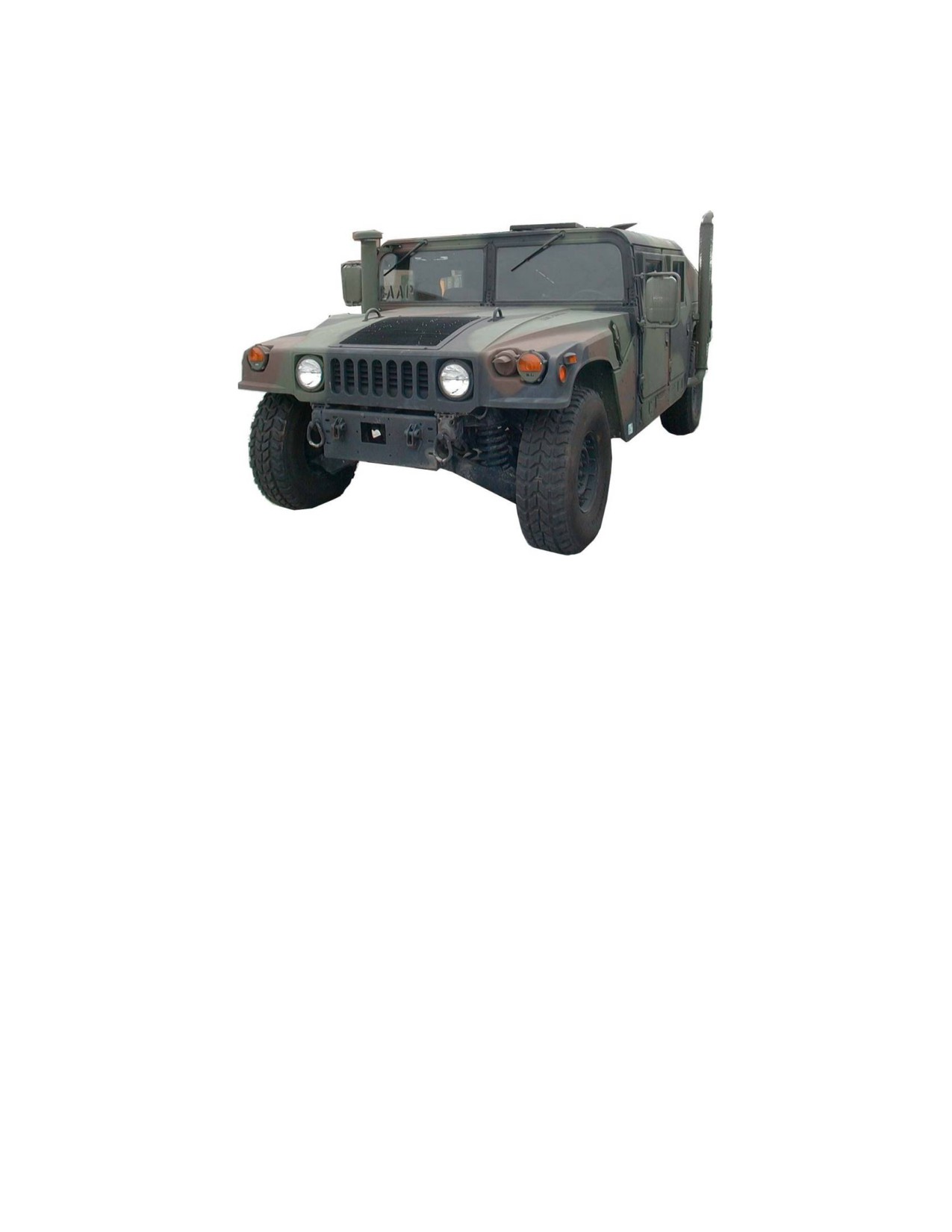

TRUCK, UTILITY, ARMAMENT CARRIER, M1043A2

TAMCN D11597K NSN

2320-01-380-8213

08776C

DESCRIPTION AND FUNCTION

The M1043A2 variant has been produced to replace the M1043 and M1044 variants. The M1043A2 can be armed

with the M240G 7.62 mm medium machine gun, M2 .50 caliber, heavy barrel machine gun or the MK19, 40mm,

heavy machine gun. These vehicles provide immediate, mobile, suppressive and destructive fires in support of the

maneuver unit commander. Marine Armor Kit (MAK) can be installed on the M1043A2.

Manufacturer:

AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

182.5 in (190.5 in w/pintle)

Height

78 in

Reducible Height

N/A

Width

86 in

Cargo Deck Height Unloaded

37 in

Vehicle Curb Weight (includes BII)

7,210 lbs

Gross Vehicle Weight Rating

10,300 lbs

Performance Information

Fording Depth

30 in (60 in w/kit)

Highway Payload

3,090 lbs

Cross Country Payload

3,090 lbs

Towed Load

4,200 lbs

Cab Capacity

1+4

1-11

TRUCK, UTILITY, ARMAMENT CARRIER, M1043A2 - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

11 mpg

Fuel Consumption per hour

4.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Aug 1985

Service Life

15 yrs

Planned Exit Date

31 Dec 2019

Special Tool Kits

TAMCN: D04752E

Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E

Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E

Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

1-12

TM 11240-ODA

TRUCK, UTILITY, TOW CARRIER, M1045A2

TAMCN D11257K NSN

2320-01-380-8229

08778D

DESCRIPTION AND FUNCTION

The M1045A2 Tube-Launched, Optical-Tracked, Wire-Guided (TOW) missile variant replaced the M1045 and the

M1046 HMMWV variants. It provides ground mobility for the TOW missile system giving commanders a more

flexible and time sensitive, medium to long range, anti-armor capability. Marine Armor Kit (MAK) can be installed

on the M1045A2.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

182.5in (190.5 in w/pintle)

Height

76 in

Reducible Height

N/A

Width

86 in

Cargo Deck Height Unloaded

37 in

Vehicle Curb Weight (includes BII)

7,264 lbs

Gross Vehicle Weight Rating

10,300 lbs

Performance Information

Fording Depth

30 in (60 in w/kit)

Highway Payload

3,036 lbs

Cross Country Payload

3,036 lbs

Towed Load

4,200 lbs

Cab Capacity

1+4

1-13

TRUCK, TOW CARRIER, M1045A2 - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

11 mpg

Fuel Consumption per hour

4.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

2 Jan 1985

Service Life

15 yrs

Planned Exit Date

31 Dec 2019

Special Tool Kits

TAMCN: D04752E

Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E

Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E

Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

1-14

TM 11240-ODA

TRUCK, UTILITY, HEAVY VARIANT, M1097A2

TAMCN D01877K NSN

2320-01-380-8604

09716C

DESCRIPTION AND FUNCTION

The M1097A2, Heavy HMMWV will replace the M1037, M1042, M1097 and M1097A1 heavy shelter variants. It

is designed to carry heavy electronic systems or weapons platforms. This variant may be configured to act as a

command post shelter from which battlefield traffic may be monitored and a communication center from which

personnel may monitor incoming and outgoing radio and telecommunication traffic during operations. The

M1097A2 may also be configured as a troop carrier.

Manufacturer:

AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

190.5 in

Height

74 in

Reducible Height

56 in

Width

86 in

Cargo Deck Height Unloaded

37 in

Vehicle Curb Weight (includes BII)

5,900 lbs

Gross Vehicle Weight Rating

10,300 lbs

Performance Information

Fording Depth

30 in (60 in w/kit)

Highway Payload

4,400 lbs

Cross Country Payload

4,400 lbs

Towed Load

4,200 lbs

Cab Capacity

1+1

1-15

TRUCK, UTILITY, HEAVY VARIANT, M1097A2 - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

11 mpg

Fuel Consumption per hour

4.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Oct 1993

Service Life

15 yrs

Planned Exit Date

31 Dec 2019

Special Tool Kits

TAMCN: D04752E

Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E

Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E

Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

1-16

TM 11240-ODA

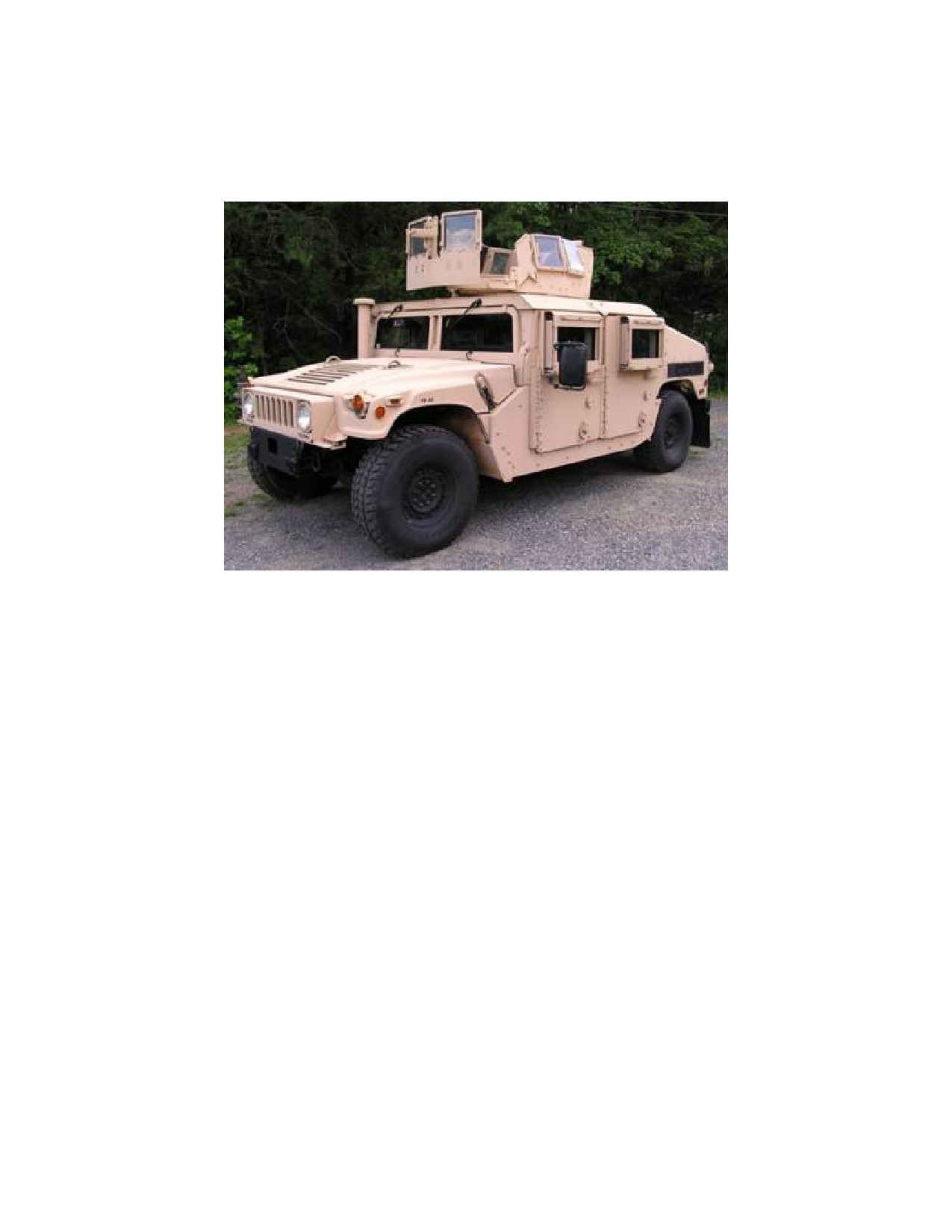

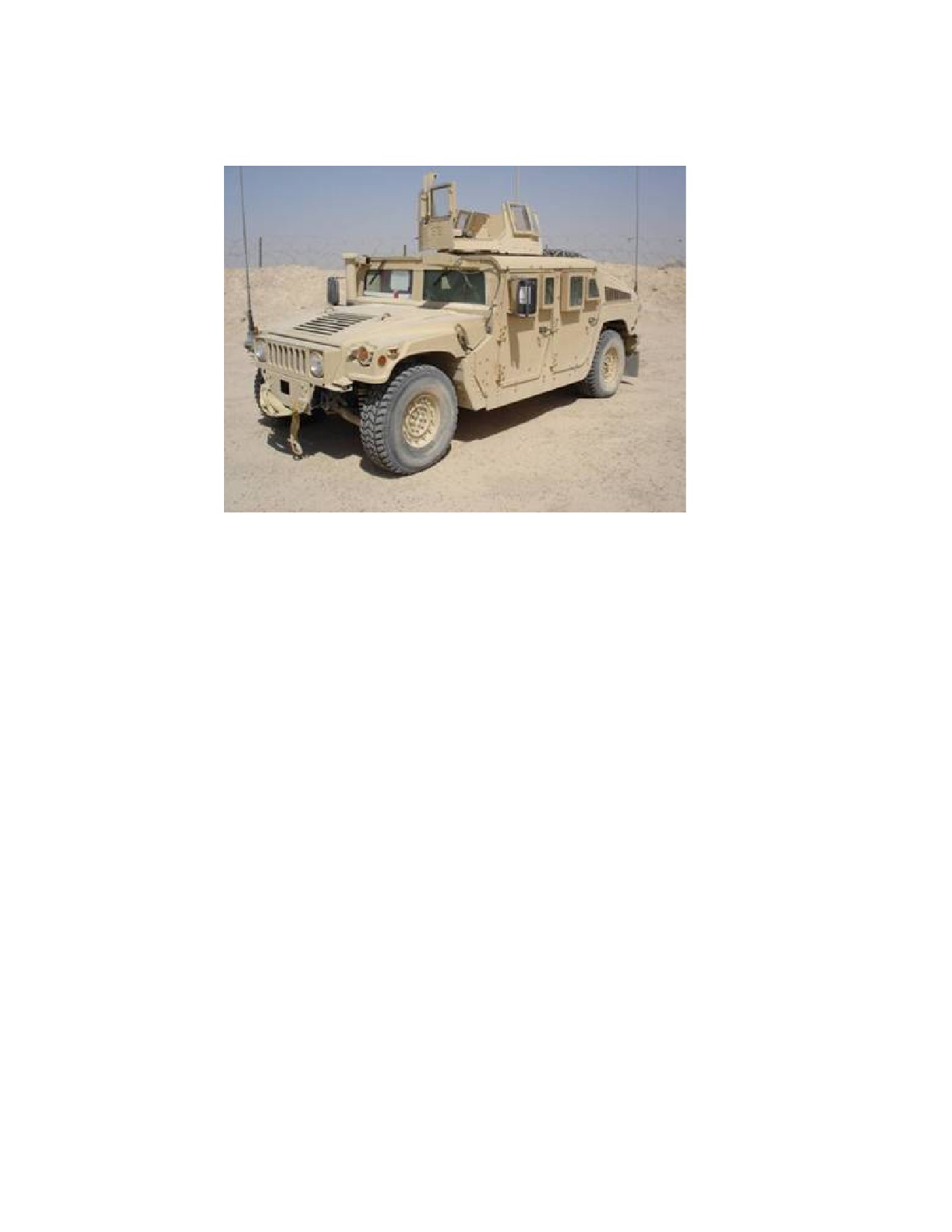

TRUCK, UTILITY, EXPANDED CAPACITY, UP-ARMORED, ARMAMENT CARRIER, M1114

TAMCN D00017K NSN

2320-01-413-3739

11033A

DESCRIPTION AND FUNCTION

The M1114 Up-Armored HMMWV (UAH) is an armored replacement for the M1043A2 Armament Carrier. The

M1114 armor protection includes Up-Armored HMMWV (UAH) kit, FRAG kits 1, 1a, 2, and 5, as well as a GPK or

MCTAGS for the gunner’s protection. This up-armored package provides the occupants with ballistics protection

through a full 360º, in addition to overhead and under body blast protection. The M1114 can be fitted with a wide

range of weapon systems on the roof, including 7.62mm or M2 .50 caliber machine guns or an MK 19 40mm heavy

machine gun.

Manufacturer:

AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

196.5 in

Height

76 in

Height (w/GPK)

94.25 in

Height (w/MCTAGS)

105.38 in

Reducible Height

N/A

Width

90.5 in

Cargo Deck Height Unloaded

36.5 in

Vehicle Curb Weight (includes BII)

9,800 lbs w/UAH

12,140 lbs w/UAH, FRAG 1/1a, 2 & 5 and MCTAGS

Gross Vehicle Weight Rating

12,100 lbs

-40 lbs w/ UAH, FRAG 1/1a, 2 & 5 and MCTAGS

Towed Load

4,200 lbs

Cab Capacity

1+4

1-17

TRUCK, UTILITY, EXPANDED CAPACITY, UP-ARMORED, ARMAMENT CARRIER, M1114 -

CONT’D

Performance Information

Fording Depth

30 in (60 in w/kit)

Highway Payload

2,300 lbs

Cross Country Payload

2,300 lbs w/UAH

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

10 mpg

Fuel Consumption per hour

6 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Apr 2004

Service Life

15 yrs

Planned Exit Date

1 Dec 2019

Special Tool Kits

TAMCN: D04752E

Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E

Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E

Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

1-18

TM 11240-ODA

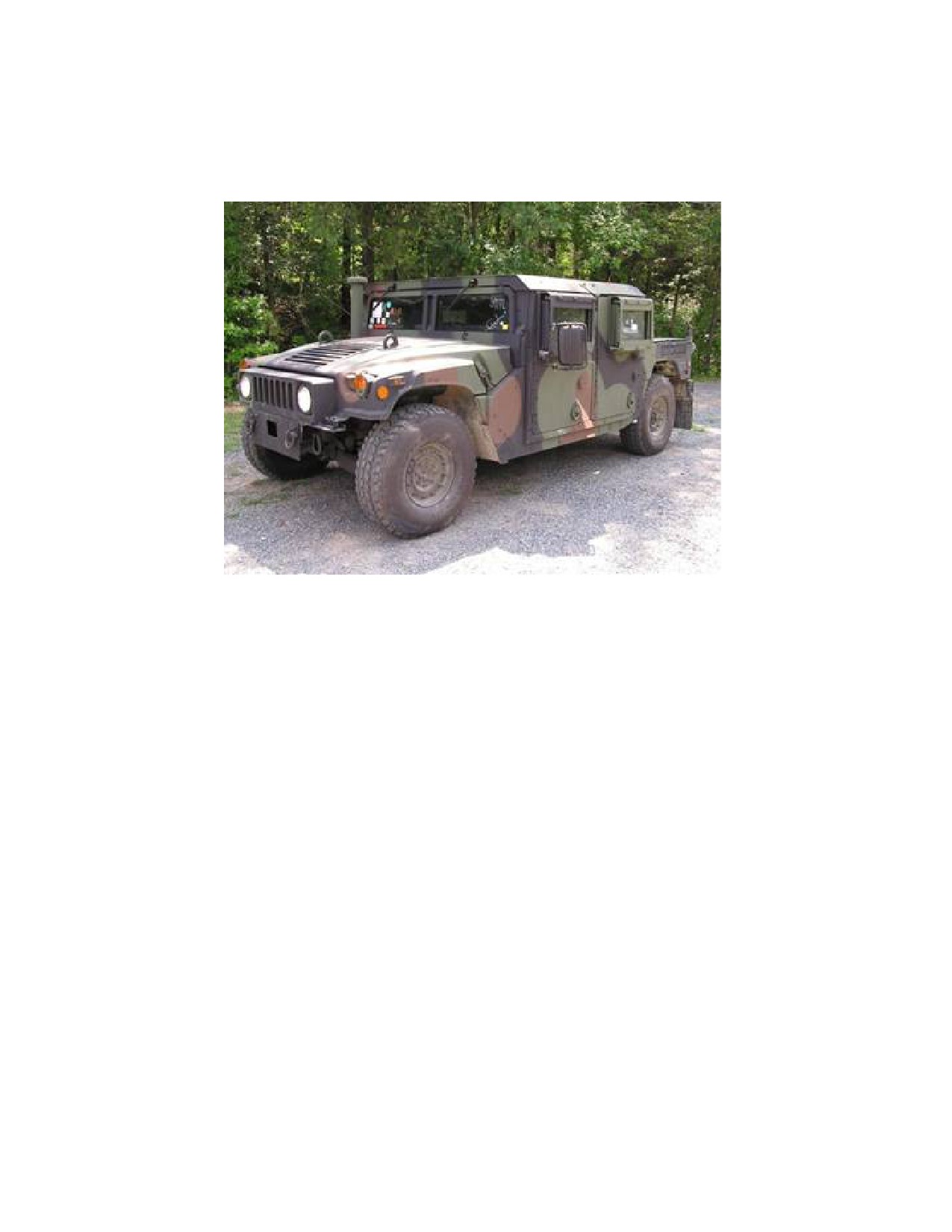

TRUCK, UTILITY, EXPANDED CAPACITY, ARMAMENT CARRIER, M1151A1,

W/B1 ARMOR KIT

TAMCN D00307K

NSN

2320-01-540-2038

11301B

DESCRIPTION AND FUNCTION

The M1151A1 provides mounting and firing of the MK19 automatic grenade launcher; M2 Caliber .50 machine

gun; M60, 7.62mm machine gun; M240G, 7.62mm machine gun; and M249, 5.56mm Squad Assault (SAW); ring

mounted with a 360 degree arc of fire, with armor protection for crew, weapon components, and ammunition. The

A1 model designator represents the fact it has Integrated Armor Package (IAP) installed, commonly referred to as

“Underbody,” and features the flexibility of adding FRAG Kits 1,1a, 2, and 5 and B Kit.

Manufacturer:

AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

194 in

Height

80 in

Height (w/GPK)

96.55 in

Height (w/MCTAGS)

107.68 in

Reducible Height

73 in

Width

91 in

Cargo Deck Height Unloaded

35.3 in

Vehicle Curb Weight (includes BII)

10,300 lbs w/B1

12,400 lbs w/B1, FRAG 1/1a, 2 & 5, and MCTAGS

Gross Vehicle Weight Rating

12,100 lbs

1-19

TRUCK, UTILITY, EXPANDED CAPACITY, ARMAMENT CARRIER, M1151A1,

W/B1 ARMOR KIT - CONT’D

Performance Information

Fording Depth

30in (60 in w/kit)

Highway Payload

1,800 lbs

Cross Country Payload

1,800 lbs w/B1

-300 lbs w/B1, FRAG 1/1a, 2 & 5 and MCTAGS

Towed Load

4,200 lbs

Cab Capacity

1+4

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

10 mpg

Fuel Consumption per hour

5.8 gal/hr @ 60 mph

Acquisition Information

In Service Date

1Feb 2007

Service Life

15 yrs

Planned Exit Date

1 May 2021

Special Tool Kits

TAMCN: D04752E

Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E

Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E

Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

1-20

TM 11240-ODA

TRUCK, UTILITY, EXPANDED CAPACITY, ENHANCED, M1152

TAMCN D00227K NSN

2320-01-518-7332

11285A

DESCRIPTION AND FUNCTION

The M1152 is a 2-door vehicle designed to replace the M1037/M1042 and M1097A2 variants. The M1152 can be

configured as a cargo/troop carrier or as a shelter carrier. The M1152 is an un-armored HMMWV.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

194 in

Width

86 in

Height

76 in

Reducible Height

N/A

Cargo Deck Height Unloaded

39 in

Vehicle Curb Weight (includes BII)

6,400 lbs

Gross Vehicle Weight Rating

12,100 lbs

Performance Information

Fording Depth

30 in. (60 in. w/kit)

Highway Payload

5,700 lbs

Cross Country Payload

5,700 lbs

Towed Load

4,200 lbs

Cab Capacity

1+1

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

10 mpg

Fuel Consumption per hour

5.85 gal/hr @ 60 mph

1-21

TM 11240-ODA

TRUCK, UTILITY, EXPANDED CAPACITY, ENHANCED, IAP/ARMOR READY,

M1152A1 W/B2 ARMOR KIT

TAMCN D00337K

NSN

2320-01-540-2007

11468A

DESCRIPTION AND FUNCTION

The M1152A1can be used as a cargo/troop carrier or as a shelter carrier. As a cargo/troop carrier, it is capable of

transporting a two-man crew and eight passengers. Provides the capability to secure and transport the S250

electrical equipment shelter. The A1 model designator represents the fact it has Integrated Armor Package (IAP)

installed, commonly referred to as “Underbody,” and has the flexibility of adding a B2 Armor kit with FRAG Kits 1,

1a, 2 and 5.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

194 in

Height

75 in

Reducible Height

N/A

Width

90.5 in

Cargo Deck Height Unloaded

37.6 in

Vehicle Curb Weight

8,760 lbs w/B2

9,670 lbs w/B2 and FRAG 1/1a, 2 & 5

Gross Vehicle Weight Rating

12,100 lbs

Performance Information

Fording Depth

30 in. (60 in. w/kit)

Highway Payload

3,340 lbs w/B2

2,430 lbs w/B2 and FRAG 1/1a, 2 & 5

Cross Country Payload

3,340 lbs w/B2

2,430 lbs w/B2 and FRAG 1/1a, 2 & 5

Towed Load

4,200 lbs

Cab Capacity

1+1

1-23

TRUCK, UTILITY, EXPANDED CAPACITY, ENHANCED, IAP/ARMOR READY,

M1152A1 W/B2 ARMOR KIT - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

10 mpg

Fuel Consumption per hour

5.8 gal/hr @60 mph

Acquisition Information

In Service Date

2007

Service Life

15 yrs

Planned Exit Date

1Dec 2023

Special Tool Kits

TAMCN: D04752E

Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E

Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E

Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

1-24

TM 11240-ODA

TRUCK, UTILITY, COMMAND AND CONTROL/GENERAL PURPOSE VEHICLE, M1165

TAMCN D00317K NSN

2320-01-540-1993

11285B

DESCRIPTION AND FUNCTION

The M1165 Base Model Expanded Capacity Vehicle is an upgrade from the M998/M1038 and the M1123. The

M1165 Base Model is a Marine Force Special Operations Command (MARFORSOC) configured

armored/unarmored four-door Command Variant Vehicle.

Manufacturer:

AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

194 in

Width

86 in

Height

76.25 in

Reducible Height

N/A

Cargo Deck Height Unloaded

39 in

Vehicle Curb Weight (includes BII)

6,550 lbs

Gross Vehicle Weight Rating

12,100 lbs

Performance Information

Fording Depth

30 in (60 in w/kit)

Highway Payload

4950 lbs

Cross Country Payload

4950 lbs

Towed Load

4,200 lbs

Cab Capacity

1+3

1-25

TRUCK, UTILITY, COMMAND AND CONTROL/GENERAL PURPOSE VEHICLE, M1165 - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

10 mpg

Fuel Consumption per hour

5.85 gal/hr @ 60 mph

Acquisition Information

In Service Date

2006

Service Life

15 yrs

Planned Exit Date

1 Dec 2020

Special Tool Kits

TAMCN: D04752E

Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E

Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E

Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

1-26

TM 11240-ODA

TRUCK, UTILITY, COMMAND AND CONTROL/GENERAL PURPOSE VEHICLE, ENHANCED,

IAP/ARMOR READY, M1165A1 W/B3 ARMOR KIT

TAMCN D00347K

NSN

2320-01-540-2017

11482A

DESCRIPTION AND FUNCTION

The M1165A1 combines the M1097A2 four-door body with the M1113 ECV Chassis and is used as a Command

and Control/General Purpose Vehicle. The M1165A1 increases performance to a more current configuration and

combines the roles/missions of the M1097A2 Heavy Variant HMMWV for Command and control; armor ready.

The A1 model designator represents the fact it has Integrated Armor Package (IAP) installed, commonly referred to

as “Underbody.” The M1165A1 may be configured with the B3 Armor kit, in addition to, FRAG 1, 1a, 2, and 5

kits.

Manufacturer:

AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

194 in

Width

90.8 in

Height

75 in w/B3 and/or B3 and FRAG 1/1a, 2 & 5

Reducible Height

N/A

Cargo Deck Height Unloaded

36.3 in

Vehicle Curb Weight

9,870 lbs w/B3

11,360 lbs w/B3 and FRAG 1/1a, 2 & 5

Gross Vehicle Weight Rating

12,100 lbs

1-27

TRUCK, UTILITY, COMMAND AND CONTROL/GENERAL PURPOSE VEHICLE, ENHANCED,

IAP/ARMOR READY, M1165A1 W/B3 ARMOR KIT - CONT’D

Performance Information

Fording Depth

30 in (60 in w/kit)

Highway Payload

2,230 lbs w/B3

740 lbs w/B3 and FRAG 1/1a, 2 & 5

Cross Country Payload

2,230 lbs w/B3

740 lbs w/B3 and FRAG 1/1a, 2 & 5

Towed Load

4,200 lbs

Cab Capacity

1+3

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

10 mpg

Fuel Consumption per hour

5.8 gal/hr @60 mph

Acquisition Information

In Service Date

2007

Service Life

15 yrs

Planned Exit Date

31 May 2021

Special Tool Kits

TAMCN: D04752E

Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E

Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E

Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

1-28

TM 11240-ODA

TRUCK, UTILITY, EXPANDED CAPACITY, TOW CARRIER, ARMORED, M1167

TAMCN D00327K

NSN

2320-01-544-9638

TBD

DESCRIPTION AND FUNCTION

The M1167 Tube-Launched, Optical-Tracked, Wire-Guided (TOW) missile variant replaced the M1045A2 and the

M1046 HMMWV variants. It provides ground mobility for the TOW or SABER missile system giving commanders

a more flexible and time sensitive, medium to long range, anti-armor capability.

Manufacturer:

AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

194 in

Width

91 in

Height

80 in

Height (w/TGPK)

102 in

Reducible Height

N/A

Cargo Deck Height Unloaded

35.2 in

Vehicle Curb Weight (includes BII)

11,250 lbs

Gross Vehicle Weight Rating

13,100 lbs

Performance Information

Fording Depth

30in (60 in w/kit)

Highway Payload

1,850 lbs

Cross Country Payload

1,850 lbs w/B1

Towed Load

4,200 lbs

Cab Capacity

1+4

1-29

TRUCK, UTILITY, EXPANDED CAPACITY, TOW CARRIER, ARMORED, M1167 - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

10 mpg

Fuel Consumption per hour

5.8 gal/hr @ 60 mph

Acquisition Information

In Service Date

1Feb 2007

Service Life

15 yrs

Planned Exit Date

1 May 2021

Special Tool Kits

TAMCN: D04752E

Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E

Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E

Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

1-30

TM 11240-ODA

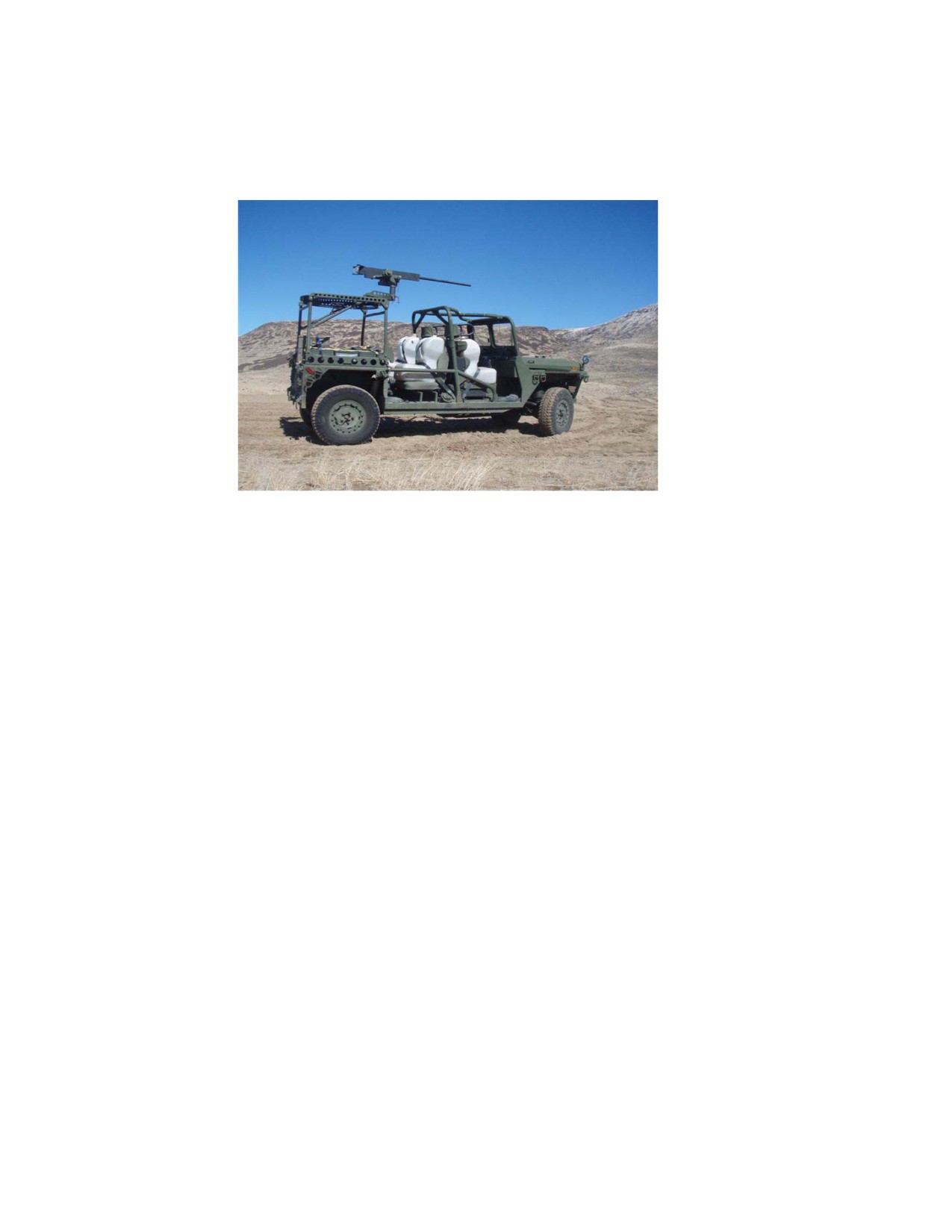

TRUCK, UTILITY: INTERNALLY TRANSPORTABLE VEHICLE, LIGHT STRIKE VARIANT

(ITV-LSV), M1161

TAMCN D11617K NSN

2320-01-531-2701

11167A

DESCRIPTION AND FUNCTION

The Internally Transportable Vehicle program has been developed to field a family of light attack vehicles in

support of expeditionary forces. The ITV-LSV will replace the Interim Fast Attack Vehicle (IFAV) as well as fill

the tactical void created by the disposal of all M151 Jeep variants . The ITV is designed to be internally

transportable within both the MV-22 tilt-rotor aircraft and CH53D/E rotary wing aircraft.

Manufacturer:

General Dynamic- Ordnance and Tactical Systems / American Growler

TECHNICAL CHARACTERISTICS

Dimensions

Length

164 in

Width

59.50 in

Height

74.5 in

Reducible Height

59 in

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

4,750 lbs

Gross Vehicle Weight Rating

6,750 lbs

Performance Information

Fording Depth

30 in

Highway Payload

2,000 lbs

Cross Country Payload

2,000 lbs

Cab Capacity

1+3

1-31

TRUCK, UTILITY: INTERNALLY TRANSPORTABLE VEHICLE, LIGHT STRIKE VARIANT

(ITV-LSV), M1161 - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

Dual 10 gal tanks

Fuel Consumption mpg

17 mpg

Fuel Consumption per hour

3.5 gal/hr @ 60 mph

Acquisition Information

In Service Date

June 2009

Service Life

10 yrs

Planned Exit Date

Feb. 2019

Special Tool Kits

TAMCN: D00292E

Internally Transportable Vehicle

TBD

NSN: TBD

(ITV) Special Tool Kit

1-32

TM 11240-ODA

TRUCK, UTILITY: INTERNALLY TRANSPORTABLE VEHICLE, PRIME MOVER (ITV-PM), M1163

TAMCN D11627K NSN

2320-01-531-7659

11172A

DESCRIPTION AND FUNCTION

The Internally Transportable Vehicle Prime Mover (ITV-PM) supports the Expeditionary Fire Support System

(EFSS). The ITV-PM is the designated prime mover for the 120MM Rifle Towed Mortal (RTM) and the M1164

Ammunition Trailer.

Manufacturer:

General Dynamic- Ordnance and Tactical Systems / American Growler

TECHNICAL CHARACTERISTICS

Dimensions

Length

121.2 in

Width

59 in

Height

74.5 in

Reducible Height

57.6 in

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

3960 lbs

Gross Vehicle Weight Rating

5960 lbs

Performance Information

Fording Depth

30 in

Highway Payload

2,000 lbs

Cross Country Payload

2,000 lbs

Cab Capacity

1+1 (Mortar Variant) / 1+2 (Trailer Variant)

1-33

TM 11240-ODA

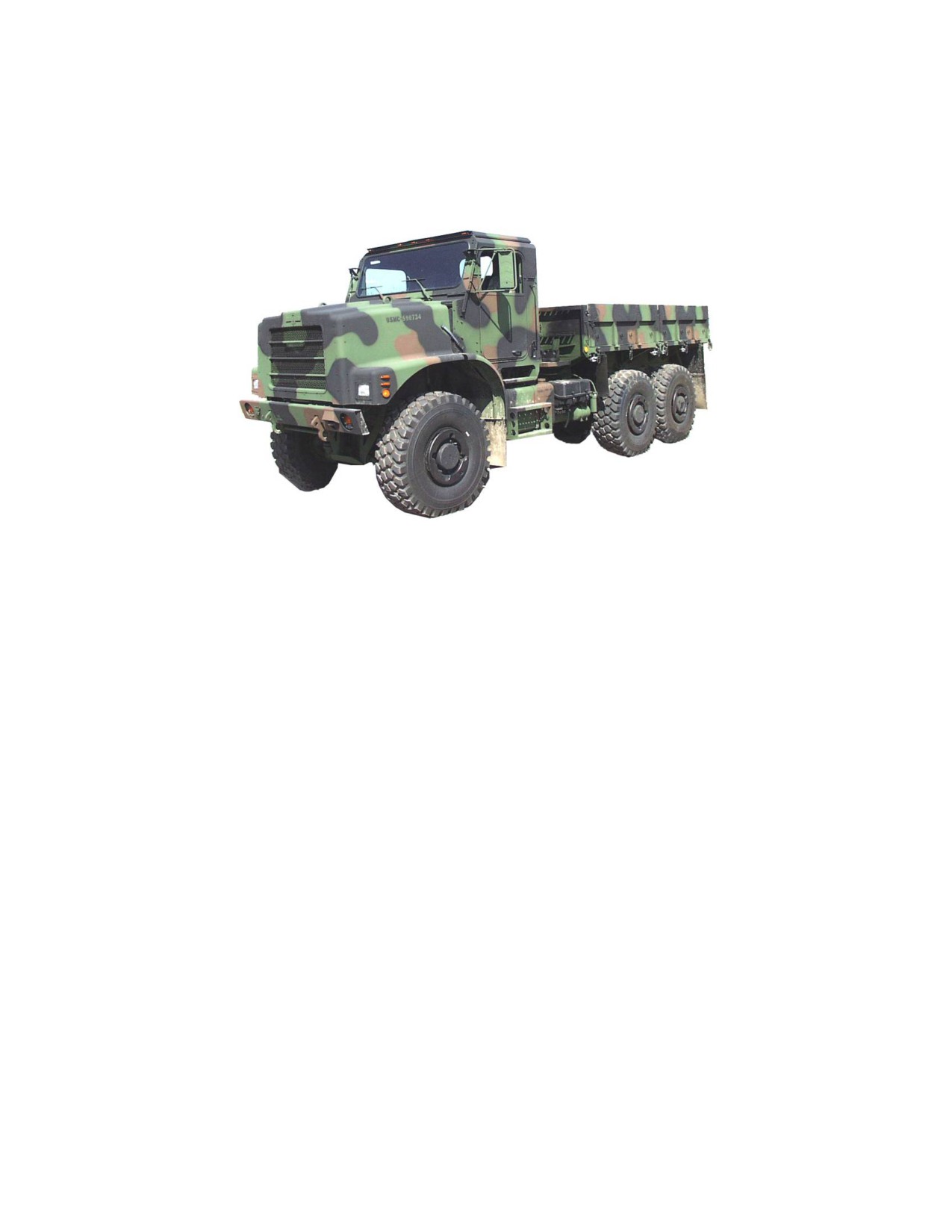

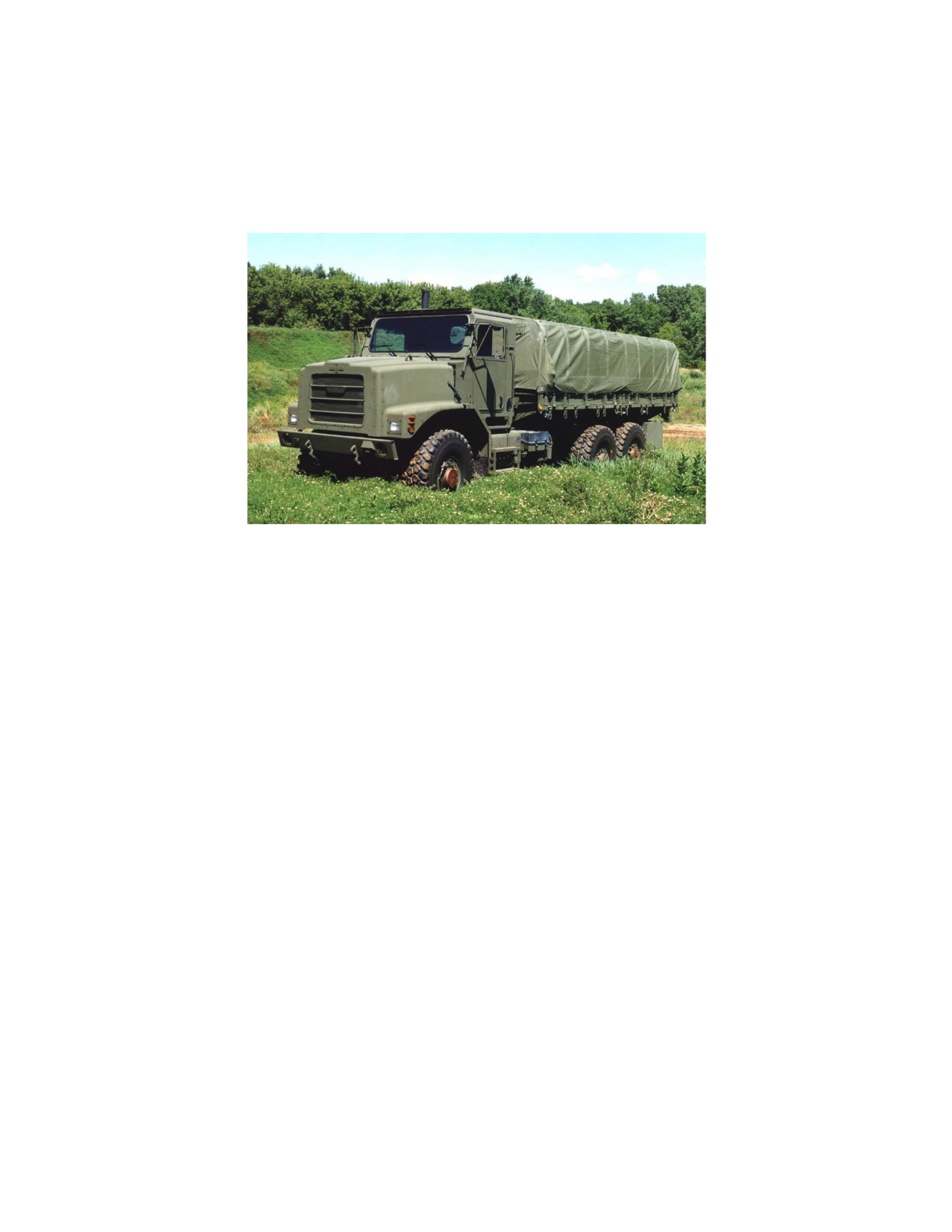

TRUCK, CARGO, 7 TON, MK23/MK25, MK23A1/MK25A1

TAMCN D01987K NSN

2320-01-465-2174

10629A

2320-01-465-2176

10629B

2320-01-552-5175

10629G

2320-01-552-5226

10629H

DESCRIPTION AND FUNCTION

The MK23/MK25 Cargo variant of the Medium Tactical Vehicle Replacement (MTVR) family of trucks replaced

the M813A1, M923A1, M923A2, M925, M925A1, M813 with ISO Bed and the M923 with ISO Bed. The MTVR

variants use state of the art commercial technology including an independent suspension system, electronically

controlled engine and transmission, and a central tire inflation system, which increases the off-road maneuverability

and mobility of the vehicle. The difference between the MK23 and MK25 is the MK25 has a 20,000-pound capacity

self-recovery winch. The MK23/MK25 is a 7-ton, 6X6 designed for use on all types of roads, highways and cross-

country terrain. It is capable of traversing a 60 percent gradient, a 30 percent side slope up to 15 mph and a 40

percent side slope at 5 mph at its maximum cross country load. It is capable of an on-road cruising range of 300

miles. The MK23/MK25 variants are capable of being transported by highway, rail, sea and air.

MK23A1/MK25A1 is referred to as “ready to accept armor” (RTAA). This model has upgraded cab mounts,

armored flooring, upgraded suspension, and air conditioning. RTAA is not considered an armored vehicle and is

interchangeable with the MK23/MK25 to satisfy (T/E) allowances.

Manufacturer:

Oshkosh Truck Corporation

TECHNICAL CHARACTERISTICS

Dimensions

MK23

MK25

MK23A1

MK25A1

(RTAA)

Length

314.9 in

Width

98 in

Height (operational)

141.2 in

Reducible Height

98 in

Ground Clearance

Highway

16.7 in

Cross Country

16.2 in

Vehicle Curb Weight (includes BII)

27,753 lbs

28,642 lbs

27,900 lbs

29,100 lbs

Gross Vehicle Weight Rating

62,200 lbs

2-3

TM 11240-ODA

TRUCK, CARGO, 7 TON, MK23/MK25, MK23A1/MK25A1 - CONT’D

Performance Information

MK23

MK25

MK23A1

MK25A1

(RTAA)

Fording Depth

60 in

Highway Payload

30,000 lbs

Cross Country Payload

14,200 lbs

Towed Load

22,000 lbs

Cab Capacity

1+2

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

80 gal

Fuel Consumption mpg

4.5 mpg

Fuel Consumption per hour

13.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Oct 2001

Service Life

22 yrs

Planned Exit Date

30 Oct 2023

Special Tool Kits

TAMCN: D07512E

Tool Kit, OM, 2D ECH, F/TRK, 7T TM 10629-CD

NSN: 5180-01-477-2399

D07522E

Tool Kit, OM, 3D ECH, F/TRK, 7T TM 10629-CD

5180-01-477-2390

2-4

TRUCK, CARGO, 7 TON, ARMORED, W/O WINCH, AMK23/AMK23A1

TAMCN D00037K NSN

2320-01-530-5676

10629C

2320-01-552-0273

10629F

DESCRIPTION AND FUNCTION

The AMK23 is the MK23/MK23A1 with non-reducible MTVR Armor System (MAS) installed. The AMK23A1 is

the MK23/MK23A1 with reducible MAS installed. Reducible MAS is reducible to a height of 98 in, and was

designed to meet the height restrictions aboard naval ships. The MAS kits are designed for the 7-ton MTVR. The

kits provide complete 360-degree protection as well as overhead and underbody protection for the crew

compartment. A Troop Carrier is available as an option for either kit.

Manufacturer:

Oshkosh Truck Corporation

TECHNICAL CHARACTERISTICS

Dimensions

AMK23

AMK23A1

(Reducible MAS)

Length

314.9 in

Width

98 in

Height

141.2 in

Reducible Height

N/A

98 in

Ground Clearance

Highway

16.7 in

Cross Country

16.2 in

Vehicle Curb Weight

33,000 lbs

33,800 lbs

Gross Vehicle Weight Rating

62,200 lbs

Performance Information

Fording Depth

60 in

Highway Payload

24,400 lbs

Cross Country Payload

12,000 lbs

Towed Load

22,000 lbs

Cab Capacity

1+2

2-5

TM 11240-ODA

TRUCK, CARGO, 7 TON, ARMORED, W/O WINCH, AMK23/AMK23A1 - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

80 gal

Fuel Consumption mpg

4.5 mpg

Fuel Consumption per hour

13.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Oct 2001

Service Life

22 yrs

Planned Exit Date

30 Oct 2023

Special Tool Kits

TAMCN: D07512E

Tool Kit, OM, 2D ECH, F/TRK, 7T TM 10629-CD

NSN: 5180-01-477-2399

D07522E

Tool Kit, OM, 3D ECH, F/TRK, 7T TM 10629-CD

5180-01-477-2390

2-6

TRUCK, CARGO, 7 TON, ARMORED, W/WINCH, AMK25/AMK25A1

TAMCN D00047K NSN

2320-01-530-5677

10629D

2320-01-551-9433

10629E

DESCRIPTION AND FUNCTION

The AMK25 is the MK25/MK25A1 with non-reducible MAS installed. The AMK25A1 is the MK25/MK25A1

with reducible MAS installed. Reducible MAS is reducible to a height of 98 in. It was designed to meet the height

restrictions aboard naval ships. The MAS kits are designed for the 7-ton MTVR. The kits provide complete 360-

degree protection as well as overhead and underbody protection for the crew compartment. A Troop Carrier is

available as an option for either kit.

TECHNICAL CHARACTERISTICS

Dimensions

AMK25

AMK25A1

(Reducible MAS)

Length

314.9 in

Width

98 in

Height

141.2 in

Reducible Height

N/A

98 in

Ground Clearance

Highway

16.7 in

Cross Country

16.2 in

Vehicle Curb Weight (includes BII)

34,200 lbs

35,000 lbs

Gross Vehicle Weight Rating

62,200 lbs

Performance Information

Fording Depth

60 in

Highway Payload

24,400 lbs

Cross Country Payload

12,000 lbs

Towed Load

22,000 lbs

Cab Capacity

1+2

2-7

TM 11240-ODA

TRUCK, CARGO, 7 TON, ARMORED, W/WINCH, AMK25/AMK25A1 - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

80 gal

Fuel Consumption mpg

4.5 mpg

Fuel Consumption per hour

13.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Oct 2001

Service Life

22 yrs

Planned Exit Date

30 Oct 2023

Special Tool Kits

TAMCN: D07512E

Tool Kit, OM, 2D ECH, F/TRK, 7T TM 10629-CD

NSN: 5180-01-477-2399

D07522E

Tool Kit, OM, 3D ECH, F/TRK, 7T TM 10629-CD

5180-01-477-2390

2-8

TRUCK, CARGO, 7 TON, EXTENDED BED (XL), MK27/28, MK27A1/MK28A1

TAMCN D10627K NSN

2320-01-465-2180

10631A

2320-01-465-2182

10631B

2320-01-556-2617

10631J

2320-01-553-3395

10631H

DESCRIPTION AND FUNCTION

The MK27/MK28 Extra Long Wheel Base Cargo variant of the MTVR family replaced the M814, M927, M927A1,

M928 and the M928A1. The MK27/MK28 trucks use state of the art commercial technology including an

independent suspension system, electronically controlled engine and transmission, and a central tire inflation

system, which increases the off-road maneuverability and mobility of the vehicle. The MK28 has a 20,000-pound

capacity self-recovery winch. The MK27/MK28 is a 7-ton, 6x6 designed for use on all types of roads, highways and

cross-country terrain. It is capable of traversing a 60 percent gradient, a 30 percent side slope up to 15 mph and a 40

percent side slope at 5 mph with its maximum cross country load. The MK27/MK28 variants are capable of being

transported by highway, rail, sea and air. The MK27A1/ MK28A1 are the “ready to accept armor (RTAA)” versions

of the MK27/MK28, which include upgraded cab mounts, armored flooring, upgraded suspension, and air

conditioning. The MK27A1/MK28A1 are not considered to be armored vehicles, and are interchangeable with the

MK27/MK28 for (T/E) allowances

Manufacturer:

Oshkosh Truck Corporation

TECHNICAL CHARACTERISTICS

Dimensions

MK27

MK28

MK27A1 MK28A1

(w/o winch)

(w/winch)

(w/o winch)

Length

386.5 in

Width

98 in

Height

141.2 in

Reducible Height

98 in

Ground Clearance

Highway

16.7 in

Cross Country

16.2 in

Vehicle Curb Weight (includes BII)

30,067 lbs

30,955 lbs

30,600 lbs

31,700 lbs

Gross Vehicle Weight Rating

62,200 lbs

2-9

TM 11240-ODA

TRUCK, CARGO, 7 TON, EXTENDED BED (XL), MK27/28, MK27A1/MK28A1 - CONT’D

Performance Information

MK27

MK28

MK27A1 MK28A1

(w/o winch)

(w/winch)

(w/o winch)

(w/winch)

Fording Depth

60 in

Highway Payload

30,000 lbs

Cross Country Payload

14,200 lbs

Towed Load

22,000 lbs

Cab Capacity

1+2

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

80 gal

Fuel Consumption mpg

4.5 mpg

Fuel Consumption per hour

13.3 gal/hr @60 mph

Acquisition Information

In Service Date

31 Dec 2002

Service Life

22 yrs

Planned Exit Date

30 Oct 2023

Special Tool Kits

TAMCN: D07512E

Tool Kit, OM, 2D ECH, F/TRK, 7T TM 10629-CD

NSN: 5180-01-477-2399

D07522E

Tool Kit, OM, 3D ECH, F/TRK, 7T TM 10629-CD

5180-01-477-2390

2-10

TRUCK, CARGO, 7 TON, ARMORED, W/O WINCH, AMK27/AMK27A1

TAMCN D00057K NSN

2320-01-530-5678

10631D

2320-01-552-2762

10631G

DESCRIPTION AND FUNCTION

The AMK27 is the MK27/MK27A1 with non-reducible MAS installed. The AMK27A1 is the MK27/MK27A1

with reducible MAS installed. The AMK27A1 also features an extra long wheel base. Reducible MAS is reducible

to a height of 98 in, and was designed to meet the height restrictions aboard naval ships. The MAS kits are designed

for the 7-ton MTVR. The kits provide complete 360-degree protection as well as overhead and underbody

protection for the crew compartment.

TECHNICAL CHARACTERISTICS

Dimensions

AMK27

AMK27A1

(Reducible)

Length

386.5 in

Width

98 in

Height

141.2 in

Reducible Height

N/A

98 in

Ground Clearance

Highway

16.7 in

Cross Country

16.2 in

Vehicle Curb Weight (includes BII)

35,700 lbs

36,400 lbs

Gross Vehicle Weight Rating

62,200 lbs

Performance Information

Fording Depth

60 in

Highway Payload

24,400 lbs

Cross Country Payload

12,000 lbs

Towed Load

22,000 lbs

Cab Capacity

1+2

2-11

TM 11240-ODA

TRUCK, CARGO, 7 TON, ARMORED, W/O WINCH, AMK27/AMK27A1 - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

80 gal

Fuel Consumption mpg

4.5 mpg

Fuel Consumption per hour

13.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

31 Dec 2002

Service Life

22 yrs

Planned Exit Date

30 Oct. 2023

Special Tool Kits

TAMCN: D07512E

Tool Kit, OM, 2D ECH, F/TRK, 7T TM 10629-CD

NSN: 5180-01-477-2399

D07522E

Tool Kit, OM, 3D ECH, F/TRK, 7T TM 10629-CD

5180-01-477-2390

2-12

TRUCK, CARGO, 7 TON, ARMORED, W/WINCH, AMK28/AMK28A1

TAMCN D00067K NSN

2320-01-530-5681

10631E

2320-01-551-9434

10631F

DESCRIPTION AND FUNCTION

The AMK28 is the MK28/MK28A1 with non-reducible MAS installed; additionally, the AMK28 has a winch and

an extra long wheel base. The AMK28A1 is the MK28/MK28A1 with reducible MAS installed, a winch and an

extra long wheel base. Reducible MAS is reducible to a height of 98 in, and was designed to meet the height

restrictions aboard naval ships. The MAS kits are designed for the 7-ton MTVR. The kits provide complete 360-

degree protection as well as overhead and underbody protection for the crew compartment.

TECHNICAL CHARACTERISTICS

Dimensions

AMK28

AMK28A1

(Reducible)

Length

386.5 in

Width

98 in

Height

141.2 in

Reducible Height

N/A

98 in

Ground Clearance

Highway

16.7 in

Cross Country

16.2 in

Vehicle Curb Weight (includes BII)

36,800 lbs

37,500 lbs

Gross Vehicle Weight Rating

62,200 lbs

Performance Information

Fording Depth

60 in

Highway Payload

24,400 lbs

Cross Country Payload

12,000 lbs

Towed Load

22,000 lbs

Cab Capacity

1+2

2-13

TM 11240-ODA

TRUCK, CARGO, 7 TON, ARMORED, W/WINCH, AMK28/AMK28A1 - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

80 gal

Fuel Consumption mpg

4.5 mpg

Fuel Consumption per hour

13.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

31 Dec 2002

Service Life

22 yrs

Planned Exit Date

30 Oct 2023

Special Tool Kits

TAMCN: D07512E

Tool Kit, OM, 2D ECH, F/TRK, 7T TM 10629-CD

NSN: 5180-01-477-2399

D07522E

Tool Kit, OM, 3D ECH, F/TRK, 7T TM 10629-CD

5180-01-477-2390

2-14

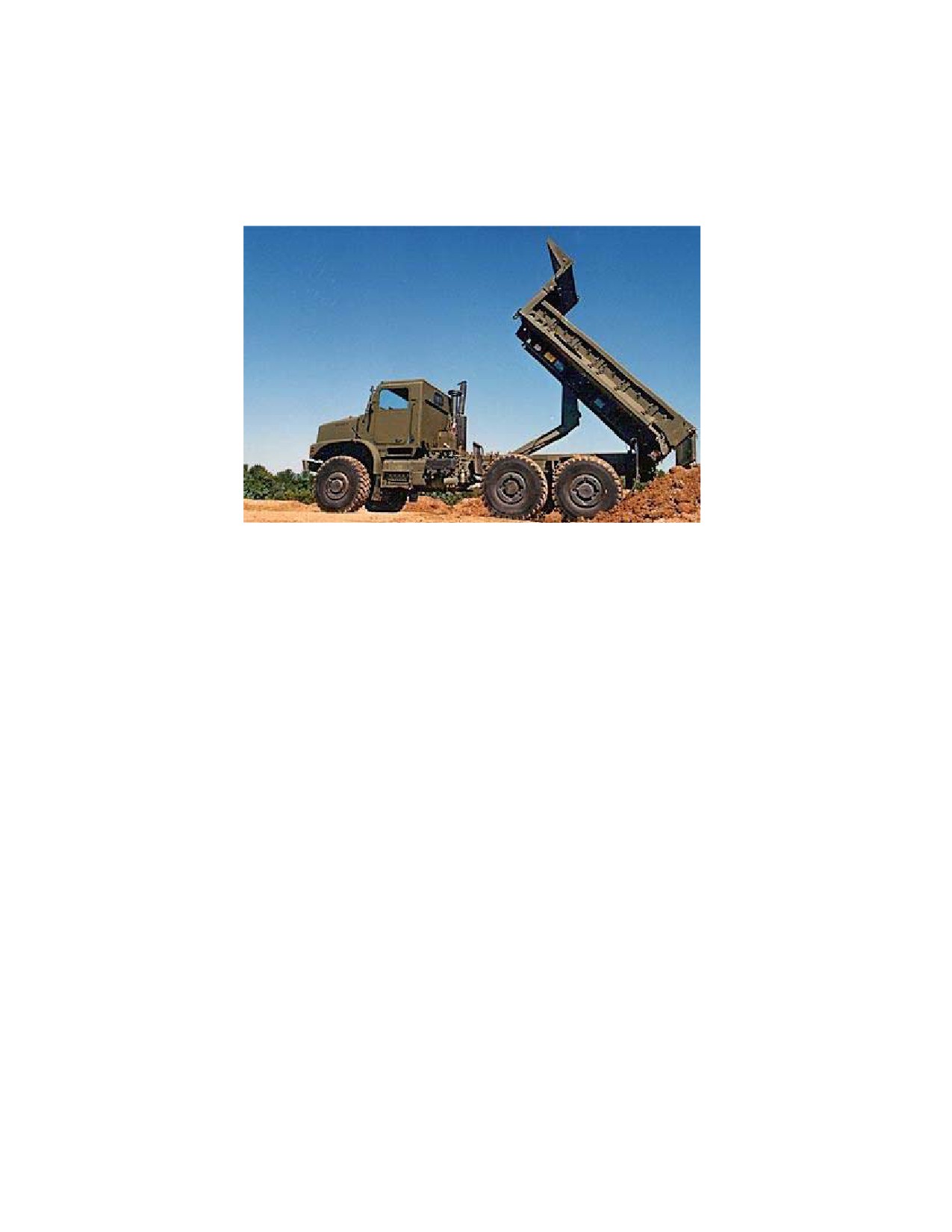

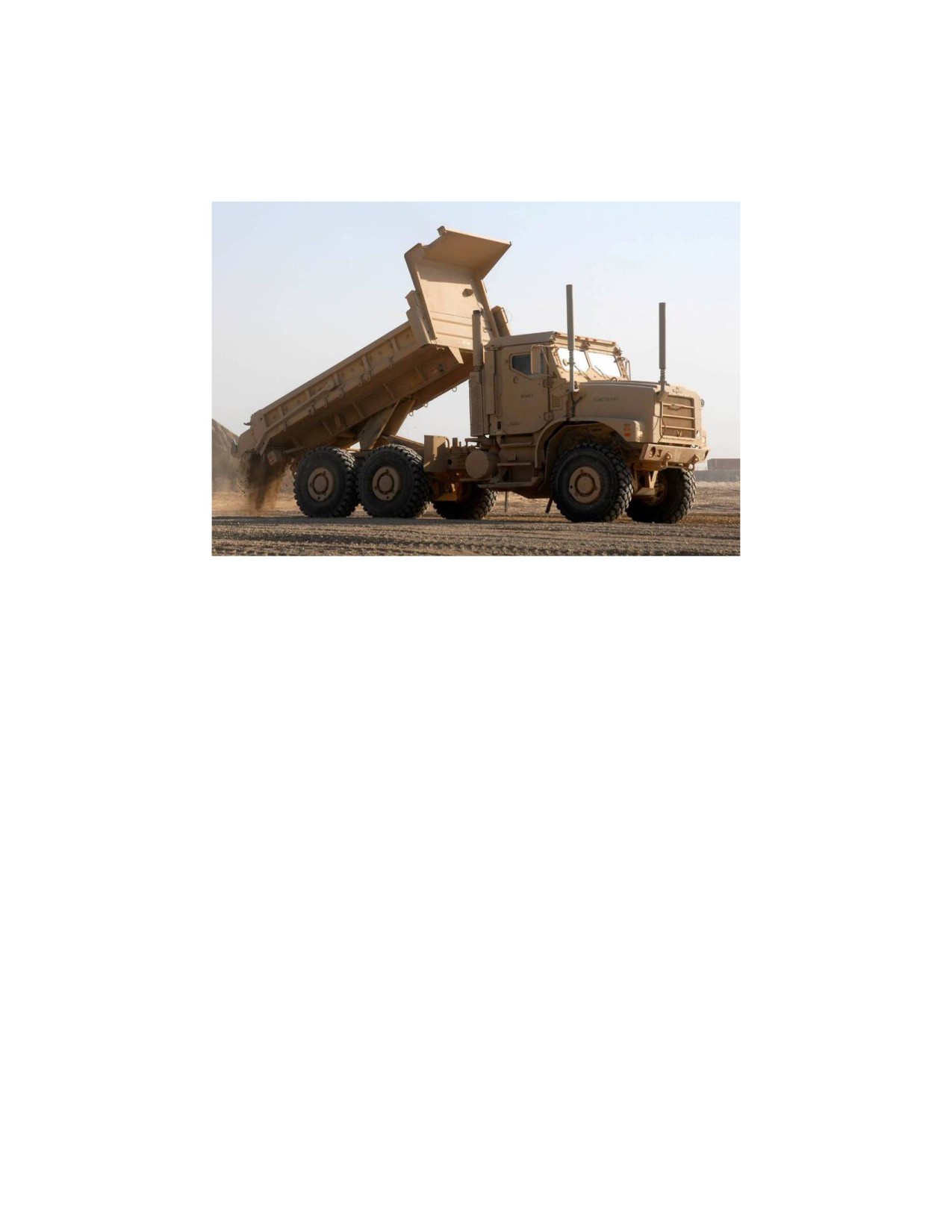

TRUCK, DUMP, 7 TON, MK29/30, MK29A1/MK30A1

TAMCN D10737K NSN

2320-01-465-2186

10632A

2320-01-465-2189

10632B

2320-01-552-0383

10632F

2320-01-552-5613

11458A

DESCRIPTION AND FUNCTION

The MK29/MK30 7-ton Dump variant of the MTVR family replaced the M817, M929, M929A1 and the M930.

These trucks use state of the art commercial technology including an independent suspension system, electronically

controlled engine and transmission and a central tire inflation system, which increases the off-road maneuverability

and mobility of the vehicle. The MK29/MK30 is equipped with a steel welded dump body, which extends up and

over the vehicle cab to prevent damage during loading. The MK30 has a 20,000-pound capacity self-recovery

winch. The MK29/MK30 is a 7-ton, 6x6 designed for use on all types of roads, highways and cross-country terrain.

It is capable of traversing a 60 percent gradient, a 30 percent side slope up to 15 mph and a 40 percent side slope at 5

mph with it maximum cross country load, and has an on-road cruising range of 300 miles. The MK29/ MK30

variants are capable of being transported by highway, rail, sea and air. MK29A1/MK30A1 is referred to as “ready

to accept armor” (RTAA). This model has upgraded cab mounts, armored flooring, upgraded suspension, and air

conditioning. RTAA is not considered an armored vehicle and is interchangeable with the MK29/MK30 to satisfy

(T/E) allowances.

Manufacturer:

Oshkosh Truck Corporation

TECHNICAL CHARACTERISTICS

Dimensions

MK 29

MK30

MK 29A1 MK30A1

(RTAA)

Length

315.4 in

315.4

Width

96 in

Height

135.5 in

Reducible Height

98 in

Ground Clearance

Highway

16.7 in

Cross Country

16.2 in

Vehicle Curb Weight (includes BII)

30,400 lbs

31,300 lbs

31,800 lbs

32,500 lbs

Gross Vehicle Weight Rating

62,200 lbs

2-15

TM 11240-ODA

TRUCK, DUMP, 7 TON, MK29/30, MK29A1/MK30A1 - CONT’D

TECHNICAL CHARACTERISTICS

Performance Information

MK 29

MK30

MK 29A1

MK30A1

(RTAA)

Fording Depth

60 in

Highway Payload

28,000 lbs

Cross Country Payload

12,200 lbs

12,2000 lbs

Towed Load

22,000 lbs

Cab Capacity

1+2

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

80 gal

Fuel Consumption mpg

4.5 mpg

Fuel Consumption per hour

13.3 gal/hr @60 mph

Acquisition Information

In Service Date

1 Oct 2004

Service Life

22 yrs

Planned Exit Date

30 Oct 2023

Special Tool Kits

TAMCN: D07512E

Tool Kit, OM, 2D ECH, F/TRK, 7T TM 10629-CD

NSN: 5180-01-477-2399

D07522E

Tool Kit, OM, 3D ECH, F/TRK, 7T TM 10629-CD

5180-01-477-2390

D00102B

Tool Kit, IM, F/MTVR Dump &

5180-01-520-4069

Wrecker, 7 T

D00122B

Tool Kit, OM, F/MTVR Dump &

5180-01-520-4070

Wrecker, 7T

2-16

TRUCK, DUMP, 7 TON, ARMORED, W/O WINCH, AMK29/AMK29A1

TAMCN D00077K NSN

2320-01-530-5684

10632C

2320-01-552-0250

10632E

DESCRIPTION AND FUNCTION

The AMK29 is MK29/MK29A1 with non-reducible MAS installed. The AMK29A1 is MK29/MK29A1 with

reducible MAS installed. Reducible MAS is reducible to a height of 98 in, and was designed to meet the height

restrictions aboard naval ships. The MAS kits are designed for the 7-ton MTVR. The kits provide complete 360-

degree protection as well as overhead and underbody protection for the crew compartment.

TECHNICAL CHARACTERISTICS

Dimensions

AMK29

AMK29A1

(Reducible)

Length

315.4 in

Width

96 in

Height

135.5 in

Reducible Height

N/A

98 in

Ground Clearance

Highway

16.7 in

Cross Country

16.2 in

Vehicle Curb Weight (includes BII)

37,200 lbs

Gross Vehicle Weight Rating

62,600 lbs

62,200 lbs

Performance Information

Fording Depth

60 in

Highway Payload

23,200 lbs

Cross Country Payload

10,800 lbs

Towed Load

22,000 lbs

Cab Capacity

1+2

2-17

TM 11240-ODA

TRUCK, DUMP, 7 TON, ARMORED, W/O WINCH, AMK29/AMK29A1 - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

80 gal

Fuel Consumption mpg

4.5 mpg

Fuel Consumption per hour

13.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Oct 2004

Service Life

22 yrs

Planned Exit Date

30 Oct 2023

Special Tool Kits

TAMCN: D07512E

Tool Kit, OM, 2D ECH, F/TRK, 7T TM 10629-CD

NSN: 5180-01-477-2399

D07522E

Tool Kit, OM, 3D ECH, F/TRK, 7T TM 10629-CD

5180-01-477-2390

D00102B

Tool Kit, IM, F/MTVR Dump &

5180-01-520-4069

Wrecker, 7 T

D00122B

Tool Kit, OM, F/MTVR Dump &

5180-01-520-4070

Wrecker, 7T

2-18

TRUCK, DUMP, 7 TON, ARMORED, W/ WINCH, AMK30/AMK30A1

TAMCN D00087K NSN

2320-01-530-5685

10632D

2320-01-552-0269

11448A

DESCRIPTION AND FUNCTION

The AMK30 is MK30/MK30A1 with non-reducible MAS installed. The AMK30A1 is MK30/MK30A1 with

reducible MAS installed. Both the AMK30 and AMK30A1 have a winch. Reducible MAS is reducible to a height

of 98 in, and was designed to meet the height restrictions aboard naval ships. The MAS kits are designed for the 7-

ton MTVR. The kits provide complete 360-degree protection as well as overhead and underbody protection for the

crew compartment.

TECHNICAL CHARACTERISTICS

Dimensions

AMK30

AMK30A1

(Reducible)

Length

315.4 in

Width

96 in

Height

135.5 in

Reducible Height

N/A

98 in

Ground Clearance

Highway

16.7 in

Cross Country

16.2 in

Vehicle Curb Weight (includes BII)

38,000lbs

38,000 lbs

Gross Vehicle Weight Rating

62,200 lbs

Performance Information

Fording Depth

60 in

Highway Payload

23,200 lbs

Cross Country Payload

10,800 lbs

Towed Load

22,000 lbs

Cab Capacity

1+2

2-19

TM 11240-ODA

TRUCK, DUMP, 7 TON, ARMORED, W/ WINCH, AMK30/AMK30A1 - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

80 gal

Fuel Consumption mpg

4.5 mpg

Fuel Consumption per hour

13.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Oct 2004

Service Life

22 yrs

Planned Exit Date

30 Oct 2023

Special Tool Kits

TAMCN: D07512E

Tool Kit, OM, 2D ECH, F/TRK, 7T TM 10629-CD

NSN: 5180-01-477-2399

D07522E

Tool Kit, OM, 3D ECH, F/TRK, 7T TM 10629-CD

5180-01-477-2390

D00102B

Tool Kit, IM, F/MTVR Dump &

5180-01-520-4069

Wrecker, 7 T

D00122B

Tool Kit, OM, F/MTVR Dump &

5180-01-520-4070

Wrecker, 7T

2-20

TRUCK, TRACTOR, 7 TON, MK31/MK31A1

TAMCN D00097K NSN

2320-01-530-5693

11165A

2320-01-552-0403

11165E

DESCRIPTION AND FUNCTION

The MK31A1, 7-ton tractor variant, replaces the M818, M931 and the M931A1 5-ton tractor series. This truck uses

state of the art commercial technology including an independent suspension system, electronically controlled engine

and transmission, and a central tire inflation system, which increases the off-road maneuverability and mobility of

the vehicle. In addition, this vehicle is equipped with all wheel steering and a sliding 5^th wheel. The MK31A1 was

procured as the prime mover for the MK970 5,000 gallon refueler. MK31A1 is referred to as “ready to accept

armor” (RTAA). This model has upgraded cab mounts, armored flooring, upgraded suspension, and air

conditioning.

Manufacturer: Oshkosh Truck Corporation

TECHNICAL CHARACTERISTICS

Dimensions

MK31

MK31A1

(RTAA)

Length

296 in

Width

98 in

Height

141 in

Reducible Height

98 in

Ground Clearance

Highway

16.7 in

Cross Country

16.2 in

Vehicle Curb Weight (includes BII)

27,200 lbs

Gross Vehicle Weight Rating

62,000 lbs

Performance Information

Fording Depth

60 in

60 in.

Highway Payload (includes Semitrailer)

94,000 lbs

Cross Country Payload (includes Semitrailer)

67,000 lbs

Highway Kingpin Load

32,000 lbs

Cross Country Kingpin Load

N/A

Cab Capacity

1+2

2-21

TM 11240-ODA

TRUCK, TRACTOR, 7 TON, MK31/MK31A1 - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

80 gal

Fuel Consumption mpg

4.5 mpg

Fuel Consumption per hour

13.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Dec 2006

Service Life

22 yrs

Planned Exit Date

7 May 2029

Special Tool Kits

TAMCN: D07512E

Tool Kit, OM, 2D ECH, F/TRK, 7T TM 10629-CD

NSN: 5180-01-477-2399

D07522E

Tool Kit, OM, 3D ECH, F/TRK, 7T TM 10629-CD

5180-01-477-2390

2-22

TRUCK, TRACTOR, 7 TON, ARMORED, AMK31/AMK31A1

TAMCN D00137K NSN

2320-01-530-5687

11165C

2320-01-552-0282

11165D

DESCRIPTION AND FUNCTION

The AMK31 is MK31/MK31A1 with non-reducible MAS installed. The AMK31A1 is MK31A1 with reducible

MAS installed. Reducible MAS is reducible to a height of 98 in, and was designed to meet the height restrictions

aboard naval ships. The MAS kits are designed for the 7-ton MTVR. The kits provide complete 360-degree

protection as well as overhead and underbody protection for the crew compartment.

TECHNICAL CHARACTERISTICS

Dimensions

AMK31

AMK31A1

(Reducible)

Length

296 in

Width

98 in

Height

141 in

Reducible Height

N/A

98 in

Ground Clearance

Highway

16.7 in

Cross Country

16.2 in

Vehicle Curb Weight (includes BII)

32,800 lbs

Gross Vehicle Weight Rating

62,000 lbs

Performance Information

Fording Depth

60 in

Highway Payload (includes Semitrailer)

94,000 lbs

Cross Country Payload (includes Semitrailer)

67,000 lbs

Highway Kingpin Load

28,500 lbs

Cross Country Kingpin Load

22,500 lbs

Cab Capacity

1+2

2-23

TM 11240-ODA

TRUCK, TRACTOR, 7 TON, ARMORED, AMK31/AMK31A1 - CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

80 gal

Fuel Consumption mpg

4.5 mpg

Fuel Consumption per hour

13.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Dec 2006

Service Life

22 yrs

Planned Exit Date

7 May 2029

Special Tool Kits

TAMCN: D07512E

Tool Kit, OM, 2D ECH, F/TRK, 7T TM 10629-CD

NSN: 5180-01-477-2399

D07522E

Tool Kit, OM, 3D ECH, F/TRK, 7T TM 10629-CD

5180-01-477-2390

2-24

TRUCK, WRECKER, 7 TON, MK36

TAMCN D12137K NSN

2320-01-465-2260

10633A

DESCRIPTION AND FUNCTION

The MK36 7-ton Wrecker variant replaces the M816, M936 and the M936A1. This truck uses state of the art

commercial technology including an independent suspension system, electronically controlled engine and

transmission, and a central tire inflation system, which increases the off-road maneuverability and mobility of the

vehicle. The 7-ton wrecker variant is compatible with all tactical vehicles in its weight class as well as the vehicles

in the light tactical fleet. The MK36 is capable of traversing a 60% grade, a 30% side slope up to 15mph, and 40%

side slope up to 5 mph. The MK36 is able to lift and tow or flat tow 7-ton size vehicles and smaller (HMMWV,

light strike vehicle, etc.) with trailers without damage to either the towed or towing vehicle.

Manufacturer: Oshkosh Truck Corporation

TECHNICAL CHARACTERISTICS

Dimensions

Length

387 in

Width

98 in

Height

141 in

Reducible Height

104 in

Ground Clearance

Highway

16.7 in

Cross Country

16.2 in

Vehicle Curb Weight (includes BII)

49,100 lbs

Gross Vehicle Weight Rating

63,500 lbs

2-25

TM 11240-ODA

TRUCK, WRECKER, 7 TON MK36 - CONT’D

Performance Information

Fording Depth

60 in

Crane Lift Capacity

22,000 lbs @ 9 ft

3,960 lbs @ max reach of 31 ft

Flat Tow Highway

61,100 lbs

Flat Tow Cross Country

48,800 lbs

Lift and Tow

48,800 lbs. GVW w/14,000 lb. lift capacity

Self Recovery Winch Capacity

25,000 lbs

Main Recovery Winch Capacity

Two @ 35,000 lbs each

Cab Capacity

1+2

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

80 gal

Fuel Consumption mpg

4.5 mpg

Fuel Consumption per hour

13.3 gal/hr @60 mph

Acquisition Information

In Service Date

1 Oct 2004

Service Life

22 yrs

Planned Exit Date

30 Oct 2026

Special Tool Kits

TAMCN: D07512E

Tool Kit, OM, 2D ECH, F/TRK, 7T TM 10629-CD

NSN: 5180-01-477-2399

D07522E

Tool Kit, OM, 3D ECH, F/TRK, 7T TM 10629-CD

5180-01-477-2390

D00102B

Tool Kit, IM, F/MTVR Dump &

5180-01-520-4069

Wrecker, 7 T

D00122B

Tool Kit, OM, F/MTVR Dump &

5180-01-520-4070

Wrecker, 7T

2-26

TRUCK, WRECKER, 7 TON, ARMORED, AMK36

TAMCN D00157K NSN

2320-01-530-5691

10633B

2320-01-552-0268

10633C

DESCRIPTION AND FUNCTION

The AMK36 is an MK36 with MAS kits installed. The MAS kits are designed for the 7-ton MTVR. The kits

provide complete 360-degree protection as well as overhead and underbody protection for the crew compartment.

TECHNICAL CHARACTERISTICS

Dimensions

AMK36

Length

387 in

Height

141 in

Reducible Height

125 in

Ground Clearance

Highway

16.7 in

Cross Country

16.2 in

Width

98 in

Vehicle Curb Weight (includes BII)

54,000 lbs

Gross Vehicle Weight Rating

69,750 lbs

Performance Information

Fording Depth

60 in

Crane Lift Capacity

22,000 lbs @ 9 ft

3,960 lbs @ max reach of 31 ft

Flat Tow Highway

61,100 lbs

Flat Tow Cross Country

48,800 lbs

Lift and Tow

48,800 lbs GVW w/14,000 lb lift capacity

Cab Capacity

1+2

2-27

TM 11240-ODA

TRUCK, WRECKER, 7 TON, ARMORED, AMK36- CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

80 gal

Fuel Consumption mpg

4.5 mpg

Fuel Consumption per hour

13.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Oct 2004

Service Life

22 yrs

Planned Exit Date

30 Oct 2026

Special Tool Kits

TAMCN: D07512E

Tool Kit, OM, 2D ECH, F/TRK, 7T TM 10629-CD

NSN: 5180-01-477-2399

D07522E

Tool Kit, OM, 3D ECH, F/TRK, 7T TM 10629-CD

5180-01-477-2390

D00102B

Tool Kit, IM, F/MTVR Dump &

5180-01-520-4069

Wrecker, 7 T

D00122B

Tool Kit, OM, F/MTVR Dump &

5180-01-520-4070

Wrecker, 7T

2-28

TRUCK, CARGO, RE-SUPPLY F/HIGH MOBILITY ARTILLERY ROCKET SYSTEM (HIMARS),

MK37/ MK37A1/AMK37A1

TAMCN D10637K NSN

2320-01-504-5218

10920A

2320-01-553-0136

10920B

2320-01-564-0834

10920C

DESCRIPTION AND FUNCTION

The MTVR MK37 High Mobility Artillery Rocket System (HIMARS) Re-Supply Vehicle (RSV) will carry

ammunition to support the HIMARS weapon system. The MK37 is a dual rated, 6x6 truck suitable for use on all

types of roads, highways, and cross-country terrain. The MK37 is equipped with a Material Handling Crane (MHC)

and a cargo bed configured with rocket pod locator shoes designed to transport two Multiple Launch Rocket

Systems Family of Munitions (MFOM) pods over all road and terrain conditions. The MK37 is capable of

traversing a 60% grade, a 30% side slope up to 15mph, and 40% side slope up to 5 mph with two MFOM pods

loaded. The MHC is capable of loading and off loading the MFOM pods to the Re-Supply Vehicle (RSV) and Re-

Supply Trailer (RST) and from the RSV or RST to the ground. A HIMARS section consists of a launcher, two

RSVs and RSTs. The MK37A1 is an MK37 that is Ready To Accept Armor (RTAA) and the AMK37A1 is an

armored variant.

Manufacturer:

Oshkosh Truck Corporation

TECHNICAL CHARACTERISTICS

Dimensions

MK37

MK37A1

AMK37A1

Length

360 in

Width

98 in

Height

142 in

Reducible Height

98 in

N/A

Ground Clearance

Highway

16.7 in

16,7 in

Cross Country

16.2 in

Vehicle Curb Weight (includes BII)

34,400 lbs

38,800 lbs

Gross Vehicle Weight Rating

62,200 lbs

2-29

TM 11240-ODA

TRUCK, CARGO, RE-SUPPLY F/HIGH MOBILITY ARTILLERY ROCKET SYSTEM (HIMARS),

MK37/ MK37A1/AMK37A1 - CONT’D

Performance Information

Fording Depth

60 in

Highway Payload

22,000 lbs

20,800 lbs

Cross Country Payload

11,200 lbs

10,400 lbs

Cab Capacity

1+2

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

80 gal

Fuel Consumption mpg

4.5 mpg

Fuel Consumption per hour

13.3 gal/hr @ 60 mph

Acquisition Information

In Service Date

FY 2004

Service Life

22 yrs

Planned Exit Date

FY 2026

Special Tool Kits

TAMCN: D07512E

Tool Kit, OM, 2D ECH, F/TRK, 7T TM 10629-CD

NSN: 5180-01-477-2399

D07522E

Tool Kit, OM, 3D ECH, F/TRK, 7T TM 10629-CD

5180-01-477-2390

2-30

TM 11240-ODA

TRUCK, FIRE FIGHTING, AIRCRAFT CRASH AND STRUCTURE FIRE, A/S32P-19A

TAMCN D10647K NSN

4210-01-137-9943

08674A

DESCRIPTION AND FUNCTION

The A/S32P-19A is primarily designed for aircraft crash and rescue operations. By rapidly discharging fire

retardant agents on a crash site, the truck can put out fires within seconds after arrival. This vehicle can

also be used to fight other types of fires such as brush and structural fires. The truck contains its own

pressure pump and fire fighting equipment. Water, foam and halon are carried in tanks built into the truck

body. Water or a combination of water and foam can be used to extinguish a fire. Agents are delivered

through the cab mounted roof turret, the bumper turret or the hand line. These can be used alone or at the

same time. The halon system uses its own hand line. The truck is fully enclosed, insulated and winterized.

Manufacturer:

Oshkosh Truck Corporation

TECHNICAL CHARACTERISTICS

Dimensions

Height

120 in

Width

96 in

Reducible Height

102 in

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

24,260 lbs

Gross Vehicle Weight Rating

33,600 lbs

Performance Information

Fording Depth

N/A

Maximum Speed

65 mph

Highway Payload

N/A

Cross Country Payload

N/A

Cab Capacity

1+3

3-3

TM 11240-ODA

TRUCK, FIRE FIGHTING, AIRCRAFT CRASH AND STRUCTURE FIRE, A/S32P-19A, -

CONT’D

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

42 gal

Fuel Consumption mpg

6 mpg

Fuel Consumption per hour

15 gal/hr

Acquisition Information

In Service Date

1 Mar 1985

Service Life

27 yrs

Planned Exit Date

1 Jun 2012

Special Tool Kits

TAMCN: D04612E Tool Kit, FM, 3D ECH

TM 08674A-24/3

NSN: 5180-01-249-7985

D04622E Tool Kit, FM, 4^th ECH

TM 08674A-24/3

5180-01-249-7986

3-4

TM 11240-ODA

POWER UNIT, FRONT, 12 1/2 TON, MK48/MK48A1, MOD 0

TAMCN D02097K NSN

2320-01-177-5167

08780A

2320-01-417-3180

08780B

DESCRIPTION AND FUNCTION

The MK48/MK48A1 and their associated rear body units (RBU) form the Logistics Vehicle system (LVS).

Used primarily by combat service support motor transport units to haul supplies in large quantities from

beachheads, ports, railheads or airfields to combat service support areas, the MK48/MK48A1 is an all-

metal, fully enclosed, 4x4 tactical front power unit with a crew of two. Improvements to the MK48A1

variant include a revised battery box and cover, a modified air intake cover, and added handles and steps to

the top of the power unit. The low profile, cab-forward configuration of the MK48/48A1 permits loading

aboard military aircraft with no preparation when coupled to any of the driven Rear Body Unit (RBU). The

MK48/MK48A1 attaches to the RBUs through an articulation joint to form an integral articulated 8x8

vehicle with cross-country mobility.

Manufacturer:

Oshkosh Truck Corporation

TECHNICAL CHARACTERISTICS

Dimensions

Length

238.5 in

Width

96 in

Height

102 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

25,300 lbs

Gross Vehicle Weight Rating

Varied dependant on RBU

Performance Information

Fording Depth

60 in

Highway Payload

N/A

Cross Country Payload

N/A

Cab Capacity

1+1

3-5

TM 11240-ODA

POWER UNIT, FRONT, 12 1/2 TON, MK48/MK48A1, MOD 0 - CONT’D

Fuel Data

Fuel Tank Capacity

275 gal

Fuel Consumption mpg

2 mpg

Fuel Consumption per hour

12.2 gal/hr

Acquisition Information

In Service Date

31 Oct 1998

Service Life

16 yrs

Planned Exit Date

31 Dec 2014

Special Tool Kits

TAMCN: D04782E Tool Kit, OM, 2D ECH, LVS

TM 08780B-24P NSN: 5180-01-247-1046

D04602E Tool Kit, FM, 3D ECH, LVS

TM 08780B-24P

5180-01-246-8663

D04652E Tool Kit, FM, 4^th ECH LVS

TM 08780B-24P

5180-01-248-3024

3-6

TM 11240-ODA

TRAILER, POWERED, 22 1/2 TON, CONTAINER HAULER, MK14/MK14A1 MOD 0

TAMCN D08767K NSN

2320-01-176-0469

08781A

2320-01-417-5294

08781B

DESCRIPTION AND FUNCTION

The MK14/14A1 combines with the MK48/48A1 Power Unit (D0209) to form the container hauler variant

of the Logistics Vehicle System (LVS). The MK14/14A1 is a tandem axle, all metal, rear body unit that

couples to the MK48/48A1 by an articulation joint to form an integrated, articulated, wheeled vehicle. The

MK14A1 variant has brake improvements, to include self-adjusting slack adjusters. The primary mission

of the MK14 is to transport International Organization of Standards/American National Standards Institute

(ISO/ANSI) containers, standardized cargo, shelters and functional modules from the beach to unit supply

points. It is capable of accommodation up to six empty or four full fuel (B2085) or water (B2086) modules

and one pump unit from the SIXCON system. The RBU is equipped with a towing pintle for towing

trailers, howitzers and an additional MK14/MK14A1 RBU equipped with a tandem tow lunette extension

kit.

Manufacturer:

Oshkosh Truck Corporation

TECHNICAL CHARACTERISTICS

Dimensions

Length

238.5 in

Width

96 in

Height

61 in

Reducible Height

N/A

Cargo Deck Height Unloaded

61 in

Vehicle Curb Weight (includes BII)

16,000 lbs

Gross Vehicle Weight Rating

61,000 lbs

Performance Information

Fording Depth

60 in

Highway Payload

45,000 lbs

Cross Country Payload

25,000 lbs

Cab Capacity

N/A

3-7

TM 11240-ODA

TRAILER, POWERED, WRECKER/RECOVERY, MK15/MK15A1 MOD 0

TAMCN D08777K NSN

2320-01-176-6928

08782A

2320-01-417-8144

08782B

DESCRIPTION AND FUNCTION

The MK15/15A1 Rear Body Unit (RBU) combines with the MK48/48A1 Front Power unit (D0209) to

form the wrecker/recovery variant of the Logistics Vehicle System (LVS). It is a fully equipped wrecker

for recovery of disabled vehicles and Material Handling Equipment. The MK15/15A1 is primarily used for

recovery of all LVS vehicles and is capable of lifting and towing the M809, M939, HMMVA2 series of

vehicles and the MTVR family of vehicles. Lifting of a vehicle is accomplished by utilizing an A-frame

attached to the rear of the MK15/15A1 and the associated tow bar. The MK15/15A1 is equipped with a

Material Handling Crane (MHC) used for removing power packs and loading equipment and standardized

containers. The MK15 is equipped with a knuckle boom crane and the MK15A1 is equipped with a folding

telescoping boom crane. An auxiliary hydraulic circuit in the vehicle provides power for hydraulic tools

and can also be used to supply another RBU (MK15, MK16, MK17, MK18 or their A1 counterparts) with

hydraulics. The MK15/15A1 has an electrically operated hydraulic remote control unit allowing operation

of the crane and winch from a distance. The MK15A1 also has a remote control stowage unit for the MCH,

and a Boom Angle Indicator which displays the angle of the MHC boom during operation.

Manufacturer:

Oshkosh Truck Corporation

TECHNICAL CHARACTERISTICS

Dimensions

Length

228 in

Width

96 in

Height

140 in

Reducible Height

96 in

Cargo Deck Height Unloaded

94 in (MK 15)

100.9 in (MK 15A1)

Vehicle Curb Weight (includes BII)

28,000 lbs

Gross Vehicle Weight Rating

48,000 lbs

3-9

TM 11240-ODA

TRAILER, POWERED, FIFTH WHEEL, SEMI-TRAILER ADPATER, MK16/MK16A1 MOD 0

TAMCN D08787K NSN

2320-01-176-0467

08783A

2320-01-417-5293

08783B

DESCRIPTION AND FUNCTION

The MK16/16A1 combines with the MK48/48A1 Power unit (D0209) to form the fifth wheel semi-trailer

variant of the Logistics Vehicle System (LVS). The MK16/16A1 is used to transport semi-trailers

equipped with a 3.5-inch diameter kingpin. The primary mission of the MK16/16A1 is to transport the

M870 family of semi-trailers; it can also transport any commercial semi-trailer compatible with the kingpin

diameter and fifth wheel height. The MK16/16A1 can also transport towed type full trailers and semi-

trailers through the use of a towing pintle. The MK16A1 variant has fifth wheel support blocks, which are

used to support the fifth wheel when disconnecting from the trailer. A rear winch mounted in front of the

fifth wheel is capable of pulling a combat loaded M1 series tank onto a semi-trailer without using the tank’s

own power. The winch may also be used for recovery of other vehicles; the oscillating fifth wheel can be

adjusted for highway and cross-country use. The cross-country mobility of the MK16/16A1 is limited by

the mobility of the trailer and equipment it tows.

Manufacturer:

Oshkosh Truck Corporation

TECHNICAL CHARACTERISTICS

Dimensions

Length

195 in

Width

96 in

Height

86 in

Reducible Height

N/A

Cargo Deck Height Unloaded

87 in

Vehicle Curb Weight (includes BII)

16,200 lbs

Gross Vehicle Weight Rating

62,200 lbs

Performance Information

Fording Depth

60 in

Highway Payload

46,000 lbs

Cross Country Payload

N/A

Cab Capacity

N/A

3-11

TM 11240-ODA

TRAILER, SELF-LOADING, RIBBON BRIDGE/CONTAINER HAULER, MK18 MOD 0

TAMCN D08817K NSN

2320-01-324-5915

09470A

DESCRIPTION AND FUNCTION

The MK18 combines with the MK48/48A1 Power Unit (D0209) to form the ribbon bridge/container

transporter variant of the Logistics Vehicle System (LVS). The MK18 consists of a modified MK14

(container hauler) RBU with the flat bed body removed and a lifting gear assembly and a winch assembly

mounted on the replacement split/ pivotal bed. The MK18 is capable of self loading and unloading the

Ribbon Bridge Set (B0155), Flatrack and International Standards Organization/American National

Standards Institute (ISO/ANSI) cargo containers though the use of hydraulic cylinders, pulleys, chains and

winches. Prior preparation of the RBU is not required for loading and unloading of ISO/ANSI containers.

Reconfiguration of the MK18 for loading and unloading the Bridge Set requires approximately 25 to 30

minutes to change rollers and brackets. The MK18 can be operated by remote control from a distance of up

to 40 ft. in either container or bridge mode.

Manufacturer:

T.G. Boughton

TECHNICAL CHARACTERISTICS

Dimensions

Length

238.5 in

Container Mode Width

96 in

Ribbon Bridge Mode Width

131.5 in

Height

102 in

Reducible Height

N/A

Cargo Deck Height Unloaded

75 in

Vehicle Curb Weight (includes BII)

21,800 lbs

Gross Vehicle Weight Rating

61,800 lbs

3-13

TM 11240-ODA

TRAILER, SELF-LOADING, RIBBON BRIDGE/CONTAINER HAULER, MK18A1 MOD 0

TAMCN D08817K NSN

2320-01-393-0293

09470B

DESCRIPTION AND FUNCTION

The MK18A1 combines with the MK48/48A1 Power unit (D0209) to form the ribbon bridge/container

transporter variant of the Logistics Vehicle System (LVS). The MK18A1 consists of a modified MK14

(container hauler) RBU with the flat bed body replaced by a hook arm container/flatrack lifting gear

assembly and a winch assembly. The MK18A1 is capable of self loading and unloading the Ribbon Bridge

Set (B0155), flatrack and International Standards Organization / American National Standards Institute

(ISO/ANSI) cargo containers though the use of hydraulic cylinders, rollers and winches. Prior preparation

of the RBU is not required for loading and unloading of ISO/ANSI containers. Reconfiguration of the

MK18A1 for loading and unloading the Bridge Set requires approximately 25 to 30 minutes to change

rollers and brackets. The MK18A1 can be operated by remote control from a distance either in the

container or bridge mode.

Manufacturer: Oshkosh Truck Corporation

TECHNICAL CHARACTERISTICS

Dimensions

Length

240 in

Container Mode Width

101.3 in

Ribbon Bridge Mode Width

131.5 in

Height

148 in

Reducible Height

102 in

Cargo Deck Height Unloaded

102 in

Vehicle Curb Weight (includes BII)

21,800 lbs

Gross Vehicle Weight Rating

61,800 lbs

3-15

TM 11240-ODA

TRUCK, CARGO, 10X10, LOGISTICS VEHICLE SYSTEM REPLACEMENT (LVSR), MKR18

TAMCN D08867K NSN

2320-01-542-7628

11313A

DESCRIPTION AND FUNCTION

The LVSR is the Marine Corps heavy fleet vehicle system for transporting heavy bulk and break-bulk

cargo, bulk liquids (fuel and water), bridging, ISO containers, flatracks and ammunition. The LVSR cargo

variant is a dual rated 10 x 10 truck designed for use on all types of roads, highways, and cross-country

terrain. The cargo variant is designed to operate in extreme temperatures such as arctic weather conditions,

(-50° F with Arctic Kit) and tropical conditions to +125°F. The cab forward design provides for a two

man-crew. Each cab has integral armor incorporated into the cab floor to provide protection from mine

blast. In addition, a removable armor kit can be added to the cab providing additional protection against

improvised explosive devices and small arms. Each LVSR variant uses a 600-horsepower diesel engine, a

seven speed automatic transmission, single-speed transfer case, front tandem steering and driving axles,

and rear tridem driving axles of which the two rear most axles steer, 16R20 single radial tires on all axles,

and a Central Tire Inflation System (CTIS). All vehicles are equipped with tiedown and lifting provisions,

and a pintle hook used for towing selected trailers up to 53,000 pounds of gross trailer weight. The LVSR

cargo will replace the MK48/14, MK48/17, MK48/18, and corresponding A1 models. It is equipped with

Load Handling System (LHS) capable of loading and offloading ISO containers, flat racks, and bridging.

Manufacturer: Oshkosh Corporation

Dimensions

Length

432.2 in

Width

98 in

Height w/Container Loaded

161.9 in

Reducible Height

102 in

Cargo Deck Height Unloaded

62.1 in

Vehicle Curb Weight (includes BII)

53,670 lbs

Vehicle Curb Weight w/kit* installed

59,990 lbs

Gross Vehicle Weight Rating

106,000 lbs

*Kits include add-on armor, weapons mount, and arctic kit.

3-17

TM 11240-ODA

TRUCK, CARGO, 10X10, LOGISTICS VEHICLE SYSTEM REPLACEMENT (LVSR), MKR18

- CONT’D

Performance Information

Fording Depth

60 in.

Highway Payload

45,000 lbs

Cross Country Payload

33,000 lbs

Cab Capacity

1+1

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

166 gal

Fuel Consumption mpg

2.0 mpg

Fuel Consumption per hour

20 gal/hr @ 60 mph

Acquisition Information

In Service Date

FY 2009

Service Life

22 yrs

Planned Exit Date

2031

Special Tool Kits

3-18

TM 11240-ODA

TRAILER, PALLETIZED LOADING SYSTEM (PLS), M1076

TAMCN D00357K NSN

2330-01-303-5197

11775A

DESCRIPTION AND FUNCTION

The Palletized Load System (PLS) Trailer is designed to carry loads behind the LVSR with minor

preparation. The trailer may also be towed behind other USMC heavy tactical trucks. The PLS Trailer is

used in conjunction with the M1077/MK1077 flatracks. The M1076 trailer, capable of carrying payloads up

to 16.5 tons, is equipped with a flatrack that is interchangeable between truck and trailer. The prime mover

truck and trailer form a self-contained system that loads and unloads its cargo without the need for forklifts

or other material handling equipment. Without leaving the cab, the driver can load or unload the truck in

less than one minute, and both truck and trailer in less than five minutes.

Manufacturer:

Oshkosh Truck Corporation

Dimensions

Length

327.4 in (including tongue/flatrack)

Width

95.7 in

Height

60 in

Reducible Height

N/A

Vehicle Weight

16,520 lbs

Curb Weight

16,500 lbs (includes flatrack and all kits)

Gross Vehicle Weight Rating

49,520 lbs

Performance Information

Fording Depth

48 in

Highway Payload

33,000 lbs

Cross Country Payload

33,000 lbs

Cab Capacity

N/A

3-19

TM 11240-ODA

FLATRACK, PALLETIZED LOADING SYSTEM (PLS), M1077/MK1077

TAMCN D01957K NSN

3990-01-307-7676

10562A

3990-01-537-1045

10562B

DESCRIPTION AND FUNCTION

The Palletized Load System (PLS) Flatrack Model M1077/MK1077 is a 20-foot long by 8-foot wide

welded steel flat cargo body with a front wall equipped with a lifting point. The flatrack was procured for

use with the Army PLS and is compatible with the LVS MK18A1 RBU. The flatrack is equipped with

International Standards Organization (ISO) locks, sideboard kits and tie down fasteners to facilitate the

movement of break-bulk materials and ISO containers. A fully loaded flatrack can be self-loaded and self-

offload by an LVS MK18A1 without the aid of additional material handling equipment and by an LVS

MK18 equipped with container lifting and loading chains. There is no hydraulic air or electrical

connections or equipment on the flatrack. The MK1077 is an M1077 with additional reinforced tie-down

points. The Palletized Load System (PLS) is also used with the LVSR MKR18 Cargo Variant.

Manufacturer: Steel Tech/Summa Technology, Inc.

Dimensions

Length

248.5 in

Width

95.99 in

Height

62.48 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

2,900 lbs

Gross Vehicle Weight Rating

35,900 lbs

3-21

TM 11240-ODA

HEAVY ARMORED GROUND AMBULANCE (HAGA)

TAMCN D00237K NSN

2355-01-588-1053

11588A

2355-01-562-6152

11588B

DESCRIPTION AND FUNCTION

The Heavy Armored Ground Ambulance (HAGA) is built by BAE Systems, Inc. The primary mission of

the HAGA vehicle is medical evacuation. Medical evacuation is the timely, efficient movement and en

route care by medical personnel of the wounded, injured, or ill persons from the battlefield or other

locations to military treatment facilities. It is a diesel powered, pneumatic tired, heavily armored

ambulance. This vehicle increases survivability of troops deployed in support of Operation Enduring

Freedom and Global War of Terrorism contingency operations when up against Improvised Explosive

Devices (IED). The HAGA uses armor protection, including the underbelly, and seats six ambulatory or 3

litter bound personnel including the driver. The HAGA is designed to operate in the various weather and

terrain conditions where joint forces deploy.

Manufacturer: BAE-Ground Systems Division.

TECHNICAL CHARACTERISTICS

Dimensions

Length

337 in

Width

108 in

Height

134 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

31,000 lbs

Gross Vehicle Weight

52,000 lbs

Performance Information

Fording Depth

36 in. without preparation

Highway Payload

1,000 lbs

Cross Country Payload

1,000 lbs

Cab Capacity

1+ 6 Ambulatory or 3 Litter

4-3

COUGAR HARDENED ENGINEER VEHICLE (HEV 4X4)

TAMCN D00257K NSN

2355-01-519-8173

11067A

DESCRIPTION AND FUNCTION

The Cougar Hardened Engineer Vehicle (HEV) 4x4 is a member of the Mine Resistant Ambush Protected

(MRAP) Family of Vehicles (FOV) which is capable of transporting personnel and cargo within the current

theater of operations. The Cougar 4x4 can be employed in virtually all weather and rugged off road

conditions. It enables forces to survive when engaged, maintain battle space awareness and retain

flexibility to accomplish a variety of missions, to include EOD, combat engineer, convoy escort/security,

direct Close Air Support (CAS), medical support, troop/cargo transport, reconnaissance and mobile

command and control. As with other MRAP vehicles, the Cougar 4x4 offers protection against mine,

IED/EFP/RPG impact and small arms fire.

Manufacturer: Force Protection Ind., Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

228 in

Width

94 in

Height

103 in

Reducible Height

95 in

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

31,700 lbs

Gross Vehicle Weight

36,000 lbs

Performance Information

Fording Depth

39 in

Highway Payload

4,000 lbs

Cross Country Payload

4,000 lbs

Cab Capacity

1+3

4-5

PRINCIPAL TECHNICAL CHARACTERISTICS OF U.S. MARINE CORPS MOTOR TRANSPORTATION EQUIPMENT (2010) - page 1
