PRINCIPAL TECHNICAL CHARACTERISTICS OF U.S. MARINE CORPS MOTOR TRANSPORTATION EQUIPMENT (2010)

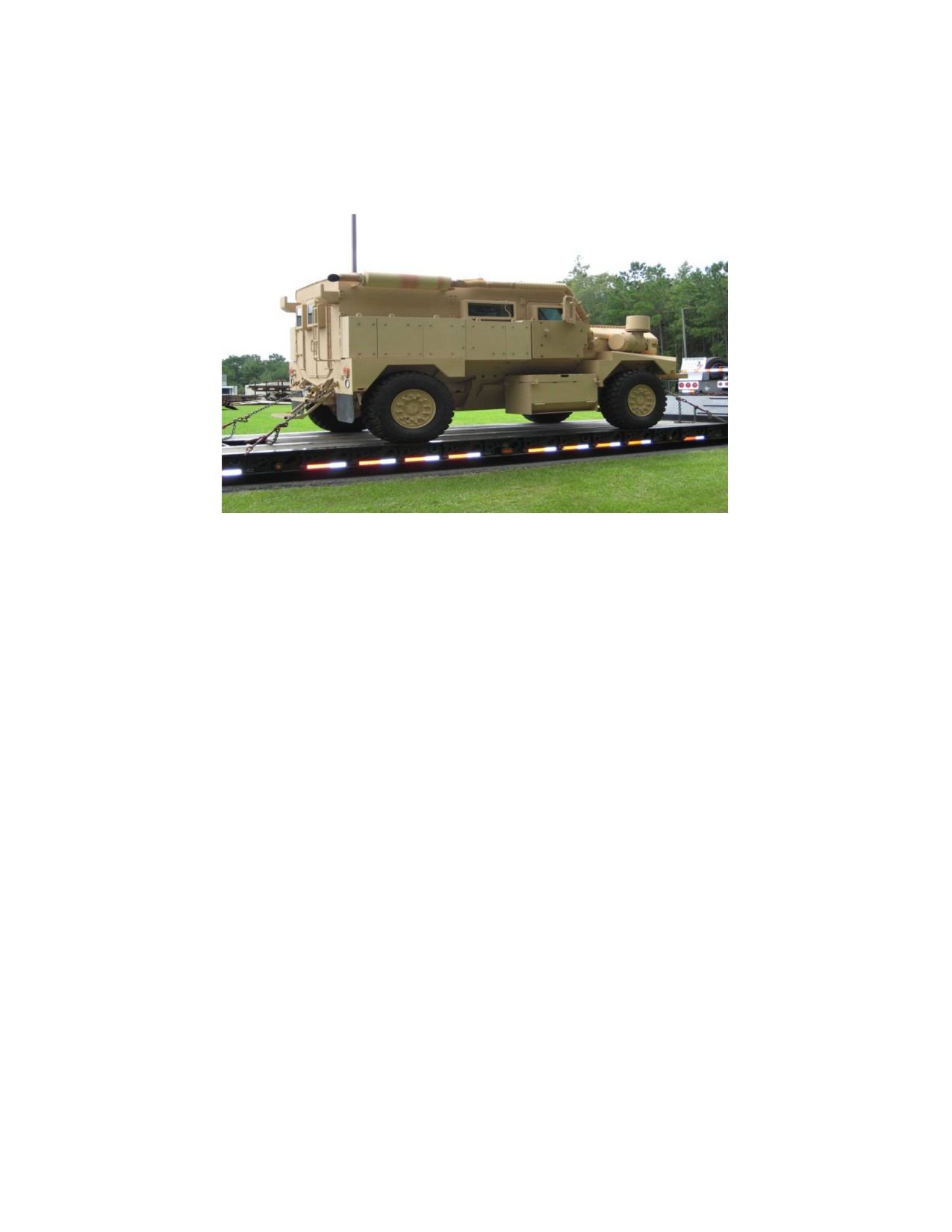

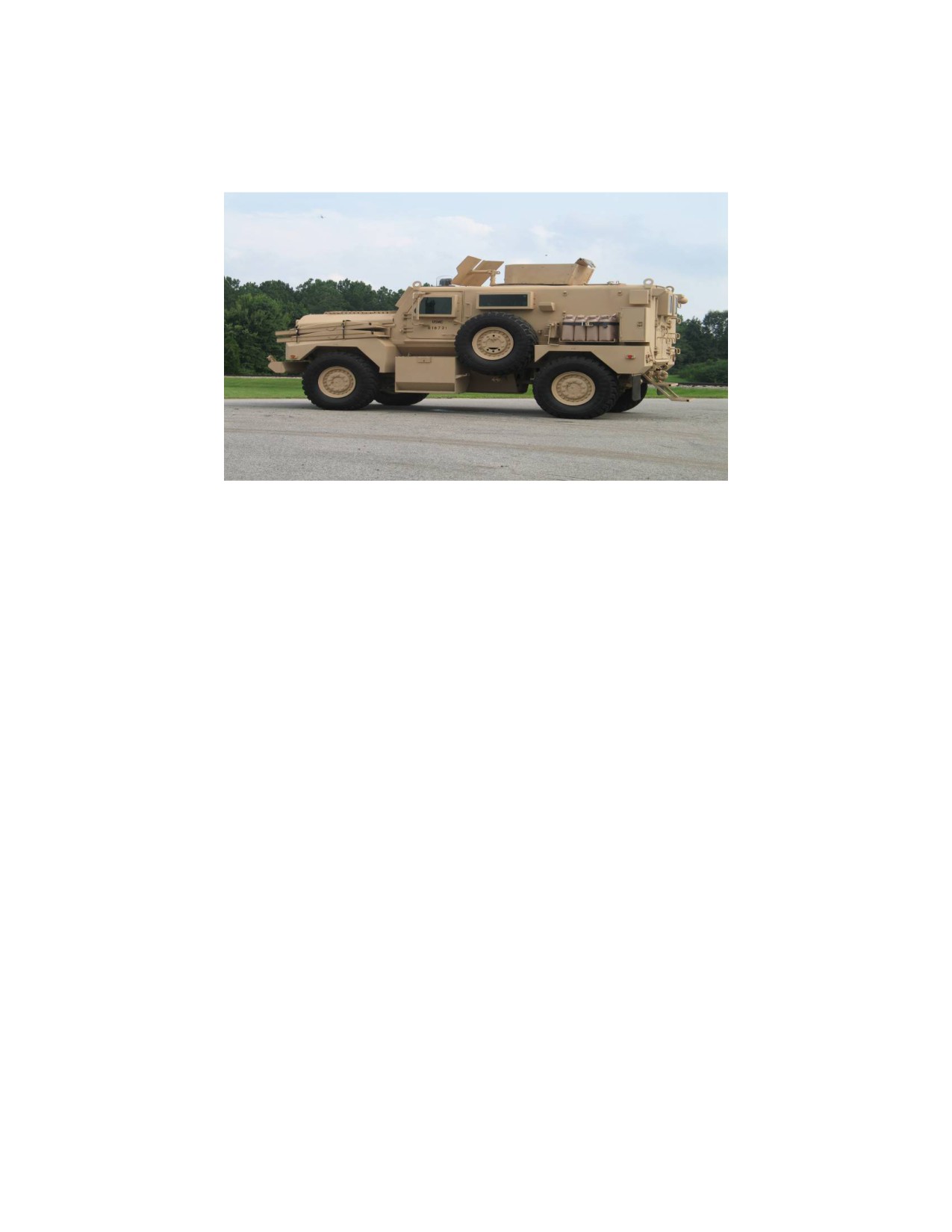

JOINT EXPLOSIVE ORDNANCE DISPOSAL RAPID RESPONSE VEHICLE (JERRV EOD 4X4)

TAMCN D00257K NSN

2355-01-532-2174

11202A

DESCRIPTION AND FUNCTION

The JERRV EOD 4x4 is a versatile, diesel powered, pneumatic tired, heavily armored, multi-purpose

vehicle equipped with a 360-degree automatic weapons mount that is urgently needed by Explosive

Ordnance Disposal (EOD) teams deployed in support of Operation Enduring Freedom and Operation Iraqi

Freedom to increase their survivability against Improvised Explosive Devices (IED). JERRV EOD 4x4

has adequate armor protection and possesses the capability to carry all required EOD equipment. JERRV

EOD 4x4 s are also required for contingency operations in support of the Global War on Terrorism by

Engineer Mine Clearing teams against IEDs.

Manufacturer: Force Protection Ind., Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

244.75 in

Width

102 in without mounted spare tires

104 in with mounted spare tires

Height

106.5 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

31,750 lbs

Gross Vehicle Weight

36,000 lbs

Performance Information

Fording Depth

39 in

Highway Payload

4,250 lbs

Cross Country Payload

4,250 lbs

Cab Capacity

1+3

4-7

JOINT EXPLOSIVE ORDNANCE DISPOSAL RAPID RESPONSE VEHICLE

(CAT I A1)

TAMCN D00257K NSN

2355-01-552-5565

11202D

2355-01-581-2392

11202K

DESCRIPTION AND FUNCTION

The FPII CAT I A1 MRAP vehicles are Commercial Off-The-Shelf (COTS) vehicles designed from the

ground up to reduce casualties and increase survivability for personnel subjected to mine explosions,

Improvised Explosive Devices (IED) detonations, and Small Arms Fire. The mission of the FPII CAT I A1

MRAP is to support small unit combat operations in urban or confined areas such as mounted patrols,

reconnaissance, communications, and Command and Control.

Manufacturer: Force Protection Ind., Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

249 in

Width

104 in

Height

122 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

32,000 lbs

Gross Vehicle Weight

38,000 lbs

Performance Information

Fording Depth

39 in

Highway Payload

6,000 lbs

Cross Country Payload

6,000 lbs

Cab Capacity

1+5

4-9

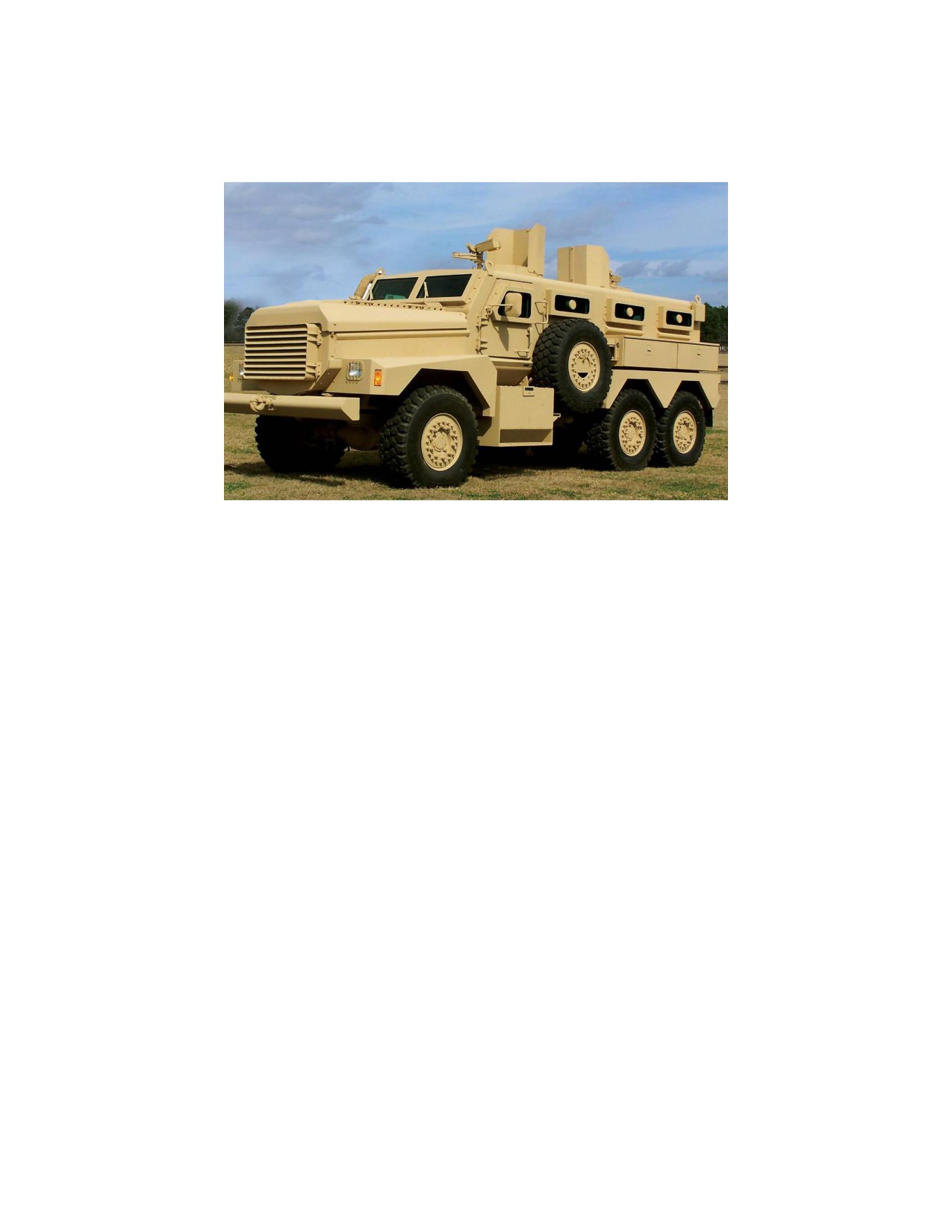

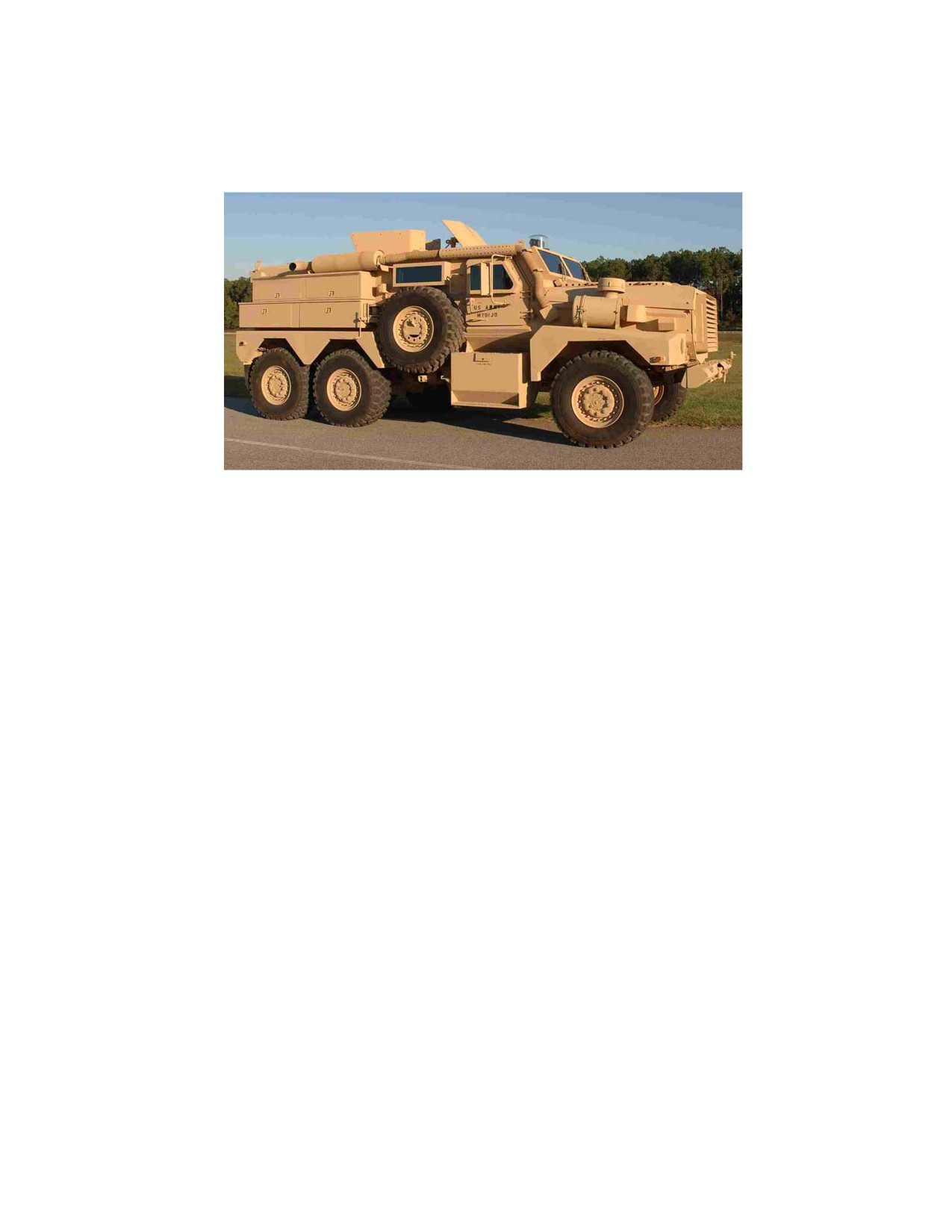

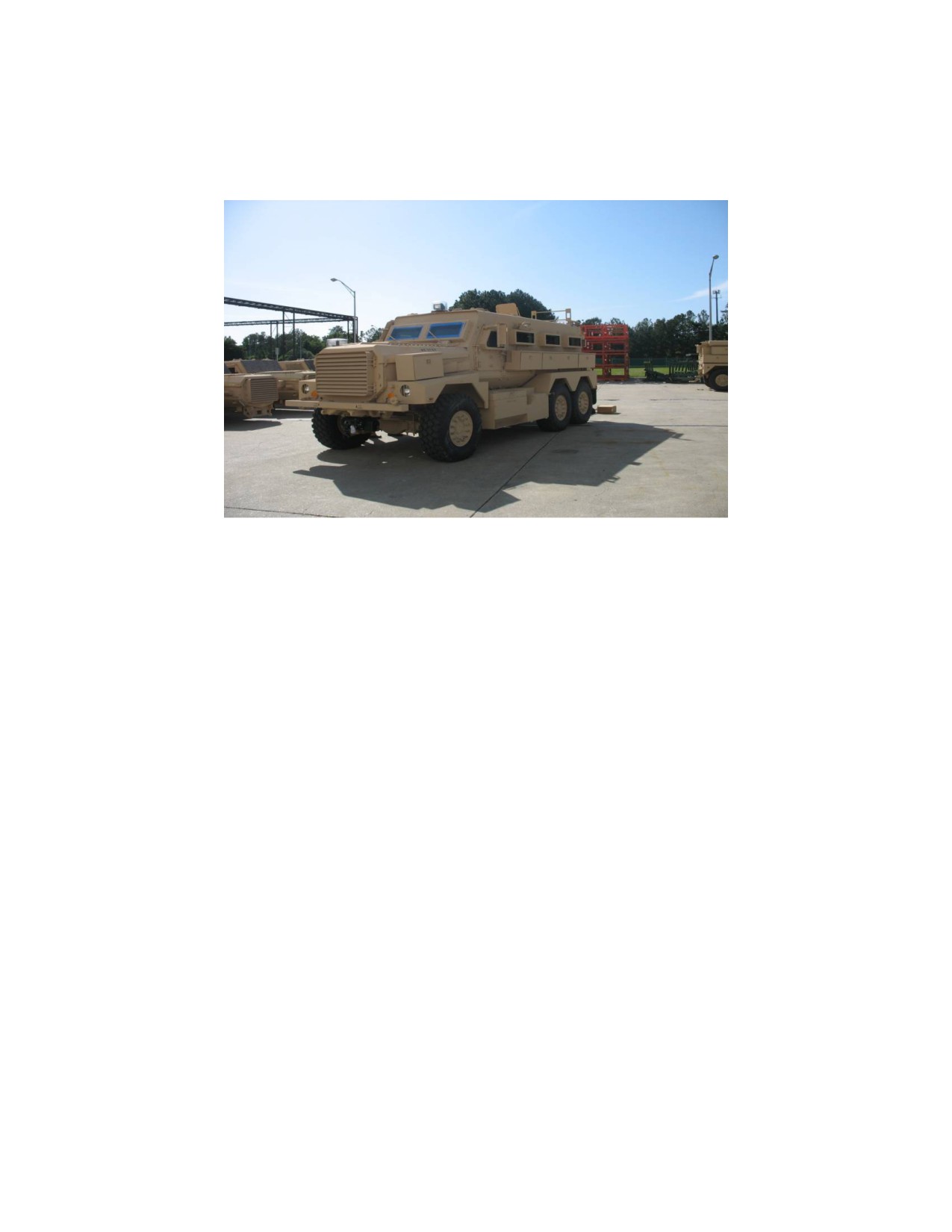

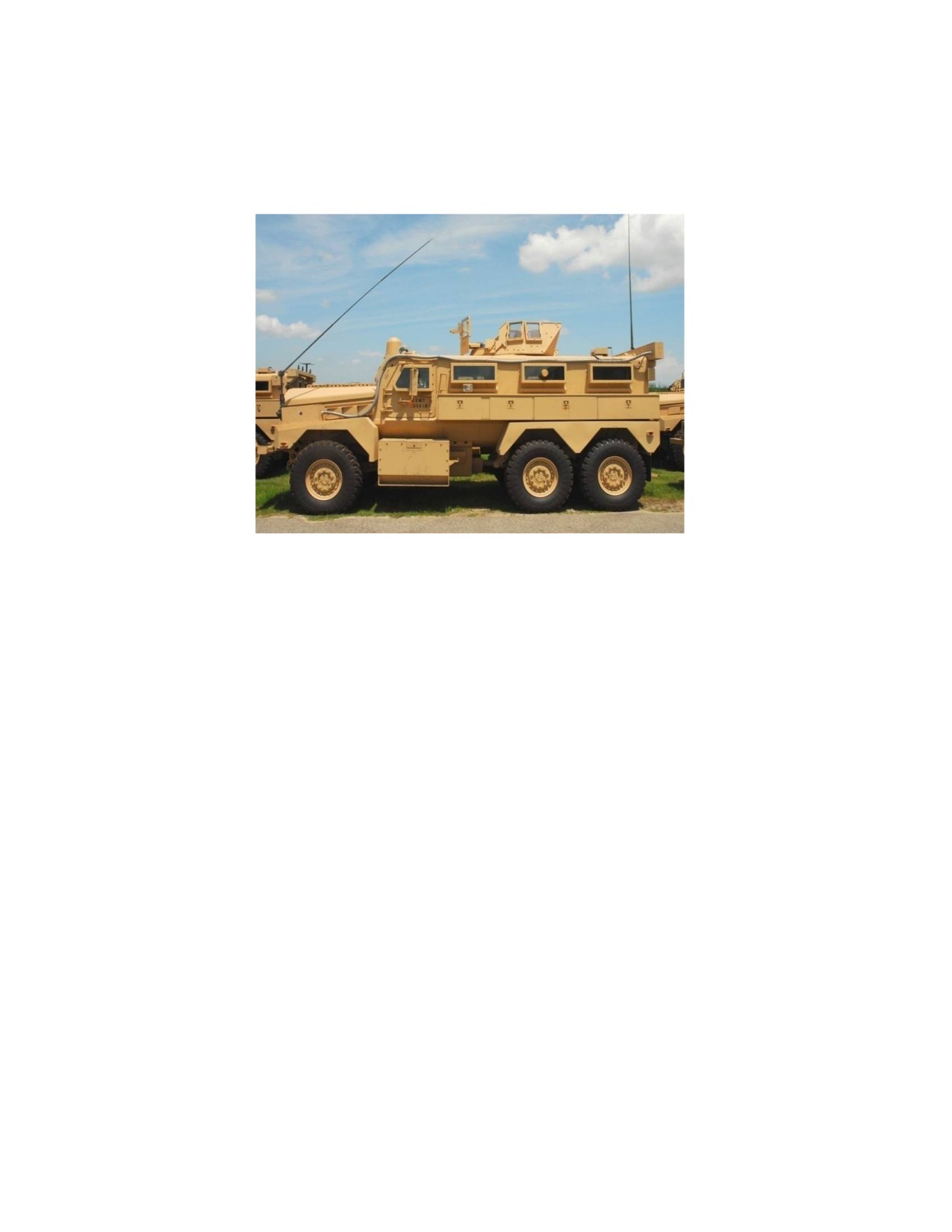

COUGAR HARDENED ENGINEER VEHICLE (HEV 6X6)

TAMCN D00277K NSN

2355-01-519-8172

11066A

DESCRIPTION AND FUNCTION

The Cougar HEV 6x6 is a member of the Mine Resistant Ambush Protected (MRAP) Family of Vehicles

(FOV) which is capable of transporting personnel and cargo within the current theater of operations. The

Cougar HEV 6x6 can be employed in virtually all weather and rugged off road conditions. It enables

forces to survive when engaged, maintain battle space awareness and retain flexibility to accomplish a

variety of missions, to include EOD, combat engineer, convoy escort/security, direct Close Air Support

(CAS), medical support, troop/cargo transport, reconnaissance and mobile command and control. As with

other MRAP vehicles, the Cougar 6x6 offers protection against mine, IED/EFP/RPG impact and small

arms fire.

Manufacturer: Force Protection Ind., Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

294 in

Width

104 in with mounted spare tires

102 in without mounted spare tires

Height

127 in with gunner shields

Reducible Height

104 in

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

41,300 lbs

Gross Vehicle Weight

51,200 lbs

Performance Information

Fording Depth

39 in

Highway Payload

13,000 lbs

Cross Country Payload

13,000 lbs

Cab Capacity

1+9

4-11

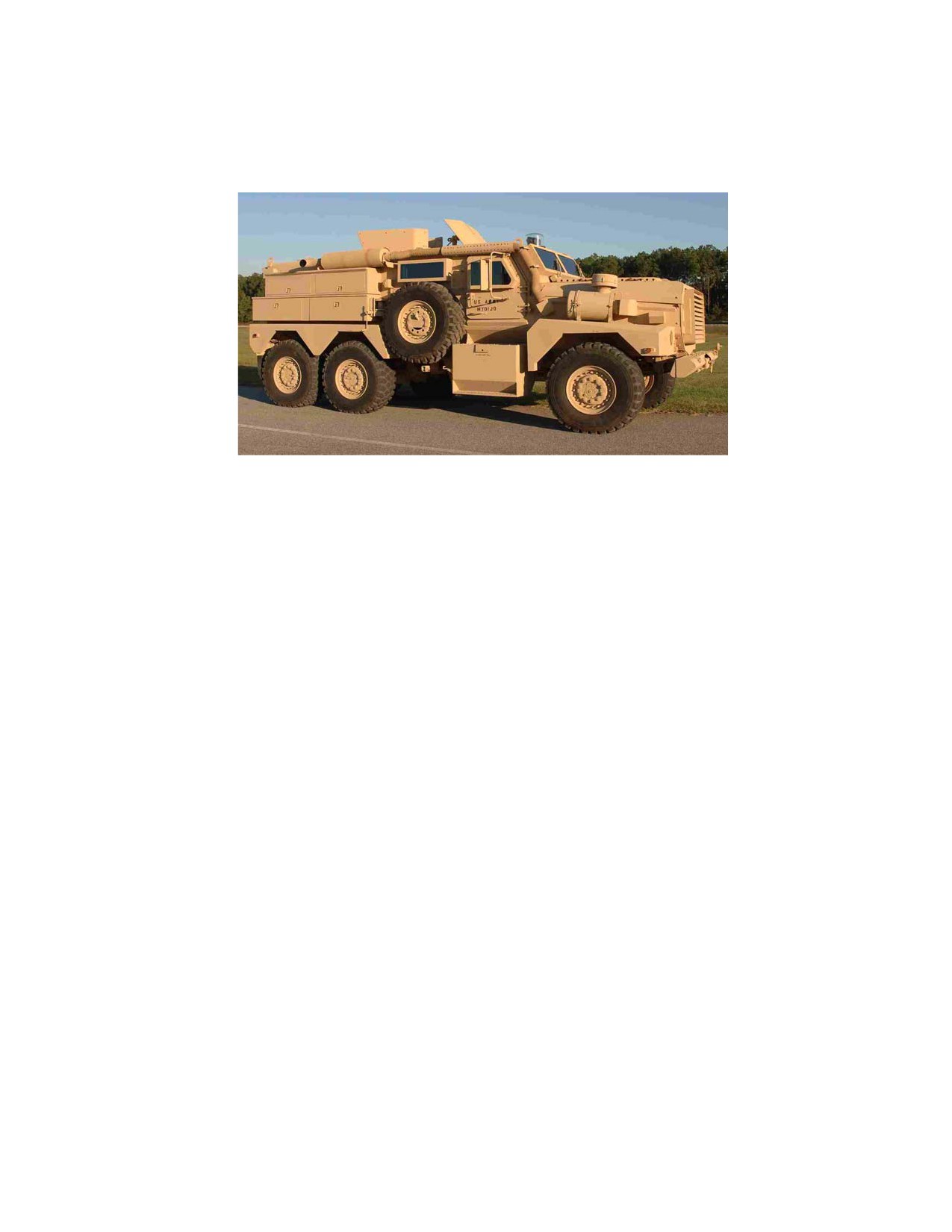

JOINT EXPLOSIVE ORDNANCE DISPOSAL RAPID RESPONSE VEHICLE (JERRV ENG 6x6)

TAMCN B00337K NSN

2355-01-532-2159

11201A

DESCRIPTION AND FUNCTION

The JERRV ENG 6x6 is a versatile, diesel powered, pneumatic tired, heavily armored, multi-purpose

vehicle equipped with a 360-degree automatic weapons mount that is utilized by Explosive Ordnance

Disposal (EOD) teams deployed in support of Operation Enduring Freedom and Operation Iraqi Freedom

to increase their survivability against Improvised Explosive Devices (IED). JERRV ENG 6x6 has adequate

armor protection and possesses the capability to carry all required EOD equipment. The JERRV ENG 6x6

is also used for contingency operations in support of the Global War on Terrorism by Engineer Mine

Clearing teams against IEDs.

Manufacturer: Force Protection Ind., Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

294 in

Width

108 in

Height

106.5 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

40,000 lbs

Gross Vehicle Weight

52,000 lbs

Performance Information

Fording Depth

39 in

Highway Payload

12,000 lbs

Cross Country Payload

12,000 lbs

Cab Capacity

1+9

4-13

JOINT EXPLOSIVE ORDNANCE DISPOSAL RAPID RESPONSE VEHICLE (JERRV EOD 6x6)

TAMCN D00277K NSN

2355-01-529-2246

11291A

DESCRIPTION AND FUNCTION

The JERRV EOD 6x6 is a member of the Mine Resistant Ambush Protected (MRAP) Family of Vehicles

(FOV) which is capable of transporting personnel and cargo within the current theater of operations. The

JERRV EOD 6x6 can be employed in virtually all weather and rugged off road conditions. It enables

forces to survive when engaged, maintain battle space awareness and retain flexibility to accomplish a

variety of missions, to include EOD, combat engineer, convoy escort/security, direct Close Air Support

(CAS), medical support, troop/cargo transport, reconnaissance and mobile command and control. As with

other MRAP vehicles, the Cougar 6x6 offers protection against mine, IED/EFP/RPG impact and small

arms fire.

Manufacturer: Force Protection Ind., Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

244.75 in

Width

102 in without mounted spare tires

104 in with mounted spare tires

Height

106.5 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

31,750 lbs

Gross Vehicle Weight

36,000 lbs

Performance Information

Fording Depth

39 in

Highway Payload

4,250 lbs

Cross Country Payload

4,250 lbs

Cab Capacity

1+3

4-15

JOINT EXPLOSIVE ORDNANCE DISPOSAL RAPID RESPONSE VEHICLE

(CAT II A1)

TAMCN D00277K NSN

2355-01-552-5199

11291D

2355-01-579-8931

11291I

DESCRIPTION AND FUNCTION

The FPII CAT II A1 MRAP vehicles are Commercial Off-The-Shelf (COTS) vehicles designed from the

ground up to reduce casualties and increase survivability for personnel subjected to mine explosions,

Improvised Explosive Devices (IED) detonations, and Small Arms Fire. The mission of the CAT II A1

MRAP is to support small unit combat operations in urban or confined areas such as mounted patrols,

reconnaissance, communications, and Command and Control.

Manufacturer: Force Protection Ind., Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

296 in

Width

108 in

Height

122 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

39,000 lbs

Gross Vehicle Weight

52,000 lbs

Performance Information

Fording Depth

39 in

Highway Payload

13,000 lbs

Cross Country Payload

13,000 lbs

Cab Capacity

1+9

4-17

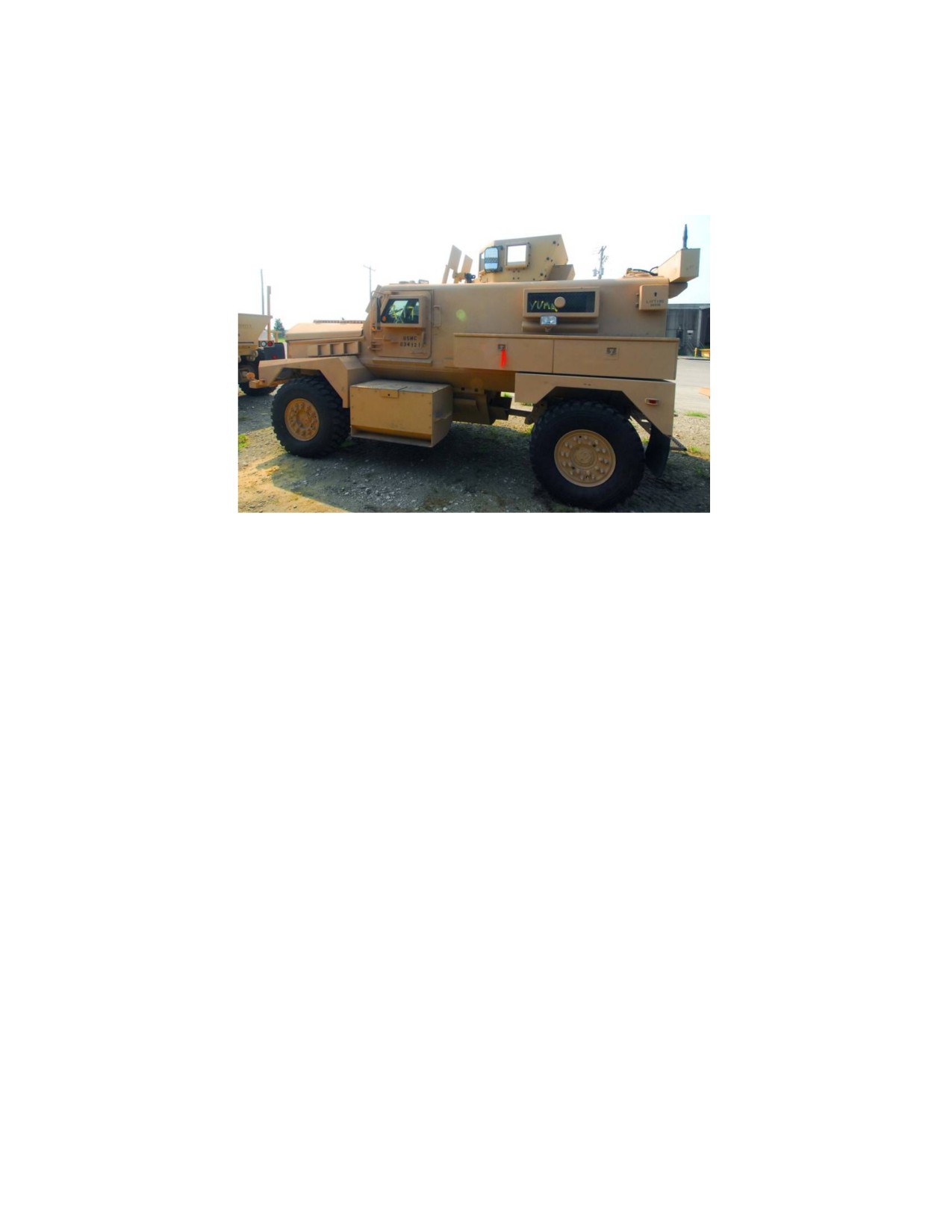

JOINT EXPLOSIVE ORDNANCE DISPOSAL RAPID RESPONSE VEHICLE (CAT I A2)

TAMCN D00257K NSN

2355-01-564-3420

11202I

2355-01-579-8929

11202J

DESCRIPTION AND FUNCTION

The MRAP CAT I A2 vehicles are Commercial Off-The-Shelf (COTS) vehicles designed from the ground

up to reduce casualties and increase survivability for personnel subjected to mine explosions, Improvised

Explosive Devices (IED) detonations, and Small Arms Fire. The mission of the CAT I A2 is to support

small unit combat operations in urban or confined areas such as mounted patrols, reconnaissance,

communications, and Command and Control. Improvements over the MRAP CAT I A1 include a 7 in.

raised roof, increased capacity axles and springs, Automatic Fire Extinguishing System (AFES), improved

seats and seat mounting, improved floor design, improved internal ballistic protection, and the ability to

install EFP armor.

Manufacturer: Force Protection Ind., Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

234 in

Width

100 in

Height

130 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

37,000 lbs

Gross Vehicle Weight

42,600 lbs

Performance Information

Fording Depth

Unprepared approx. 39” (99 cm)

Highway Payload

5,600 lbs

Cross Country Payload

5,600 lbs

Cab Capacity

1+5

4-19

JOINT EXPLOSIVE ORDNANCE DISPOSAL RAPID RESPONSE VEHICLE (CAT II A2)

TAMCN D00277K NSN

2355-01-564-3423

11291J

2355-01-579-8920

11291H

DESCRIPTION AND FUNCTION

The MRAP CAT II A2 vehicles are Commercial Off-The-Shelf (COTS) vehicles designed from the ground

up to reduce casualties and increase survivability for personnel subjected to mine explosions, Improvised

Explosive Device (IED) detonations, and Small arms Fire. These vehicles support multiple missions to

include recon, convoy operations, troop transport, ambulance, Combat Engineer, and EOD missions for

maneuver units. The enhancements of the MRAP CAT II A2 over the MRAP CAT II A1 include a 7 in.

raised roof, improved suspension, Automatic Fire Extinguishing System (AFES), improved seats and seat

mountings, improved floor design, improved internal ballistic protection, and the ability to install EFP

armor.

Manufacturer: Force Protection Ind., Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

296in

Width

108 in

Height

131 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

42,000 lbs

Gross Vehicle Weight

64,000 lbs

Performance Information

Fording Depth

Unprepared approx 39” (99 cm)

Highway Payload

22,000 lbs

Cross Country Payload

22,000 lbs

Cab Capacity

1+9

4-21

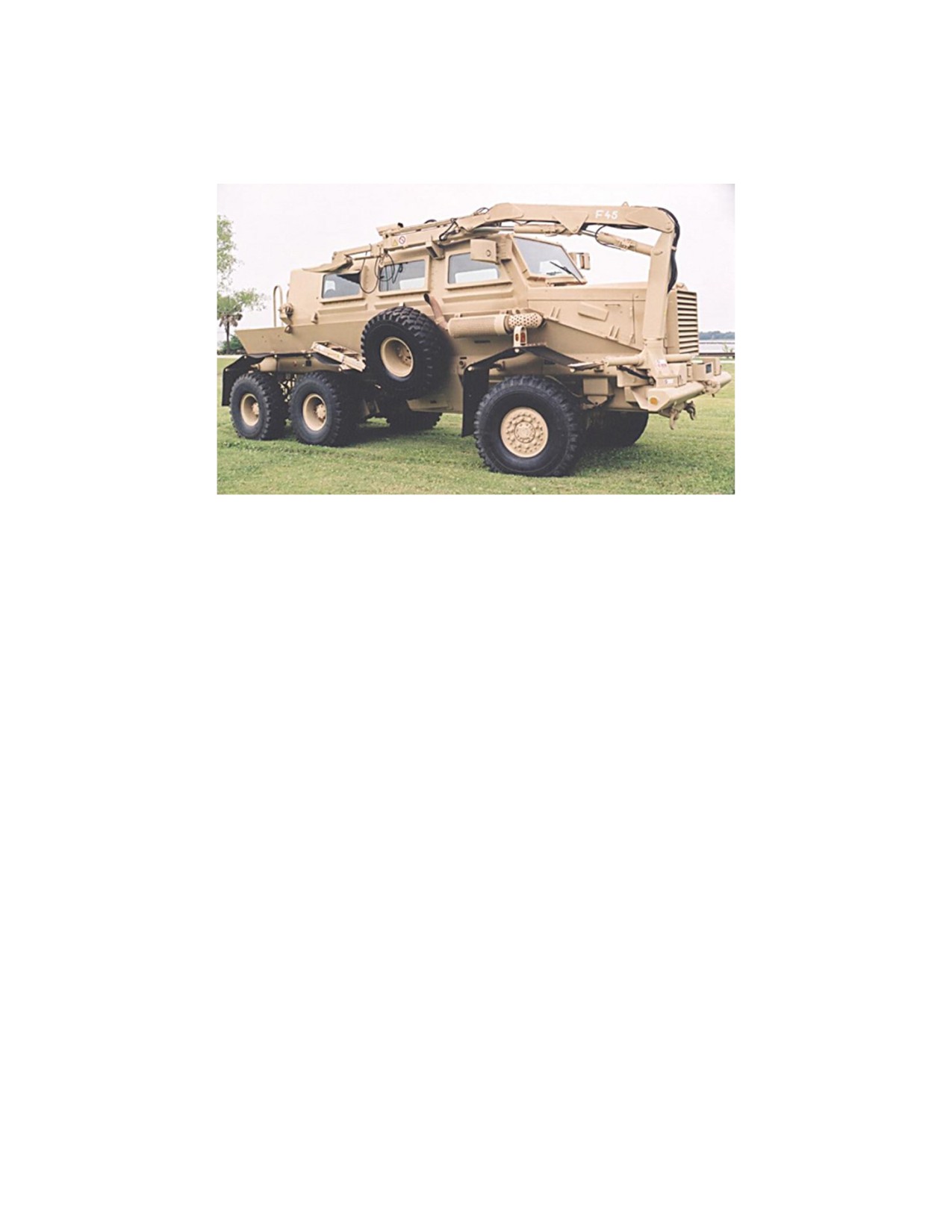

BUFFALO MINE PROTECTION CLEARANCE VEHICLE (BUFFALO MK1)

TAMCN B50017K NSN

2320-01-529-2251

11217A

DESCRIPTION AND FUNCTION

The BUFFALO MK1 is a wheeled, armored platform designed to operate in areas where anti-tank and anti-

personnel landmines have been employed. It has an articulated hydraulic arm for investigating suspected

mine locations. It can accommodate up to 10 personnel and associated countermine mission equipment.

Occupants are protected against mine blasts and small arms ballistic fire.

Manufacturer: Force Protection Ind., Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

332 in

Width

123 in

Height

98.5 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

43,000 lbs

Gross Vehicle Weight

70,000 lbs

Performance Information

Fording Depth

48 in

Highway Payload

20,000 lbs

Cross Country Payload

20,000 lbs

Cab Capacity

1+9

4-23

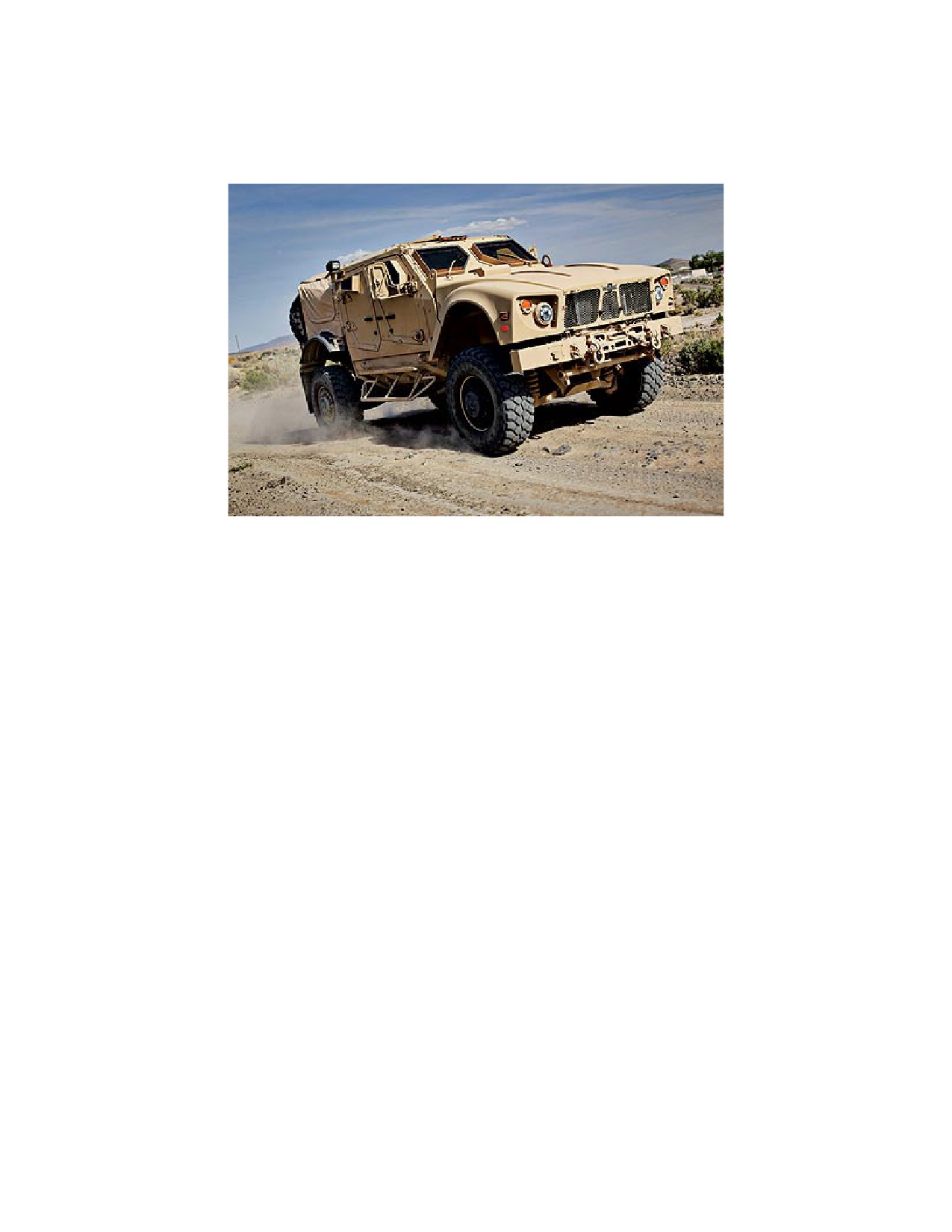

MRAP ALL TERRAIN VEHICLE (M-ATV)

TAMCN D00367K NSN

2355-01-575-9632

11803A

DESCRIPTION AND FUNCTION

The MRAP All Terrain Vehicle (M-ATV) was designed to meet emerging Theater requirements. The

M-ATV provides better overall mobility characteristics than the original MRAP variants, while providing

better survivability characteristics than any variant High Mobility Multipurpose Wheeled Vehicle

(HMMWV). The M-ATV provides small unit combat operations in complex and highly restricted rural,

mountainous, and urban terrain. It supports mounted patrols, reconnaissance, secutiry, convoy protection,

casualty evacuation, data interchange, and command and control functions.

Manufacturer: Oshkosh Truck Corporation

TECHNICAL CHARACTERISTICS

Dimensions

Length

246.8 in

Width

98.1 in

Height

105 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

25,000 lbs

Gross Vehicle Weight

32,500 lbs

Performance Information

Fording Depth

48 in

Highway Payload

4,000 lbs

Cross Country Payload

4,000 lbs

Cab Capacity

1+4

4-25

TM 11240-ODA

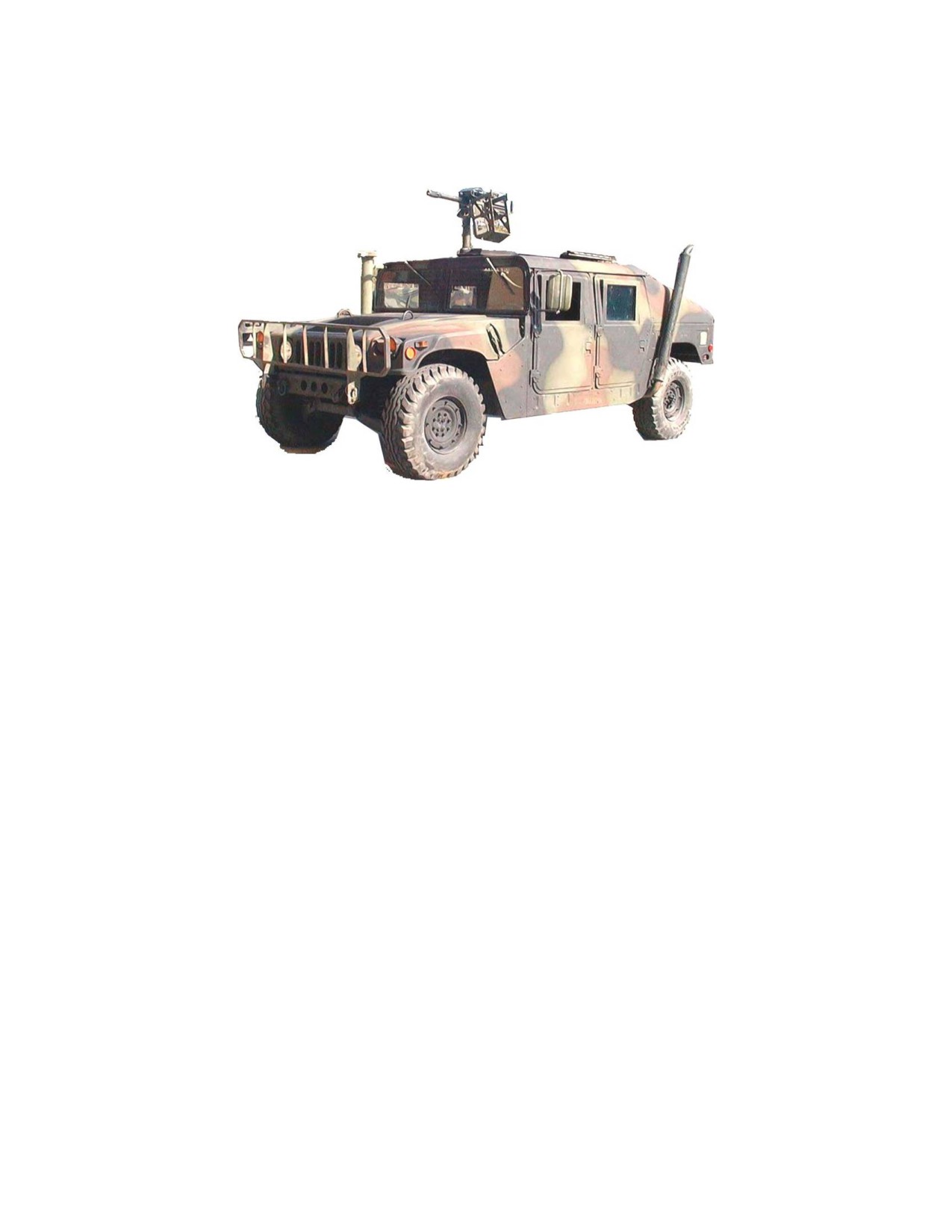

FULL ARMOR KIT, MARINE ARMOR KIT (MAK), F/M1043A2/M1045A2

TAMCN D00217K NSN

2510-01-525-9357

8J264B

DESCRIPTION AND FUNCTION

The Marine Armor Kit is designed for the 2-door, 4-door, and Armament Variant High Mobility

Multipurpose Wheeled Vehicle A2 (HMMWVA2). The kit provides complete 360^o protection as well as

overhead and underbody protection. Options for the kit include air conditioning and mild steel overlay

panels for the doors and rocker panels.

Manufacturer:

Maintenance Center Albany

TECHNICAL CHARACTERISTICS

Kit Specifications

Weight

2,600 lbs.

A/C

Cool from 134F to 89F in. 20min

Configuration

4-door armament carrier

Quantities

1,058

First kits fielded January 2005

5-3/(5-4 blank)

TM 11240-ODA

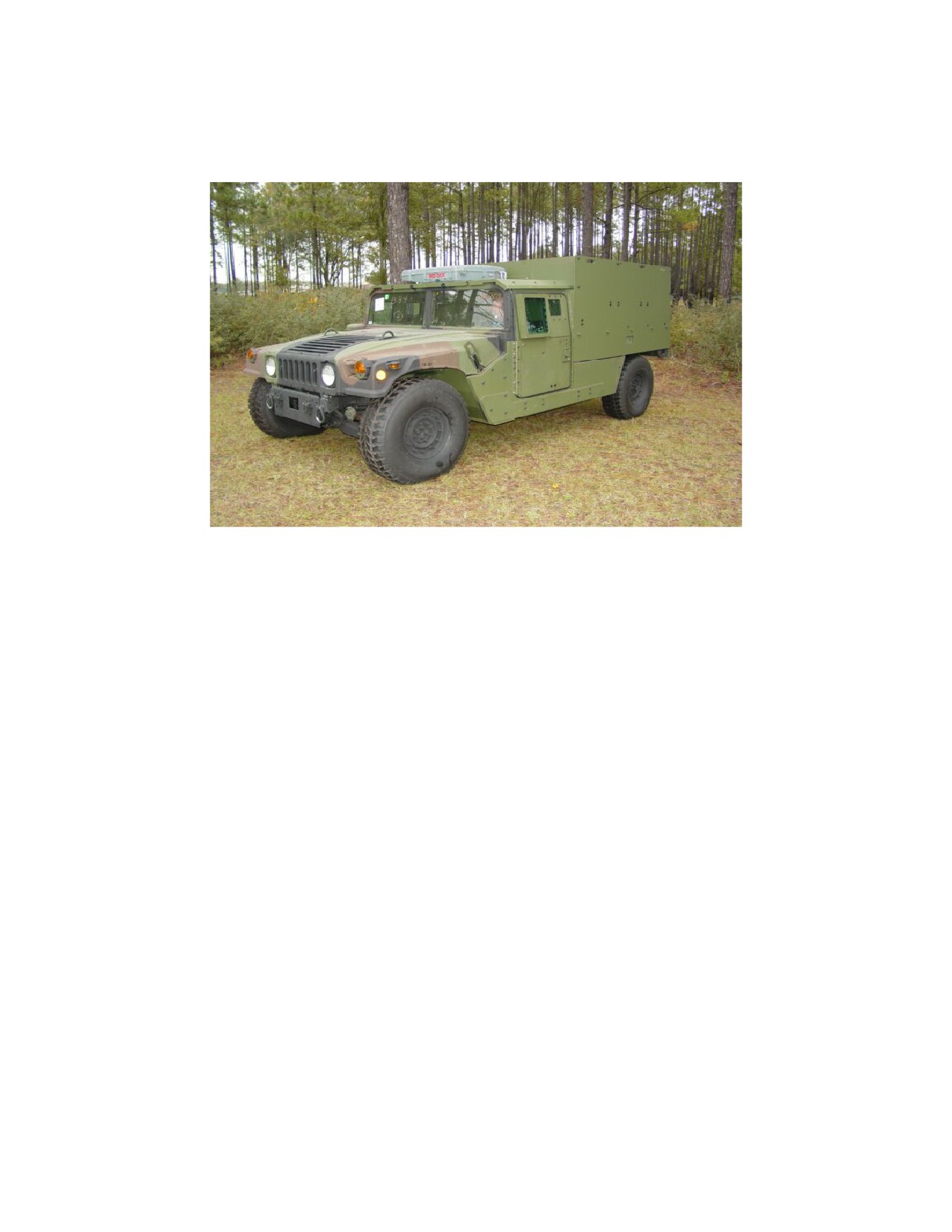

FULL ARMOR KIT, MARINE ARMOR KIT (MAK), F/HMMWV, 2-DOOR

TAMCN D00197K NSN

2510-01-525-2639

8J240B

DESCRIPTION AND FUNCTION

The Marine Armor Kit is designed for the 2-door, 4-door, and Armament Variant High Mobility

Multipurpose Wheeled Vehicle A2 (HMMWVA2). The kit provides complete 360^o protection as well as

overhead and underbody protection. Options for the kit include air conditioning and mild steel overlay

panels for the doors and rocker panels.

Manufacturer:

Maintenance Center Albany

TECHNICAL CHARACTERISTICS

Kit Specifications

Weight

3,800 lbs.

A/C

Cool from 134F.to 89F in. 20min

Configuration

2-door w/ flank kit

Quantities

2,731

First kits fielded January 2005

5-5/(5-6 blank)

TM 11240-ODA

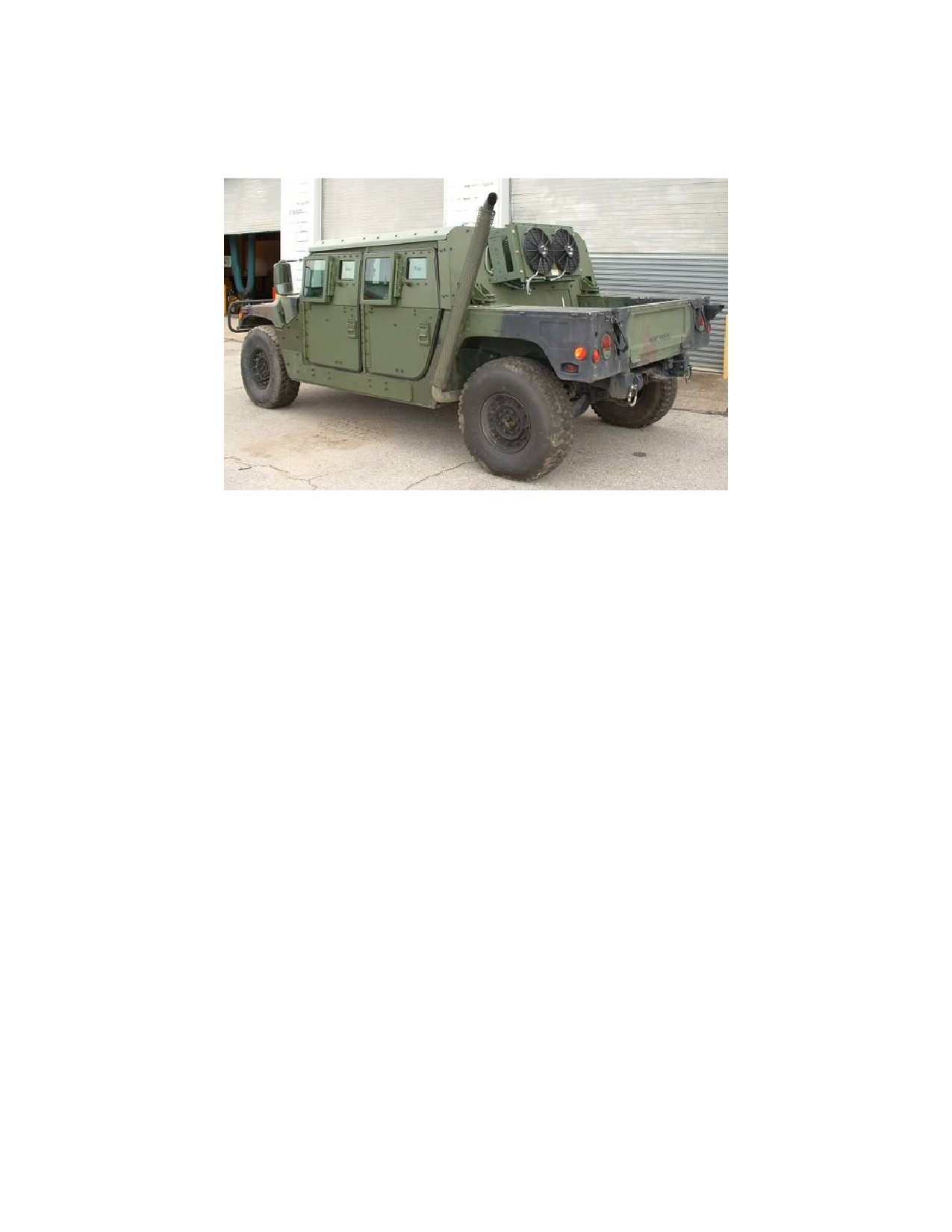

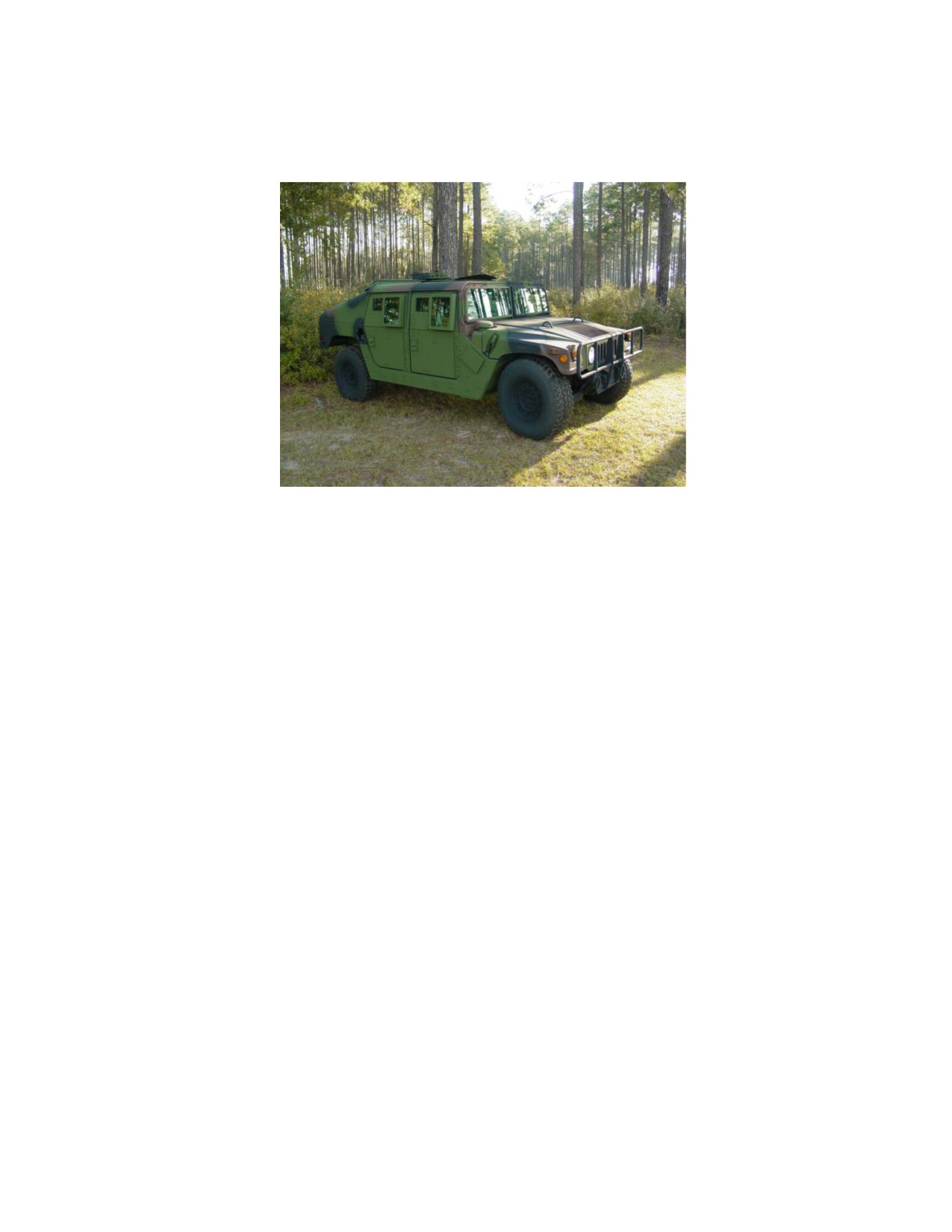

FULL ARMOR KIT, MARINE ARMOR KIT (MAK), F/HMMWV, 4-DOOR

TAMCN D00207K NSN

2510-01-525-2758

8J243B

DESCRIPTION AND FUNCTION

The Marine Armor Kit is designed for the 2-door, 4-door, and Armament Variant High Mobility

Multipurpose Wheeled Vehicle A2 (HMMWVA2). The kit provides complete 360^o protection as well as

overhead and underbody protection. Options for the kit include air conditioning and mild steel overlay

panels for the doors and rocker panels.

Manufacturer:

Maintenance Center Albany

TECHNICAL CHARACTERISTICS

Kit Specifications

Weight

3,500 lbs.

A/C

Cool from 134F to 89F in. 20min.

Configuration

4-door kit

Quantities

1,711

First kits fielded January 2005

5-7/(5-8 blank)

TM 11240-ODA

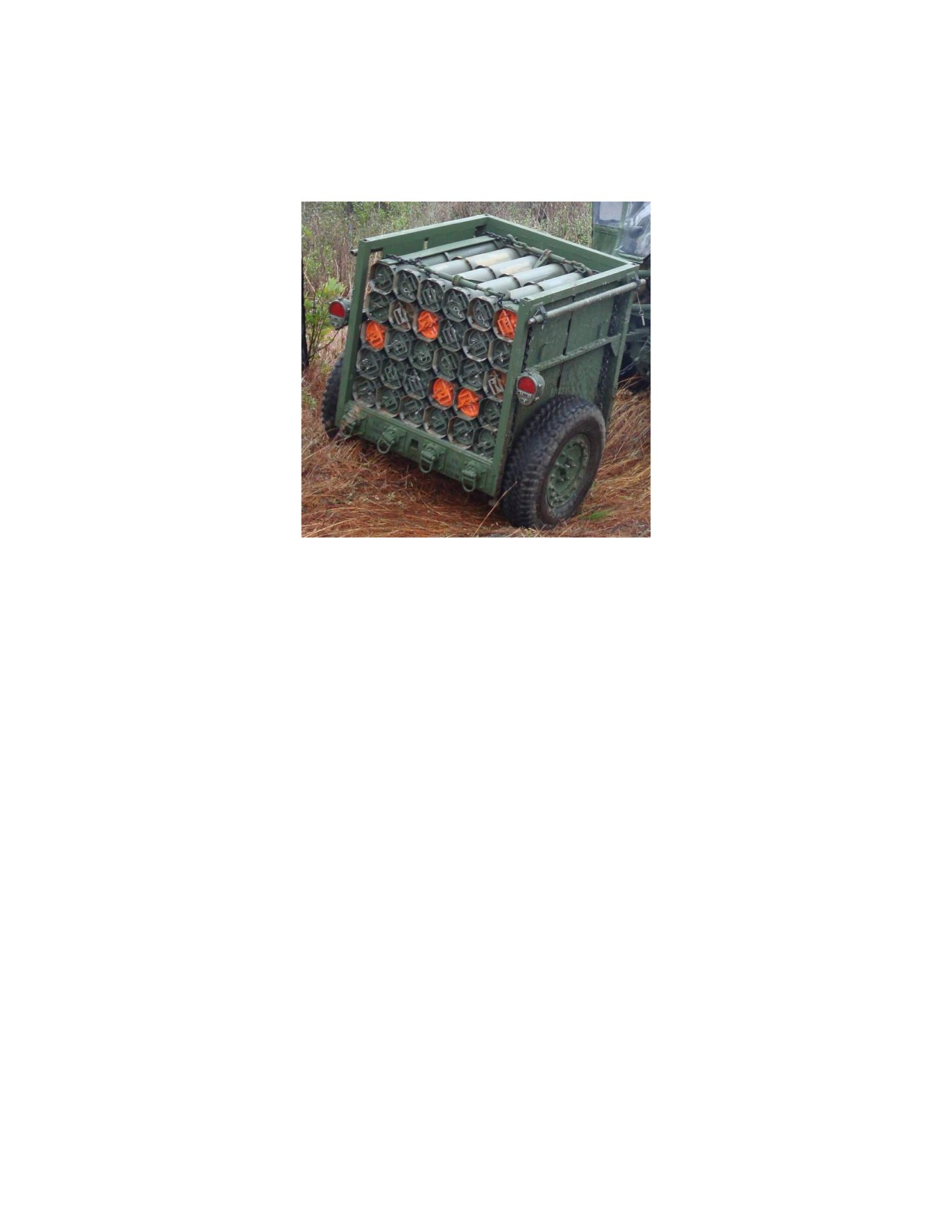

TRAILER, AMMUNITION: INTERNALLY TRANSPORTABLE VEHICLE AMMUNITION

TRAILER (ITV-AT), M1164

TAMCN D08407K NSN

2330-01-531-7368

11171A

DESCRIPTION AND FUNCTION

The Internally Transportable Vehicle Ammunition Trailer (ITV-AT) is used in conjunction with the

Internally Transportable Vehicle Prime Mover Trailer variant. The ITV-AT has been designed to be

internally transportable within both the MV-22 tilt-rotor aircraft and CH53D/E rotary wing aircraft. The

ITV-AT is designed to carry a maximum of 30 mortar rounds for the M327, 120MM Rifle Towed Mortar

(RTM).

Manufacturer:

General Dynamic-Ordnance and Tactical Systems / American Growler

TECHNICAL CHARACTERISTICS

Dimensions

Length

70.3 in

Width

60 in

Height

57.6 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

925 lbs

Gross Vehicle Weight Rating

2,725 lbs

Performance Information

Fording Depth

30 in

Highway Payload

1,800 lbs

Cross Country Payload

1,800 lbs

Cab Capacity

N/A

6-3

TM 11240-ODA

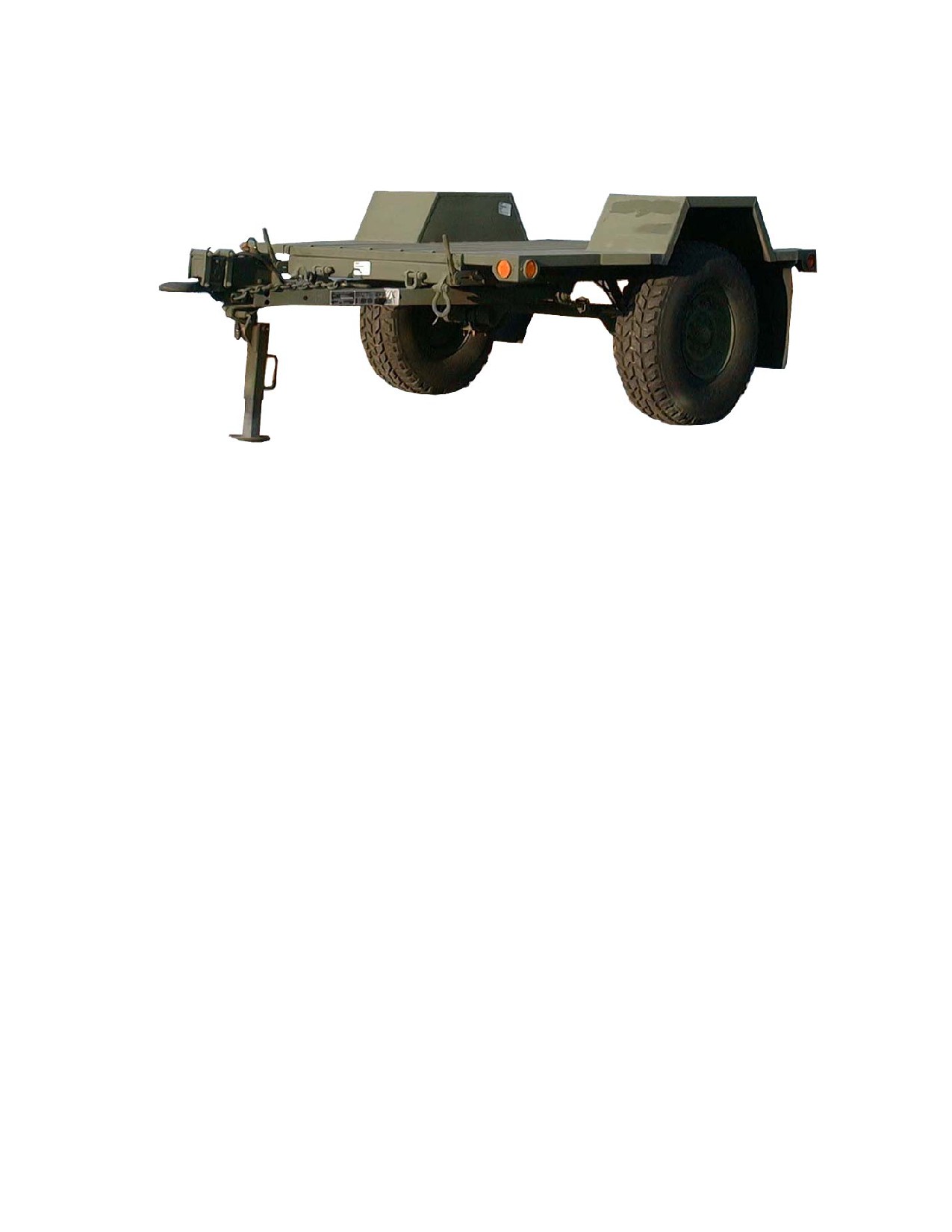

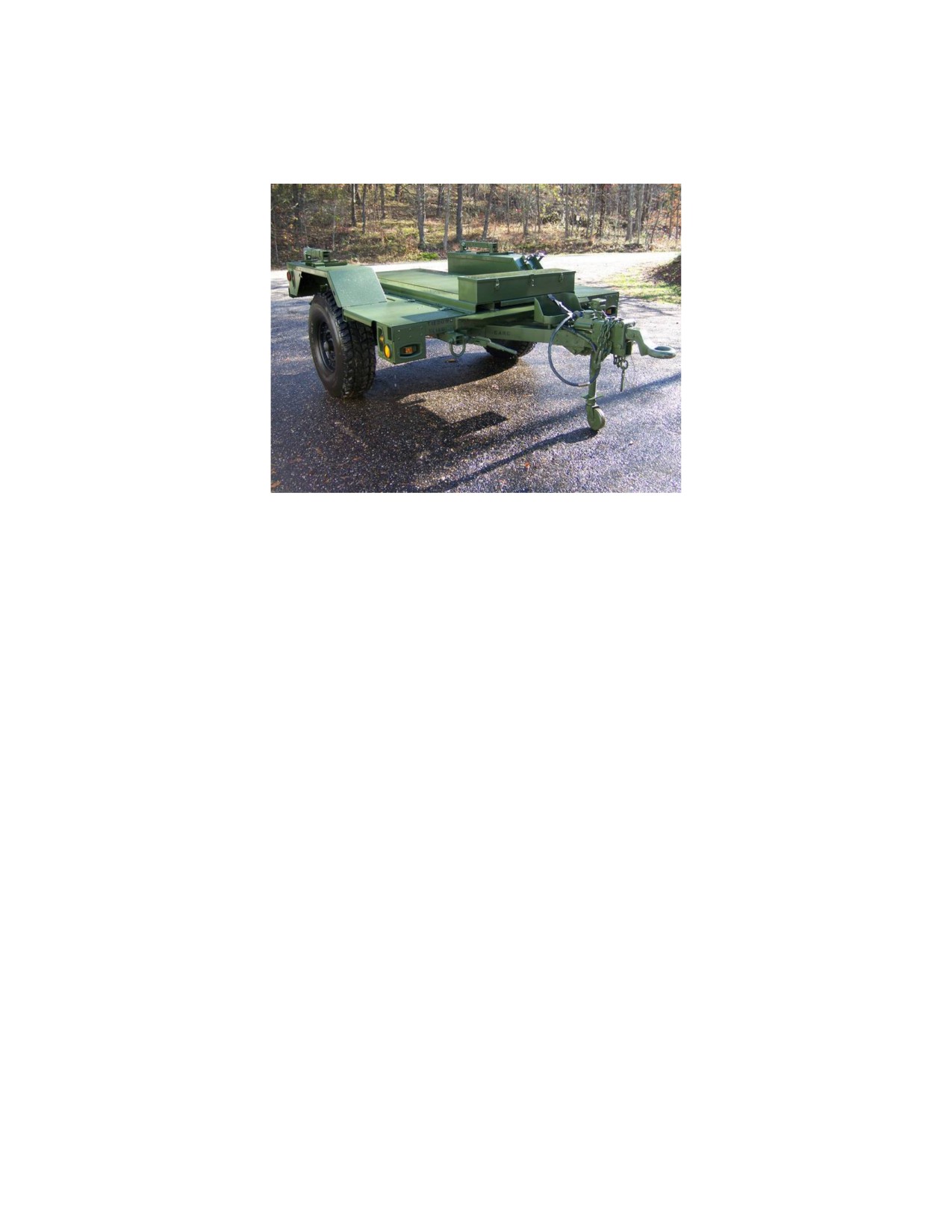

TRAILER, CHASSIS, 3/4 TON, M116A2/M116A3

TAMCN D00857K NSN

2330-01-101-8434

09058A

2330-01-359-0080

09058C

DESCRIPTION AND FUNCTION

The M116A2 and M116A3 trailers are single axle, 2-wheeled, general-purpose chassis designed to be

towed by the HMMWV. They are constructed to transport electric power generators but can be configured

to haul items such as motorcycles and satellite dishes by adding different beds to the chassis. The M116A3

has a wider bed and provides an increased payload over the M116A2. The M116A3 utilizes the HMMWV

radial run flat wheel and tire assemblies. The M116A3 consists of a steel A-frame draw bar bolted to the

frame with an attached one-position lunette, landing gear and two hand brake levers. It is designed to

operate on primary and secondary roads at a maximum speed of 50-mph and cross-country at a maximum

speed of 30-mph. The M116A3 with cargo body makes up an M101A3 trailer.

Manufacturer:

Utility Tool & Body Company, Inc.

TECHNICAL CHARACTERISTICS

Dimensions

M116A2

M116A3

Length

147 in

145.7 in

Width

73.5 in

81.5 in

Height

35 in

36 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

1,340 lbs

Gross Vehicle Weight Rating

2,890 lbs

3,700 lbs

Performance Information

Fording Depth

30 in

Highway Payload

1,500 lbs

2,360 lbs

Cross Country Payload

1,500 lbs

2,360 lbs

Cab Capacity

N/A

6-5

TM 11240-ODA

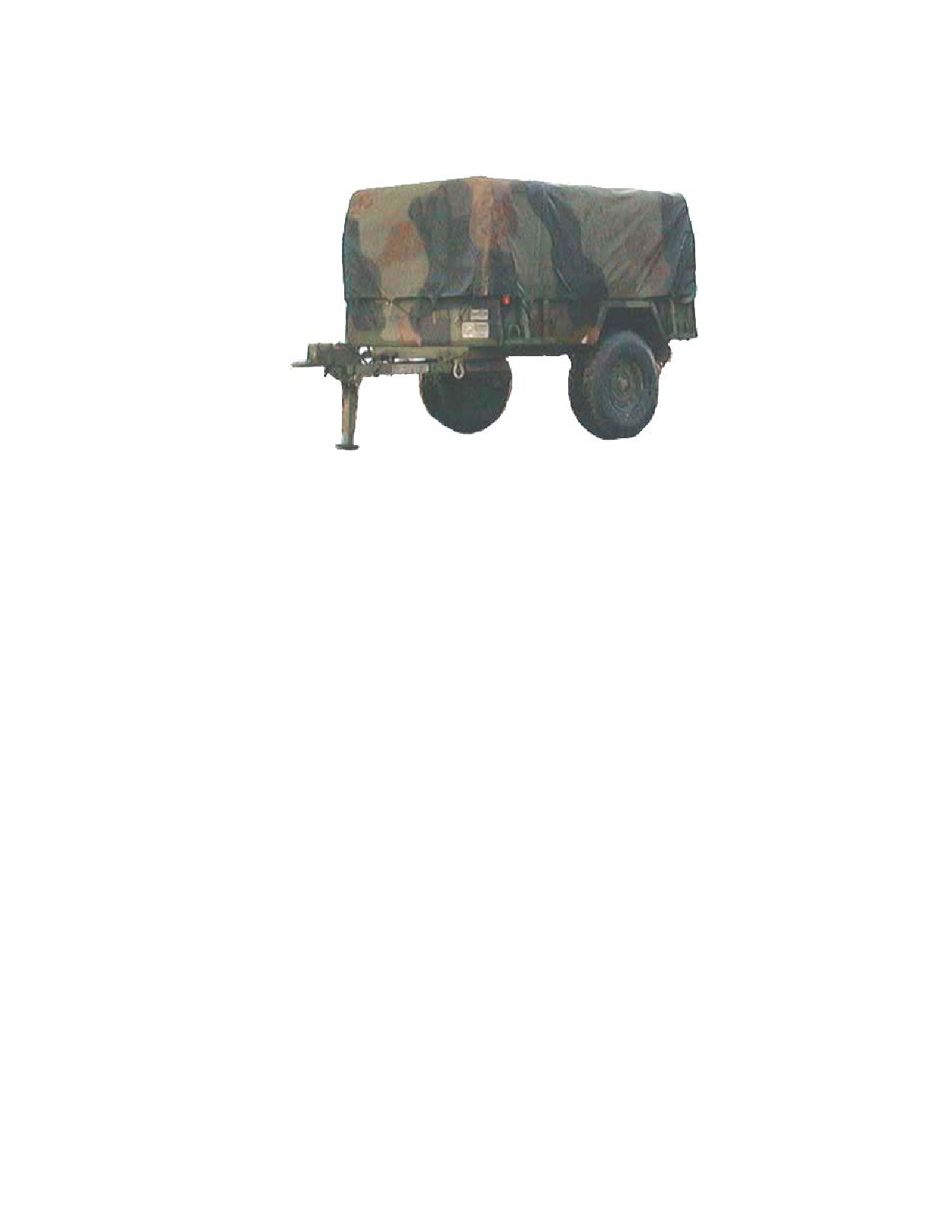

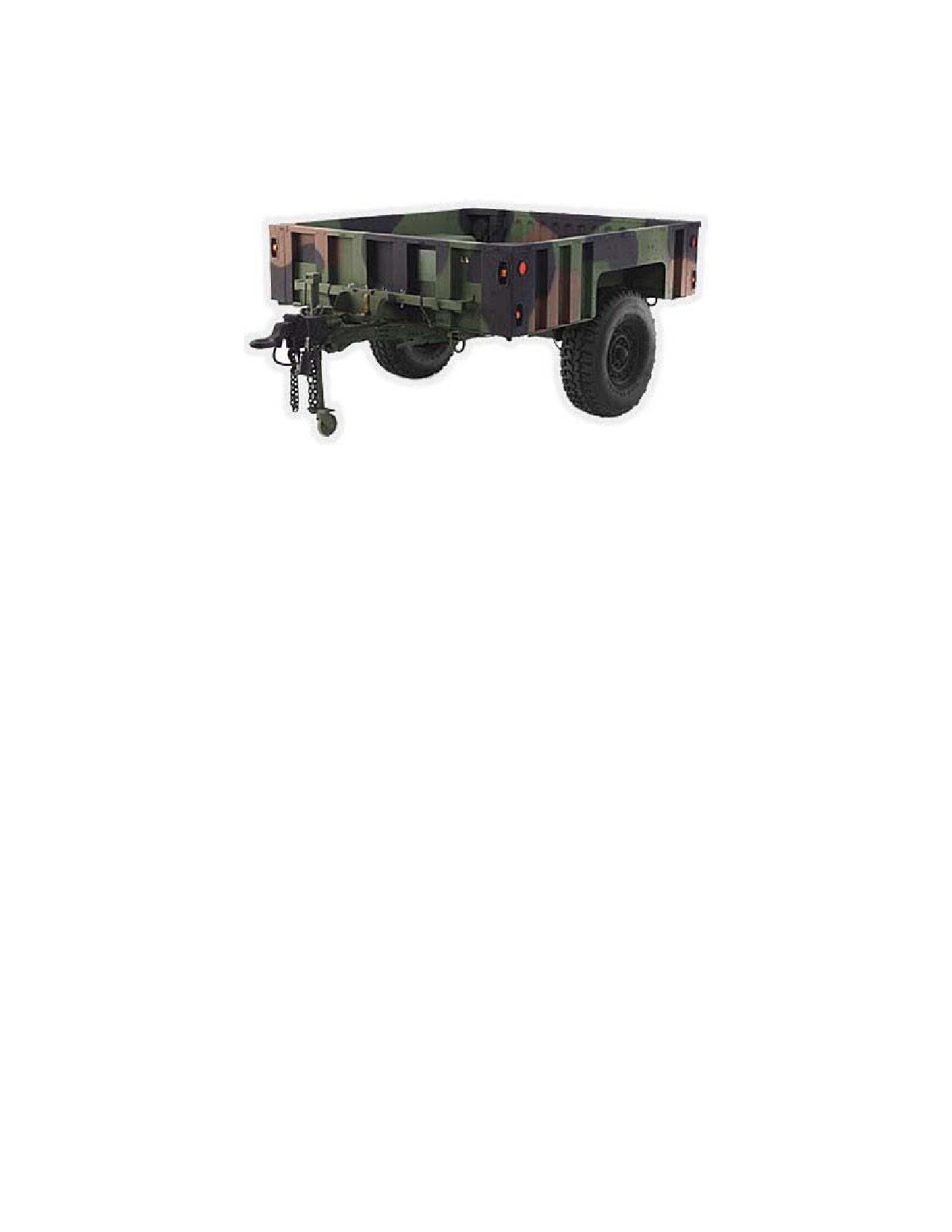

TRAILER, CARGO, 3/4 TON, M101A3

TAMCN D08507K NSN

2330-01-372-5641

00647C

DESCRIPTION AND FUNCTION

The M101A3 is a single axle, two wheel, steel frame trailer designed to be towed by the HMMWV. It is

used to transport general cargo. A welded steel body is bolted to the frame. The body is equipped with a

tailgate and mounting brackets for cargo racks and a frame for a tarpaulin cover. A steel A-frame is bolted

to the frame with an attached one -position lunette, landing gear and two hand brake levers. The M101A3

is designed to operate on all types of roads, cross-country terrain and in all weather conditions. There are

no restrictions on the M101A3 for movement over primary and secondary roads; however, it is restricted to

a maximum speed of 15-mph cross-country when towed by the M998/M1123 series trucks or other prime

movers.

Manufacturer: Chassis: Utility Tool & Body Company, Inc.

Body:

Pribbs Steel

TECHNICAL CHARACTERISTICS

Dimensions

Length

147 in

Width

73.5 in

Height

35 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

1,340 lbs

Gross Vehicle Weight Rating

2,840 lbs

Performance Information

Fording Depth

30 in

Highway Payload

1,500 lbs

Cross Country Payload

1,500 lbs

Cab Capacity

N/A

6-7

TM 11240-ODA

TRAILER, LIGHT TACTICAL, MARINE CORPS CHASSIS, M1102 LTT-MCC

TAMCN D00177K NSN

2330-01-543-5794

11329A

DESCRIPTION AND FUNCTION

The M1102 LTT-MCC is a single axle, two wheeled chassis trailer, designed to meet the needs of the

USMC. It is equipped with a solid flat bed with pre-drilled holes designed to secure various pieces of

power generation, lighting, environmental control units, and general-purpose equipment. The M1102 LTT-

MCC is designed to be towed behind the HMMWV on all types of roads, cross-country terrain, and in all

weather conditions.

Manufacturer: Schutt Industries

TECHNICAL CHARACTERISTICS

Dimensions

Length

135 in

Width

87.5 in

Height

40.5 in

Reducible Height

N/A

Cargo Deck Height Unloaded

34.5 in

Vehicle Curb Weight (includes BII)

1,175 lbs

Gross Vehicle Weight Rating

4,200 lbs

Performance Information

Fording Depth

60 in

Highway Payload

3,025 lbs

Cross Country Payload

3,025 lbs

Cab Capacity

N/A

6-9

TM 11240-ODA

TRAILER, LIGHT TACTICAL, CARGO, HEAVY, M1102H

TAMCN D00167K NSN

2330-01-387-5426

11248A

DESCRIPTION AND FUNCTION

The M1102H is a single axle, two wheel, aluminum frame trailer designed to be towed by the HMMWV.

It is used to transport general cargo. A welded steel body is bolted to the frame. The body is equipped

with a tailgate and mounting brackets for cargo racks and a frame for a tarpaulin cover. A steel A-frame is

bolted to the frame with an attached one -position lunette, landing gear and two hand brake levers. The

M1102H is designed to operate on all types of roads, cross-country terrain and in all weather conditions.

There are no restrictions on the M1102H for movement over primary and secondary roads; however, it is

restricted to a maximum speed of 20-mph cross-country.

Manufacturer: Schutt Industries

TECHNICAL CHARACTERISTICS

Dimensions

Length

135 in

Width

87.5 in

Height

52.5 in

Reducible Height

N/A

Cargo Deck Height Unloaded

34.5 in

Vehicle Curb Weight (includes BII)

1,460 lbs

Gross Vehicle Weight Rating

4,200 lbs

Performance Information

Fording Depth

60 in

Highway Payload

2,740 lbs

Cross Country Payload

2,740 lbs

Cab Capacity

N/A

6-11

TM 11240-ODA

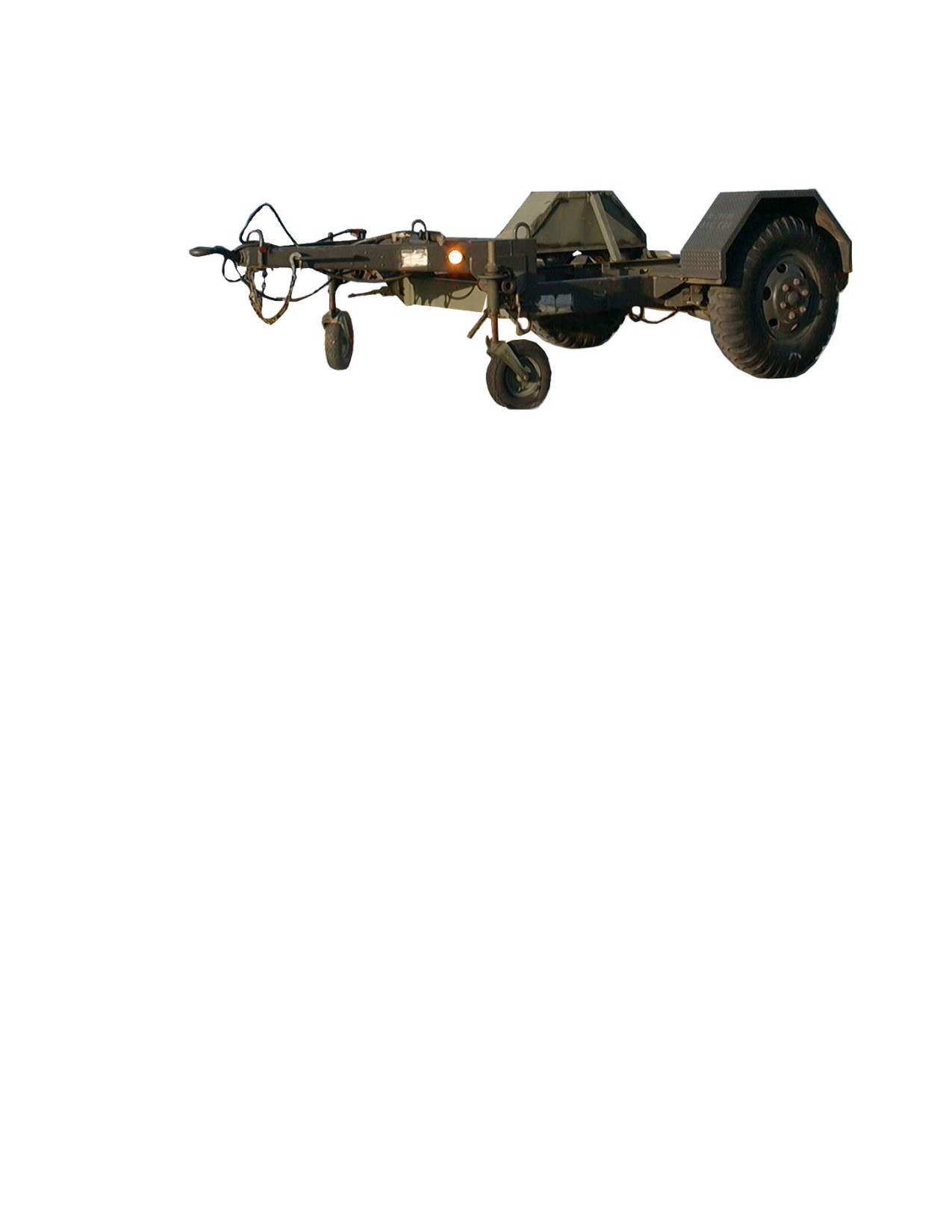

TRAILER, CHASSIS, GENERAL PURPOSE, 3 1/2 TON M353

TAMCN D00807K NSN

2330-00-542-2831

05945A

DESCRIPTION AND FUNCTION

The M353 is a single axle, 2-wheel, heavy-duty chassis designed to be towed by 5-ton trucks or MTVRs. It

is designed to haul general payloads of up to 7,000 pounds such as generators, air compressors or welders.

The M353 has a raised A-frame bolted in the front of the chassis with an attached lunette, safety chains,

lifting shackles and bars for handling. The frame has steel wheel covers and two hand brake levers

mounted forward of the wheels beside the swivel caster landing gears. There are two rubber tires mounted

on retractable landing gears located on the front corners. The landing gears are also used to level the trailer

when loaded and stationary. Maximum towing speed for the M353 is 50-mph on highways and 25-mph

cross-country.

Manufacturer:

Schutt Industries

TECHNICAL CHARACTERISTICS

Dimensions

Length

187.5 in

Width

95.9 in

Height

48.25 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

2,650 lbs

Gross Vehicle Weight Rating

9,650 lbs

Performance Information

Fording Depth

30 in

Highway Payload

7,000 lbs

Cross Country Payload

7,000 lbs

Cab Capacity

N/A

6-13

TM 11240-ODA

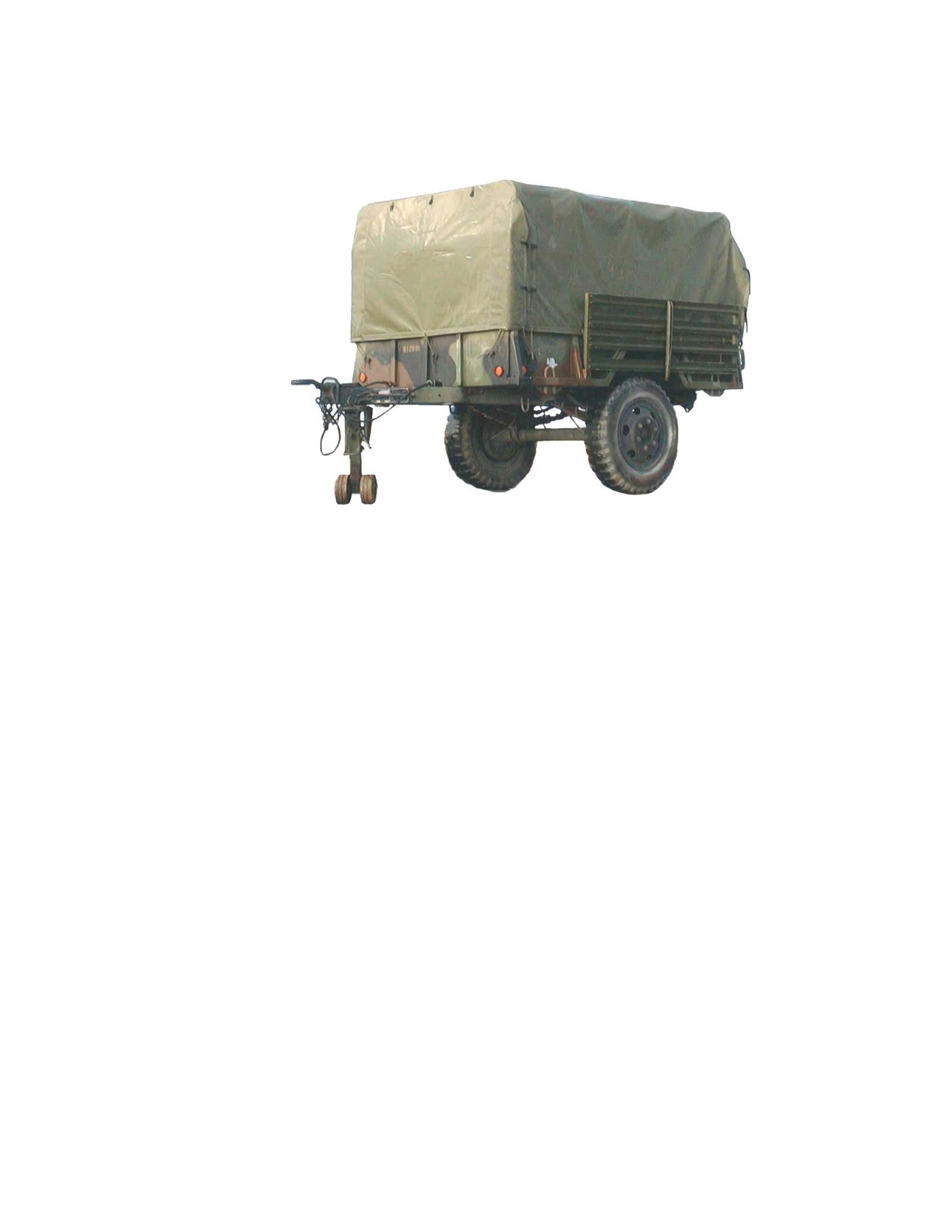

TRAILER, CARGO, 1 1/2 TON M105A2

TAMCN D08607K NSN

2330-00-141-8050

00638E

DESCRIPTION AND FUNCTION

The M105A2 is a 2-wheel, single axle trailer with a leaf-spring suspension designed to be towed by 5-ton

trucks and MTVRs. It has a welded box cargo body mounted on a welded steel frame. The frame includes

an integral A-frame with a towing lunette and retractable landing gear to support the front of the trailer

when uncoupled from its prime mover. The M105A2 has a manually operated parking brake, 24-volt

electrical system and automatic emergency braking system in case the trailer breaks away from the prime

mover. The cargo body includes a tailgate, removable wooden side extensions and a tarpaulin.

Manufacturer: Turtle Mountain Manufacturing Company

TECHNICAL CHARACTERISTICS

Dimensions

Length

165.5 in

Width

83 in

Height

98 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

2,694 lbs

Gross Vehicle Weight Rating

5,694 lbs

Performance Information

Fording Depth

30 in

Highway Payload

3,000 lbs

Cross Country Payload

3,000 lbs

Cab Capacity

N/A

6-15

TM 11240-ODA

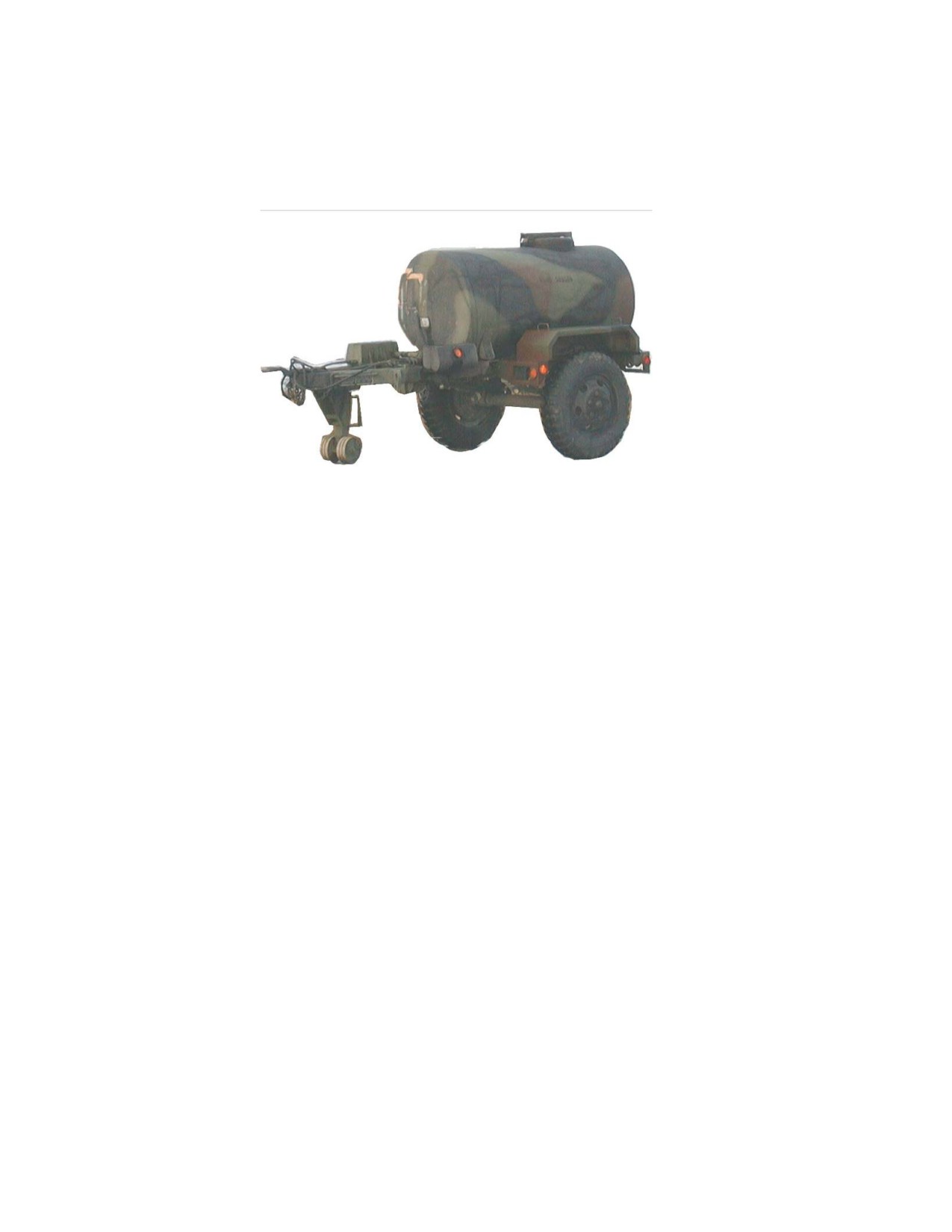

TRAILER, TANK, WATER, 400 GALLON, M149/M149A1/M149A2

TAMCN D08807K NSN

2330-00-542-2039

00648F

2330-00-832-8801

00648G

2330-01-108-7367

00648H

DESCRIPTION AND FUNCTION

The M149 series of trailers were designed to be pulled by the 5-ton trucks and MTVRs. The M149 series

of water trailers transport potable or non-potable water on highways and cross-country terrain The M149

featured a fiberglass water tank and had separate brake and black-out lights. The M149A1 featured the

same tank, but improved on the lighting system by offering a composite light set. The tank on the M149A2

is constructed of stainless steel with double walls. Two inches of urethane foam is used as insulation

between the walls. It is equipped with dispensing equipment consisting of four bronze faucets, a rear self-

drain faucet and brass piping. A shut-off valve is provided to complete drainage from the exterior

plumbing. A manhole located on top of the water tank provides access for bulk filling and cleaning. The

trailer is also equipped with a bracket at the manhole to allow for heating of the water with the standard

M67 immersion heater.

Manufacturer: Turtle Mountain Manufacturing Company

TECHNICAL CHARACTERISTICS

Dimensions

M149

M149A1

M149A2

Length

161 in

161.5 in

Width

80 in

80.3 in

Height

76.5 in

79.3 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

2,440 lbs

2,900 lbs

Gross Vehicle Weight Rating

5,775 lbs

6,235 lbs

Performance Information

Fording Depth

30 in

Highway Payload

3,335 lbs

Cross Country Payload

3,335 lbs

Cab Capacity

N/A

6-17

TM 11240-ODA

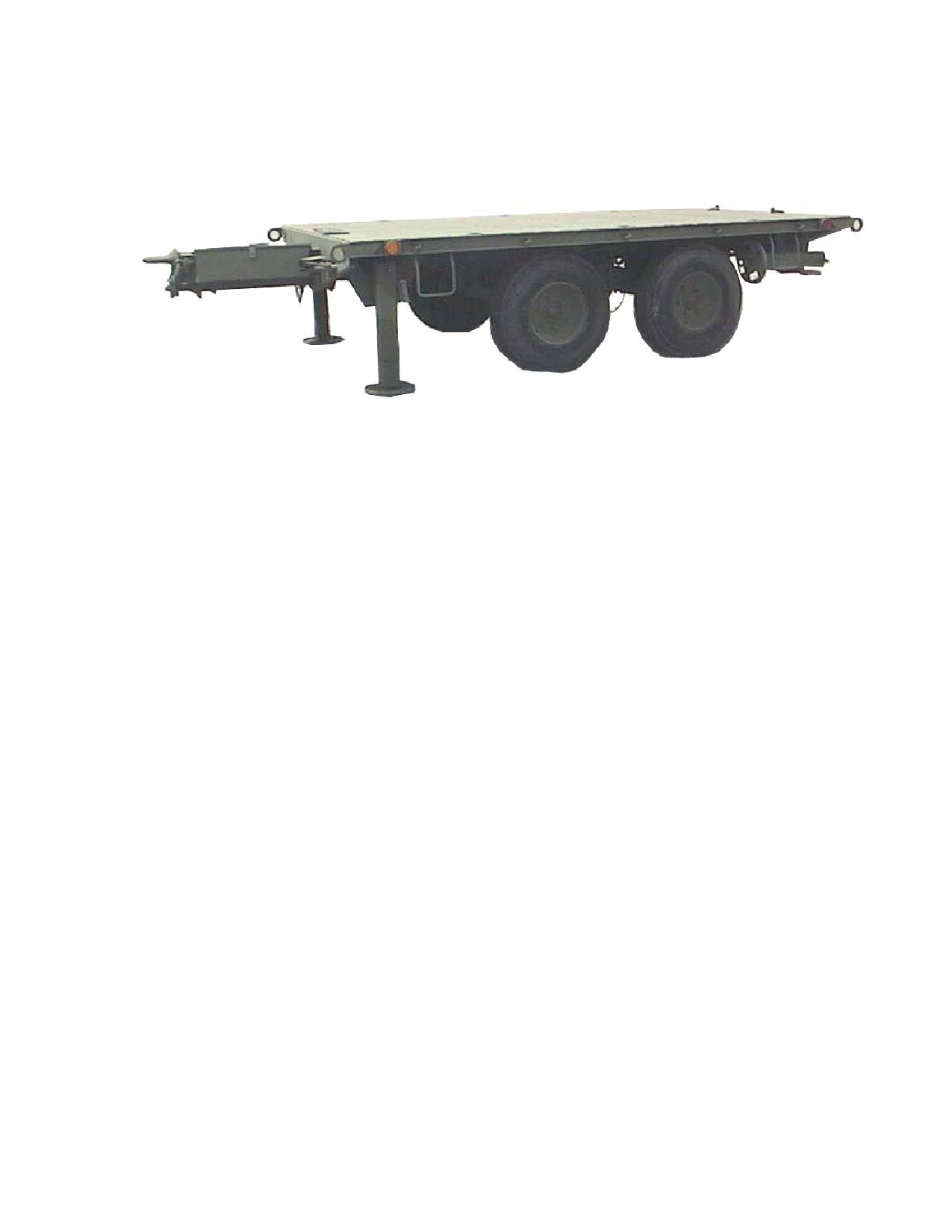

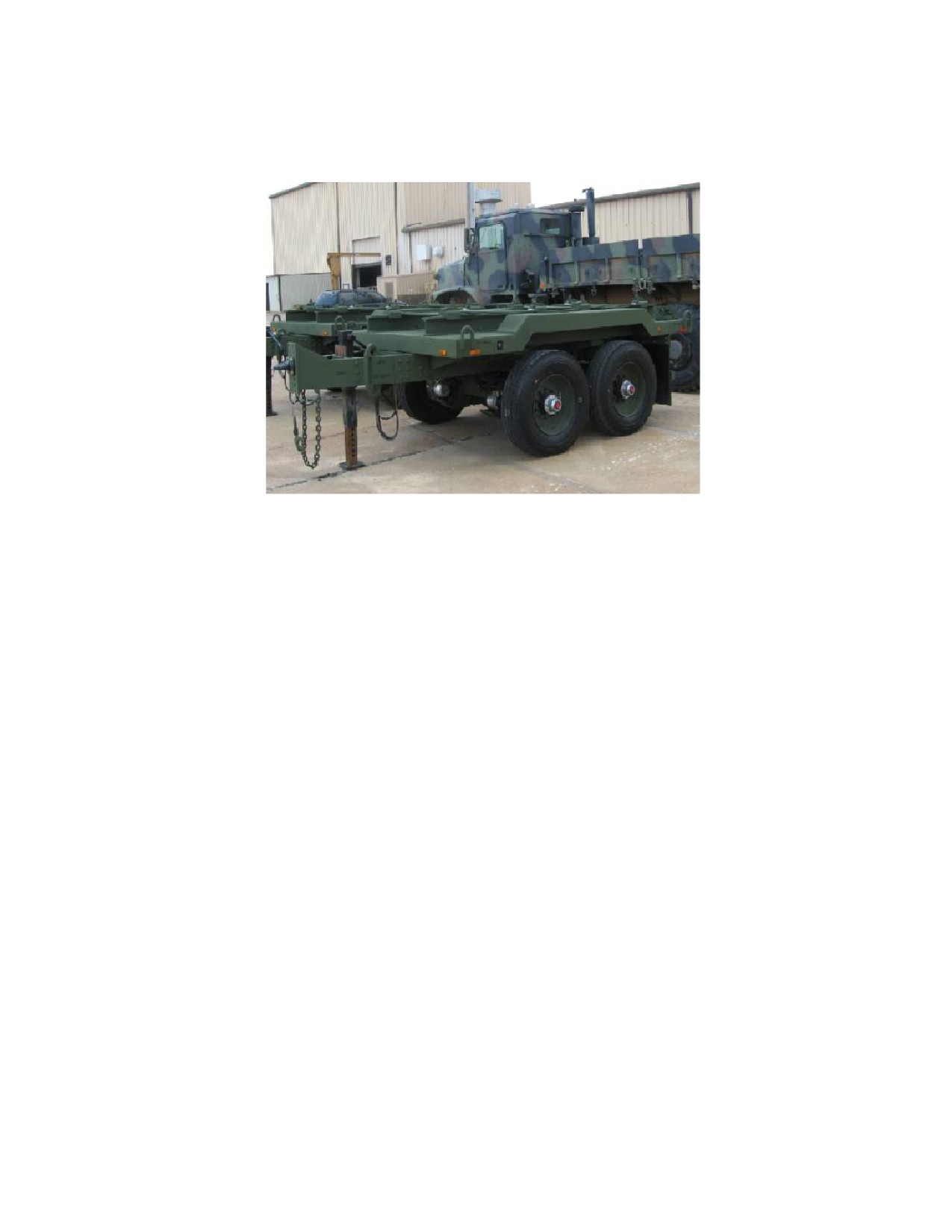

TRAILER, 7 1/2 TON, FULL UP POWER PACK (FUPP), M1073

TAMCN D08857K NSN

2330-01-287-9111

10104A

DESCRIPTION AND FUNCTION

The M1073 7-1/2 ton Full Up Power Pack (FUPP) trailer is a four wheel, tandem axle trailer equipped with

adjustable brackets designed to transport the M1A1 tank Full-Up Power Pack (FUPP). The M1073 is

equipped with a lunette extension for coupling to a pintle hitch equipped tow vehicle. The M1073 is

designed to be towed by the MTVR or LVS.

Manufacturer: Utility Tool & Body Company, Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

263.6 in

Width

96 in

Height

38.6 in

Reducible Height

N/A

Cargo Deck Height Unloaded

37 in

Vehicle Curb Weight (includes BII)

6,640 lbs

Gross Vehicle Weight Rating

22,140 lbs

Performance Information

Fording Depth

30 in

Highway Payload

15,500 lbs

Cross Country Payload

15,500 lbs

Cab Capacity

N/A

Fuel Data

Type of Fuel

N/A

Fuel Tank Capacity

N/A

Fuel Consumption mpg

N/A

Fuel Consumption per hour

N/A

6-19

TM 11240-ODA

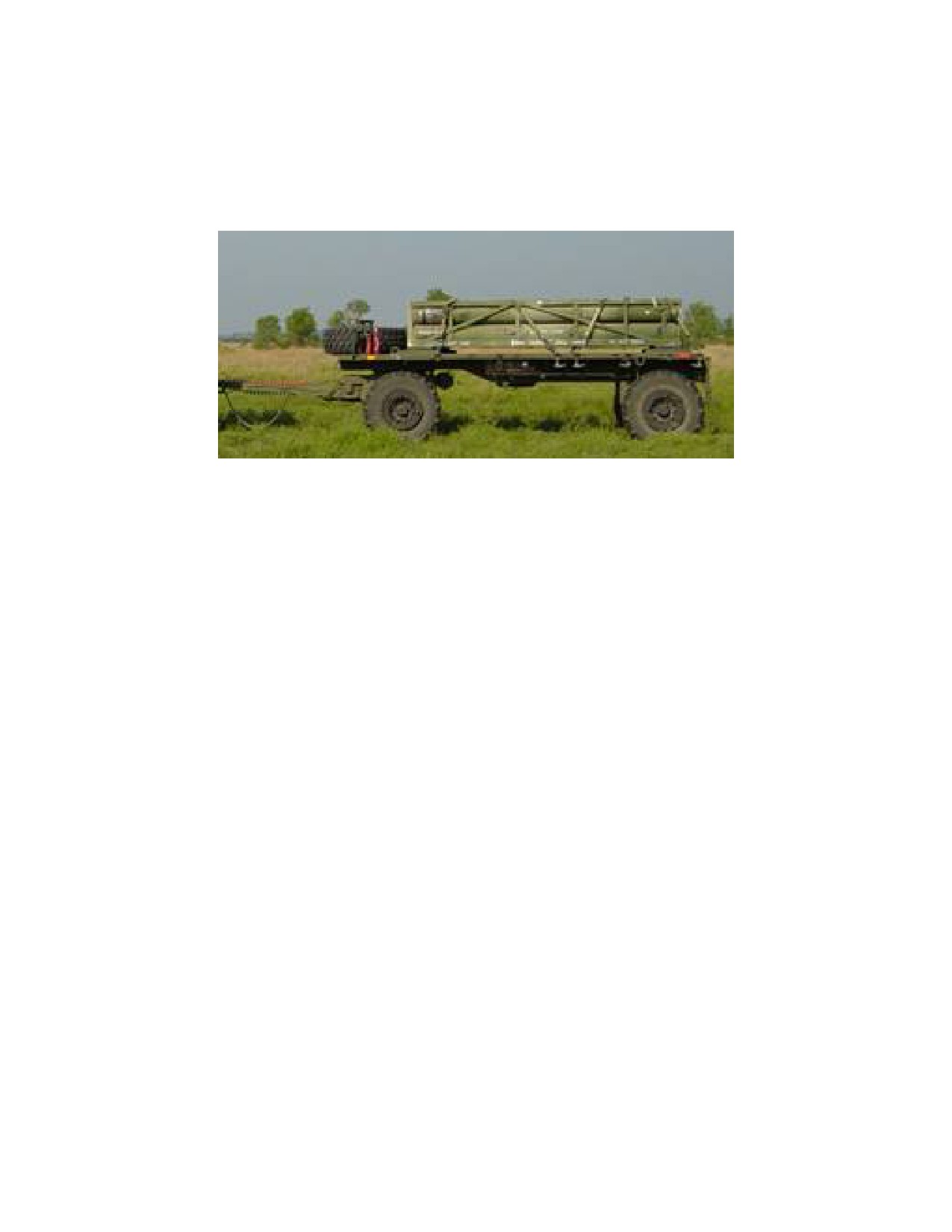

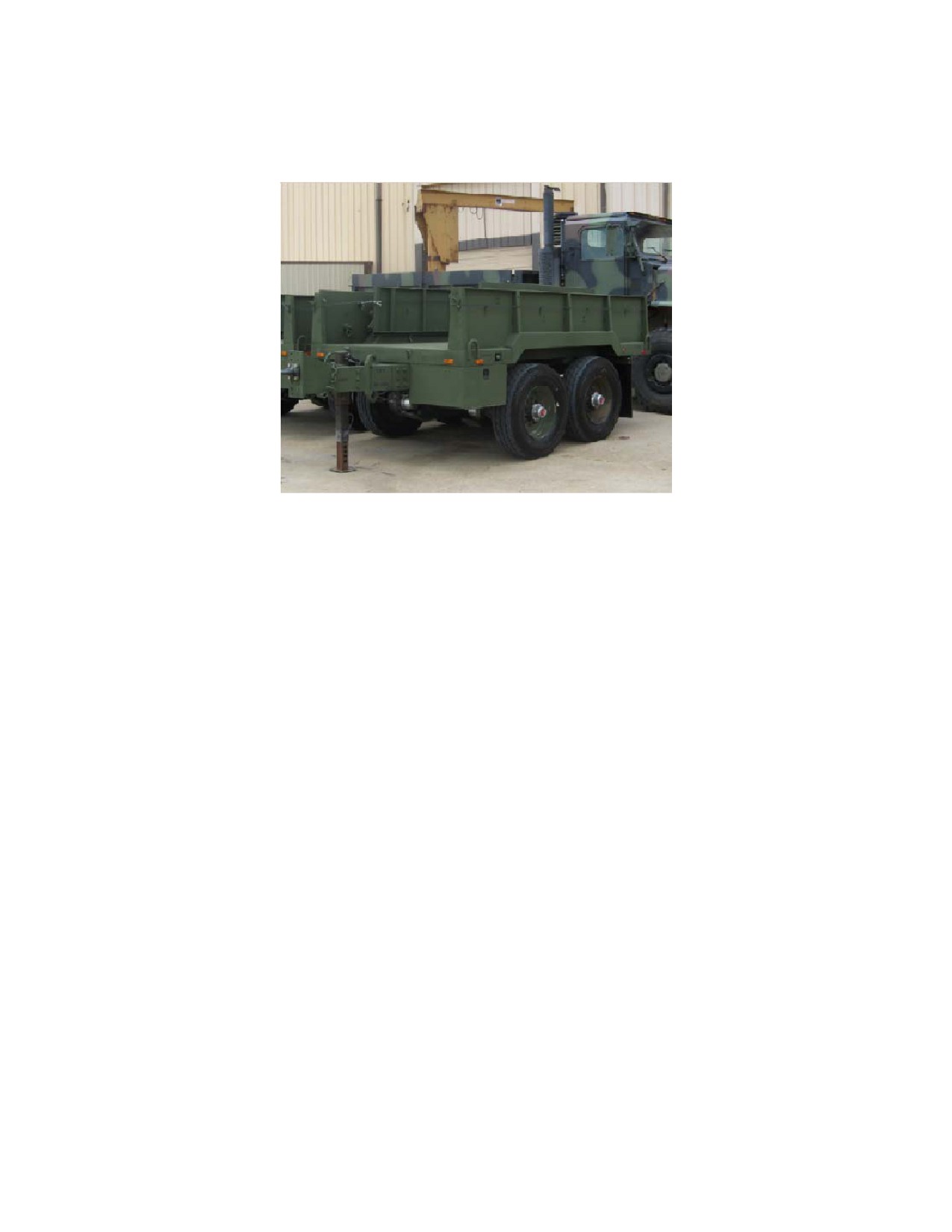

TRAILER, CARGO, RE-SUPPLY F/HIGH MOBILITY ARTILLERY ROCKET SYSTEM

(HIMARS), MK38

TAMCN D08617K NSN

2330-01-504-5014

10921A

DESCRIPTION AND FUNCTION

The MTVR MK38 HIMARS Re-Supply Trailer is a four-wheeled, wagon type, trailer with a cargo bed

capable of transporting up to two Multiple Launch Rocket Family of Munitions (MFOM) and two Re-

Supply Vehicle or Re-Supply Trailer (RST) spare tires. The RST is capable of being towed by any MTVR

variant having a standard pintle.

Manufacturer: Pribbs Steel & Manufacturing

TECHNICAL CHARACTERISTICS

Dimensions

Length

314.4 in

Width

98 in

Height

88 in

Reducible Height

N/A

Cargo Deck Height Unloaded

54.51 in

Ground Clearance under axels

16.78 in

Vehicle Curb Weight (includes BII)

10,000 lbs

Gross vehicle weight Rating

22,000 lbs

Performance Information

Fording Depth

60 in

Highway Payload

12,000 lbs

Cross Country Payload

12,000 lbs

Cab Capacity

N/A

6-21

TM 11240-ODA

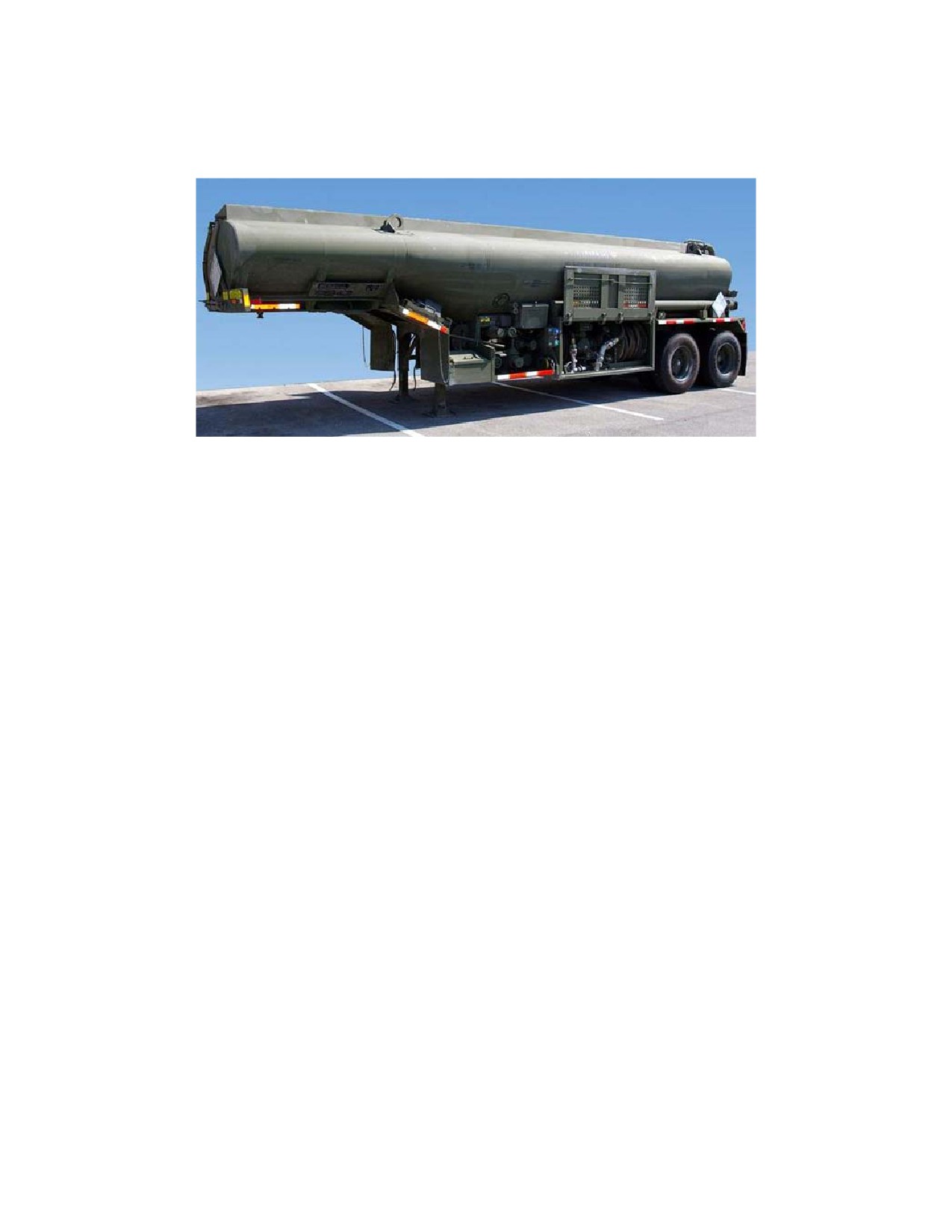

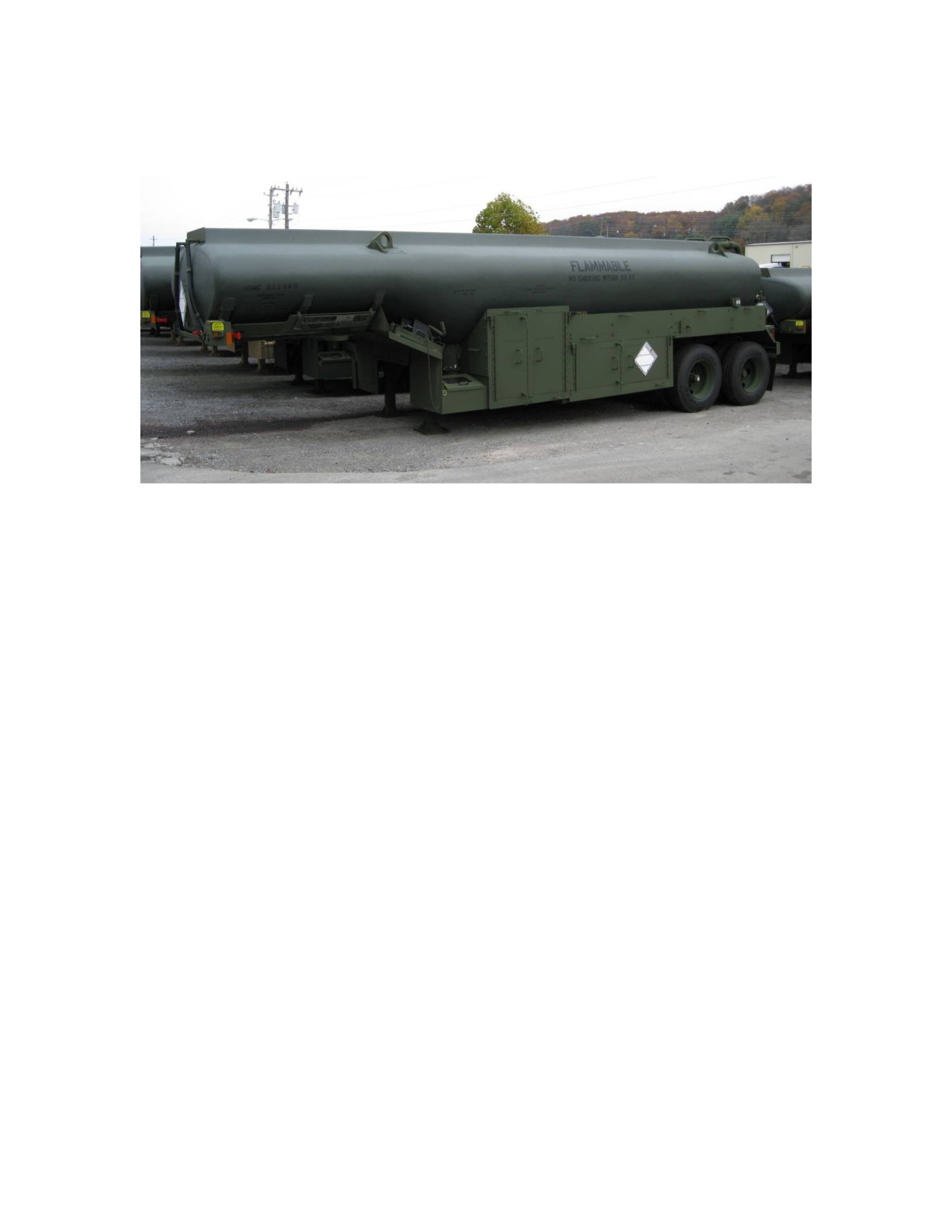

SEMI-TRAILER, AIRCRAFT REFUELER, 5000 GALLON, MK970

TAMCN D02157K NSN

2330-01-537-8217

08089B

DESCRIPTION AND FUNCTION

The MK970 is a 5,000-gallon fuel dispensing semitrailer designed for under/over wing refueling of aircraft.

It is equipped with a filter/separator, recirculation system and two refueling systems, one for under wing

and one for over wing servicing. The MK31 series MTVR tractor is the designated prime mover for the

tanker. The MK970 may also be towed by the M931 series 5-ton tractor at a reduced 3000 gallon capacity.

The MK970 can be loaded through the bottom or through the top fill openings. A ladder is provided at the

rear of the semitrailer for access to the top manhole and a 3-cylinder diesel engine and pump assembly

provides self-load/unload capability. The body is a 5,000-gallon, single compartment, stainless steel tank.

The chassis is of welded steel construction and is equipped with full floating tandem axles and manually

operated landing gear. The MK970 is replacing the aging fleet of M970s and ARCs.

Manufacturer: Heil Trailer International

TECHNICAL CHARACTERISTICS

Dimensions

Overall Length

359 in

Width

96 in

Overall Height

104.5 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

19,000 lbs

Gross Vehicle Weight Rating

53,700 lbs

Performance Information

Fording Depth

30 in

Highway Payload

5,000 gal (3,000 gal w/M931)

Cross Country Payload

5,000 gal (3,000 gal w/M931)

Cab Capacity

N/A

7-3

TM 11240-ODA

SEMI-TRAILER, AIRCRAFT REFUELER, 5000 GALLON, ARMORED, AMK970

TAMCN D02157K NSN

2330-01-559-3657

08089C

DESCRIPTION AND FUNCTION

The AMK970 is the armored version of the MK970 used specifically for Overseas Contingency

Operations. The Ballistic Protection Self Sealing System allows the tank to seal if penetrated by

small arms fire. The AMK970 is a 5,000-gallon fuel dispensing semitrailer designed for

under/over wing refueling of aircraft. It is equipped with a filter/separator, recirculation system

and two refueling systems, one for under wing and one for over wing servicing. The MK31 series

MTVR tractor is the designated prime mover for the tanker. The AMK970 may also be towed by the M931

series 5-ton tractor at a reduced 3000 gallon capacity. The AMK970 can be loaded through the bottom

or through the top fill openings. A ladder is provided at the rear of the semitrailer for access to

the top manhole and a 3-cylinder diesel engine and pump assembly provides self-load/unload

capability. The body is a 5,000-gallon, single compartment, stainless steel tank. The chassis is of

welded steel construction and is equipped with full floating tandem axles and manually operated

landing gear.

Manufacturer: Heil Trailer International Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

359 in

Width

96 in

Height

104.5 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

22,920 lbs

Gross Vehicle Weight Rating

53,700 lbs

Performance Information

Fording Depth

30 in

Highway Payload

5,000 gal (3,000 gal w/M931)

Cross Country Payload

5,000 gal (3,000 gal w/M931)

Cab Capacity

N/A

7-5

TM 11240-ODA

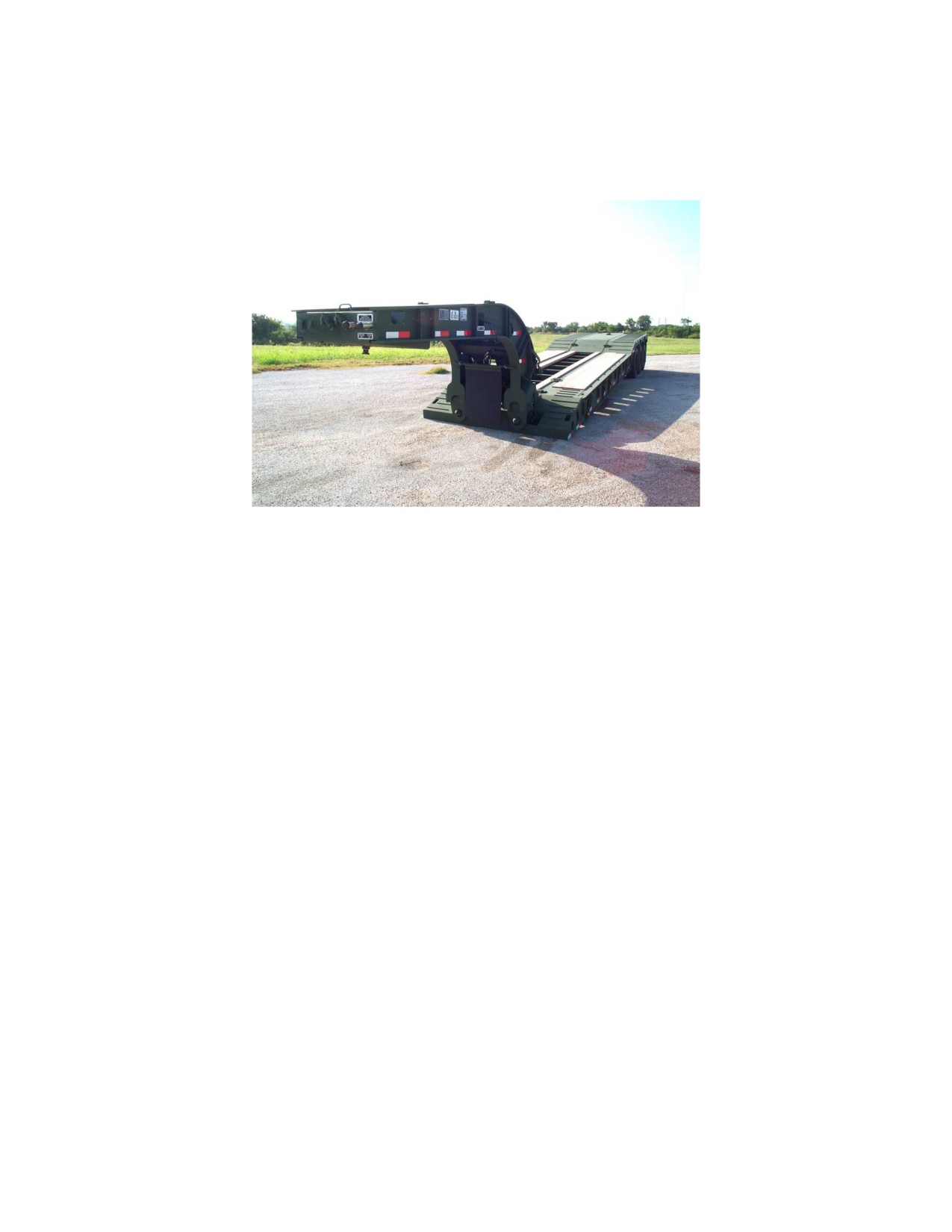

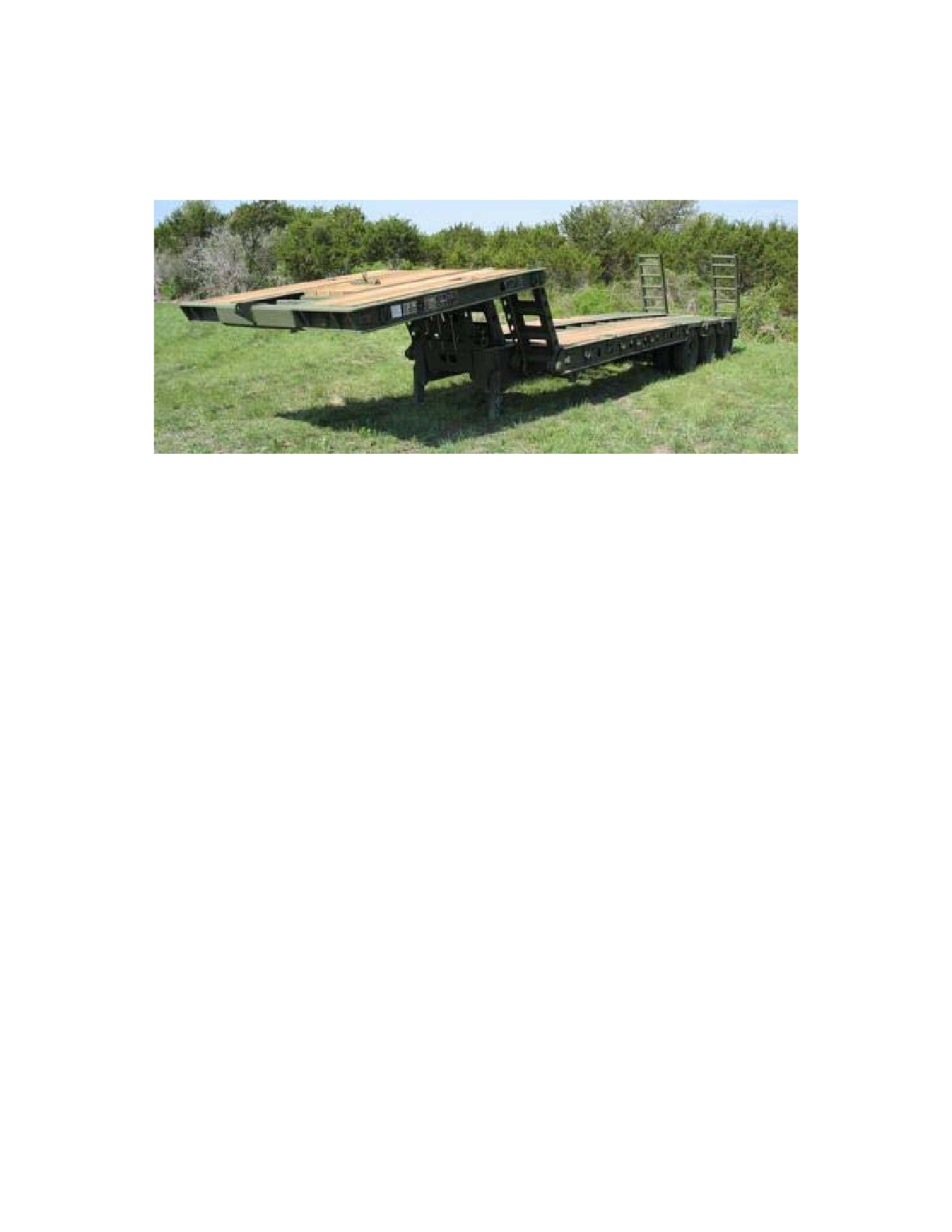

SEMI-TRAILER, LOWBED, 40 TON, MEDIUM HEAVY EQUIPMENT TRANSPORTER

(MHET), M870A2

TAMCN D02357K NSN

2330-01-442-4975

07862C

DESCRIPTION AND FUNCTION

The M870A2 is a three axle Medium Heavy Equipment Transporter (MHET) that is replacing the M870A1

and is designed to haul a payload of 80,000 lbs. (40-ton) in conjunction with an LVS MK48/MK16 fifth

wheel truck tractor, LVSR tractor, or a M931A2 truck tractor with reduced payload. The M870A2

incorporates the Ridewell Corporation air-ride suspension. The primary removable kingpin is 3.5-inch

diameter with an alternate supplied 2-inch diameter kingpin. The M870A2 can be loaded over the folding

front gooseneck or over the rear ramps and is equipped with D ring tie downs and folding and removable

outriggers for wide loads.

Manufacturer: Kalyn Siebert, Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

508 in

Width

96 in

Height

101.3 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

19,600 lbs

Gross Vehicle Weight Rating

99,600 lbs

Performance Information

Fording Depth

30 in

Highway Payload

80,000 lbs

Cross Country Payload

80,000 lbs

Cab Capacity

N/A

Fuel Data

Type of Fuel

N/A

Fuel Tank Capacity

N/A

Fuel Consumption mpg

N/A

Fuel Consumption per hour

N/A

7-7

TM 11240-ODA

SEMI-TRAILER, LOWBED, 40 TON, MEDIUM HEAVY EQUIPMENT TRANSPORTER

(MHET), M870A2-S

TAMCN D02357K NSN

2330-01-534-4570

07862D

DESCRIPTION AND FUNCTION

The M870A2-S is a three axle Medium Heavy Equipment Transporter (MHET) that is replacing the

M870A2 and is designed to haul a payload of 80,000 lbs. (40-ton) in conjunction with an LVS

MK48/MK16 fifth wheel truck tractor, LVSR tractor, or a M931A2 truck tractor with reduced payload.

The M870A2-S incorporates a B-21 Reyco Granning Suspension leaf-spring type suspension. M870A2-S

trailers are procured as new trailers as well as converted M870A2 trailers during depot level repair efforts.

The primary removable kingpin is 3.5-inch diameter with an alternate supplied 2-inch diameter kingpin.

The M870A2-S can be loaded over the folding front gooseneck or over the rear ramps and is equipped with

D ring tie downs and folding and removable outriggers for wide loads.

Manufacturer: Kalyn Siebert, Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

508 in

Width

96 in

Height

101.3 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

19,600 lbs

Gross Vehicle Weight Rating

99,600 lbs

Performance Information

Fording Depth

30 in

Highway Payload

80,000 lbs

Cross Country Payload

80,000 lbs

Cab Capacity

N/A

7-9

TM 11240-ODA

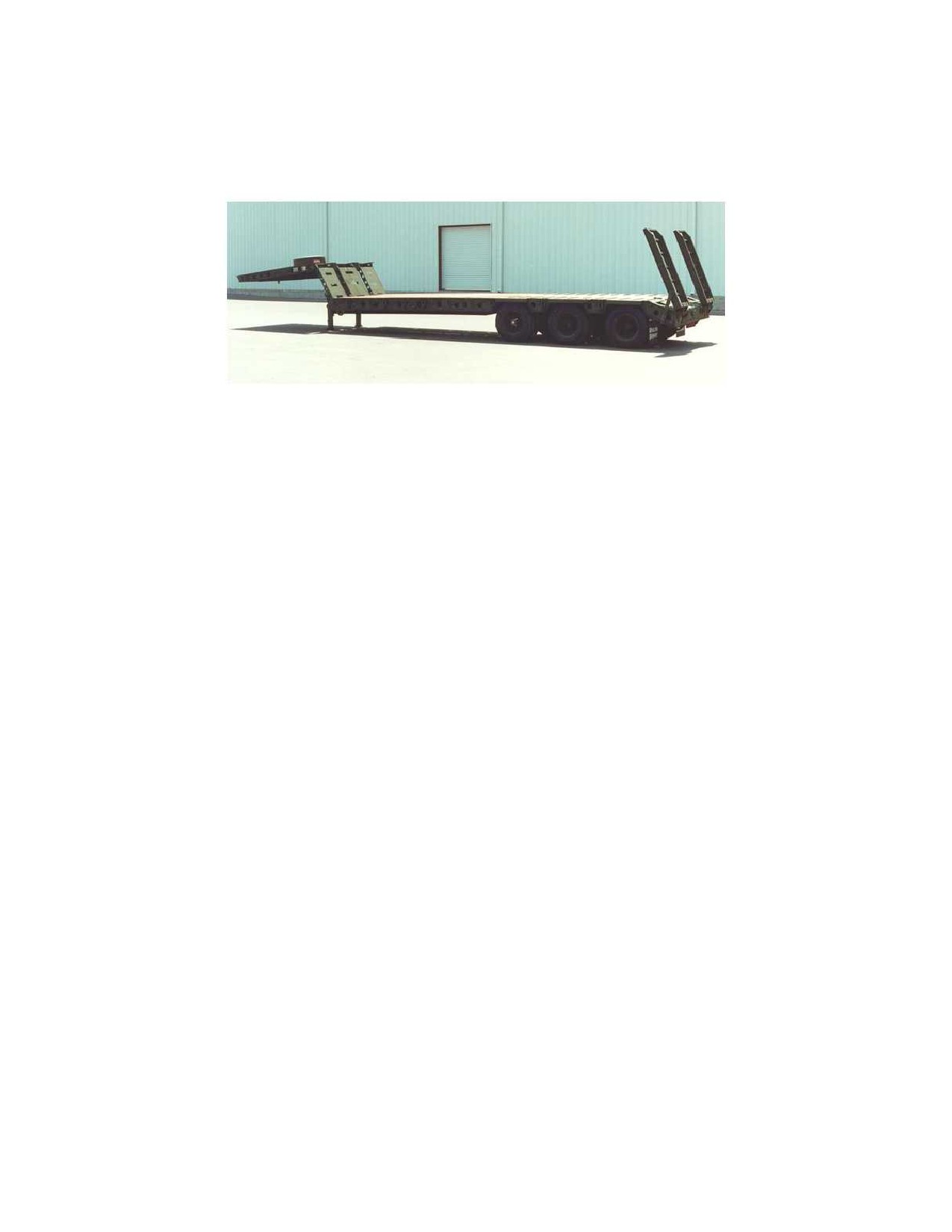

SEMI-TRAILER, LOWBED, 50 TON, MEDIUM HEAVY EQUIPMENT TRANSPORTER

(MHET), M870A2E1

TAMCN D00027K NSN

2330-01-483-8000

10770A

DESCRIPTION AND FUNCTION

The M870A2E1 is a three axle Medium Heavy Equipment Transporter (MHET) is designed to haul AAVs

and the 621B Scraper and is designed to haul a payload of 100,000 lbs. (50-ton) in conjunction with an

LVS MK48/MK16 fifth wheel truck tractor, LVSR MKR16 tractor with reduced payload. The primary

removable kingpin is 3.5-inch diameter with an alternate supplied 2-inch diameter kingpin. The

M870A2E1 has a removable, hydraulically operated gooseneck for the front loading of equipment and is

equipped with D ring tie downs and folding outriggers for wide loads.

Manufacturer: Kalyn Siebert, Inc.

TECHNICAL CHARACTERISTICS

Dimensions

Length

507 in

Width

120 in

Height

48 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

23,360 lbs

Gross Vehicle Weight Rating

123,360 lbs

Performance Information

Fording Depth

30 in

Highway Payload

100,000 lbs

Cross Country Payload

100,000 lbs

Cab Capacity

N/A

7-11

TM 11240-ODA

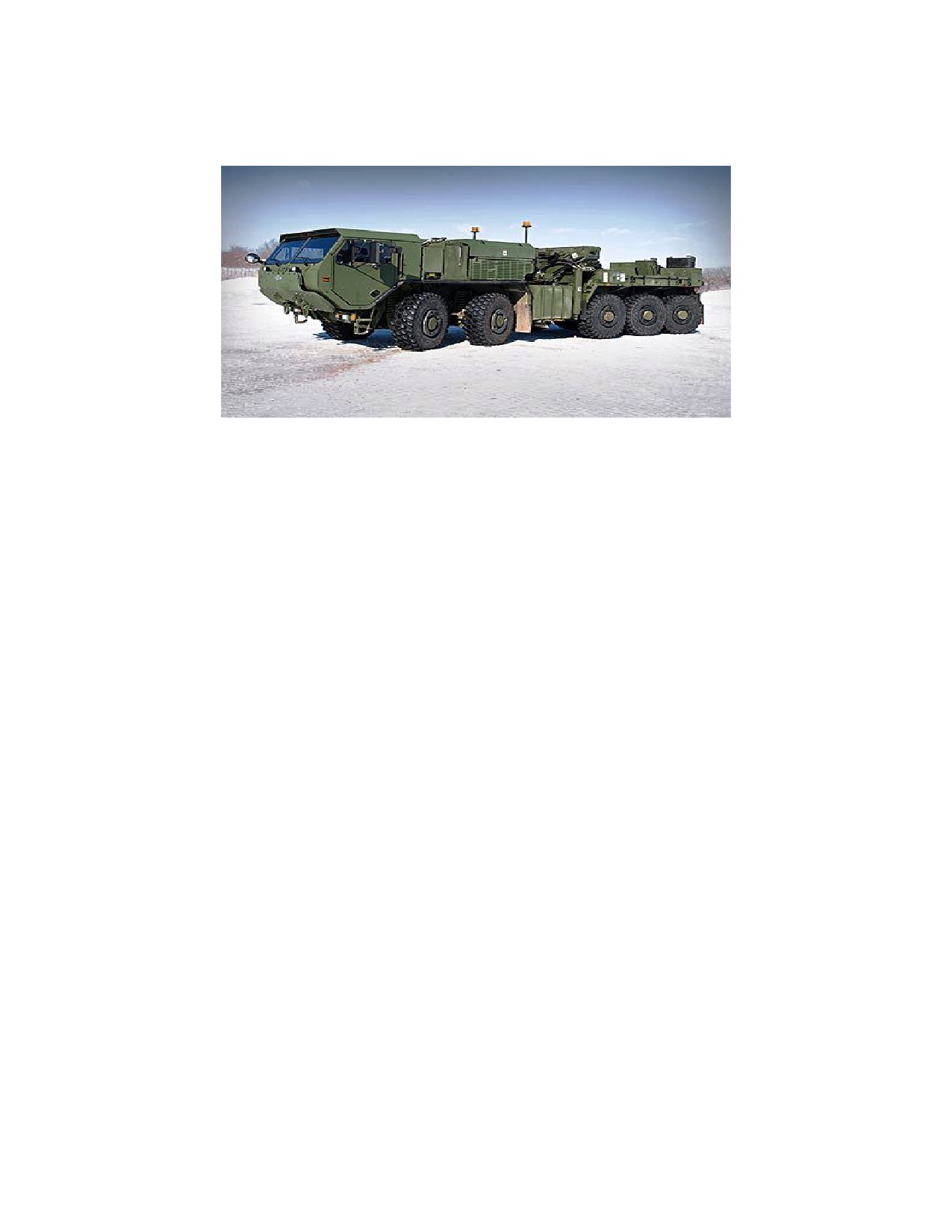

TRUCK, WRECKER, 10X10, LOGISTICS VEHICLE SYSTEM REPLACEMENT

(LVSR), MKR15

TAMCN D12147K NSN

2320-01-543-0651

11321A

DESCRIPTION AND FUNCTION

The MKR15 wrecker is a 10 x 10 truck designed for use on improved roads, highways, and cross-country

terrain. The wrecker is designed to operate in a full range of environmental conditions from extreme

temperatures such as arctic weather conditions, (-50° F. with Arctic Kit) and tropical conditions to +125° F.

The cab forward design provides for a two man-crew. Each cab has integral armor incorporated into the

cab floor to provide protection from mine blast. In addition, a removable armor kit can be added to the cab

providing additional protection against improvised explosive devices and small arms. Each LVSR variant

incorporates a 600-horsepower diesel engine, a seven speed automatic transmission, single-speed transfer

case, front tandem steering and driving axles, and rear tridem driving axles of which the two rear most

axles steer, 16R20 single radial tires on all axles, and a Central Tire Inflation System (CTIS). The wrecker

is equipped with tiedown and lifting provisions. The wrecker is equipped with a pair of aft-deploying

recovery winches with a 78,000 lbs. combined straight-pull rating, reacting on a hydraulically operated

ground anchor. The MKR15 is also furnished with a front mounted self-recovery winch with a 20,000 lbs.

straight-pull rating. The wrecker is capable of flat towing or lift-towing the HMMWV series, FMTV

series, 5-ton M809 and M939 series, LVS series, MTVR series, and LVSR series vehicles. The LVSR

wrecker is capable of towing from a rear pintle, selected trailers up to 53,000 lbs. of gross trailer weight.

The wrecker has a centrally mounted material handling crane, which has a maximum rated lift capacity of

15,000 lbs. at an 11 foot radius. The maximum reach of the crane is 23 feet with a 7820 lbs. capacity

through an arc of 270° (300^o to reach bottles) centered at the rear. Outriggers forward of the crane provide

stabilization during crane operations. The wrecker also includes a 10,000 lbs. cargo deck with integral tie-

downs and ISO locks capable of securing a container. The LVSR Wrecker will replace the MK48/15 and

corresponding A1.

Manufacturer:

Oshkosh Corporation

TECHNICAL CHARACTERISTICS

Dimensions

Length

458.4 in

Width

98 in

Height w/Container Loaded

122.4 in

Reducible Height

102 in

Cargo Deck Height Unloaded

61.9 in

Vehicle Curb Weight (includes BII)

67,840 lbs

Vehicle Curb Weight w/kits* installed

74,180 lbs

Gross Vehicle Weight Rating

106,000 lbs

* Kits include add-on armor, weapons mount, and arctic.

8-3

TM 11240-ODA

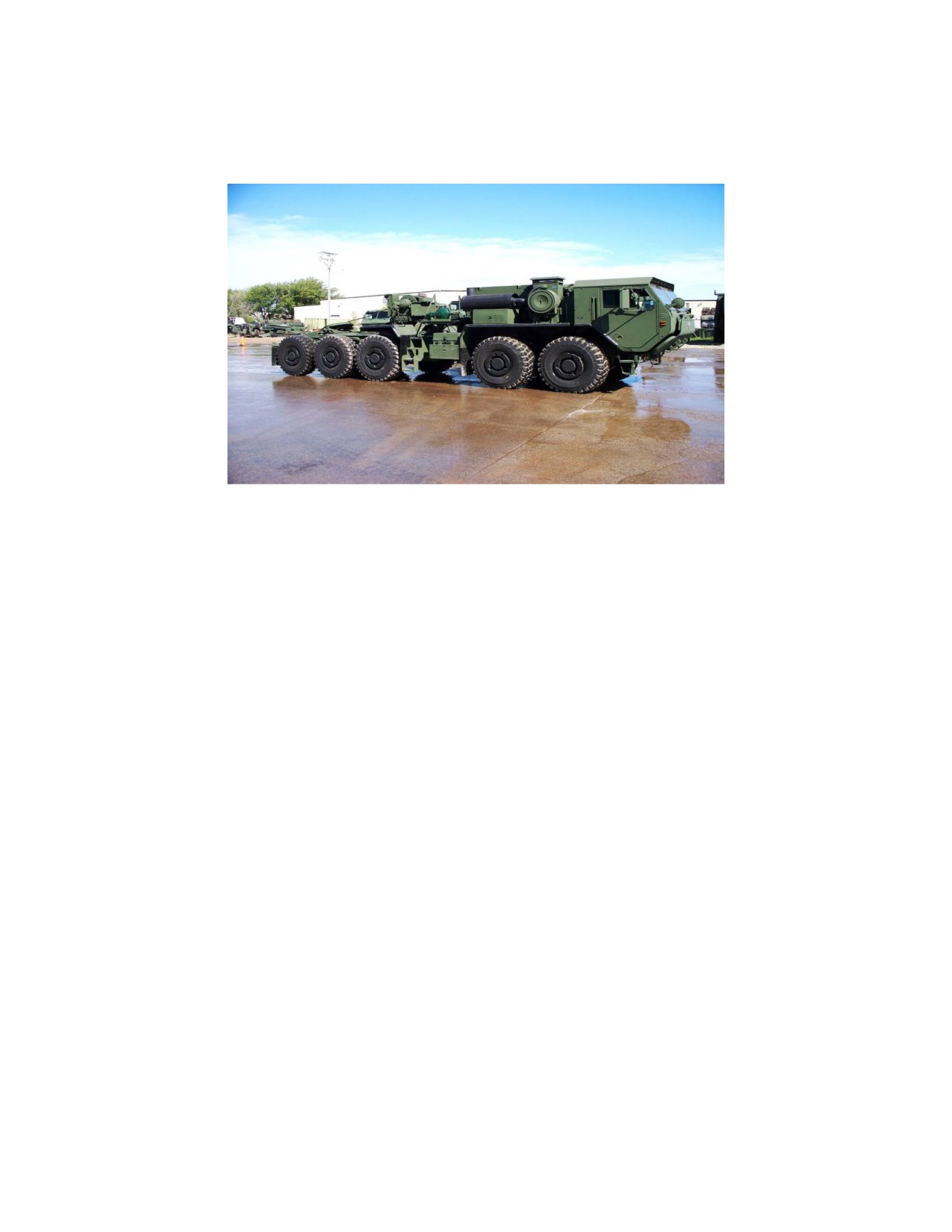

TRUCK, TRACTOR, 10X10, LOGISTICS VEHICLE SYSTEM REPLACEMENT (LVSR), MKR16

TAMCN D08877K NSN

2320-01-542-9941

11313A

DESCRIPTION AND FUNCTION

The MKR16 tractor is a 10 x 10 truck designed for use on improved roads and highways. The tractor is

designed to operate in a full range of environmental conditions from extreme temperatures such as arctic

weather conditions, (-50° F. with Arctic Kit) and tropical conditions to +125° F. The cab forward design

provides for a two man-crew. Each cab has integral armor incorporated into the cab floor to provide

protection from mine blast. In addition, a removable armor kit can be added to the cab providing additional

protection against improvised explosive devices and small arms. Each LVSR variant incorporates a 600-

horsepower diesel engine, a seven speed automatic transmission, single-speed transfer case, front tandem

steering and driving axles, and rear tridem driving axles of which the two rear most axles steer, 16R20

single radial tires on all axles, and a Central Tire Inflation System (CTIS). All vehicles are equipped with

tiedown and lifting provisions, and a pintle hook used for towing trailers up to 53,000 pounds of gross

trailer weight. The tractor is capable of towing the M870 Series Semi Trailers over improved gravel roads

with a 100,000 lbs. payload on the trailer. The tractor is equipped with a 60,000 lbs. self recovery winch to

winch equipment onto the trailer. The LVSR tractor will replace the MK48/16 and corresponding A1

models.

Manufacturer: Oshkosh Corporation

TECHNICAL CHARACTERISTICS

Dimensions

Length

415.5 in

Width

98 in

Height

102 in

Reducible Height

102 in

Vehicle Curb Weight (includes BII)

Vehicle Curb Weight w/kits* installed

56,310 lbs

Gross Vehicle Weight

107,000 lbs

*Kits include add-on armor, weapons mount, and arctic.

8-5

TM 11240-ODA

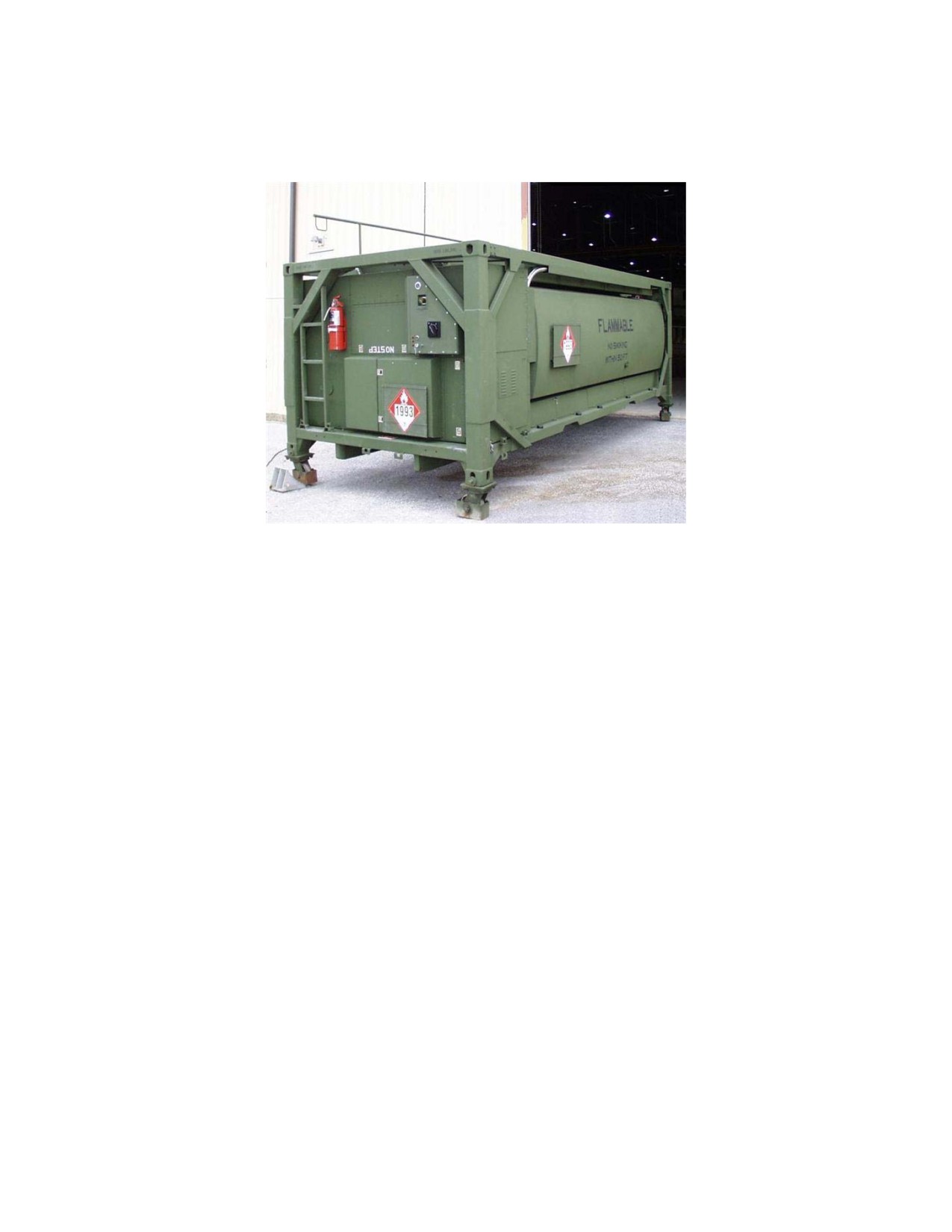

FLATRACK REFUELING CAPABILITY (FRC)

TAMCN D02117K NSN

TBD

Technology Demonstrator

DESCRIPTION AND FUNCTION

The Flatrack Refueling Capability (FRC) is an LVSR compatible system designed to dispense to, and

defuel from, USMC aircraft at forward locations and refuel ground elements. It consists of a 2500-3000

gallon tank, an on-board pump, a filter assembly, and required hoses and equipment.

Manufacturer: TBD

TECHNICAL CHARACTERISTICS

Dimensions

Length

240 in

Width

96 in

Height

96 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

TBD

Performance Information

Fording Depth

TBD

Highway Payload

TBD

Cross Country Payload

TBD

Cab Capacity

N/A

8-7

TM 11240-ODA

TRAILER, CARGO, 4 TON, MK105

TAMCN D08627K NSN

2330-01-539-1567

11281A

DESCRIPTION AND FUNCTION

The MTVR Cargo Trailer is the Marine Corps Medium fleet trailer for transporting break-bulk cargo, and

ammunition. The cargo trailer is designed for use on all types of roads, highways, and cross-country terrain

and it is designed to match the MTVR speeds over these specific terrain types. The cargo trailer is rated for

an 8000 pound payload over all terrain types and is designed to operate in a full range of environmental

conditions from extreme temperatures such as arctic weather conditions -50° F with and tropical conditions

to +125° F. The headboard and tailgates are removable for ease of loading. The trailer incorporates 24 inch

sideboards for cargo containment along with on-board stowage of the tarp, bows, headboard, and tailgate.

There are integral tie-downs located on the side-rails and in the bed of the trailer for various load

configurations. All trailers are equipped with tie down and lifting provisions. The MTVR Cargo Trailer

will replace the current M105 series cargo trailers.

Manufacturer: Choctaw Manufacturing and Development Corporation

TECHNICAL CHARACTERISTICS

Dimensions

Length

200 in

Width

97-5/8 in

Height w/Tarp & Bows installed

124-1/2 in

Reducible Height

70-1/2 in

Cargo Deck Height Unloaded

46-1/2 in

Vehicle Curb Weight (includes BII)

10,600 lbs

Gross Vehicle Weight Rating

18,600 lbs

Performance Information

Fording Depth

60 in

Highway Payload

8,000 lbs

Cross Country Payload

8,000 lbs

Cab Capacity

N/A

8-9

TM 11240-ODA

TRAILER, GENERAL PURPOSE, 4 TON, MK353

TAMCN D00817K NSN

2330-01-538-3207

11271A

DESCRIPTION AND FUNCTION

The MTVR Generator Trailer is the Marine Corps Medium fleet trailer for transporting power generation

equipment. The generator trailer is designed for use on all types of roads, highways, and cross-country

terrain and is designed to match the MTVR speeds over these specific terrain types. The generator trailer is

rated to haul all 30 and 60kW generator sets and is designed to operate in a full range of environmental

conditions from extreme temperatures such as arctic weather conditions -25° F and tropical conditions to

+125° F. The generator trailer also incorporates adjustable mounting hardware to ensure proper load

placement along with two jerry can holders for additional fuel capability. All trailers are equipped with tie

down and lifting provisions. The MTVR Generator Trailer will replace the current M353 general purpose

trailers.

Manufacturer: Choctaw Manufacturing and Development Corporation

TECHNICAL CHARACTERISTICS

Dimensions

Length

200 in

Width

97-5/8 in

Height

111 in

Reducible Height

59-1/8 in

Cargo Deck Height Unloaded

45-3/4in

Vehicle Curb Weight (includes BII)

10,705 lbs

Gross Vehicle Weight Rating

18,705 lbs

Performance Information

Fording Depth

60 in

Highway Payload

8,000 lbs

Cross Country Payload

8,000 lbs

Cab Capacity

N/A

8-11

TM 11240-ODA

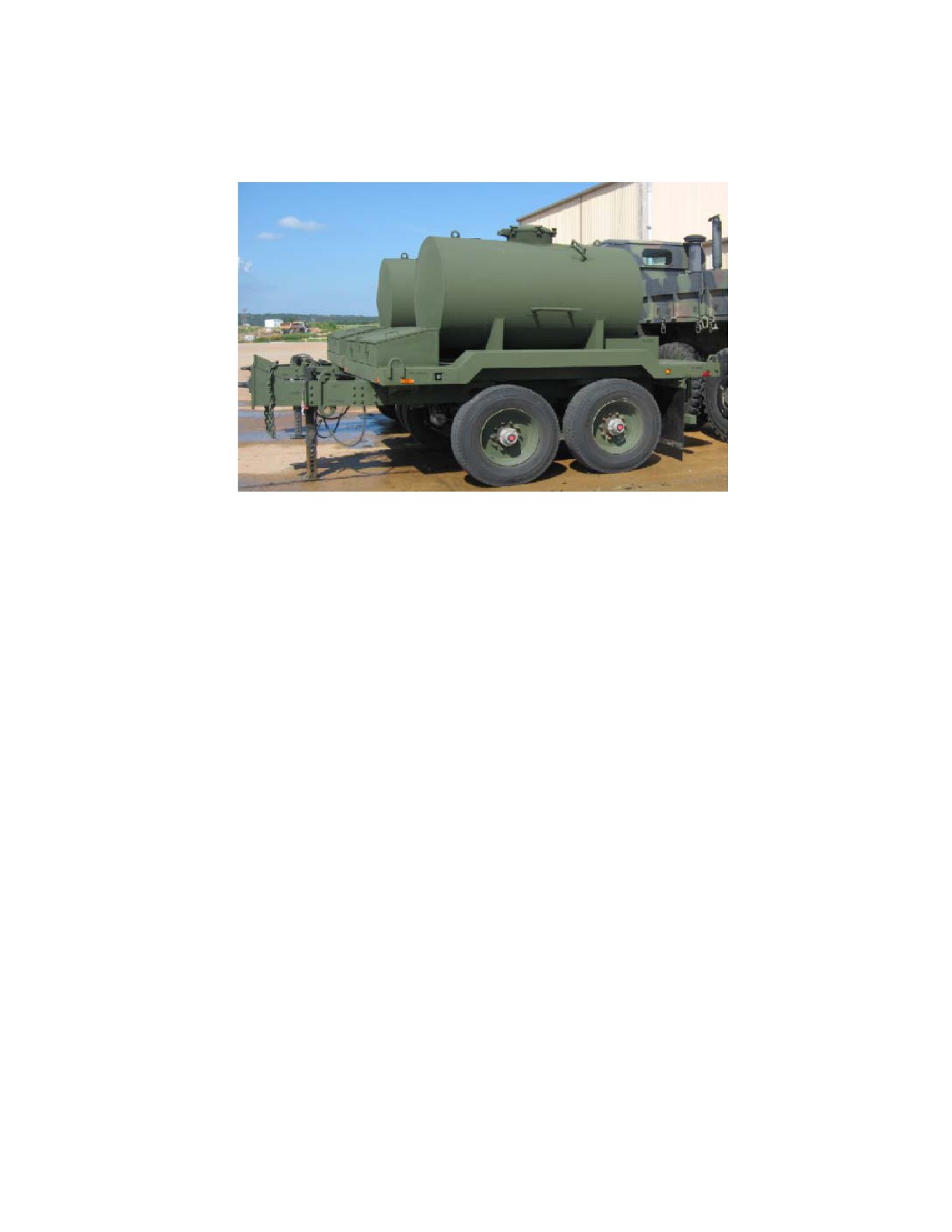

TRAILER, TANK, WATER, 600 GALLON, MK149

TAMCN D08827K NSN

2330-01-538-6359

11268A

DESCRIPTION AND FUNCTION

The MTVR Water Trailer is the Marine Corps Medium fleet trailer for transporting potable water.

The water trailer is designed for use on all types of roads, highways, and cross-country terrain and is

designed to match the MTVR speeds over these specific terrain types. The water trailer is rated for 600

gallons over all terrain types and is designed to operate in a full range of environmental conditions from

extreme temperatures such as arctic weather conditions (-25° F w/o a heater kit) and tropical conditions to

+125° F. The water trailer has an 18 inch hatch to allow for easy ingress to the tank for cleaning. The

trailer contains three visual level indicators in the rear of the tank for accurate water level indication. The

dispensing unit is removable and stowable on the trailer to ensure safe transport of the dispensing system

without damage. The dispensing system contains 6 dispensing points that allow efficient filling of 5-gallon

cans and canteens. All trailers are equipped with tie down and lifting provisions. The MTVR Water

Trailer will replace the current M149 series water bulls.

Manufacturer: Choctaw Manufacturing and Development Corporation

TECHNICAL CHARACTERISTICS

Dimensions

Length

200 in

Width

97-5/8in

Height

110-3/4 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

10,773 lbs

Gross Vehicle Weight Rating

15,880 lbs

Performance Information

Fording Depth

60 in

Highway Payload

600 gal

Cross Country Payload

600 gal

Cab Capacity

N/A

8-13

TM 11240-ODA

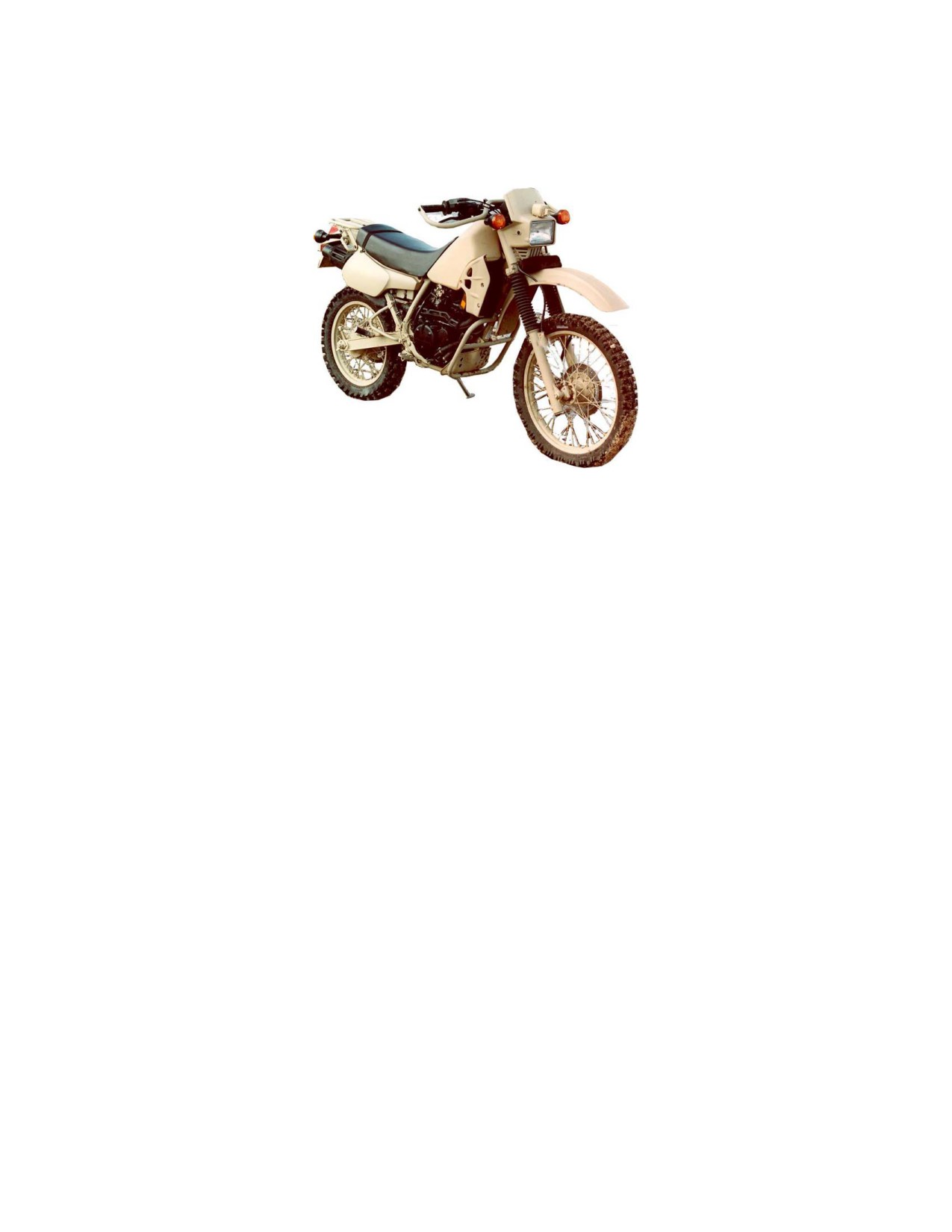

MOTORCYCLE, MILITARY, M1030

TAMCN D02017K NSN

2340-01-340-5246

09580A

DESCRIPTION AND FUNCTION

The M1030 is a lightweight, rugged, commercial, cross-country motorcycle that has been modified for

military use. It provides an alternate means of transporting messages, documents and light cargo between

units. The M1030 may also be used to transport forward observers, military police and reconnaissance

personnel. It is equipped with two detachable document-carrying cases. The size and construction of the

M1030 makes it highly mobile on all roads and cross-country terrain. The 1991 model M1030 replaces the

1984 KLR 250.

Manufacturer: Kawasaki/Hayes Diversified Technologies

TECHNICAL CHARACTERISTICS

Dimensions

Length

84.25 in

Width

56 in

Height

47.5 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

355 lbs

Gross Vehicle Weight Rating

600 lbs

Performance Information

Fording Depth

24 in

Highway Payload

N/A

Cross Country Payload

N/A

Cab Capacity

9-3

TM 11240-ODA

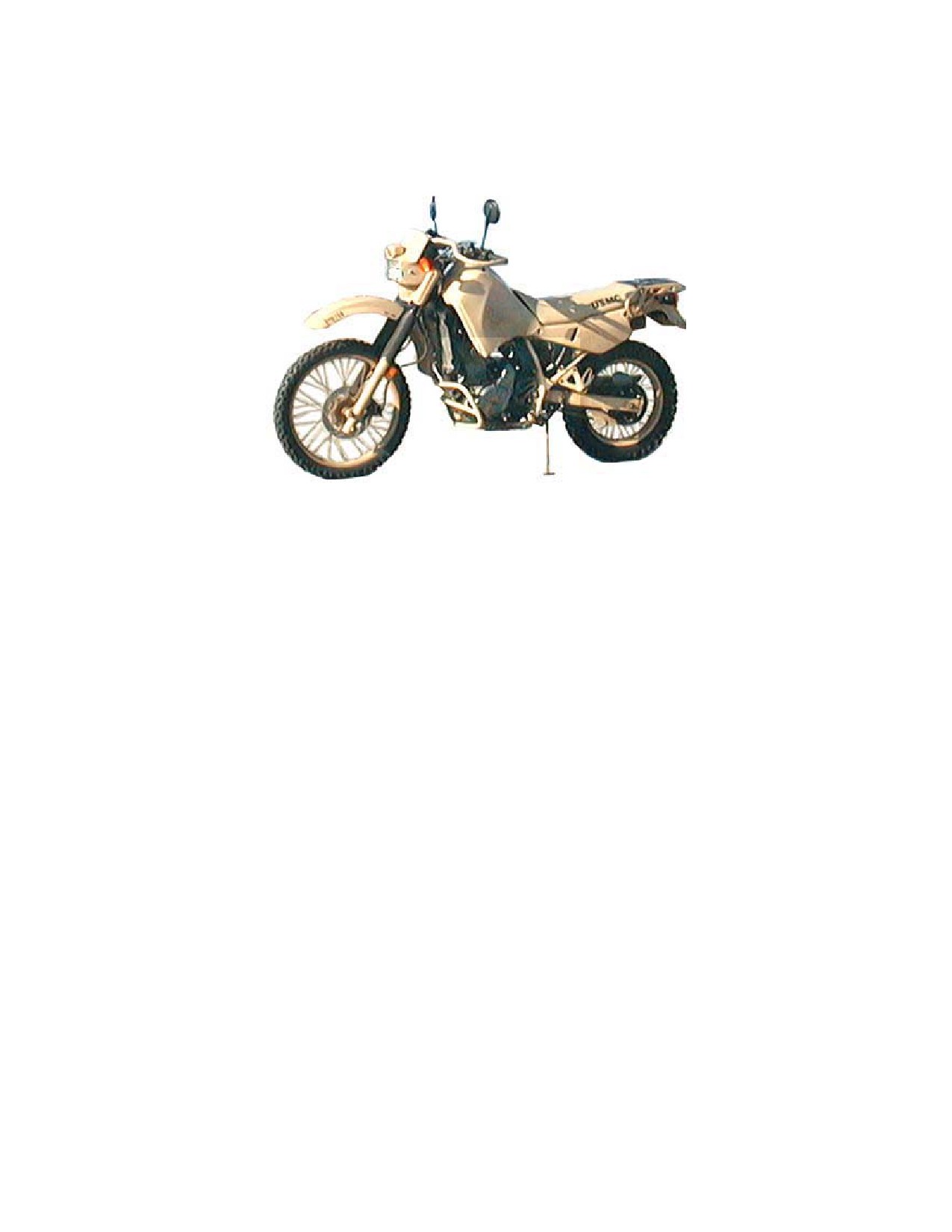

MOTORCYCLE, MILITARY, M1030B1

TAMCN D02017B

NSN

2340-01-465-2533

09580B

DESCRIPTION AND FUNCTION

The M1030B1 Motorcycle is a two-wheeled, gasoline powered, dual purpose on and off road utility

vehicle. The motorcycle is a commercially available Kawasaki KRL 650 modified for military use by

Hayes Diversified Technologies. The M1030B1 will be employed in garrison and field environments and

is designed to perform in all weather conditions (except snow and ice). The M1030B1 can be used for

tactical and urban reconnaissance, convoy control and military police functions. The M1030B1 is the

replacement for the M1030 KRL 250 Motorcycle.

Manufacturer: Kawasaki

TECHNICAL CHARACTERISTICS

Dimensions

Length

85 in

Width

36 in

Height

54 in

Reducible Height

N/A

Cargo Deck Height Unloaded

N/A

Vehicle Curb Weight (includes BII)

358 lbs

Performance Information

Fording Depth

24 in

Highway Payload

N/A

Cross Country Payload

N/A

Cab Capacity

9-5

TM 11240-ODA

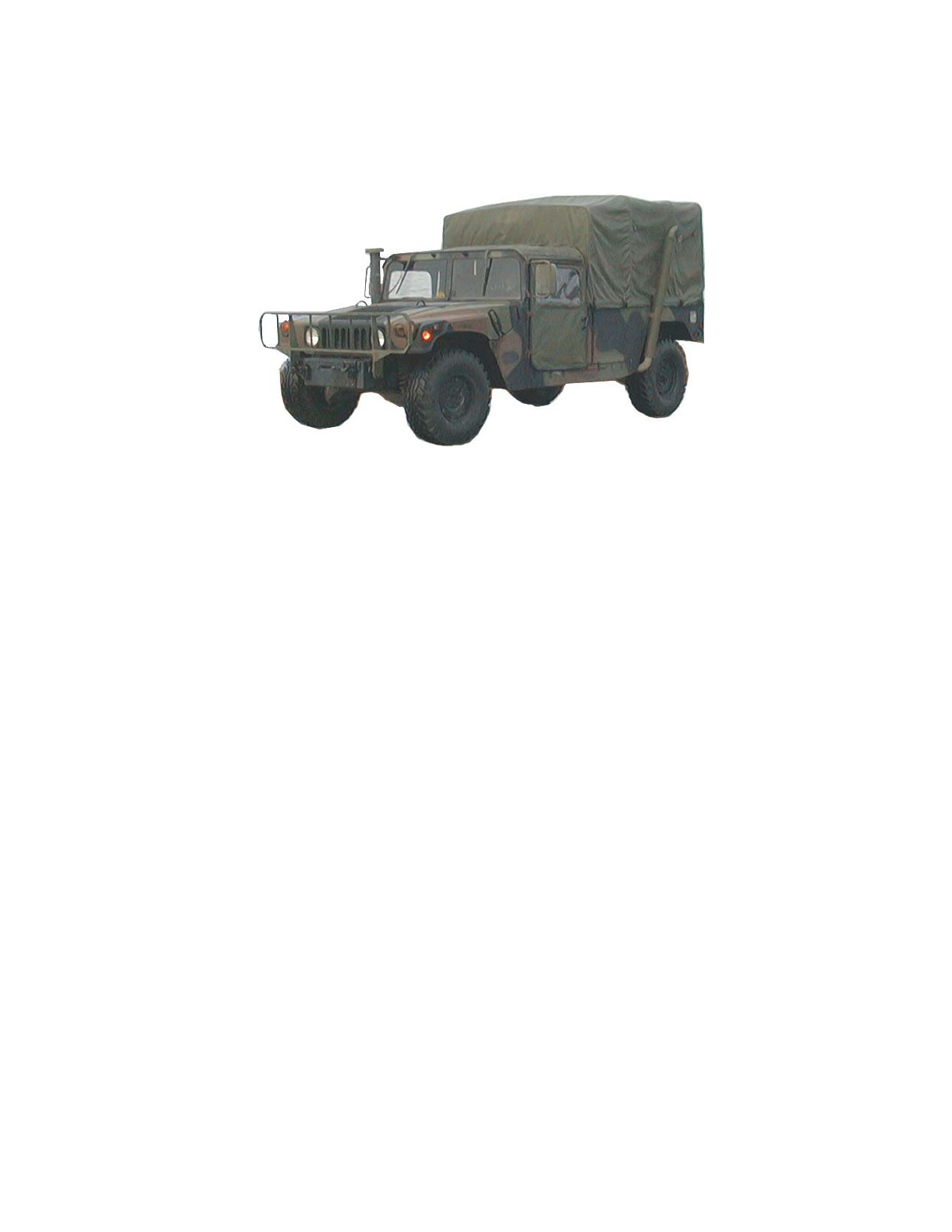

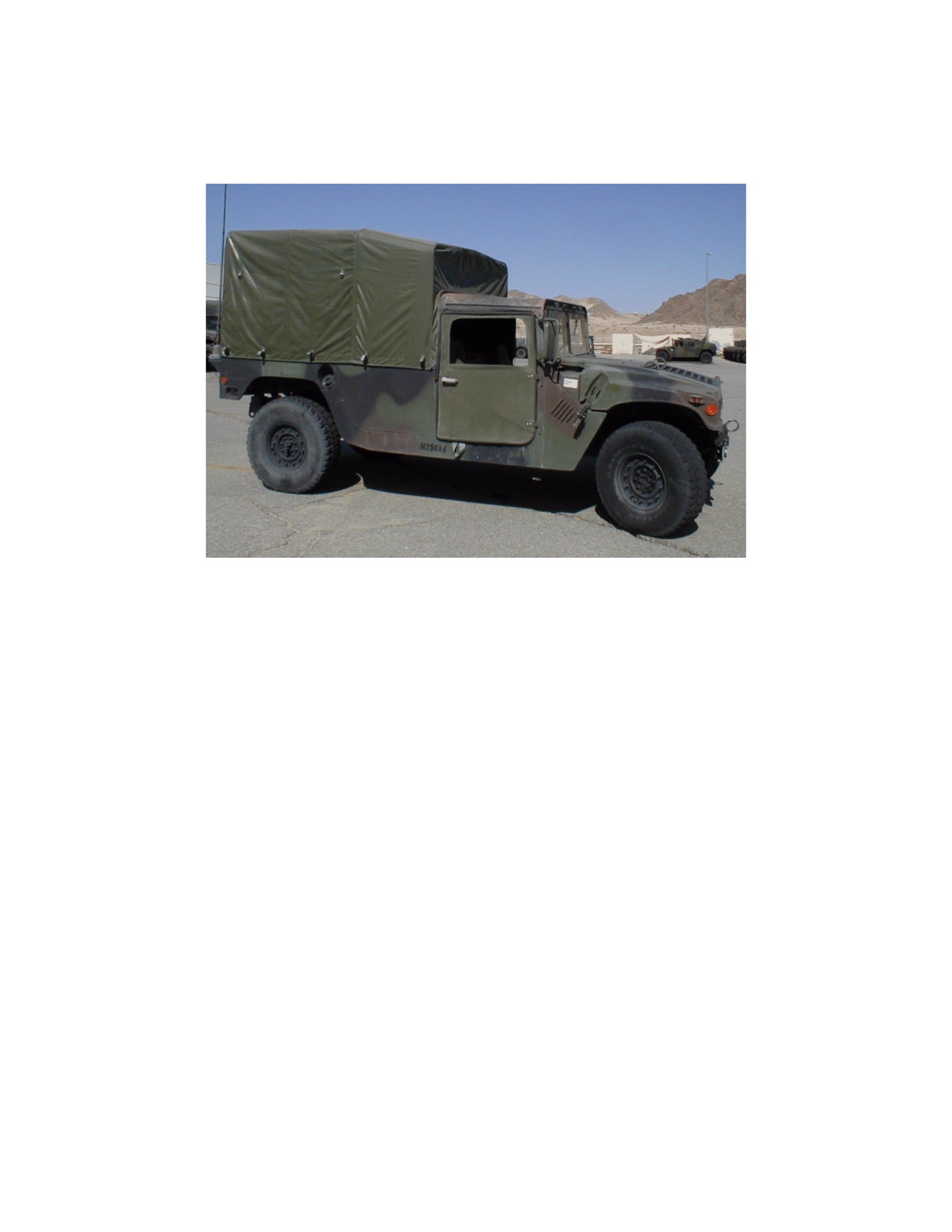

TRUCK, UTILITY, CARGO/TROOP CARRIER, M998

TAMCN D11587K NSN

2320-01-107-7155

08770A

DESCRIPTION AND FUNCTION

The M998 is the baseline vehicle for the M998 series of 1-1/4 ton trucks, which are also known as the High

Mobility, Multi-Purpose, Wheeled Vehicles (HMMWV). It is used to transport equipment, materials,

crews and up to eight passengers. The M998 is an open aluminum body, canvas top, general-purpose

tactical truck designed for use over all types of roads and in all weather conditions. Its high power to

weight ratio, four-wheel drive and high ground clearance combine to give it cross-country mobility. The

M998 series contains metric components and requires metric common and vehicle unique tools. It is

equipped with a towing pintle for towing and tie-down/lifting eyes for air, rail, highway or ocean shipment.

Manufacturer:

AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

182.5 in

Width

86 in

Height

73.5 in

Reducible Height

56 in

Cargo Deck Height Unloaded

39 in

Vehicle Curb Weight (includes BII)

5,850 lbs

Gross Vehicle Weight Rating

10,300 lbs

9-7

TM 11240-ODA

TRUCK, UTILITY, CARGO/TROOP CARRIER, M998 - CONT’D

Performance

Fording Depth

30 in (60 in w/kit)

Highway Payload

2,500 lbs

Cross Country Payload

2,500lbs

Cab Capacity

1+1

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25.5 gal

Fuel Consumption mpg

4.3 mpg

Fuel Consumption per hour

14 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Apr 1985

Service Life

15 yrs

Planned Exit Date

1 Aug 2008

Special Tool Kits

TAMCN: D04752E Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

9-8

TM 11240-ODA

TRUCK, UTILITY, CARGO/TROOP CARRIER, M1038

TAMCN D11587K

NSN

2320-01-107-7156

08771A

DESCRIPTION AND FUNCTION

The basic difference between the M1038 and M998 is that the M1038 is fitted with an 8,000-pound

capacity electric winch on the front bumper. The winch feature affects vehicle length, weight, shipping

dimensions and approach angle and can be installed on any M998 to convert it to an M1038.

Manufacturer:

AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

185 in

Width

85 in

Height

69 in

Reducible Height

55 in

Cargo Deck Height Unloaded

39 in

Vehicle Curb Weight (includes BII)

5,140 lbs

Gross Vehicle Weight Rating

8,500 lbs

Performance Information

Fording Depth

30 in (60 in w/ kit)

Highway Payload

2,500 lbs

Cross Country Payload

2,500 lbs

Cab Capacity

1+1

9-9

TM 11240-ODA

TRUCK, UTILITY, ARMAMENT CARRIER, M1043

TAMCN D11597K NSN

2320-01-146-7190

08776A

DESCRIPTION AND FUNCTION

The M1043 is an armament carrier (with supplemental armor) model of the M998 series of 1-1/4 ton

trucks. Its intended purpose is to primarily be a weapons carrier in the Heavy Machine gun Section,

Weapons Company, Infantry Battalion. The M1043 is a fully enclosed, aluminum body tactical truck,

fitted with additional aluminum armor providing added ballistic protection to the crew, equipment and

ammunition. It is designed as a weapons platform for the M240G, 7.62mm machine gun, the M2 .50

caliber machine gun and the MK19 40mm machine gun. It also transports weapon spares, ammunition and

a crew of two. The M1043 features a hatch on top of the body and a mount capable of mounting any of the

three machine guns. Its chassis, mechanical components and performance are the same as other models of

the M998 series.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

180 in

Width

85 in

Height

73 in

Reducible Height

71 in

Cargo Deck Height Unloaded

39 in

Vehicle Curb Weight (includes BII)

7,210 lbs

Gross Vehicle Weight Rating

10,300 lbs

9-11

TM 11240-ODA

TRUCK, UTILITY, ARMAMENT CARRIER, M1043 - CONT’D

Performance Information

Fording Depth

30 in (60 in w/kit)

Highway Payload

2,500 lbs

Cross Country Payload

2,500 lbs

Cab Capacity

1+3

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

4.3 mpg

Fuel Consumption per hour

14 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Aug 1985

Service Life

15 yrs

Planned Exit Date

1 Aug 2004

Special Tool Kits

TAMCN: D04752E Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

9-12

TM 11240-ODA

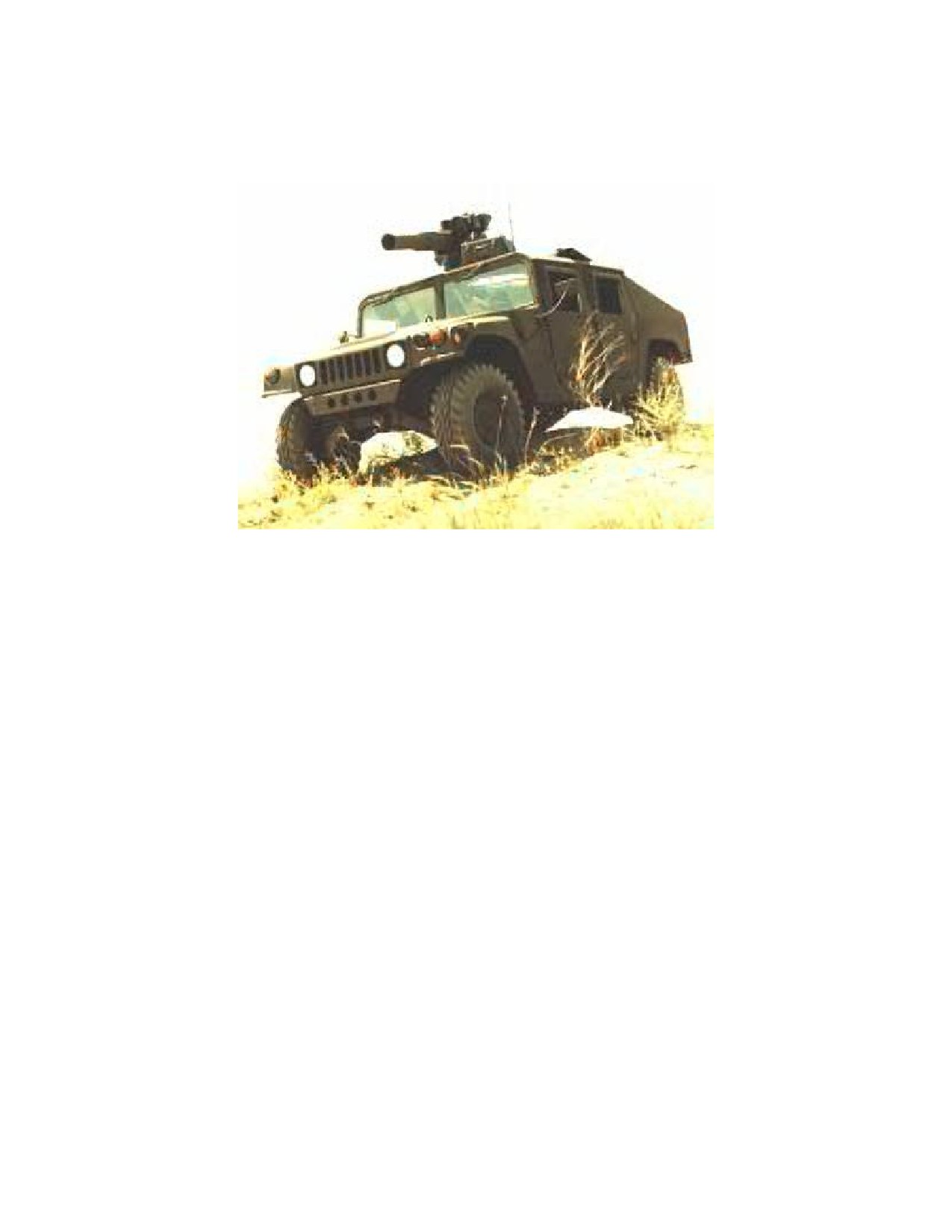

TRUCK, UTILITY, TOW CARRIER, M1045

TAMCN D11257K NSN

2320-01-371-9580

08778A

DESCRIPTION AND FUNCTION

The M1045 is the Tube Launched, Optically-Tracked, Wire-Guided (TOW) missile carrier (with

supplemental armor) model of the M998 series of tactical truck designed to provide added ballistic

protection to the crew, equipment and ammunition. The M1045 is designed to carry the M220E2 TOW

missile launcher, six TOW missiles and a crew of two. The M1045 features a hatch on top of the body and

an external mount for the M220E2 TOW launcher. When the Vehicle Power Conditioner (VPC) cables are

connected to the M220E2, traverse is limited to 300 degrees left or right of the vehicle centerline. With the

M220E2 installed, elevation is limited to 20 degrees and depression is limited to 10 degrees. Its chassis,

mechanical components and performance are the same as other models of the M998 series.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

180 in

Width

85 in

Height

73 in

Reducible Height

71 in

Cargo Deck Height Unloaded

39 in

Vehicle Curb Weight (includes BII)

7,264 lbs

Gross Vehicle Weight Rating

10,300 lbs

9-13

TM 11240-ODA

TRUCK, UTILITY, TOW CARRIER, M1045 - CONT’D

Performance Information

Fording Depth

30 in (60 in w/kit)

Highway Payload

2,500 lbs

Cross Country Payload

2,500 lbs

Cab Capacity

1+3

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

4.3 mpg

Fuel Consumption per hour

14 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Aug 1985

Service Life

15 yrs

Planned Exit Date

1 Aug 2009

Special Tool Kits

TAMCN: D04752E Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

9-14

TM 11240-ODA

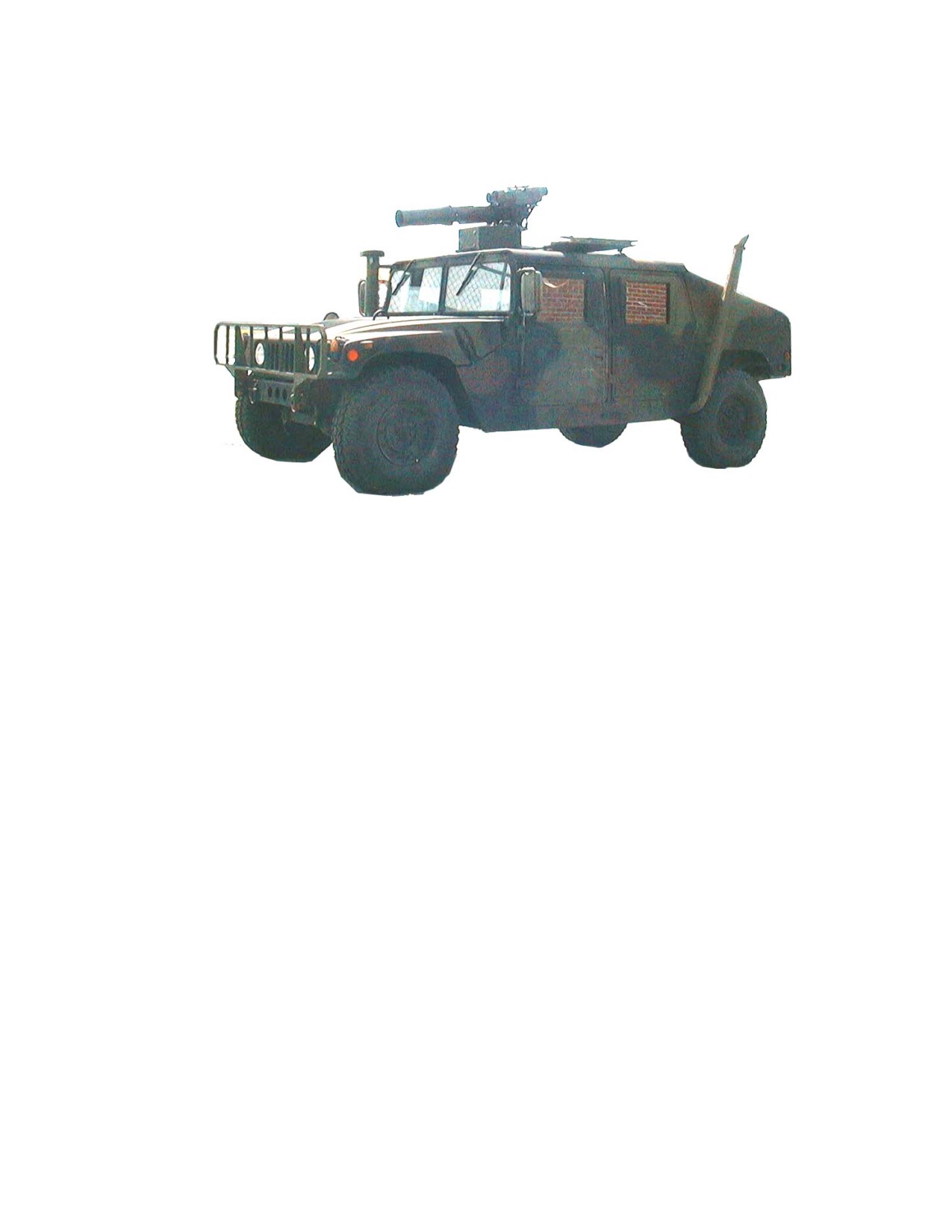

TRUCK, UTILITY, TOW CARRIER, M1046

TAMCN D11257K NSN

2320-01-146-7188

08779A

DESCRIPTION AND FUNCTION

The basic difference between the M1046 and the M1045 is that the M1046 is equipped with an 8,000-

pound capacity electric winch located on the front bumper. The winch feature affects vehicle length,

weight, shipping dimensions and approach angle and can be installed on any M1045 to convert it to an

M1046.

Manufacturer:

AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

185 in

Width

85 in

Height

73 in

Reducible Height

71 in

Cargo Deck Height Unloaded

39 in

Vehicle Curb Weight (includes BII)

7,264 lbs

Gross Vehicle Weight Rating

10,300 lbs

Performance Information

Fording Depth

30 in (60 in w/ kit)

Highway Payload

2,500 lbs

Cross Country Payload

2,500 lbs

Cab Capacity

1+3

9-15

TM 11240-ODA

TRUCK, UTILITY, TOW CARRIER, M1046 - CONT’D

Performance Information

Fording Depth

30 in. (60 in. w/kit)

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

4.3 mpg

Fuel Consumption per hour

14 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Aug 1985

Service Life

15 yrs

Planned Exit Date

1 Aug 2004

Special Tool Kits

TAMCN: D04752E Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

9-16

TM 11240-ODA

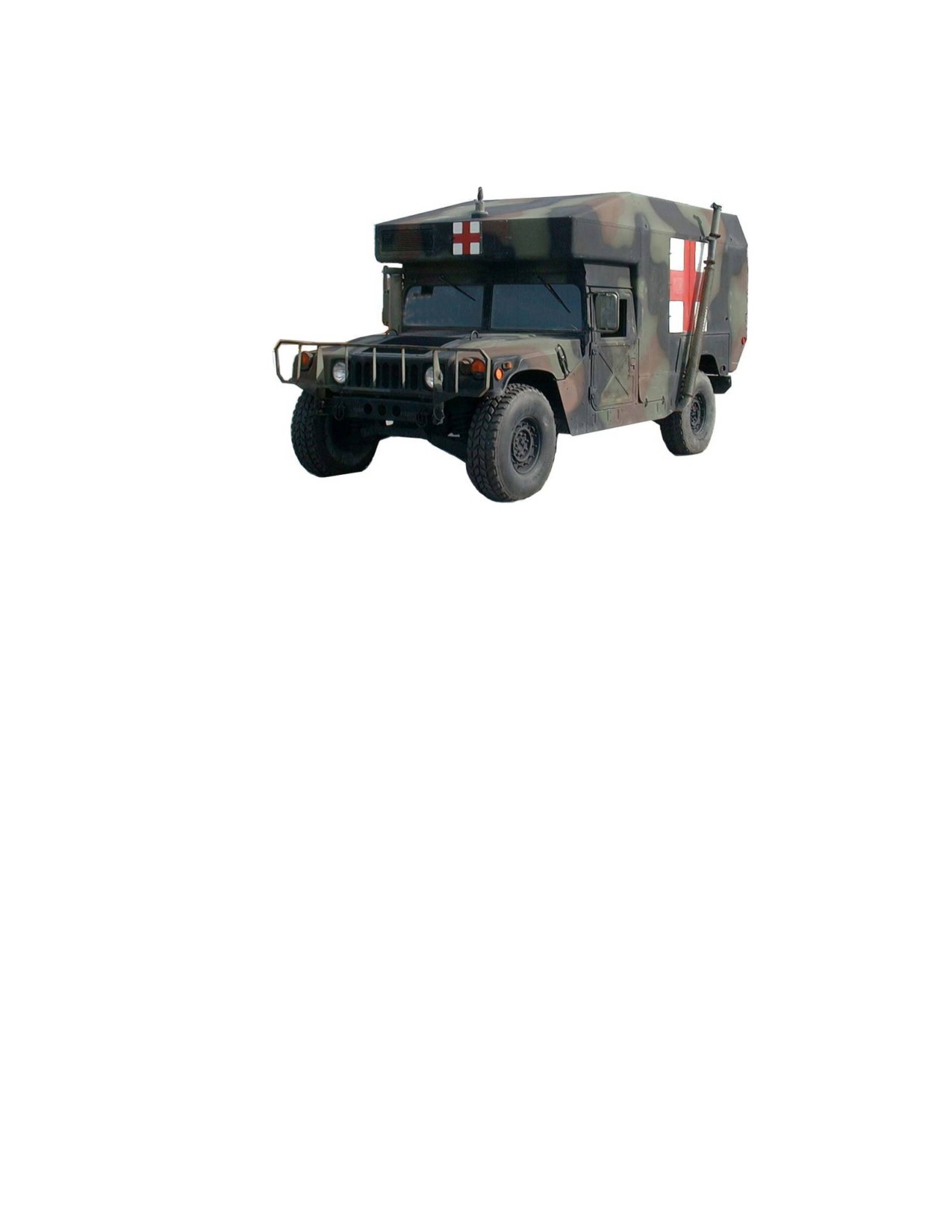

TRUCK, AMBULANCE, 4-LITTER, M997

TAMCN D10017K NSN

2310-01-111-2274

08991A

DESCRIPTION AND FUNCTION

The M997 is capable of transporting up to four litter patients, eight ambulatory patients or a combination of

litter and ambulatory patients. Additionally, medical personnel and equipment and a driver can be

accommodated in the vehicle. The ambulance can be heated, ventilated or air conditioned, depending on

environmental conditions. For operation in a NBC environment, the M997 is equipped with a Gas-

Particulate Filter Unit (GPFU) with heaters capable of supporting up to seven personnel equipped with the

M25 series protective masks or M13 series of patient protective masks. The GPFU forces temperature

controlled filtered air to the mask face pieces, which increases protection, eases breathing and reduces

stress and heat fatigue during extended periods of NBC operation.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

202 in

Width

85 in

Height

100 in

Reducible Height

N/A

Cargo Deck Height Unloaded

39 in

Vehicle Curb Weight (includes BII)

7,770 lbs

Gross Vehicle Weight Rating

10,300 lbs

9-17

TM 11240-ODA

TRUCK, AMBULANCE, 4-LITTER, M997 - CONT’D

Performance Information

Fording Depth

30 in (60 in w/ kit)

Highway Payload

2,500 lbs

Cross Country Payload

2,500 lbs

Cab Capacity

1+1

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

4.3 mpg

Fuel Consumption per hour

14 gal/hr @ 60 mph

Acquisition Information

In Service Date

1 Apr 1986

Service Life

15 yrs

Planned Exit Date

1 Aug 2004

Special Tool Kits

TAMCN: D04752E Tool Kit, 2D ECH, HMMWV

SL-3-09947A

NSN: 5180-01-216-8655

D04762E Tool Kit, FM, 3D ECH, HMMWV

5180-01-198-7593

D04772E Tool Kit, FM, 4^th ECH, HMMWV

5180-01-198-7594

9-18

TM 11240-ODA

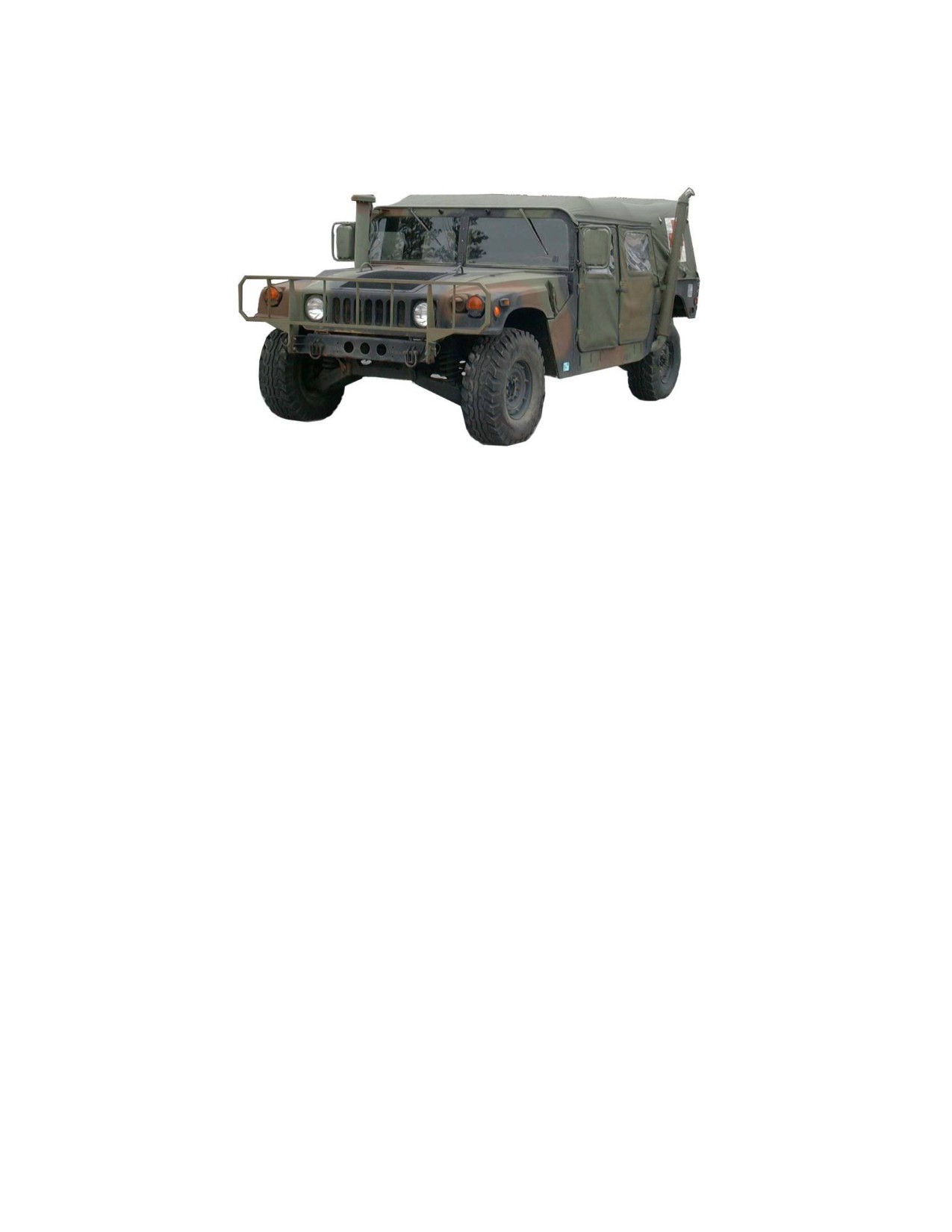

TRUCK, AMBULANCE, 2-LITTER, SOFT TOP, M1035

TAMCN D10027K NSN

2310-01-146-7194

08774A

DESCRIPTION AND FUNCTION

The M1035 is an ambulance variant of the M998 series of 1-1/4 ton trucks. It is a soft-top version that has

no armor protection for the crew or patients. The vehicle is capable of transporting two litter patients and a

heater is provided for patient comfort. Its chassis, mechanical components and general performance are the

same as other models of the M998 series.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

180 in

Width

85 in

Height

69 in

Reducible Height

55 in

Cargo Deck Height Unloaded

39 in

Vehicle Curb Weight (includes BII)

6,100 lbs

Gross Vehicle Weight Rating

10,300 lbs

Performance Information

Fording Depth

30 in (60 in w/ kit)

Highway Payload

2,500 lbs

Cross Country Payload

2,500 lbs

Cab Capacity

1+1

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

25 gal

Fuel Consumption mpg

4.3 mpg

Fuel Consumption per hour

14 gal/hr @ 60 mph

9-19

TM 11240-ODA

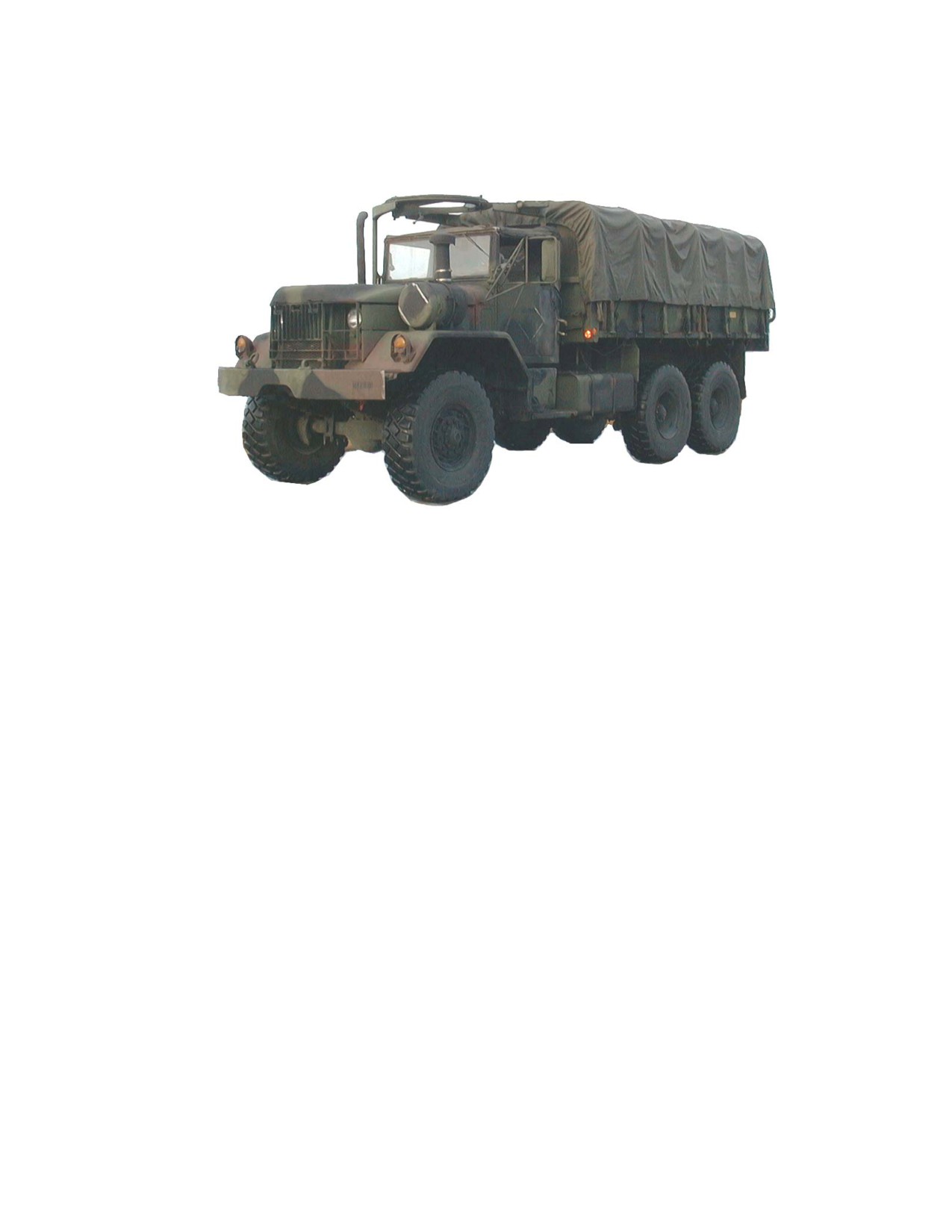

TRUCK, CARGO, DROPSIDE, W/O WINCH, M813A1

TAMCN D10597K NSN

2320-00-050-8913

08262A

DESCRIPTION AND FUNCTION

The M813A1 truck belongs to the M809 series of 5 ton trucks. It is utilized to transport equipment,

material and/or personnel. The truck is a flat bed, open cab, canvas top, general purpose, 6x6 truck

retrofitted with Super Single 1400R20 steel belted, non-directional radial tires. The cargo compartment is

equipped with hinged, steel sides that can be folded down and out of the way for loading and unloading

operations. Removable front and side racks, troop seats and a hinged tailgate are provided. Bows and a

tarpaulin can be installed, if required. A towing pintle is fitted for the towing of various trailers and

howitzers.

Manufacturer: AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

303.7 in

Width

97.5 in

Height

116.8 in

Reducible Height

85.1 in

Cargo Deck Height Unloaded

Vehicle Curb Weight (includes BII)

10,455 lbs

Gross Vehicle Weight Rating

20,455 lbs

Performance Information

Fording Depth

60 in

Highway Payload

10,000 lbs

Cross Country Payload

10,000 lbs

Cab Capacity

1+1

9-21

TM 11240-ODA

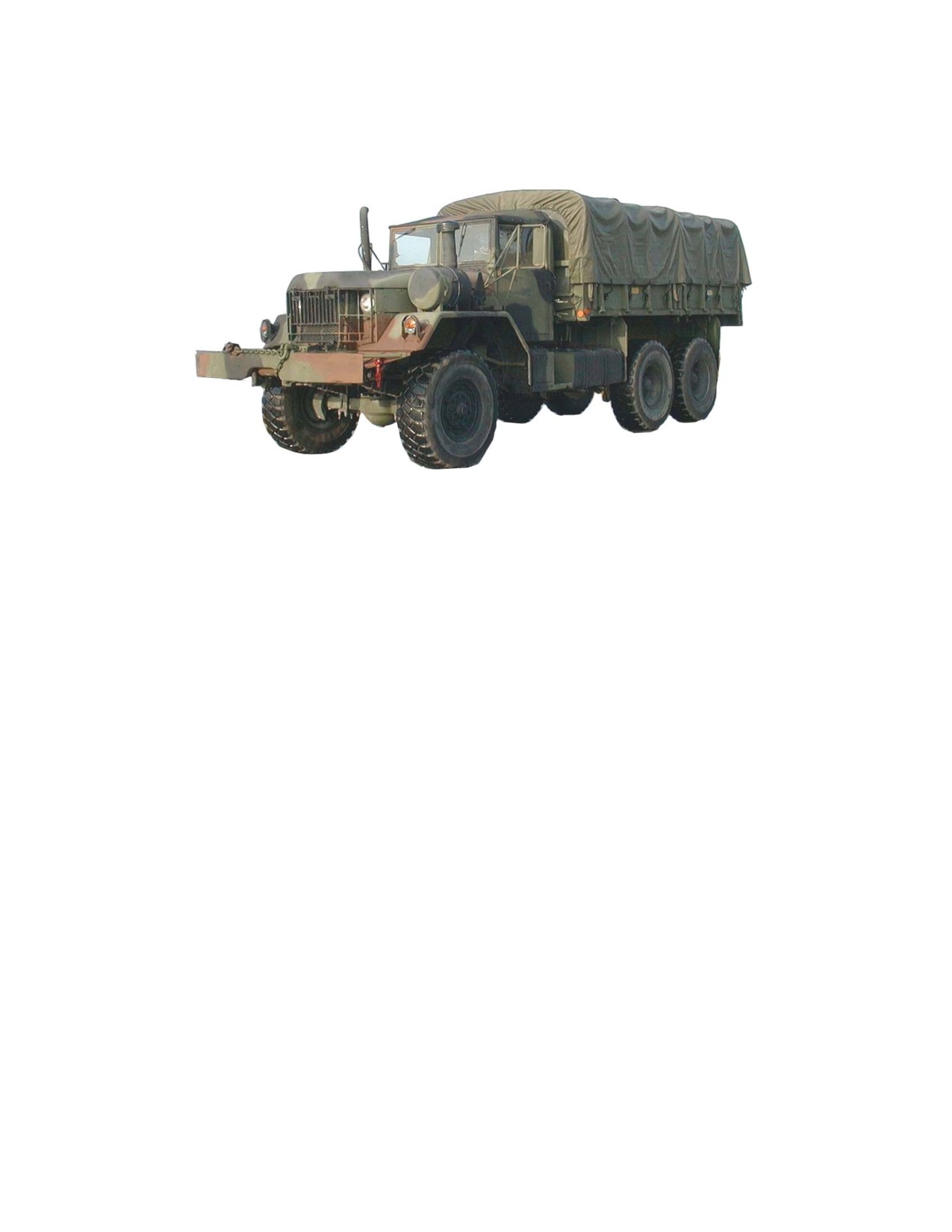

TRUCK, CARGO, DROPSIDE, W/WINCH, M813A1

TAMCN D10597K NSN

2320-00-050-8905

08263A

DESCRIPTION AND FUNCTION

This version of the M813A1 differs from the other in that it is equipped with a 20,000 pound capacity

winch located behind the front bumper. The winch feature affects truck length, weight, shipping

dimensions and angle of approach.

Manufacturer:

AM General

TECHNICAL CHARACTERISTICS

Dimensions

Length

319.2 in

Width

97.5 in

Height

116.8 in

Reducible Height

85.1 in

Cargo Deck Height Unloaded

Vehicle Curb Weight (includes BII)

11,120 lbs

Gross Vehicle Weight Rating

21,120 lbs

Performance Information

Fording Depth

60 in

Highway Payload

10,000 lbs

Cross Country Payload

10,000 lbs

Cab Capacity

1+1

Fuel Data

Type of Fuel

Diesel/JP

Fuel Tank Capacity

78 gal

Fuel Consumption mpg

4.5 mpg

Fuel Consumption per hour

13.3 gal/hr @ 60 mph

9-23

PRINCIPAL TECHNICAL CHARACTERISTICS OF U.S. MARINE CORPS MOTOR TRANSPORTATION EQUIPMENT (2010) - page 2
