POSITION REPORTS AND SPECIAL AIR-REPORTS

1.1  Section 1 is obligatory for position reports and special air-reports, although Items 5 and 6
thereof may be omitted when prescribed in Regional Supplementary Procedures; Section 2 shall
be added, in whole or in part, only when so requested by the operator or his designated represen-
tative, or when deemed necessary by the pilot-in-command; Section 3 shall be included in special
air-reports.
1.2  Special air-reports shall be made whenever any of the phenomena listed under Item 15 are
observed or encountered. Items 1 to 4 of Section 1 and the appropriate phenomenon specified in
Section 3, Item 15, are required from all aircraft. The phenomena listed under "SST" shall be
reported only by supersonic transport at transonic and supersonic cruising levels.

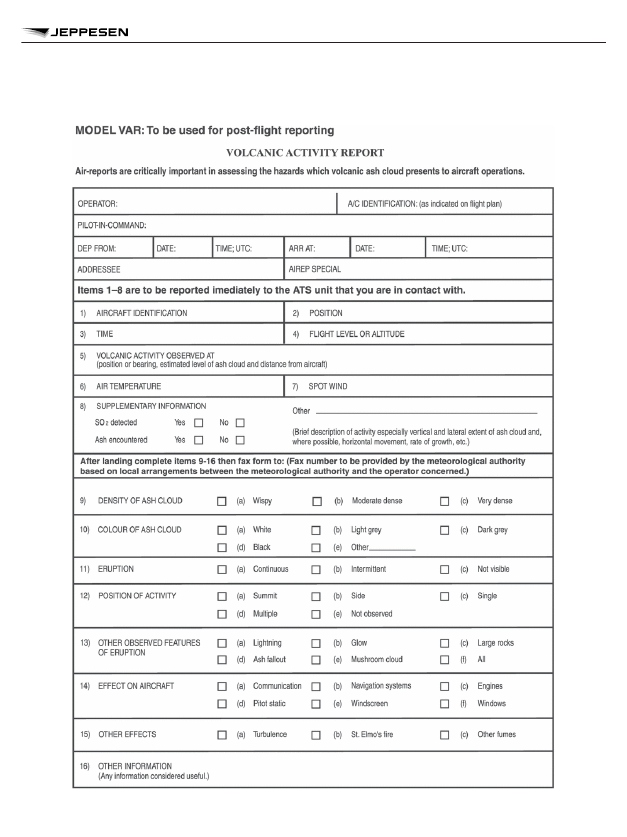

1.3  In the case of special air-reports containing information on volcanic activity, a post-flight
report shall be made on the volcanic activity reporting form (Model VAR). All elements which are
observed shall be recorded and indicated respectively in the appropriate places on the form
Model VAR.
1.4  Special air-reports shall be made as soon as practicable after a phenomenon calling for a
special air-report has been observed.
1.5  If a phenomenon warranting the making of a special air-report is observed at or near the
time or place where a routine air-report is to be made, a special air-report shall be made instead.

DETAILED REPORTING INSTRUCTIONS

2.1 Items of an air-report shall be reported in the order in which they are listed in the model
AIREP SPECIAL form.

– MESSAGE TYPE DESIGNATOR. Report “SPECIAL” for a special air-report.
–

Section 1

•

Item 1 – AIRCRAFT IDENTIFICATION. Report the aircraft radiotelephony call sign as pre-
scribed in Annex 10, Volume II, Chapter 5.

•

Item 2 – POSITION. Report position in latitude (degrees as 2 numerics or degrees and
minutes as 4 numerics, followed by “North” or “South”) and longitude (degrees as 3 numerics
or degrees and minutes as 5 numerics, followed by “East” or “West”), or as a significant point
identified by a coded designator (2 to 5 characters), or as a significant point followed by
magnetic bearing (3 numerics) and distance in nautical miles from the point (e.g.,
“4620North07805West”, “4620North07800West”, “4600North07800West”, LN (“LIMA
NOVEMBER”), “MAY”, “HADDY” or “DUB 180 DEGREES 40 MILES”). Precede significant
point by “ABEAM”, if applicable.

•

Item 3 – TIME. Report time in hours and minutes UTC (4 numerics) unless reporting time in
minutes past the hour (2 numerics) is prescribed on the basis of regional air navigation
agreements. The time reported must be the actual time of the aircraft at the position and not
the time of origination or transmission of the report. Time shall always be reported in hours
and minutes UTC when making a special air-report.

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1281

APPENDIX 1 - INSTRUCTIONS FOR AIR-REPORTING BY VOICE COMMUNICATIONS

•

Item 4 – FLIGHT LEVEL OR ALTITUDE. Report flight level by 3 numerics (e.g., “FLIGHT
LEVEL 310”), when on standard pressure altimeter setting. Report altitude in metres fol-
lowed by “METRES” or in feet followed by “FEET”, when on QNH. Report “CLIMBING” (fol-
lowed by the level) when climbing, or “DESCENDING” (followed by the level) when descend-
ing, to a new level after passing the significant point.

•

Item 5 – NEXT POSITION AND ESTIMATED TIME OVER. Report the next reporting point
and the estimated time over such reporting point, or report the estimated position that will be
reached one hour later, according to the position reporting procedures in force. Use the data
conventions specified in Item 2 for position. Report the estimated time over this position.
Report time in hours and minutes UTC (4 numerics) unless reporting time in minutes past
the hour (2 numerics) as prescribed on the basis of regional air navigation agreements.

•

Item 6 – ENSUING SIGNIFICANT POINT. Report the ensuing significant point following the
“next position and estimated time over”.

–

Section 2

•

Item 7 – ESTIMATED TIME OF ARRIVAL. Report the name of the aerodrome of the first
intended landing, followed by the estimated time of arrival at this aerodrome in hours and
minutes UTC (4 numerics).

•

Item 8 – ENDURANCE. Report “ENDURANCE” followed by fuel endurance in hours and
minutes (4 numerics).

–

Section 3

•

Item 9 – PHENOMENON PROMPTING A SPECIAL AIR-REPORT. Report one of the follow-
ing phenomena encountered or observed:

• moderate turbulence as "TURBULENCE MODERATE"
• severe turbulence as "TURBULENCE SEVERE"

The following specifications apply:

– Moderate – Conditions in which moderate changes in aircraft attitude and/or altitude may

occur but the aircraft remains in positive control at all times. Usually, small variations in air
speed. Changes in accelerometer readings of 0.5g to 1.0g at the aircraft’s centre of grav-
ity. Difficulty in walking. Occupants feel strain against seat belts. Loose objects move
about.

– Severe – Conditions in which abrupt changes in aircraft attitude and/or altitude occur; air-

craft may be out of control for short periods. Usually, large variations in air speed.
Changes in accelerometer readings greater than 1.0g at the aircraft’s centre of gravity.
Occupants are forced violently against seat belts. Loose objects are tossed about.

• moderate icing as "ICING MODERATE"
• severe icing as "ICING SEVERE"

The following specifications apply:

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1282

APPENDIX 1 - INSTRUCTIONS FOR AIR-REPORTING BY VOICE COMMUNICATIONS

– Moderate – Conditions in which change of heading and/or altitude may be considered

desirable.

– Severe – Conditions in which immediate change of heading and/or altitude is considered

essential.

• severe mountainwave as “MOUNTAINWAVE SEVERE”.

The following specification applies:

– Severe – Conditions in which the accompanying downdraft is 3.0 m/s (600 ft/min) or more

and/or severe turbulence is encountered.

• thunderstorm without hail as “THUNDERSTORM”.
• thunderstorm with hail as “THUNDERSTORM WITH HAIL”.

The following specification applies:
Only report those thunderstorms which are:

• obscured in haze; or
• embedded in cloud; or
• widespread; or
• forming a squall-line.

• heavy duststorm or sandstorm as “DUSTSTORM or SANDSTORM HEAVY”.
• volcanic ash cloud as “VOLCANIC ASH CLOUD”.
• pre-eruption volcanic activity or a volcanic eruption as “PRE-ERUPTION VOLCANIC ACTIV-

ITY or VOLCANIC ERUPTION”.
The following specifications apply:
Pre-eruption volcanic activity in this context means unusual and/or increasing volcanic activ-
ity which could presage a volcanic eruption.
NOTE: In case of volcanic ash cloud, pre-eruption volcanic activity or volcanic eruption, in
accordance with Chapter 4, 4.12.3, a post flight report shall also be made on the special air-
report of volcanic activity form (Model VAR).

• Good braking action as “BRAKING ACTION GOOD”.
• Good to medium braking action as “BRAKING ACTION GOOD TO MEDIUM”.
• Medium braking action as “BRAKING ACTION MEDIUM”.
• Medium to poor braking action as “BRAKING ACTION MEDIUM TO POOR”.
• Poor braking action as “BRAKING ACTION POOR”.
• Less than poor braking action as “BRAKING ACTION LESS THAN POOR”.

The following specifications apply:

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1283

APPENDIX 1 - INSTRUCTIONS FOR AIR-REPORTING BY VOICE COMMUNICATIONS

Good — Braking deceleration is normal for the wheel braking effort applied and directional con-
trol is normal.
Good to medium — Braking deceleration or directional control is between Good and Medium.
Medium — Braking deceleration is noticeably reduced for the wheel braking effort applied or
directional control is noticeably reduced.
Medium to poor — Braking deceleration or directional control is between Medium and Poor.
Poor — Braking deceleration is significantly reduced for the wheel braking effort applied or
directional control is significantly reduced.
Less than poor — Braking deceleration is minimal to non-existent for the wheel braking effort
applied or directional control is uncertain.

2.2 Information recorded on the volcanic activity reporting form (Model VAR) is not for transmis-
sion by RTF but, on arrival at an aerodrome, is to be delivered without delay by the operator or a
flight crew member to the aerodrome meteorological office. If such an office is not easily accessi-
ble, the completed form shall be delivered in accordance with local arrangements made between
the Meteorological and ATS Authorities and the operator.

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1284

APPENDIX 1 - INSTRUCTIONS FOR AIR-REPORTING BY VOICE COMMUNICATIONS

EXAMPLES

AS SPOKEN IN RADIOTELEPHONY

AS RECORDED BY THE AIR TRAFFIC

SERVICES UNIT AND FORWARDED

TO THE METEOROLOGICAL OFFICE

CONCERNED

AIREP SPECIAL CLIPPER WUN ZERO
WUN POSITION FIFE ZERO FOWer FIFE
NORTH ZERO TOO ZERO WUN FIFE
WEST AT WUN FIFE TREE SIX FLIGHT
LEVEL TREE WUN ZERO CLIMBING TO
FLIGHT LEVEL TREE FIFE ZERO THUN-
DERSTORM WITH HAIL

I. ARS PAA101 5045N02015W 1536 F310

ASC F350 TSGR

II.

SPECIAL NIUGINI TOO SEVen TREE
OVER MADANG AT ZERO AIT FOWer
SIX WUN NINer TOUSAND FEET TUR-
BULENCE SEVERE

II. ARS ANG273 MD 0846 19000FT TURB

SEV

A special air-report which is required because of the occurrence of widespread thunderstorms
with hail.
A special air-report which is required because of severe turbulence. The aircraft is on QNH
altimeter setting.

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1286

APPENDIX 1 - INSTRUCTIONS FOR AIR-REPORTING BY VOICE COMMUNICATIONS

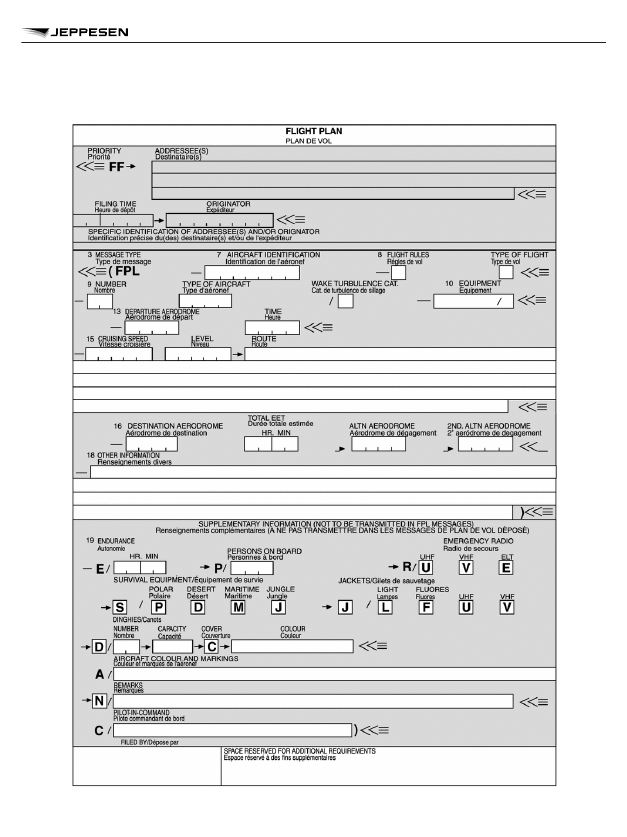

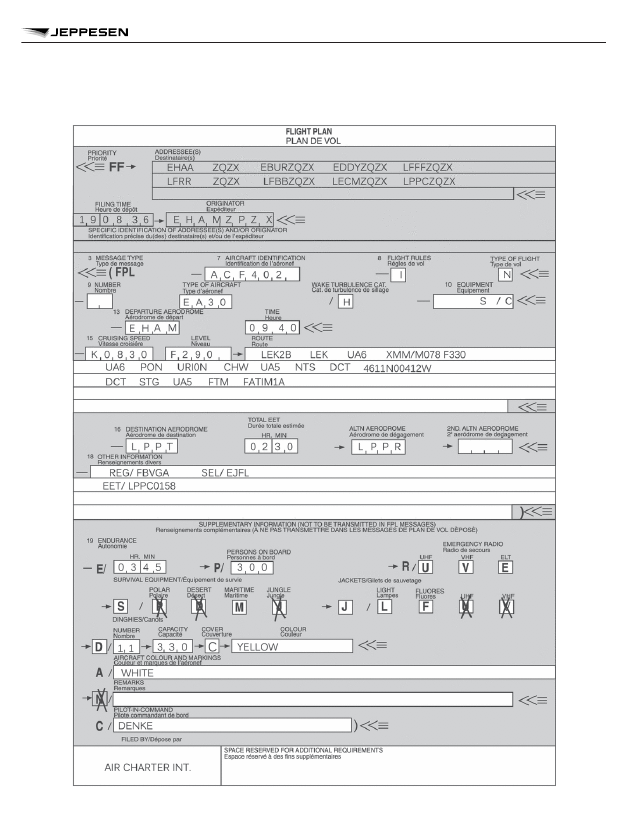

INSTRUCTIONS FOR THE COMPLETION OF THE FLIGHT

PLAN FORM

GENERAL

Adhere closely to the prescribed formats and manner of specifying data.
Commence inserting data in the first space provided. Where excess space is available leave
unused spaces blank.
Insert all clock times in 4 figures UTC.
Insert all estimated elapsed times in 4 figures (hours and minutes).
Shaded area preceding Item 3 — to be completed by ATS and COM services, unless the respon-
sibility for originating flight plan messages has been delegated.
NOTE: term “aerodrome” where used in the flight plan is intended to cover also sites other than
aerodromes which may be used by certain types of aircraft; e.g., helicopters or balloons.

INSTRUCTIONS FOR INSERTION OF ATS DATA

Complete Items 7 to 18 as indicated hereunder.
Complete also Item 19 as indicated hereunder, when so required by the appropriate ATS author-
ity or when otherwise deemed necessary.
NOTE 1: Item numbers on the form are not consecutive, as they correspond to Field Type num-
bers in ATS messages.
NOTE 2: Air traffic services data systems may impose communications or processing constraints
on information in filed flight plans. Possible constraints may, for example, be limits with regard to
item length, number of elements in the route item or total flight plan length. Significant constraints
are documented in the relevant Aeronautical Information Publication.

ITEM 7: AIRCRAFT IDENTIFICATION

(MAXIMUM 7 CHARACTERS)

INSERT one of the following aircraft identifications, not exceeding 7 alphanumeric characters and
without hyphens or symbols:

a. the ICAO designator for the aircraft operating agency followed by the flight identification

(e.g., KLM511, NGA213, JTR25) when in radiotele-phony the call sign to be used by the air-
craft will consist of the ICAO telephony designator for the operating agency followed by the
flight identification (e.g., KLM511, NIGERIA 213, JESTER 25).
OR

b. the nationality or common mark and registration mark of the aircraft (e.g., EIAKO, 4XBCD,

N2567GA), when:

2.1

2.2

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1288

APPENDIX 2 - FLIGHT PLAN

1. in radiotelephony the call sign to be used by the aircraft will consist of this identification

alone (e.g., CGAJS), or preceded by the ICAO telephony designator for the aircraft
operating agency (e.g., BLIZZARD CGAJS);

2. the aircraft is not equipped with radio.

NOTE 1: Standard for nationality, common and registration marks to be used are contained
in Annex 7, Chapter 2.
NOTE 2: Provisions for the use of radiotelephony call signs are contained in Annex 10,
Volume II, Chapter 5 (not published herein). ICAO designators and telephony designators for
aircraft operating agencies are contained in Doc 8585 — Designators for Aircraft Operating
Agencies, Aeronautical Authorities and Services (not published herein).

ITEM 8: FLIGHT RULES AND TYPE OF FLIGHT

(ONE OR TWO CHARACTERS)

–

Flight rules

INSERT one of the following letters to denote the category of flight rules with which the pilot
intends to comply:

if it is intended that the entire flight will be operated under the IFR

if it is intended that the entire flight will be operated under the VFR

if the flight initially will be operated under the IFR, followed by one or more subsequent
changes of flight rules or

if the flight initially will be operated under the VFR, followed by one or more subsequent
changes of flight rules

Specify in Item 15 the point or points at which a change of flight rules is planned.

–

Type of flight

INSERT one of the following letters to denote the type of flight when so required by the appropri-
ate ATS authority:

if scheduled air service

if non-scheduled air transport operation

if general aviation

if military

if other than any of the defined categories above.

Specify status of a flight following the indicator STS in Item 18, or when necessary to denote other
reasons for specific handling by ATS, indicate the reason following the indicator RMK in Item 18.

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1289

APPENDIX 2 - FLIGHT PLAN

ITEM 9: NUMBER AND TYPE OF AIRCRAFT AND WAKE TURBULENCE CATEGORY

–

Number of aircraft (1 or 2 characters)

INSERT the number of aircraft, if more than one.

–

Type of aircraft (2 to 4 characters)

INSERT the appropriate designator as specified in ICAO Doc 8643, Aircraft Type Designators
(not published herein)
OR if no such designator has been assigned, or in case of formation flights comprising more than
one type;
INSERT ZZZZ, and SPECIFY in Item 18, the (numbers and) type(s) of aircraft preceded by TYP/.

–

Wake turbulence category (1 character)

INSERT an oblique stroke followed by one of the following letters to indicate the wake turbulence
category of the aircraft:

J —

SUPER, to indicate an aircraft type specified as such in Doc 8643, Aircraft
Type Designators (not published herein);

H —

HEAVY, to indicate an aircraft type with a maximum certificated take-off mass
of 136,000kg or more, with the exception of aircraft types listed in Doc 8643 in
the SUPER (J) category;

M —

MEDIUM, to indicate an aircraft type with a maximum certificated take-off mass
of less than 136,000kg but more than 7000kg;

L —

LIGHT, to indicate an aircraft type with a maximum certificated take-off mass of
7000kg or less.

ITEM 10: EQUIPMENT AND CAPABILITIES

Capabilities comprise the following elements:

a. presence of relevant serviceable equipment on board the aircraft;
b. equipment and capabilities commensurate with flight crew qualifications; and

c. where applicable, authorization from the appropriate authority.

–

Radio communication, navigation and approach aid equipment
INSERT one letter as follows:
N if no COM/NAV/approach aid equipment for the route to be flown is carried, or the equipment
is unserviceable;
OR

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1290

APPENDIX 2 - FLIGHT PLAN

S if standard COM/NAV/approach aid equipment for the route to be flown is carried and serv-
iceable (see Note 1),
AND/OR
INSERT one or more of the following letters to indicate the COM/NAV/approach aid equipment
available:

GBAS landing system

CPDLC FANS 1/A SATCOM (Iridi-
um)

LPV (APV with SBAS)

MLS

LORAN C

ILS

DME

ATC SATVOICE (INMARSAT)

FMC WPR ACARS

ATC SATVOICE (MTSAT)

D-FIS ACARS

ATC SATVOICE (Iridium)

PDC ACARS

VOR

ADF

CPDLC RCP 400 (See Note 7)

GNSS. If any portion of the flight is
planned to be conducted under IFR, it
refers to GNSS receivers that comply
with the requirements of Annex 10, Vol-
ume I (see Note 2).

CPDLC RCP 240 (See Note 7)

SATVOICE RCP 400 (See Note 7)

P4–
P9

Reserved for RCP

HF RTF

PBN approved (see Note 4)

Inertial Navigation

TACAN

CPDLC ATN VDL Mode 2 (see Note 3) U

UHF RTF

CPDLC FANS 1/A HFDL

VHF RTF

CPDLC FANS 1/A VDL Mode A

RVSM approved

CPDLC FANS 1/A VDL Mode 2

MNPS approved

CPDLC FANS 1/A SATCOM (INMAR-
SAT)

VHF with 8.33 kHz channel spacing
capability

CPDLC FANS 1/A SATCOM (MTSAT) Z

Other equipment carried or other ca-
pabilities (See Note 5)

Any alphanumeric characters not indicated above are reserved.
NOTE 1: If the letter S is used, standard equipment is considered to be VHF RTF, VOR and
ILS, unless another combination is prescribed by the appropriate ATS authority.

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1291

APPENDIX 2 - FLIGHT PLAN

NOTE 2: If the letter G is used, the types of external GNSS augmentation, if any, are specified
in Item 18 following the indicator NAV/ and separated by a space.
NOTE 3: See RTCA/EUROCAE Interoperability Requirements Standard for ATN Baseline
1(ATN B1 INTEROP Standard — DO-280B/ED-110B) (not published herein) for data link serv-
ices air traffic control clearance and information/air traffic control communications manage-
ment/air traffic control microphone check.
NOTE 4: If the letter R is used, the performance-based navigation levels that can be met are
specified in Item 18 following the indicator PBN/. Guidance material on the application of per-
formance-based navigation to a specific route segment, route or area is contained in the Per-
formance-based Navigation (PBN) Manual (Doc 9613) (not published herein).
NOTE 5: If the letter Z is used, specify in Item 18 the other equipment carried or other capabili-
ties, preceded by COM/, NAV/ and/or DAT, as appropriate.
NOTE 6: Information on navigation capability is provided to ATC for clearance and routing pur-
poses.
NOTE 7: Guidance material on the application of performance-based communication, which
prescribes RCP to an air traffic service in a specific area, is contained in the Performance-
based Communication and Surveillance (PBCS) Manual (Doc 9869) (not published herein).

–

Surveillance equipment and capabilities
INSERT N if no surveillance equipment for the route to be flown is carried, or the equipment is
unserviceable,
OR
INSERT one or more of the following descriptors, to a maximum of 20 characters, to describe
the serviceable surveillance equipment and/or capabilities on board:

SSR Modes A and C

A Transponder — Mode A (4 digits — 4096 codes)

C Transponder — Mode A (4 digits — 4096 codes) and Mode C

SSR Mode S

E Transponder — Mode S, including aircraft identification, pressure-altitude and exten-

ded squitter (ADS-B) capability

H Transponder — Mode S, including aircraft identification, pressure-altitude and en-

hanced surveillance capability

I Transponder — Mode S, including aircraft identification, but no pressure-altitude capa-

bility

L Transponder — Mode S, including aircraft identification, pressure-altitude, extended

squitter (ADS-B) and enhanced surveillance capability

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1292

APPENDIX 2 - FLIGHT PLAN

P Transponder — Mode S, including pressure-altitude, but no aircraft identification capa-

bility

S Transponder — Mode S, including both pressure-altitude and aircraft identification ca-

pability

X Transponder — Mode S with neither aircraft identification nor pressure-altitude capabil-

ity

NOTE: Enhanced surveillance capability is the ability of the aircraft to down-link aircraft derived
data via a Mode S transponder.
ADS-B

B1 ADS-B with dedicated 1 090 MHz ADS-B “out” capability
B2 ADS-B with dedicated 1 090 MHz ADS-B “out” and “in” capability

U1 ADS-B “out” capability using UAT
U2 ADS-B “out” and “in” capability using UAT

V1 ADS-B “out” capability using VDL Mode 4
V2 ADS-B “out” and “in” capability using VDL Mode 4

ADS-C

D1 ADS-C with FANS 1/A capabilities

G1 ADS-C with ATN capabilities

Alphanumeric characters not indicated above are reserved.
EXAMPLE: ADE3RV/HB2U2V2G1
NOTE 1: The RSP specification(s), if applicable, will be listed in Item 18 following the indicator
SUR/. Guidance material on the application of performance-based surveillance, which pre-
scribes RSP to an air traffic service in a specific area, is contained in the Performance-based
Communication and Surveillance (PBCS) Manual (Doc 9869) (not published herein).
NOTE 2: Additional surveillance equipment or capabilities will be listed in Item 18 following the
indicator SUR/, as required by the appropriate ATS authority.

ITEM 13: DEPARTURE AERODROME AND TIME

(8 CHARACTERS)

INSERT the ICAO four-letter location indicator of the departure aerodrome as specified in Doc
7910, Location Indicators (not published herein),
OR, if no location indicator has been assigned,
INSERT ZZZZ and SPECIFY, in Item 18, the name and location of the aerodrome preceded by
DEP/,

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1293

APPENDIX 2 - FLIGHT PLAN

OR, the first point of the route or the marker radio beacon preceded by DEP/..., if the aircraft has
not taken off from the aerodrome,
OR, if the flight plan is received from an aircraft in flight,
INSERT AFIL, and SPECIFY, in Item 18, the ICAO four-letter location indicator of the location of
the ATS unit from which supplementary flight plan data can be obtained, preceded by DEP/ .
THEN, WITHOUT A SPACE,
INSERT for a flight plan submitted before departure, the estimated off-block time (EOBT),
OR, for a flight plan received from an aircraft in flight, the actual or estimated time over the first
point of the route to which the flight plan applies.

ITEM 15: ROUTE

INSERT the first cruising speed as in a. and the first cruising level as in b., without a space
between them.
THEN, following the arrow, INSERT the route description as in c.

Cruising speed (maximum 5 characters)
INSERT the True Air Speed for the first or the whole cruising portion of the flight, in terms of:

– Kilometers per hour, expressed as K followed by 4 figures (e.g., K0830); or
– Knots, expressed as N followed by 4 figures (e.g., N0485); or
– True Mach number, when so prescribed by the appropriate ATS authority, to the nearest

hundredth of unit Mach, expressed as M followed by 3 figures (e.g., M082).

Cruising level (maximum 5 characters)
INSERT the planned cruising level for the first or the whole portion of the route to be flown, in
terms of:

– Flight level, expressed as F followed by 3 figures (e.g., F085; F330); or
– *Standard Metric Level in tens of metres, expressed as S followed by 4 figures (e.g.,

S1130); or

– Altitude in hundreds of feet, expressed as A followed by 3 figures (e.g., A045; A100); or
– Altitude in tens of metres, expressed as M followed by 4 figures (e.g., M0840); or
– For uncontrolled VFR flights, the letters VFR.

Route (Including Changes of Speed, Level and/or Flight Rules)
Flights Along Designated ATS Routes
INSERT if the departure aerodrome is located on, or connected to the ATS route, the desig-
nator of the first ATS route;

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1294

APPENDIX 2 - FLIGHT PLAN

OR, if the departure aerodrome is not on or connected to the ATS route, the letters DCT fol-
lowed by the point of joining the first ATS route, followed by the designator of the ATS route.
THEN
INSERT each point at which either a change of speed and/or level is planned to commence,
or, a change of ATS route, and/or a change of flight rules is planned,
NOTE: When a transition is planned between a lower and upper ATS route and the routes
are oriented in the same direction, the point of transition need not be inserted.
FOLLOWED IN EACH CASE
by the designator of the next ATS route segment, even if the same as the previous one;
OR, by DCT, if the flight to the next point will be outside a designated route, unless both
points are defined by geographical coordinates.
Flights Outside Designated ATS Routes
INSERT points normally not more than 30 minutes flying time or 370km (200 NM) apart,
including each point at which a change of speed or level, a change of track, or a change of
flight rules is planned;
OR, when required by appropriate ATS authority(ies),
DEFINE the track of flights operating predominantly in an east-west direction between 70°N
and 70°S by reference to significant points formed by the intersections of half or whole
degrees of latitude with meridians spaced at intervals of 10 degrees of longitude. For flights
operating in areas outside those latitudes the tracks shall be defined by significant points
formed by the intersection of parallels of latitude with meridians normally spaced at
20 degrees of longitude. The distance between significant points shall, as far as possible, not
exceed one hour’s flight time. Additional significant points shall be established as deemed
necessary.
For flights operating predominantly in a north-south direction, define tracks by reference to
significant points formed by the intersection of whole degrees of longitude with specified par-
allels of latitude which are spaced at 5 degrees.
INSERT DCT between successive points unless both points are defined by geographical
coordinates or by bearing and distance.
USE ONLY the conventions in 1. to 5. below and SEPARATE each sub-item by a space.

ATS Route (2 to 7 Characters)
The coded designator assigned to the route or route segment including, where appropri-
ate, the coded designator assigned to the standard departure or arrival route (e.g.,
BCN1, B1, R14, UB10, KODAP2A).
NOTE: Provisions for the application of route designators are contained in Annex 11,
Appendix 1 (not published herein).

Significant Point (2 to 11 Characters)

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1295

APPENDIX 2 - FLIGHT PLAN

The coded designator (2 to 5 characters) assigned to the point (e.g., LN, MAY,
HADDY); or
if no coded designator has been assigned, one of the following ways:

– Degrees only (7 characters):

2 figures describing latitude in degrees, followed by “N” (North) or “S” (South), fol-
lowed by 3 figures describing longitude in degrees, followed by “E” (East) or “W”
(West). Make up the correct number of figures, where necessary, by insertion of
zeros; e.g., 46N078W.

– Degrees and minutes (11 characters):

4 figures describing latitude in degrees and tens and units of minutes followed by “N”
(North) or “S” (South), followed by 5 figures describing longitude in degrees and tens
and units of minutes, followed by “E” (East) or “W” (West). Make up the correct
number of figures, where necessary, by insertion of zeros; e.g., 4620N07805W.

– Bearing and distance from a reference point:

The identification of the reference point, followed by the bearing from the point in the
form of 3 figures giving degrees magnetic, followed by the distance from the point in
the form of 3 figures expressing nautical miles. In areas of high latitude where it is
determined by the appropriate authority that reference to degrees magnetic is
impractical, degrees true may be used. Make up the correct number of figures, where
necessary, by insertion of zeros; e.g., a point 180° magnetic at a distance of 40 nauti-
cal miles from VOR “DUB” should be expressed as DUB180040.

Change of Speed or Level (Maximum 21 Characters)
The point at which a change of speed (5% TAS or 0.01 Mach or more) or a change of
level is planned to commence, expressed exactly as in 2. above, followed by an oblique
stroke and both the cruising speed and the cruising level, expressed exactly as in a.
and b. above, without a space between them, even when only one of these quantities
will be changed.
EXAMPLE: LN/N0284A045
MAY/N0305F180
HADDY/N0420F330
4602N07805W/N0500F350
46N078W/M082F330
DUB180040/N0350M0840

Change of Flight Rules (Maximum 3 Characters)
The point at which the change of flight rules is planned, expressed exactly as in 2. or 3.
above as appropriate, followed by a space and one of the following:

(a) VFR if from IFR to VFR

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1296

APPENDIX 2 - FLIGHT PLAN

(b) IFR if from VFR to IFR

EXAMPLE: LN VFR
LN/N0284A050 IFR

Cruise Climb (Maximum 28 Characters)
The letter C followed by an oblique stroke; THEN the point at which cruise climb is plan-
ned to start, expressed exactly as in 2. above, followed by an oblique stroke; THEN the
speed to be maintained during cruise climb, expressed exactly as in a. above, followed
by the two levels defining the layer to be occupied during cruise climb, each level
expressed exactly as in b. above, or the level above which cruise climb is planned fol-
lowed by the letters “PLUS”, without a space between them.
EXAMPLE: C/48N050W/M082F290F350
C/48N050W/M082F290PLUS
C/52N050W/M220F580F620.

ITEM 16: DESTINATION AERODROME AND TOTAL ESTIMATED ELAPSED TIME, DESTI-

NATION ALTERNATE AERODROME(S)

–

Destination aerodrome and total estimated elapsed time (8 characters)
INSERT the ICAO four-letter location indicator of the destination aerodrome as specified in
Doc 7910, Location Indicators (not published herein),
OR, if no location indicator has been assigned,
INSERT ZZZZ and SPECIFY in Item 18 the name and location of the aerodrome, prece-
ded by DEST/.
THEN WITHOUT A SPACE
INSERT the total estimated elapsed time.
NOTE: For a flight plan received from an aircraft in flight, the total estimated elapsed time
is the estimated time from the first point of the route to which the flight plan applies to the
termination point of the flight plan.

–

Destination alternate aerodrome(s)
INSERT the ICAO four-letter location indicator(s) of not more than two destination alter-
nate aerodromes as specified in Doc 7910, Location Indicators (not published herein),
separated by a space,
OR, if no location indicator has been assigned to the destination alternate aerodrome(s),
INSERT ZZZZ and SPECIFY in Item 18 the name and location of the destination alternate
aerodrome(s), preceded by ALTN/.

ITEM 18: OTHER INFORMATION

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1297

APPENDIX 2 - FLIGHT PLAN

NOTE: Use of indicators not included under this item may result in data being rejected, pro-
cessed incorrectly or lost.
Hyphens or oblique strokes should only be used as prescribed below.
INSERT 0 (zero) if no other information,
OR, any other necessary information in the sequence shown hereunder, in the form of the
appropriate indicator selected from those defined hereunder followed by an oblique stroke
and the information to be recorded:

STS/

Reason for special handling by ATS, e.g., a search and rescue mission, as follows:

ALTRV:

for a flight operated in accordance with all altitude reservation;

ATFMX:

for a flight approved for exemption from ATFM measures by the
appropriate ATS authority;

FFR:

fire-fighting;

FLTCK:

flight check for calibration of navaids;

HAZMAT:

for a flight carrying hazardous material;

HEAD:

a flight with Head of State status;

HOSP:

for a medical flight declared by medical authorities;

HUM:

for a flight operating on a humanitarian mission;

MARSA:

for a flight for which a military entity assumes responsibility for
separation of military aircraft;

MEDEVAC:

for a life critical medical emergency evacuation;

NONRVSM:

for a non-RVSM capable flight intending to operate in RVSM
airspace;

SAR:

for a flight engaged in a search and rescue mission; and

STATE:

for a flight engaged in military, customs or police services.

Other reasons for special handling by ATS shall be denoted under the designator RMK/.
PBN/

Indication of RNAV and/or RNP capabilities. Include as many of the descrip-
tors below, as apply to the flight, up to a maximum of 8 entries, i.e. a total of
not more than 16 characters.

RNAV SPECIFICATIONS

RNAV 10 (RNP 10)

RNAV 5 all permitted sensors

RNAV 5 GNSS

RNAV 5 DME/DME

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1298

APPENDIX 2 - FLIGHT PLAN

RNAV 5 VOR/DME

RNAV 5 INS or IRS

RNAV 5 LORANC

RNAV 2 all permitted sensors

RNAV 2 GNSS

RNAV 2 DME/DME

RNAV 2 DME/DME/IRU

RNAV 1 all permitted sensors

RNAV 1 GNSS

RNAV 1 DME/DME

RNAV 1 DME/DME/IRU

RNP SPECIFICATIONS

RNP 4

Basic RNP 1 all permitted sensors

Basic RNP 1 GNSS

Basic RNP 1 DME/DME

Basic RNP 1 DME/DME/IRU

RNP APCH

RNP APCH with BARO-VNAV

RNP AR APCH with RF (special authorization required)

RNP AR APCH without RF (special authorization required)

Combinations of alphanumeric characters not indicated above are reserved.
NAV/

Significant data related to navigation equipment, other than specified in PBN/, as
required by the appropriate ATS authority. Indicate GNSS augmentation under this
indicator, with a space between two or more methods of augmentation; e.g., NAV/
GBAS SBAS.

COM/

Indicate communications equipment and capabilities not specified in Item 10 a).

DAT/

Indicate data applications or capabilities not specified in Item 10 a).

SUR/

Include surveillance equipment and capabilities not specified in Item 10 b). Indi-
cate as many RSP specification(s) as apply to the flight, using designator(s) with
no space. Multiple RSP specifications are separated by a space. Example:
RSP180 RSP400.

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1299

APPENDIX 2 - FLIGHT PLAN

DEP/

Name and location of departure aerodrome, if ZZZZ is inserted in Item 13, or the
ATS unit from which supplementary flight plan data can be obtained, if AFIL is in-
serted in Item 13. For aerodromes not listed in the relevant Aeronautical Informa-
tion Publication, indicate location as follows:

With 4 figures describing latitude in degrees and tens and units of minutes fol-
lowed by “N” (North) or “S” (South), followed by 5 figures describing longitude in
degrees and tens and units of minutes, followed by “E” (East) or “W” (West). Make
up the correct number of figures, where necessary, by insertion of zeros; e.g.,
4620N07805W (11 characters).

OR,

Bearing and distance from the nearest significant point, as follows:

The identification of the significant point followed by the bearing from the point
in the form of 3 figures giving degrees magnetic, followed by the distance from
the point in the form of 3 figures expressing nautical miles. In areas of high lat-
itude where it is determined by the appropriate authority that reference to de-
grees magnetic is impractical, degrees true may be used. Make up the correct
number of figures, where necessary, by insertion of zeros; e.g., a point of 180°
magnetic at a distance of 40 nautical miles from VOR “DUB” should be ex-
pressed as DUB180040.

OR,

The first point of the route (name or LAT/LONG) or the marker radio beacon, if the
aircraft has not taken off from an aerodrome.

DEST/

Name and location of destination aerodrome, if ZZZZ is inserted in Item 16. For
aerodromes not listed in the relevant Aeronautical Information Publication, indicate
location in LAT/LONG or bearing and distance from the nearest significant point,
as described under DEP/ above.

DOF/

The date of flight departure in a six-figure formal (YYMMDD, where YY equals the
year, MM equals the month and DD equals the day).

REG/

The nationality or common mark and registration markings of the aircraft, if differ-
ent from the aircraft identification in Item 7.

EET/

Significant points or FIR boundary designators and accumulated estimated
elapsed times from take-off to such points or FIR boundaries, when so prescribed
on the basis of regional air navigation agreements, or by the appropriate ATS au-
thority.
EXAMPLE: EET/CAP0745 XYZ0830
EET/EINN0204

SEL/

SELCAL Code, for aircraft so equipped.

TYP/

Type(s) of aircraft, preceded if necessary without a space by number(s) of aircraft
and separated by one space, if ZZZZ is inserted in Item 9.
EXAMPLE: TYP/2F15 5F5 3B2

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1300

APPENDIX 2 - FLIGHT PLAN

CODE/

Aircraft address (expressed in the form of an alphanumerical code of six hexadeci-
mal characters) when required by the appropriate ATS authority. Example:
“F00001” is the lowest aircraft address contained in the specific block administered
by ICAO.

DLE/

Enroute delay or holding, insert the significant point(s) on the route where a delay
is planned to occur, followed by the length of delay using four-figure time in hours
and minutes (hhmm).
EXAMPLE: DLE/MDG0030

OPR/

ICAO designation or name of the aircraft operator agency, if different from the air-
craft identification in Item 7.

ORGN/

The originator’s 8 letter AFTN address or other appropriate contact details, in ca-
ses where the originator of the flight plan may not be readily identified, as required
by the appropriate ATS authority.

NOTE: In some cases, flight plan reception centres may insert the ORGN/ identifi-
er and originator’s AFTN address automatically.

PER/

Aircraft performance data, indicated by a single letter as specified in the Proce-
dures for Air Navigation Services — Aircraft Operations (PANS-OPS, Doc 8168),
Volume I — Flight Procedures (not published herein) (see Jeppesen ATC Flight
Procedures (Doc 8168)), if so prescribed by the appropriate ATS authority.

ALTN/

Name of destination alternate aerodrome(s), if ZZZZ is inserted in Item 16. For
aerodromes not listed in the relevant Aeronautical Information Publication, indicate
location in LAT/LONG or bearing and distance from the nearest significant point,
as described in DEP/ above.

RALT/

ICAO four letter indicator(s) for en-route alternate(s), as specified in Doc 7910, Lo-
cation Indicators (not published herein), or name(s) of en-route alternate aero-
drome(s), if no indicator is allocated. For aerodromes not listed in the relevant Aer-
onautical Information Publication, indicate location in LAT/LONG or bearing and
distance from the nearest significant point, as described in DEP/ above.

TALT/

ICAO four letter indicator(s) for take-off alternate, as specified in Doc 7910, Loca-
tion Indicators (not published herein), or name of take-off alternate aerodrome, if
no indicator is allocated. For aerodromes not listed in the relevant Aeronautical In-
formation Publication, indicate location in LAT/LONG or bearing and distance from
the nearest significant point, as described in DEP/ above.

RIF/

The route details to the revised destination aerodrome, followed by the ICAO four-
letter location indicator of the aerodrome. The revised route is subject to reclear-
ance in flight.
EXAMPLE: RIF/DTA HEC KLAX
RIF/ESP G94 CLA YPPH

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1301

APPENDIX 2 - FLIGHT PLAN

RMK/

Any other plain language remarks when required by the appropriate ATS authority
or deemed necessary.

ITEM 19: SUPPLEMENTARY INFORMATION

–

Endurance
After E/ INSERT a 4-figure group giving the fuel endurance in hours and minutes.

–

Persons on board
After P/ INSERT the total number of persons (passengers and crew) on board, when
required by the appropriate ATS authority.
INSERT TBN (to be notified) if the total number of persons is not known at the time of
filing.

–

Emergency and survival equipment

R/ (RADIO)

CROSS OUT U if UHF on frequency 243.0 MHz is not availa-
ble.

CROSS OUT V if VHF on frequency 121.5 MHz is not availa-
ble.

CROSS OUT E if emergency locator transmitter (ELT) is not
available.

S/ (SURVIVAL EQUIPMENT)

CROSS OUT all indicators if survival equipment is not carried.

CROSS OUT P if polar survival equipment is not carried

CROSS OUT D if desert survival equipment is not carried.

CROSS OUT M if maritime survival equipment is not carried.

CROSS OUT J if jungle survival equipment is not carried.

J/ (JACKETS)

CROSS OUT all indicators if life jackets are not carried.

CROSS OUT L if life jackets are not equipped with lights.

CROSS OUT F if life jackets are not equipped with fluores-
cein.

CROSS OUT U or V or both as in R/ above to indicate radio
capability of jackets, if any.

D/ (DINGHIES)

CROSS OUT indicators D and C if no dinghies are carried, or

(NUMBER)

INSERT number of dinghies carried; and

(CAPACITY)

INSERT total capacity, in persons, of all dinghies carried; and

(COVER)

CROSS OUT indicator C if dinghies are not covered; and

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1302

APPENDIX 2 - FLIGHT PLAN

(COLOUR)

INSERT colour of dinghies if carried.

A/ (AIRCRAFT COLOUR AND
MARKINGS)

INSERT colour of aircraft and significant markings.

N/ (REMARKS)

CROSS OUT indicator N if no remarks, or INDICATE any oth-
er survival equipment carried and any other remarks regarding
survival equipment.

C/ (PILOT)

INSERT name of pilot-in-command.

FILED BY

INSERT the name of the unit, agency or person filing the flight plan.

ACCEPTANCE OF THE FLIGHT PLAN

Indicate acceptance of the flight plan in the manner prescribed by the appropriate ATS authority.

INSTRUCTIONS FOR INSERTION OF COM DATA

Items to be completed
COMPLETE the top two shaded lines of the form, and COMPLETE the third shaded line only
when necessary, in accordance with the provisions in PANS-ATM, Chapter 11, 11.2.1.2, unless
ATS prescribes otherwise.

INSTRUCTIONS FOR THE TRANSMISSION OF A FILED

FLIGHT PLAN (FPL) MESSAGE

Correction of obvious errors
Unless otherwise prescribed, CORRECT obvious format errors and/or omissions (i.e. oblique
strokes) to ensure adherence as specified in Section 2.
Items to be transmitted
TRANSMIT items as indicated hereunder, unless otherwise prescribed:

a. the items in the shaded lines, above Item 3;
b. commencing with <<

≡

(FPL of Item 3:

all symbols and data in the unshaded boxes down to the )<<

≡

at the end of Item 18,

additional alignment functions as necessary to prevent the inclusion of more than 69 charac-
ters in any line of Items 15 or 18. The alignment function is to be inserted only in lieu of a
space so as not to break up a group of data,
letter shifts and figure shifts (not preprinted on the form) as necessary;

c. the AFTN Ending, as described below:

End-of-Text Signal

a) one LETTER SHIFT

2.3

2.4

2.5

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1303

APPENDIX 2 - FLIGHT PLAN

b) two CARRIAGE RETURNS, one LINE FEED

Page-feed Sequence

– Seven LINE FEEDS

End-of-Message Signal

– Four of the letter N.

INSTRUCTIONS FOR THE TRANSMISSION OF A

SUPPLEMENTARY FLIGHT PLAN (SPL) MESSAGE

Items to be transmitted
Transmit items as indicated hereunder, unless otherwise prescribed:

a. AFTN Priority Indicator, Addressee Indicators <<

≡

, Filing Time, Originator Indicator <<

≡

and,

if necessary, specific identification of addressees and/or originator;

b. commencing with <<

≡

(SPL:

all symbols and data in the unshaded areas of boxes 7, 13, 16 and 18, except that the ‘)’ at
the end of box 18 is not to be transmitted, and then the symbols in the unshaded area of box
19 down to and including the )<<

≡

of box 19,

additional alignment functions as necessary to prevent the inclusion of more than 69 charac-
ters in any line of Items 18 and 19. The alignment function is to be inserted only in lieu of a
space so as not to break up a group of data,
letter shifts and figure shifts (not preprinted on the form) as necessary;

c. the AFTN Ending, as described below:

End-of-Text Signal

a) one LETTER SHIFT
b) two CARRIAGE RETURNS, one LINE FEED

Page-feed Sequence

– Seven LINE FEEDS

End-of-Message Signal

– Four of the letter N.

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1304

APPENDIX 2 - FLIGHT PLAN

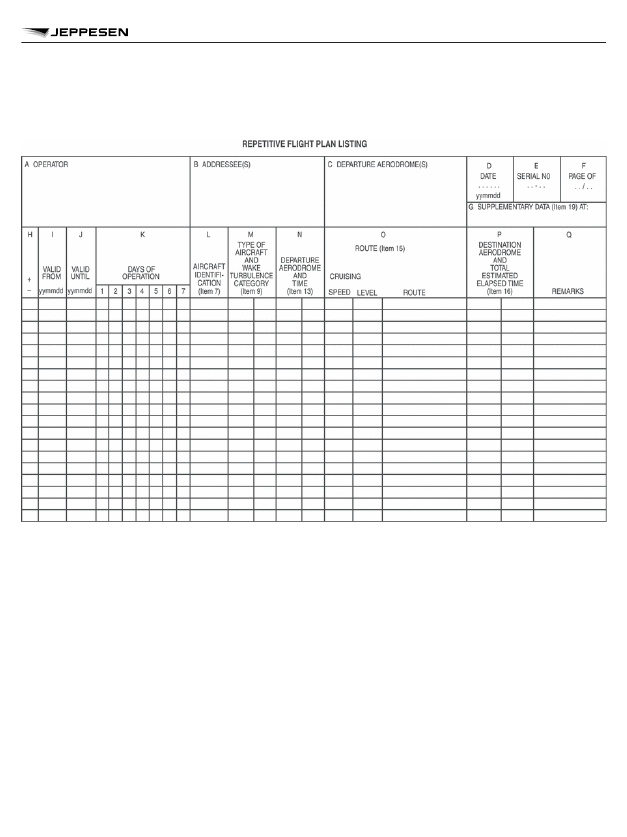

ICAO MODEL REPETITIVE FLIGHT PLAN (RPL) LISTING

FORM

INSTRUCTIONS FOR THE COMPLETION OF THE REPETITIVE

FLIGHT PLAN (RPL) LISTING FORM

GENERAL

List only flight plans that will operate in accordance with IFR. (Flight rules I in FPL format).
It is assumed that all aircraft are operating as scheduled flights (Type of flight S in FPL format),
otherwise notify in Q (Remarks).
It is assumed that all aircraft operating on RPLs are equipped with 4096-code transponders with
Modes A and C. Otherwise, notify in Q (Remarks).
List flight plan in alphabetical order of the location indicator of the departure aerodrome.
List flight plans for each departure aerodrome in chronological order of estimated off-block times.
Adhere closely to the data conventions as indicated for the Flight Plan Form (Appendix 3, 1.6)
unless otherwise specifically indicated in 7.4.
INSERT all clock times in 4 figures UTC.

7.1

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1306

APPENDIX 2 - FLIGHT PLAN

INSERT all estimated elapsed times in 4 figures (hours and minutes).
INSERT data on a separate line for each segment of operations with one or more stops; i.e., from
any departure aerodrome to the next destination aerodrome even though call sign or flight
number is the same for multiple segments.
Clearly identify additions and deletions in accordance with Item H at 7.4. Subsequent listings shall
list the corrected and added data, and deleted flight plans shall be omitted.
Number pages by indicating number of page and total number of pages in submission.
Utilize more than one line for any RPL where the space provided for items O and Q on one line is
not sufficient.
7.2 A flight shall be cancelled as follows:

a. Indicate a minus sign in Item H followed by all other items of the cancelled flight;
b. Insert a subsequent entry denoted by a plus sign in Item H and the date of the last flight in

Item J, with all other items of the cancelled flight unchanged.

7.3 Modification to a flight shall be made as follows:

a. Carry out the cancellation as indicated in 7.2; and
b. Insert a third entry giving the new flight plan(s) with the appropriate items modified as neces-

sary, including the new validity dates in Items I and J.
NOTE: All entries related to the same flight will be inserted in succession in the order speci-
fied above.

INSTRUCTIONS FOR INSERTION OF RPL DATA

Complete Items A to Q as indicated hereunder.

ITEM A: OPERATOR

INSERT name of operator.

ITEM B: ADDRESSEE(S)

INSERT name of agency(ies) designated by States to administer RPLs for FIRs or areas of
responsibility concerned with the route of flight.

ITEM C: DEPARTURE AERODROME(S)

INSERT location indicator(s) of departure aerodrome(s).

ITEM D: DATE

7.4

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1307

APPENDIX 2 - FLIGHT PLAN

INSERT on each page of submission the date (year, month, day) in a 6-figure group that the list-
ing was submitted.

ITEM E: SERIAL NO.

INSERT serial number of submission (2 numerics) indicating last two digits of year, a dash, and
the sequential no. of the submission for the year indicated (start with numeral 1 each new year).

ITEM F: PAGE OF

INSERT page number and total number of pages submitted.

ITEM G: SUPPLEMENTARY DATA AT

INSERT name of contact where information normally provided under Item 19 of the FPL is kept
readily available and can be supplied without delay.

ITEM H: ENTRY TYPE

INSERT a minus sign (-) for each flight plan that is to be deleted from the listing.
INSERT a plus sign (+) for each initial listing and, in the case of subsequent submissions, for
each flight plan not listed in the previous submission.
NOTE: No information is required under this item for any flight plan which is unchanged from the
previous submission.

ITEM I: VALID FROM

INSERT first date (year, month, day) upon which the flight is scheduled to operate.

ITEM J: VALID UNTIL

INSERT last date (year, month, day) upon which the flight is scheduled to operate as listed, or
UFN if the duration is unknown.

ITEM K: DAYS OF OPERATION

INSERT number corresponding to the day of the week in the appropriate column; Monday = 1
through Sunday = 7.
INSERT 0 for each day of non-operation in the appropriate column.

ITEM L: AIRCRAFT IDENTIFICATION

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1308

APPENDIX 2 - FLIGHT PLAN

(Item 7 of the ICAO flight plan)
INSERT aircraft identification to be used for the flight.

ITEM M: TYPE OF AIRCRAFT AND WAKE TURBULENCE CATEGORY

(Item 9 of the ICAO flight plan)
INSERT appropriate ICAO designator as specified in ICAO Document 8643 — Aircraft Type Des-
ignators (not published herein).
INSERT J, H, M or L indicator as appropriate:

J —

SUPER, to indicate an aircraft type specified as such in Doc 8643, Aircraft
Type Designators (not published herein);

H —

HEAVY to indicate an aircraft type with a maximum certificated take-off
mass of 136,000kg or more, with the exception of aircraft types listed in
Doc 8643 in the SUPER (J) category;

M —

MEDIUM to indicate an aircraft type with a maximum certificated take-off
mass of less than 136,000kg but more than 7000kg,

L —

LIGHT to indicate an aircraft type with a maximum certificated take-off mass
of 7000kg or less.

ITEM N: DEPARTURE AERODROME AND TIME

(Item 13 of the ICAO flight plan)
INSERT location indicator of the departure aerodrome.
INSERT the off-block time; i.e., the estimated time that the aircraft will commence movement
associated with departure.

ITEM O: ROUTE

(Item 15 of the ICAO flight plan)

Cruising Speed
INSERT the true airspeed for the first or whole cruising portion of the flight in accordance
with Item 15A. of the ICAO flight plan.

Cruising Level
INSERT the planned cruising level for the first or whole portion of the route in accordance
with Item 15B. of the ICAO flight plan.

Route
INSERT the entire route in accordance with Item 15C. of the ICAO flight plan.

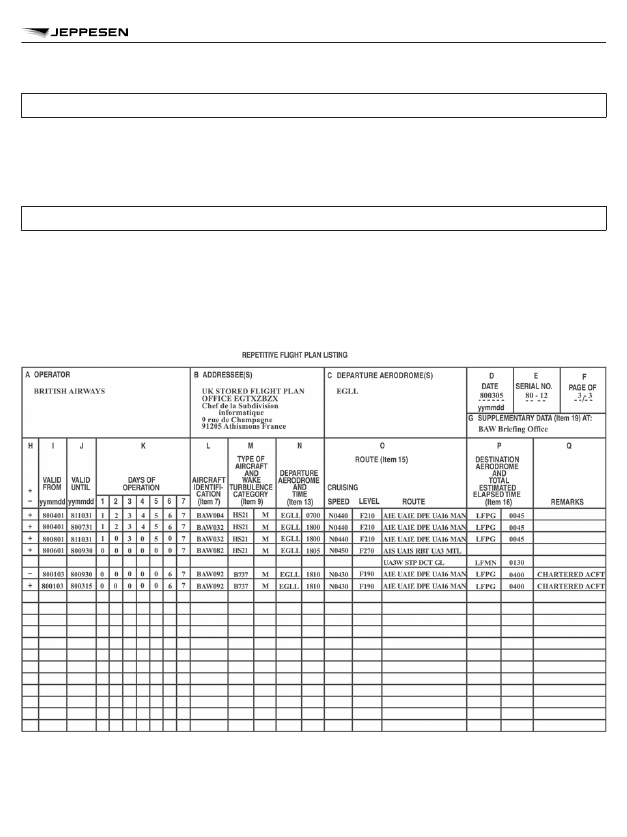

INTERNATIONAL CIVIL AVIATION ORGANIZATION -

AIR TRAFFIC MANAGEMENT

1309

APPENDIX 2 - FLIGHT PLAN

JEPPESEN GENERAL AIRWAY MANUAL (Issue Date 1 JUL 21) - page 41
