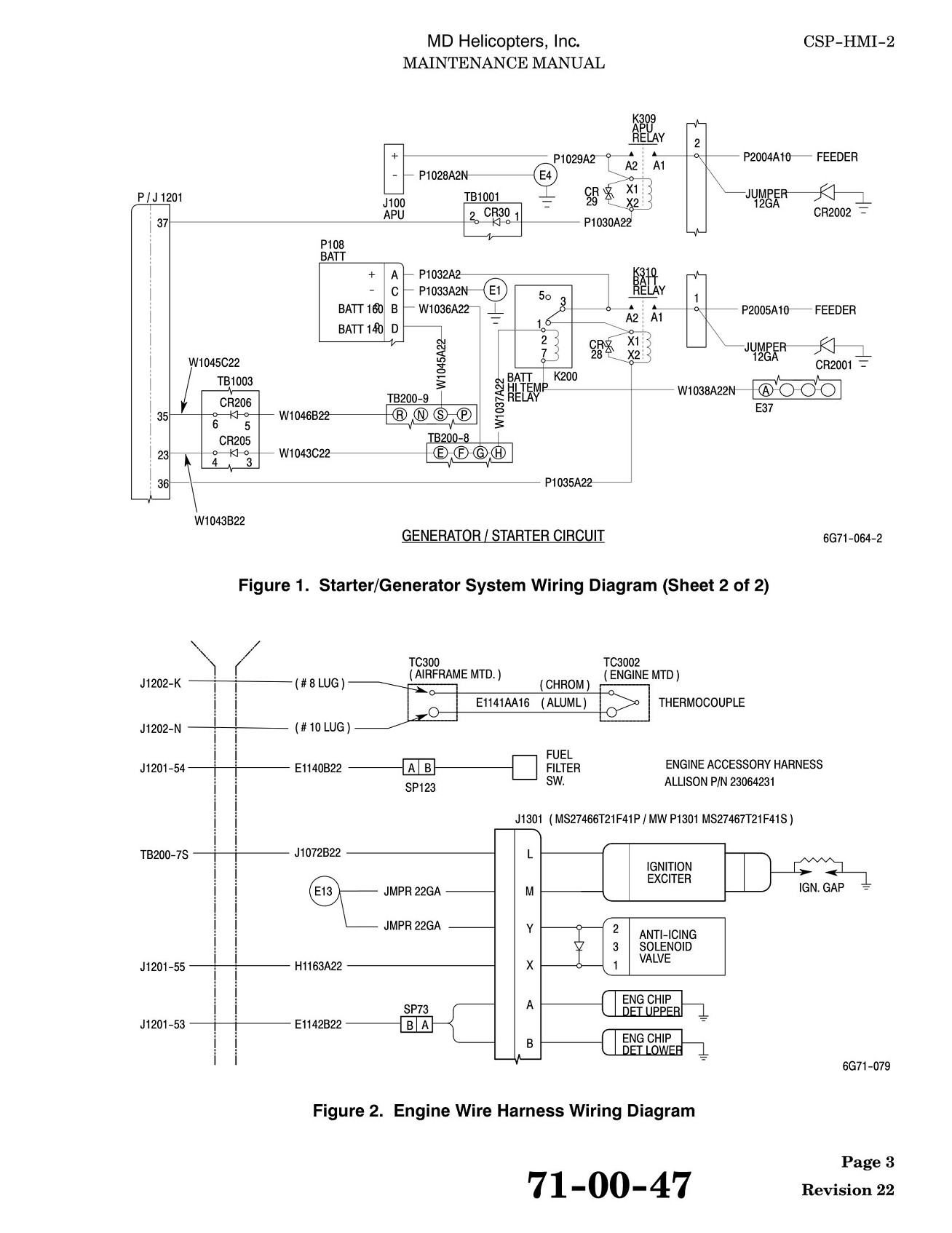

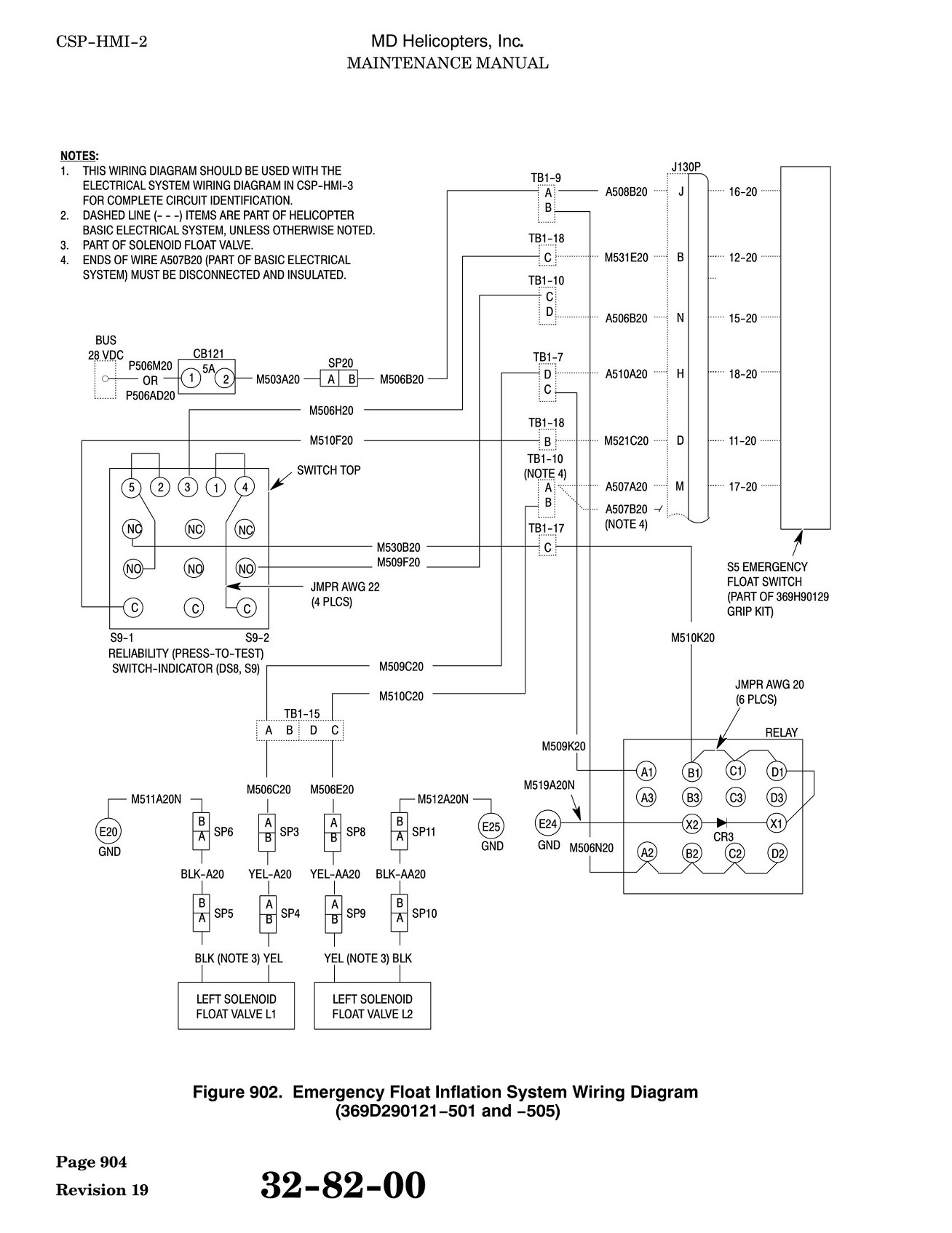

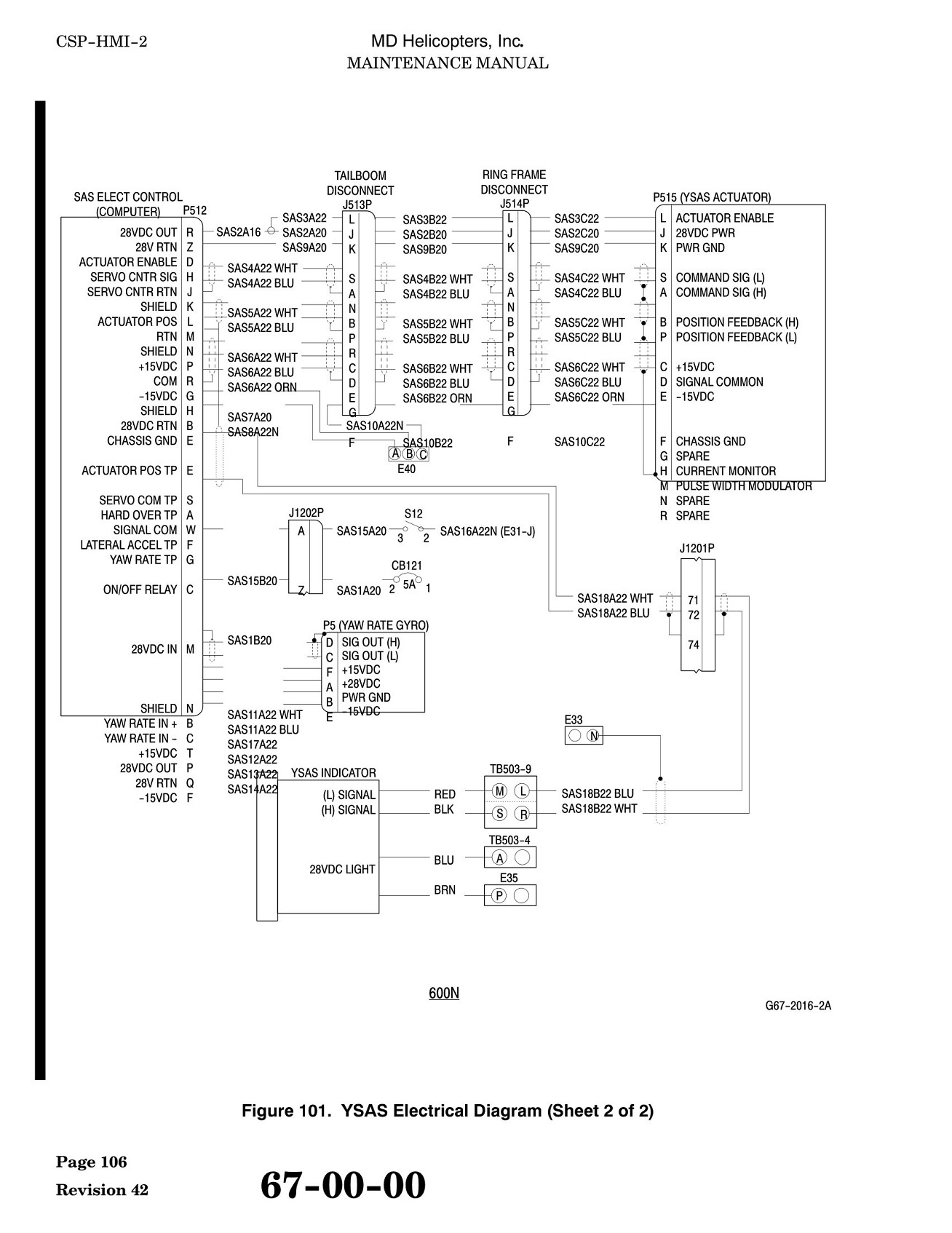

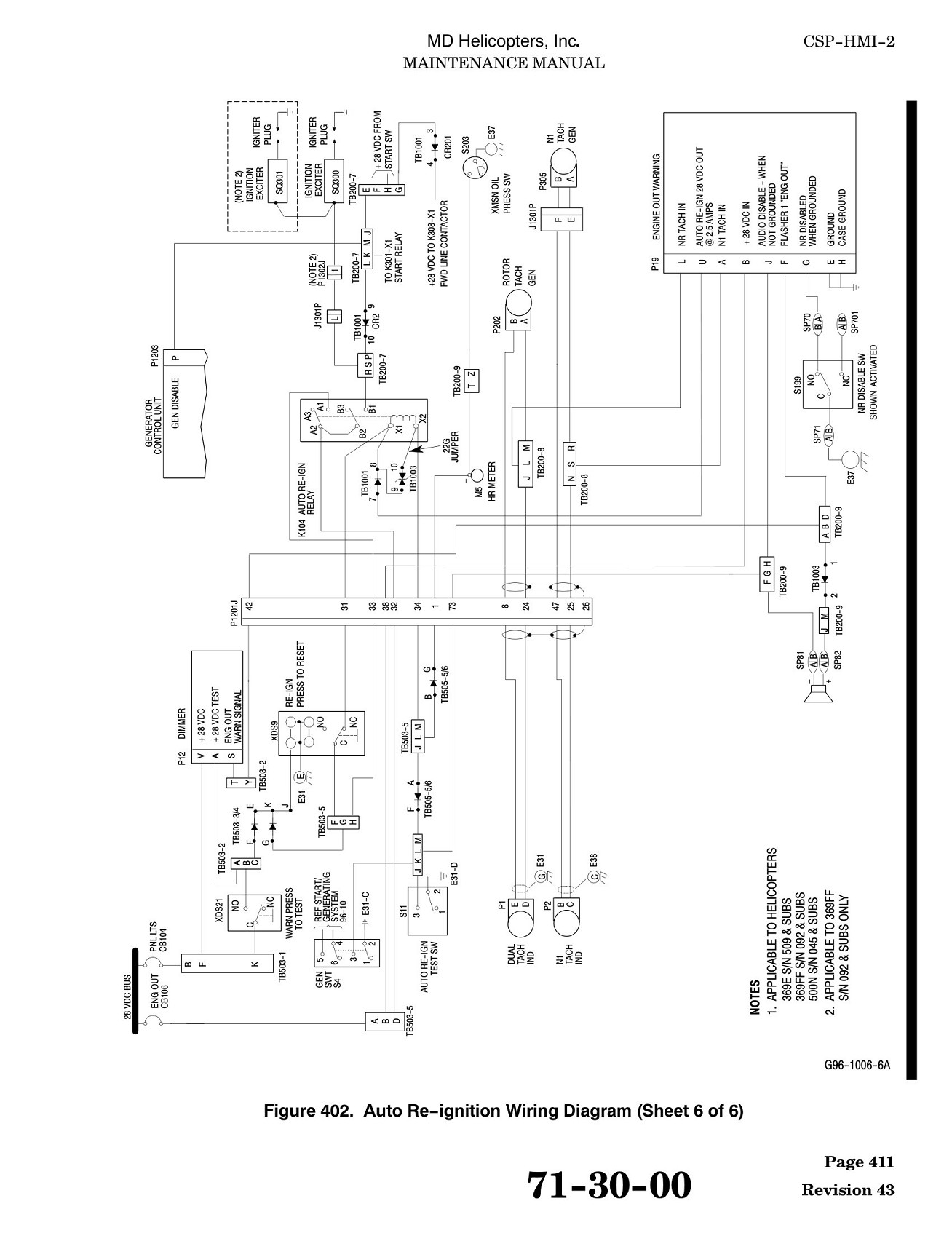

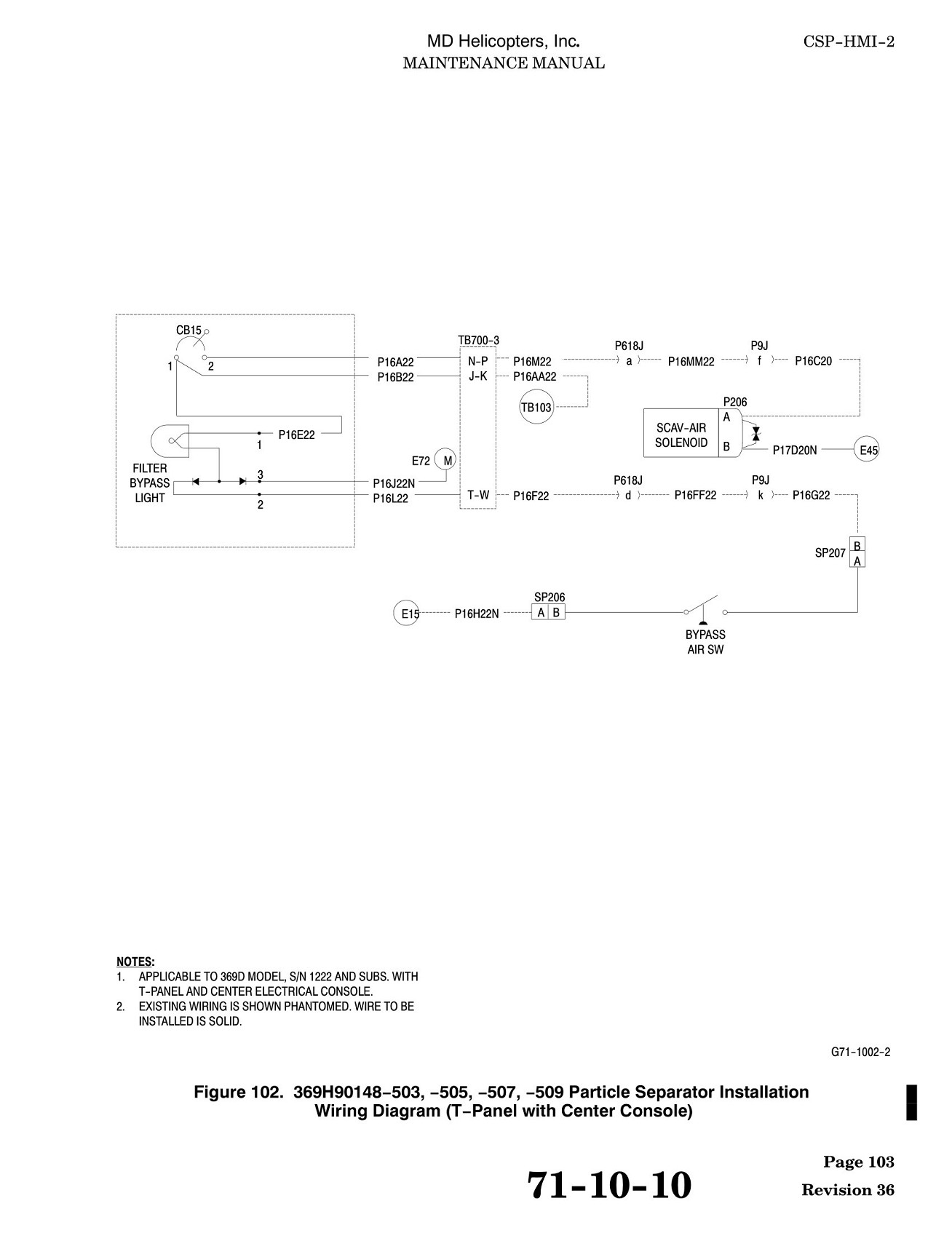

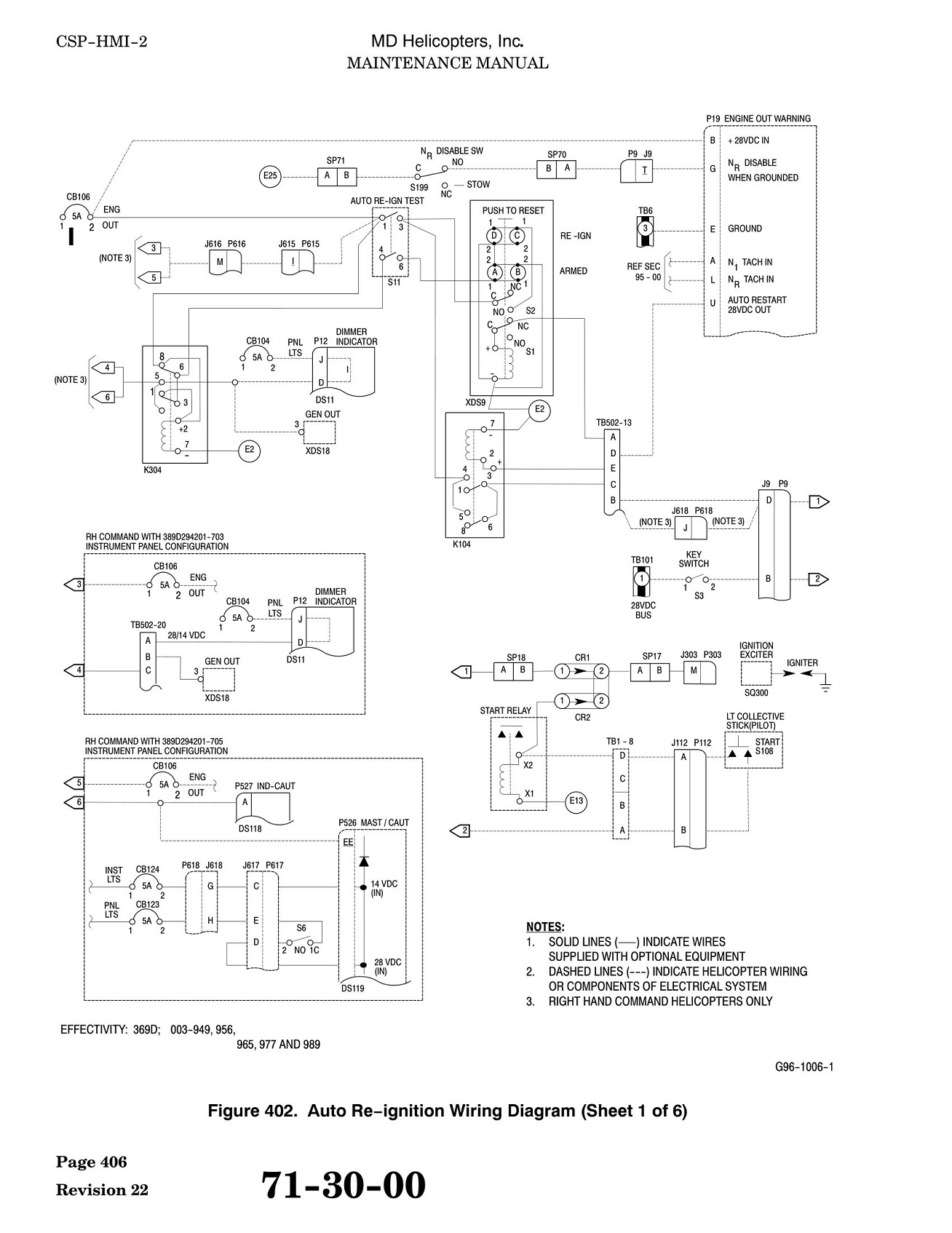

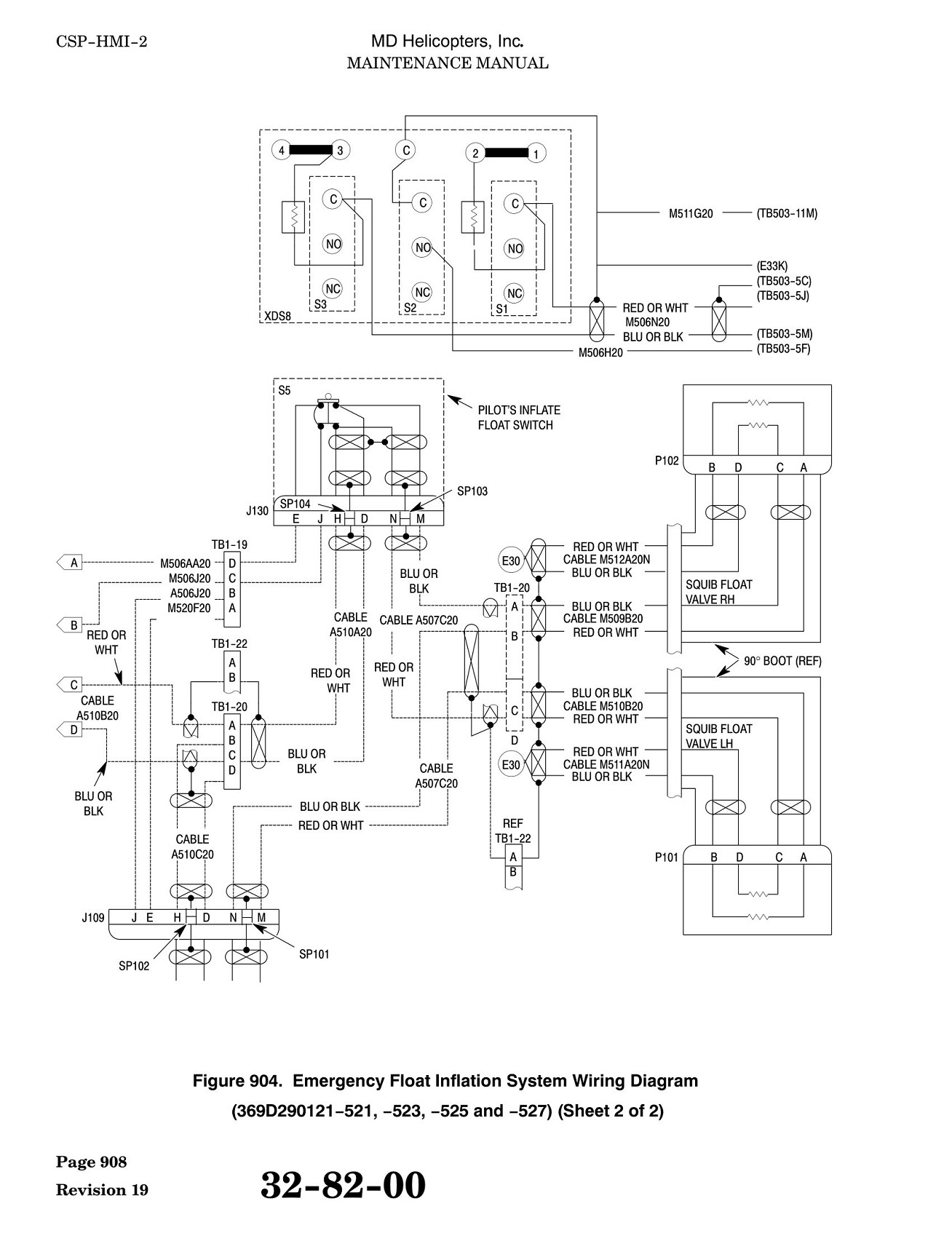

HANDBOOK OF MAINTENANCE INSTRUCTIONS FOR MDHI 369D/E/FF-500/600N HELICOPTERS (ISSUED: 1990) - page 33

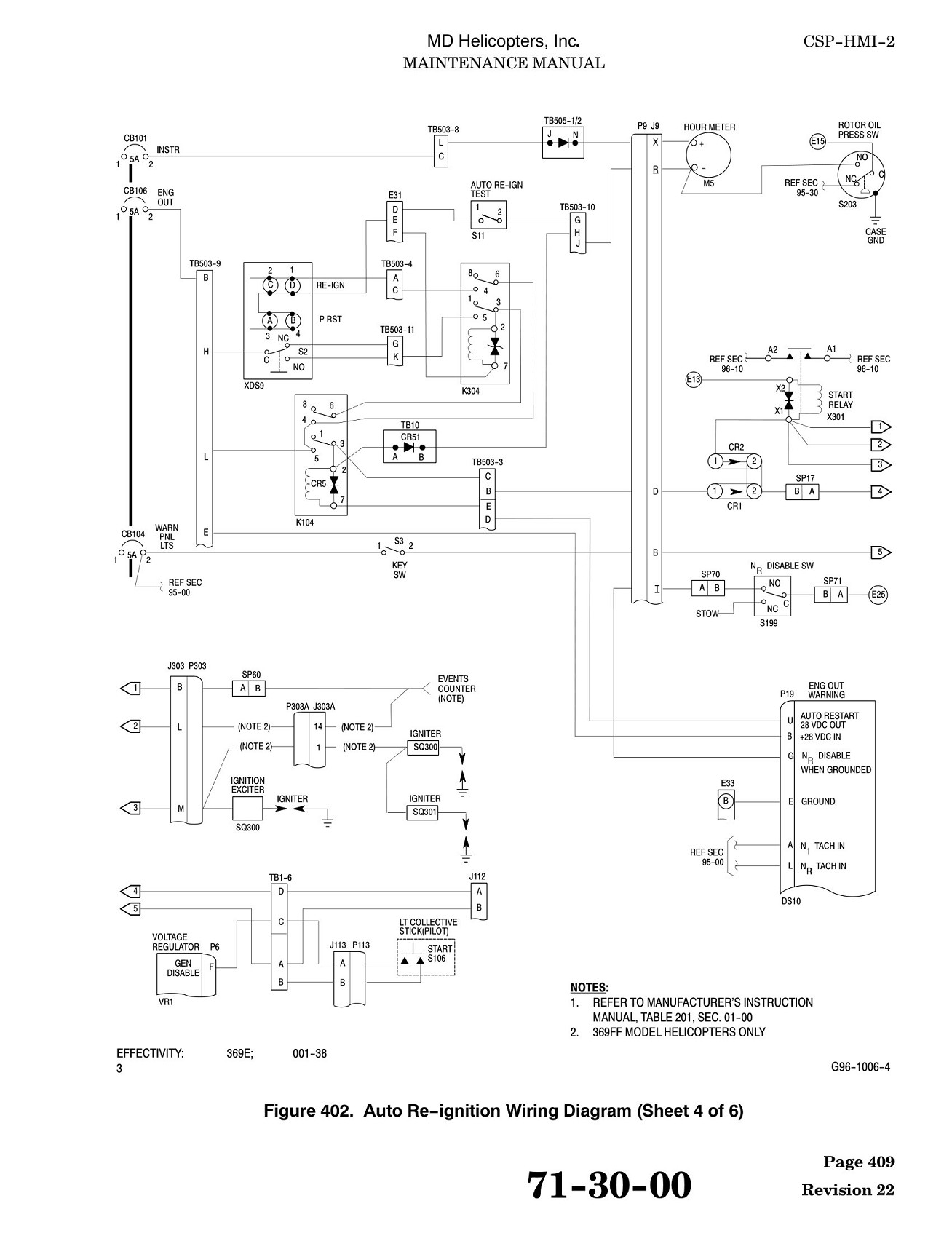

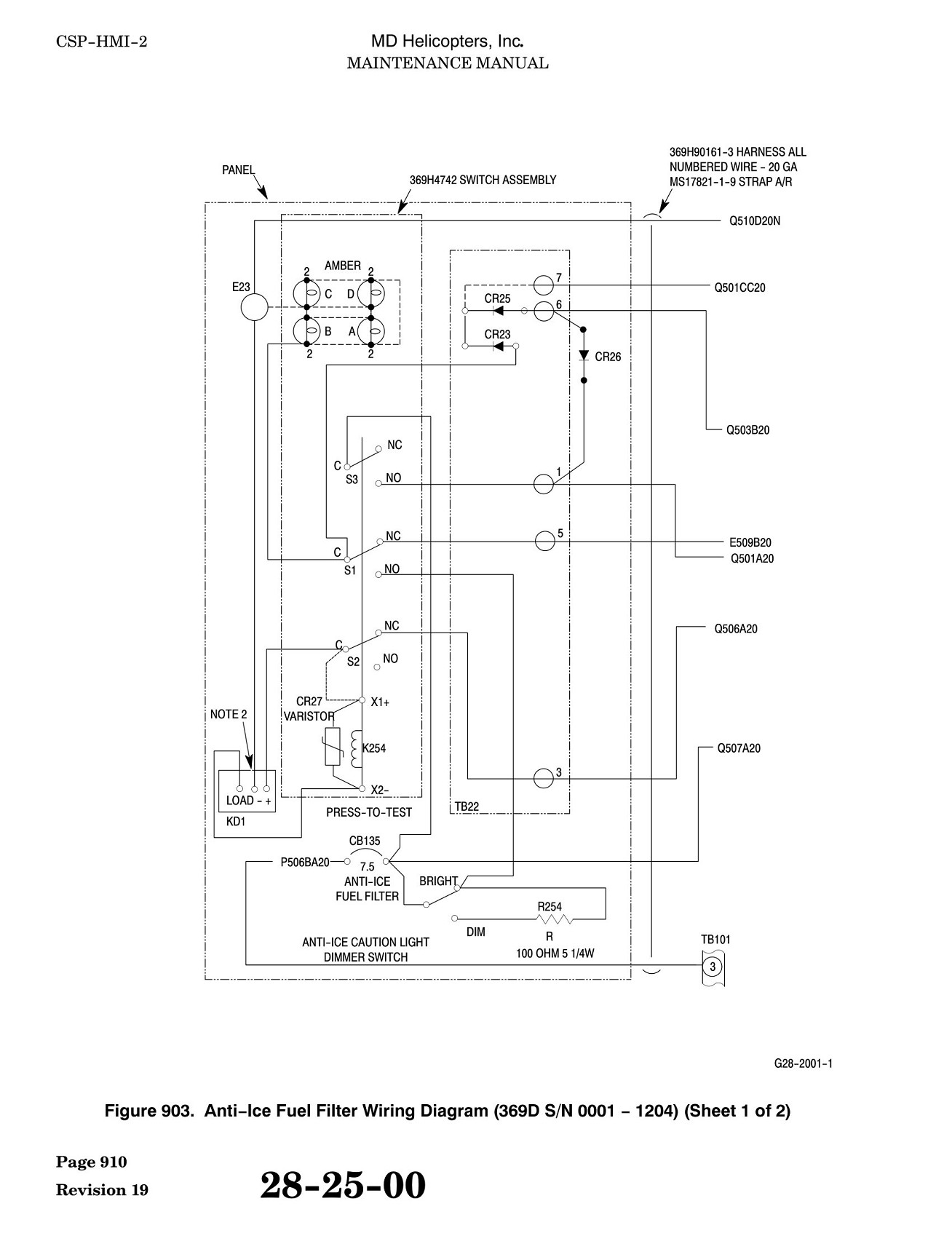

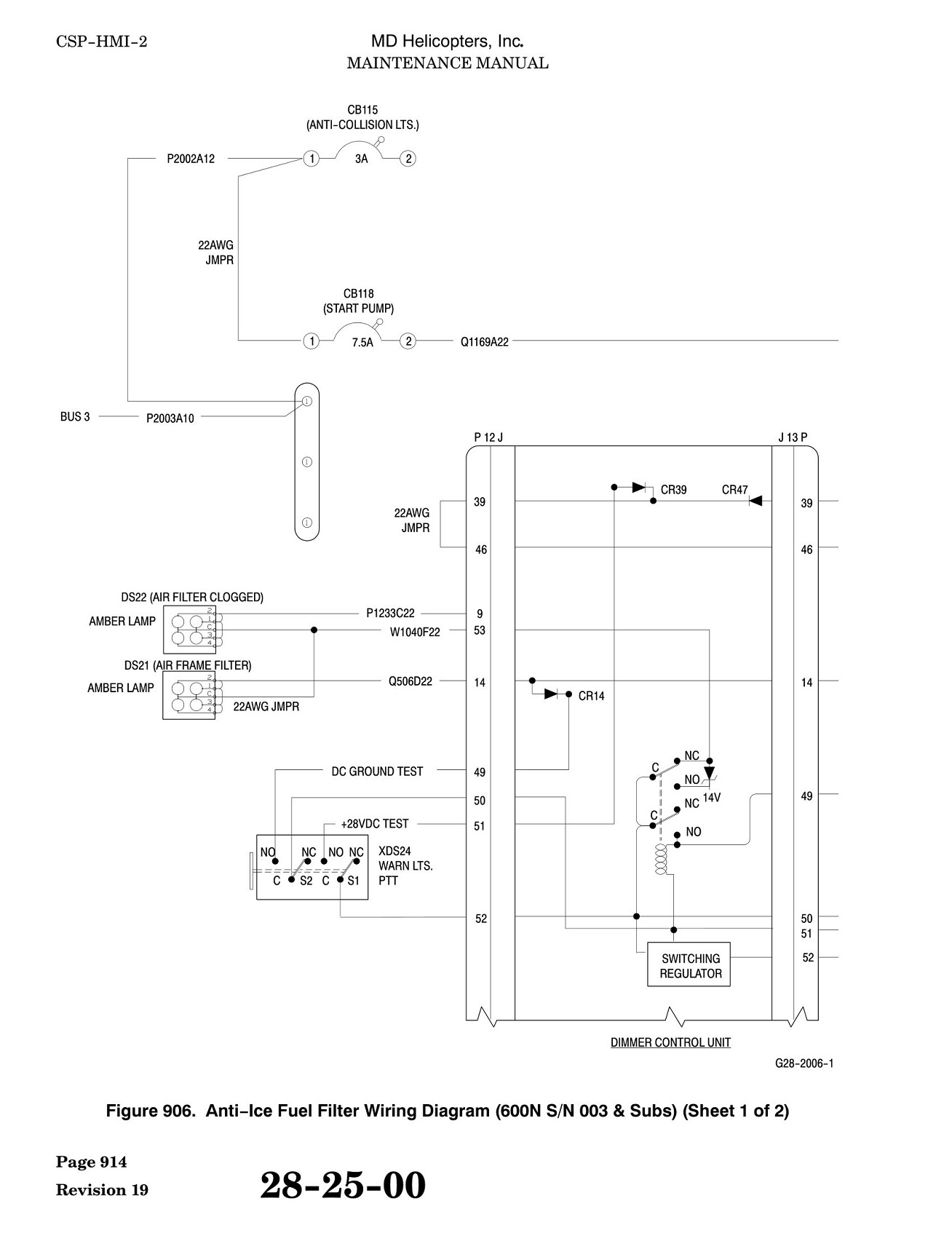

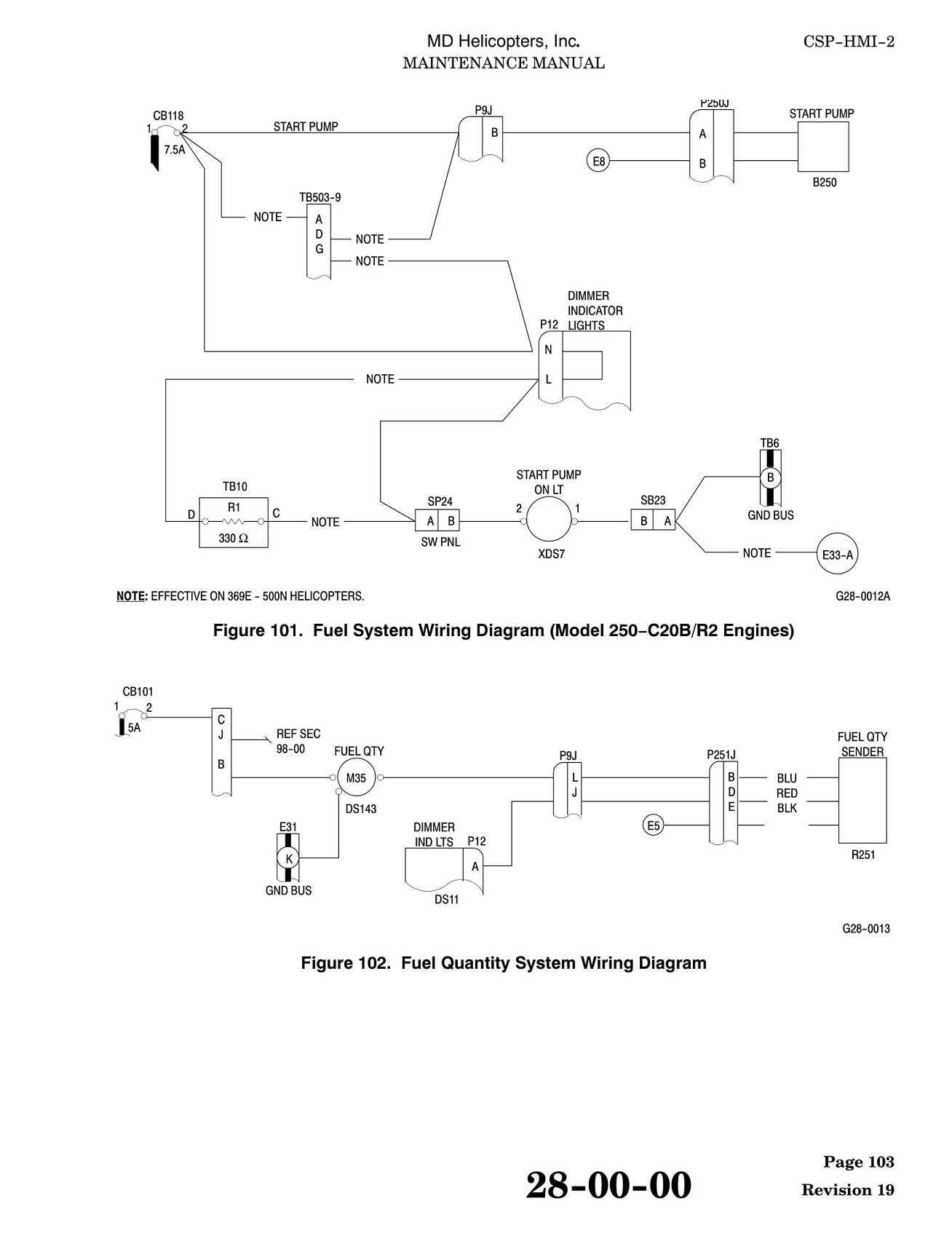

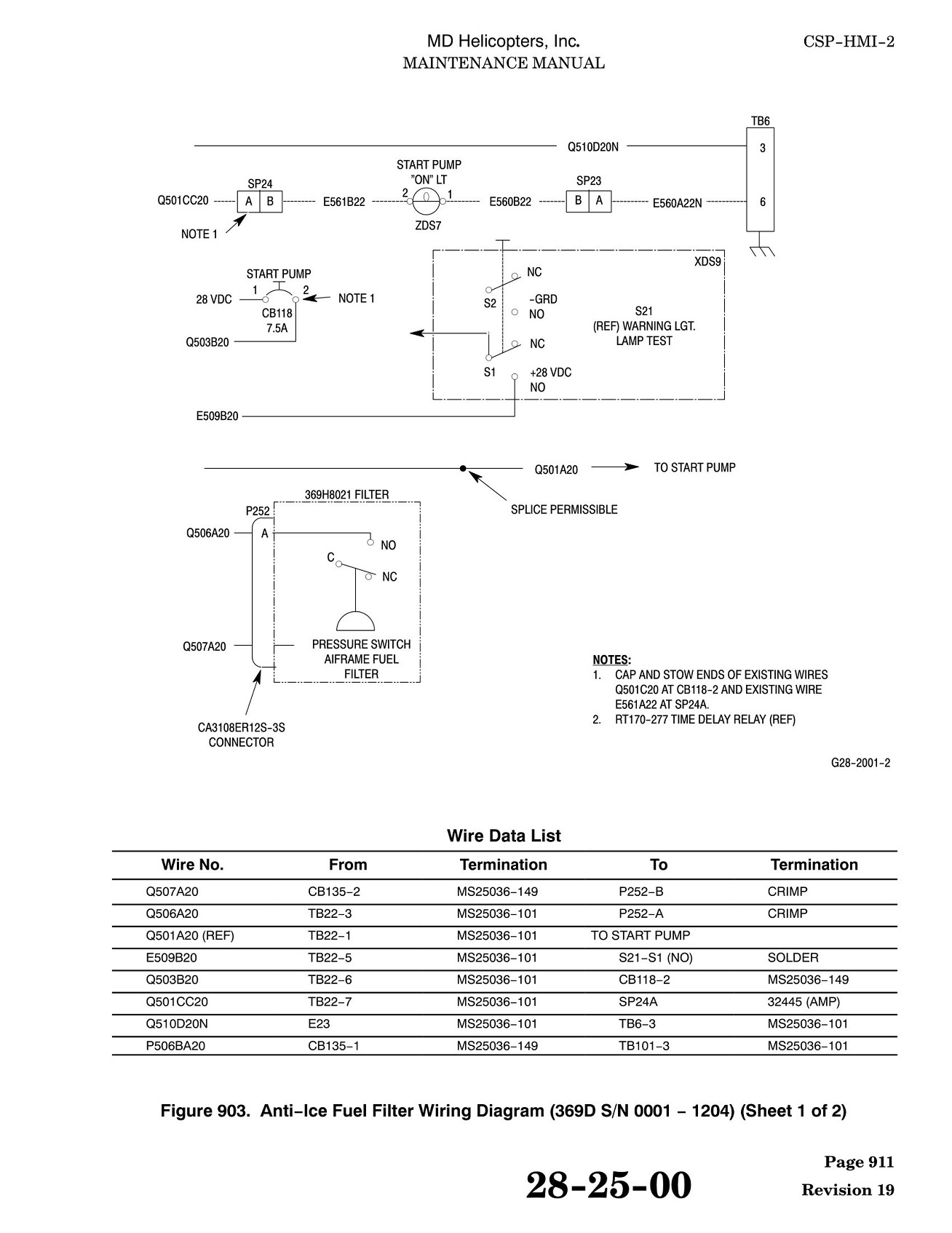

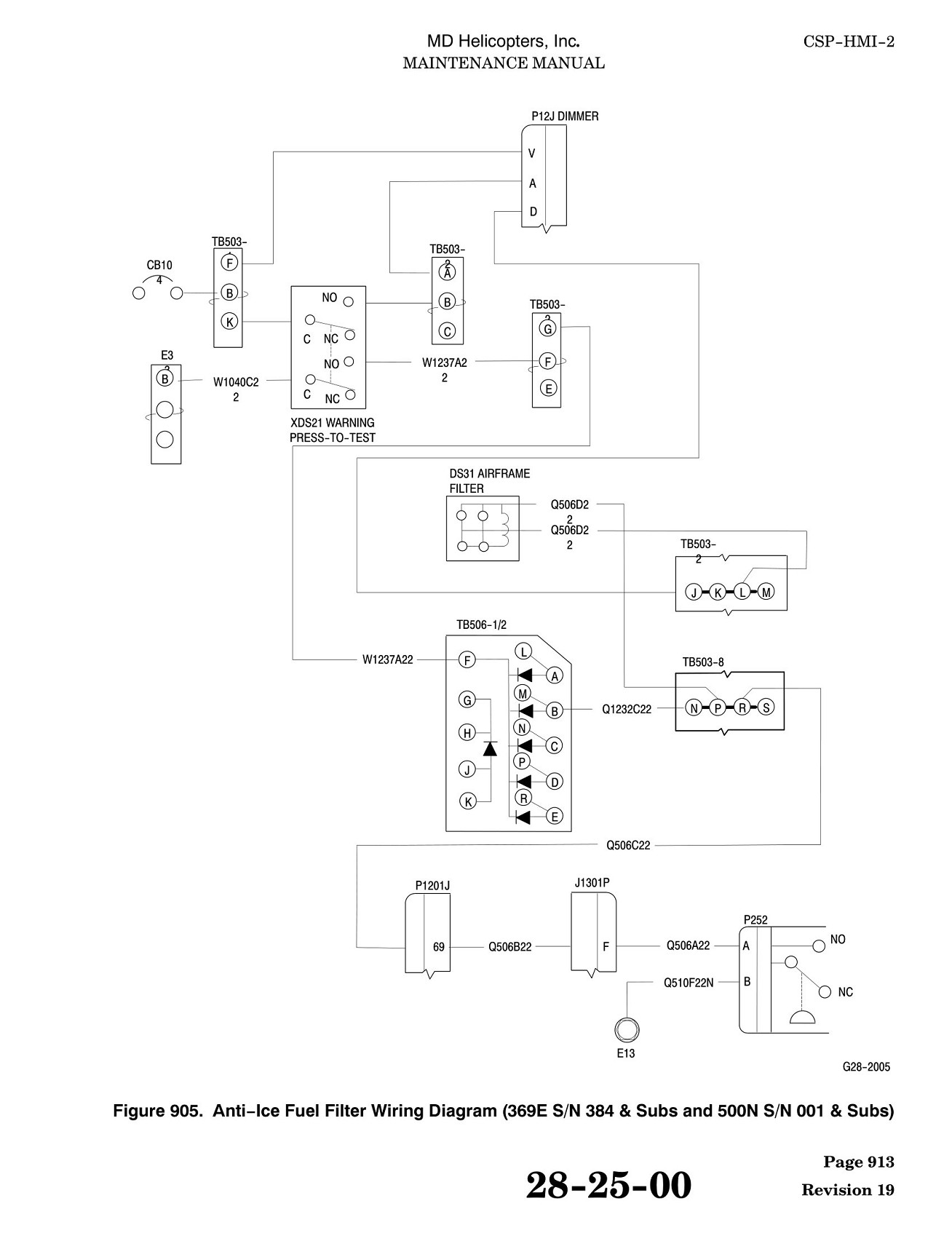

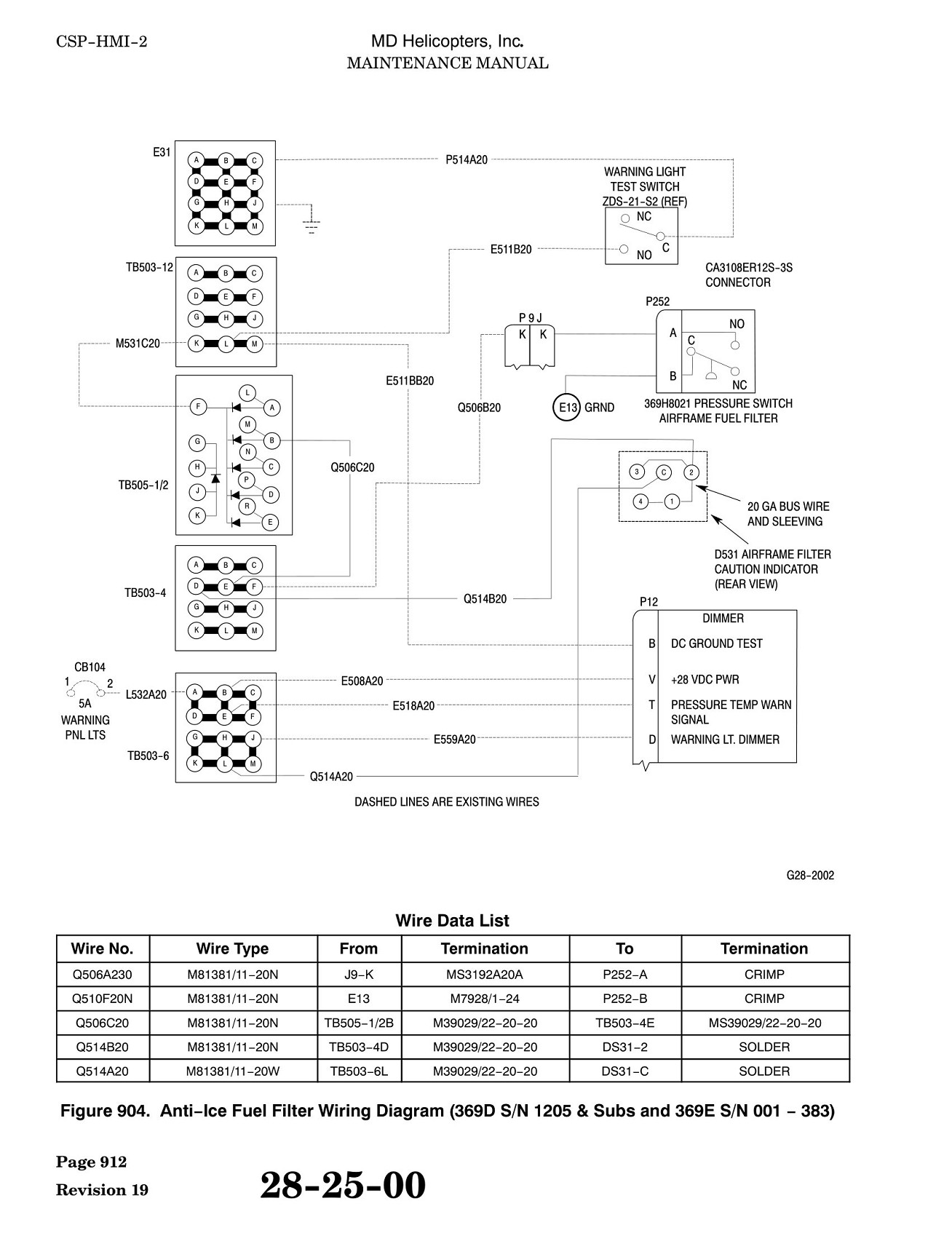

Fig 102 Fuel Quantity System Wiring Diagram

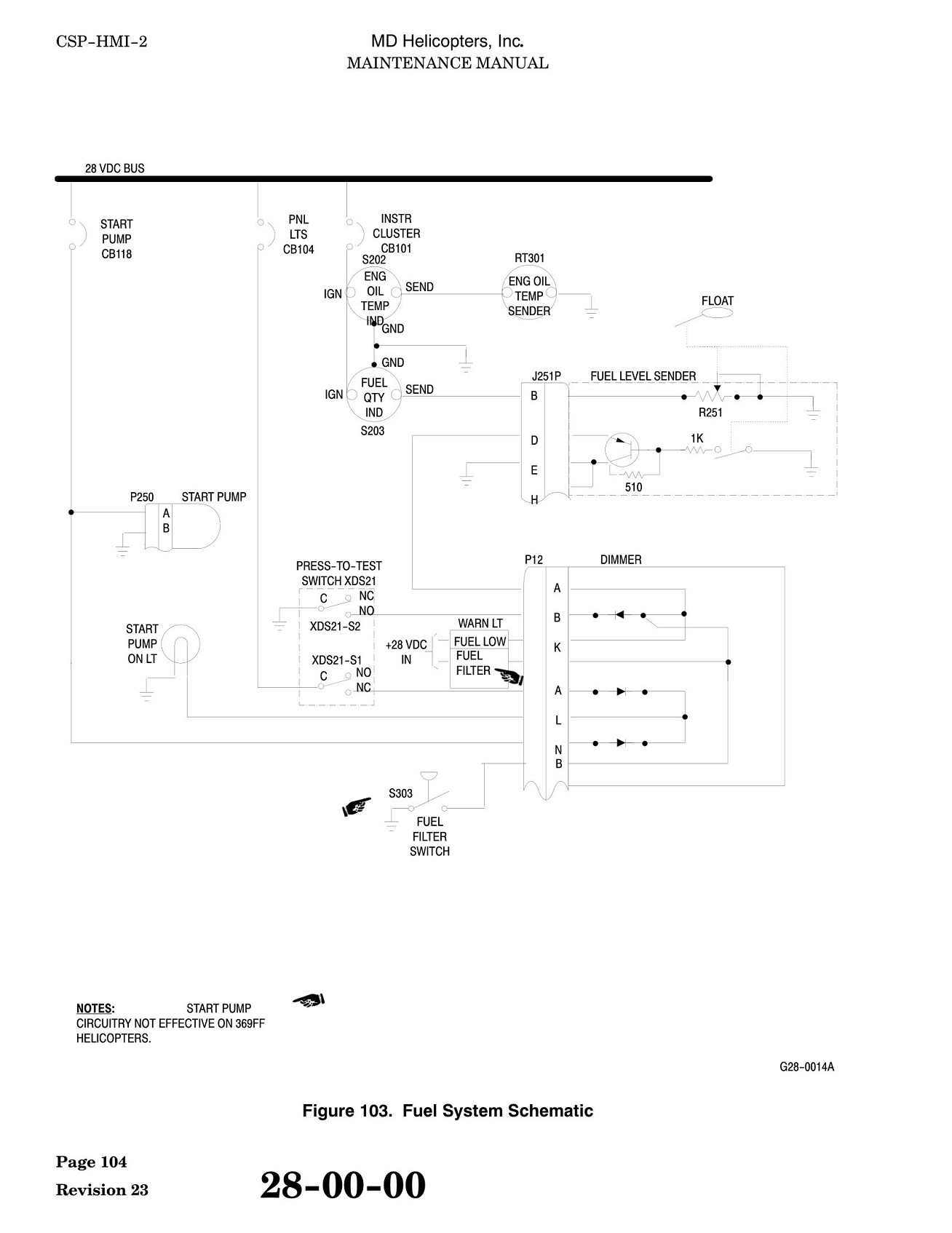

Fig 103 Fuel System Schematic
