BBM OUTLAW & OUTLAW EXTREME MODELS ZERO-TURN MOWER. Manual - part 9

PAGE



33

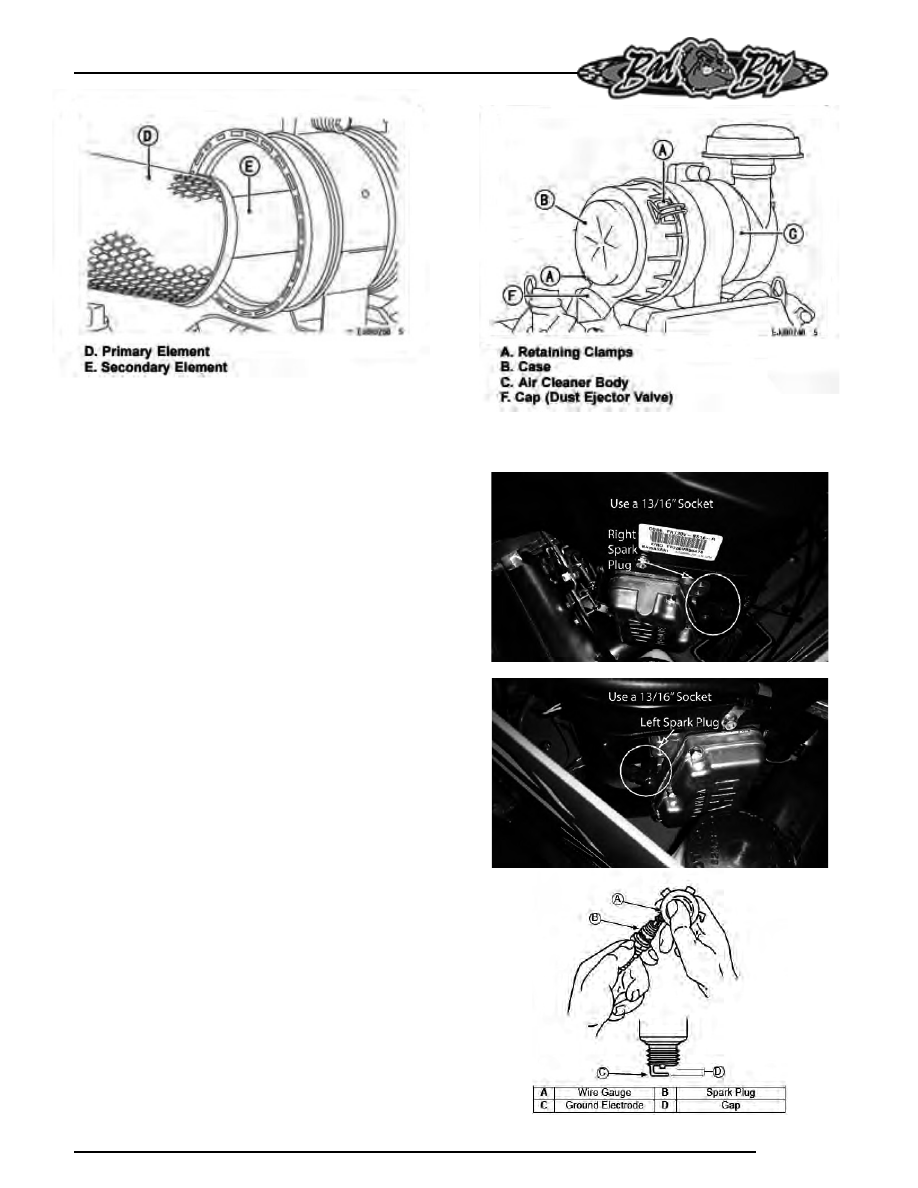

1) Remove the wire on the spark plug and use a

13/16” socket to remove the spark plug.

2) Check the gap on the spark plug to verify that

it is 0.03 in using a feeler gauge.

3) If the spark plug is worn, overheated, wet or

carbon fouled replace the spark plug.

4) Install the plug into cylinder head and torque

to 16 ft.-lbs.  Be careful not to overtighten the

spark plug.

3.4 Changing the spark plugs and checking the spark plug gap:

PAGE

34

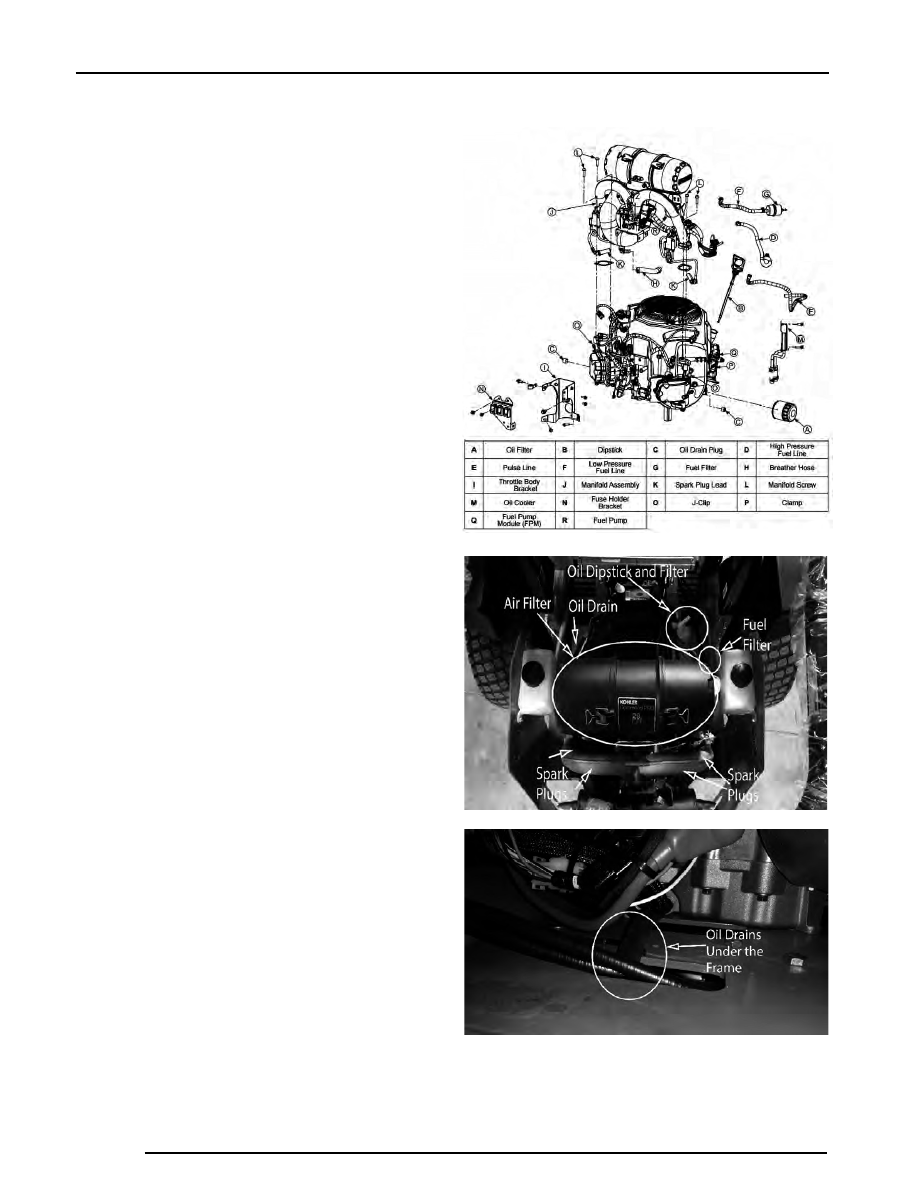

Kohler Command Pro EFI ECV870

This machine has an oil drain hose installed on the

engine to allow for easier oil changes. Bad Boy
recommends that the oil and filter be changed after the
initial 8 hrs of use, and at intervals of 50 usage hours
or yearly, whichever occurs first after that. The oil
capacity is 2 quarts. Bad Boy 10W-30 synthetic blend
engine oil is recommended for maximum protection.

3.1 Changing your engine oil and oil filte:r

1)

Remove oil dipstick and open oil drain. Allow
oil to completely drain. (Make sure to have an
oil pan ready to capture old oil and properly
dispose old oil.)

2)

The oil filter is located on the right side of  the
engine. Clean area around oil filter. Place a
container under the oil filter to capture any oil
and remove filter. Wipe off mounting surface
and reinstall drain plug. Torque to 10
ft.-lb.Place new filter in shallow pan with open
end up. Fill with new oil until oil reaches the
bottom of the threads. Allow 2 minutes for oil
to be absorbed by filter material.

3)

Apply a thin film of clean oil to rubber gasket
on new filter

4)

Refer to instructions on oil filter for proper
installation.

5)

Fill crankcase with approximately 2 quarts of
new oil. Level should top of indicator on
dipstick.

6)

Reinstall oil fill/dipstick and tighten securely.

7)

Start engine; check for oil leaks. Stop Engine;
correct oil leaks. Re-check oil level

8)

Dispose of used oil and filter in accordance
with local ordinances.

PAGE



35

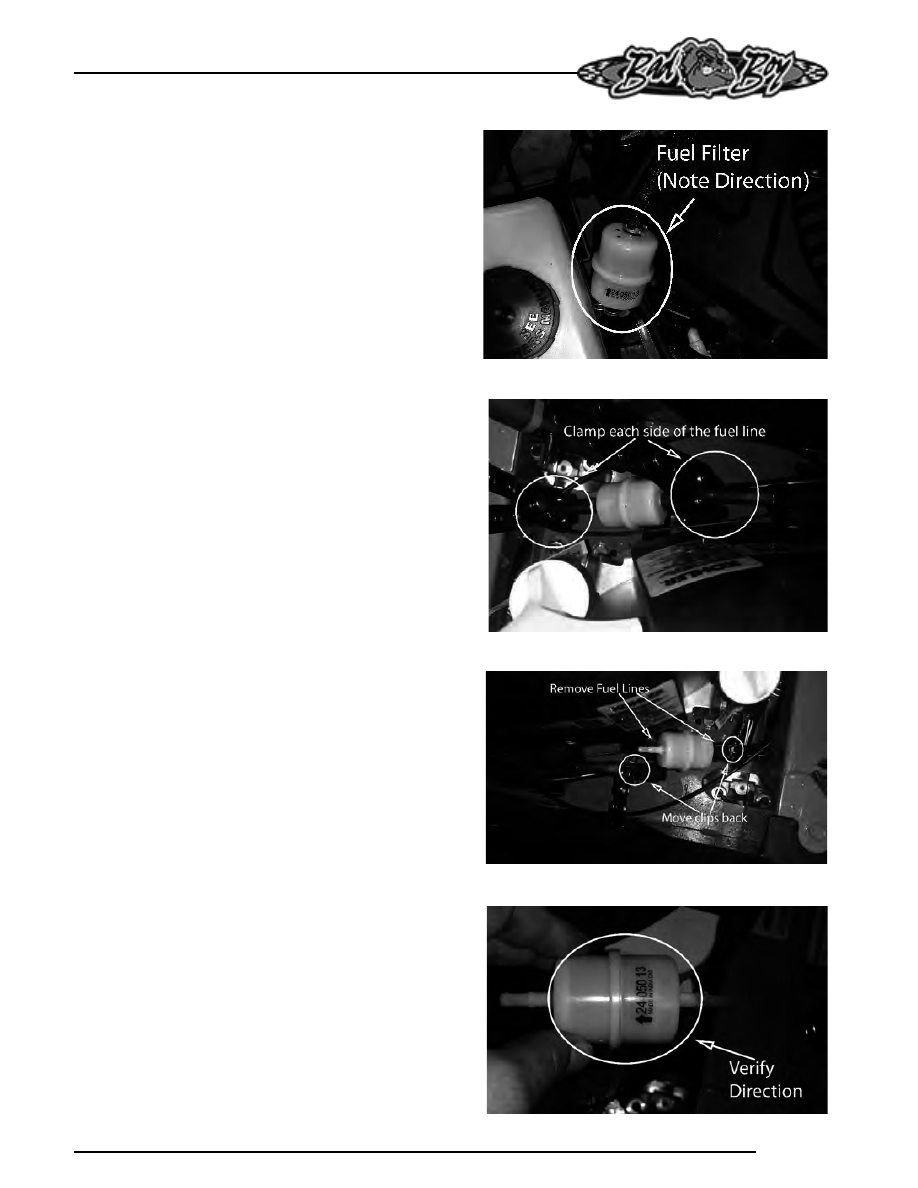

The fuel filter is located in the fuel line about 12˝ from
the carburetor on the side of the engine. Replace the
filter yearly. Prior to the removal of the old filter, note the
direction of fuel flow as indicated on the filter. Have
towels readily available in order to quickly remove any
fuel leakage. Always use new hose clamps and ensure
the security of the new filter by lightly pulling on each
hose. Always perform maintenance outdoors or in a well



ventilated area. Do not smoke or allow any open flames
in the vicinity of any maintenance activities.

3.2 Changing your fuel filter:

1)

Locate your fuel filter and mark the direction it is

facing.

2)

Clamp each side of the fuel filter to minimize and

gas spills.

3)

Remove the clips from each side of the fuel filter

and remove the fuel filter.

4)

Place the new fuel filter in the same direction as

the old and place clips back into place and remove
clamps.

PAGE

36

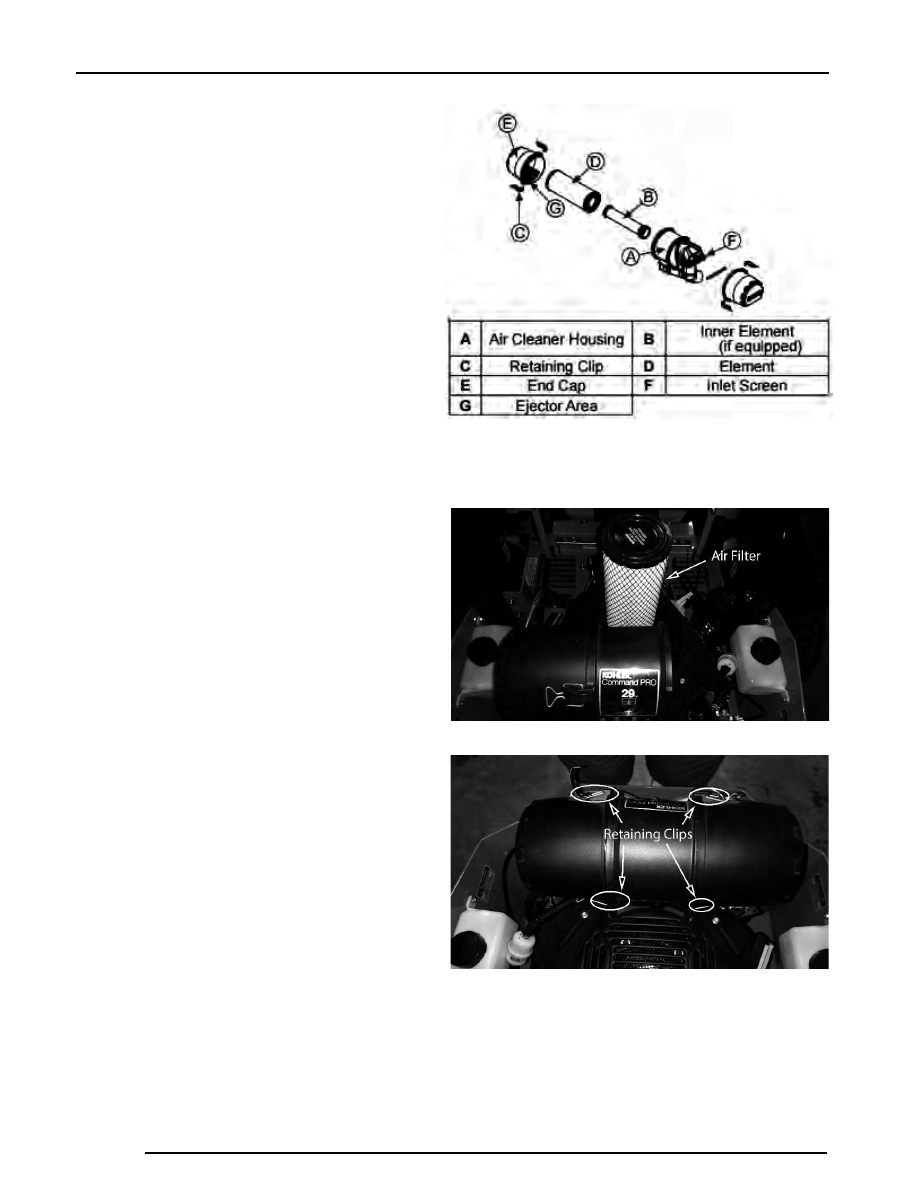

The air cleaner is the engine’s only defense against
damaging foreign particles. It is very important that the
air cleaner element is inspected prior to each use.
Remove the element and tap its sides in order to remove
debris. Do not blow the filter out using compressed air.
Doing so will greatly reduce the air cleaner’s
effectiveness. Replace yearly; more often in  dusty
environments. Adhering to these practices will help
prevent loss of power and premature engine failu

re.



3.3 Changing the air cleaner:

1)

Unlock the air cleaner cover and remove to
access the air cleaner.

2)

Remove the air filter element.

3)

Inspect the air filter element and either
clean or replace the element.

4)

Install onto base and place cover back on
and lock into place.
