The fuel filter is located in the fuel line about 12˝ from
the carburetor on the side of the engine. Replace the
filter yearly. Prior to the removal of the old filter, note the
direction of fuel flow as indicated on the filter. Have
towels readily available in order to quickly remove any
fuel leakage. Always use new hose clamps and ensure
the security of the new filter by lightly pulling on each
hose. Always perform maintenance outdoors or in a well
ventilated area. Do not smoke or allow any open flames
in the vicinity of any maintenance activities.

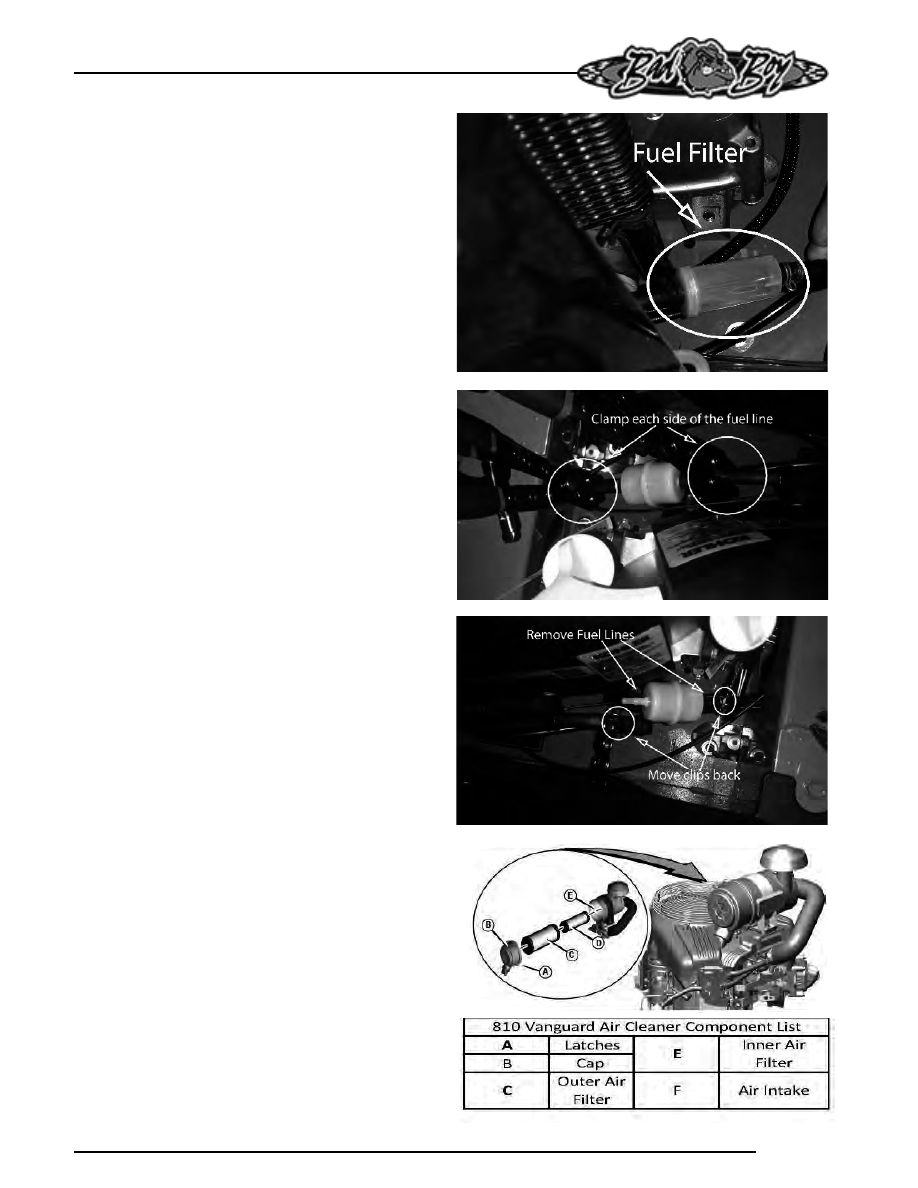

3.2 Changing your fuel filter:

1) Locate your fuel filter and mark the direction it is

facing.

2) Clamp each side of the fuel filter to minimize and

gas spills.

3) Remove the clips from each side of the fuel filter

and remove the fuel filter.

4) Place the new fuel filter in the same direction as the

old and place clips back into place and remove
clamps.

The air cleaner is the engine’s only defense against
damaging foreign particles. It is very important that
the air cleaner element is inspected prior to each
use. Remove the element and tap its sides in order to
remove debris. Do not blow the filter out using
compressed air. Doing so will greatly reduce the air
cleaner’s effectiveness. Replace yearly; more often in
dusty environments. Adhering to these practices will
help prevent loss of power and premature engine
failure.

PAGE

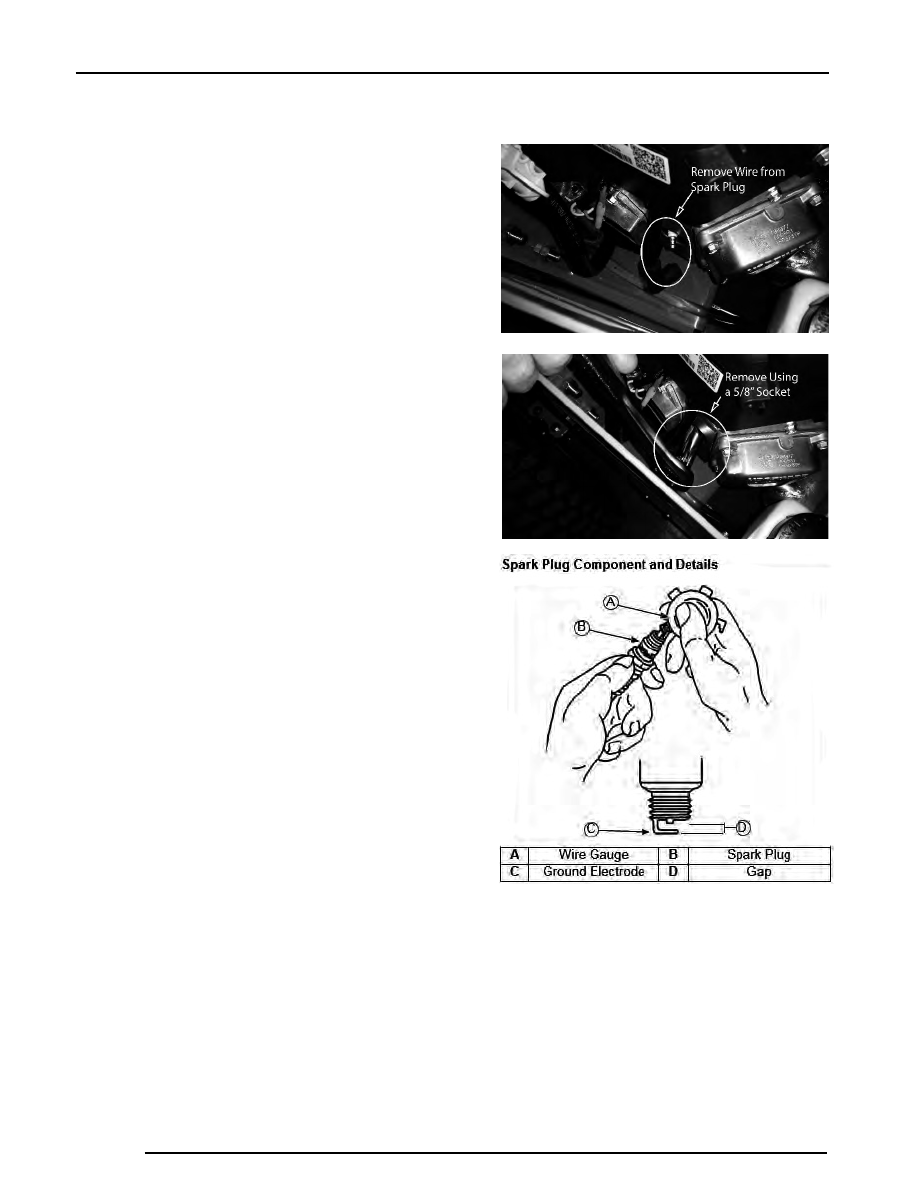

3.4 Changing the spark plugs and checking the spark plug gap:

1) Remove the wire on the spark plug and use a 5/8"

socket to remove the spark plug.

2) Check the gap on the spark plug to verify that it is

0.03 in using a feeler gauge.

3) If the spark plug is worn, overheated, wet, or carbon

fouled replace the spark plug.

4) Install the plug into the cylinder head and torque to

20 ft.-lbs. Be careful not to overtighten the spark

plug.

PAGE

Kohler Confidant 747CC

This machine has an oil drain hose installed on the

engine to allow for easier oil changes. Bad Boy
recommends that the oil and filter be changed after
the initial 8 hrs of use, and at intervals of 50 usage
hours or yearly, whichever occurs first after that. The
oil capacity is 2 quarts. Bad Boy 10W-30 synthetic
blend engine oil is recommended for maximum
protection.

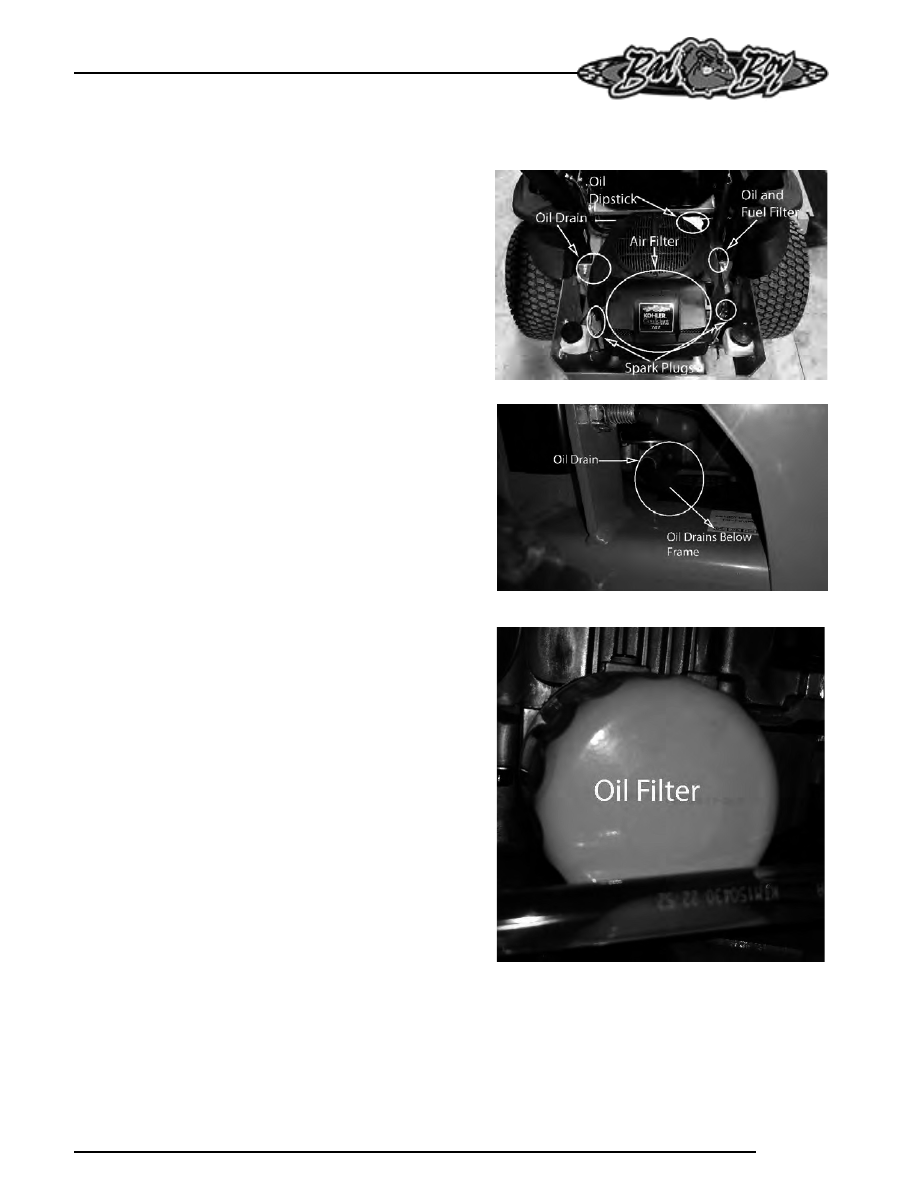

3.1 Changing your engine oil and oil filter:

1) Remove oil dipstick and open oil drain.

Allow oil to completely drain. (Make sure to have
an oil pan ready to capture old oil and properly
dispose old oil.)

2) The oil filter is located on the right side of the

engine. Clean area around oil filter. Place a
container under the oil filter to capture any oil and
remove filter. Wipe off mounting surface and
reinstall drain plug. Torque to 10 ft*lb.

3) Place new filter in shallow pan with open end up.

Fill with new oil until oil reaches the bottom of the
threads. Allow 2 minutes for oil to be absorbed by
filter material.

4) Apply a thin film of clean oil to rubber gasket on

new filter.

5) Refer to instructions on oil filter for proper

installation.

6) Fill crankcase with approximately 2 quarts of

new oil. Level should top of indicator on the
dipstick.

7) Reinstall oil fill/dipstick and tighten securely.
8) Start engine; check for oil leaks. Stop Engine;

correct oil leaks. Recheck oil level

9) Dispose of used oil and filter in accordance with

Local ordinances.

PAGE

The fuel filter is located in the fuel line about 12˝ from
the carburetor on the side of the engine. Replace the
filter yearly. Prior to the removal of the old filter, note
the direction of fuel flow as indicated on the filter. Have
towels readily available in order to quickly remove any
fuel leakage. Always use new hose clamps and
ensure the security of the new filter by lightly pulling on
each hose. Always perform maintenance outdoors or
in a well

ventilated area. Do not smoke or allow any

open flames in the vicinity of any maintenance
activities.

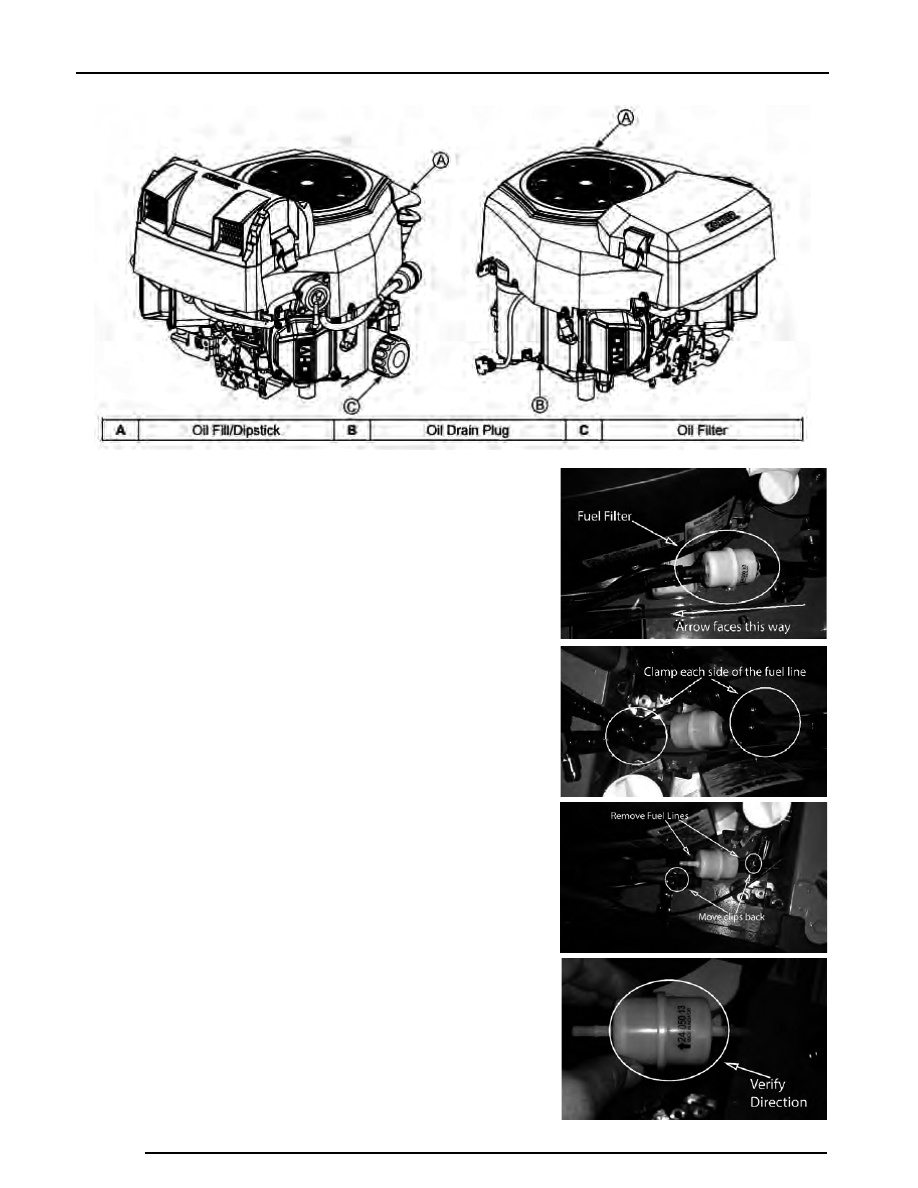

3.2 Changing your fuel filter:

1) Locate your fuel filter and mark the direction it is

facing.

2) Clamp each side of the fuel filter to minimize and

gas spills.

3) Remove the clips from each side of the fuel filter

and remove the fuel filter.

4) Place the new fuel filter in the same direction as

the old and place clips back into place and remove
clamps.
