Chapter 12. Choosing a National Language and Defining

Character Sets

A national language (as opposed to a programming language) is a language used

in or by a nation. The database manager can work with data in national languages

represented by a single-byte character set (SBCS) or by a double-byte character set

(DBCS). The database manager will also support MBCS data from other platforms,

which will be converted to SBCS and DBCS data. The following are some of the

single-byte character sets that are shipped with the database manager:

v French

v English

v Spanish

v Italian

v German.

Examples of double-byte character sets that are shipped with the database manager

include:

v Japanese

v Chinese.

If you want a complete list of the character sets that are available, review the

SYSTEM.SYSCHARSETS catalog table.

This chapter describes the facilities that the database manager provides for national

languages:

CHARNAME specification

This facility allows you to specify character sets and CCSIDs other than the

installation or migration default. The application server default CHARNAME for

a new installation is INTERNATIONAL (CCSID=500). The application server

default CHARNAME for a migrated system is ENGLISH (CCSID=37). The

application requester default CHARNAME is always INTERNATIONAL

(CCSID=500). The database manager can use alternative character sets for

identifying character usage and for folding lowercase characters to uppercase.

This facility provides for the proper interpretation and use of national language

characters not included in the default character set, for example, characters with

umlauts, accents, and tildes.

This facility also provides for the proper interpretation of data from application

requesters or application servers which use different character sets and code

pages. Character conversion is performed on data when the CCSID of the

application requester and the CCSID of the application server are different. The

application server default CCSID is determined from the application server

default CHARNAME.

It is very important that the application server and application requester have

the same CCSID value unless there is a specific reason for them to be different.

When the application server and application requester have different CCSID

values, character conversion cannot be avoided. This conversion has an

associated performance overhead, and causes performance degradation. CCSID

conversion of data also affects the sargability of predicates. For more information

on performance, see the DB2 Server for VSE & VM Performance Tuning Handbook

manual.

DBCS option

2007

231

This option, when it is set to YES, allows the database manager to correctly

interpret the shift-out (X'0E') and shift-in (X'0F') characters that delimit EBCDIC

DBCS strings. The DBCS option is set on both the application server and the

application requester.

v Multiple language messages

The database manager provides multiple language message support to allow

users to select the language in which error and informational messages appear

(the language must already be installed). The operator can select the language

for operator messages.

If an ISQL user selects a national language that is different from the national

language set by the operator on the application server, when the ISQL user

issues an operator command the output is in the language set by the operator.

For example, the operator sets the application server national language for

operator messages to ENGLISH. The ISQL users set the application requester to

KANJI. When the user issues an operator command, the result is in ENGLISH.

v Multiple language HELP text.

The database manager provides multiple language HELP text support. ISQL

users can interactively retrieve help information on messages and codes and

command reference information. The help facility allows ISQL users to retrieve

help in the language of their choice (provided that the language version of the

HELP text is installed). Information on DB2 Server for VSE HELP text is

contained in this chapter, and in the DB2 Server for VSE & VM Database

Administration manual.

The database manager also provides graphic data types for use with strings of

DBCS characters, as well as a mixed subtype for character data that contains both

DBCS and SBCS characters. For more information about using graphic and mixed

data, refer to the DB2 Server for VSE & VM SQL Reference manual.

Considerations when changing default CHARNAME and CCSID

If you are not using the default CHARNAME or CCSID during installation or

migration, ensure you consider the following activities:

1. Choosing default CHARNAME and CCSID for the application server

v Installation - see “Choosing the Application Server Default CHARNAME and

CCSID” on page 31.

v Migration - see “Choosing an Application Server Default CHARNAME” on

page 40.

Note: Refer to “CCSID Conversion” on page 245 and “Determining CCSID

Values” on page 248 for more information on CCSIDs.

2. Setting migration CCSID values

v Installation - defaults are adequate.

v Migration - see “Setting Migration CCSID Values” on page 41.

3. Optionally, choosing application server default character subtype

v Installation and migration - see “Choosing the Application Server Default

Character Subtype” on page 33.

4. Optionally, setting the DBCS option for the application server

v Installation and migration - see “Setting the DBCS Option for the Application

Server” on page 254.

232

System Administration

Note: To understand the effect of DBCS options, refer to “Using Double-Byte

Character Set (DBCS)” on page 243.

Changing from pre-Euro CHARNAME to Euro-compatible

CHARNAME

DB2 Server for VSE & VM supports several code pages that are identical to

existing code pages except that they include the Euro currency symbol rather than

the International currency symbol (¤). If you choose to use a CHARNAME that

corresponds to a CCSID for a code page that includes the Euro currency symbol, it

is recommended that your existing character data that is currently tagged with a

non-Euro CCSID be re-tagged with the corresponding Euro-compatible CCSID.

These steps should only be used when changing your CCSID to the corresponding

Euro-compatible CCSID as described in the following table:

Table

19. Non-Euro and Corresponding Euro-compatible CHARNAMEs and CCSIDs

From CCSID

From CHARNAME

To CCSID

To CHARNAME

English

1140

E-English

277

Danish-Norweigan

1142

EDanish-Norweigan

278

Finnish-Swedish

1143

EFinnish-Swedish

284

Spanish

1145

E-Spanish

285

UK-English

1146

E-UK-English

297

French

1147

E-French

500

International

1148

E-International

273

German

1141

E-German

280

Italian

1144

E-Italian

Step 1: This step will locate character data that currently represents the

International currency symbol (¤). The Euro-compatible code pages have replaced

the International currency symbol with the Euro symbol. If your database does not

contain character data that represents the International currency symbol, you can

skip this step. If your data does contain character data that represents the

International currency symbol, you must decide how to handle this. You can either

skip this step, in which case character data that currently represents the

International currency symbol will be interpreted as the Euro symbol once the

CCSID is changed, or, you can change the character data that currently represents

the International currency symbol to some other value. The following SELECT

statement will locate columns that are tagged with the non-Euro compatible

CCSID.

SELECT CNAME,TNAME,CREATOR FROM SYSTEM.SYSCOLUMNS WHERE CCSID=current_ccsid

For each column found, run the following SELECT statement:

SELECT * FROM creater.tname WHERE cname LIKE’%cur_symbol%’

Note: If your keyboard cannot generate the International currency symbol, replace

cur_symbol with the hex value X'9F'. In order to do this, you will have to use

an editor that allows hexadecimal characters to be entered.

This command will show you all the rows for column cname that include the

International currency symbol. You can now decide the appropriate value to

change the International currency symbol to for each row.

Chapter 12. Choosing a National Language and Defining Character Sets

233

Step 2: Re-tag existing character data with the new Euro-compatible CCSID. This

step uses the JCL job ARISCSID, which is provided by DB2 Server for VSE & VM.

1. Shut down the database server.

2. If you use any database initialization parameters that must be specified when

the database manager is started in single user mode, specify them in

ARISCSID. Do not delete any parameters that are currently listed.

3. Make any changes to ARISCSID that are necessary for your local installation.

4. Submit ARISCSID for execution.

5. Start the database server using your normal procedures.

// JOB ARICCSID UPDATE CCSID COLUMN OF SYSCOLUMNS

// LIBDEF PROC,SEARCH=(PRD2.DB2730)

// EXEC PROC=ARIS75PL

*-- DB2/VSE PROD. LIBRARY ID PROC

// EXEC PROC=ARIS75DB

*-- DB2/VSE DATABASE ID PROC

// EXEC ARISQLDS,SIZE=AUTO,PARM=’SYSMODE=S,PROGNAME=ARIDBS,SERVAIDS=0000001’

COMMENT ’ Do NOT alter the line above in any way ! ’

COMMENT ’Replace "sqldbapw" with the password for the SQLDBA SQL user ID’

CONNECT SQLDBA IDENTIFIED BY sqldbapw;

COMMENT ’Replace "euro-ccsid" with the CCSID of the

’

COMMENT ’Euro-compatible CHARNAME and replace "current_ccsid with’

COMMENT ’the CCSID of your current CHARNAME

’

UPDATE SYSTEM.SYSCOLUMNS SET CCSID=euro-ccsid WHERE CCSID=current_ccsid;

COMMIT WORK;

Figure 94. ARICCSID - Sample JCL

Using Alternative Character Sets

When the database manager folds keywords and identifiers from lowercase to

uppercase, or folds user-supplied data using the default TRANSLATE scalar

function, it bases the folding on the default character set specified on the

SQLSTART initialization parameter. For information on setting the default

character set, refer to “Choosing an Application Server Default CHARNAME” on

page 40.

Some characters in other national languages must be delimited by double

quotation marks (") before they can be accepted in identifiers. The double

quotation marks indicate that special characters are within the identifier. No

characters within delimited identifiers are folded from lowercase to uppercase. To

get proper folding of these characters and to allow them as part of an unquoted

identifier, you can specify your own character set, which includes both

classification and folding tables. Specify the CHARNAME parameter at startup to

have the database manager use your character set as the default. You can then use

characters such as o-umlaut or n-tilde in identifiers without the use of double

quotation marks.

For information on how to define your own character set, see Appendix E,

“Defining Your Own Character Set,” on page 363.

Hexadecimal Values of the Sample Character Sets

You will probably be able to use one of the IBM-supplied sample character sets

without modification. This section shows the hexadecimal value that is used to

234

System Administration

represent each valid character. If your devices use those hexadecimal values for the

indicated characters, you can use the IBM-supplied samples.

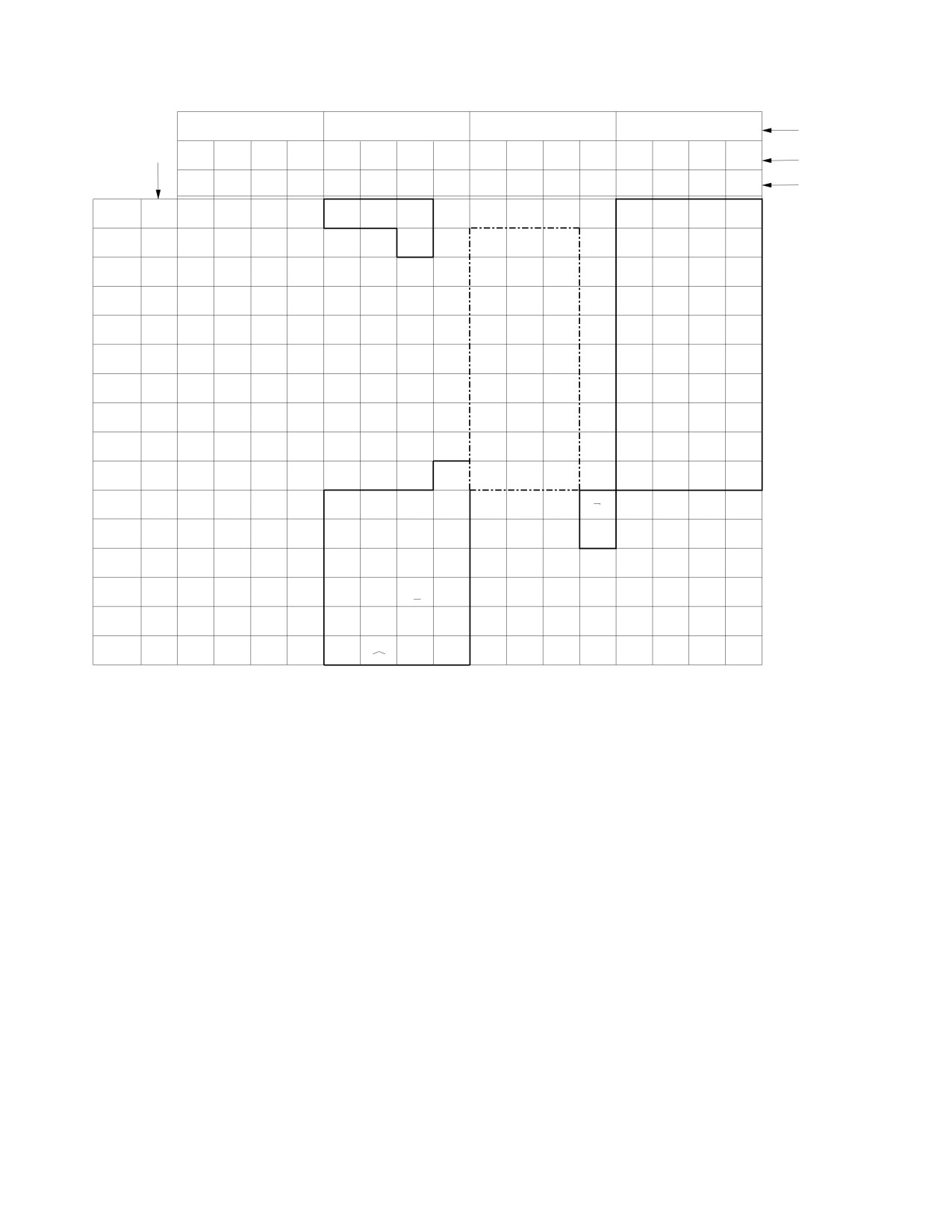

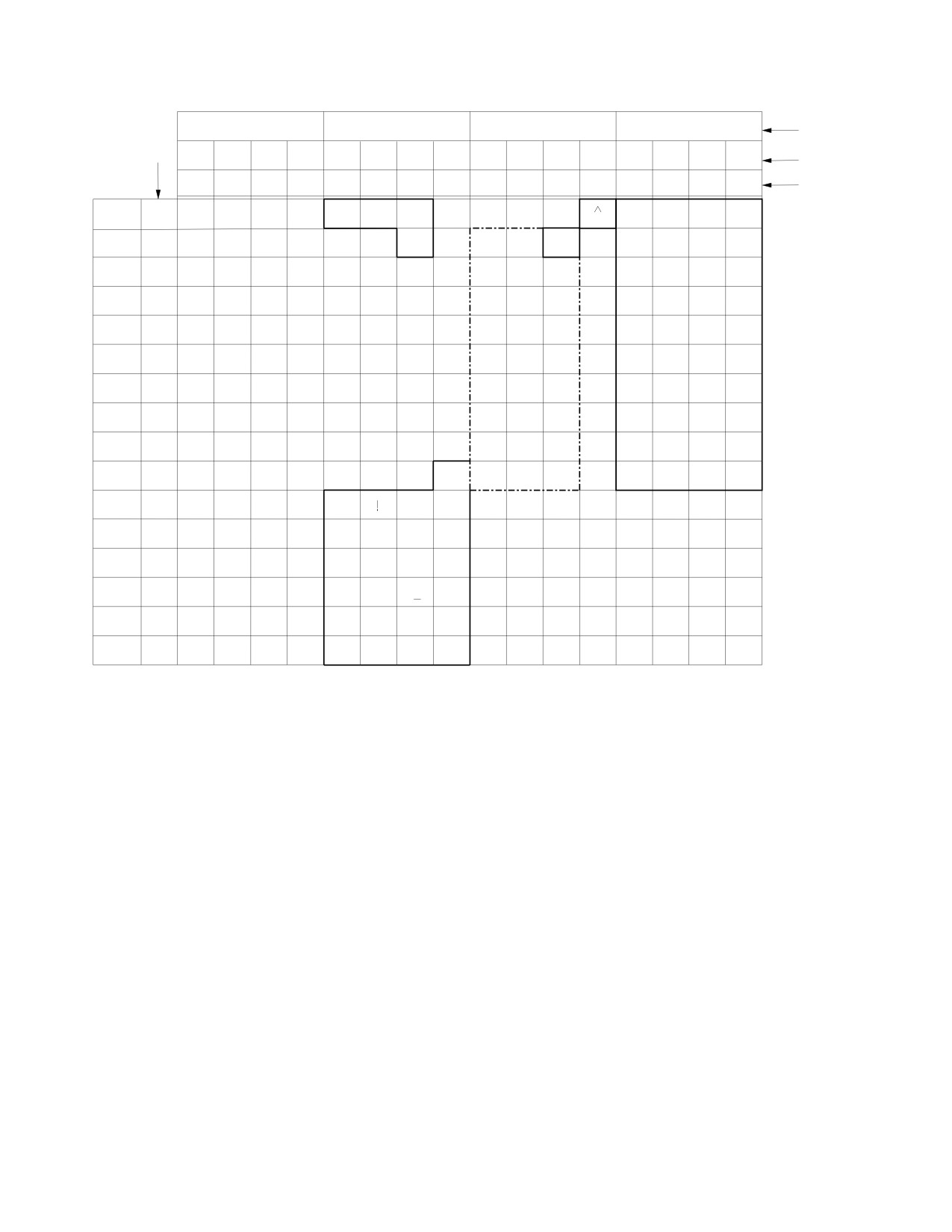

The ENGLISH character set is shown in Figure 95 on page 236. Only those

characters that are identifiable by the database manager are shown. Any

hexadecimal code that does not have a character assigned to it is unusable for DB2

Server for VSE keywords or unquoted identifiers. Such characters are usable in

quoted identifiers and in constants and, of course, can be stored in the database.

For example, many display devices using an English character set assign a cent

sign (¢) to X'4A'. In Figure 95 on page 236, however, no character is shown for the

value X'4A' meaning that X'4A' is unusable for DB2 Server for VSE keywords or

unquoted identifiers. If you want to put a cent sign in an identifier, you must use a

delimited identifier.

Another example is the tilde (~). In most ENGLISH character sets, the tilde is

represented by X'A1'. The matrix shows no entry for X'A1'. So, regardless of what

X'A1' represents in your character set, you must use a delimited identifier.

These rules apply to the matrices for the other character sets as well. An important

point to remember is that the absence of a character in one of the matrices does

not prevent you from using that character set. The characters are not undefined to

the database manager; they merely have limited use (as described above). Often,

this limited use is exactly how you want the hexadecimal code to be handled.

Independent of this qualification, you should almost always be able to find a

CCSID that you can use at your installation. When you decide on a CCSID, try to

avoid using a non-standard CCSID to prevent possible problems in the future

(such as the inability to connect to other application servers because they do not

support your CCSID). If you require a CCSID that is not supplied in the catalog

tables, check the Character Data Representation Architecture Level 1, Registry manual

for other predefined registered CCSIDs.

Chapter 12. Choosing a National Language and Defining Character Sets

235

Bits

Hex 1

Bits

4567

Hex 0

0000

0001

0010

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

(

)

’

1110

;

1111

”

Figure 95. ENGLISH Character Set (CCSID=37)

The sample FRENCH character set is shown in Figure 96

on page 237. Translation

from lowercase to uppercase is done as follows:

X'6A' is translated to X'E4'

X'7C'

X'C1'

X'C0'

X'C5'

X'D0'

X'C5'

X'E0'

X'C3'

These characters can be used in unquoted identifiers.

When evaluating the character set for use in your installation, remember that

hexadecimal values that do not have characters assigned to them in Figure 96 on

page 237 can be used in quoted identifiers.

236

System Administration

Bits

0,1

Hex 1

2,3

Bits

4567

Hex 0

0000

0001

0010

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

(

)

’

1110

;

1111

”

Figure 96. FRENCH Character Set (CCSID=297)

The sample GERMAN character set is shown in Figure 97

on page

238. Translation

from lowercase to uppercase is done as follows:

X'4A' is translated to X'4A'

X'5A'

X'6A'

X'E0'

X'A1'

X'C0'

X'4A'

X'D0'

X'5A'

X'E0'

These characters can be used in unquoted identifiers.

When evaluating the sample character set for use in your installation, remember

that hexadecimal values that do not have characters assigned to them in Figure 97

on page 238 can be used in quoted identifiers.

Some translation from lowercase to uppercase does not cause a change in the

hexadecimal value. For more information, see “Step 3: Determine Translation

Characters” on page 374.

Chapter 12. Choosing a National Language and Defining Character Sets

237

Bits

0,1

Hex 1

2,3

Bits

4567

Hex 0

0000

0001

0010

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

(

)

’

1110

;

1111

”

Figure 97. GERMAN Character Set (CCSID=273)

The sample ITALIAN character set is shown in Figure 98

on page 239. Translation

from lowercase to uppercase is done as follows:

X'5A' is translated to X'C5'

X'6A'

X'D6'

X'79'

X'E4'

X'A1'

X'C9'

X'C0'

X'C1'

X'D0'

X'C5'

X'E0'

X'C3'

These characters can be used in unquoted identifiers.

When evaluating the sample character set for use in your installation, remember

that hexadecimal values that do not have characters assigned to them in Figure 98

on page 239 can be used in quoted identifiers.

238

System Administration

Bits

0,1

Hex 1

2,3

Bits

4567

Hex 0

0000

0001

0010

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

(

)

’

1110

;

1111

”

Figure 98. ITALIAN Character Set (CCSID=280)

The sample KATAKANA character set is shown in Figure 99 on page

240.

When evaluating the sample character set for use in your installation, remember

that hexadecimal values that do not have characters assigned to them in Figure 99

on page 240 can be used in quoted identifiers.

Chapter 12. Choosing a National Language and Defining Character Sets

239

First

Hex

Char.

Bits

0,1

Hex 1

2,3

Bits

4567

Hex 0

0000

0001

0010

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

(

)

’

1110

;

1111

”

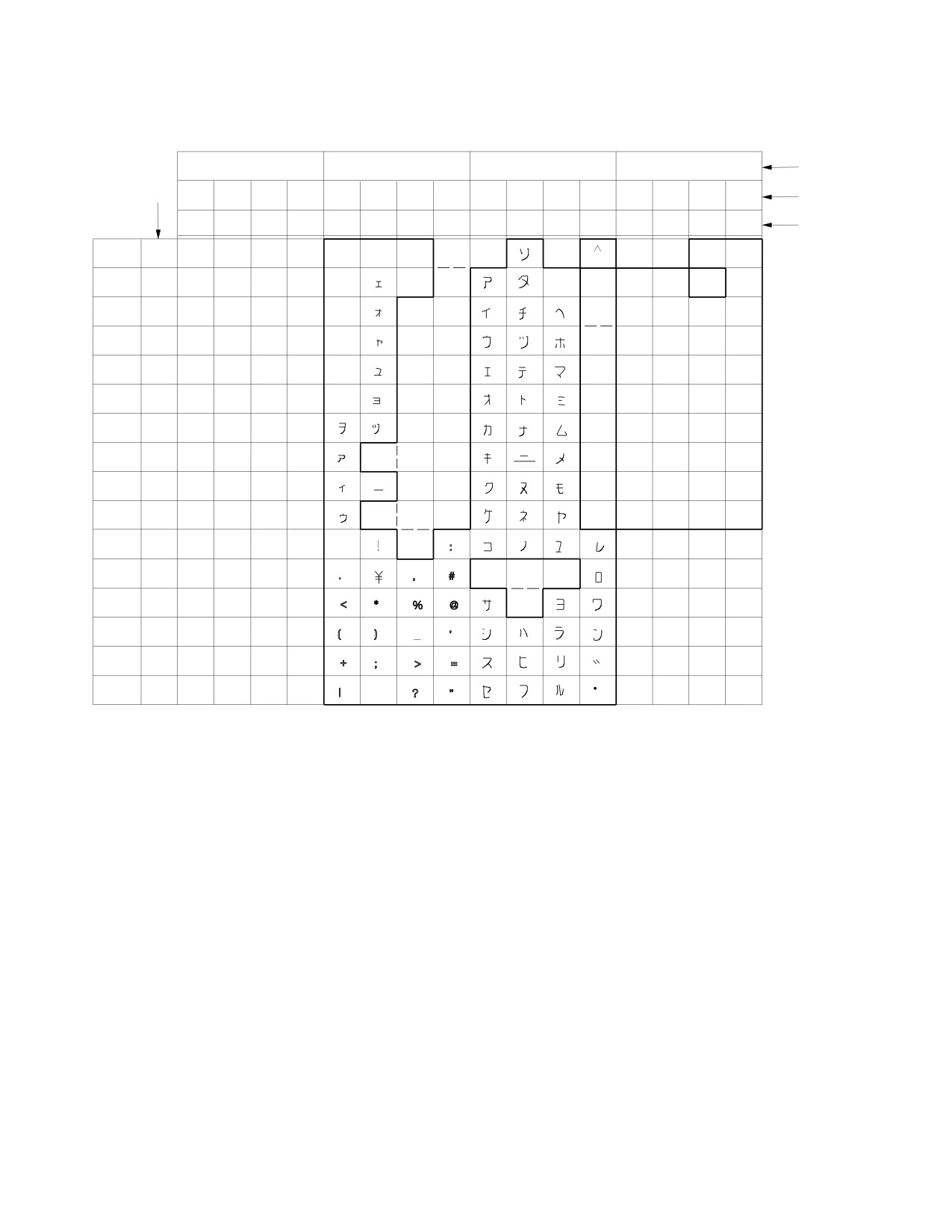

Figure 99. JAPANESE (Katakana) Character Set (CCSID=290, the SBCS Component of CCSID

5026)

The sample SPANISH character set is shown in Figure 100 on page 241. Translation

from lowercase to uppercase is done as follows:

X'6A' is translated to X'7B'

These characters can be used in unquoted identifiers.

When evaluating the sample character set for use in your installation, remember

that hexadecimal values that do not have characters assigned to them in Figure 100

on page 241 can be used in quoted identifiers.

240

System Administration

Bits

0,1

Hex 1

2,3

Bits

4567

Hex 0

0000

0001

0010

0011

0100

0101

0110

0111

1000

1001

1010

1011

Pts

1100

1101

(

)

’

1110

;

1111

”

Figure 100. SPANISH Character Set (CCSID=284)

Specifying an IBM-Supplied Character Set at Run Time

If the hexadecimal codes in one of the sample character sets matched those used

by your devices, you can specify the character set at run time. To use a character

set, specify the CHARNAME parameter when starting the application server. The

CHARNAME parameter is valid in both single and multiple user mode. For

information on how to specify the CHARNAME parameter, see “Setting the

Application Server Default CHARNAME and CCSIDs” on page 249. Examples of

IBM-supplied sample character sets are:

v ARABIC

v CYRILLIC

v DANISH-NORWEGIAN

v E-INTERNATIONAL

v ENGLISH

v ESTONIAN

v FINNISH-SWEDISH

v FRENCH

v GERMAN

v GREEK

v GREEK-423

v HEBREW

v ICELANDIC

Chapter 12. Choosing a National Language and Defining Character Sets

241

v INTERNATIONAL

v ITALIAN

v JAPANESE-ENGLISH

v KATAKANA

v KOREAN

v LAO

v S-CHINESE

v SPANISH

v T-CHINESE

v THAI

v UK-ENGLISH

v UKRAINIAN

v VIETNAMESE

290

833

836

870

930

939

1027

1112

28709.

Figure 101 shows example job control to start the application server. The

CHARNAME parameter indicates that the database manager is to use the

FRENCH sample character set, and a CCSID of 297.

// JOB START SQL

// EXEC PROC=ARIS75PL

// EXEC PROC=DBNAME01

// EXEC PGM=ARISQLDS,SIZE=AUTO,PARM=’PARMID=WARM1,CHARNAME=FRENCH’

Figure 101. Starting the Application Server to Use the French Character Set

The default character sets ENGLISH (CCSID=37) and INTERNATIONAL

(CCSID=500) are hard coded into this product. For example, if you specify

ENGLISH for the CHARNAME parameter, the database manager uses the

ENGLISH character set that is coded internally. The internally coded character set

is used even if a row exists in SYSTEM.SYSCHARSETS that has ENGLISH or

INTERNATIONAL in its NAME column. (Neither the sample ENGLISH character

set nor the sample INTERNATIONAL character set is used, although you can load

either into SYSTEM.SYSCHARSETS. They are provided to make the definition of

your own character sets easier.)

If you specify the name of a character set that is not defined in

SYSTEM.SYSCHARSETS, the database manager displays an error message and

uses the character set that was specified previously. If the character set is defined

incorrectly in SYSTEM.SYSCHARSETS, an error message is displayed, and the

database manager uses the character set that was previously specified.

242

System Administration

Using Double-Byte Character Set (DBCS)

The double-byte character set (DBCS) option supports the use of DBCS characters

in identifiers, constants and data. Identifiers can be either:

v Host identifiers (such as host variables), or

v SQL identifiers (such as dbspaces, tables or columns).

Constants and data containing DBCS characters can be either:

v Graphic data, or

v Character data with a mixed subtype (that is, character data containing DBCS

characters).

Setting the DBCS option also ensures that:

v A shift-out character is paired with a shift-in character on output,

v When mixed character data is truncated, truncation does not occur between the

two bytes of a DBCS character.

If your installation uses a double-byte character set, you should consider setting

the DBCS option to YES.

For information on enabling the DBCS option, see “Setting the DBCS Option for

the Application Server” on page 254, and “Setting the Default Application

Requester DBCS Option” on page 254.

If you plan to use the double-byte character set (DBCS) characters, consider the

following:

v PL/I programs using DBCS require no additional preprocessing (the PL/I

compiler supports DBCS).

v DBCS variables and constants are not supported in FORTRAN and Assembler

programs. However, you can use DBCS in dynamically defined SQL statements.

v SQL identifiers, SQL host variables, and SQL labels with DBCS characters can be

used in SQL statements in COBOL II Release 2 or later. The COBOL Kanji

Preprocessor is not required.

When the DBCS option is set to YES, the shift-out (X'0E') and shift-in (X'0F')

delimiters are recognized in both identifiers in SQL statements and mixed data

character string constants. The recognition of the delimiters provides the following

benefits:

v On the application server

- SQL identifiers can contain DBCS characters.

v On the application requester

- Host identifiers can contain DBCS characters.

- The DBS utility processing ensures the pairings of shift-out and shift-in

characters.

- ISQL allows the input, print, and display of DBCS characters and mixed data.

However, setting the DBCS option induces overhead for checking the proper

pairing of shift-out and shift-in characters.

Identifiers Containing DBCS Characters

Identifiers can be either host identifiers or SQL identifiers.

Chapter 12. Choosing a National Language and Defining Character Sets

243

To use host identifiers that contain DBCS characters, the VSE application requester

must have the DBCS option set to YES. For more information, see “Setting the

DBCS Option for the Application Server” on page 254 and “Setting the Default

Application Requester DBCS Option” on page 254.

To use ordinary SQL identifiers that contain DBCS characters, the application

server must have the DBCS option in the SYSTEM.SYSOPTIONS catalog table set

to YES, and must also support DBCS characters and mixed data. The application

server supports DBCS characters and mixed data when a mixed CHARNAME is

specified as an initialization parameter. A mixed CHARNAME has a non-zero

value for the CCSIDMIXED row in the SYSTEM.SYSOPTIONS catalog table. For

more information, see “Choosing the Application Server Default CHARNAME and

CCSID” on page 31.

If the DBCS option is set to YES for the application server, you can use DBCS

characters in ordinary SQL identifiers. The identifier can be DBCS characters, or

can contain a DBCS substring.

Identifiers are recorded in the catalog tables. When the database manager stores

identifiers that contain DBCS characters, it also stores the shift-out and shift-in

delimiters. The delimiters are stored because all columns of the catalog tables that

contain identifiers have a data type of either CHAR or VARCHAR.

The number of bytes required to represent a string of DBCS characters is equal to:

2 x the number of DBCS characters + 2

For more information on how identifiers are used in application programs, see the

DB2 Server for VSE & VM Application Programming manual.

Constants and Data Containing DBCS Characters

Constants and data containing DBCS characters can be either graphic data or

character data with a mixed subtype.

To use graphic and mixed constants or data, the application server and the

application requester must support mixed data. The application server supports

graphic and mixed data when the default CHARNAME is a mixed CHARNAME.

A mixed CHARNAME has a non-zero value for the CCSIDMIXED row in the

SYSTEM.SYSOPTIONS catalog table. For more information, see “Choosing the

Application Server Default CHARNAME and CCSID” on page 31. The VSE

application requester supports graphic and mixed data when a mixed

CHARNAME is set for the application requester. For more information, see

“Setting the Application Requester Default CHARNAME and CCSIDs” on page

251. Using a mixed CHARNAME provides the following benefits:

v On the application server

- Character string constants can contain mixed data consisting of DBCS and

SBCS characters.

- When character string constants containing DBCS characters are used in SQL

statements, the data is correctly interpreted as having a mixed subtype and a

mixed CCSID.

v On the application requester

- Character string constants can contain mixed data consisting of DBCS, SBCS,

and on some platforms, MBCS characters. (The MBCS characters will be

stored as SBCS or DBCS characters by the database manager.)

244

System Administration

The implied data type of all string character constants is VARCHAR. When the

DBCS option is set to YES:

v Constants with only SBCS characters have a subtype of SBCS.

v Constants with a combination of SBCS and DBCS characters have a subtype of

mixed. For example:

’abc<XXYYZZ>’

v Constants containing only DBCS are also of the character data type with a

subtype of mixed. They are not considered to be graphic constants. For example:

’<XXYYZZ>’

When the DBCS option for the application server is set to NO, all character

constants have a subtype of SBCS.

CCSID Conversion

Internally, character data is stored as hexadecimal values called code points. When

a device interprets or displays a code point as a character, it uses a code page,

which is a set of assignments of characters to code points. If two terminals use

different code pages, they can display the same code point as a different character.

For example, in code page 37, the code point X'4F' represents a vertical bar (|), but

in code page 500, the code point X'4F' represents an exclamation mark (!).

As of Version 3 Release 4, the database manager supports Coded Character Set

Identifiers (CCSIDs). The CCSID attribute specifies which code page to use both to

map code points to characters, and to map characters to code points. The CCSID

and the code points are used together to determine the character that the code

point represents.

Note: The default CCSID is implicitly set by the default CHARNAME.

For example, suppose a DB2 Server for VSE online application requester has the

default CHARNAME set to ENGLISH (CCSIDSBCS=37), the remote DRDA DB2

Server for VSE application server has the default CHARNAME set to

INTERNATIONAL (CCSIDSBCS=500). In this case, if the user inserts an

exclamation mark into a character column, the application requester sends X'5A'

(the code point that represents an exclamation mark in the code page used with

CCSID 37). The application server converts X'5A' to X'4F' (because X'4F' represents

an exclamation mark in the code page used with CCSID 500), then stores X'4F' in

the column.

If another application requester using a different CCSID retrieves the character,

X'4F' is converted to the code point that represents an exclamation mark in the

code page specified by the application requester CCSID. The character is

interpreted and displayed correctly, and the hexadecimal value that is stored in the

database is not changed.

For more information on how to decide the default CCSID values you should use,

see “Determining CCSID Values” on page 248.

The sections that follow discuss the following topics:

v How to determine the CCSID values

v How to set the application server default CHARNAME and CCSID values

v How to set the application requester default CHARNAME and CCSID values

v How to set the application server default character subtype

Chapter 12. Choosing a National Language and Defining Character Sets

245

v How to set the DBCS option for the application servers

v How to set the DBCS option for application requesters

v EUC Conversion.

For examples that show the interactions among the different values, see “Examples

of Setting Values for an Installation” on page 256.

If an application requester and an application server do not use the same default

CCSID, CCSID conversion is done during communications between the two.

Note: For an application requester using an ASCII representation of the data,

CCSID conversion always occurs.

The application requester CCSIDs are recognized by the application server when

DRDA support is installed and being used. If DRDA support is not installed, the

application requester CCSIDs are not recognized by the application server.

Table 20 and Table 21 on page 247 show CHARNAMEs and the corresponding

CCSIDs that can be used as system defaults. Table 20 shows the SBCS

CHARNAME CCSIDs, and Table 21 on page 247 shows the mixed CHARNAME

CCSIDs, with the component SBCS and DBCS CCSIDs for each mixed CCSID.

Table 20. SBCS CCSIDs

CCSID

Character Set

Code Page

CHARNAME

Description

697

ENGLISH

Country/region extended code pages

(CECP): USA, Canada (S/370* system),

Netherlands, Portugal, Brazil, Australia,

New Zealand

273

697

273

GERMAN

CECP: Austria, Germany

277

697

277

DANISH-NORWEGIAN

CECP: Denmark, Norway

278

697

278

FINNISH-SWEDISH

CECP: Finland, Sweden

280

697

280

ITALIAN

CECP: Italy

284

697

284

SPANISH

CECP: Spain, Latin America (Spanish)

285

697

285

UK-ENGLISH

CECP: United Kingdom

290

1172

290

Japanese Katakana, extended host single

byte

297

697

297

FRENCH

CECP: France

420

235

420

ARABIC

Arabic (all presentation shapes)

423

218

423

GREEK-423

Greek (Coexistence)

424

941

424

HEBREW

Hebrew

500

697

500

INTERNATIONAL

CECP: Belgium, Canada (AS/400*

system), Switzerland, International Latin-1

833

1173

833

Korean, extended host single byte

836

1174

836

Simplified Chinese, extended host single

byte

838

1176

838

THAI

Thai, extended host single byte

870

959

870

ROECE (Regional Office for East &

Central Europe) Latin-2 Multilingual

871

697

871

ICELANDIC

CECP: Iceland

246

System Administration

Table 20. SBCS CCSIDs (continued)

CCSID

Character Set

Code Page

CHARNAME

Description

875

925

875

GREEK

Greek

1025

1150

1025

CYRILLIC

Cyrillic Multilingual Turkish Latin 5

1027

1172

1027

Japanese Latin, extended host single byte

1112

1305

1112

Latvian/Lithuanian

1122

1307

1122

ESTONIAN

Estonian

1123

1326

1123

UKRAINIAN

Cyrillic Ukrainian EBCIDIC

1130

1336

1130

VIETNAMESE

EBCIDIC Vietnamese

1132

1341

1133

LAO

EBCIDIC Lao

1137

HINDI

Hindi

1142

697

1142

EDANISH-

Danish and Norwegian Euro CECP

NORWEIGAN

1143

697

1143

EFINNISH-SWEDISH

Finnish and Swedish Euro CECP

1145

697

1145

E-SPANISH

Spanish Euro CECP

1148

697

500

E-INTERNATIONAL

International Euro CECP

1140

697

E-ENGLISH

English Euro CECP

1141

697

273

E-GERMAN

German Euro CECP

1144

697

280

E-ITALIAN

Italian Euro CECP

1146

697

285

E-UK-ENGLISH

UK English Euro CECP

1147

697

297

E-FRENCH

French Euro CECP

28709

1175

28709

Traditional Chinese, extended host single

byte

Table 21. Mixed CCSIDs

Component

Character

Mixed

CCSIDs

Set

Code Page

CHARNAME

Description

930

290

(SBCS)

300

1172

1001

290

300

930

Japanese (Katakana)-Kanji

(DBCS)

mixed host (including 4370

user-defined characters)

extended single byte

933

833

(SBCS)

834

1173

934

833

834

KOREAN

Korean host mixed (including

(DBCS)

1880 user-defined characters)

extended single byte

935

836

(SBCS)

1174

937

836

837

S-CHINESE

Simplified Chinese host mixed

837(DBCS)

(1880 user-defined characters)

extended single byte

937

28709

(SBCS)

835

1175

935

835

T-CHINESE

Traditional Chinese host mixed

(DBCS)

(6204 user-defined characters)

extended single byte

939

1027

(SBCS)

300

1172

1001

1027

300

939

Japanese (Latin)-Kanji mixed

(DBCS)

host (including 4370

user-defined-characters)

extended single byte

1364

833

(SBCS)

834

65535

833

834

KOREAN-1364

Korean host mixed extended

(DBCS)

65535

including 11,172 full hangul

Chapter 12. Choosing a National Language and Defining Character Sets

247

Table 21. Mixed CCSIDs (continued)

Component

Character

Mixed

CCSIDs

Set

Code Page

CHARNAME

Description

1388

836

(SBCS)

837

65535

846

837

S-CHINESE-GBK

S-Ch DBCS-Host Data GBK

(DBCS)

65535

mixed, all GBK character set

and other growing chars

5026

290

(SBCS)

4396

1172

370

290

300

KATAKANA

Japanese (Katakana)-Kanji

(DBCS)

mixed host (including 1880

user-defined characters)

extended single byte

5035

1027

(SBCS)

4396

1172

370

1027

300

JAPANESE-

Japanese (Latin)-Kanji mixed

(DBCS)

ENGLISH

host , (including 1880

user-defined characters)

extended single byte

For more information about CCSIDs, see the Character Data Representation

Architecture Level 1, Registry, and the Character Data Representation Architecture

Reference and Registry manuals.

For information on the types of DBCS conversion that can be done between

CCSIDs, see “Coding Your Own TRANSPROC Exit” on page 284.

Determining CCSID Values

When displaying characters on your terminal display, the default CCSID values for

an application requester must be compatible with the code page that was used to

generate its terminal controller. If the defaults are incompatible, characters will not

be displayed or interpreted as expected, and the results of queries or inserts of

either character or graphic data will be unreliable. Table 20 on page 246 and

Table 21 on page 247 show the code pages that are compatible with each CCSID,

and the CHARNAME value that you should specify. For example, if the controller

was generated with code page 37, you should specify ENGLISH for the

CHARNAME parameter. This value sets the value of CCSIDSBCS to 37, and the

values of CCSIDMIXED and CCSIDGRAPHIC to 0. You can use the CICS DSQG

transaction to set default values for all application requesters. For more

information, see “Setting the Application Requester Default CHARNAME and

CCSIDs” on page 251. The system-wide defaults may not be suitable for all

application requesters: some may have a controller generated to use a code page

incompatible with the system-wide default CHARNAME. In this situation, you

should set the CHARNAME parameter for individual application requesters. For

more information on this topic, see “Setting the Application Requester Default

CHARNAME and CCSIDs” on page 251.

The default CCSID values for the application server can be set to any value you

want, but keep in mind that you may want to set the default CCSIDs for the

application server to values that can be used as defaults by the majority of the

application requesters. This can reduce the amount of CCSID conversion that will

be necessary. Also, consider setting the application server default CCSIDs to values

that are compatible with the code page used to generate the terminal controller of

the operator console. This ensures that data in single user mode applications is

processed correctly (for example, single user mode DBS utility). Table 20 on page

246 and Table 21 on page 247 show the code pages compatible with each CCSID,

and the CHARNAME that should be specified. For example, if the terminal

controller of the operator console was generated with code page 37, you should

248

System Administration

use ENGLISH as the CHARNAME. This value sets the CCSIDSBCS value to 37,

and the CCSIDMIXED and CCSIDGRAPHIC values to 0.

In particular, the CHARNAME INTERNATIONAL (CCSID=500) warrants special

attention. This CHARNAME is composed of a code page that supports all the

characters that are supported by the Latin-1 countries / regions, including

Australia, Austria, Belgium, Brazil, Denmark, Canada, the Faroe Islands, Finland,

France, Germany, Hong Kong, Iceland, Italy, Japan, the Netherlands, New Zealand,

Norway, Portugal, Spain, Latin America, Sweden, Switzerland, the United

Kingdom, and the United States. If all application requesters and application

servers in these countries / regions use this CCSID, then single-byte CCSID

conversion will not be necessary for accessing data from different sites. This may

provide savings because of lower CPU usage.

Often, it may not be appropriate to use CCSID 500 at every site. For example, you

may have to use existing equipment (such as terminal controllers that use other

character sets and code pages), or you may have a large quantity of data that is

stored using a CCSID other than 500. However, if you plan to frequently access

data from other countries / regions, you should consider migrating your data and

hardware to CCSID 500, both for performance reasons, and for the ease of data

management.

Setting the Application Server Default CHARNAME and CCSIDs

The different uses of the default system CCSIDs are shown in “Choosing the

Application Server Default CHARNAME and CCSID” on page 31. Data in columns

which were migrated from a release earlier than Version 3 Release 4 have a CCSID

which is obtained from rows in the SYSTEM.SYSOPTIONS catalog table. These

rows are: MCCSIDSBCS, MCCSIDMIXED and MCCSIDGRAPHIC. For more

information on the SYSTEM.SYSOPTIONS catalog table, see the DB2 Server for VSE

& VM SQL Reference manual. To change either the application server default

CCSIDs or the CCSIDs that are used for data in migrated columns, you must have

DBA authority.

The only way to change the system CCSID is to change the CHARNAME

parameter when you start the application server. This also updates the following

columns of the SYSTEM.SYSOPTIONS catalog table: CCSIDSBCS, CCSIDMIXED

and CCSIDGRAPHIC. For more information, see “Character Set Considerations at

Startup” on page 51.

You may have to use different default CCSIDs for columns that were created

before the migration than for columns created after the migration. For example,

suppose that you are migrating your database and want to use the

INTERNATIONAL character set (CCSID=500) for character columns that were

created after the migration. Character columns that existed before migration were

created with the ENGLISH character set (CCSID=37). To ensure that the data in

existing character columns is displayed and interpreted correctly, (that is, as was

done before the migration), you require an MCCSIDSBCS value of 37, and a

CCSIDSBCS value of 500.

Be very careful when using different default CCSIDs. This should only be done

when there is a specific reason for them to be different. When the application

server and application requester have different CCSID values, character conversion

cannot be avoided. This conversion has an associated performance overhead, and

causes performance degradation. CCSID conversion of data also affects the

Chapter 12. Choosing a National Language and Defining Character Sets

249

sargability of predicates. For more information on performance, see the DB2 Server

for VSE & VM Performance Tuning Handbook.

Note: Use caution when you change the application server default CCSIDs. For

more information, see “Determining CCSID Values” on page 248.

For many characters, the corresponding hexadecimal value in the International

code page is the same as in the English code page. However, this is not true of all

characters. For example, in the English code page the hexadecimal value

corresponding to the exclamation mark (!) is '5A', but in the International code

page the value is '4F'.

Table 22 lists the differences between the International

code page and the English code page.

Table 22. Differences between International Code Page and English Code Page

Character

CCSID=37

CCSID=500

X'B0'

X'5F'

X'4A'

X'B0'

X'5A'

X'4F'

[

X'BA'

X'4A'

]

X'BB'

X'5A'

X'4F'

X'BB'

X'5F'

X'BA'

For more information on code page details, see the Character Data Representation

Architecture Level 1, Registry manual.

Columns must be tagged with the CCSID that corresponds to the code page with

which they were created or the results of queries on these columns will be

unreliable. For example, suppose that the following column was created with the

English character set before migration:

CHARDATA

--------

ABCDEFGH

kjp!

¬ds!

If MCCSIDSBCS is 37 (corresponding to English), and CCSIDSBCS is 500

(corresponding to International), performing a SELECT operation on this column

after the migration gives the results shown above. However, if MCCSIDSBCS is

incorrectly set to 500 (corresponding to the International character set), performing

a SELECT operation on the column produces the following result:

CHARDATA

--------

ABCDEFGH

kjp]

^ds]

In this example, to ensure reliable results, MCCSIDSBCS must be 37, regardless of

the value of CCSIDSBCS.

250

System Administration

Changing the CCSID Attribute of an Existing Column

If you want to change the CCSID attribute of an existing column, use the DBS

utility. For example, to change the default CCSID for data in columns that were

created previous to the migration to Version 3 Release 4, use the DBS utility to do

the following:

1. Unload the data from the existing table.

2. Drop the table.

3. Recreate the table, specifying the new CCSID attribute for the column or

columns that you want to change, or use the default if it is appropriate.

4. Reload the data.

Note: You must use the DBSU ″DATALOAD/DATAUNLOAD″ commands, NOT

the ″UNLOAD/RELOAD″ commands.

Changing the Subtype Attribute of an Existing Column

The subtype attribute is only used when the CCSID attribute is null. If you have

migrated from a release previous to Version 3 Release 4, existing character

columns will have a CCSID value of null. For these columns, the subtype value is

used to indicate their CCSID value. The CCSID value is either the value for

MCCSIDSBCS (for a subtype of “S”) or the value for MCCSIDMIXED (for a

subtype of “M”).

In some cases, columns with a null CCSID could have a subtype of “S” and

contain mixed data. This can occur if the column was created without specifying

the FOR MIXED DATA clause. In this case, the subtype must be changed to “M” in

order for the correct CCSID to be used for this column. Otherwise, conversion

errors can occur (for example, SQLCODE -330, SQLSTATE 22517).

To change the subtype, DBA authority is required to update the

SYSTEM.SYSCOLUMNS table. Change the value in the SUBTYPE column from “S”

to “M” for the required character column.

Setting the Application Requester Default CHARNAME and CCSIDs

VSE application requesters use the CHARNAME that is specified in the SQLGLOB

file, either a specific userid’s value or the global default value as follows:

v Batch applications use the SQLGLOB file ’CHARNAME’ setting associated with

the userid(s) contained on the SQL CONNECT statement(s) used in the

application. If any of these userids are NOT defined in the SQLGLOB file, then

the global CHARNAME will be used.

v The preprocessor is a batch application requester. The userid given by the

’USERID’ preprocessor parameter will be used to determine the CHARNAME

from the SQLGLOB file. If the userid is not defined in the SQLGLOB file, the

global default CHARNAME value will be used.

v The Database Services Utility is a batch application requester. It uses the

SQLGLOB file global CHARNAME setting to determine the input data folding

translation table to be used. Otherwise, it will use the SQLGLOB file

’CHARNAME’ setting associated with the userid(s) contained on the SQL

CONNECT statement(s) used in the application. If any of these are NOT defined

in the SQLGLOB file, then the global CHARNAME will be used.

v ISQL is an online application requester. It has a CICS user ID associated with it.

Therefore, ISQL uses the user setting of the SQLGLOB parameter CHARNAME

Chapter 12. Choosing a National Language and Defining Character Sets

251

if the ISQL user had used the DSQU transaction to override the global setting of

the CHARNAME parameter. Otherwise, ISQL uses the global setting of the

SQLGLOB parameter CHARNAME.

Note: If ISQL is running against a remote DRDA application server, the ISQL

user must ensure that the global and the user setting of the SQLGLOB

parameter CHARNAME are the same. ISQL has a two transaction

structure: ISQL and CISQ. ISQL starts CISQ. The former controls the

terminal and the latter is for access to the application server.

Because CISQ is a transaction started by ISQL, it does not have a CICS

user ID associated with it. Therefore, the online DRDA resource adapter

uses the global setting of the SQLGLOB parameter CHARNAME to

process the SQL requests from CISQ. On the other hand, ISQL, being the

front-end transaction, has a CICS user ID associated with it. Therefore,

ISQL uses the user setting of the SQLGLOB parameter CHARNAME, if

available, to process the same SQL statement it received from the

terminal.

All ″started″ CICS transactions that pass SQL requests to a remote DRDA

application server do not have a CICS user ID associated with it. Therefore,

these transactions will use the global setting of the SQLGLOB parameter

CHARNAME.

All online DRDA application requesters have a CICS user ID associated with it.

Therefore, they will use the user setting of the SQLGLOB parameter

CHARNAME if the CICS user running the online DRDA transaction had used

the DSQU transaction to override the global setting of the CHARNAME

parameter. Otherwise, they will use the global setting of the SQLGLOB

parameter CHARNAME.

If you want to check the global setting for the SQLGLOB parameter CHARNAME,

use the DSQQ transaction without specifying any parameter. The CHARNAME

displayed is the global setting of the SQLGLOB parameter CHARNAME.

If you want to check the CHARNAME setting for a CICS user, use the DSQQ

transaction and specify the user ID of the CICS user. If the user setting exists, it

will be displayed. If the user setting does not exist, a message will be displayed.

For more information about the DSQQ transaction, see the DB2 Server for VSE &

VM Database Administration.

If you want to use the IBM-supplied default global settings for the SQLGLOB

parameters (including the default for CHARNAME), you must execute the

IBM-supplied job control program ARISGDEF. This program will initialize the

global settings for the SQLGLOB parameters with IBM-supplied default values.

(For more information on the default values for the SQLGLOB parameters, see the

DB2 Server for VSE & VM Database Administration manual.)

If you want to use your own default global settings for the SQLGLOB parameters

(including the default for CHARNAME), you must first execute the IBM-supplied

job control program ARISGDEF and then execute the DSQG transaction.

To specify ENGLISH as the new global setting for the SQLGLOB parameter

CHARNAME, run the DSQG transaction and specify the ENGLISH CHARNAME

value as follows:

DSQG ENGLISH

252

System Administration

The global settings for the SQLGLOB parameters do not apply to online

application requesters that have already run the DSQU transaction (and thereby

have their own user SQLGLOB parameter values).

For more information about the DSQG transaction, see the DB2 Server for VSE &

VM Database Administration.

To specify a user setting for the SQLGLOB parameter CHARNAME which is

different from the default global setting, run the DSQU transaction and specify the

CHARNAME value. This value overrides the global CHARNAME.

For example, to specify ENGLISH as the new user setting for the SQLGLOB

parameter CHARNAME for the CICS user CICSUSER, CICSUSER must sign on to

a CICS session, run the DSQU transaction and specify the ENGLISH CHARNAME

value as follows:

DSQU ENGLISH

For more information about the DSQU transaction, see the DB2 Server for VSE &

VM Database Administration.

The SQLGLOB File Batch Query/Update Program

This program can be used to query and update the SQLGLOB file in batch mode,

using the JCL in library member ARISBGUD.Z. It may be necessary to use this

program to add or change SQLGLOB parameters when CICS and the DSQx

transactions are not available, or for userids that do not exist under CICS, but are

in batch jobs that access remote servers. With this program, any userid’s SQLGLOB

parameters can be queried, inserted, updated or deleted. The Global Default

parameters cannot be deleted. For more information about this batch program, see

the DB2 Server for VSE & VM Database Administration.

Setting the Application Server Default Character Subtype

To set the application server default character subtype, you must update a row in

the SYSTEM.SYSOPTIONS catalog table. You must have DBA authority to do so.

The CHARSUB option specifies the default subtype for a column when SUBTYPE

clause or the CCSID is not specified explicitly (for example, on a CREATE TABLE

or ALTER TABLE statement).

Note: The character subtype is defined for the application server only. It is not

defined for the application requester. The CREATE PACKAGE CHARSUB

option or the preprocessor CHARSUB option defines the default subtype for

a package. For more information on this option, see the DB2 Server for VSE

& VM Application Programming or the DB2 Server for VSE & VM SQL

Reference manuals.

The initial setting of the application server default character subtype is SBCS. To

set it to mixed, issue:

UPDATE SYSTEM.SYSOPTIONS

SET VALUE = ’MIXED’

WHERE SQLOPTION = ’CHARSUB’

To reset the application server default character subtype to SBCS, issue:

UPDATE SYSTEM.SYSOPTIONS

SET VALUE = ’SBCS’

WHERE SQLOPTION = ’CHARSUB’

Chapter 12. Choosing a National Language and Defining Character Sets

253

In both situations, the new setting does not become effective immediately. The new

setting is not in effect until the next time the application server is started.

If anything other than 'MIXED' or 'SBCS' is specified for the application server

default character subtype in the SYSOPTIONS table, SBCS is assumed and an error

message is issued when the application server is started.

The application server default character subtype can only be mixed when the

application server default CHARNAME is mixed. The application server default

character subtype is forced to be SBCS when the application server default

CHARNAME is an SBCS CHARNAME.

Setting the DBCS Option for the Application Server

The DBCS option is set by updating a particular row in the SYSTEM.SYSOPTIONS

catalog table. The initial setting of the DBCS option is NO. To set the DBCS option

to YES, issue:

UPDATE SYSTEM.SYSOPTIONS

SET VALUE = ’YES’

WHERE SQLOPTION = ’DBCS’

To reset the DBCS option to NO, issue:

UPDATE SYSTEM.SYSOPTIONS

SET VALUE = ’NO’

WHERE SQLOPTION = ’DBCS’

You must have DBA authority to issue either of the above commands.

The new setting of the DBCS option will be effective the next time that the

application server is started. The new setting does not become effective

immediately.

If anything other than YES or NO is specified for the DBCS option in the

SYSOPTIONS table, NO is assumed, and an error message is issued during

startup.

For more information, see “Using Double-Byte Character Set (DBCS)” on page 243.

Setting the Default Application Requester DBCS Option

The VSE application requester DBCS option is set by the DBCS option contained in

the SQLGLOB file, as follows:

v Batch applications use the SQLGLOB file ’DBCS’ option associated with the

userid(s) contained on the SQL CONNECT statement(s) used in the application.

If any of these userids are NOT defined in the SQLGLOB file, then the global

DBCS will be used.

v The preprocessor is a batch application requester. The userid given by the

’USERID’ preprocessor parameter will be used to determine the DBCS option

from the SQLGLOB file. If the userid is not defined in the SQLGLOB file, the

global default DBCS value will be used.

v The Database Services Utility is a batch application requester. It uses the

SQLGLOB file global DBCS value.

v ISQL is an online application requester. It has a CICS user ID associated with it.

Therefore, ISQL uses the user setting of the SQLGLOB parameter DBCS if the

254

System Administration

ISQL user had used the DSQU transaction to override the global setting of the

DBCS parameter. Otherwise, ISQL uses the global setting of the SQLGLOB

parameter DBCS.

Note: If ISQL is running against a remote DRDA application server, the ISQL

user must ensure that the global and the user setting of the SQLGLOB

parameter DBCS are the same. ISQL has a two transaction structure: ISQL

and CISQ. ISQL starts CISQ. The former controls the terminal and the

latter is for access to the application server.

Because CISQ is a transaction started by ISQL, it does not have a CICS

user ID associated with it. Therefore, the online DRDA resource adapter

uses the global setting of the SQLGLOB parameter DBCS to process the

SQL requests from CISQ. On the other hand, ISQL, being the front-end

transaction, has a CICS user ID associated with it. Therefore, ISQL uses

the user setting of the SQLGLOB parameter DBCS, if available, to process

the same SQL statement it received from the terminal.

All ″started″ CICS transactions that pass SQL requests to a remote DRDA

application server do not have a CICS user ID associated with it. Therefore,

these transactions will use the global setting of the SQLGLOB parameter DBCS.

All online DRDA application requesters have a CICS user ID associated with it.

Therefore, they will use the user setting of the SQLGLOB parameter DBCS if the

CICS user running the online DRDA transaction had used the DSQU transaction

to override the global setting of the DBCS parameter. Otherwise, they will use

the global setting of the SQLGLOB parameter DBCS.

If you want to check the global setting for the SQLGLOB parameter DBCS, use the

DSQQ transaction without specifying any parameter. The DBCS displayed is the

global setting of the SQLGLOB parameter DBCS.

If you want to check the DBCS setting for a CICS user, use the DSQQ transaction

and specify the user ID of the CICS user. If the user setting exists, it will be

displayed. If the user setting does not exist, a message will be displayed.

For more information about the DSQQ transaction, see the DB2 Server for VSE &

VM Database Administration.

If you want to use the IBM-supplied default global settings for the SQLGLOB

parameters (including the default for DBCS), you must execute the IBM-supplied

job control program ARISGDEF. This program will initialize the global settings for

the SQLGLOB parameters. (For more information on the default values for the

SQLGLOB parameters, see the DB2 Server for VSE & VM Database Administration

manual.)

If you want to use your own default global settings for the SQLGLOB parameters

(including the default for DBCS), you must first execute the IBM-supplied job

control program ARISGDEF and then execute the DSQG transaction.

To specify YES as the new global setting for the SQLGLOB parameter DBCS, run

the DSQG transaction and specify the YES DBCS value as follows:

DSQG ,,YES

The global settings for the SQLGLOB parameters do not apply to online

application requesters that have already run the DSQU transaction (and thereby

have their own user SQLGLOB parameter values).

Chapter 12. Choosing a National Language and Defining Character Sets

255

For more information about the DSQG transaction, see the DB2 Server for VSE &

VM Database Administration manual.

To specify a user setting for the SQLGLOB parameter DBCS which is different

from the default setting, run the DSQU transaction and specify the DBCS value.

This value overrides the global setting for the user who ran the DSQU transaction.

For example, to specify YES as the new user setting for the SQLGLOB parameter

DBCS for the CICS user CICSUSER, CICSUSER must sign on to a CICS session,

run the DSQU transaction and specify the YES DBCS value as follows:

DSQU ,,YES

For more information about the DSQU transaction, see the DB2 Server for VSE &

VM Database Administration manual.

The SQLGLOB File Batch Query/Update Program can also be used to display or

modify user or global default parameters. For more information, see “The

SQLGLOB File Batch Query/Update Program” on page 253, or the DB2 Server for

VSE & VM Database Administration.

EUC Conversions

Extended UNIX^™ Code (EUC) allows for a form of ASCII mixed data. It is an

encoding scheme supported by UNIX in far eastern countries / regions which

allows for MBCS characters. Each EUC codepage is made up of three character

sets, or planes, denoted by G0, G1, and G2 or four character sets, denoted by G0,

G1, G2 and G3. The group in which the data belongs is determined by the range of

its first and second bytes. G0 is comprised of single-byte characters and is the

ASCII invariant coded character set. G1 characters are double-byte characters

within another range. G2 and G3 characters are triple-byte characters,

distinguished by the first byte and the range of the last three bytes.

EUC conversion is supported by the database manager. EUC characters are

converted to SBCS or DBCS characters, or both.

Unicode Conversions

Unicode data cannot be stored in a DB2 Server for VSE & VM database. However,

Unicode data can be received, converted to certain host code pages, and then

stored. To determine which Unicode conversions are supported, refer to the system

catalog SYSTEM.SYSSTRINGS. Each row in SYSTEM.SYSSTRINGS represents a

supported CCSID conversion, where INCCSID is the input CCSID and OUTCCSID

is the CCSID to which it can be converted.

Examples of Setting Values for an Installation

This section discusses two examples of using the application server default

CHARNAME JAPANESE-ENGLISH (CCSID=5035). The first example shows how

to specify this CHARNAME and enable mixed string manipulation. The second

example shows how to specify this CHARNAME without enabling mixed string

manipulation and how to prevent the verification of character strings that contain

mixed data. (Mixed string manipulation is the ability to specify mixed SQL

identifiers, such as columns.)

256

System Administration

Example 1

Suppose that you want to use the mixed JAPANESE-ENGLISH CCSID, 5035, as

your application server default CCSID, and you also want to have the ability to do

mixed string manipulation. To do this, set up your environment as follows:

Ensure that your terminal controllers are generated to use the correct code

pages.

The CCSID you want to use is 5035. You must define the controller to use the

character set 1172 for the SBCS character set, and code page 1027 for the SBCS

code page. For the DBCS characters, specify the character set 370 and the code

page 300.

Install the database manager.

The application server default CCSID for a newly installed database manager is

500

(CHARNAME=INTERNATIONAL). After installation, the

SYSTEM.SYSOPTIONS catalog table contains the following information:

CHARNAME=INTERNATIONAL (the name of 500)

CCSIDSBCS=500

CCSIDMIXED=0

CCSIDGRAPHIC=0

DBCS=NO

CHARSUB=SBCS

Change the value of the application server default CHARNAME to

JAPANESE-ENGLISH

Start the application server. Specify CHARNAME=JAPANESE-ENGLISH.

Message ARI0159D is displayed that informs you that the new CHARNAME

(JAPANESE-ENGLISH) is different from the current default

(INTERNATIONAL). You are prompted to enter either 1 (YES) to change the

default, 0 (NO) to leave the default unchanged, or 111 (QUIT) to shut down the

application server. Type 1 (for YES) and press ENTER.

After the application server is started, the SYSTEM.SYSOPTIONS catalog table

should contain the following information:

CHARNAME=JAPANESE-ENGLISH

CCSIDSBCS=1027

(the single-byte portion of 5035)

CCSIDMIXED=5035

CCSIDGRAPHIC=4396

(the double-byte portion of 5035)

DBCS=NO

CHARSUB=SBCS

To enable mixed string manipulation, change the value for DBCS in

SYSTEM.SYSOPTIONS from NO to YES. You can use either ISQL or the DBS

utility.

Because most of the character columns will contain mixed data, you should

also change the value for CHARSUB from SBCS to MIXED.

To cause the DBCS and CHARSUB values in SYSTEM.SYSOPTIONS to be used

as the new application server defaults, you must stop the application server,

and then restart it.

The changes are now complete. The SYSTEM.SYSOPTIONS catalog table

contains the following information:

CHARNAME=JAPANESE-ENGLISH

CCSIDSBCS=1027

(the single-byte portion of 5035)

CCSIDMIXED=5035

CCSIDGRAPHIC=4396

(the double-byte portion of 5035)

DBCS=YES

CHARSUB=MIXED

Chapter 12. Choosing a National Language and Defining Character Sets

257

7. To set these values for the online DRDA requesters, ISQL and the

preprocessors, run the DSQG transaction. Issue the following command:

DSQG JAPANESE-ENGLISH,,YES

Example 2

Suppose that you want to use the mixed JAPANESE-ENGLISH CCSID, 5035, as

your application server default CCSID. Because you must be able to both store

DBCS characters, and retrieve DBCS characters from graphic columns (GRAPHIC,

VARGRAPHIC, or LONG VARGRAPHIC), you cannot specify an ENGLISH

single-byte CCSID such as 37 or 1027. Also suppose that you do not want the

ability to do mixed string manipulation, and you want to prevent the database

manager from verifying character strings for mixed data. In addition, you also

want character columns that are created without the explicit specification of a

CCSID or a subtype to default to the SBCS subtype and CCSID. To do this, set up

your environment as follows:

Ensure that your terminal controllers are generated to use the correct code

pages.

The CCSID you want to use is 5035. You must define the controller to use the

character set 1172 for the SBCS character set, and code page 1027 for the SBCS

code page. For the DBCS characters, specify the character set 370 and the code

page 300.

Install the database manager.

The application server default CCSID for a newly installed database manager is

500

(CHARNAME=INTERNATIONAL). After installation, the

SYSTEM.SYSOPTIONS catalog table contains the following information:

CHARNAME=INTERNATIONAL (the name of 500)

CCSIDSBCS=500

CCSIDMIXED=0

CCSIDGRAPHIC=0

DBCS=NO

CHARSUB=SBCS

Change the value of the application server default CHARNAME to

JAPANESE-ENGLISH.

Start the application server. Specify CHARNAME=JAPANESE-ENGLISH.

Message ARI0159D is displayed that informs you that the new CHARNAME

(JAPANESE-ENGLISH) is different from the current default

(INTERNATIONAL). You are prompted to enter either 1 (YES) to change the

default, 0 (NO) to leave the default unchanged, or 111 (QUIT) to shut down the

application server. Type 1 (for YES) and press ENTER.

After the application server is started, the SYSTEM.SYSOPTIONS catalog table

should contain the following information:

CHARNAME=JAPANESE-ENGLISH

CCSIDSBCS=1027

(the single-byte portion of 5035)

CCSIDMIXED=5035

CCSIDGRAPHIC=4396

(the double-byte portion of 5035)

DBCS=NO

CHARSUB=SBCS

Because you do not want to enable mixed string manipulation, and you do not

want the database manager to verify character strings for mixed data, leave the

DBCS option set to NO (even though the database manager uses a mixed

CCSID). This still allows you to:

258

System Administration

v Issue CREATE TABLE or ALTER TABLE statements to either add or create

GRAPHIC, VARGRAPHIC, and LONG VARGRAPHIC columns. The CCSID

for these columns will be taken from value for CCSIDGRAPHIC in the

SYSTEM.SYSOPTIONS catalog table.

v Insert into graphic columns from graphic host variables.

v Select graphic columns into graphic host variables.

v Use graphic constants in SQL statements.

Because most character columns will contain SBCS data, leave the value for

CHARSUB as SBCS. When you need to either create or add a mixed character

column, you can specify the FOR MIXED DATA clause or the CCSID clause

explicitly for the CREATE TABLE or the ALTER TABLE statement.

To set these values for all the online DRDA application requesters, ISQL and

the preprocessors, run the DSQG transaction. Issue the following command:

DSQG JAPANESE-ENGLISH,,YES

For an application requester to be able to use graphic data, the application

requester must use a mixed CCSID as the default. One exception exists. If the

application requester is connecting to a local application server, the application

server responds to the application requester with the expectation that the

application requester is using the same mixed CCSID as the application server

is using. If the user specified a different value for the SQLGLOB CHARNAME

parameter, the application server ignores this value. However, folding

performed by the application requester is always based on the application

requester’s CHARNAME setting. For more information on the application

requester’s CHARNAME setting, see “Setting the Application Requester Default

CHARNAME and CCSIDs” on page 251. In this case, if the application

requester CHARNAME and the application server CHARNAME are not the

same, unexpected results can occur.

Identifying Classification and Translation Tables for a CCSID

To identify either the classification table or the translation table that is used for

folding characters to uppercase for a specific CCSID, do the following:

1. Review the CHARNAME column of the SYSTEM.SYSCCSIDS catalog table for

the CHARNAME value of the CCSID.

2. Review the NAME column of the SYSTEM.SYSCHARSETS catalog table for the

value that matches the CHARNAME of the CCSID. That row contains both the

classification table and the translation table for the CCSID.

National Language Support for Messages and HELP Text

The database manager can provide DB2 Server for VSE messages and HELP text in

several national languages. Messages and HELP text come with the product tape.

For more information on HELP text, see the DB2 Server for VSE & VM Database

Administration manual. Installation instructions for HELP text is in the DB2 Server

for VSE Program Directory manual.

When the national language feature tape has been installed, national language

support works this way:

v Users of ISQL, the DBS utility, and the preprocessors can receive messages in the

language they select.

v ISQL users can receive HELP text for commands and messages in the language

they select.

Chapter 12. Choosing a National Language and Defining Character Sets

259

v The DB2 Server for VSE operator can receive messages on the operator console

in the language selected. The VSE operator cannot choose a double-byte

character set (DBCS) language, as the VSE operator console does not support

DBCS.

The national language tape provided contains the following languages:

v Mixed American English

v Uppercase American English

v French

v German

v Japanese

v Simplified Chinese.

When the database manager is installed, you specify a default national language.

This is a second-level default. For online users, the first-level default is the

LANGID supplied on the CIRB transaction. The second-level default is used for

batch/ICCF users, and online users when LANGID is not specified. When one or

more additional national languages have been installed, users can change the

language from the default in the following ways:

v ISQL users can choose the language for messages and HELP text using the SET

LANGUAGE command. For ISQL users to receive HELP text in the language

they choose, the messages and the HELP text for that language must be

installed. To support a national language, you must install the messages for that

language. Installing the HELP text is optional.

The VSE online users can also choose the language they receive messages in by

specifying the LANGID parameter on the CIRB transaction. For an explanation

of the CIRB transaction, see “Starting the Online Resource Adapter -- The CIRB

Transaction” on page 83.

v DBS utility users and preprocessor users receive messages in the language

specified when the database manager was installed. If a user wants to receive

messages in another language, the user should specify the library containing the

desired language in the LIBDEF statement of the job control.

v The operator can choose the language for operator messages using the SET

LANGUAGE command from the operator console. This language is also used to

display the output of the SHOW, RESET, and COUNTER commands. The VSE

operator cannot choose a double-byte character set (DBCS) language, as the VSE

operator console does not support DBCS.

National languages are identified to the database manager by a language name,

and a LANGID (language identifier). These values are in the

SQLDBA.SYSLANGUAGE table. If you have English and French installed on the

database manager, the SQLDBA.SYSLANGUAGE table can look like the example

in Figure 102.

LANGUAGE

LANGKEY REMARKS

LANGID

--------------

-------

---------------------------------------

--------

ENGLISH

S001

ENGLISH VERSION OF HELP TEXT

AMENG

FRANCAIS

S003

TEXTE D’AIDE FRANCAIS

FRANC

Figure 102. Sample SQLDBA.SYSLANGUAGE Table

For the LANGUAGE and REMARKS columns, you can choose values appropriate

for your organization. For the LANGKEY and LANGID columns, you should keep

the values supplied by the database manager.

260

System Administration

The language keys (LANGKEY) and language identifiers (LANGID) used by the

database manager are shown in Table 23.

Table 23. Language Keys and Language Identifiers

LANGUAGE

LANGKEY

LANGID

ENGLISH (mixed case)

S001

AMENG

ENGLISH (uppercase)

S002

UCENG

FRENCH

S003

FRANC

GERMAN

S004

GER

JAPANESE

D001

KANJI

CHINESE_SIMPLIFIED

D003

HANZI

You should not use the language keys and language identifiers (LANGID) shown

above for other purposes. In addition, the language keys S007-S500 and D003-D500

are reserved for IBM use.

The language key is used to internally identify HELP text for a language. The

LANGID can be used to choose a language for messages and HELP text. You can

also specify the name of the language, as it is stored in the LANGUAGE column of

the SQLDBA.SYSLANGUAGE table.

In ISQL, and on the operator console, you can specify a language or a LANGID on

the SET LANGUAGE command. The VSE operator cannot choose a double-byte

character set (DBCS) language, as the VSE operator console does not support

DBCS. The syntax of the SET LANGUAGE command is shown in Figure 103.

►►

SET LANGuage

language

►◄

langid

Figure 103. The SET LANGUAGE Command

The language or LANGID you specify must match a value in the SYSLANGUAGE

table, and must be installed. If your installation uses a double-byte character set,

you should consider setting the DBCS option to YES. For information on the DBCS

option, see “Using Double-Byte Character Set (DBCS)” on page 243.

When using the LANGID parameter on the CIRB transaction, you can specify only

the LANGID. At startup, messages are displayed in the default national language.

Changing the ISQL Default Language

The default language for ISQL in VSE is set using the LANGID parameter of the

CIRB transaction. If the LANGID parameter is not specified, the default language

for ISQL is the one specified in an internal table structure called LANGBLK. There

is one LANGBLK table structure for each national language. The database manager

uses the language specified in the ARIMLBK TEXT member. A name is assigned to

each LANGBLK table structure for each language, as follows:

Table 24. LANGBLK Table

Mixed case English

ARIMLBKD

Chapter 12. Choosing a National Language and Defining Character Sets

261

Chapter 13. Creating Installation Exits

This chapter discusses installation exits that:

v Supply account numbers for product users

v Define your own datetime format

v Coding your own TRANSPROC exit

v Perform your own cancel exit

v Encode and decode data (Field Procedures).

Supplying Account Numbers for Users

There is no rigid format for entering account or project numbers into accounting

records, because their definition and use vary at each installation. (Some

installations do not use account numbers at all.) Thus, you must devise your own

scheme.

To do this, you replace a module named ARIUXIT with your own version of that

module.

The resource adapter calls ARIUXIT when a user tries to connect to a DB2 Server

for VSE application server either implicitly or explicitly. The database manager

branches to ARIUXIT even before attempting to verify the user.

The database manager allows ARIUXIT to access a control block. In this control

block, ARIUXIT can provide up to 16 bytes of data.

Before calling ARIUXIT, the database manager initializes the 16-byte area. For

batch/ICCF applications, the database manager initializes the area to character

blanks.

The ARIUXIT module does not use the control block (except for the return code

area); it only sets a no-operation return code and branches back to the database

manager, as shown in the following figure.

263

User attempts to connect

to the application server

Branch to

ARIUXIT

- Provide a

no-operation

return code

- Return

Continue processing

with normal connect

Figure 104. The Database Manager Branching to ARIUXIT

Because of this, the database manager places blanks (for batch/ICCF) or CICS

information (for online applications) in the installation-dependent field of the

user’s accounting records. If you choose, you can change (write over) this area.

Whatever data is in the 16-byte area is placed on the accounting records of the user

who was trying to connect at the time that ARIUXIT was called.

Your version of ARIUXIT should determine the user’s accounting information for

your installation, verify it, and pass it to database manager which puts it in the

user’s accounting records. You can supply department names as well as account or

project numbers. You can, in fact, supply whatever you like so long as it fits in 16

bytes and meets your own installation’s requirements. The database manager does

no error-checking on the data.

The database manager always branches to ARIUXIT regardless of whether the

connect attempt is from a program, the DBS utility, the preprocessors, or ISQL. You

cannot disable branching. If you want to be able to bypass your accounting

routine, you have to code the routine so that you can turn it on and off.

How the ARIUXIT Module Works

The resource adapter is the component of the database manager that calls

ARIUXIT. In multiple user mode, the resource adapter is in the user partition; in

single user mode, it is in database partition. The ARIUXIT module is called in both

modes.

264

System Administration

When the resource adapter detects any attempt to connect to an application server,

it builds a parameter list for ARIUXIT, sets registers for a proper linkage, and calls

ARIUXIT. It always calls ARIUXIT, even if the accounting facility is not enabled.

The registers are set as follows:

The address of the start of the parameter list for

ARIUXIT. The parameter list itself is named

ARIUEXI. The pointer to the parameter list points

to the beginning of ARIUEXI, which is described

below. The first field in ARIUEXI is an eye-catcher

value.

Points to a standard register save area.

Contains the return address.

Contains the entry point of the installation exit

routine.

You must code ARIUXIT to save the DB2 Server for VSE registers in the area

pointed to by Register 13. If ARIUXIT does not save and restore the registers, the

results will be unpredictable.

The resource adapter also builds the parameter list named ARIUEXI. Table 25

shows what is in ARIUEXI.

Table 25. ARIUEXI Parameter List

Length

Description

2 words

Eye-catcher: 'ARIUEXI '

1 word

Length of ARIUEXI parameter list

1 word

Pointer to Exit Number

1 word

Pointer to length of Exit Number

1 word

Pointer to Exit Global Area

1 word

Pointer to length of Exit Global Area

1 word

Pointer to Exit Local User Area

1 word

Pointer to length of Exit Local User Area

1 word

Pointer to Exit Unique Area

1 word

Pointer to length of Exit Unique Area

2 words

Reserved

1 word

Pointer to Environment Dependent Area

1 word

Pointer to length of Environment Dependent Area

1 word

Pointer to Exit Return Code Area

1 word

Pointer to length of Exit Return Code Area

Each area that ARIUEXI points to is described below.

Eye-catcher and Length of List

The resource adapter sets the eye-catcher field to 'ARIUEXI ' and the

following full word to the length of the entire list. (This length includes the

length of the eye-catcher field.)

Exit Number

The exit number is always a full word. The exit number for the accounting

exit is 1. The resource adapter sets the pointer to the exit number with an

Chapter 13. Creating Installation Exits

265

address to a full word area containing a binary 1. The resource adapter sets

the pointer to the length of the exit number with the address of a full word

area containing a binary 4.

Exit Global Area

This area does not apply to the accounting exit. The resource adapter sets

both the pointer to the global area and the pointer to the length of the

global area to binary zeros.

Exit Local User Area

The local user area is 16 bytes long. It is a read/write area that lasts for the

life of the user program.

v For CICS transactions, the area exists for each transaction until the

transaction ends

v For batch or VSE/ICCF applications, the area exists until the end of the

job step.

For each user, the resource adapter obtains the 16-byte storage area and

sets it to binary zeros. The pointer to the local user area is unique for each

user. On subsequent calls by the user, the resource adapter returns the

same pointer; it never resets the area.

The pointer to the length of the local user area always points to a full word

that contains a binary 16.

Exit Unique Area

In this area, you provide the installation-dependent accounting

information. This area is also 16 bytes long. It is obtained and initialized by

the resource adapter. How it is initialized depends on the environment:

v For batch/ICCF applications, it is initialized to character blanks.

v For online CICS transactions, it is initialized as follows:

Bytes 1—4

contain the CICS transaction ID.

Bytes 5—12

contain the CICS sigon ID, if available.

Bytes 13—16

contain the CICS terminal ID, if available. If the transaction does

not have a CICS terminal ID and the user coded the ARIRCAN

cancel support, the first 4 characters of the RMARUDAT data

from the RMAR control block is placed into bytes 13-16.

Otherwise, these bytes are blank.

Note: If the user coded the ARIRCAN cancel support, the RMARUDAT

data from the RMAR control block is placed into bytes 29-36 of

the Environment Dependent area.

Reserved Area

This area is 8 bytes long and reserved. The resource adapter initializes it to

binary zeros.

Environment-Dependent Area

This area is 40 bytes long. It contains information about the environment

where the user is running.

Note: This area identifies environment-dependent information. Some fields

apply only to VM uses of the database manager. For VSE, those

fields are set to character blanks.

266

System Administration

The resource adapter initializes the environment-dependent area as follows:

Byte 1

Character S for single user mode, or M for multiple user mode.

Byte 2

Character D for VSE.

Byte 3

Character B for batch or VSE/ICCF, or O for VSE online.

Byte 4

Character I for implicit connect, or E for explicit connect.

Bytes 5—8

Pointer to CICS transaction control area (TCA) for VSE online. For

batch or VSE/ICCF, binary zeros.

Bytes 9—12

Pointer to CICS save area (CSA) for VSE online. For batch or

VSE/ICCF, this field is set to binary zeros.

Bytes 13—20

Character blanks.

Bytes 21—28

CONNECT user ID for all explicit connections and all online

implicit connections. Blanks for implicit connections.

Bytes 29—36

If the ARIRCAN cancel support is coded, this field is set to

RMARUDAT from the RMAR control block. (For more information

about the contents of this field, see the description of the Exit

Unique Area on page 266.) Otherwise, this field is character blanks.

Bytes 37—40

Binary zeros (reserved).

Exit Return Code Area

The resource adapter initializes this full word area (and the pointer to it),

and sets it to -1. A return code of -1 means that you do not want this exit.

The length field for this area is a full word containing a binary 4. The

resource adapter also ORs a X'80' to the high order byte of the pointer to

the length field of the return code area. The X'80' indicates the end of the

parameter list.

When you code your version of ARIUXIT, you can specify these return codes

before branching back to the database manager:

-1

Means that you do not want this exit (the default). This indicates to the

database manager that the exit is a no-op.

The function that the exit called to do a task completed successfully.

Other Any return code other than 0 or -1 causes an -815 SQLCODE to be

returned to the user. (SQLERRD1 contains the return code from the exit.)

You can reject a user’s attempt to connect because the user has incorrect

accounting information.

Figure 105 on page 268 summarizes the ARIUEXI parameter list and the areas

pointed to by the list.

Chapter 13. Creating Installation Exits

267

Pointer

Exit Number:

Character

Binary 1

Length of

'ARIUEXI'

Exit Number:

Binary 68

Binary 4

Pointer

Local User Area:

Binary 0

Binary 0s

Binary 0

Pointer

Length of Local User Area:

Pointer

Binary 16

Pointer

Exit Unique Area:

Pointer

See text

Binary

Length of Exit Unique Area:

Zeros

Binary 16

Pointer

Environment Dependent Area:

Pointer

See text

Pointer

Length of Environment Dependent Area:

Binary 40

Return Code Area:

Binary -1

Length of Return Code Area:

Binary 4

Figure 105. Summary of ARIUEXI Parameter List and Associated Areas

Coding Your Own Accounting Exit

Exit routines must always be coded in Assembler language. Your version of

ARIUXIT (and any of the modules it calls) must not use any DB2 Server for VSE

function. In an online environment, imbedded CICS commands (EXEC CICS) are

not allowed.

You can link-edit your accounting exit to run in AMODE 24 or 31 by using the

AMODE parameter in the PARM field of the EXEC LNKEDT statement. Your

268

System Administration

accounting exit will be loaded below 16 megabytes and given control according to

its AMODE. If the AMODEs of the accounting exit and the database manager

differ, the database manager switches AMODEs before transferring control to the

accounting exit. For CICS/VSE applications, you MUST link-edit your accounting

exit to run in AMODE 31.

Figure 106 shows the ARIUXIT module that is included with the database manager.

This sample exit is supplied as an A-type source member named ARIUXIT. Note

that the Exit Return Code Area is set to -1, which means that you are not

interested.

TITLE ’ARIUXIT’

***********************************************************************

* ARIUXIT USER EXIT ROUTER ROUTINE

-> PARMLIST

R13 -> SAVE AREA

R14 -> RETURN ADDRESS

R15 -> ENTRY POINT

* ALTHOUGH PROVIDED IN A GENERAL INTERFACE LIBRARY, ARIUXIT IS NOT TO *

* BE USED AS A GENERAL PROGRAMMING INTERFACE. REFER TO PRODUCT

* DOCUMENTATION TO DETERMINE INTENDED USAGE.

***********************************************************************

SPACE 5

ARIUXIT CSECT ,

ARIUXIT AMODE ANY

ARIUXIT RMODE 24

USING *,R15

GET ADDRESSABILITY

PROLOG

CL8’ARIUXIT ’

EYECATCHER

PROLOG EQU

STM R14,R12,12(R13)

SAVE CALLER’S REGISTERS

DROP R15

BALR R12,0

R12 IS BASE REGISTER

PSTART EQU

USING PSTART,R12

GET ADDRESSABILITY FOR ROUTINE

R13,UXSAVE+4

STORE BACKWARD POINTER

R9,UXSAVE

ADDRESS OF SAVE AREA

R9,UXSAVE+8

STORE FORWARD POINTER

R13,R9

R13 POINTS TO NEW SAVE AREA

R1,0(,R1)

GET POINTER TO PLIST

USING PLIST,R1

GET ADDRESSABILITY TO PLIST DSECT

* Insert your own code here

(and change the return code as appropriate).

Figure 106. IBM-Supplied Version of ARIUXIT (Part 1 of 3)

Chapter 13. Creating Installation Exits

269

R2,PLRETCD

GET PTR TO EXIT RETURN CODE AREA

R3,NEG1RC

LOAD NOOP RET CODE (NEGATIVE ONE)

R3,0(,R2)

STORE RET CODE INTO EXIT RC AREA

R13,UXSAVE+4

GET BACKWARD POINTER

R14,R12,12(R13)

RESTORE CALLER’S REGISTERS

R14

RETURN TO CALLER

END

EQU

EJECT

***********************************************************************

DECLARES FOR ARIUXIT ROUTER

***********************************************************************

SPACE 5

UXSAVE DC

18F’0’

SAVE AREA FOR CALLER’S REGISTERS

NEG1RC DC

F’-1’

NEGATIVE ONE RETURN CODE (NO-OP)

SPACE 2

EQU

REGISTERS EQUATES

EQU

R10

EQU

R11

EQU

R12

EQU

R13

EQU

R14

EQU

R15

EQU

EJECT

Figure 106. IBM-Supplied Version of ARIUXIT (Part 2 of 3)

270

System Administration

***********************************************************************

DSECT FOR ARIUEXI PARAMETER LIST INTERFACE TO ARIUXIT ROUTER

***********************************************************************

SPACE 5

PLIST

DSECT

PLICTCH

CL8

EYECATCHER

PLILENG

LENGTH OF PLIST (INCLUDING EYECATCHER)

PLEXNUM

PTR TO EXIT NUMBER

PLLXNUM

PTR TO LENGTH OF EXIT NUMBER

PLGLOBA

PTR TO EXIT GLOBAL AREA

PLLGLOB

PTR TO LENGTH OF EXIT GLOBAL AREA

PLUSERF

PTR TO EXIT LOCAL USER AREA

PLLUSER

PTR TO LENGTH OF EXIT LOCAL USER AREA

PLEUNIQ

PTR TO EXIT UNIQUE AREA

PLLUNIQ

PTR TO LENGTH OF EXIT UNIQUE AREA

CL8

RESERVED

PLEDEPA DS

PTR TO ENVIRONMENT DEPENDENT AREA

PLLDEPA DS

PTR TO LENGTH OF ENVIRONMENT DEP AREA

PLRETCD DS

PTR TO EXIT RETURN CODE AREA

PLLRETC DS

PTR TO LENGTH OF EXIT RETURN CODE AREA

END

Figure 106. IBM-Supplied Version of ARIUXIT (Part 3 of 3)

Figure 107 shows a simple example of a user version of ARIUXIT. In this example,

the string HERE IS USERDATA is moved into the exit unique area, and the exit

return code area is set to 0.

Chapter 13. Creating Installation Exits

271

TITLE ’ARIUXIT’

***********************************************************************

* ARIUXIT USER EXIT ROUTER ROUTINE

-> PARMLIST

R13 -> SAVE AREA

R14 -> RETURN ADDRESS

R15 -> ENTRY POINT

* ALTHOUGH PROVIDED IN A GENERAL INTERFACE LIBRARY, ARIUXIT IS NOT TO *

* BE USED AS A GENERAL PROGRAMMING INTERFACE. REFER TO PRODUCT

* DOCUMENTATION TO DETERMINE INTENDED USAGE.

***********************************************************************

SPACE 5

ARIUXIT CSECT ,

ARIUXIT AMODE ANY

ARIUXIT RMODE 24

USING *,R15

GET ADDRESSABILITY

PROLOG

CL8’ARIUXIT ’

EYECATCHER

PROLOG EQU

STM R14,R12,12(R13)

SAVE CALLER’S REGISTERS

DROP R15

BALR R12,0

R12 IS BASE REGISTER

PSTART EQU

USING PSTART,R12

GET ADDRESSABILITY FOR ROUTINE

R13,UXSAVE+4

STORE BACKWARD POINTER

R9,UXSAVE

ADDRESS OF SAVE AREA

R9,UXSAVE+8

STORE FORWARD POINTER

R13,R9

R13 POINTS TO NEW SAVE AREA

R1,0(,R1)

GET POINTER TO PLIST

USING PLIST,R1

GET ADDRESSABILITY TO PLIST DSECT

Figure 107. Sample User Version of ARIUXIT (Part 1 of 3)

272

System Administration

* Here you would place code that gets and verifies your

* user-dependent data. The following code shows moving the data

* into the Exit Unique Area.

* Make sure you check the Exit Number word. If the Exit Number value

* is not a binary 1, you should set the Exit Return Code word to binary

* -1 (NEG1RC) and return to the database manager.

R2,PLEUNIQ

GET PTR TO EXIT UNIQUE AREA

MVC

0(16,R2),USERDATA MOVE 16 BYTES OF USER DATA

R2,PLRETCD

GET PTR TO EXIT RETURN CODE AREA

R3,ZEROS

SET ZERO RETURN CODE

R3,0(,R2)

STORE RET CODE INTO EXIT RC AREA

EXIT

EQU

RETURN TO THE DATABASE MANAGER

R13,UXSAVE+4

GET BACKWARD POINTER

R14,R12,12(R13)

RESTORE CALLER’S REGISTERS

R14

RETURN TO CALLER

END

EQU

EJECT

***********************************************************************

DECLARES FOR ARIUXIT

***********************************************************************

SPACE 5

UXSAVE DC

18F’0’

SAVE AREA FOR CALLER’S REGISTERS

ZEROS

F’0’

ZERO RETURN CODE

NEG1RC

F’-1’

NEGATIVE RETURN CODE (NO-OP)

USERDATA DC

CL16’HERE IS USERDATA’

SPACE 2

EQU

REGISTERS EQUATES

EQU

R10

EQU

R11

EQU

R12

EQU

R13

EQU

R14

EQU

R15

EQU

EJECT

Figure 107. Sample User Version of ARIUXIT (Part 2 of 3)

Chapter 13. Creating Installation Exits

273

***********************************************************************

DSECT FOR ARIUEXI PARAMETER LIST INTERFACE TO ARIUXIT

***********************************************************************

SPACE 5

PLIST

DSECT

PLICTCH

CL8

EYE-CATCHER

PLILENG

LENGTH OF PLIST (INCLUDING EYE-CATCHER)

PLEXNUM

PTR TO EXIT NUMBER

PLLXNUM

PTR TO LENGTH OF EXIT NUMBER

PLGLOBA

PTR TO EXIT GLOBAL AREA

PLLGLOB

PTR TO LENGTH OF EXIT GLOBAL AREA

PLUSERF

PTR TO EXIT LOCAL USER AREA

PLLUSER

PTR TO LENGTH OF EXIT LOCAL USER AREA

PLEUNIQ

PTR TO EXIT UNIQUE AREA

PLLUNIQ

PTR TO LENGTH OF EXIT UNIQUE AREA

CL8

RESERVED

PLEDEPA DS

PTR TO ENVIRONMENT DEPENDENT AREA

PLLDEPA DS

PTR TO LENGTH OF ENVIRONMENT DEP AREA

PLRETCD DS

PTR TO EXIT RETURN CODE AREA

PLLRETC DS

PTR TO LENGTH OF EXIT RETURN CODE AREA

END

Figure 107. Sample User Version of ARIUXIT (Part 3 of 3)

After the program is coded, assemble it as you would any other program.

Installing Your Version of ARIUXIT

After assembling your program, you must catalog the ARIUXIT OBJ file into your

private sublibrary. (Your assembled version of ARIUXIT must be named ARIUXIT

OBJ.) Then link-edit the DB2 Server for VSE component DSC; then stop the

application server in order for the change to take effect.

The DSC component, which is described in the DB2 Server for VSE & VM Diagnosis

Guide and Reference manual, contains the IBM-supplied version of ARIUXIT. The

link book name for DSC is ARISLKMD. When doing the link-edit, specify your

private sublibrary ahead of the DB2 Server for VSE sublibrary on the LIBDEF

statement defining the search order. The link-edit will then replace the

IBM-supplied version with your version.

An example of job control to install a user version of ARIUXIT is shown in

Figure 108 on page 275. Here, the ARIUXIT OBJ would be installed in a sublibrary

called LIB.SQL, and the DSC component would be replaced in PRD2.DB2730.

274

System Administration

// JOB INSTALL USER EXIT

// LIBDEF *,SEARCH=(LIB.SQL,PRD2.DB2730),CATALOG=PRD2.DB2730

* ****************************************************************

* INSTALL ARIUXIT USER EXIT ROUTINE

* ****************************************************************

// OPTION CATAL

INCLUDE ARISLKMD

// EXEC LNKEDT,PARM=’MSHP,AMODE=xxx,RMODE=24’

Figure 108. Example Job Control to Install ARIUXIT in the Production Library

AMODE (addressing mode) is the attribute of the entry point of the loaded phase,

and must be one of the following:

The exit is invoked in AMODE 24

The exit is invoked in AMODE 31

ANY The exit is invoked in the caller’s addressing mode

Note: The accounting exit must always be loaded below 16 megabytes (RMODE

24). If you are running DRDA online CICS transactions, the accounting exit

cannot be linkedited with AMODE 24.

Service Considerations for ARIUXIT

The dummy version of ARIUXIT is not serviceable; other portions of the DSC

component, however, are serviceable. If service is applied to any portion of DSC, it

is link-edited again. If you have coded your own version of ARIUXIT and

completed the previous steps, your version of ARIUXIT will be included in the

DSC component.

Defining Your Own Datetime Format

The database manager supports many datetime formats. This section describes the

datetime formats and how you can add your own by coding your own exit.

Datetime Formats

The database manager supports DATE, TIME, and TIMESTAMP data types and

operations. You can enter a date or a time using many different formats.

Dates can be entered in any of the formats shown in Table 26.

Table 26. Date Formats

Format Name

Abbreviation

Date Format

Example

International Standards

ISO

yyyy-mm-dd

1993-12-31

Organization

IBM USA standard

USA

mm/dd/yyyy

12/31/1993

IBM European standard

EUR

dd.mm.yyyy

31.12.1993

Japanese Industrial Standard

JIS

yyyy-mm-dd

1993-12-31

Christian Era

Site-defined

LOCAL

Any site-defined

—

form

Chapter 13. Creating Installation Exits

275

Times can be entered in any of the formats shown in Table 27.

Table 27. Time Formats

Format Name

Abbreviation

Time Format

Example

International Standards

ISO

hh.mm[.ss]

13.30.05

Organization

IBM USA standard

USA

hh:mm AM or PM

1:30 PM

IBM European standard

EUR

hh.mm[.ss]

13.30.05

Japanese Industrial Standard

JIS

hh:mm[:ss]

13:30:05

Christian Era

Site-defined

LOCAL

Any site-defined

—

form

To define the LOCAL format, you have to code your own date or time exit. For

information about coding your own datetime exit, see “Coding Your Own

Datetime Exit” on page 279.

Default Output Format

When the database manager is installed, the default date and time formats are both

ISO. To change them, you must change the entry in the SYSTEM.SYSOPTIONS

table. You must have DBA authority to do this.

For example, to specify that the date output format is USA, enter:

UPDATE SYSTEM.SYSOPTIONS -

SET VALUE=’USA’ WHERE SQLOPTION=’DATE’

Similarly, to specify that the time output format is JIS, you enter:

UPDATE SYSTEM.SYSOPTIONS -

SET VALUE=’JIS’ WHERE SQLOPTION=’TIME’

Alternatively, you can update the SYSTEM.SYSOPTIONS table by modifying the

IBM-supplied ARISDTM member to specify your datetime defaults, then start the

DBS utility, specifying the ARISDTM member as the control file.

How Datetime Exits Work

Two datetime installation replaceable exits are provided to allow you to convert

datetime values in any installation-defined format into ISO format, or from ISO

format into any installation-defined format. These exits which are link-edited into

the exit router component ARIXSXR, are called ARIUXDT and ARIUXTM for date

and time, respectively.

When the database manager is installed, ARIXSXR is loaded and addressability to

the exits is set.

The entries in the SYSTEM.SYSOPTIONS catalog table are used by the database

manager to determine the default datetime format for output.

If SYSTEM.SYSOPTIONS indicates that local datetime exits are present, the exits

are called during SQL statement processing when conversion between internal and

external forms is required.

The product-supplied exits return a -1 return code, meaning the exits have not

been replaced by the user exits. If a user program issues an SQL statement that

276

System Administration

calls the exits, SQLCODE -185 is returned. Therefore, if the user is to replace the

exits, the -1 return code must not be used.

When Date and Time Exits are Called (Exit Points)

If a program has been preprocessed with the LOCAL format, or if the installation

default is LOCAL, then the datetime exits are called before any interpretation of

the datetime data values. Otherwise, the database manager attempts to interpret

the datetime data values first. In this situation, it calls the local exit only if it does

not recognize the datetime value.

The datetime exits are called at the following times:

v When you convert the external form to an internal form:

- When datetime data is entered by INSERT or UPDATE statements, or by the

DATALOAD commands of the DBS utility, or by the INPUT command of

ISQL.

- When a constant or host variable is compared with a DATE or TIME column.

The constant can be converted during preprocessing time.

- When the DATE or TIME scalar functions are used with a string

representation of a date or time.

The exit should then convert the installation-defined format into ISO format. The

ISO format is then validated and converted into an internal format to be entered

into the column or used in comparisons. If the column is a key column for an

index, the index entry is made in an internal format.

v When you convert the internal form to an external form:

- When data is retrieved from the column by SELECT or FETCH statements, or

by the DATAUNLOAD commands in the DBS utility, and the default format

is local.

- When the CHAR scalar function is used with the LOCAL format specification.

At this point, the exit should convert the value from ISO format into

installation-defined format; then the database manager returns the converted

value. In this situation, the exit is called after any edit routine or sort.

When the exits are called, the registers are set as follows:

Undefined.

Points to a pointer to the parameter list for

ARIUXDT (or ARIUXTM). The format of the

parameter list is discussed below. The first field in

it is an eye-catcher value.

Undefined.

Points to a standard register save area.

Contains the return address.

Contains the entry point of the user installation

routine.

Registers 2—13 must be saved and restored by the exit. If this is not done, the

results will be unpredictable.

Table 28 shows what is in the parameter list used by the date and time exits (see

Chapter 13. Creating Installation Exits

277

Table 28. Parameter List Used by Date and Time Exits

Length

Description

2 words

Eye-catcher: ARIUXDT or ARIUXTM

1 word

Length of parameter list

1 word

Pointer to Function Number

1 word

Pointer to length of Function Number

1 word

Pointer to Exit Global Area

1 word

Pointer to length of Exit Global Area

1 word

Pointer to ISO Datetime Area

1 word

Pointer to length of ISO Datetime Area

1 word

Pointer to LOCAL Datetime Area

1 word

Pointer to length of LOCAL Datetime Area

1 word

Pointer to User Work Area

1 word

Pointer to length of User Work Area

1 word

Pointer to Environment Dependent Area

1 word

Pointer to length of Environment Dependent Area

1 word

Pointer to Exit Return Code Area

1 word

Pointer to length of Exit Return Code Area

Each area in the parameter list is described below.

v The Eye-catcher and Length of list is initialized by the database manager.

v The Function Number is a full word number describing the function to be

performed, as follows:

Number

Function

DATE Functions:

00000004

Convert DATE from LOCAL format to ISO format.

00000008

Convert DATE from ISO format to Installation format.

TIME Functions:

00000004

Convert TIME from LOCAL format to ISO format.

00000008

Convert TIME from ISO format to Installation format.

v The EXIT Global Area is not used. Both values are set to zero.

v The length of the ISO Date and Time Areas are 10 bytes and 8 bytes,

respectively.

v The length of the LOCAL Date and Time Areas are as defined in the

SYSTEM.SYSOPTIONS catalog table. The pointer to the length of the area points

to a fullword that contains the value in this table.

v The User Work Area is a 512-byte area.

v The Environment Dependent Area is a 40-byte area. For the datetime exits, only

byte 2 is used. It contains D for VSE, and V for VM.

v The Exit Return Code Area is a full word to be set by the exit to the return code.

The possible return codes are:

-1

The exit supplied by the database manager has not been replaced by a

user exit. The database manager then sets SQLCODE to -185.

The function has been performed.

Invalid date or time value. The database manager then sets SQLCODE to

-181.

278

System Administration

Date or time value not in valid format. The database manager then sets

SQLCODE to -180.

Other Error in exit. The function number of the exit will be stored in

SQLERRD5, and the return code in SQLERRD1. The database manager

then sets SQLCODE to -816.

The exit name, function code and return code are set up as message

tokens in SQLERRM; they are used when the message associated with

SQLCODE -816 is displayed, for example, by the DBS utility and ISQL.

If a program has been preprocessed with the LOCAL format, or if the

installation default is LOCAL, then the database manager evaluates the

output of the datetime exit if the return code is either 0 or 8. Otherwise,

the output is evaluated only if the return code is 0.

Coding Your Own Datetime Exit

User-coded exits must conform to the following:

v The installation replaceable exits must be coded in Assembler language.

v The exits must be reentrant; they must save registers at entry and restore them

before exit.

v The exits (and any of the modules they call) must not use any DB2 Server for

VSE facilities.

v The exits must not use the return code -1.

v When formatting ISO datetime to LOCAL datetime, the user is responsible for

formatting the full buffer (the number of bytes equal to the length of the local

datetime as defined in the SYSTEM.SYSOPTIONS catalog table).

v The exits must support 31-bit addressing (AMODE 31) and be loaded below 16

megabytes (RMODE 24)

In an online environment, imbedded CICS commands (EXEC CICS) are not

allowed.

Figure 109 on page 280 shows the IBM-supplied ARIUXDT module, which is an

A-type source member. You need to modify this source code to support your local

date format requirements.

Chapter 13. Creating Installation Exits

279

TITLE ’ ARIUXDT’

***********************************************************************

* ARIUXDT USER DATE CONVERSION ROUTINE

-> PARMLIST

R13 -> SAVE AREA

R14 -> RETURN ADDRESS

R15 -> ENTRY POINT

* ALTHOUGH PROVIDED IN A GENERAL INTERFACE LIBRARY, ARIUXIT IS NOT TO *

* BE USED AS A GENERAL PROGRAMMING INTERFACE. REFER TO PRODUCT

* DOCUMENTATION TO DETERMINE INTENDED USAGE.

***********************************************************************

ARIUXDT CSECT ,

ARIUXDT AMODE 31

ARIUXDT RMODE 24

USING *,R15

ESTABLISH TEMP ADDRESSABILITY

PROLOG

BRANCH TO START OF PROGRAM

C’ARIUXDT’

DROP

R15

DROP R15 AND USE OWN ADDRESSABIL-

ITY

PROLOG STM R14,R12,12(R13)

SAVE REGS IN CALLER’S AREA

R12,R15

SAVE BASE REGISTER

PSTART EQU ARIUXDT

START OF PROGRAM

USING PSTART,R12

SET UP BASE REGISTER

R1,0(R1)

POINT TO THE PARAMETER LIST

USING PARMLIST,R1

ADDRESSABILITY FOR INPUT PARMS

R2,FNPTR

POINT TO FUNCTION TYPE

***********************************************************************

* M A I N L I N E

***********************************************************************

MAINLINE DS

START OF CODE

SPACE

R15,R15

INITIALIZE RETURN CODE TO ZERO

***********************************************************************

* HERE YOU WOULD PLACE CODE THAT GETS AND VERIFIES YOUR

* INPUT DATE AND CONVERTS IT TO EITHER TO LOCAL FORMAT OR ISO FORMAT

* A RETURN CODE OF -1 MEANS AN EXIT IS NOT PROVIDED

* A RETURN CODE OF 0 MEANS CONVERSION WAS SUCCESSFUL

* A RETURN CODE OF 4 MEANS THAT THE DATE VALUE WAS OUT OF RANGE

* A RETURN CODE OF 8 MEANS THAT THE DATE WAS INVALID

***********************************************************************

BCTR R15,R0

EXIT NOT PROVIDED

RETURN

CONVERSION COMPLETE

Figure 109. IBM-Supplied Version of ARIUXDT (Part 1 of 2)

280

System Administration

DB2 Server for VSE System Administration (Version 7 Release 5) - page 6
