SAFETY

46

Child safety

Children should always be seated safely when
traveling in the vehicle.

General information

Volvo recommends the proper use of restraint
systems (p. 47) for all occupants including chil-
dren. Remember that, regardless of age and size,
a child should always be properly restrained in a
vehicle.

Your vehicle is also equipped with ISOFIX/
LATCH attachments (p. 55), which make it
more convenient to install child seats.

Some restraint systems for children are designed
to be secured in the vehicle by lap belts or the
lap portion of a lap-shoulder belt. Such child
restraint systems can help protect children in
vehicles in the event of an accident only if they
are used properly. However, children could be
endangered in a crash if the child restraints are
not properly secured in the vehicle. Failure to fol-
low the installation instructions for your child
restraint can result in your child striking the vehi-
cle's interior in a sudden stop.

Holding a child in your arms is NOT a suitable
substitute for a child restraint system. In an acci-
dent, a child held in a person's arms can be
crushed between the vehicle's interior and an
unrestrained person. The child could also be
injured by striking the interior, or by being ejected
from the vehicle during a sudden maneuver or

impact. The same can also happen if the infant or
child rides unrestrained on the seat. Other occu-
pants should also be properly restrained to help
reduce the chance of injuring or increasing the
injury of a child.

All states and provinces have legislation govern-
ing how and where children should be carried in
a vehicle. Find out the regulations existing in your
state or province. Recent accident statistics have
shown that children are safer in rear seating
positions than front seating positions when prop-
erly restrained. A child restraint system can help
protect a child in a vehicle. Here's what to look
for when selecting a child restraint system:

It should have a label certifying that it meets
applicable Federal Motor Vehicle Safety Stand-
ards (FMVSS 213) – or in Canada, CMVSS 213.

Make sure the child restraint system is approved
for the child's height, weight and development –
the label required by the standard or regulation,
or instructions for infant restraints, typically pro-
vide this information.

In using any child restraint system, we urge you
to carefully look over the instructions that are
provided with the restraint. Be sure you under-
stand them and can use the device properly and
safely in this vehicle. A misused child restraint
system can result in increased injuries for both
the infant or child and other occupants in the
vehicle.

When a child has outgrown the child safety seat,
you should use the rear seat with the standard
seat belt fastened. The best way to help protect

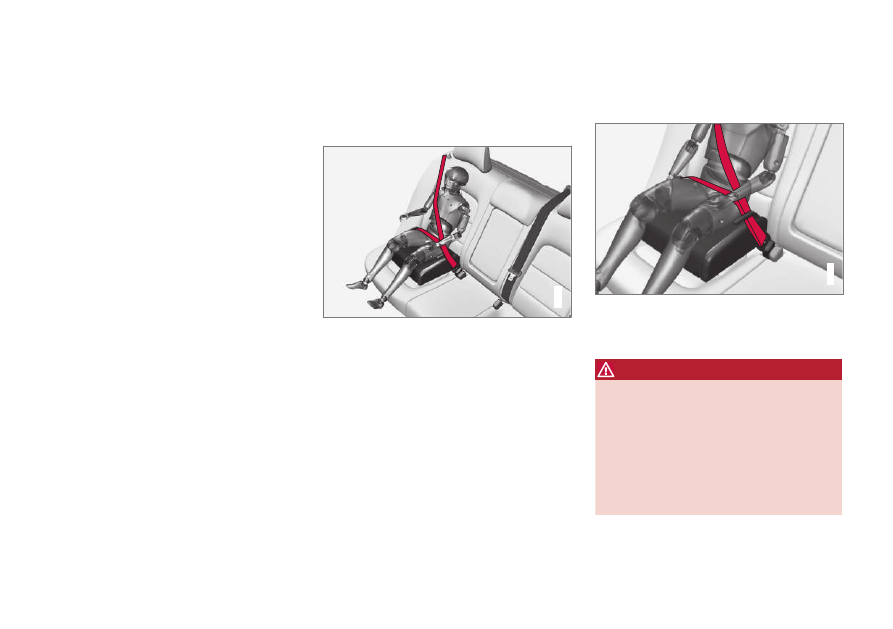

the child here is to place the child on a cushion
so that the seat belt is properly located on the
hips (see Booster cushions (p. 54) for illustra-
tion). Legislation in your state or province may
mandate the use of a child seat or cushion in
combination with the seat belt, depending on the
child's age and/or size. Please check local regu-
lations.

A specially designed and tested booster cushion
and backrest can be obtained from your Volvo
retailer. See also Booster cushions (p. 54)

SAFETY

}}

47

WARNING

Do not use child safety seats or child
booster cushions/backrests in the front
passenger's seat. We also recommend
that children under 4 feet 7 inches
(140 cm) in height who have outgrown
these devices sit in the rear seat with the
seat belt fastened.

Sedan models: Keep vehicle doors and
trunk locked and keep remote controls
out of a child’s reach. Unsupervised chil-
dren could lock themselves in an open
trunk and risk injury. Children should be
taught not to play in vehicles.

On hot days, the temperature in the vehi-
cle interior can rise very quickly. Exposure
to these high temperatures for even a
short period of time can cause heat-rela-
ted injury or death. Small children are par-
ticularly at risk.

Child seat should always be registered. See Child
restraints (p. 47) for more information.

Volvo's recommendations

Why does Volvo believe that no child should sit in
the front seat of a car? It's quite simple really. A
front airbag (p. 33) is a very powerful device
designed, by law, to help protect an adult.

Because of the size of the airbag and its speed
of inflation, a child should never be placed in the

front seat, even if he or she is properly belted or
strapped into a child safety seat. Volvo has been
an innovator in safety for over seventy-five years,
and we'll continue to do our part. But we need
your help. Please remember to put your children
in the back seat, and buckle them up.

Volvo has some very specific
recommendations:

Always wear your seat belt (p. 28).

Airbags are a SUPPLEMENTAL safety
device which, when used with a three-point
seat belt can help reduce serious injuries
during certain types of accidents. Volvo rec-
ommends that you do not disconnect the air-
bag system in your vehicle.

Volvo strongly recommends that everyone in
the vehicle be properly restrained.

Volvo recommends that ALL occupants
(adults and children) shorter than 4 feet
7 inches (140 cm) be seated in the back
seat of any vehicle with a front passenger
side airbag.

Drive safely!

Related information

Infant seats (p. 49)

Convertible seats (p. 52)

Booster cushions (p. 54)

Child safety locks (p. 58)

Top tether anchors (p. 56)

Child restraints

Suitable child restraints should always be used
when children travel in the vehicle.

Child restraint systems

G022840

Infant seat

There are three main types of child restraint sys-
tems: infant seats (p. 49), convertible
seats (p. 52), and booster cushions (p. 54).
They are classified according to the child's age
and size.

The following section provides general informa-
tion on securing a child restraint using a three-
point seat belt (p. 28). Refer to ISOFIX/LATCH
lower anchors (p. 55) and Top tether anchors
(p. 56) for information on securing a child
restraint using ISOFIX/LATCH lower anchors
and/or top tether anchorages.

||

SAFETY

48

G022847

Convertible seat

WARNING

A child seat should never be used in the front
passenger seat of any vehicle with a front
passenger airbag – not even if the "Passen-
ger airbag off" symbol near the rear-view mir-
ror is illuminated (on vehicles equipped with
Occupant Weight Sensor). If the severity of an
accident were to cause the airbag to inflate,
this could lead to serious injury or death to a
child seated in this position.

G023269

Booster cushion

WARNING

Always refer to the child restraint manufactur-
er's instructions for detailed information on
securing the restraint.

WARNING

When not in use, keep the child restraint
system secured or remove it from the
passenger compartment to help prevent it
from injuring passengers in the event of a
sudden stop or collision.

A small child's head represents a consid-
erable part of its total weight and its neck
is still very weak. Volvo recommends that
children up to age 4 travel, properly
restrained, facing rearward. In addition,
Volvo recommends that children should
ride rearward facing, properly restrained,
as long as possible.

Automatic Locking Retractor/
Emergency Locking Retractor (ALR/
ELR)

To make child seat installation easier, each seat
belt (except for the driver's belt) is equipped with
a locking mechanism to help keep the seat belt
taut.

SAFETY

}}

49

When attaching the seat belt to a child seat:

1. Attach the seat belt to the child seat accord-

ing to the child seat manufacturer's instruc-
tions.

2. Pull the seat belt out as far as possible.

3. Insert the seat belt latch plate into the buckle

(lock) in the usual way.

4. Release the seat belt and pull it taut around

the child seat.

A sound from the seat belt retractor will be audi-
ble at this time and is normal. The belt will now
be locked in place. This function is automatically
disabled when the seat belt is unlocked and the
belt is fully retracted.

WARNING

Do not use child safety seats or child booster
cushions/backrests in the front passenger's
seat. We also recommend that children who
have outgrown these devices sit in the rear
seat with the seat belt properly fastened.

Child restraint registration and recalls

Child restraints could be recalled for safety rea-
sons. You must register your child restraint to be
reached in a recall. To stay informed about child
safety seat recalls, be sure to fill out and return
the registration card that comes with new child
restraints.

Child restraint recall information is readily availa-
ble in both the U.S. and Canada. For recall infor-
mation in the U.S., call the U.S. Government's
Auto Safety Hotline at 1-800-424-9393 or go to
http://www-odi.nhtsa.dot.gov/cars/problems/
recalls/register/childseat/index.cfm. In Canada,
visit Transport Canada's Child Safety website at
http://www.tc.gc.ca/roadsafety/childsafety/
menu.htm.

Related information

Child safety locks (p. 58)

Infant seats

Suitable child restraints should always be used
when children (depending on their age/size) are
seated in the vehicle.

Securing an infant seat with a seat belt

G022844

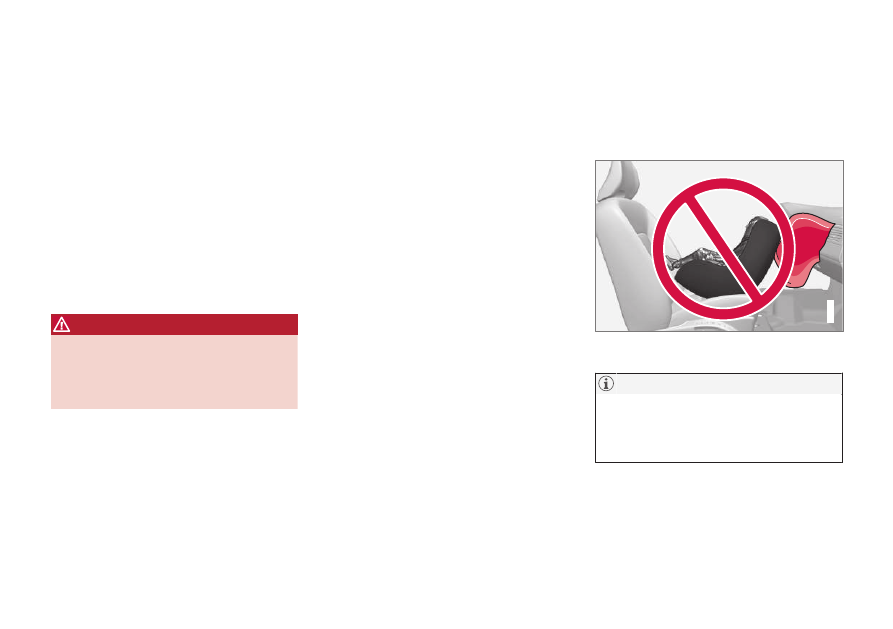

Do not place the infant seat in the front passenger's
seat

NOTE

Refer to (p. 55)  and (p. 56)  for informa-
tion on securing a child restraint using ISO-
FIX/LATCH lower anchors and/or top tether
anchorages.

1. Place the infant seat in the rear seat of the

vehicle.

||

SAFETY

50

2. Attach the seat belt to the infant seat

according to the manufacturer's instructions.

G023270

Positioning the seat belt through the infant seat

WARNING

An infant seat must be in the rear-facing
position only.

The infant seat should not be positioned
behind the driver's seat unless there is
adequate space for safe installation.

WARNING

A child seat should never be used in the front
passenger seat of any vehicle with a front
passenger airbag – not even if the "Passen-
ger airbag off" symbol near the rear-view mir-
ror is illuminated (on vehicles equipped with
Occupant Weight Sensor). If the severity of an
accident were to cause the airbag to inflate,
this could lead to serious injury or death to a
child seated in this position.

3. Fasten the seat belt by inserting the latch

plate into the buckle (lock) until a distinct
click is audible.

G023271

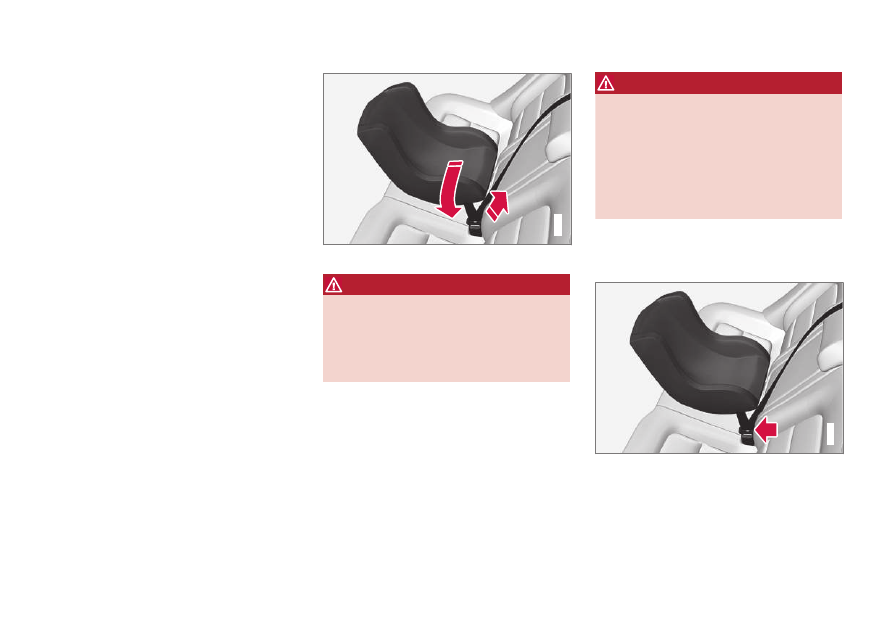

Fasten the seat belt

SAFETY

51

G

0

2

2

8

4

6

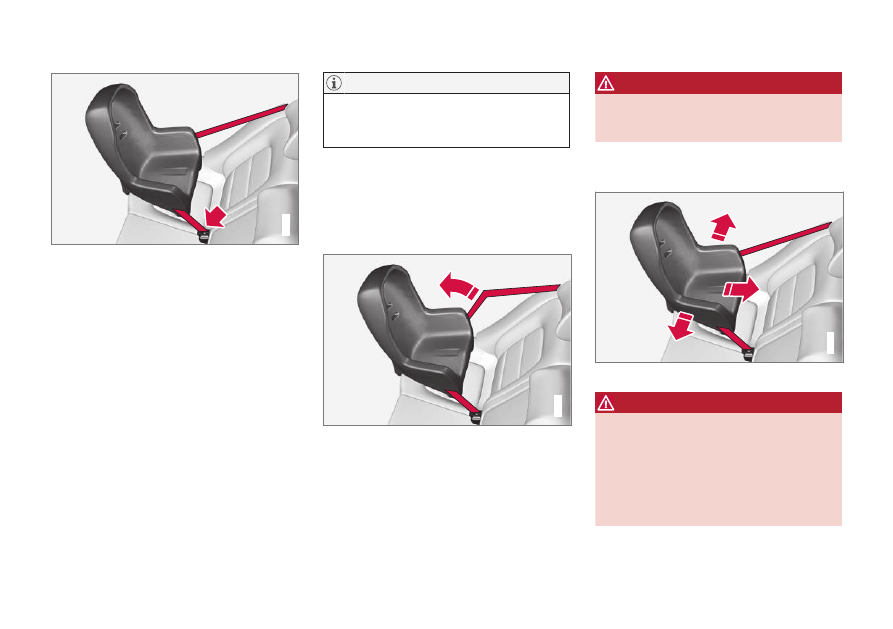

Pull out the shoulder section of the seat belt

4. Pull the shoulder section of the seat belt out

as far as possible to activate the belt's auto-
matic locking function.

NOTE

The locking retractor will automatically
release when the seat belt is unbuckled and
allowed to retract fully.

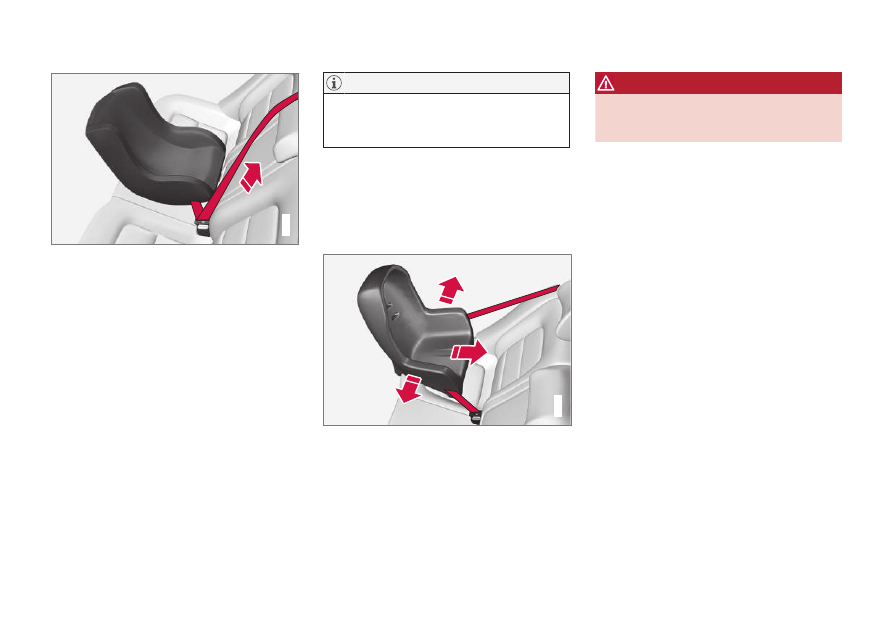

5. Press the infant seat firmly in place, let the

seat belt retract and pull it taut. A sound from
the seat belt retractor's automatic locking
function will be audible at this time and is
normal. The seat belt should now be locked
in place.

G

0

2

2

8

5

0

Ensure that the seat is securely in place

6. Push and pull the infant seat along the seat

belt path to ensure that it is held securely in
place by the seat belt.

WARNING

It should not be possible to move the child
restraint (child seat) more than 1 in. (2.5 cm)
in any direction along the seat belt path.

The infant seat can be removed by unbuckling
the seat belt and letting it retract completely.

Related information

Child safety (p. 46)

Child restraints (p. 47)

Convertible seats (p. 52)

ISOFIX/LATCH lower anchors (p. 55)

Top tether anchors (p. 56)

SAFETY

52

Convertible seats

Suitable child restraints should always be used
when children (depending on their age/size) are
seated in the vehicle.

Securing a convertible seat with a seat
belt

G018630

Do not place the convertible seat in the front passeng-
er's seat

NOTE

Refer to (p. 55) and (p. 56) for information
on securing a child restraint using ISOFIX/
LATCH lower anchors and/or top tether
anchorages.

Convertible seats can be used in either a forward
or rearward-facing position, depending on the
age and size of the child.

G022847

Route the seat belt through the convertible seat

WARNING

Always use a convertible seat that is suitable
for the child's age and size. See the converti-
ble seat manufacturer's recommendations.

1. Place the convertible seat in the rear seat of

the vehicle.

WARNING

A small child's head represents a consider-
able part of its total weight and its neck is
still very weak. Volvo recommends that
children up to age 4 travel, properly
restrained, facing rearward. In addition,
Volvo recommends that children should
ride rearward facing, properly restrained, as
long as possible.

Convertible child seats should be installed
in the rear seat only.

A rear-facing convertible seat should not
be positioned behind the driver's seat
unless there is adequate space for safe
installation.

2. Attach the seat belt to the convertible seat

according to the manufacturer's instructions.

SAFETY

}}

53

G

0

2

2

8

4

8

Fasten the seat belt

3. Fasten the seat belt by inserting the latch

plate into the buckle (lock) until a distinct
click is audible.

4. Pull the shoulder section of the seat belt out

as far as possible to activate the belt's auto-
matic locking function.

NOTE

The locking retractor will automatically
release when the seat belt is unbuckled and
allowed to retract fully.

5. Press the convertible seat firmly in place, let

the seat belt retract and pull it taut. A sound
from the seat belt retractor's automatic lock-
ing function will be audible at this time and is
normal. The seat belt should now be locked
in place.

G

0

2

2

8

4

9

Pull out the shoulder section of the seat belt

6. Push and pull the convertible seat along the

seat belt path to ensure that it is held
securely in place by the seat belt.

WARNING

It should not be possible to move the child
restraint (child seat) more than 1 in. (2.5 cm)
in any direction along the seat belt path.

The convertible seat can be removed by unbuck-
ling the seat belt and letting it retract completely.

G

0

2

2

8

5

0

Ensure that the seat is securely in place

WARNING

A child seat should never be used in the front
passenger seat of any vehicle with a front
passenger airbag – not even if the "Passen-
ger airbag off" symbol near the rear-view mir-
ror is illuminated. If the severity of an accident
were to cause the airbag to inflate, this could
lead to serious injury or death to a child
seated in this position.

||

SAFETY

54

Related information

Child safety (p. 46)

Child restraints (p. 47)

Infant seats (p. 49)

ISOFIX/LATCH lower anchors (p. 55)

Top tether anchors (p. 56)

Booster cushions

Booster cushions should be properly positioned
in the vehicle.

Securing a booster cushion

G022851

Position the child correctly on the booster cushion

Booster cushions are recommended for children
who have outgrown convertible seats (p. 52).

1. Place the booster cushion in the rear seat of

the vehicle.

2. With the child properly seated on the booster

cushion, attach the seat belt to or around the
cushion according to the manufacturer's
instructions.

3. Fasten the seat belt by inserting the latch

plate into the buckle (lock) until a distinct
click is audible.

G022852

Positioning the seat belt

4. Ensure that the seat belt is pulled taut and

fits snugly around the child.

WARNING

The hip section of the three-point seat
belt must fit snugly across the child's
hips, not across the stomach.

The shoulder section of the three-point
seat belt should be positioned across the
chest and shoulder.

The shoulder belt must never be placed
behind the child's back or under the arm.

SAFETY

}}

55

Related information

Child safety (p. 46)

Child restraints (p. 47)

Infant seats (p. 49)

Convertible seats (p. 52)

ISOFIX/LATCH lower anchors (p. 55)

Top tether anchors (p. 56)

ISOFIX/LATCH lower anchors

Lower anchors for ISOFIX/LATCH-equipped
child seats are located in the rear, outboard
seats, hidden below the backrest cushions.

Using the ISOFIX/LATCH lower child
seat anchors

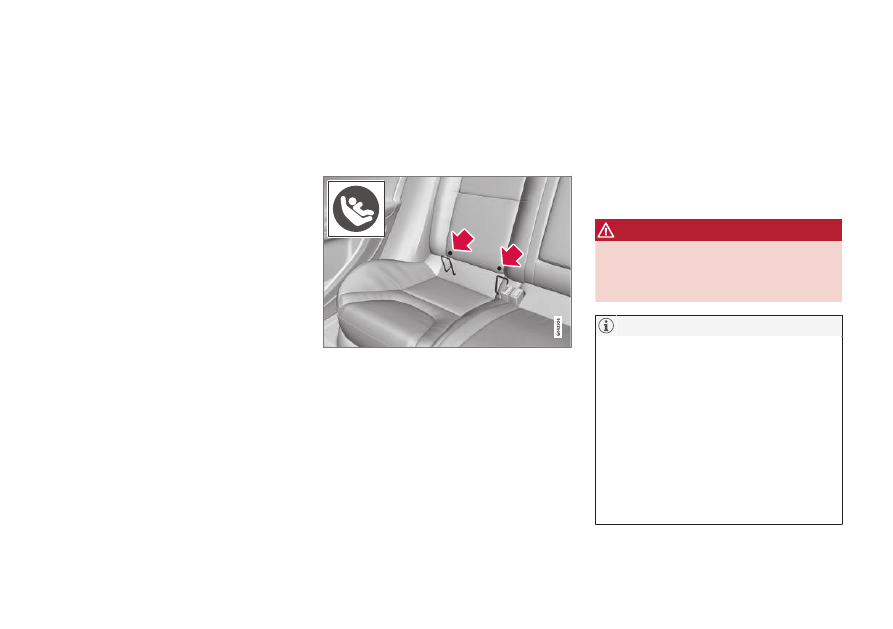

Symbols on the seat back upholstery mark the
ISOFIX/LATCH anchor positions as shown. To
access the anchors, kneel on the seat cushion
and locate the anchors by feel. Always follow your
child seat manufacturer's installation instructions,
and use both ISOFIX/LATCH lower anchors and
top tethers (p. 56) whenever possible.

To access the anchors

1. Put the child restraint in position.

2. Kneel on the child restraint to press down

the seat cushion and locate the anchors by
feel.

3. Fasten the attachment on the child

restraint's lower straps to the ISOFIX/
LATCH/LATCH lower anchors.

4. Firmly tension the lower child seat straps

according to the manufacturer's instructions.

WARNING

Volvo's ISOFIX/LATCH anchors conform to
FMVSS/CMVSS standards. Always refer to
the child restraint system's manual for weight
and size ratings.

NOTE

The rear seat's center position is not
equipped with ISOFIX/LATCH lower
anchors. When installing a child restraint
in this position, attach the restraint's top
tether strap (if it is so equipped) to the
top tether anchorage point and secure
the restraint with the vehicle's center seat
belt.

Always follow your child seat manufactur-
er's installation instructions, and use both
ISOFIX/LATCH lower anchors and top
tethers whenever possible.

||

SAFETY

56

G018631

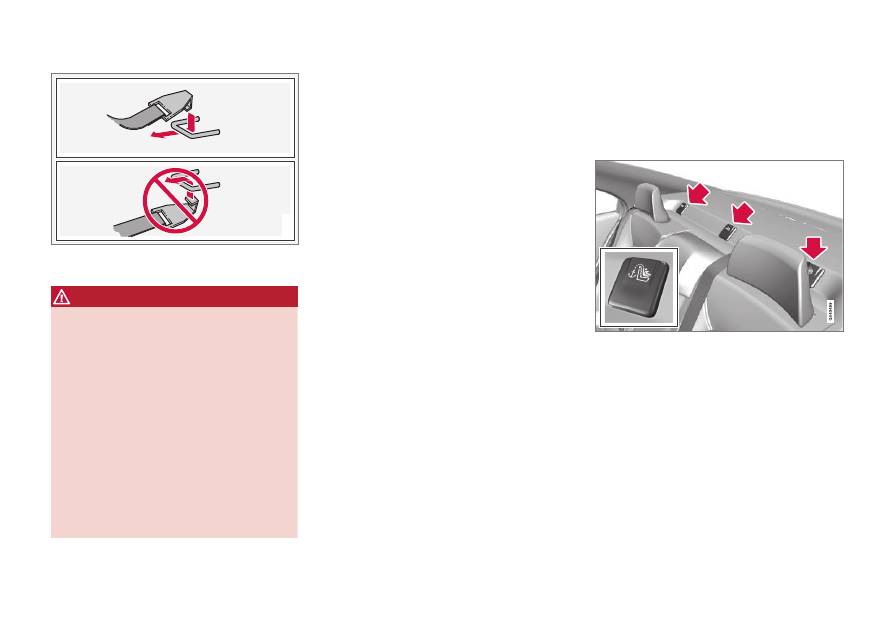

Fasten the attachment correctly to the ISOFIX/LATCH
lower anchors

WARNING

Be sure to fasten the attachment cor-
rectly to the anchor (see the illustration).
If the attachment is not correctly fas-
tened, the child restraint may not be
properly secured in the event of a colli-
sion.

The ISOFIX/LATCH lower child restraint
anchors are only intended for use with
child seats positioned in the outboard
seating positions. These anchors are not
certified for use with any child restraint
that is positioned in the center seating
position. When securing a child restraint
in the center seating position, use only
the vehicle's center seat belt.

Related information

Child safety (p. 46)

Infant seats (p. 49)

Convertible seats (p. 52)

Top tether anchors

Your Volvo is equipped with child restraint top
tether anchorages in the rear seat. They are
located on the rear parcel shelf.

Child restraint anchorages

SAFETY

57

Securing a child seat

1. Place the child restraint on the rear seat.

2. Fold up the plastic cover over the anchorage

to be used.

3. Route the top tether strap under the head

restraint and attach it to the anchor.

4. Fold down the outboard head restraints or

lower the center head restraint for easier
access to the ISOFIX/LATCH anchor.

5. Attach lower tether straps to the lower ISO-

FIX/LATCH anchors. If the child restraint is
not equipped with lower tether straps, or the
restraint is used in the center seating posi-
tion, follow instructions for securing a child
restraint using the Automatic Locking
Retractor seat belt (see Child restraints
(p. 47)).

6. Firmly tension all straps.

Refer also to the child seat manufacturer's
instructions for information on securing the child
seat.

WARNING

Always refer to the recommendations
made by the child restraint manufacturer.

Volvo recommends that the top tether
anchors be used when installing a for-
ward-facing child restraint.

Never route a top tether strap over the
top of the head restraint. The strap
should be routed beneath the head
restraint.

Child restraint anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used for
adult seat belts or harnesses. The ancho-
rages are not able to withstand excessive
forces on them in the event of collision if
full harness seat belts or adult seat belts
are installed to them. An adult who uses a
belt anchored in a child restraint anchor-
age runs a great risk of suffering severe
injuries should a collision occur.

Do not install rear speakers that require
the removal of the top tether anchors or
interfere with the proper use of the top
tether strap.

Related information

Child safety (p. 46)

Infant seats (p. 49)

Convertible seats (p. 52)

ISOFIX/LATCH lower anchors (p. 55)

SAFETY

58

Child safety locks

Child safety locks help prevent children from
inadvertently opening one of the rear doors from
inside the vehicle.

Manual child safety locks

Child safety locks – rear doors

The controls are located on the rear door jambs.
Use the remote control's key blade or a screw-
driver to adjust these controls.

The rear doors can only be opened from the
outside when the slot is in the horizontal
position.
The rear doors can be opened from the
inside when the slot is in the vertical position.

Related information

Detachable key blade – general information
(p. 149)

Locking/unlocking – from inside (p. 158)

INSTRUMENTS AND CONTROLS

}}

61

||

INSTRUMENTS AND CONTROLS

* Option/accessory.

62

Function

See

Controls for menus and
messages, turn signals,
high/low beams, trip
computer

(p. 71),
(p. 90),
(p. 83),
(p. 110)

Paddles for manually
shifting gears

*

(p. 257)

Cruise control

(p. 172)

Horn, airbag

(p. 82),
(p. 33)

Main instrument panel

(p. 63)

Infotainment system/
Bluetooth hands-free
controls

Sensus Info-
tainment sup-
plement

START/STOP ENGINE
button

(p. 73)

Ignition slot

(p. 73)

Display for infotainment
system functions and
menus

(p. 108), Sen-
sus Infotain-
ment supple-
ment

Door handle

-

Function

See

In-door control panels
(power windows, mir-
rors, central locking but-
ton)

(p. 96),
(p. 97),
(p. 158)

Hazard warning flashers

(p. 89)

Controls for the info-
tainment system and
menus

(p. 71),
(p. 125), Sen-
sus Infotain-
ment supple-
ment

Climate system controls

(p. 125)

Gear selector

(p. 255)

Not in use

-

Wipers and washers

(p. 93),
(p. 94)

Steering wheel adjust-
ment

(p. 82)

Hood opening control

(p. 327)

Parking brake

(p. 271)

Function

See

Power seat

* adjustment

controls

(p. 76)

Lighting panel, buttons
for opening fuel filler
door and unlocking and
opening the trunk

(p. 83),
(p. 280),
(p. 160)

Related information

Information displays – ambient temperature
sensor (p. 72)

Information displays – trip odometer and
clock (p. 73)

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

63

Information displays – introduction

The displays show information on some of the
vehicle's functions, such as cruise control, the
trip computer and messages. The information is
shown with text and symbols.

Information displays: analog instrument panel

Information displays: digital instrument panel

*

More detailed information can be found in the
descriptions of the functions that use the infor-
mation displays.

Gauges and indicators: analog
instrument panel

Fuel gauge: When the indicator shows one
white marking

1

, a yellow indicator light will

illuminate to indicate a low fuel level. See
also Trip computer – introduction (p. 110)
and Refueling – fuel requirements (p. 277)
for additional information.
Eco meter: Indicates how economically the
vehicle is being driven. The higher the needle
moves on the scale, the more economically
the vehicle is being driven.
Speedometer

Tachometer: Shows engine speed in thou-
sands of revolutions per minute (rpm)
Gear indicator: Shows the currently selected
gear

1

When the message

Distance to empty fuel tank:

 shows "

----

", the marker turns red















Content   ..  1  2  3  4   ..
