2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:39 AM

Page 78

© 2004 Mitchell Repair Information Company, LLC.

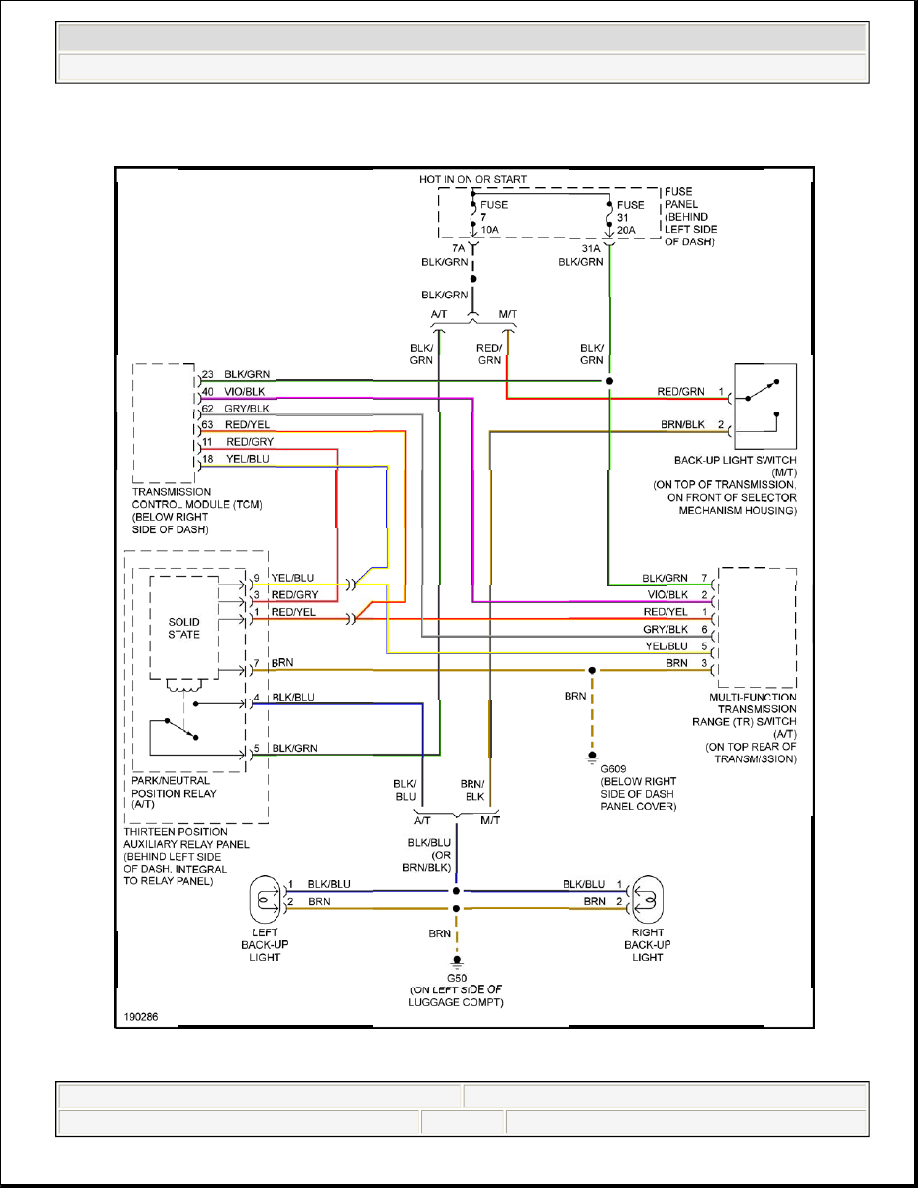

Fig. 39: Back-up Lamps Circuit, M/T, A/T Except Convertible



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:39 AM

Page 79

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:39 AM

Page 80

© 2004 Mitchell Repair Information Company, LLC.

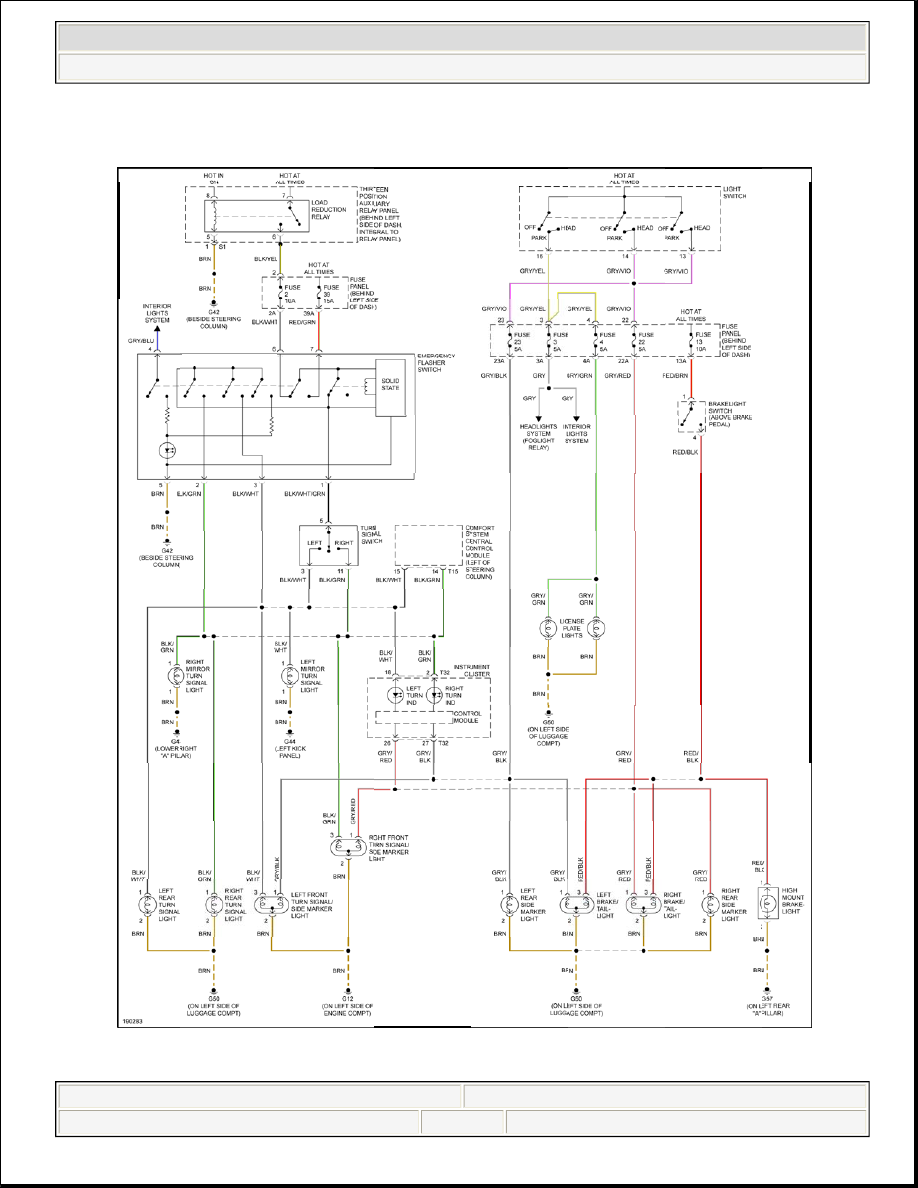

Fig. 40: Exterior Lamps Circuit

GROUND DISTRIBUTION



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:39 AM

Page 81

© 2004 Mitchell Repair Information Company, LLC.
