Volkswagen New Beetle. Manual - part 875



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:38 AM

Page 70

© 2004 Mitchell Repair Information Company, LLC.

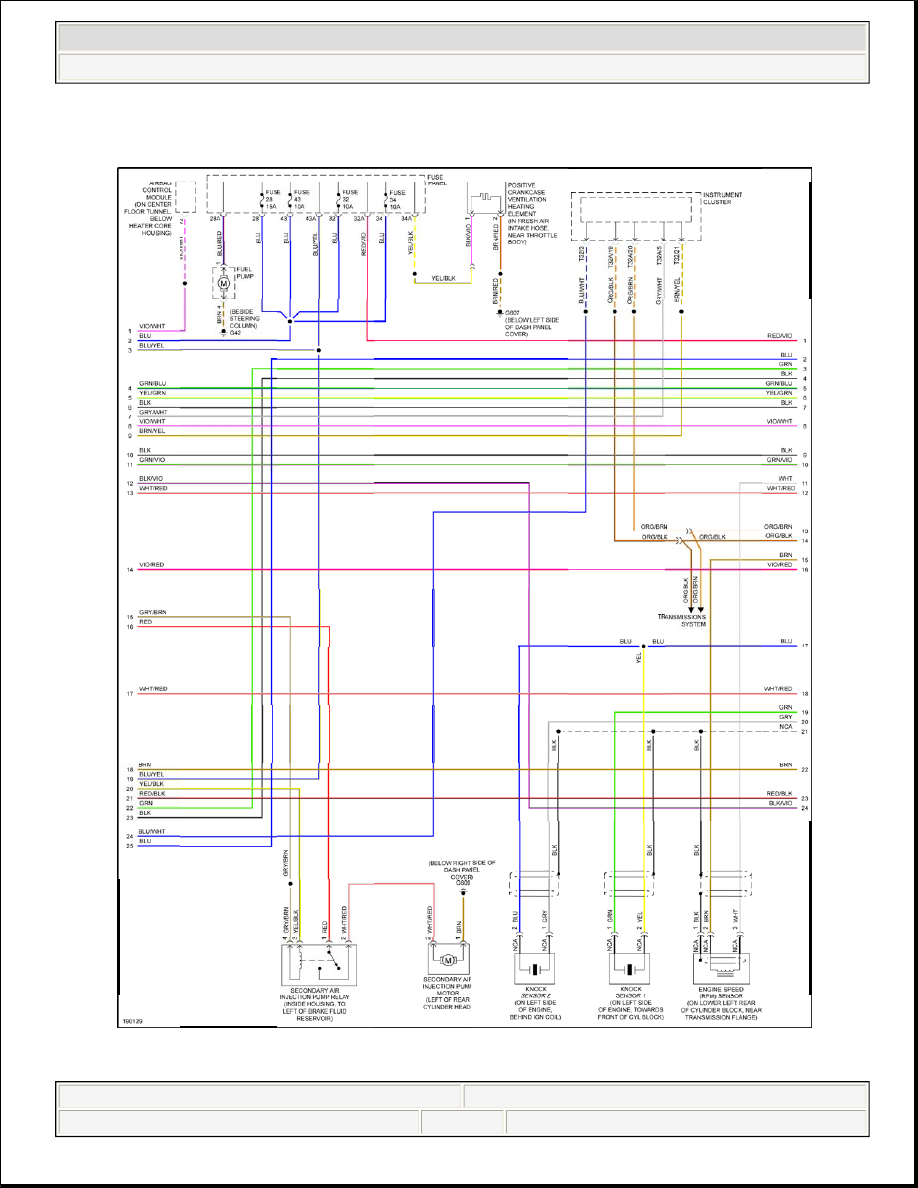

Fig. 35: 2.0L, Engine Performance Circuit, Except Convertible (1 of 3)



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:39 AM

Page 71

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:39 AM

Page 72

© 2004 Mitchell Repair Information Company, LLC.

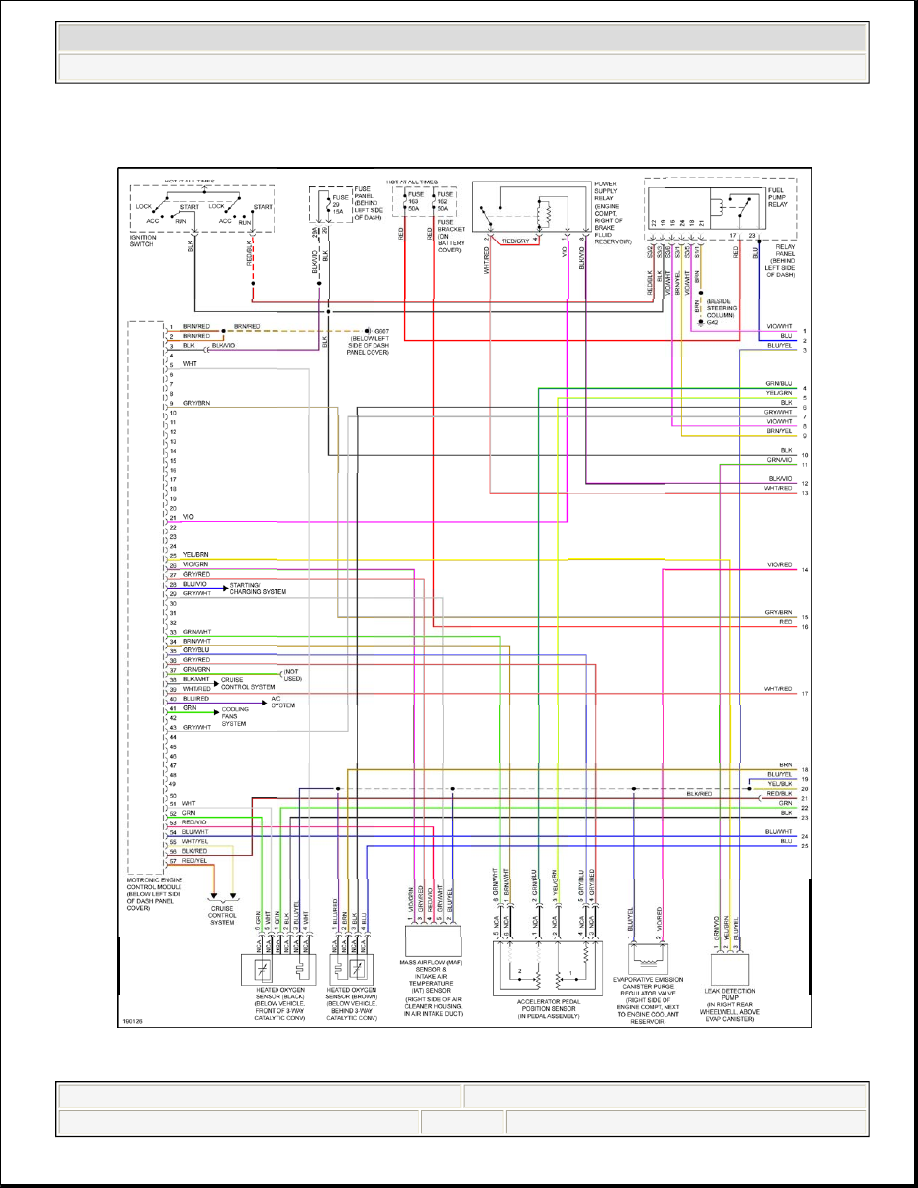

Fig. 36: 2.0L, Engine Performance Circuit, Except Convertible (2 of 3)



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:39 AM

Page 73

© 2004 Mitchell Repair Information Company, LLC.
