Volkswagen New Beetle. Manual - part 876



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:39 AM

Page 74

© 2004 Mitchell Repair Information Company, LLC.

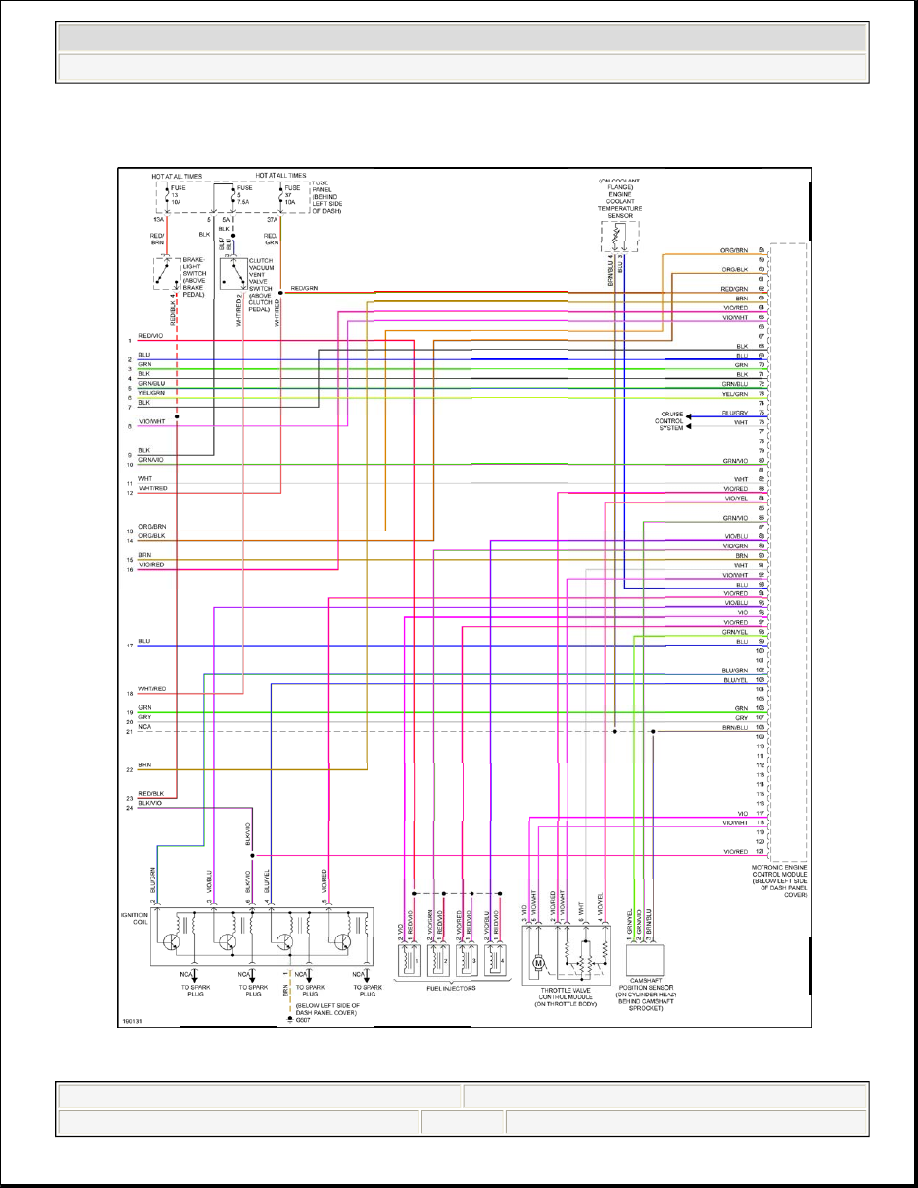

Fig. 37: 2.0L, Engine Performance Circuit, Except Convertible (3 of 3)

EXTERIOR LIGHTS



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:39 AM

Page 75

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:39 AM

Page 76

© 2004 Mitchell Repair Information Company, LLC.

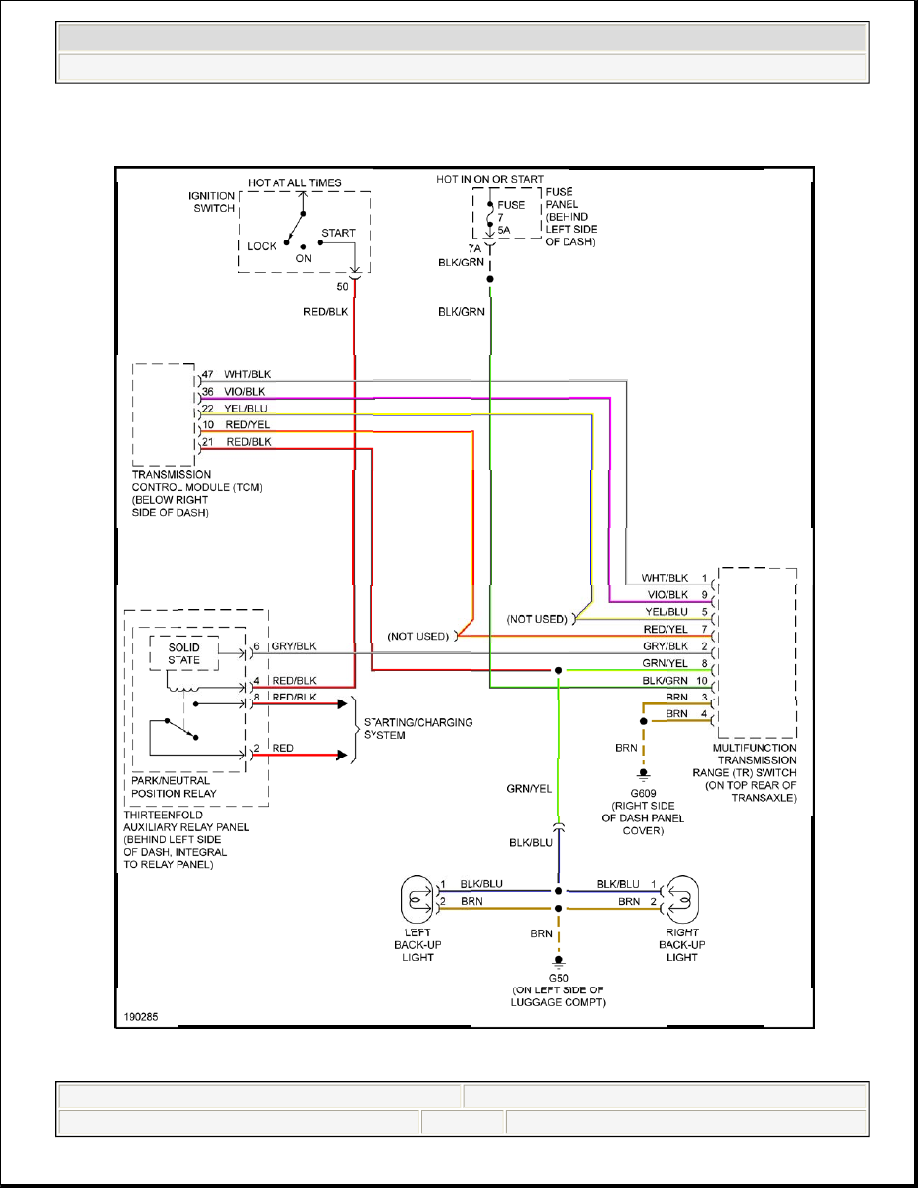

Fig. 38: Back-up Lamps Circuit, A/T Convertible



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:39 AM

Page 77

© 2004 Mitchell Repair Information Company, LLC.
