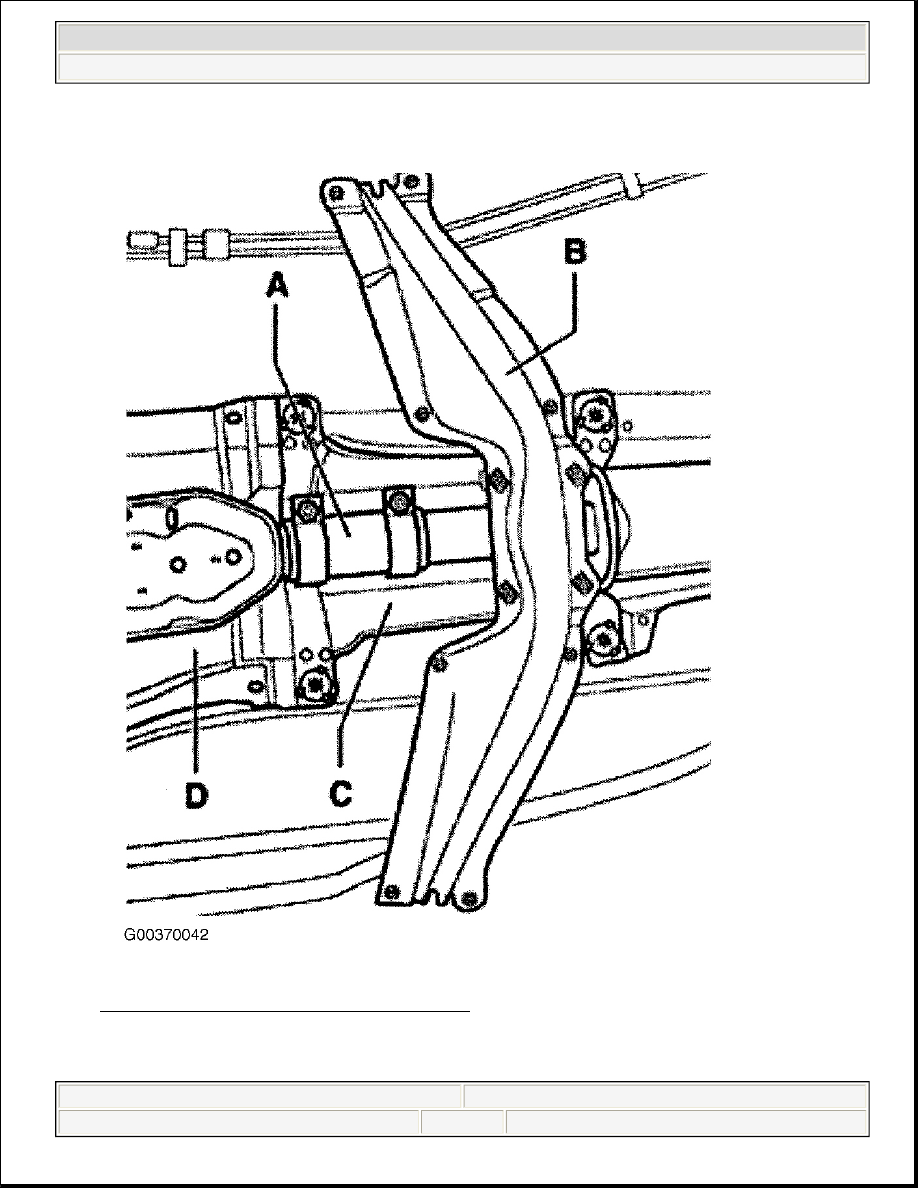

Fig. 43: Removing Cross Support & Heat Shield
Courtesy of VOLKSWAGEN UNITED STATES, INC.

7. To install, reverse removal procedure. Cable locks have holes for securing onto gear selector lever or



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:54 AM

Page 45

© 2004 Mitchell Repair Information Company, LLC.

relay lever. Holes in cable locks have various diameters. See Fig. 44 . Cable locks no longer need to be
replaced following disassembling.

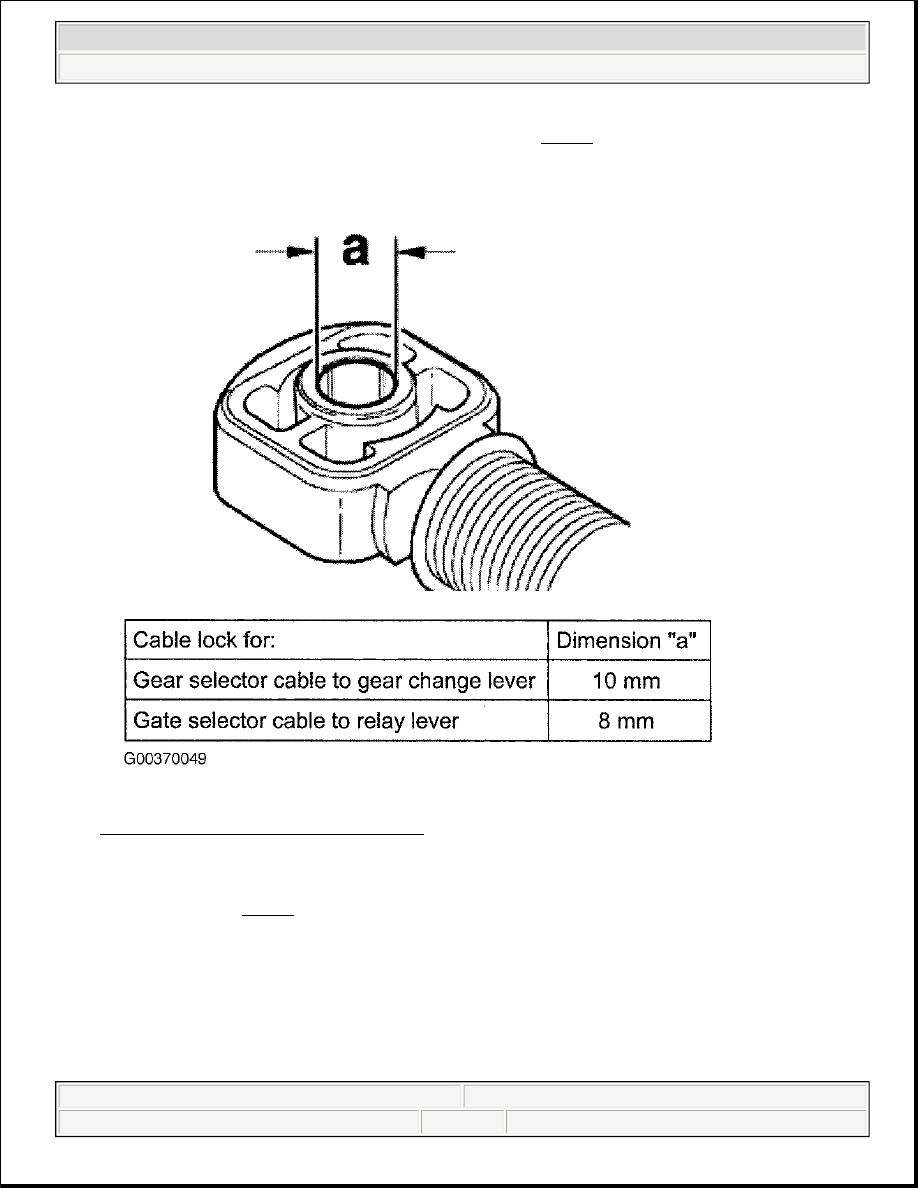

Fig. 44: Identifying Cable Lock Allocation
Courtesy of VOLKSWAGEN UNITED STATES, INC.

8. Spread a small quantity of Polyurea grease (G 000 450 02) on pins (arrows) of gear change lever (1) and

relay lever (2). See Fig. 45 . Always replace securing clips (3 and 4) after disassembling. Secure gear
selector cable with securing clip (3) and gate selector cable with securing clip (4).



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:54 AM

Page 46

© 2004 Mitchell Repair Information Company, LLC.

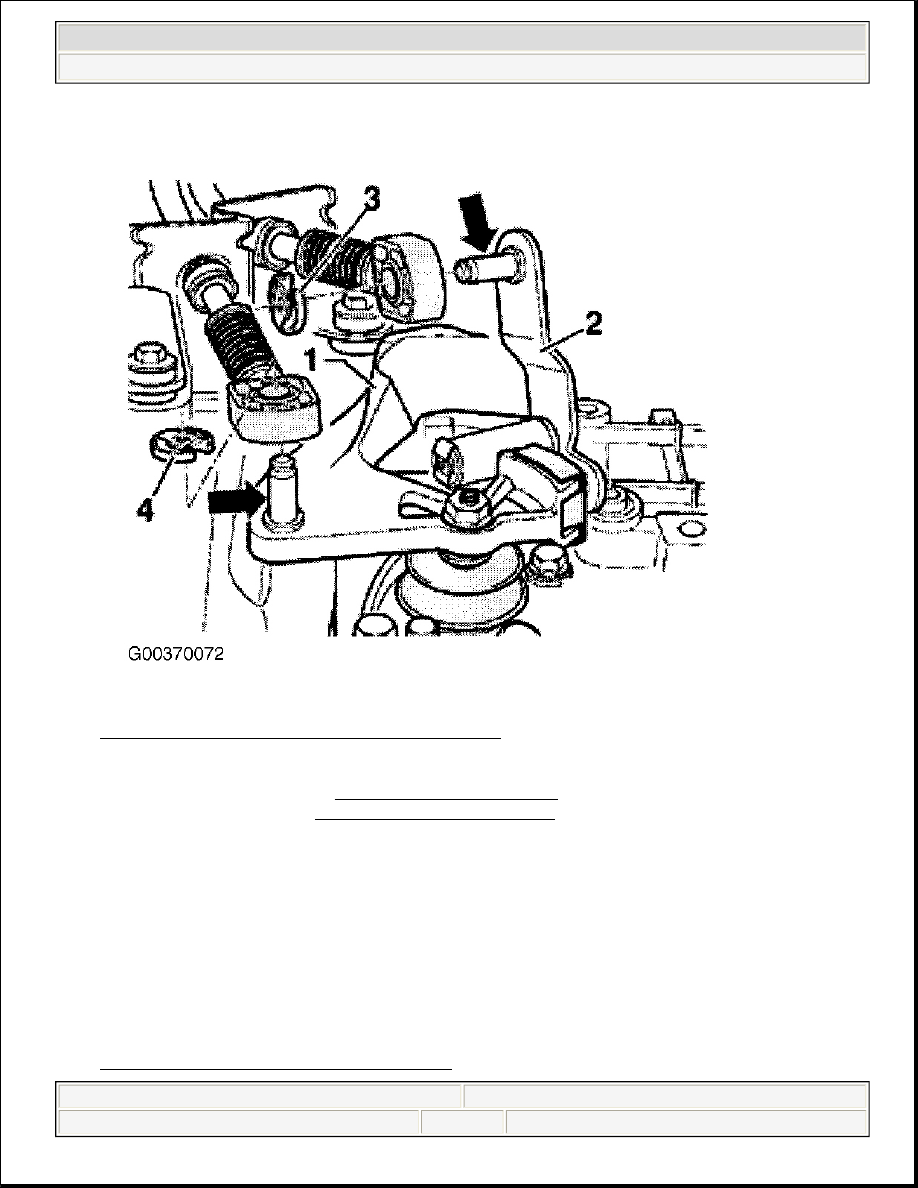

Fig. 45: Installing Gear & Gate Selector Cable Clips
Courtesy of VOLKSWAGEN UNITED STATES, INC.

9. Adjust selector mechanism. See SELECTOR MECHANISM under ADJUSTMENTS. Tighten bolts

and nuts to specification. See TORQUE SPECIFICATIONS .

TRANSMISSION

Removal

1. Remove engine cover. Turn ignition switch to OFF position. Disconnect negative battery cable. See

BATTERY DISCONNECT PRECAUTIONS .

CAUTION: Turn ignition switch to OFF position. Before disconnecting negative

battery terminal, obtain anti-theft radio security code. Disconnect negative
battery terminal. After reconnecting battery, re-code and check operation
of anti-theft radio.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:54 AM

Page 47

© 2004 Mitchell Repair Information Company, LLC.

2. Remove battery and battery carrier. Remove intake hose (1), connector (2) and vacuum hose (3) from

mass air flow sensor. See Fig. 17 . Remove complete air cleaner assembly housing by removing bolts (4
and 5). Remove intake hose (1).

3. Remove cable support bracket from transmission (arrow). See Fig. 46 .

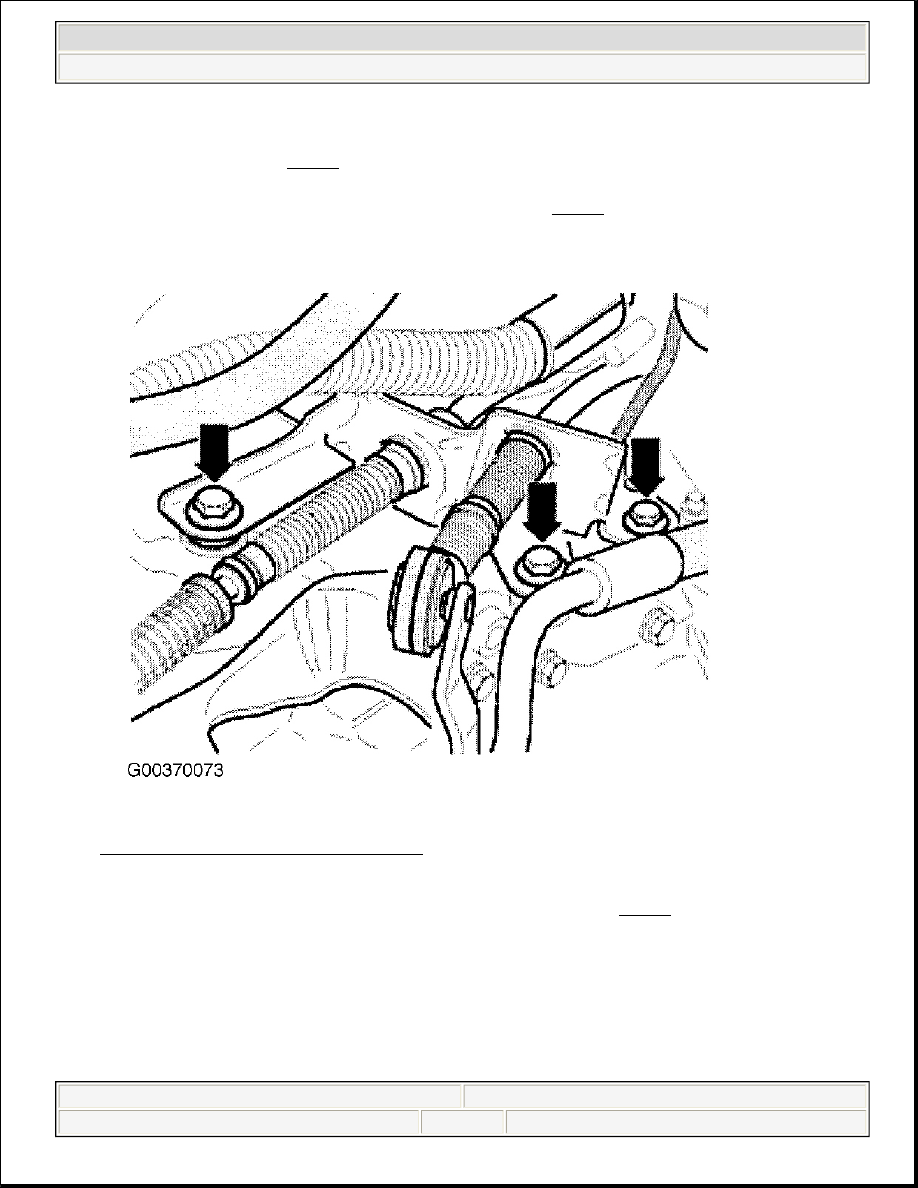

Fig. 46: Removing Cable Support Bracket
Courtesy of VOLKSWAGEN UNITED STATES, INC.

4. Pull lock washer (arrow 1) from gate selector cable relay lever (A). See Fig. 47 . Remove gear selector

cable (B) with transmission selector lever, by removing nut (arrow 2). Remove power steering pipe
(arrow 3). If necessary, use puller, such as Kukko 20-10.
