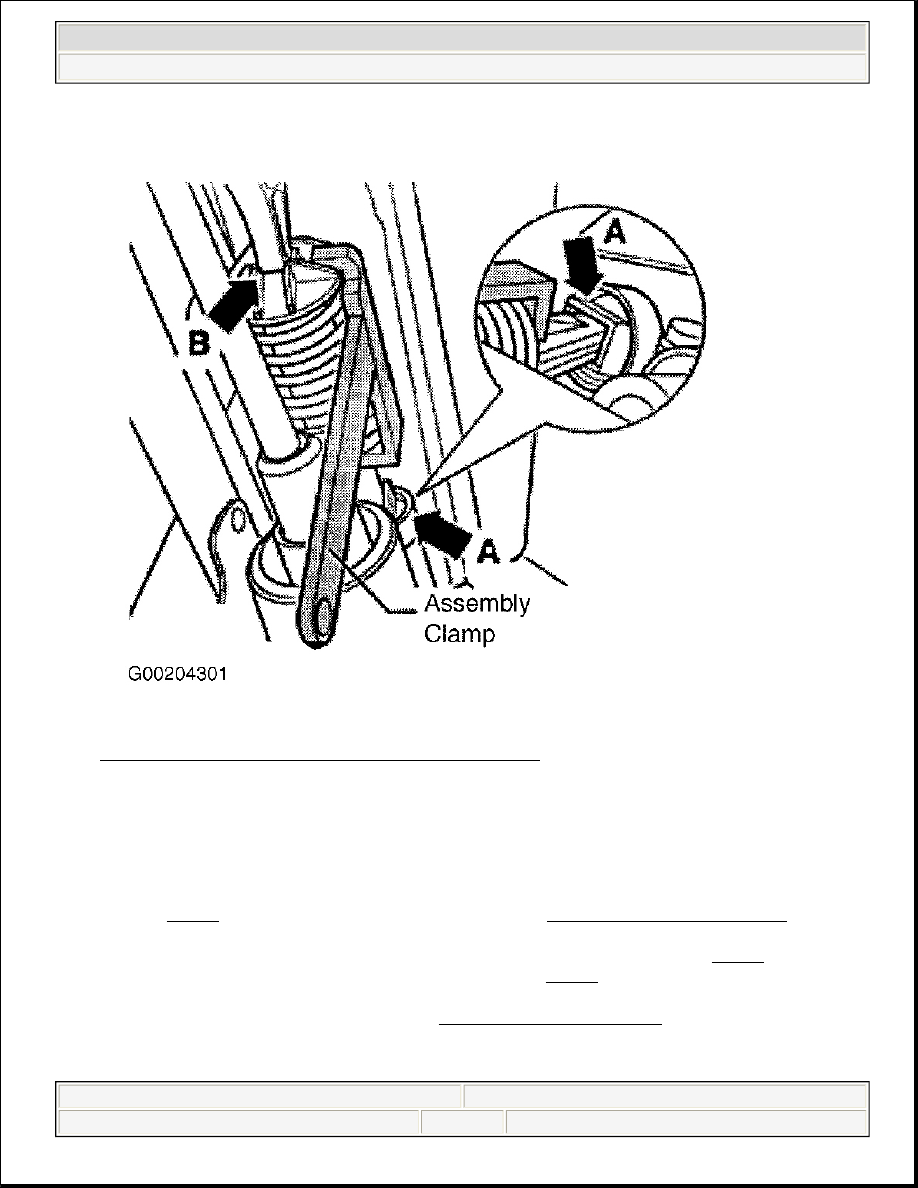

Fig. 35: Inserting Overcenter Spring Into Rear Mounting
Courtesy of VOLKSWAGEN UNITED STATES, INC.

SELECTOR CABLES

Removal & Installation

Removal and installation information is not available from manufacturer. Use illustration as an aid for
procedure. See Fig. 36 . Tighten bolts and nuts to specification. See TORQUE SPECIFICATIONS .

Install transmission selector lever (item 15) so master spline aligns with selector shaft. See Fig. 36 . Ensure
Transmission Selector Lever/Relay Lever is installed correctly. See Fig. 31 .

After installing, adjust gear selector mechanism. See SELECTOR MECHANISM under ADJUSTMENTS.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:54 AM

Page 37

© 2004 Mitchell Repair Information Company, LLC.

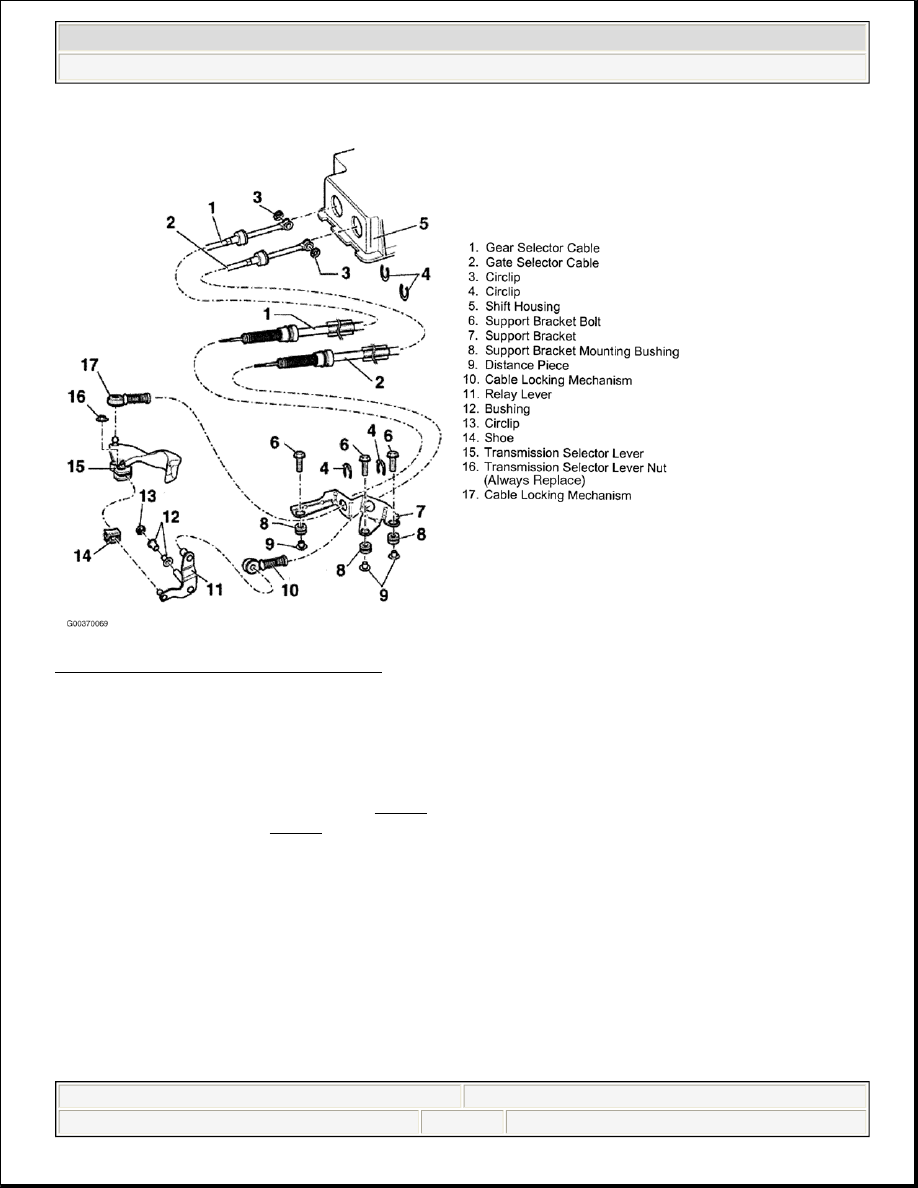

Fig. 36: Exploded View Of Selector Cables
Courtesy of VOLKSWAGEN UNITED STATES, INC.

SELECTOR LEVER KNOB & BOOT

Removal & Installation

Use illustration as an aid for procedure. See Fig. 37 . Turn boot inside out. Using a screwdriver, carefully pry
clamping sleeve (arrow). See Fig. 38 . Pull gear shift knob out. Insert gear shift knob in cover. Push clamping
sleeve onto gear shift knob, and engage. Install gear shift knob and boot together.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:54 AM

Page 38

© 2004 Mitchell Repair Information Company, LLC.

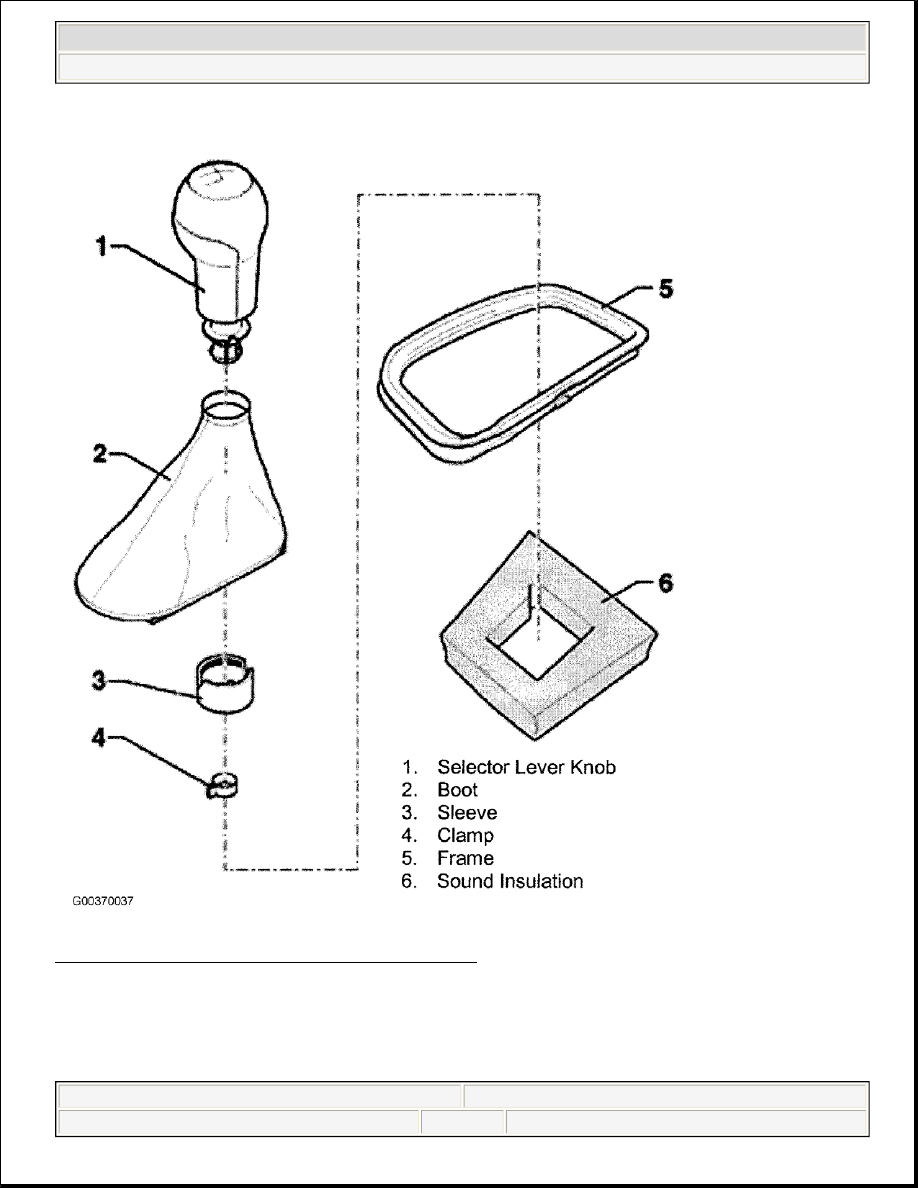

Fig. 37: Exploded View of Selector Lever Knob & Boot
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:54 AM

Page 39

© 2004 Mitchell Repair Information Company, LLC.

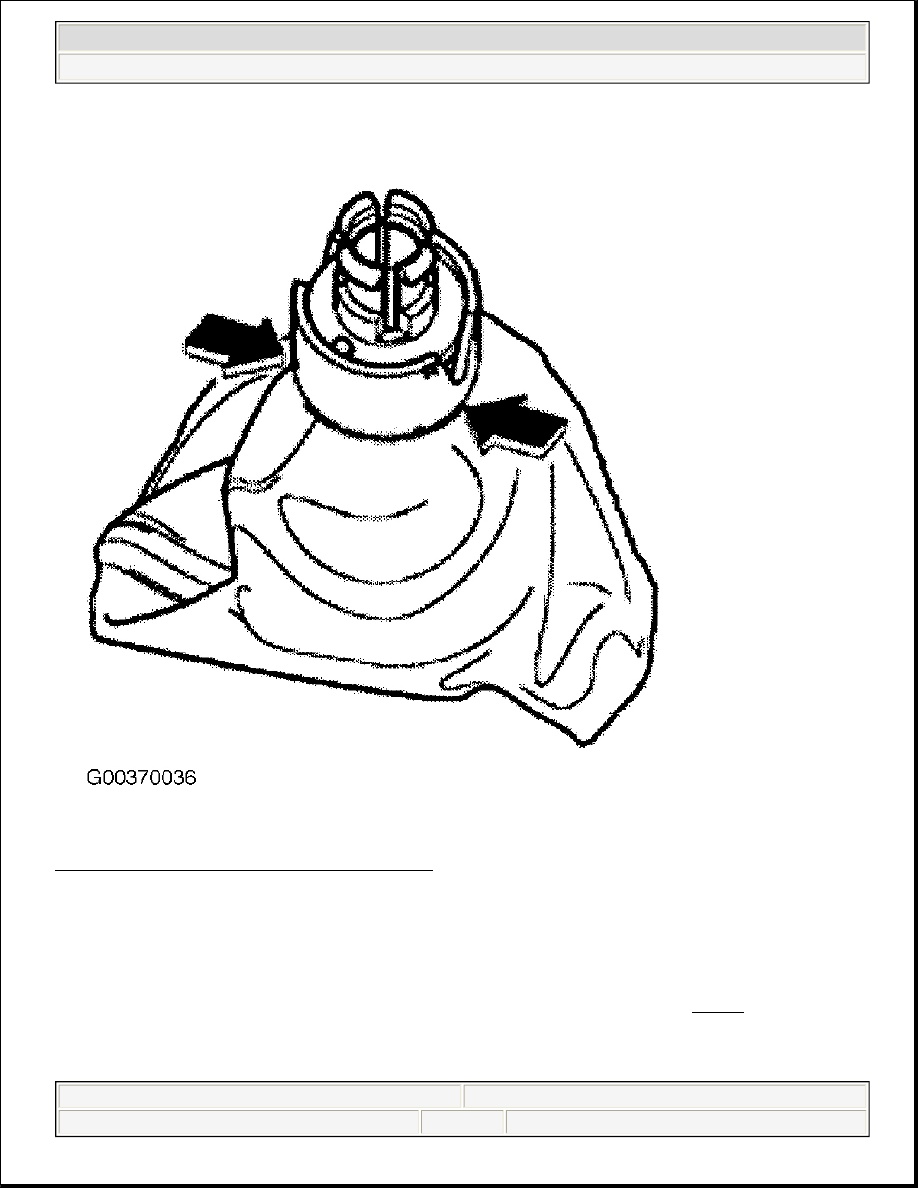

Fig. 38: Separating Cover From Gear Shift Knob
Courtesy of VOLKSWAGEN UNITED STATES, INC.

SELECTOR MECHANISM

Removal & Installation

1. Remove securing clip (3) for gear selector cable, from gear selector lever (1). See Fig. 39 . Remove

securing clip (4) for gate selector cable from relay lever (2). Pry gate selector cable and gear selector
cable off pin (arrows).
