Volkswagen New Beetle. Manual - part 2347

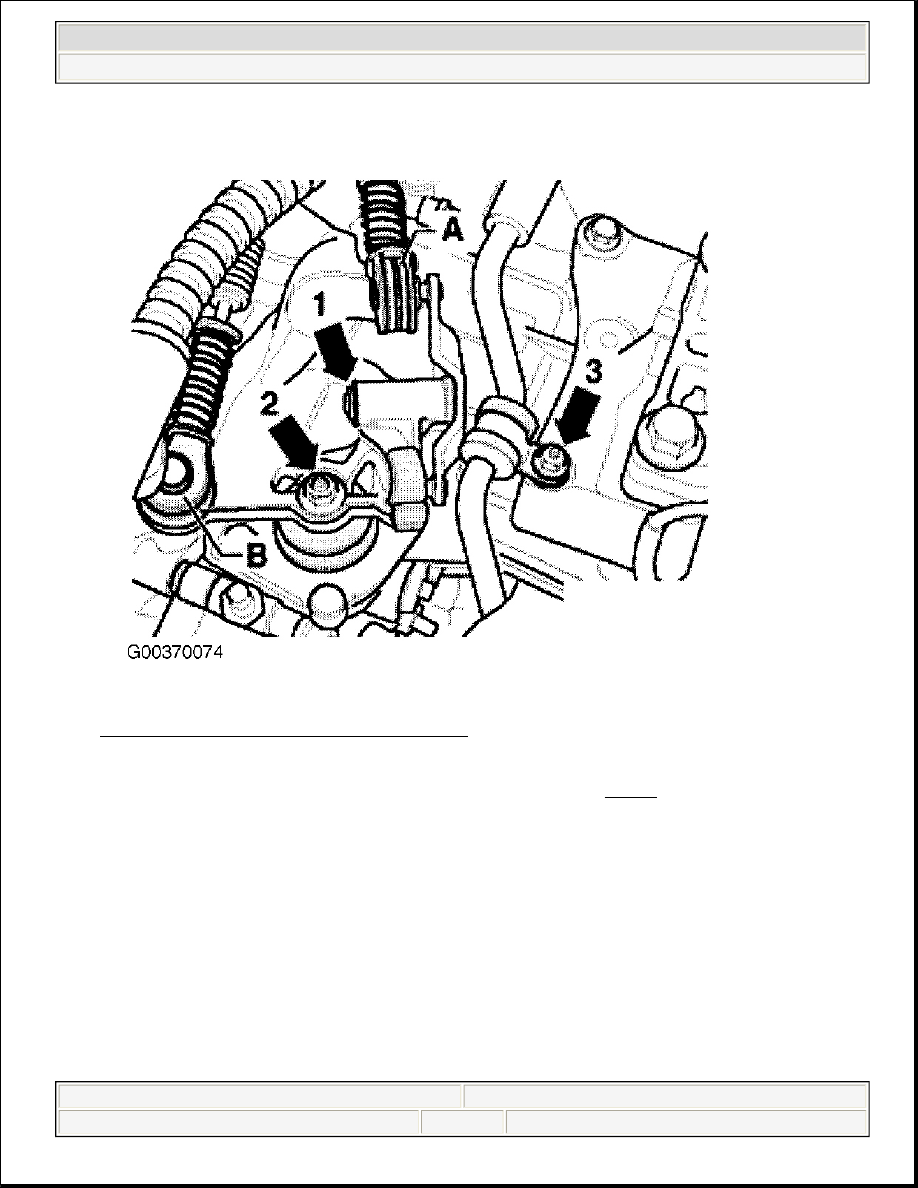

Fig. 47: Removing Gate & Gear Selector Cables
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5. Disconnect speedometer speed sensor (arrow) harness connector. See Fig. 48 .



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 49

© 2004 Mitchell Repair Information Company, LLC.

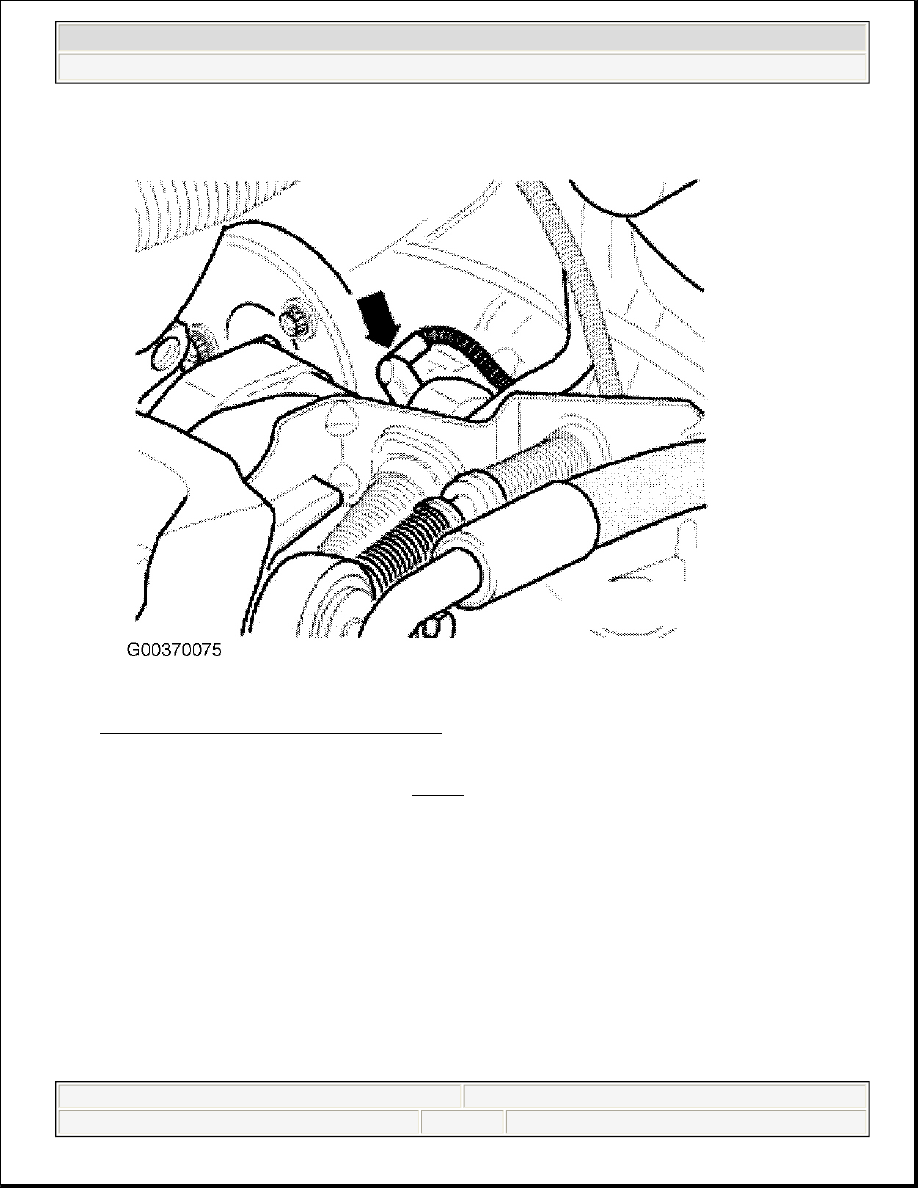

Fig. 48: Locating Speedometer Speed Sensor
Courtesy of VOLKSWAGEN UNITED STATES, INC.

6. Remove wiring (arrow 1) from starter. See Fig. 49 . Disconnect reverse light harness connector (arrow 2).

Remove cable retainer (arrow 3) from starter. Remove upper securing bolt on starter.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 50

© 2004 Mitchell Repair Information Company, LLC.

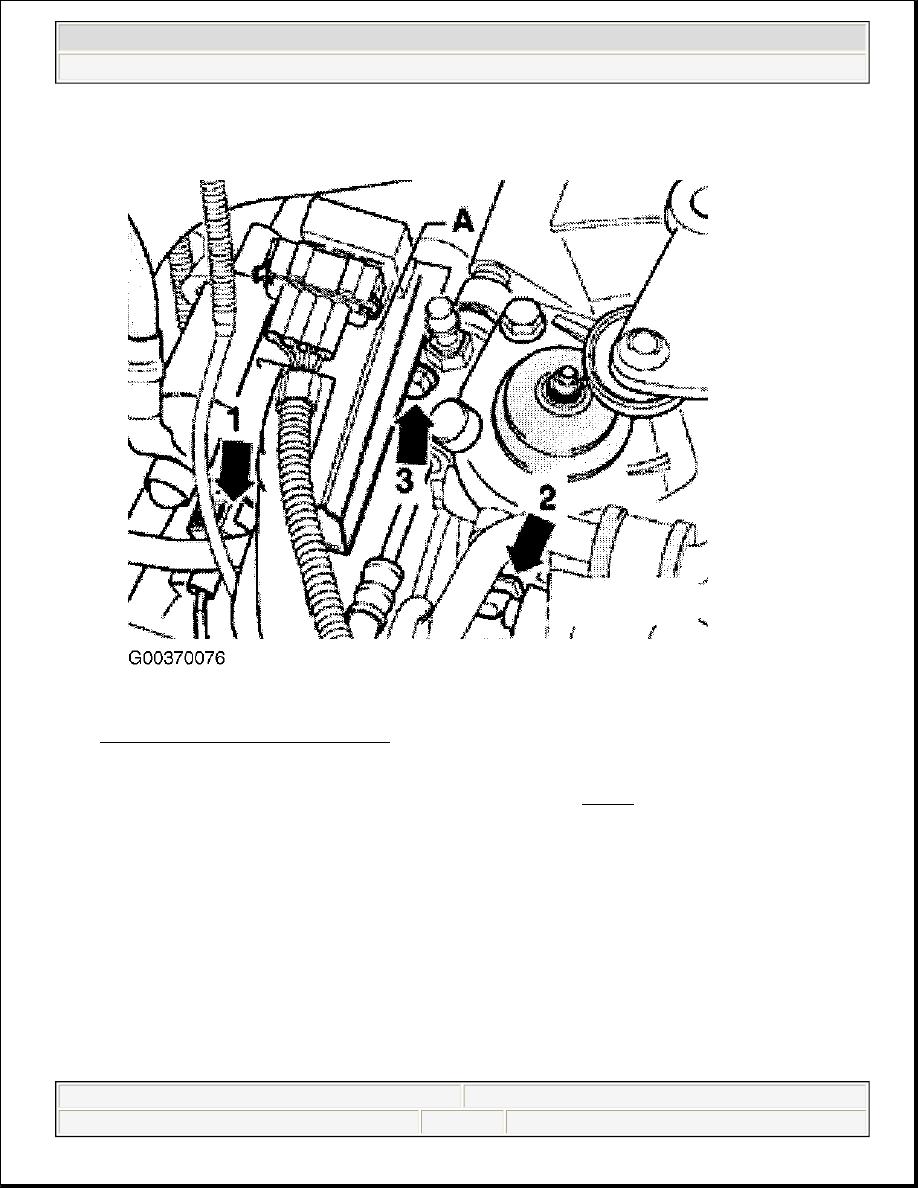

Fig. 49: Disconnecting Starter Wiring
Courtesy of VOLKSWAGEN UNITED STATES, INC.

7. Using special clamp (3094), clamp clutch slave cylinder hose. See Fig. 50 . Pull out clamp (arrow) and

line/hose in direction of arrow. DO NOT depress clutch pedal.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 51

© 2004 Mitchell Repair Information Company, LLC.

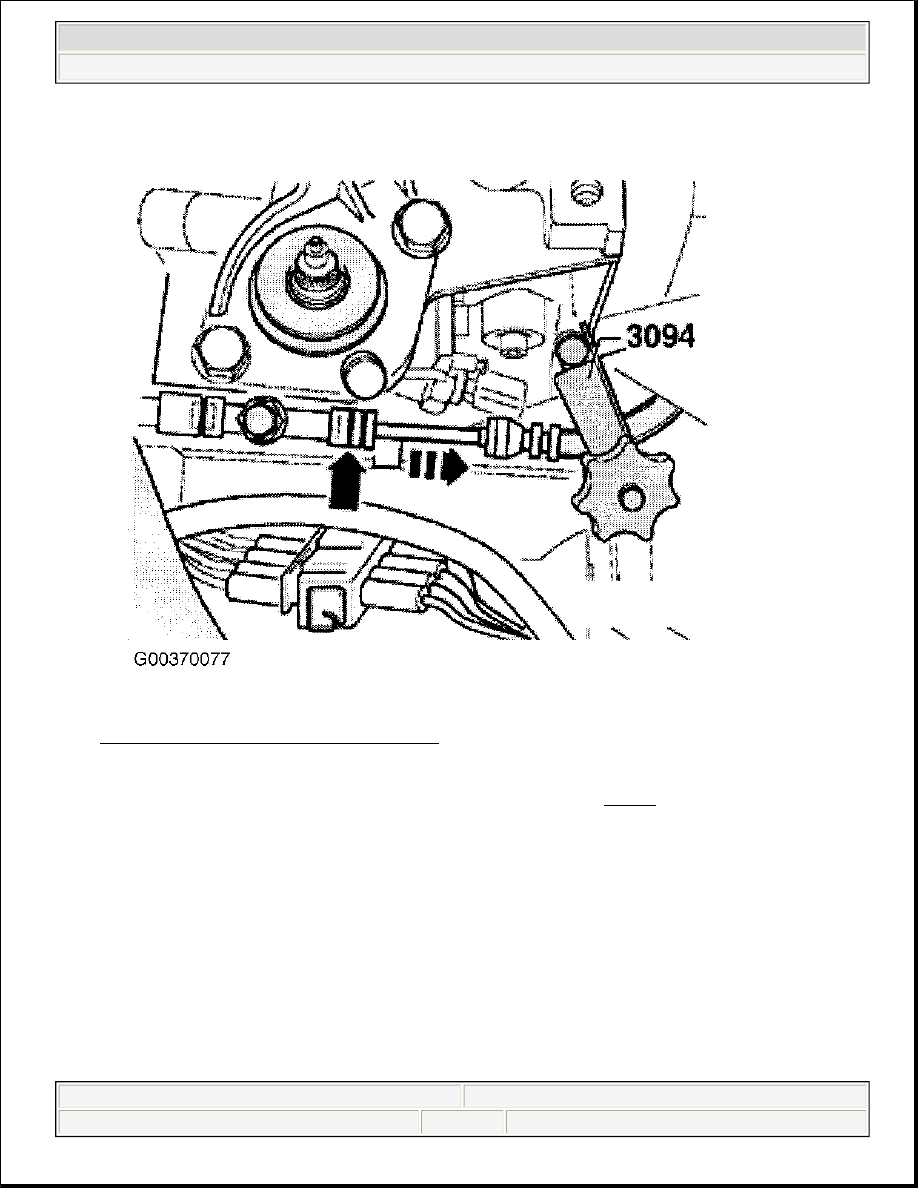

Fig. 50: Clamping Slave Cylinder Line/Hose
Courtesy of VOLKSWAGEN UNITED STATES, INC.

8. Remove ground strap at engine/transmission upper securing bolt. See Fig. 51 . Remove

engine/transmission upper securing bolts. Remove any hoses and cable connections in area of engine
mounting eye. Engine mounting eye will be used for support (10-222A).



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 52

© 2004 Mitchell Repair Information Company, LLC.
