Tighten bolt to 10 Nm.

Removing And Installing Transmission Vehicle Speed Sensor -G68-

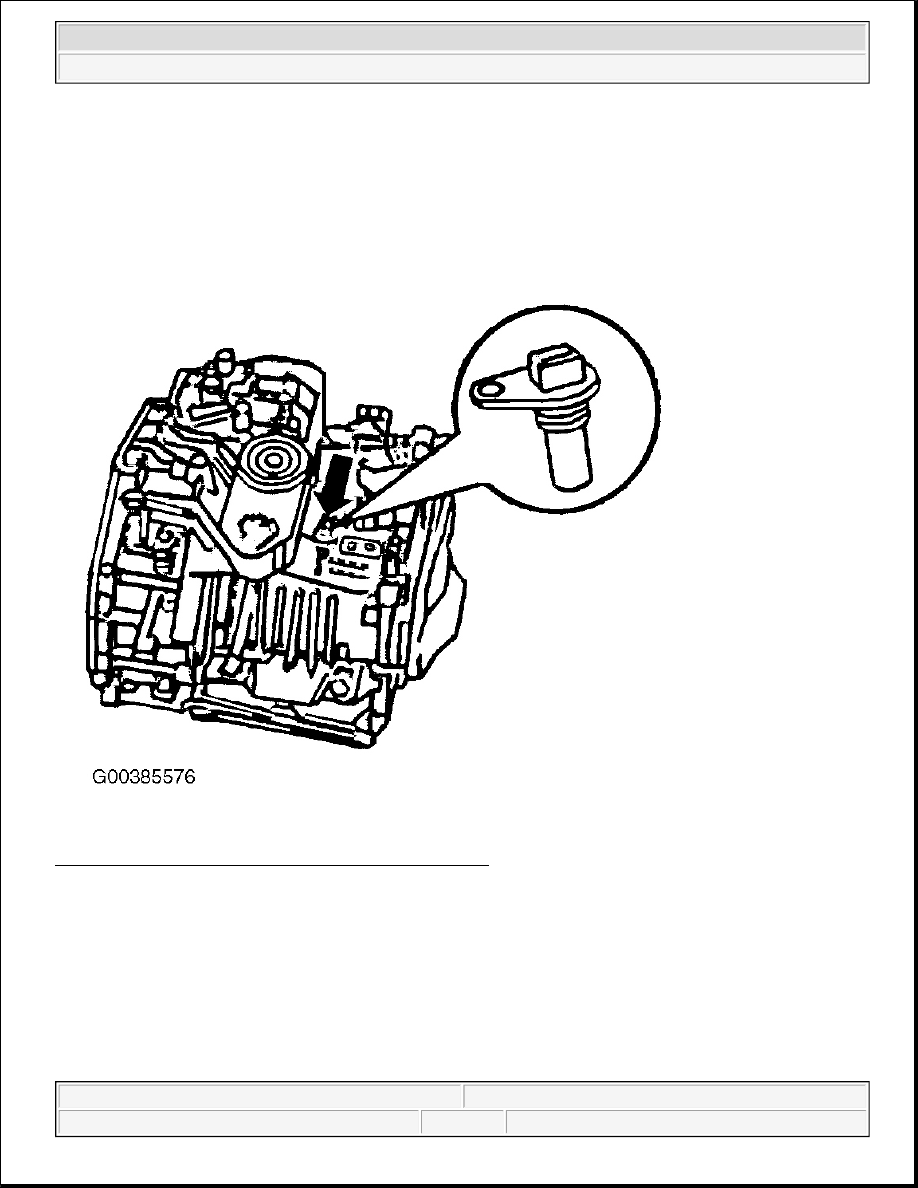

Location: The transmission speed sensor -arrow- is located on top of the transmission.

Fig. 153: Identifying Transmission Vehicle Speed Sensor
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Switch ignition off, open hood.

Disconnect white connector at sensor.

Remove bolt and pull sensor out.

Replace seal.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



Installation is performed in the reverse order of removal.

Tighten bolt to 10 Nm.

Removing And Installing Vehicle Speed Sensor -G68- With Transmission Installed

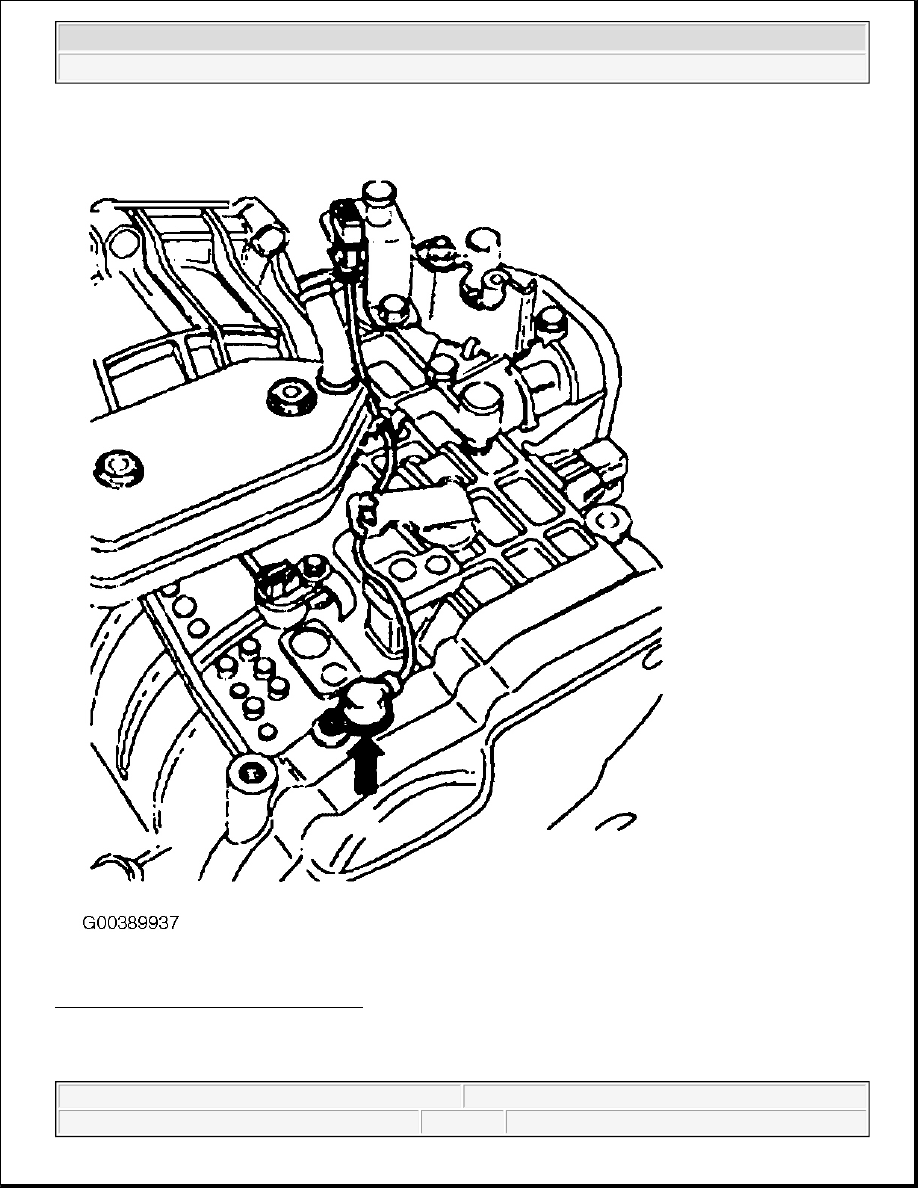

Location: The vehicle speed sensor -arrow- is located on top of transmission.

When the transmission is installed, the sensor is covered by the left assembly mounting.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



Fig. 154: Locating Vehicle Speed Sensor
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Obtain radio code on vehicles with coded radio.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



With ignition switched off disconnect battery Ground strap and remove battery.

Remove air cleaner.

Remove hoses and cable connections in area of engine mounting eye for support 10-222 A.

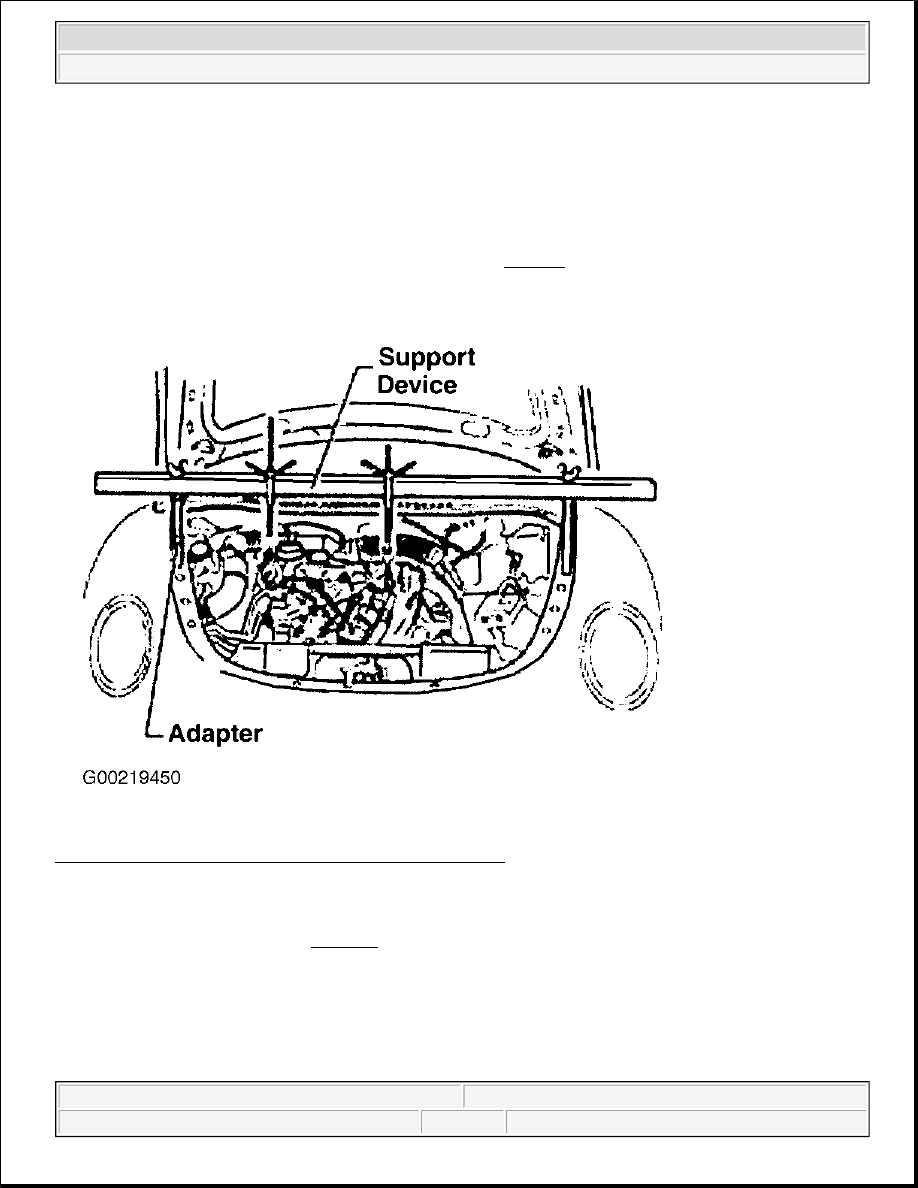

Erect support device 10-222 A with adapters 10-222 A/8. See Fig. 155 .

Fig. 155: Installing Support Device & Adapters To Vehicle
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

Do not remove the bolts for the carrier until the transmission has been
supported. See Fig. 156 .
