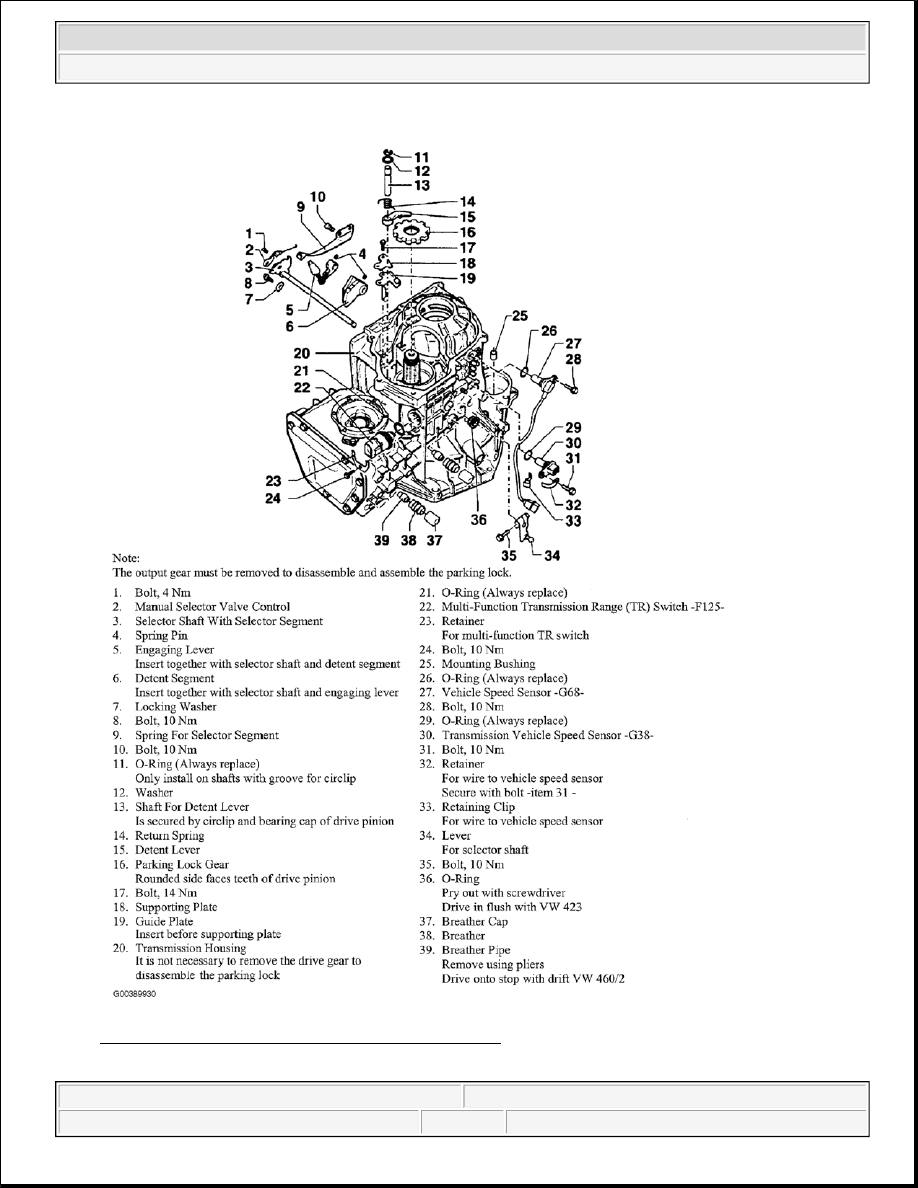

Fig. 145: Exploded View Of Parking Lock Assembly
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



Disassembling And Assembling

Driving Spring Pins Out And In

Drive spring pin for engaging lever and spring pin for detent segment out only far enough to remove the
selector shaft. See Fig. 146 .

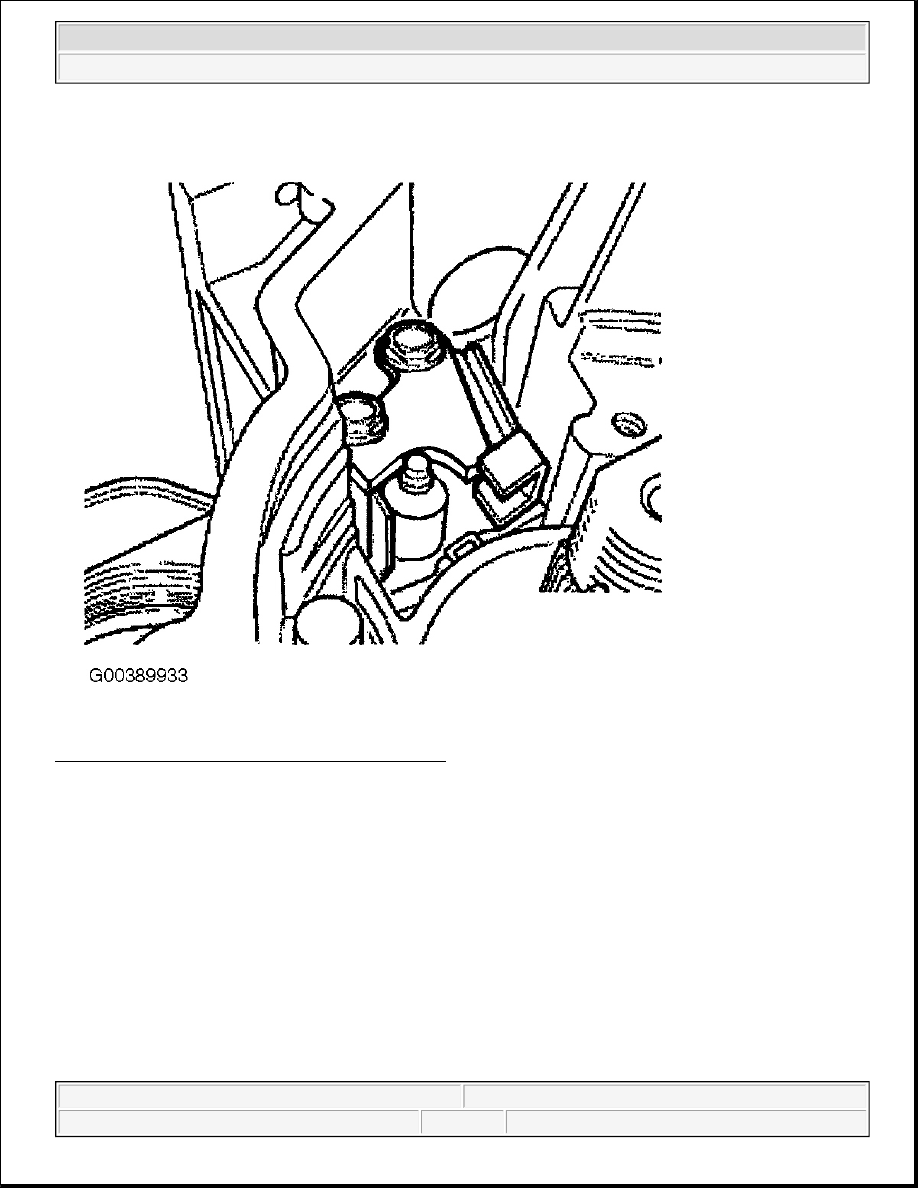

Fig. 146: Driving Spring Pins Out & In
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Drive in spring pins until flush after inserting selector shaft, engaging lever and detent segment.

Removing And Installing Selector Shaft With Selector Segments

NOTE:

If driven in further spring pin of engaging lever may drop into transmission.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



With valve body installed do not damage the conductor strip.

Remove selector segment spring -A-. See Fig. 147 .

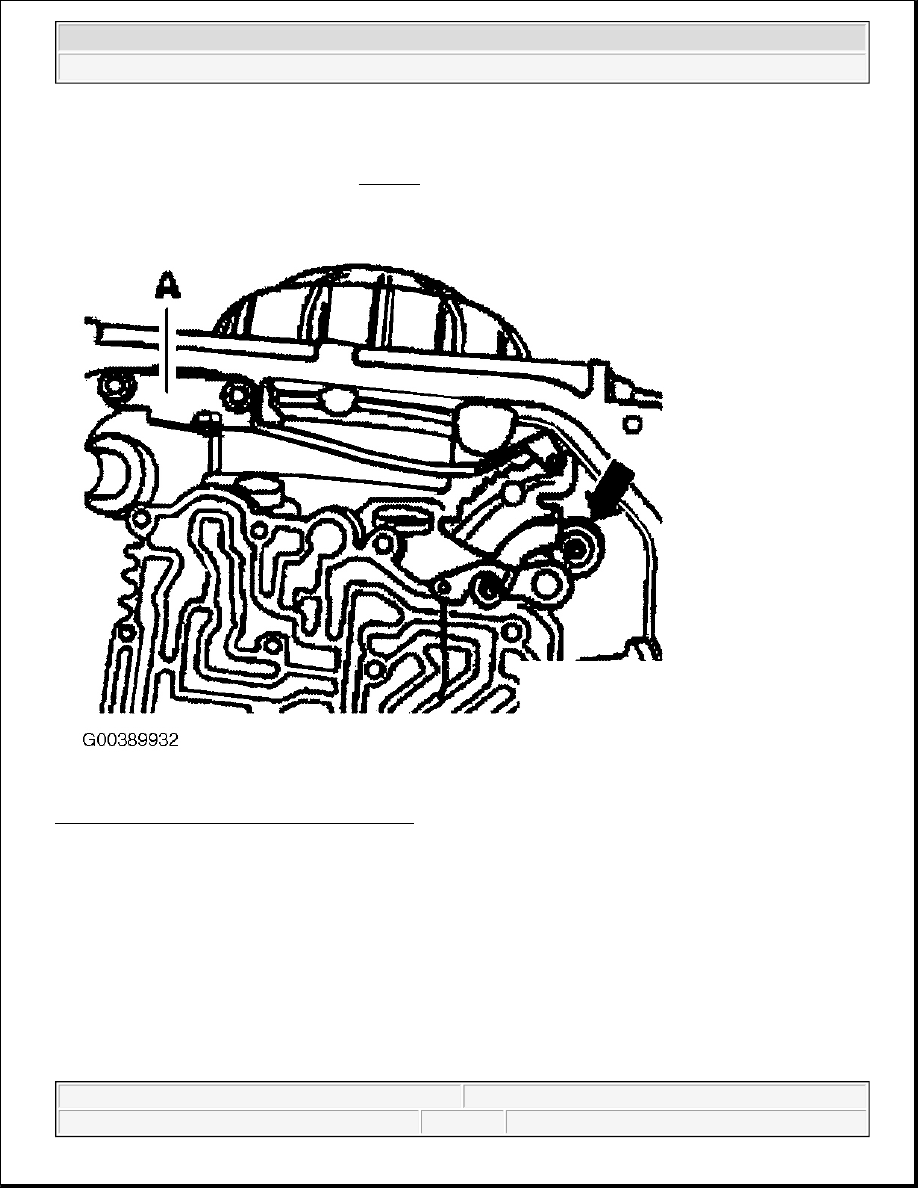

Fig. 147: Removing & Installing Selector Shaft
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove screw with washer (arrow).

The washer prevents selector shaft movement.

Inserting Guide Plate And Supporting Plate



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

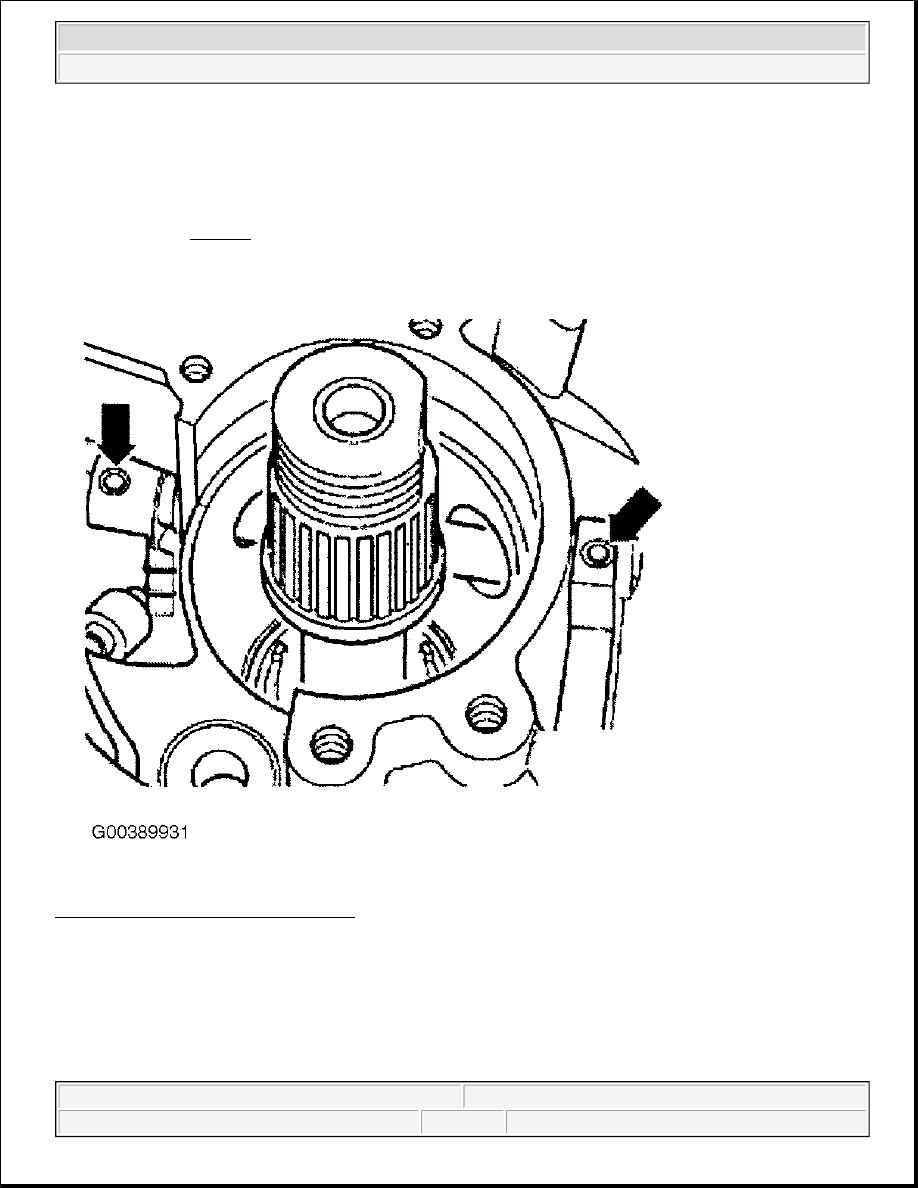

Fig. 148: Inserting Guide Plate & Supporting Plate
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Inserting Pawl With Return Spring
