Fig. 156: Identifying Transmisson-To-Body Bolt Torque Specifications
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove pendulum support -A- and -B-. See Fig. 158 .

Lower transmission approx. 60 mm -a-. See Fig. 157 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



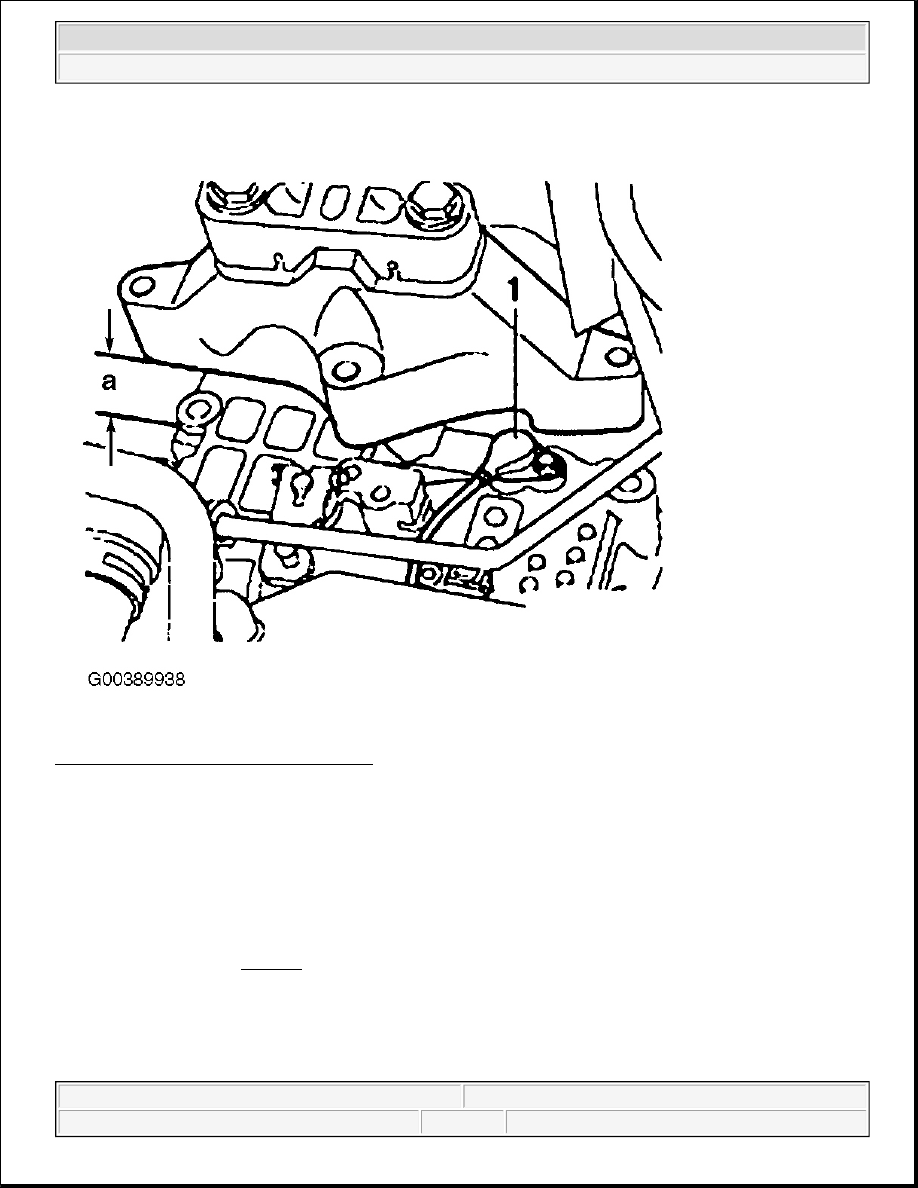

Fig. 157: Removing Vehicle Speed Sensor
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect black connector from sensor.

Remove bolt and take sensor -1- out.

Replace seal.

Installation is performed in the reverse order of removal. Tighten bolt to 10 Nm. For pendulum support bolt
torque specifications, see Fig. 158 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



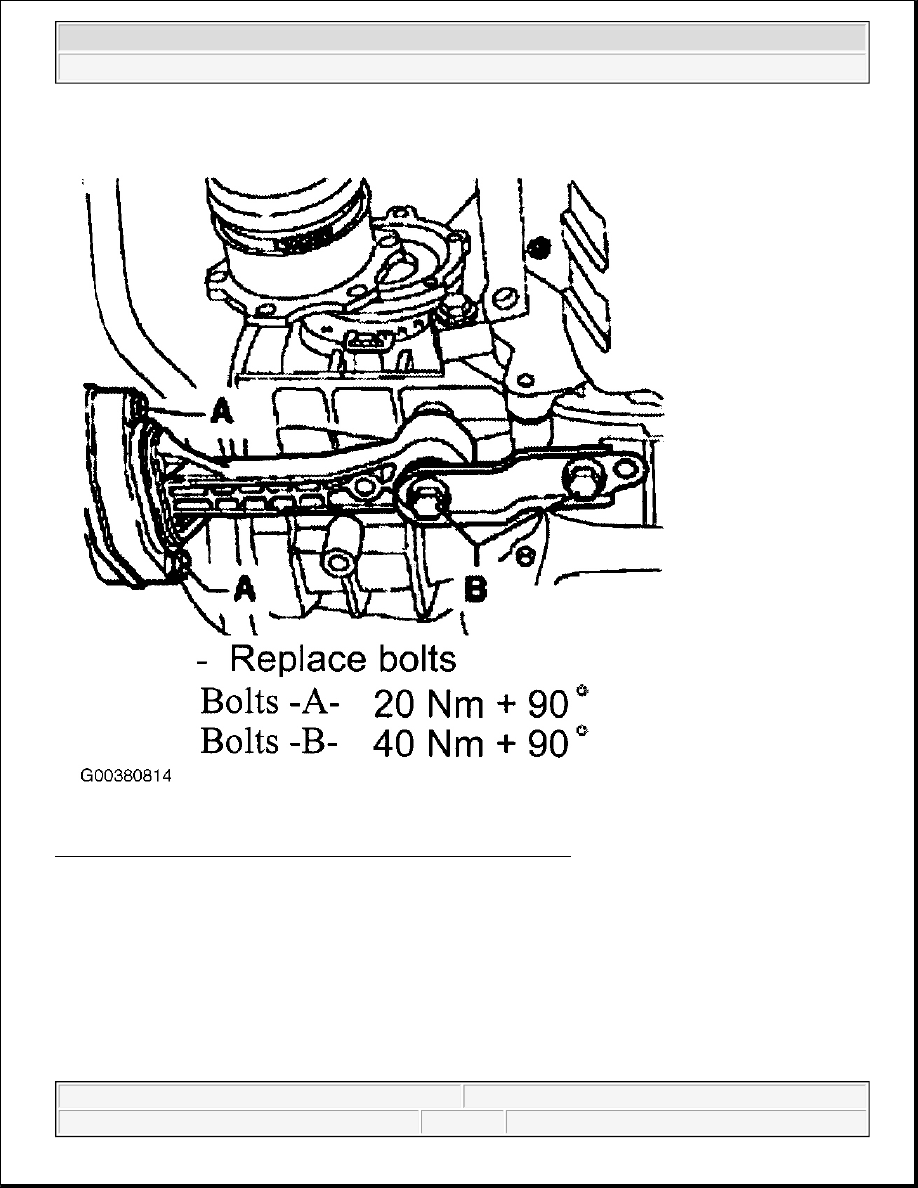

Fig. 158: Identifying Pendulum Support Bolt Torque Specifications
Courtesy of VOLKSWAGEN UNITED STATES, INC.

FINAL DRIVE, DISASSEMBLING AND ASSEMBLING

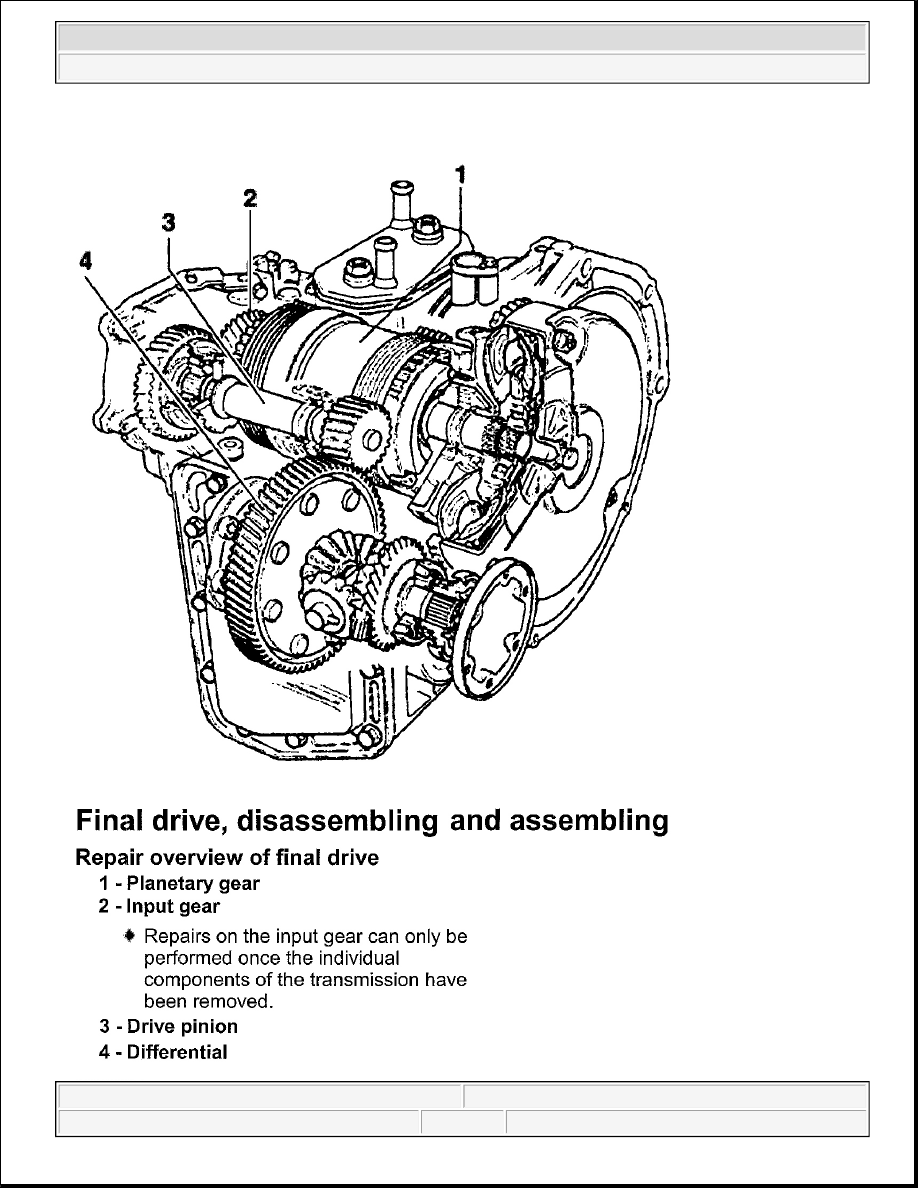

REPAIR OVERVIEW OF FINAL DRIVE
