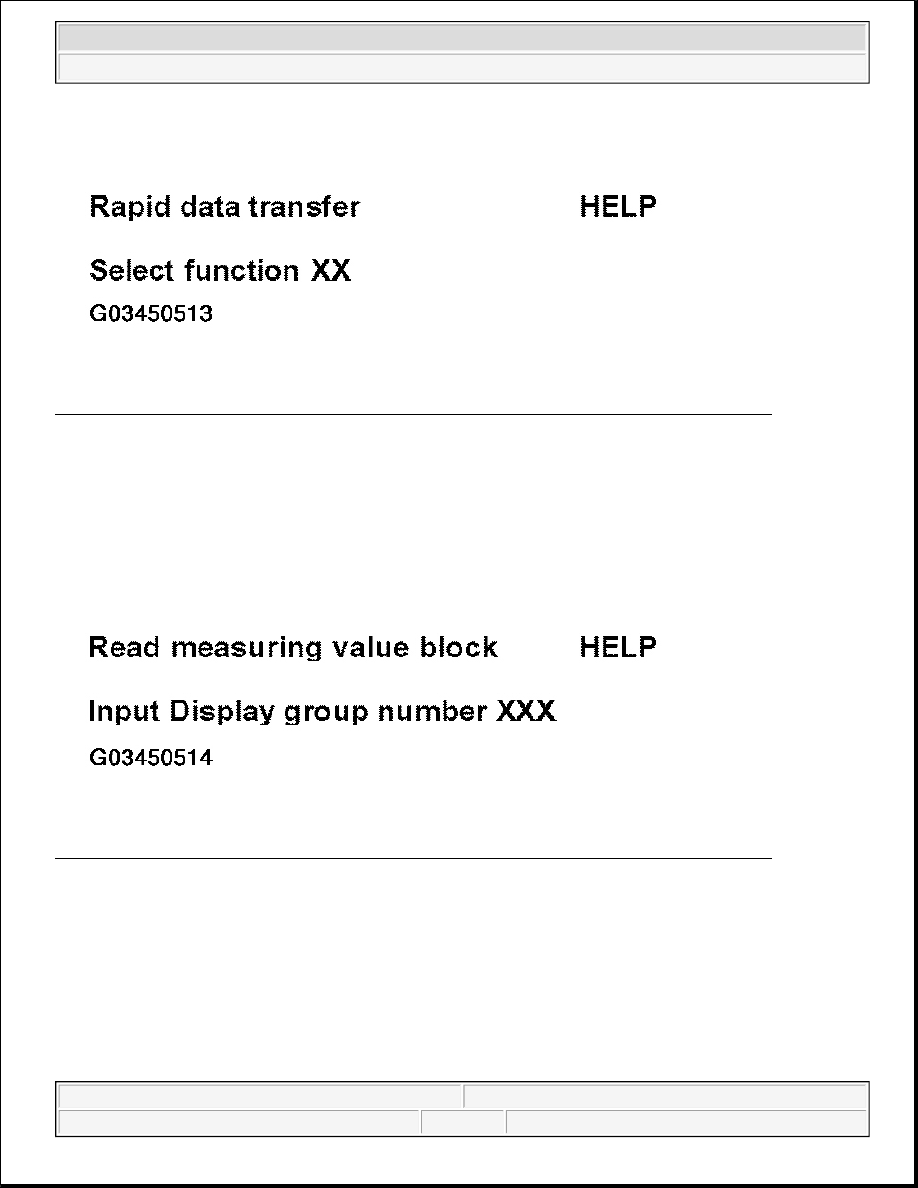

Fig. 53: Scan Tool Display - Brake Light Switch & Brake Vacuum Vent Valve Switch (2 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -8- buttons to select Function 08: "Read measuring value block".

z

Press -Q- button to enter input.

Display will appear as shown:

Fig. 54: Scan Tool Display - Brake Light Switch & Brake Vacuum Vent Valve Switch (3 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -6- to select "Display group 6".

z

Press -Q- button to enter input.

z

Observe values in Display zone 2.

Specification: 0 0 0



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle

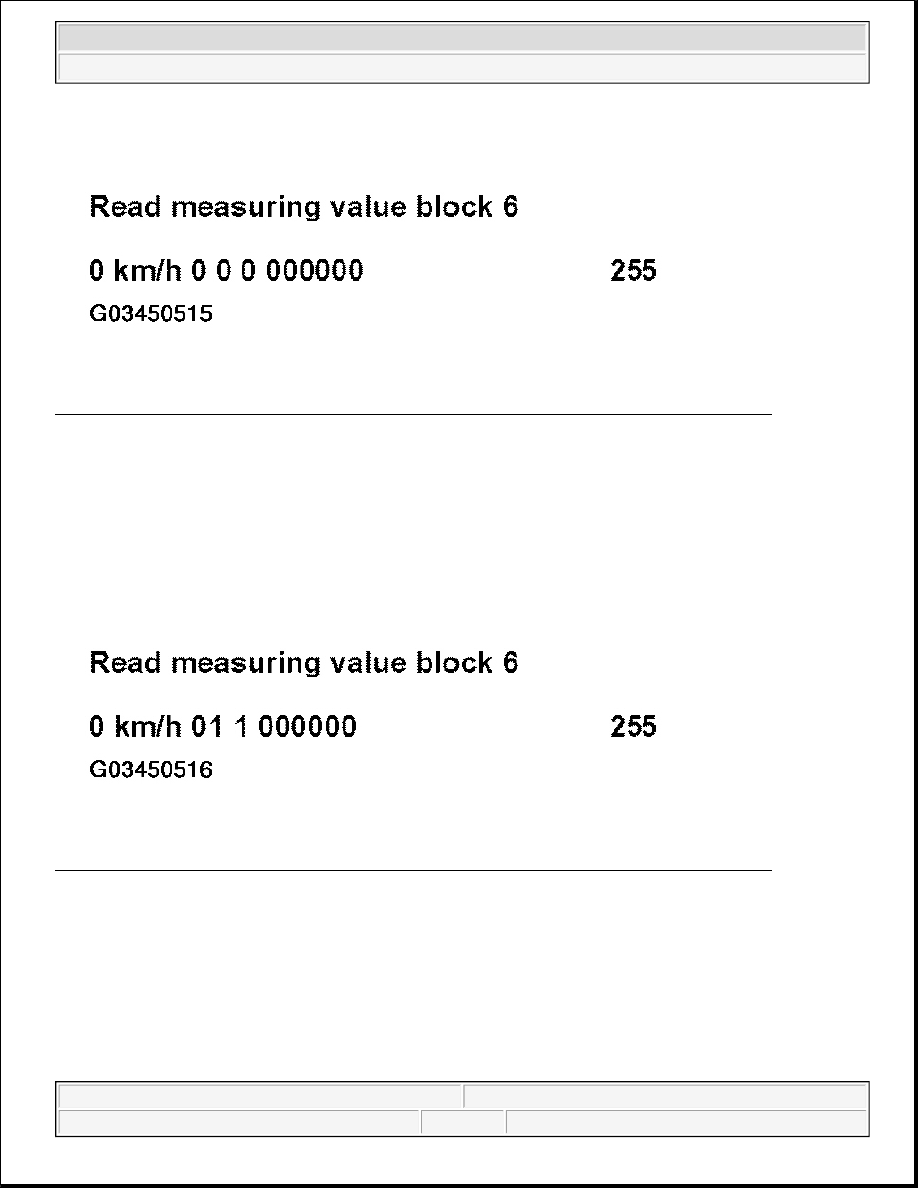

Fig. 55: Scan Tool Display - Brake Light Switch & Brake Vacuum Vent Valve Switch (4 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Slowly operate brake pedal.

z

Specification: 0 1 1

Both displays must change from 0 to 1 at same time.

Fig. 56: Scan Tool Display - Brake Light Switch & Brake Vacuum Vent Valve Switch (5 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Center display = Brake Vacuum Vent Valve Switch -F47-

z

Right-hand display = Brake Light Switch -F-

z

Slowly release brake pedal to rest position again.

Both displays must change from 1 to 0 again.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



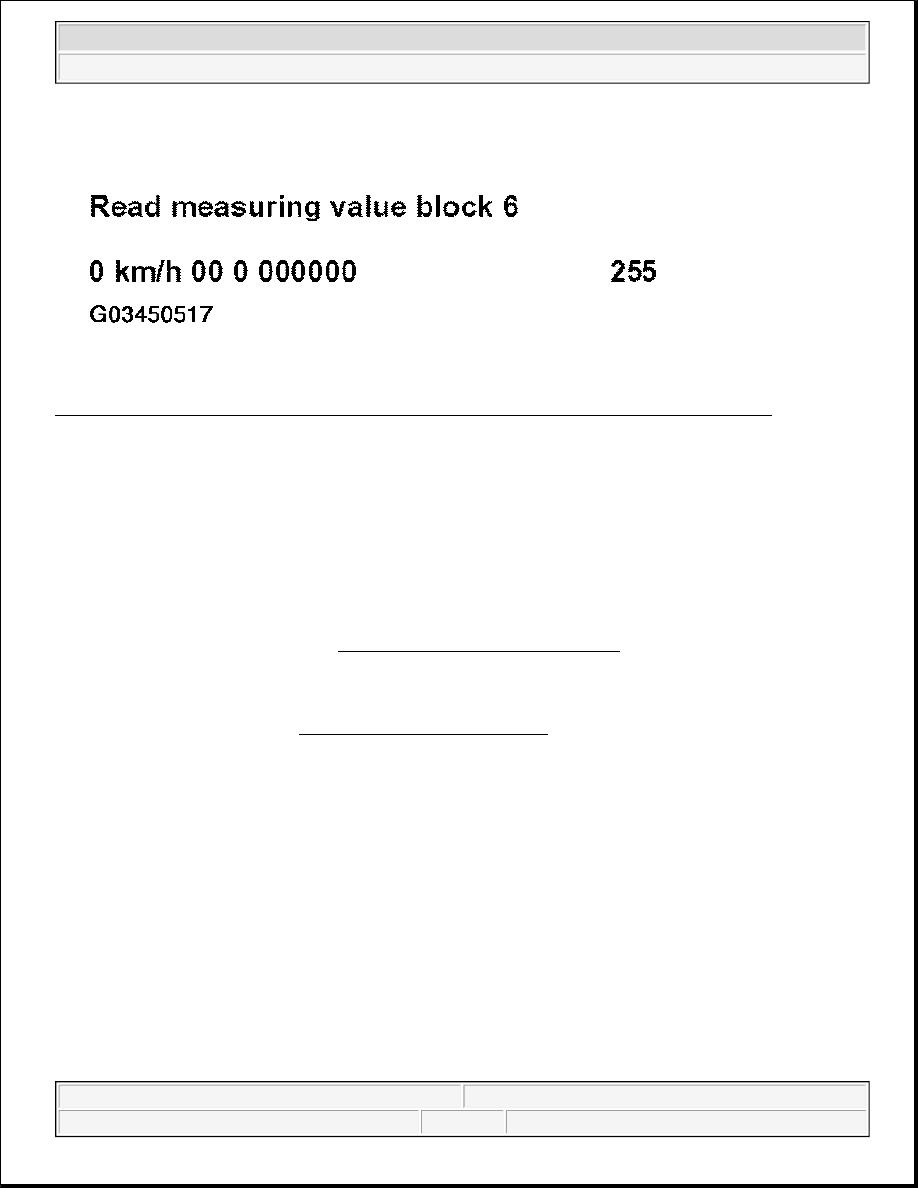

Fig. 57: Scan Tool Display - Brake Light Switch & Brake Vacuum Vent Valve Switch (6 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If one or both displays do not change:

z

Adjust switch point for -F47- by turning switch.

z

Adjust switch point for -F- by moving plunger.

z

Check switches or wiring to the switches:

See appropriate System Wiring Diagram article.

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory was erased:

z

Set the readiness code. See READINESS CODE, SETTING .

Clutch Vacuum Vent Valve Switch -F36-, checking

Clutch Vacuum Vent Valve Switch -F36- informs the ECM when the clutch is being engaged or disengaged.
This prevents the engine from jerking when disengaging and engaging. It also prevents the engine from racing
during disengagement operations when the Cruise Control System is switched ON.

Special tools

z

VAG1551/1552 Scan Tool using VAG1551/3 Adapter cable

z

VAG1598/22 Test Box (MY 1999)

z

VAG1598/31 Test Box (from MY 2000)

z

Fluke 83 multimeter

z

VW 1594 Adapter kit

z

Wiring diagram



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Test sequence

z

Connect VAG1551/1552 Scan Tool. See VAG1551/1552 SCAN TOOL, CONNECTING .

z

Switch ON ignition but do not start engine.

z

Press -0- and -1- buttons to select Address word 01: "Engine electronics"

Display will appear as shown (example only):

Fig. 58: Scan Tool Display - Clutch Vacuum Vent Valve Switch (1 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Display will appear as shown:
